Model Huebsch HCT060QL Washer – Common Parts & Diagrams

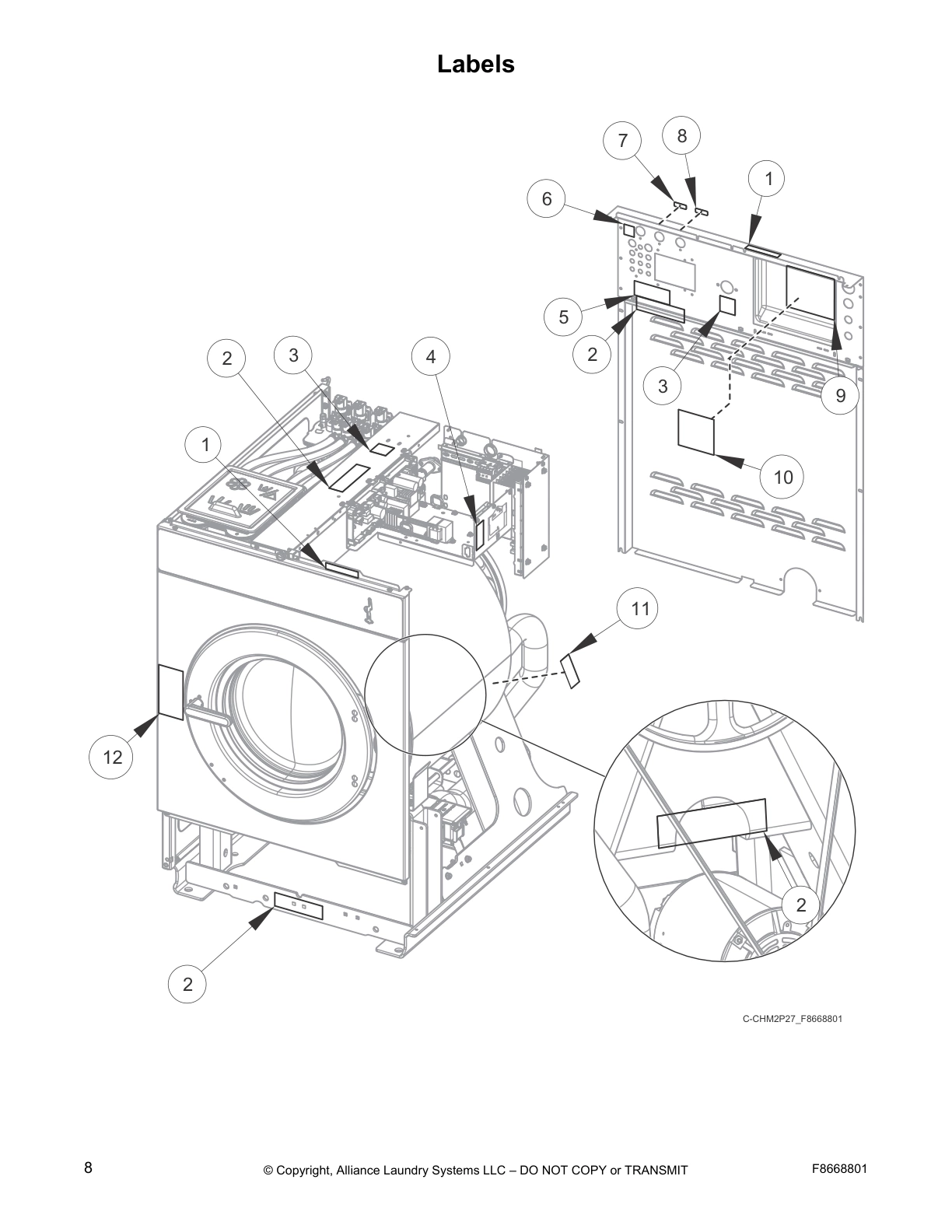

Labels

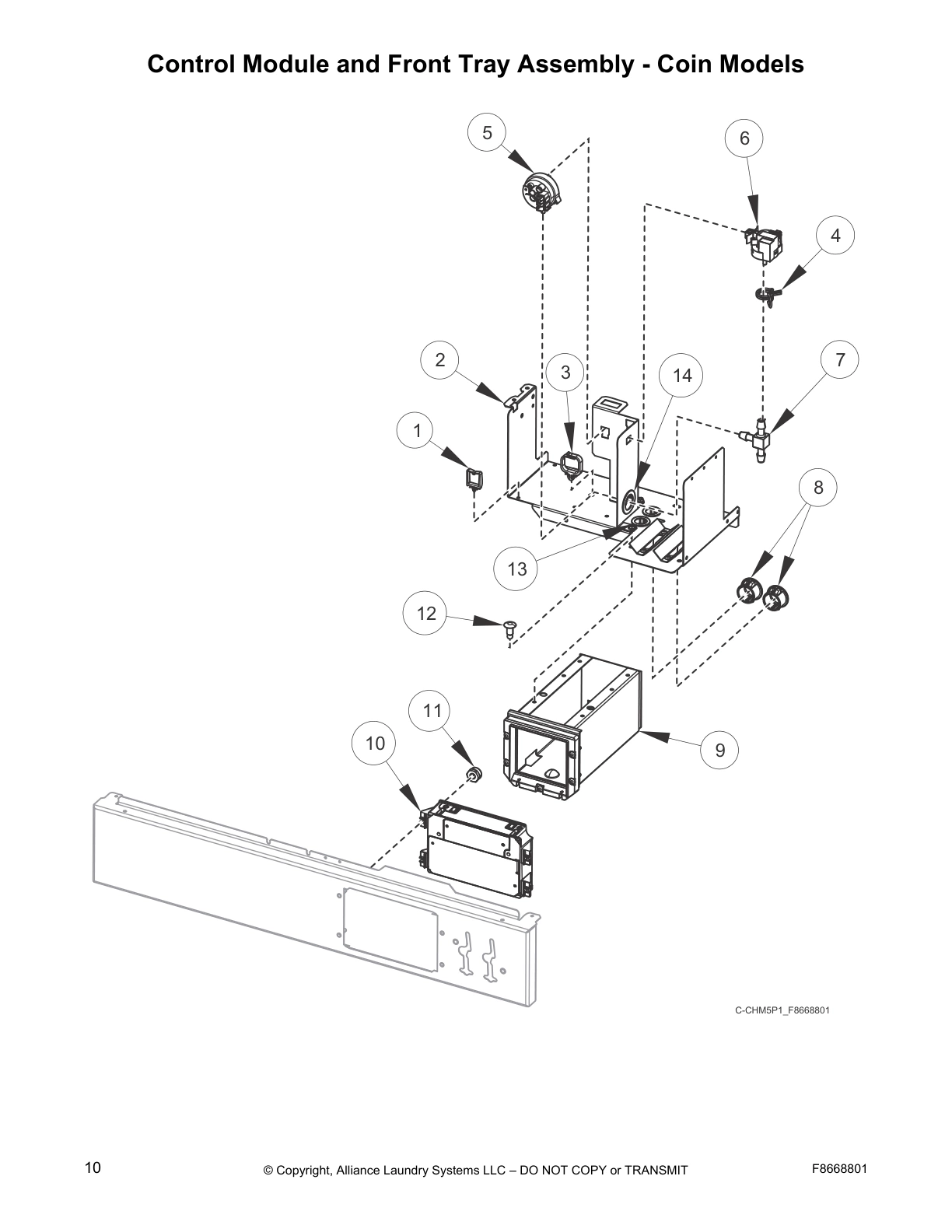

Control Module and Front Tray Assembly - Coin Models

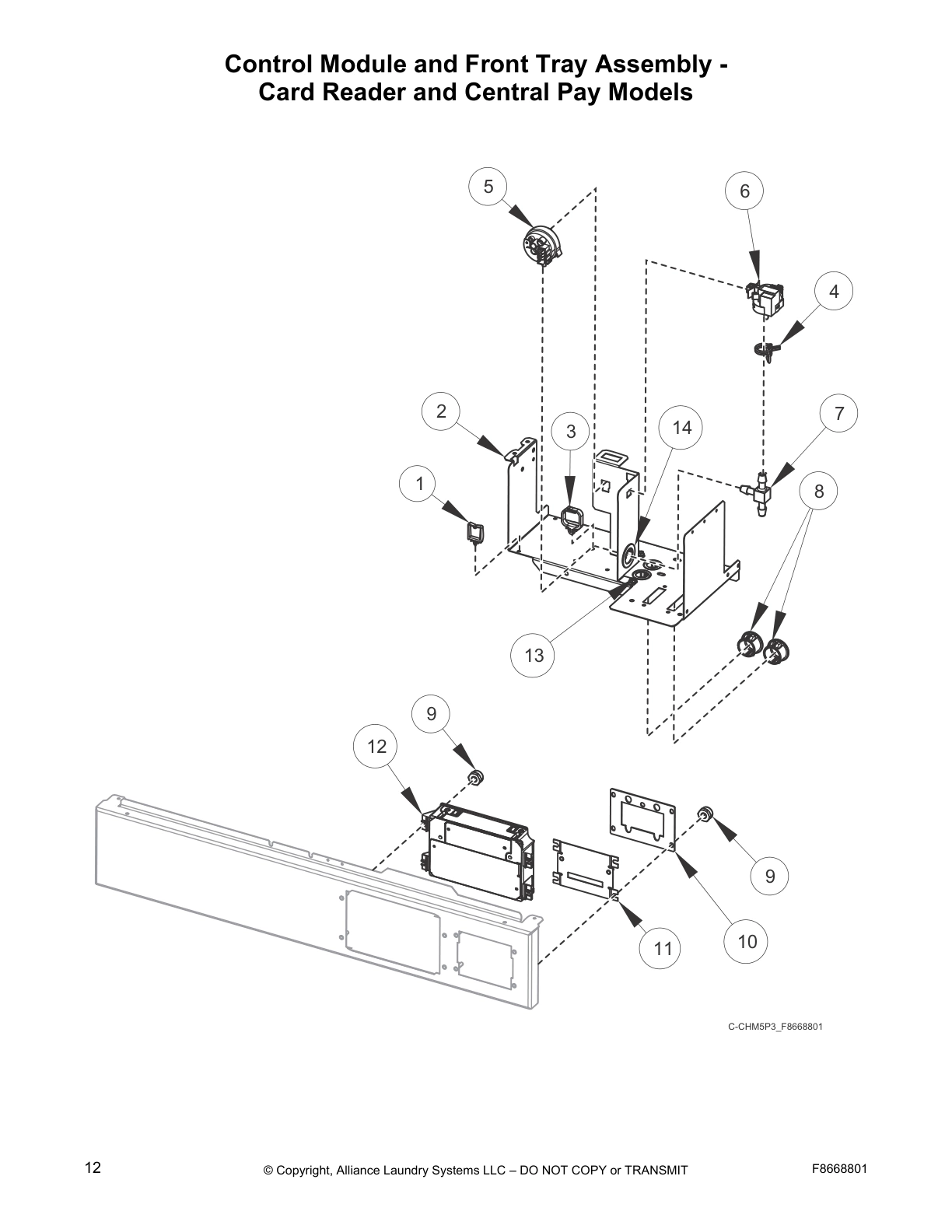

Control Module and Front Tray Assembly -
Card Reader and Central Pay Models

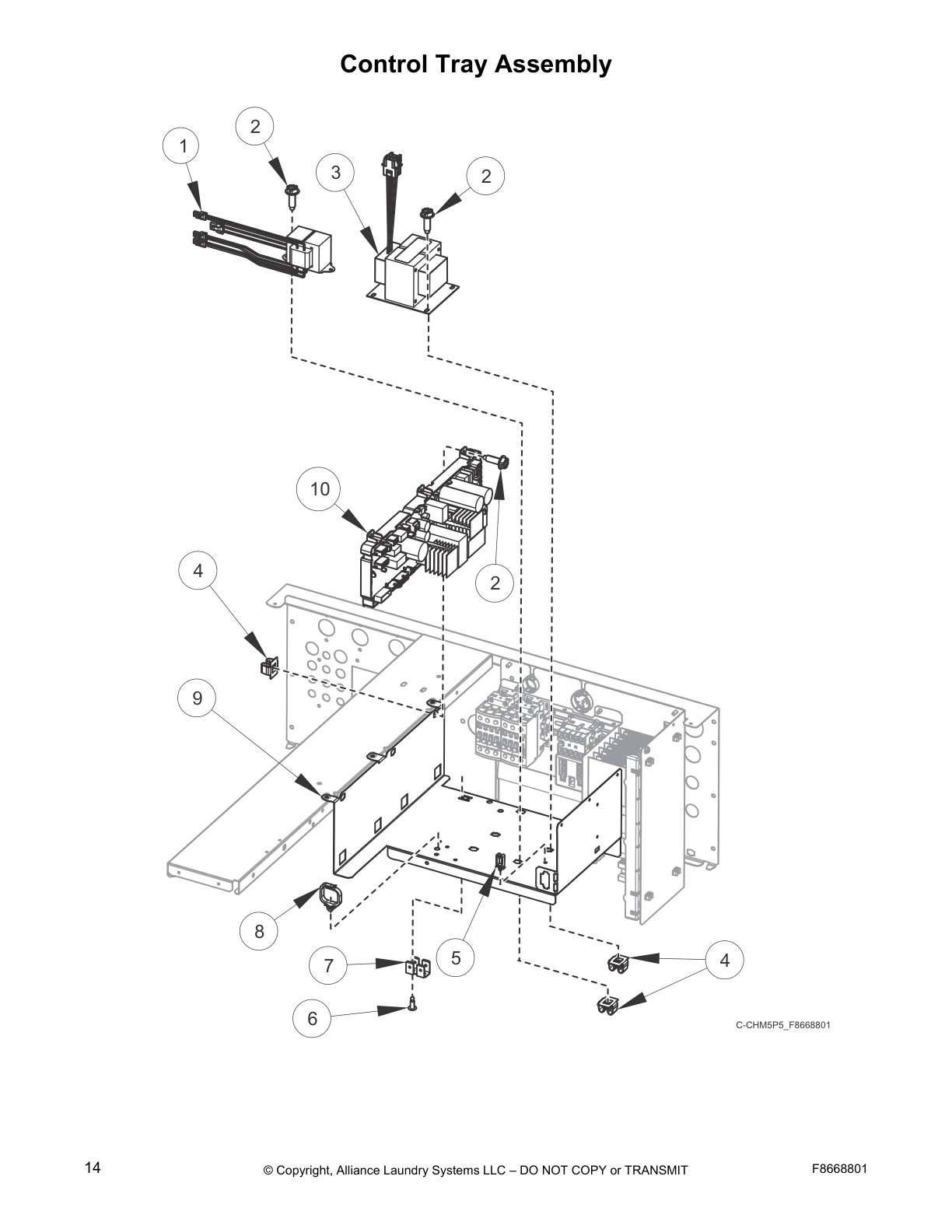

Control Tray Assembly

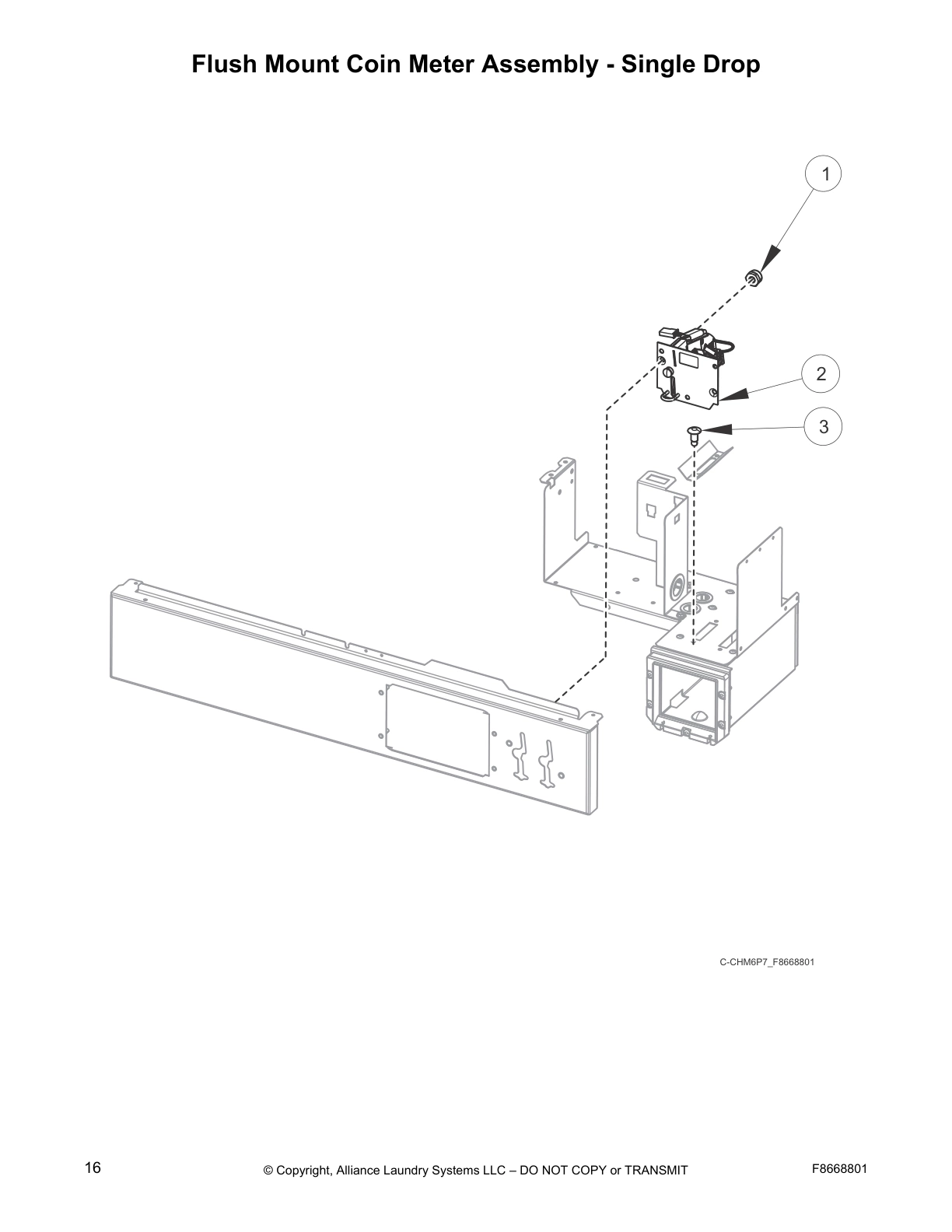

Flush Mount Coin Meter Assembly - Single Drop

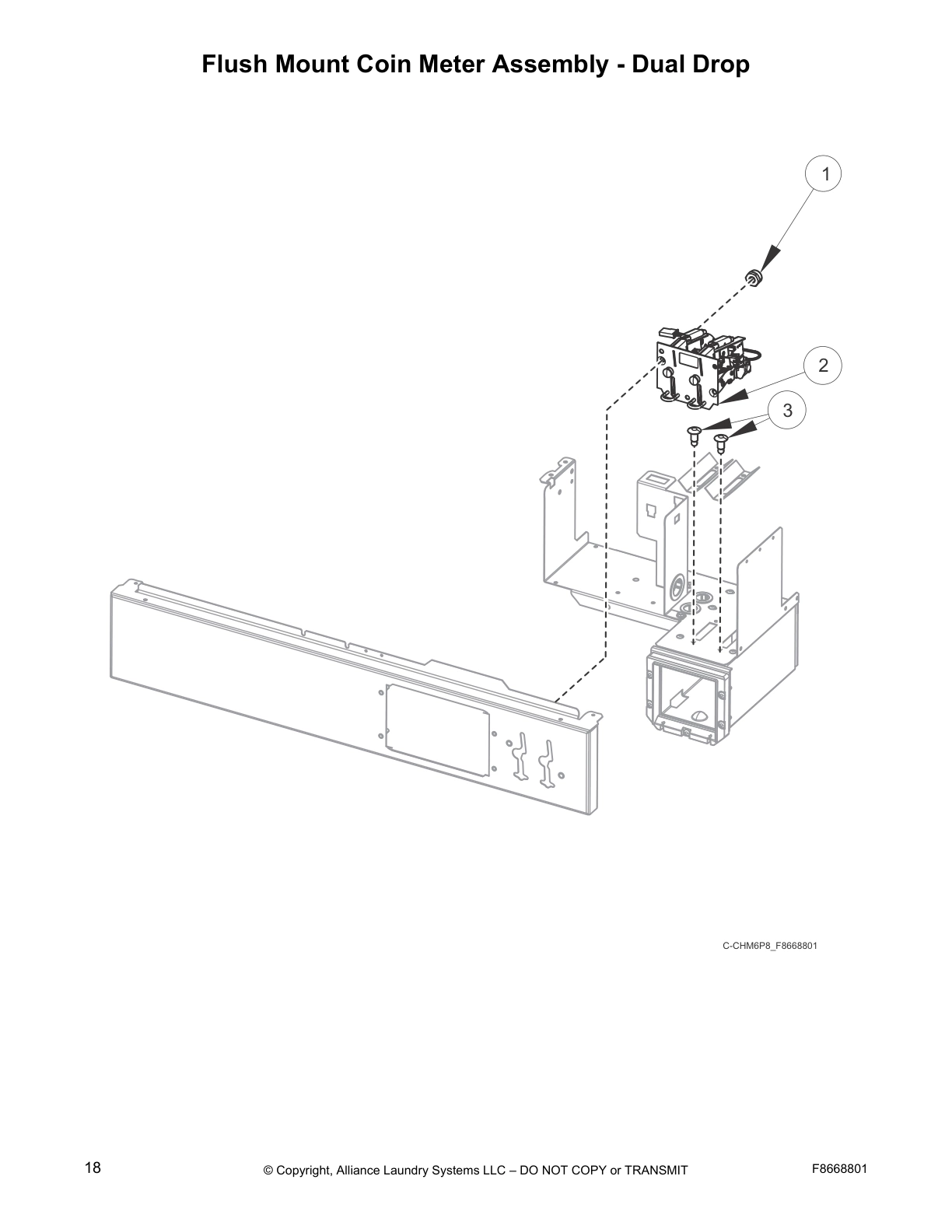

Flush Mount Coin Meter Assembly - Dual Drop

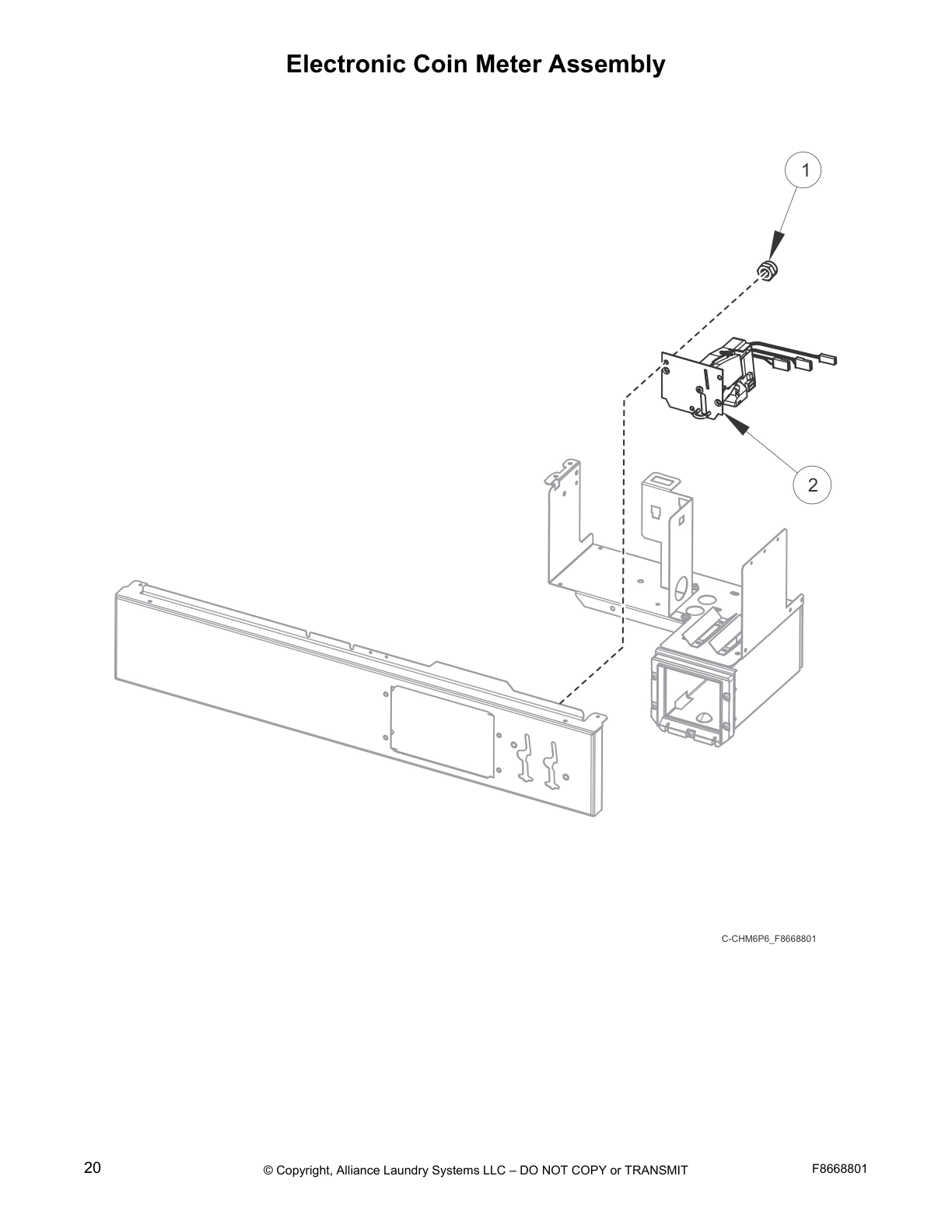

Electronic Coin Meter Assembly

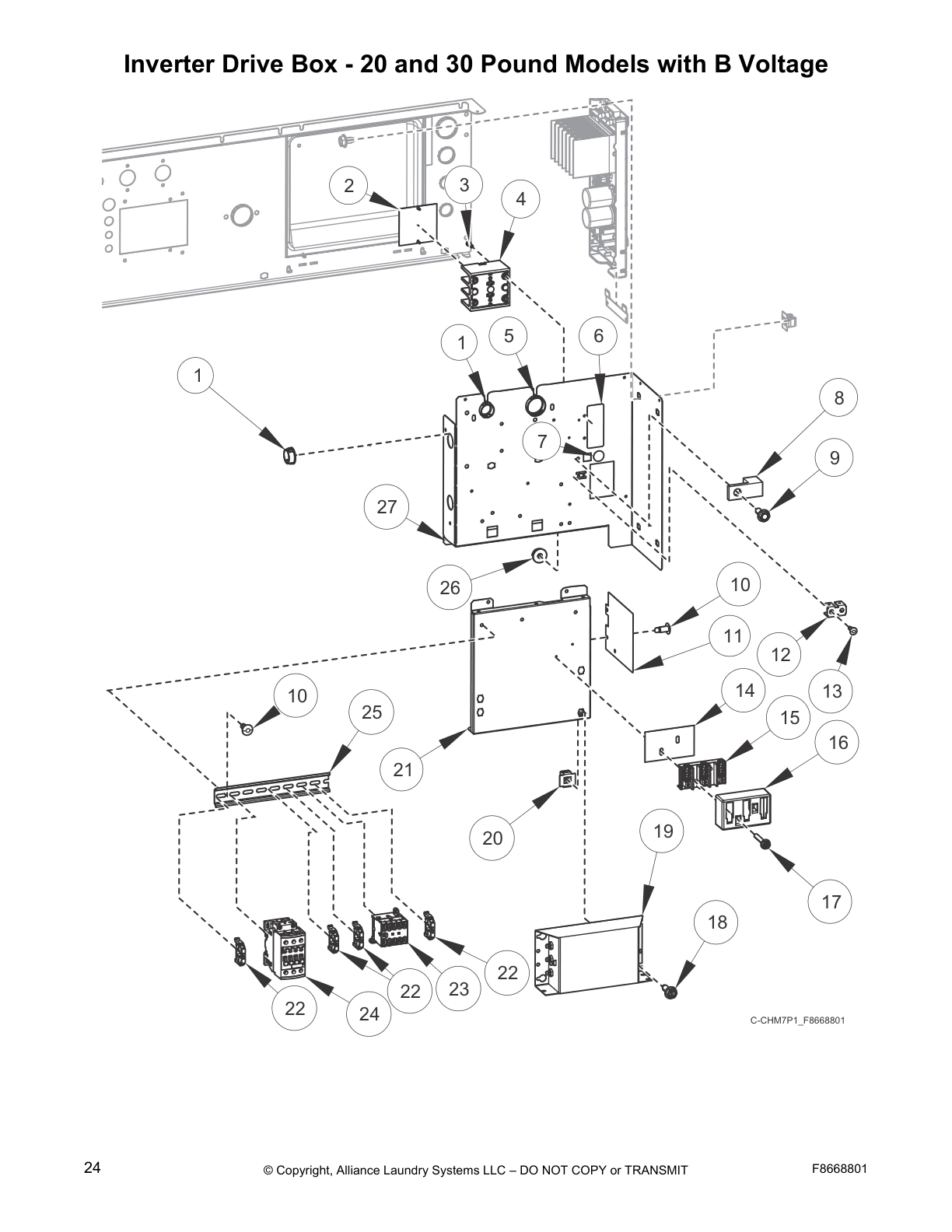

Inverter Drive Box - 20 and 30 Pound Models with B Voltage

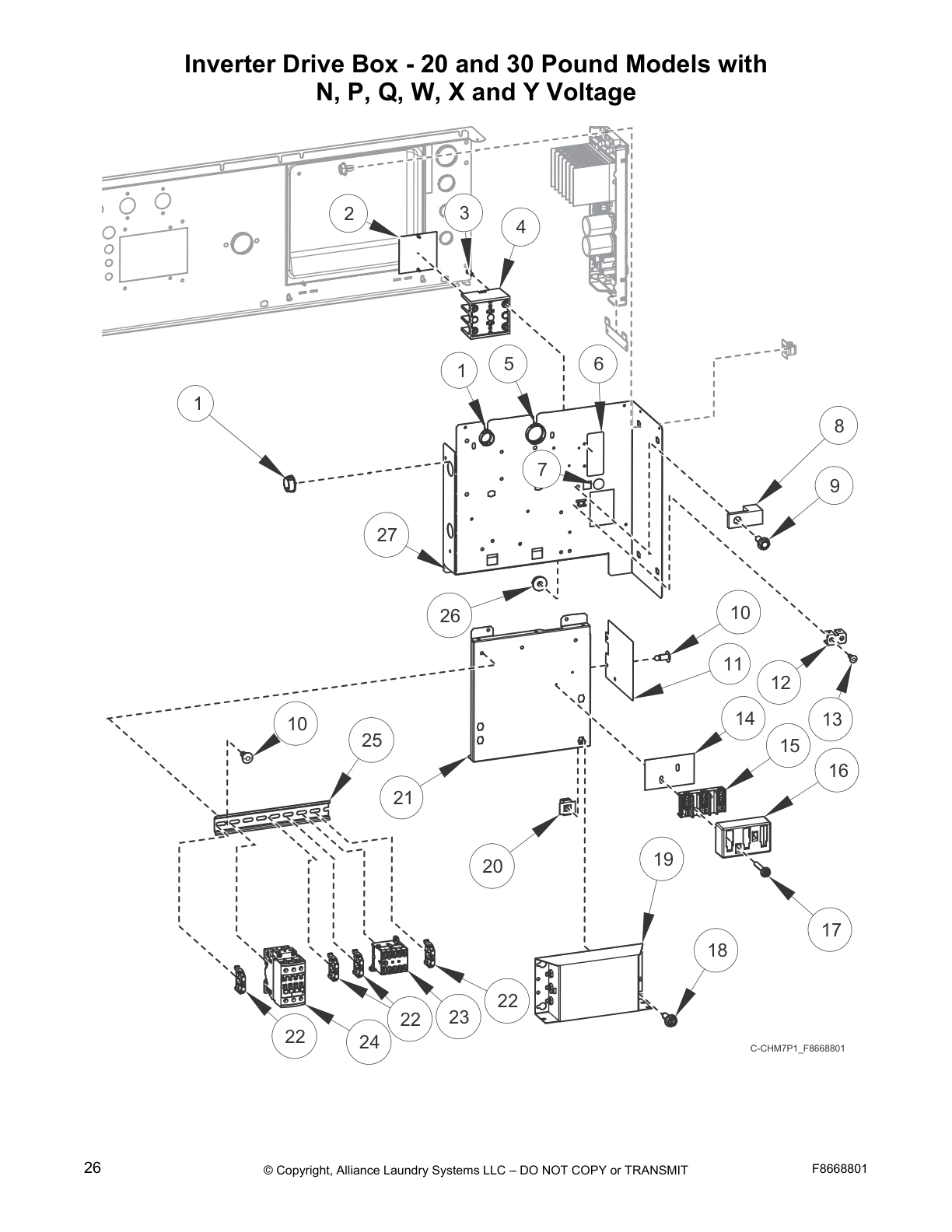

Inverter Drive Box - 20 and 30 Pound Models with
N, P, Q, W, X and Y Voltage

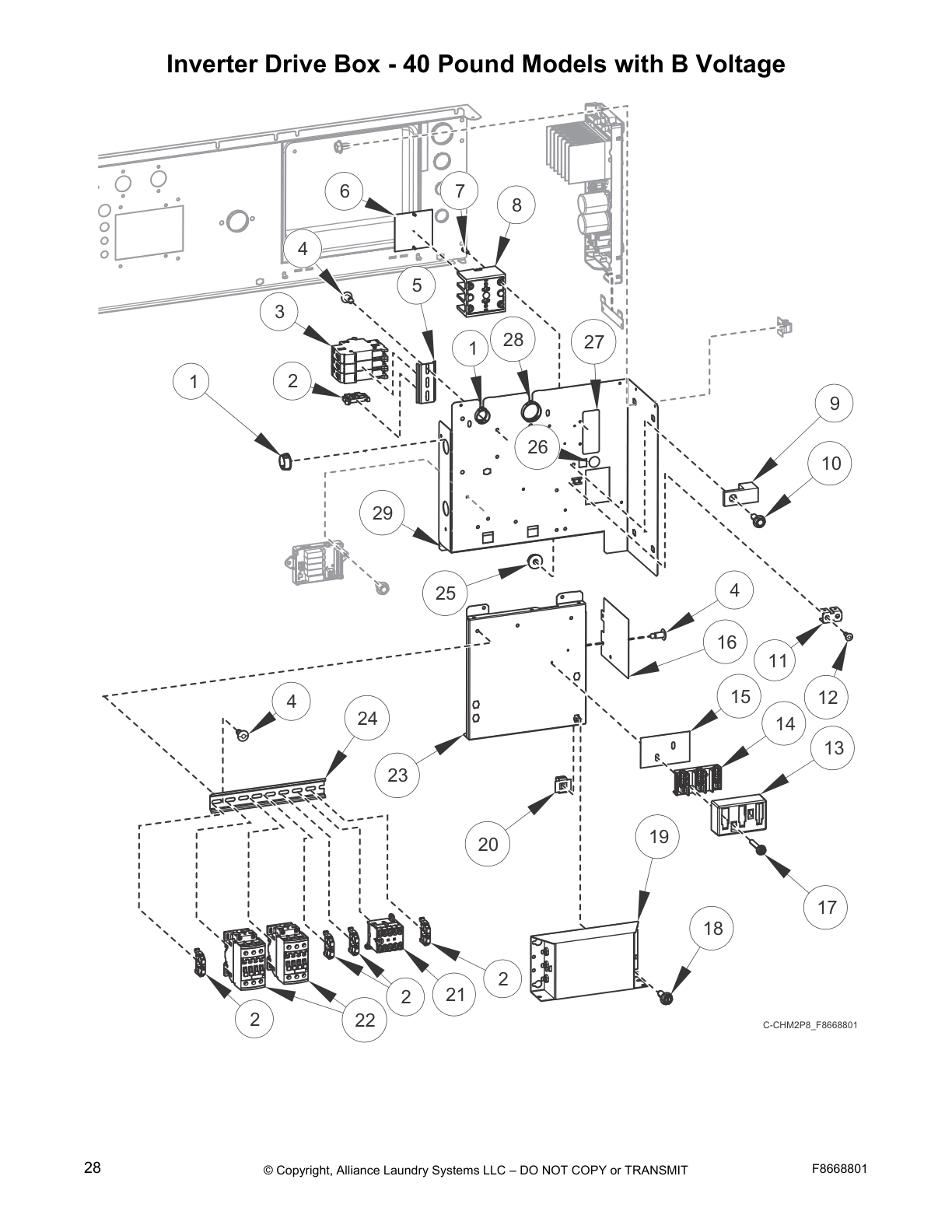

Inverter Drive Box - 40 Pound Models with B Voltage

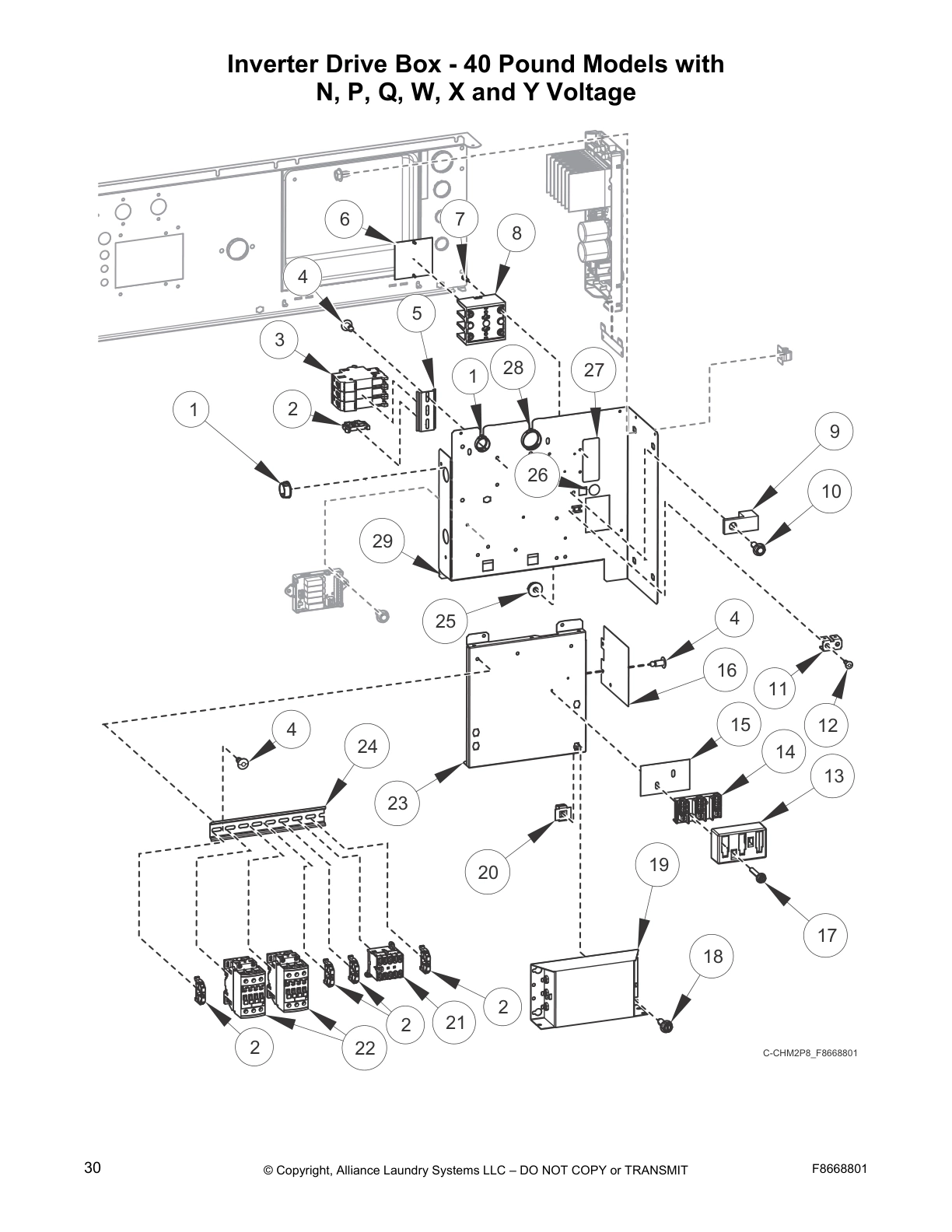

Inverter Drive Box - 40 Pound Models with
N, P, Q, W, X and Y Voltage
Inverter Drive Box - 60 Pound Models with Q and X Voltage
Inverter Drive Box - 60 Pound Models with N and P Voltage

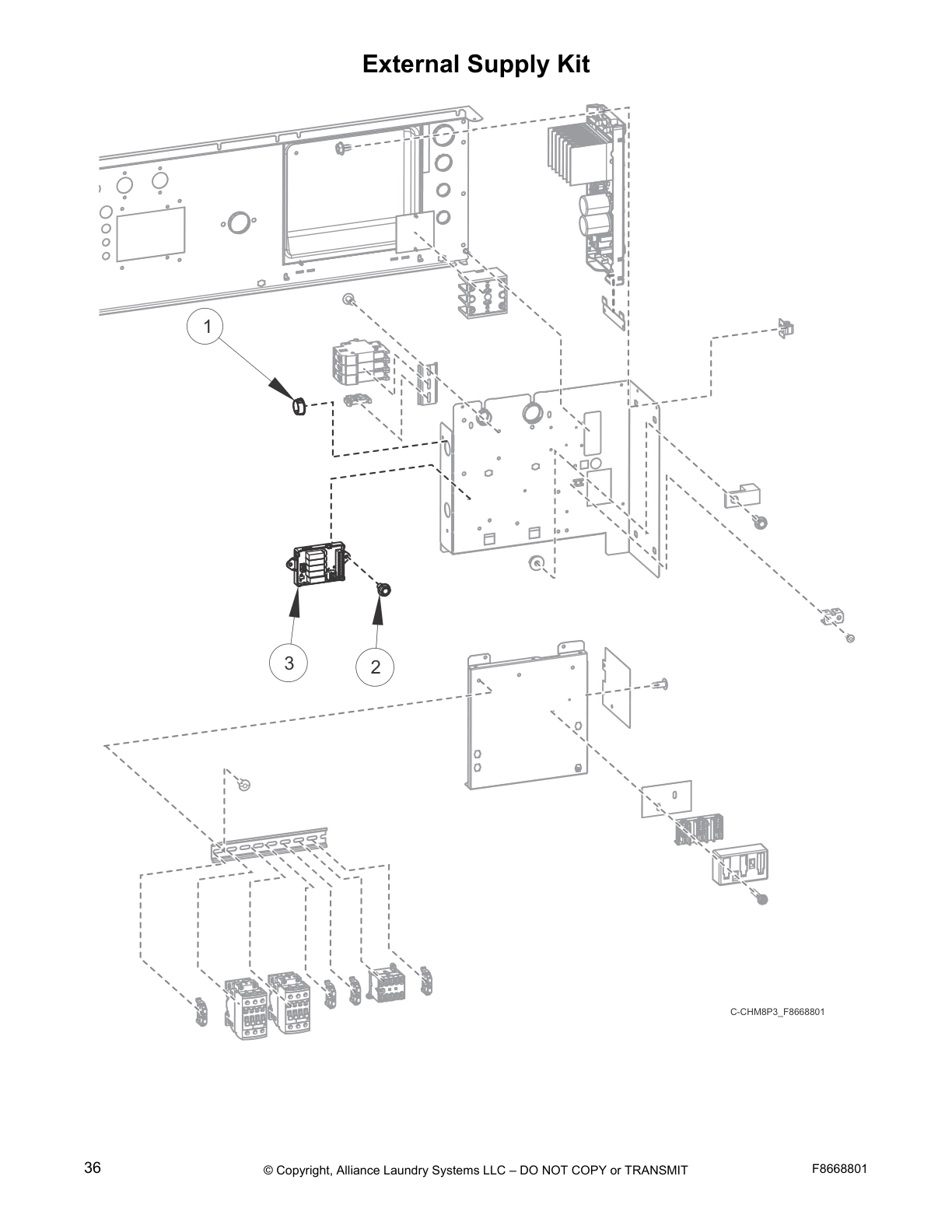

External Supply Kit

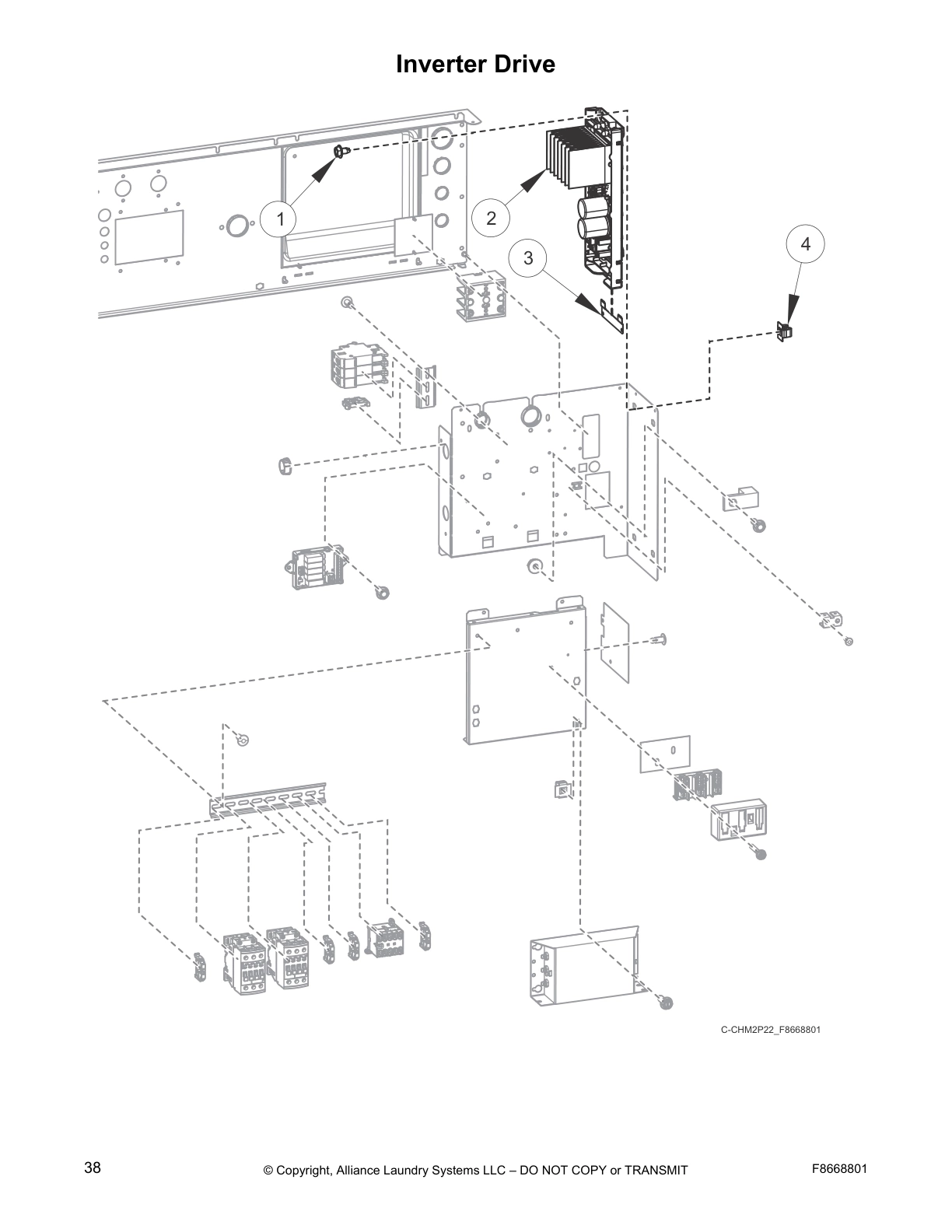

Inverter Drive

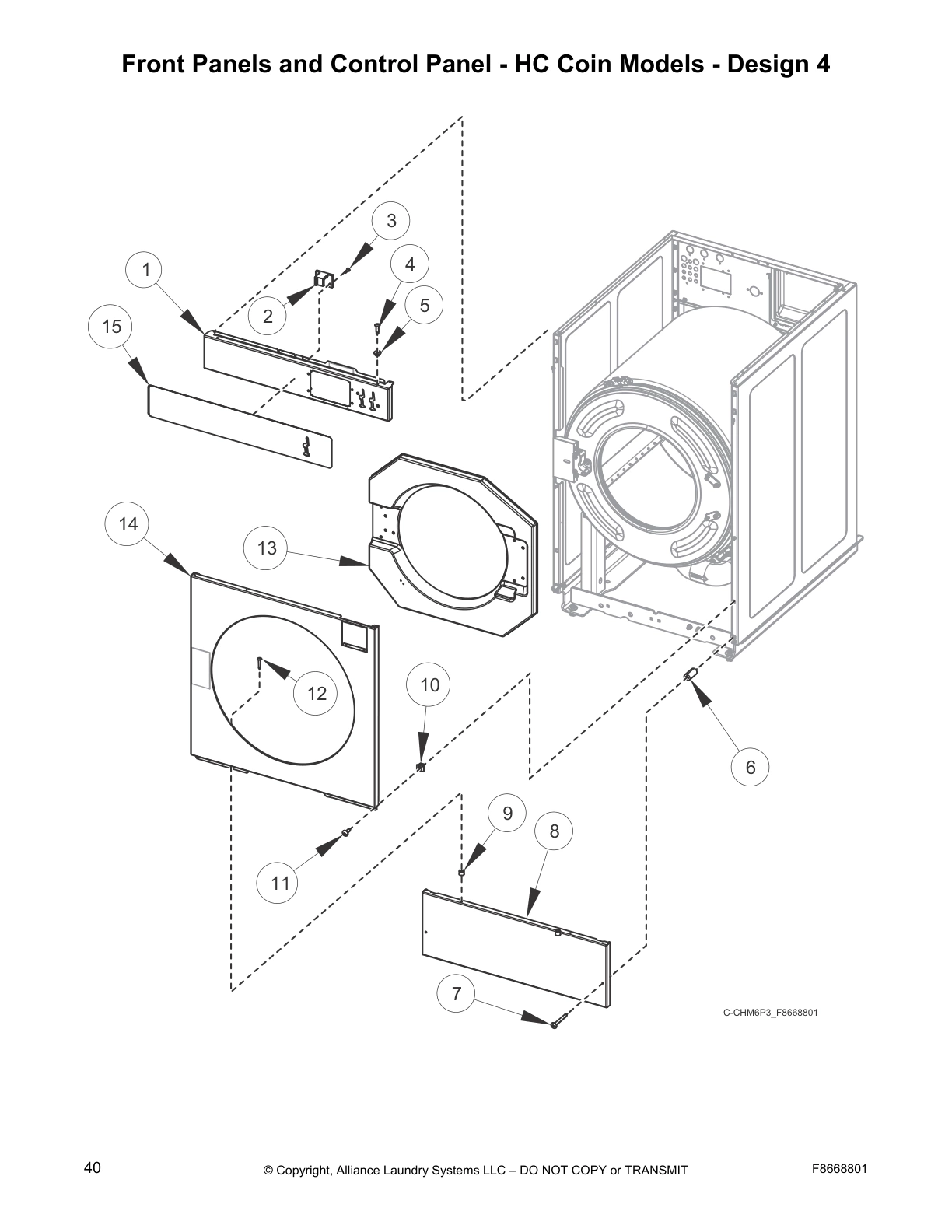

Front Panels and Control Panel - HC Coin Models - Design 4

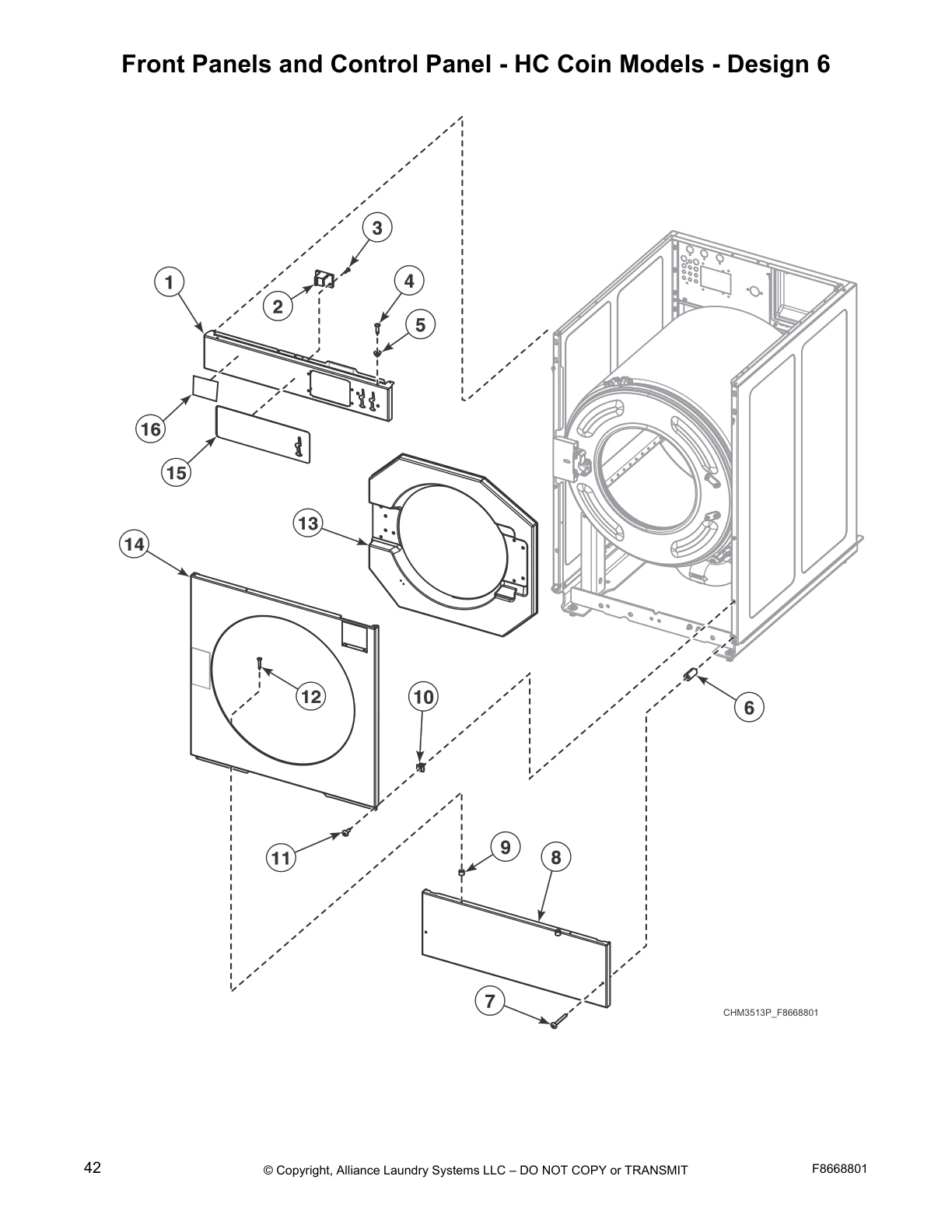

Front Panels and Control Panel - HC Coin Models - Design 6

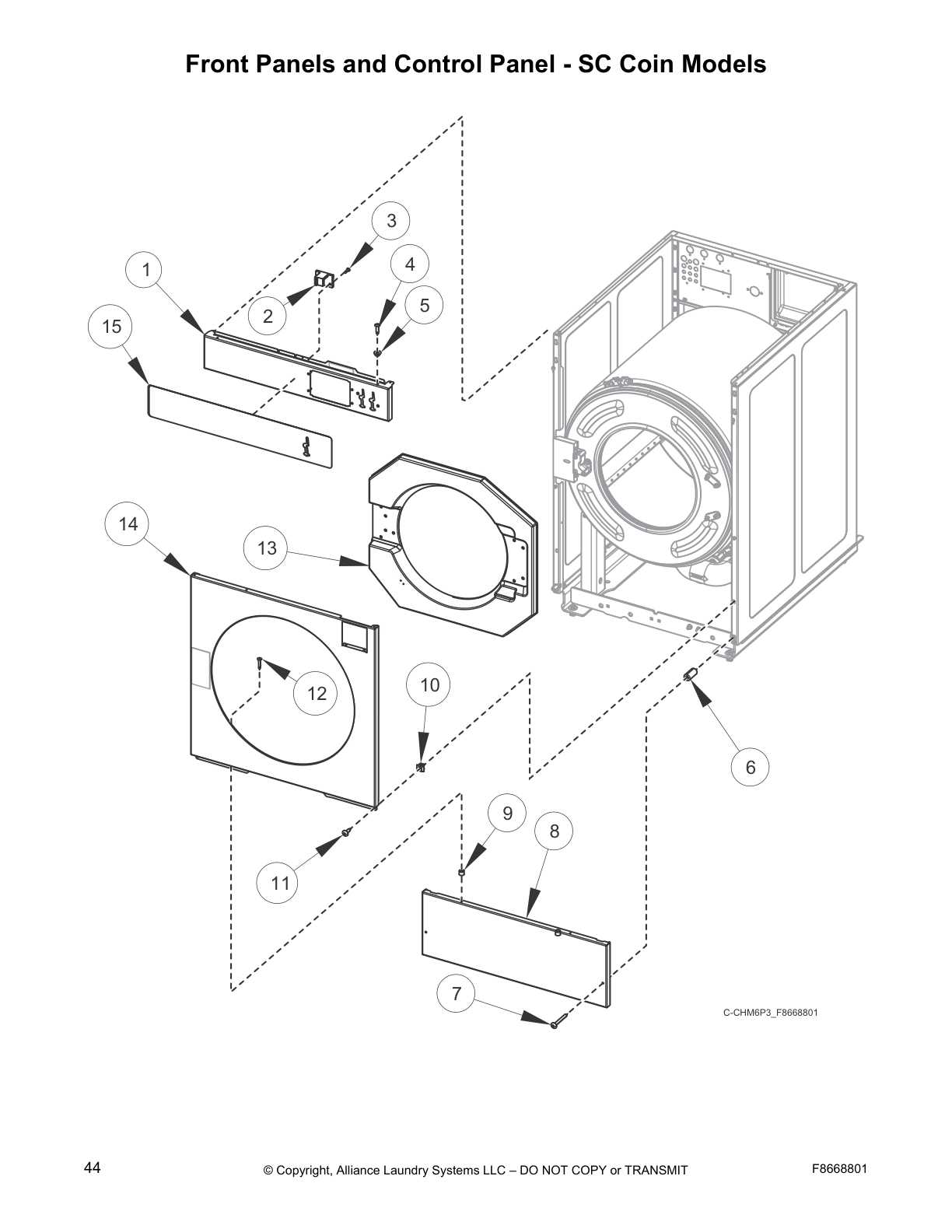

Front Panels and Control Panel - SC Coin Models
Front Panels and Control Panel - Card Reader and Central Pay

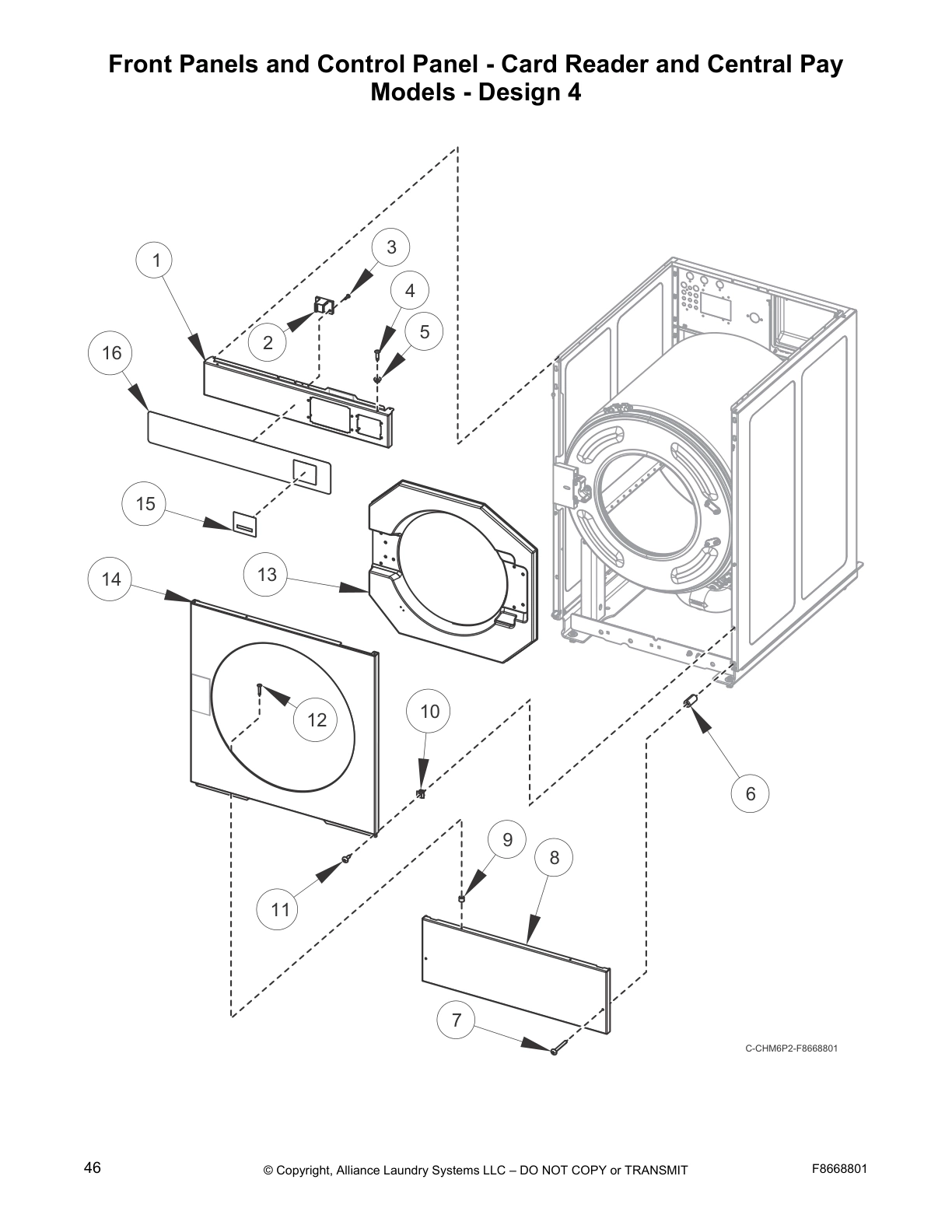

Models - Design 4

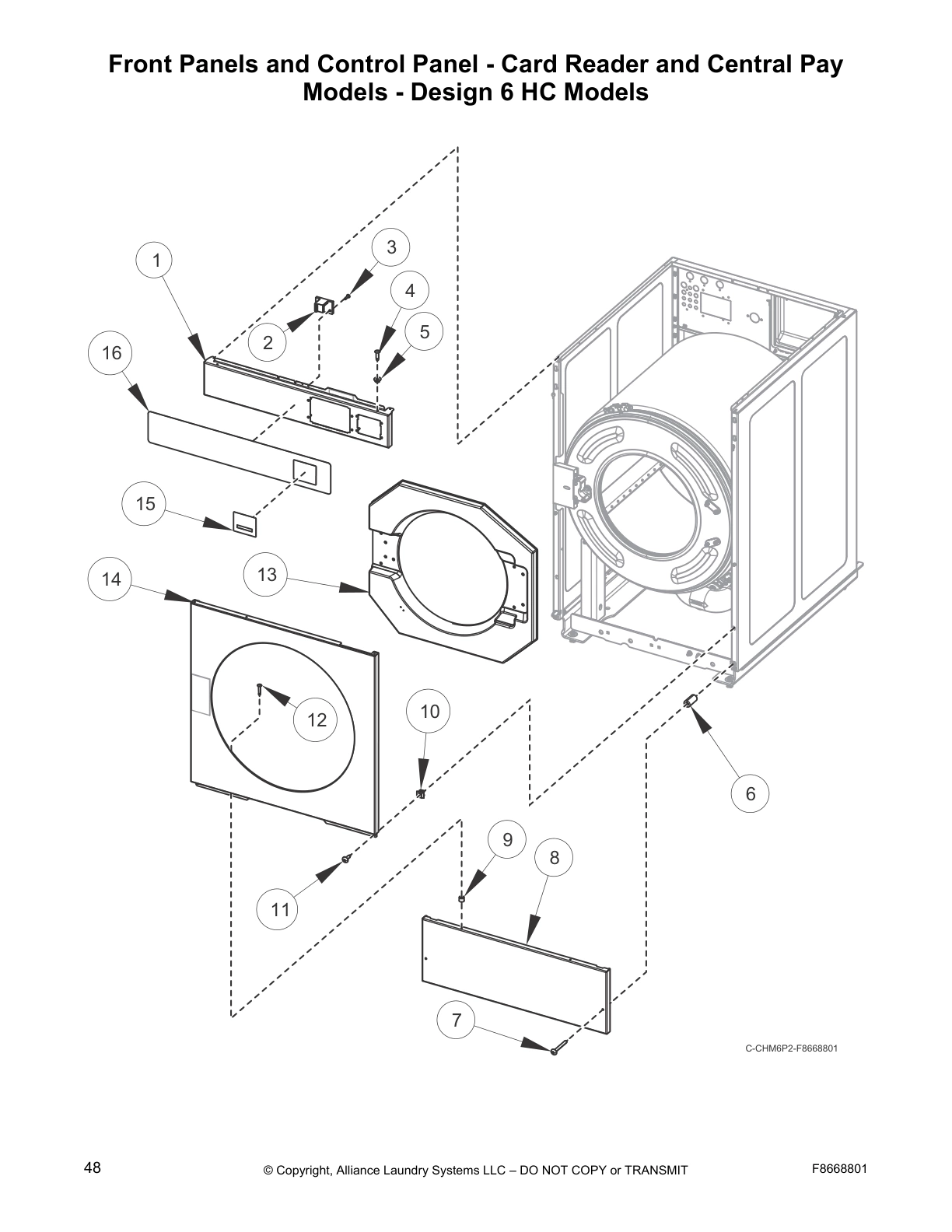

Front Panels and Control Panel - Card Reader and Central Pay
Models - Design 6 HC Models

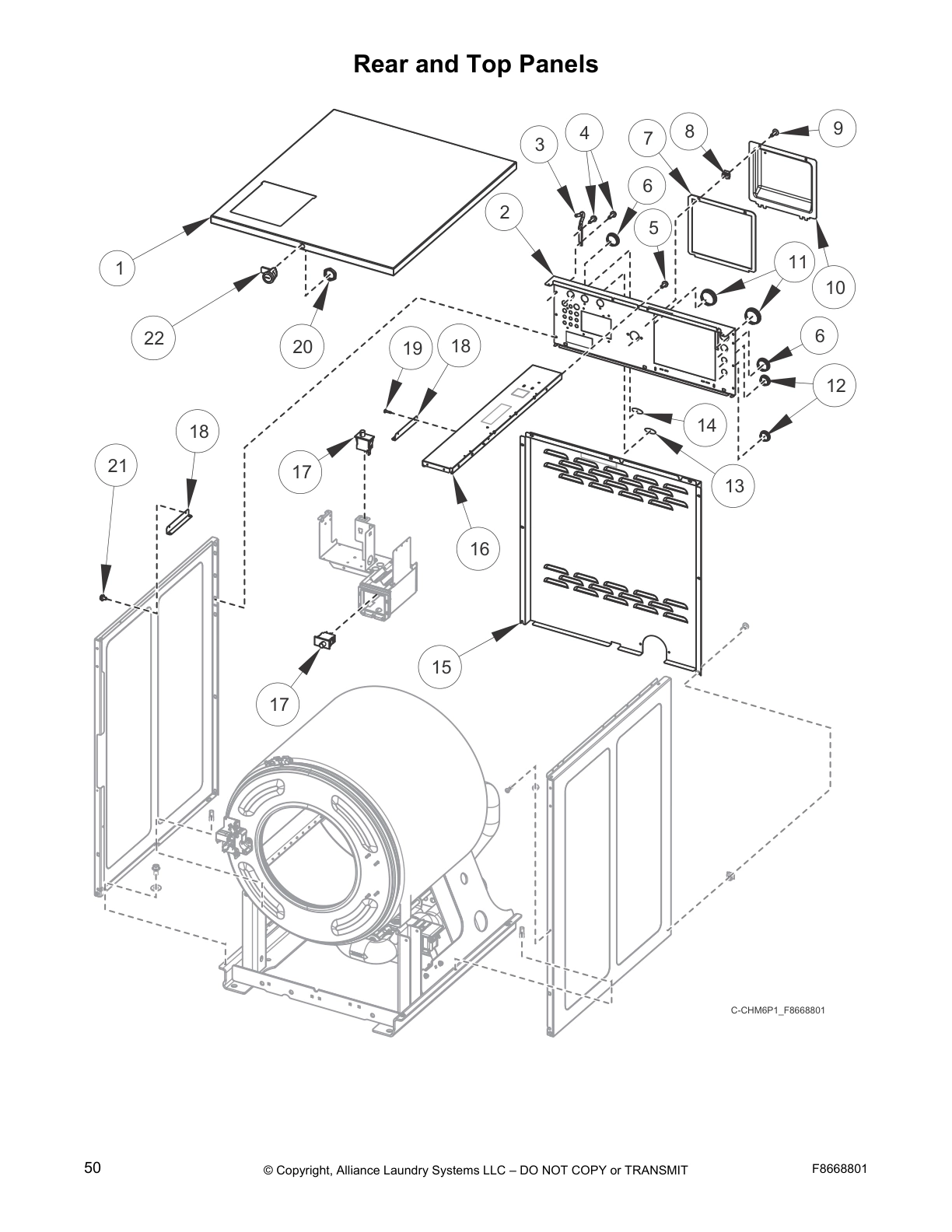

Rear and Top Panels

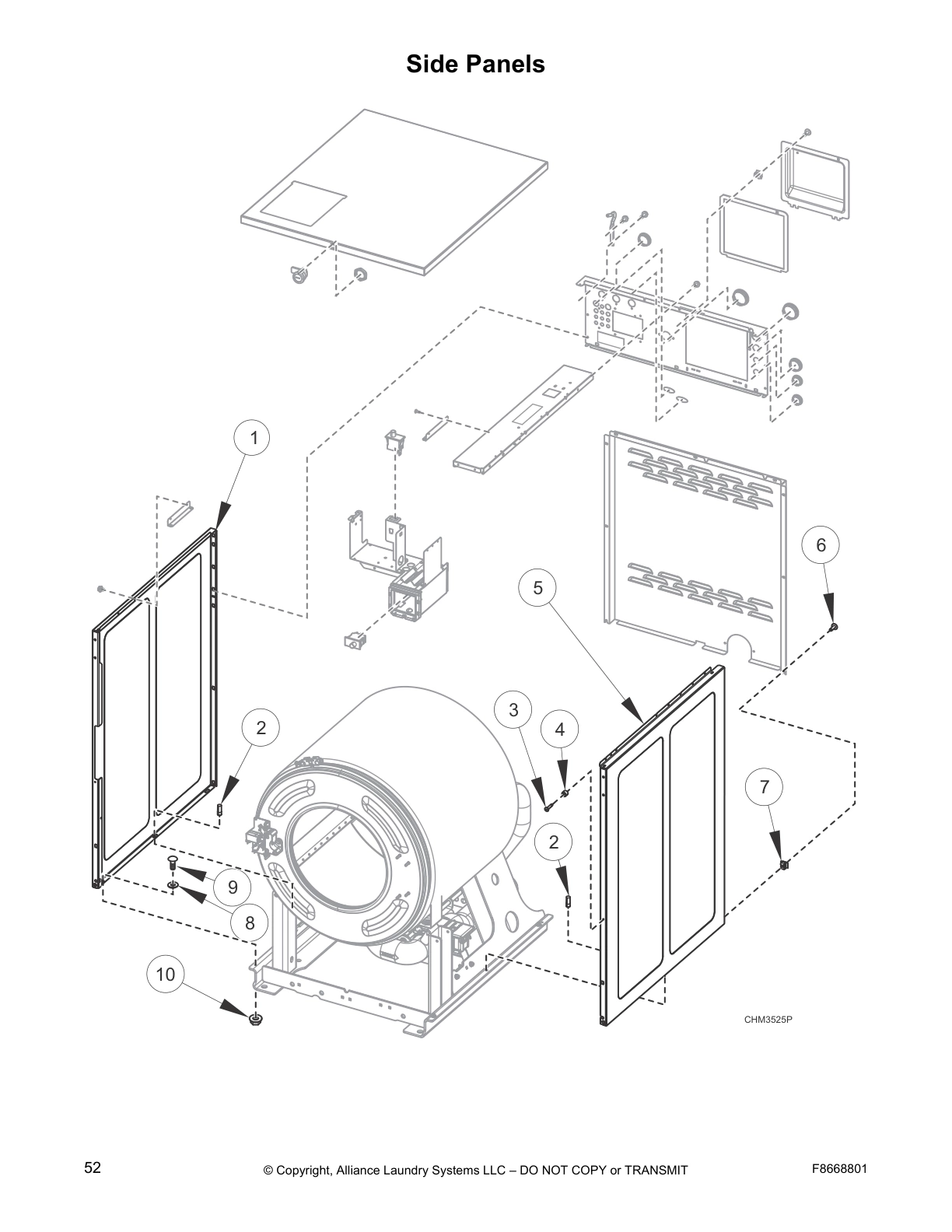

Side Panels

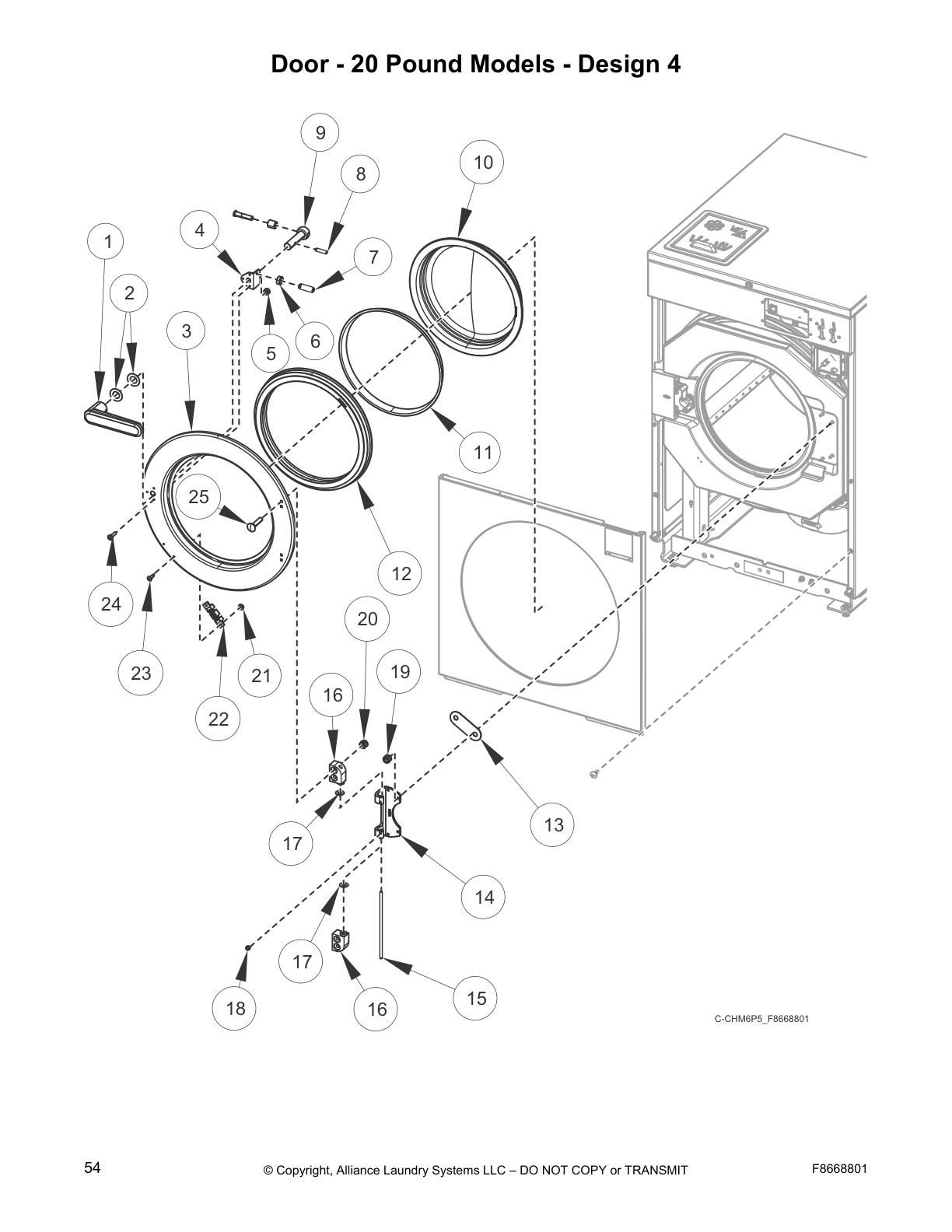

Door - 20 Pound Models - Design 4
Door - 20 Pound Models - Design 6 and 7
Door - 30 Pound Models - Design 4
Door - 30 Pound Models - Design 6 and 7

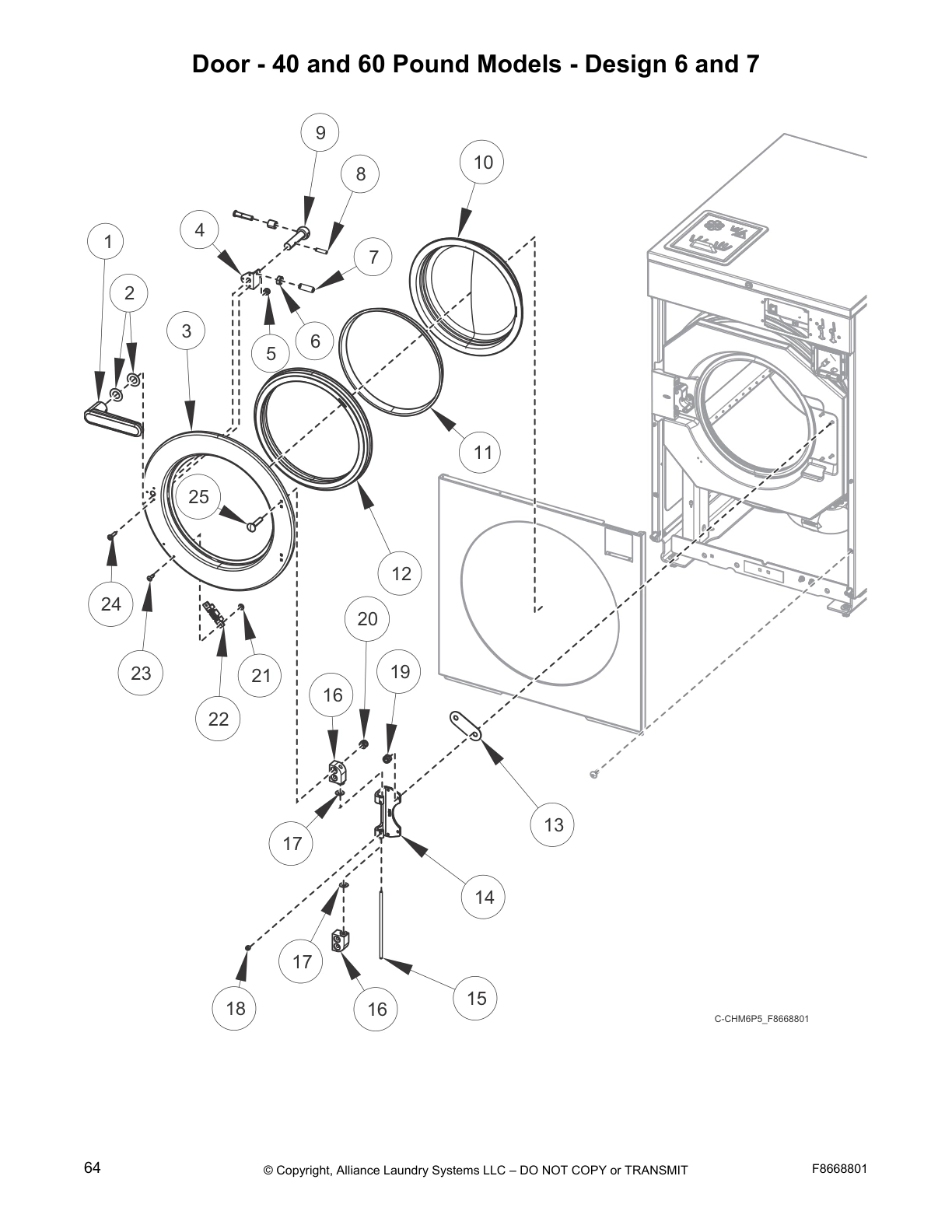

Door - 40 and 60 Pound Models - Design 4
Door - 40 and 60 Pound Models - Design 6 and 7
Door Lock

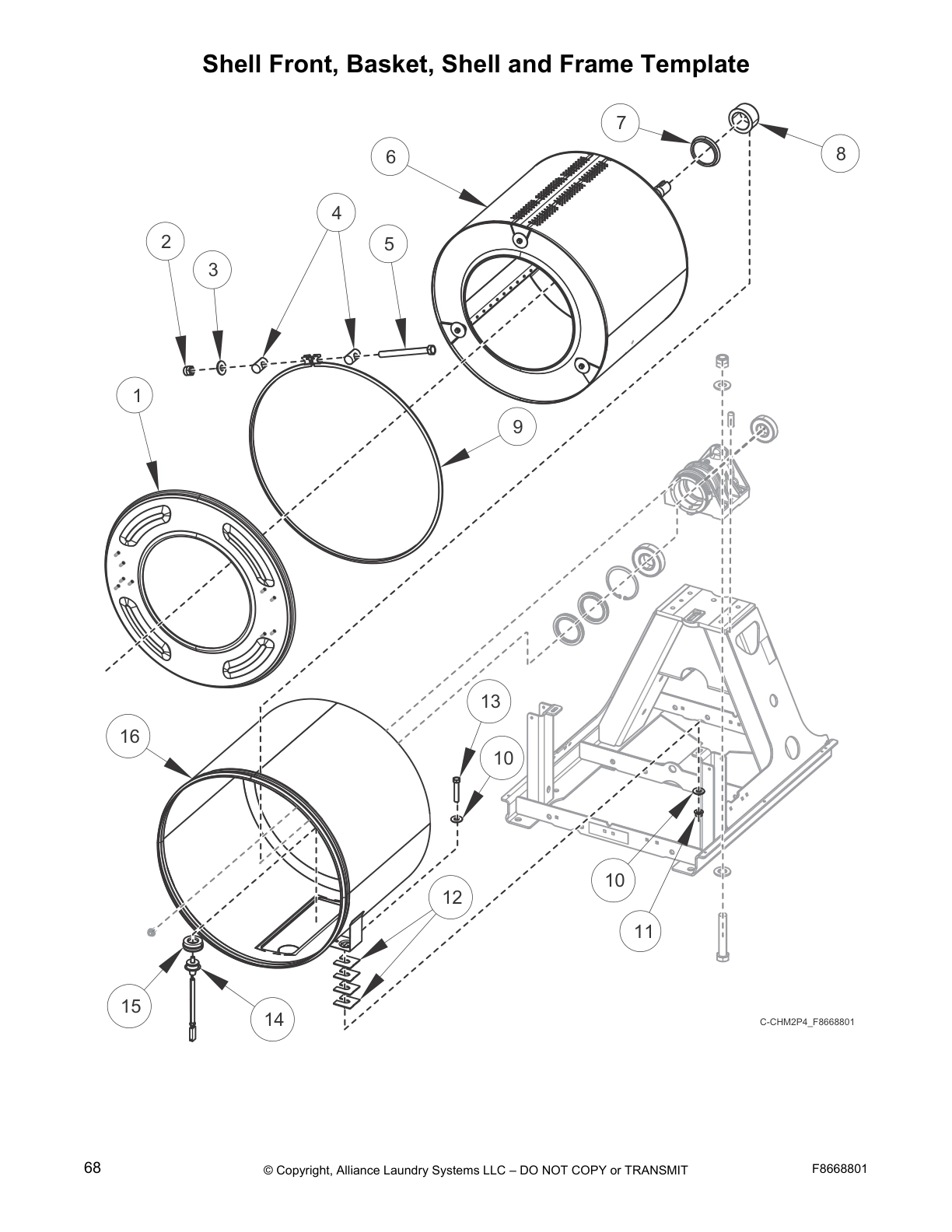

Shell Front, Basket, Shell and Frame Template

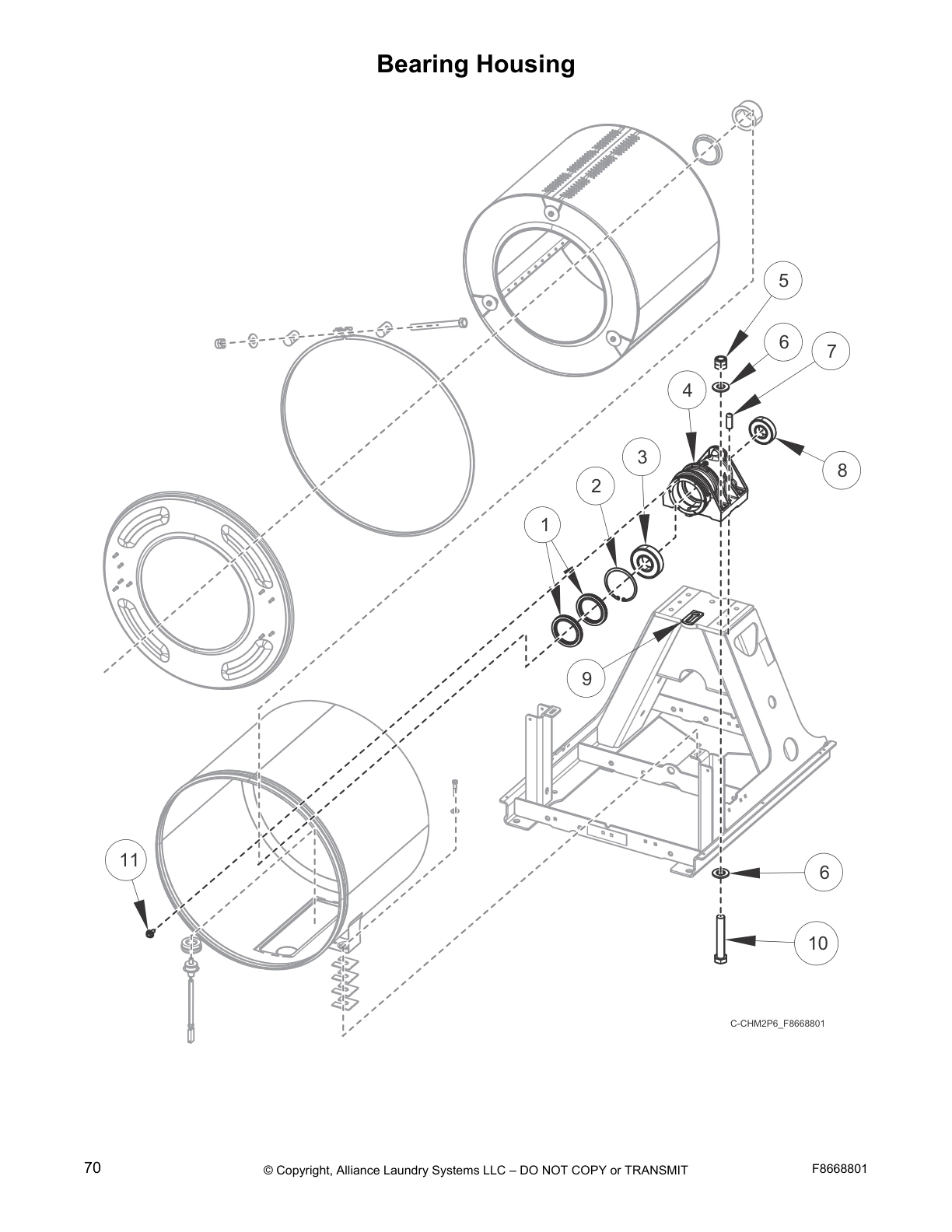

Bearing Housing

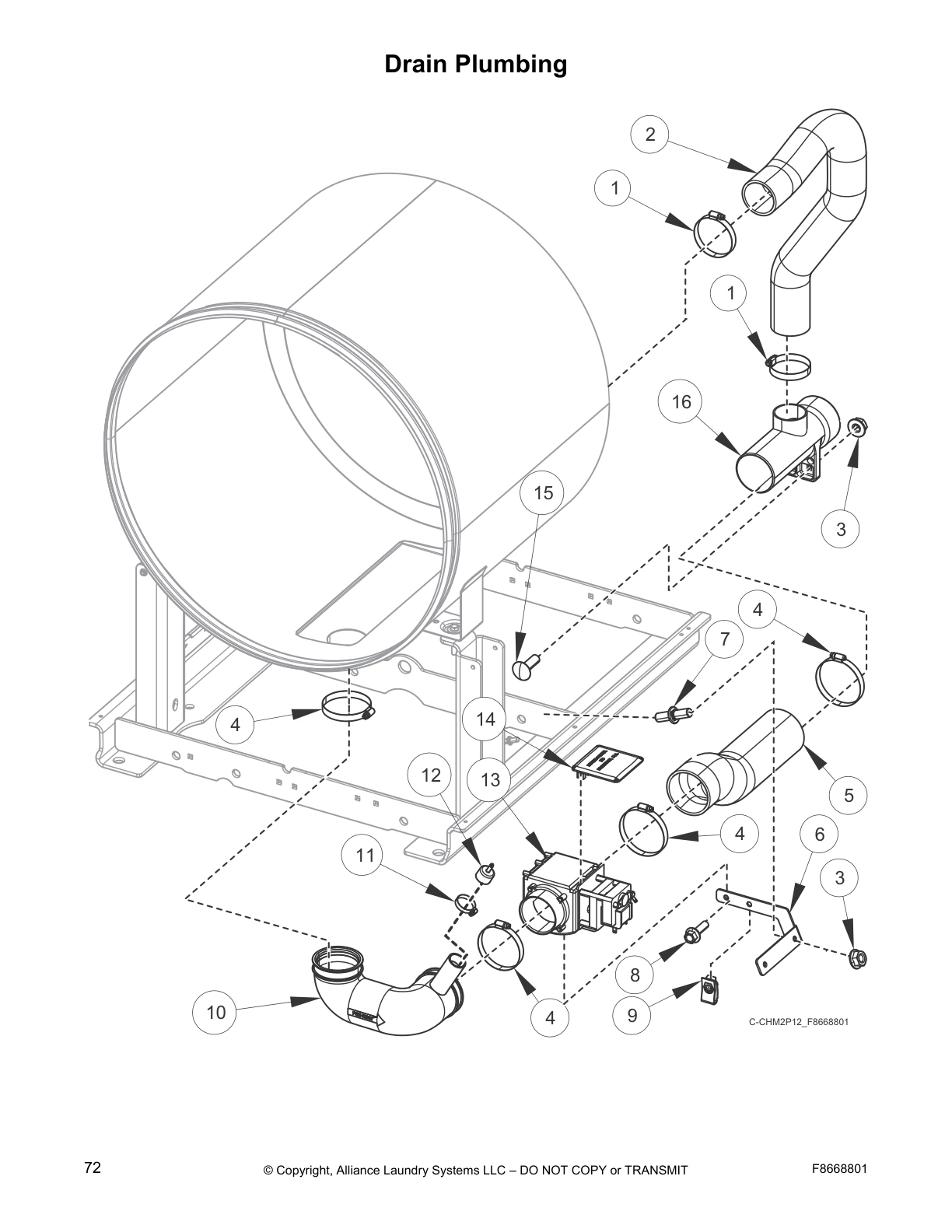

Drain Plumbing

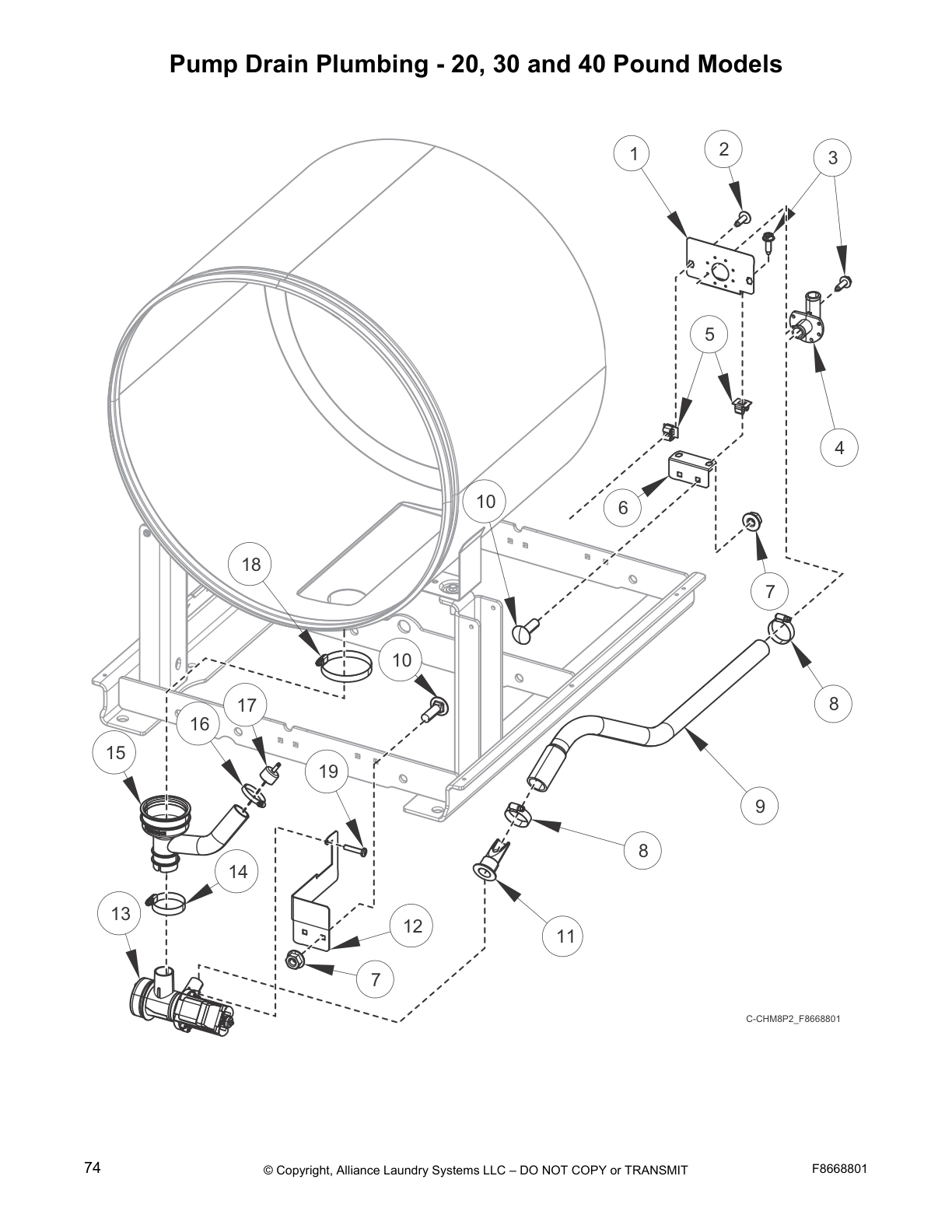

Pump Drain Plumbing - 20, 30 and 40 Pound Models

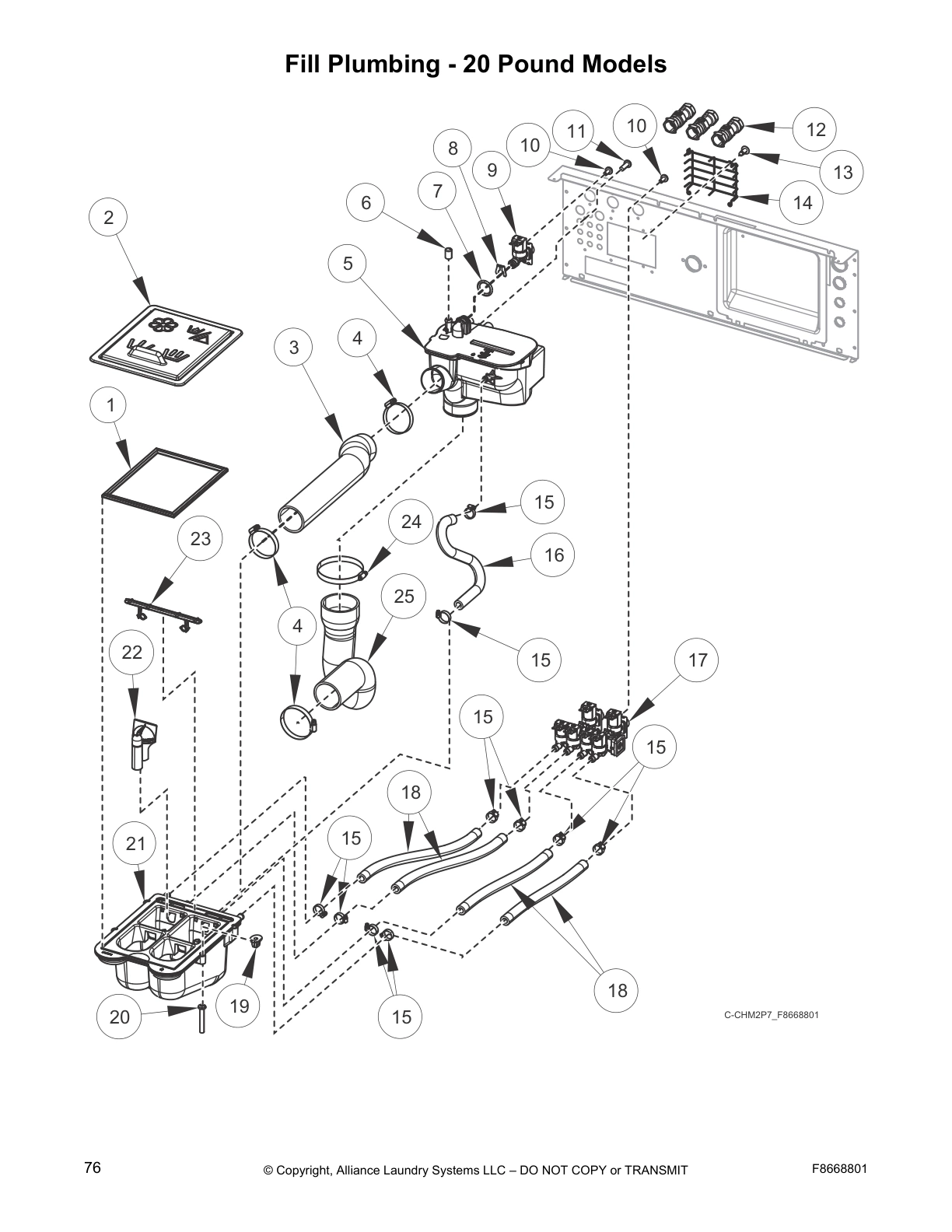

Fill Plumbing - 20 Pound Models
Fill Plumbing - 30 Pound Models
Fill Plumbing - 40 Pound Models

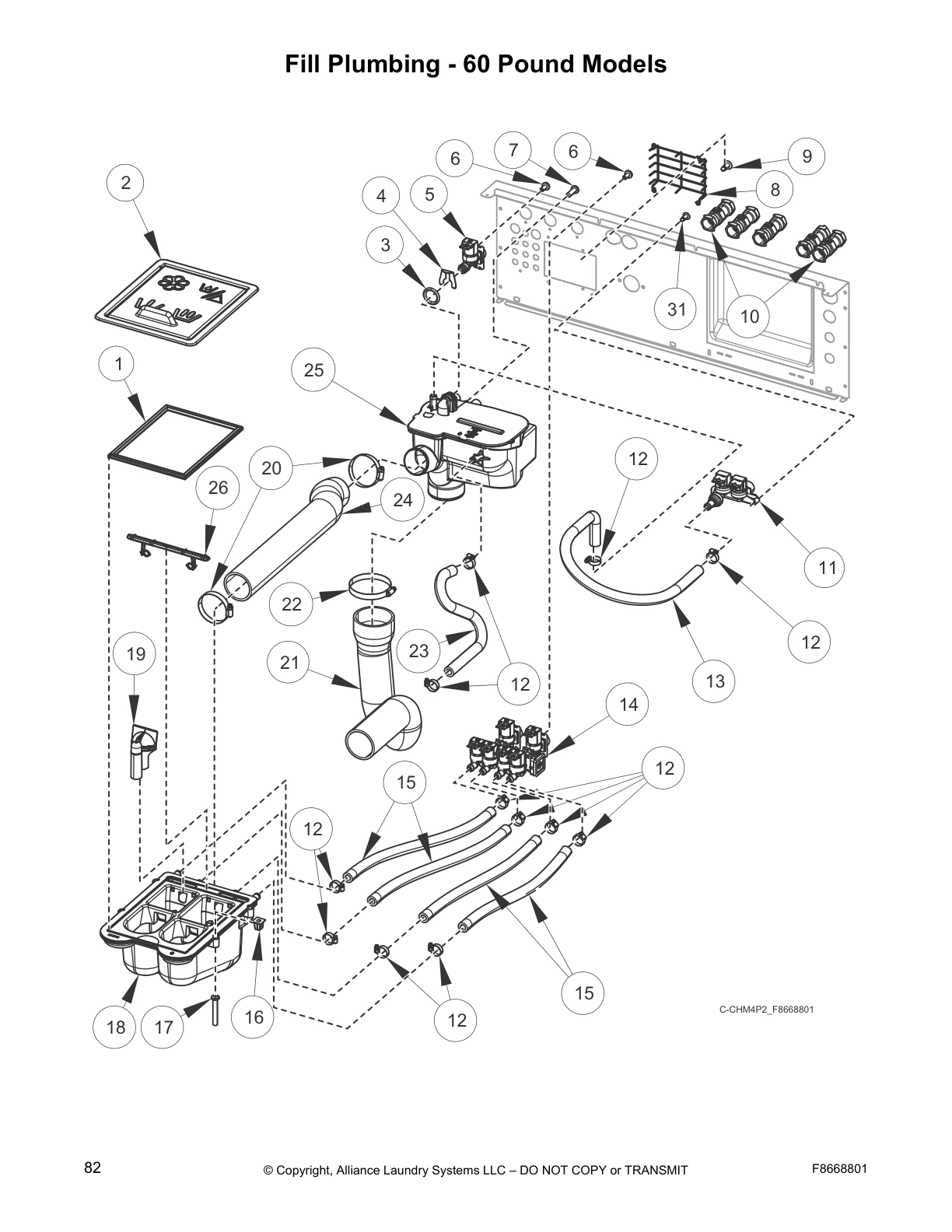

Fill Plumbing - 60 Pound Models
Motor, Pulley and Belt - 20 and 30 Pound Models

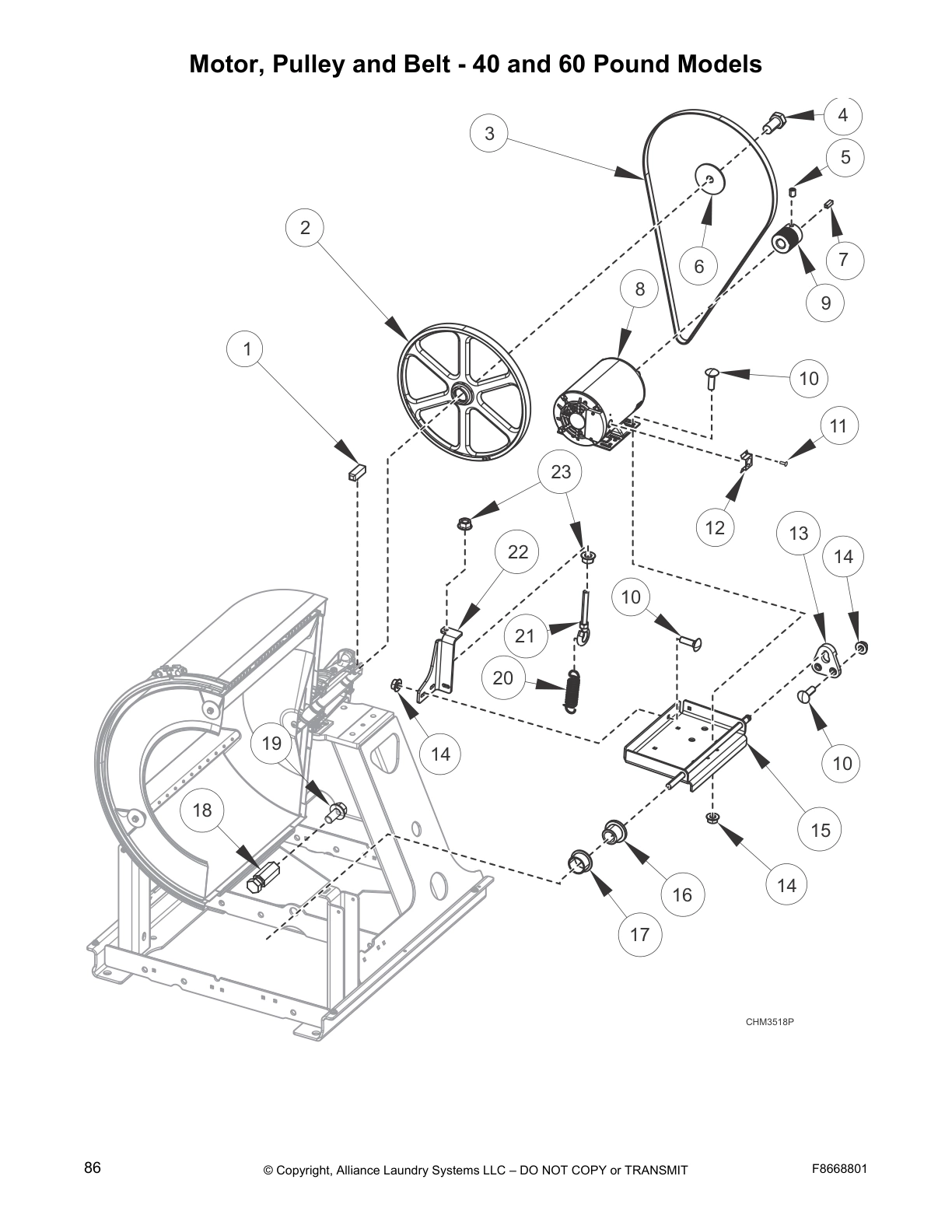

Motor, Pulley and Belt - 40 and 60 Pound Models

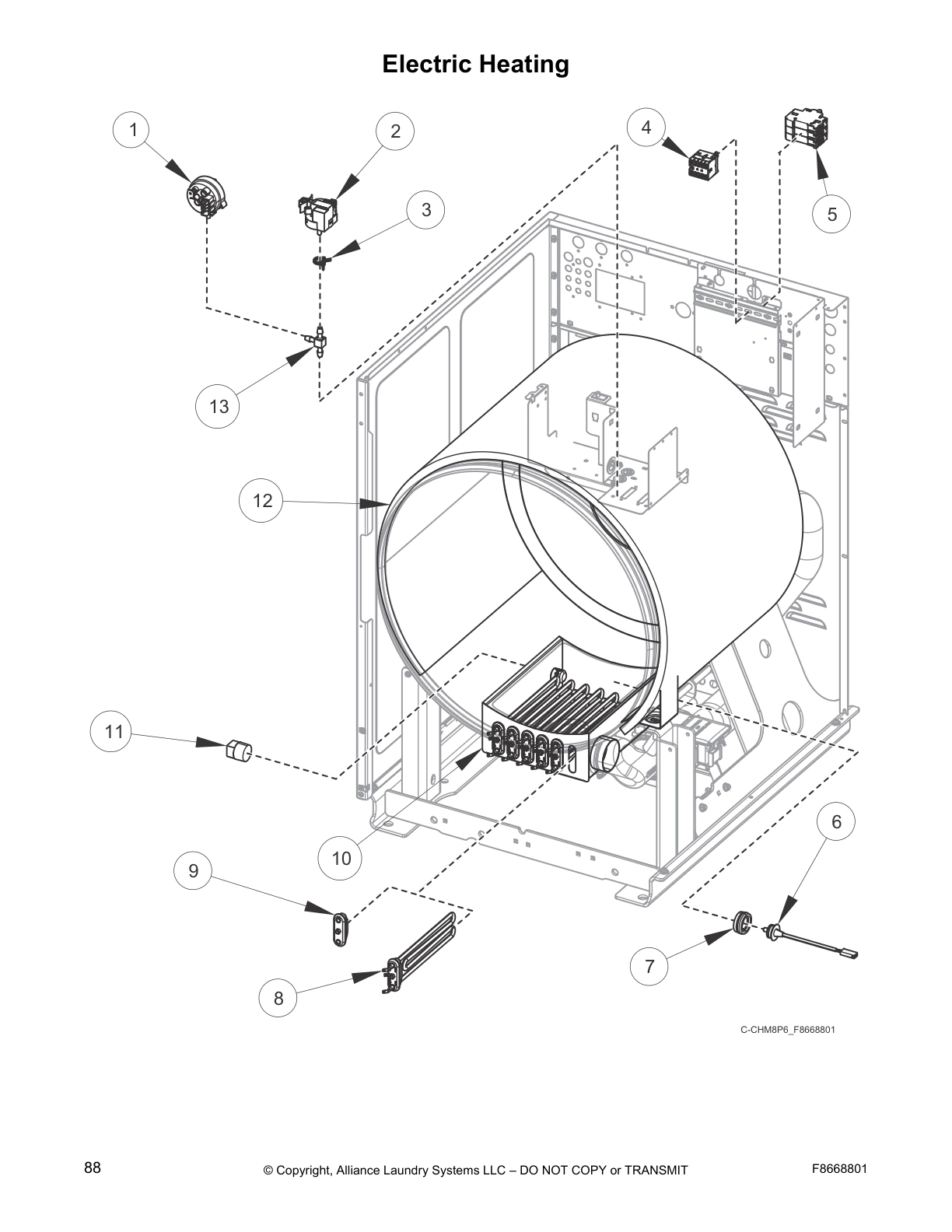

Electric Heating

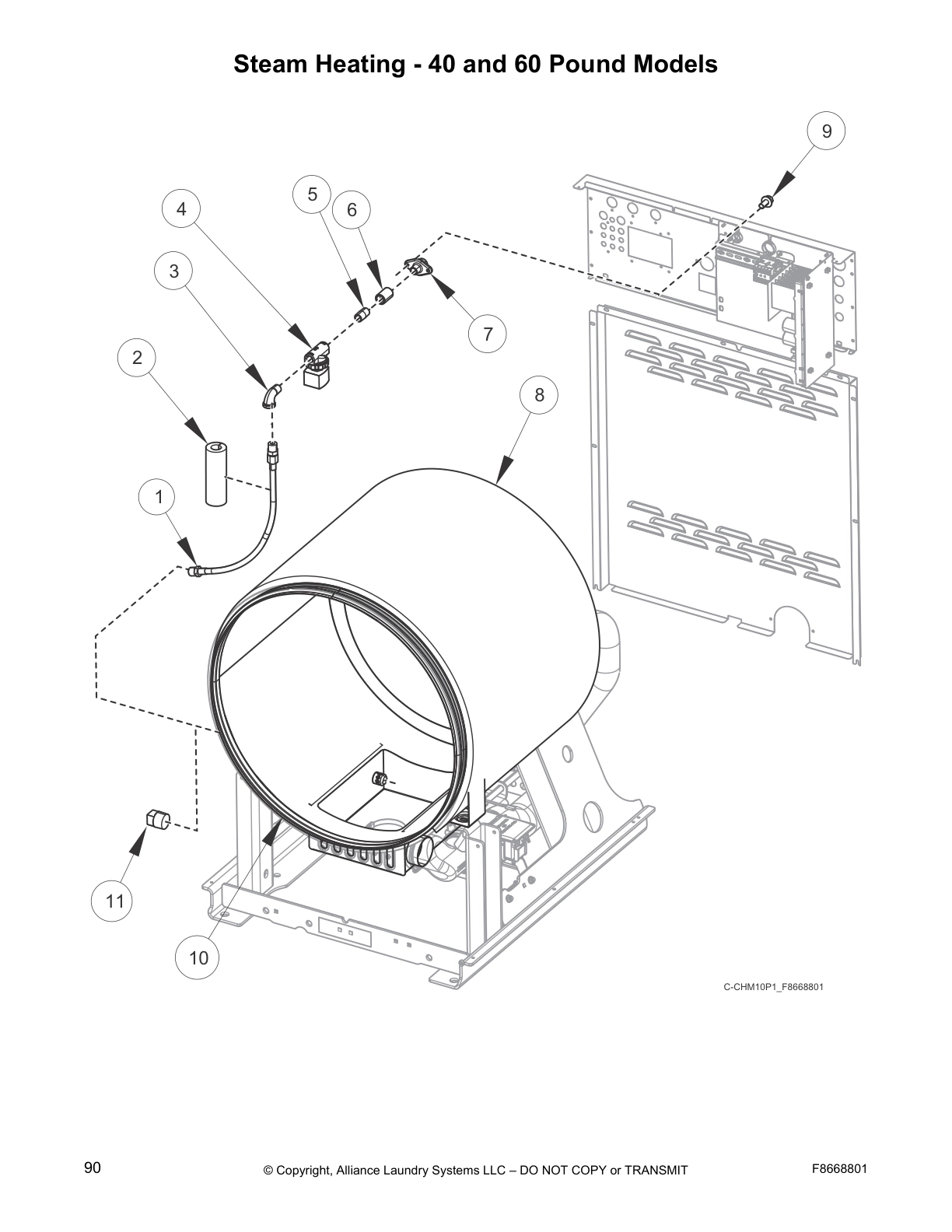

Steam Heating - 40 and 60 Pound Models
Special Tools and Kits
Common parts from model Huebsch HCT060QL Washer
SPQ F8619102 SPQ F8619102 Contact Us For Availability
SPQ F8518404 SPQ F8518404 Contact Us For Availability
SPQ F8518503 SPQ F8518503 Contact Us For Availability
Harness SPQ F8528204 Contact Us For Availability
Harness SPQ F8519203 Contact Us For Availability
SPQ F8519201 SPQ F8519201 Contact Us For Availability
SPQ F8518603 SPQ F8518603 Contact Us For Availability
SPQ 202175 SPQ 202175 Contact Us For Availability
SPQ F200165100 SPQ F200165100 Contact Us For Availability
SPQ F8671202 SPQ F8671202 Contact Us For Availability
SPQ F8671102 SPQ F8671102 Contact Us For Availability
SPQ F8665604 SPQ F8665604 Contact Us For Availability
SPQ F8665602 SPQ F8665602 Contact Us For Availability
SPQ F8520102 SPQ F8520102 Contact Us For Availability
SPQ F8519008 SPQ F8519008 Contact Us For Availability
Harness SPQ F270308 Contact Us For Availability
SPQ F8662601 SPQ F8662601 Contact Us For Availability
SPQ F8233708 SPQ F8233708 Contact Us For Availability
Concrete Kit SPQ 1111P Contact Us For Availability
1
Snap Bushing SPQ F140938 Contact Us For Availability
1
Control Panel Assembly SPQ F8697402 Contact Us For Availability
1
Top Cover SPQ F8554301 Contact Us For Availability
1
Side Panel SPQ F8554204 Contact Us For Availability
1
Door Handle SPQ F8544701 Contact Us For Availability
1
Nut SPQ F431024 Contact Us For Availability
1
Shell Front SPQ F8222601 Contact Us For Availability
1
Triple Lip Seal SPQ F8203806 Contact Us For Availability
1
Dispenser Gasket SPQ B12568601 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Water Level Pressure Switch SPQ F8609101 Contact Us For Availability
1
Steam Hose SPQ F200197 Contact Us For Availability
1
Basket Puller Tool SPQ F460129P Contact Us For Availability
2
Contactor SPQ F8449801 Contact Us For Availability
2
Drive Assembly SPQ F8496901 Contact Us For Availability
2
Top Cover Latch SPQ F8201001 Contact Us For Availability
2
Valve Panel SPQ F431215 Contact Us For Availability
2
Screw SPQ F8117601 Contact Us For Availability
2
Magnet SPQ C001236 Contact Us For Availability
2
Door Lock Plate Assembly SPQ F8344401 Contact Us For Availability
2
Basket SPQ F8543701 Contact Us For Availability
2
Bearing SPQ F8337901 Contact Us For Availability
2
Overflow Hose SPQ F8577201 Contact Us For Availability
2
Extension Spring SPQ F8511801 Contact Us For Availability
2
Insulation SPQ F8233702 Contact Us For Availability
2
Basket Pulley Puller Tool SPQ F8608502P Contact Us For Availability
3
Expansion Clip SPQ F8206901 Contact Us For Availability
3
Chemical Injection Control SPQ 804528 Contact Us For Availability
3
Drive Mounting Bracket SPQ F8496301P Contact Us For Availability
3
Panel Lock SPQ 70155603 Contact Us For Availability
3
Rivet SPQ F8502101 Contact Us For Availability
3
SPQ F430974 SPQ F430974 Contact Us For Availability
3
Bearing Housing SPQ F100135 Contact Us For Availability
3
Nut SPQ F200133600 Contact Us For Availability
3
Motor SPQ F8382818 Contact Us For Availability
3
Hose Clamp SPQ F8623401 Contact Us For Availability
3
Street Elbow SPQ H86070034 Contact Us For Availability
3
Frame Template SPQ F8433601 Contact Us For Availability
4
Power Harness SPQ M413865 Contact Us For Availability
4
Top Cover Hinge SPQ 44089303P Contact Us For Availability
4
Expansion Clip SPQ F8322401 Contact Us For Availability
4
Washer SPQ 70412601 Contact Us For Availability
4
Panel Locator SPQ M412763 Contact Us For Availability
4
SPQ F8508101 SPQ F8508101 Contact Us For Availability
4
Door Lock Cover SPQ F8223202 Contact Us For Availability
4
Nut SPQ F8250902 Contact Us For Availability
4
Drain Valve Bracket SPQ F8543501 Contact Us For Availability
4
Coil SPQ F8515001 Contact Us For Availability
5
Circuit Breaker SPQ 70482601 Contact Us For Availability
5
Access Panel SPQ F8201101 Contact Us For Availability
5
Expansion Clip SPQ F8258601 Contact Us For Availability
5
SPQ F8507702 SPQ F8507702 Contact Us For Availability
5
Washer SPQ F8387701 Contact Us For Availability
5
Motor Pulley SPQ M400077 Contact Us For Availability
5
Valve SPQ F8322805 Contact Us For Availability
6
SPQ F8567501 SPQ F8567501 Contact Us For Availability
6
Filter Kit SPQ 44014901P Contact Us For Availability
6
Thermistor SPQ 70488101 Contact Us For Availability
6
Expansion Clip SPQ F8554203 Contact Us For Availability
6
SPQ F8507701 SPQ F8507701 Contact Us For Availability
6
Washer SPQ F8245001 Contact Us For Availability
6
Shell Band Kit SPQ F8302701 Contact Us For Availability
6
Dowel Pin SPQ F430339 Contact Us For Availability
6
Fill Valve Harness SPQ F200201 Contact Us For Availability
6
Spring Stud Kit SPQ F431115 Contact Us For Availability
6
Pipe Nipple SPQ 70435601 Contact Us For Availability
7
Washer SPQ F8554201 Contact Us For Availability
7
Bolt SPQ F8344501 Contact Us For Availability
7
Gasket SPQ F8502802 Contact Us For Availability
7
Seal Scupper Pad SPQ F8388201 Contact Us For Availability
7
Screw SPQ F8522501 Contact Us For Availability
7
Dispenser SPQ F8047801 Contact Us For Availability
7
Motor Harness SPQ H8752006H Contact Us For Availability
7
Coupling SPQ F8116301 Contact Us For Availability
8
Panel Locator SPQ F8553901 Contact Us For Availability
8
Door Lock Harness SPQ F8193101 Contact Us For Availability
8
SPQ F8337002 SPQ F8337002 Contact Us For Availability
8
Bearing Housing Assembly SPQ F100134 Contact Us For Availability
8
SPQ F8564102P SPQ F8564102P Contact Us For Availability
8
Screw SPQ F8362701 Contact Us For Availability
9
SPQ M411283 SPQ M411283 Contact Us For Availability
9
SPQ F8223901 SPQ F8223901 Contact Us For Availability
9
SPQ F431041 SPQ F431041 Contact Us For Availability
9
Reed Switch Assembly SPQ F8270701 Contact Us For Availability
9
SPQ F8343906P SPQ F8343906P Contact Us For Availability
9
Heating Element Plug SPQ F8538801 Contact Us For Availability
9
SPQ F8350302 SPQ F8350302 Contact Us For Availability
9
Fill Hose Kit SPQ F8230301 Contact Us For Availability
9
SPQ F8525302 SPQ F8525302 Contact Us For Availability
9
Pipe Insulation SPQ F8209104 Contact Us For Availability
10
Screw SPQ 685837 Contact Us For Availability
10
Cable SPQ F8521301 Contact Us For Availability
10
Nut SPQ F8554202 Contact Us For Availability
10
Bolt SPQ F8402801 Contact Us For Availability
10
Torsion/Door Lock Spring SPQ F430232 Contact Us For Availability
10
Door Glass SPQ F8485405 Contact Us For Availability
10
Shell SPQ F8543702 Contact Us For Availability
10
Screw SPQ F8368801 Contact Us For Availability
10
Drain Hose SPQ F8542001 Contact Us For Availability
10
Double Check Valve SPQ F8301201 Contact Us For Availability
11
Terminal Tray Cover SPQ F8518301 Contact Us For Availability
11
Door Lock Microswitch SPQ F430225 Contact Us For Availability
11
Retaining Ring SPQ F8442702 Contact Us For Availability
11
Drain Valve Kit SPQ F8541901 Contact Us For Availability
11
Mixing Valve SPQ F8434004 Contact Us For Availability
11
Screw SPQ 23222 Contact Us For Availability
11
Plug SPQ F420409 Contact Us For Availability
11
Plug SPQ F420408 Contact Us For Availability
12
Pop Rivet SPQ M400003 Contact Us For Availability
12
Hole Plug SPQ F8223801 Contact Us For Availability
12
Door Gasket SPQ F8111502 Contact Us For Availability
12
Door Lock Switch Lever SPQ F8070301 Contact Us For Availability
12
Screw SPQ F8402701 Contact Us For Availability
12
Hose Clamp SPQ F8434003 Contact Us For Availability
13
Spacer SPQ F200203200 Contact Us For Availability
13
Terminal Block Shield SPQ 70333001 Contact Us For Availability
13
Door Bezel SPQ F0170426-30 Contact Us For Availability
13
Plug SPQ M400985 Contact Us For Availability
13
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
13
Thermistor SPQ F8621601 Contact Us For Availability
13
Motor Rod Plate SPQ F8441101 Contact Us For Availability
14
Front Panel SPQ F8554002 Contact Us For Availability
14
Label SPQ F8611301 Contact Us For Availability
14
Door Hinge SPQ F190216P Contact Us For Availability
14
Door Lock Solenoid Replacement Kit SPQ F8223401 Contact Us For Availability
14
Rear Drain Hose SPQ F200166402 Contact Us For Availability
15
Bolt SPQ F200166302 Contact Us For Availability
15
Terminal Block Shield SPQ 430642 Contact Us For Availability
15
Insulator SPQ M413862 Contact Us For Availability
15
Rear Panel SPQ F8611401 Contact Us For Availability
15
Rod SPQ F602813-3 Contact Us For Availability
15
Door Lock Plate Shim SPQ F431901 Contact Us For Availability
16
Door Mount SPQ F150271 Contact Us For Availability
16
Overlay SPQ F8612403 Contact Us For Availability
16
Cabinet Brace SPQ F8554501 Contact Us For Availability
16
Expansion Clip SPQ F977P3 Contact Us For Availability
16
Nut SPQ F8529702P Contact Us For Availability
16
Flanged Isolator SPQ F8535202 Contact Us For Availability
17
End Stop SPQ 51783 Contact Us For Availability
17
Pushbutton Switch SPQ F8553201 Contact Us For Availability
17
Washer SPQ F431929 Contact Us For Availability
17
Flanged Bushing SPQ F8333302 Contact Us For Availability
18
Dispenser Bracket SPQ 70413301 Contact Us For Availability
18
Screw SPQ F431147 Contact Us For Availability
18
Dispenser Weldment SPQ F0431807-00 Contact Us For Availability
18
Stud SPQ F8634701 Contact Us For Availability
19
Pop Rivet SPQ F8525701 Contact Us For Availability
19
Nut SPQ F430536 Contact Us For Availability
19
Siphon Cover SPQ F8535601 Contact Us For Availability
19
Basket Pulley SPQ 70126104 Contact Us For Availability
20
Nut SPQ F8554401 Contact Us For Availability
20
Pop Rivet SPQ F431916 Contact Us For Availability
20
Access Cover SPQ F8437902 Contact Us For Availability
20
Eye Bolt SPQ F8440701 Contact Us For Availability
21
Screw SPQ 44088801 Contact Us For Availability
21
Bolt SPQ F430215 Contact Us For Availability
21
Belt SPQ F8319503 Contact Us For Availability
22
Nut SPQ 70482701 Contact Us For Availability
22
Door SPQ F431133 Contact Us For Availability
22
Pop Rivet SPQ F8047901 Contact Us For Availability
23
Spring Pin SPQ F8390801 Contact Us For Availability
23
Bushing SPQ F8530901 Contact Us For Availability
24
Circuit Breaker SPQ M412689 Contact Us For Availability
24
Spring Pin SPQ F431223 Contact Us For Availability
25
Power Distribution Block Cover SPQ 44088001 Contact Us For Availability
25
Door Latch Arm Assembly SPQ F8535501 Contact Us For Availability
26
Water Hose Kit SPQ F200213 Contact Us For Availability
28
Power Distribution Block SPQ 70346501 Contact Us For Availability
NI
SPQ F431222 SPQ F431222 Contact Us For Availability
NI
SPQ F8619101 SPQ F8619101 Contact Us For Availability
NI
SPQ F8518606 SPQ F8518606 Contact Us For Availability
NI
SPQ F8518501 SPQ F8518501 Contact Us For Availability
NI
SPQ F8518504 SPQ F8518504 Contact Us For Availability
NI
SPQ F8518401 SPQ F8518401 Contact Us For Availability
NI
SPQ F8662806 SPQ F8662806 Contact Us For Availability
NI
SPQ F8518403 SPQ F8518403 Contact Us For Availability
NI
SPQ F8662812 SPQ F8662812 Contact Us For Availability
NI
SPQ F8662811 SPQ F8662811 Contact Us For Availability
NI
SPQ F8662804 SPQ F8662804 Contact Us For Availability
NI
Connector SPQ 70493102 Contact Us For Availability
NI
External Supply Kit SPQ F8662508 Contact Us For Availability
NI
SPQ F8528203 SPQ F8528203 Contact Us For Availability
NI
SPQ F8520602 SPQ F8520602 Contact Us For Availability
NI
Drive Communication Harness SPQ F8519204 Contact Us For Availability
NI
Drive Power Harness SPQ F8519202 Contact Us For Availability
NI
SPQ F8518602 SPQ F8518602 Contact Us For Availability
NI
SPQ F8518601 SPQ F8518601 Contact Us For Availability
NI
SPQ M405535 SPQ M405535 Contact Us For Availability
NI
SPQ F8221403 SPQ F8221403 Contact Us For Availability
NI
SPQ F430533 SPQ F430533 Contact Us For Availability
NI
Door Lock Assembly SPQ F8520202 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
SPQ F8537804 SPQ F8537804 Contact Us For Availability
NI
SPQ F8502303 SPQ F8502303 Contact Us For Availability
NI
SPQ F8271902 SPQ F8271902 Contact Us For Availability
NI
SPQ F8271901P SPQ F8271901P Contact Us For Availability
NI
SPQ F8543401 SPQ F8543401 Contact Us For Availability
NI
SPQ 70334702 SPQ 70334702 Contact Us For Availability
NI
SPQ 70030401 SPQ 70030401 Contact Us For Availability
NI
SPQ F8520002 SPQ F8520002 Contact Us For Availability
NI
SPQ F8665603 SPQ F8665603 Contact Us For Availability
NI
SPQ F8665601 SPQ F8665601 Contact Us For Availability
NI
SPQ F8047403 SPQ F8047403 Contact Us For Availability
NI
SPQ F8671201 SPQ F8671201 Contact Us For Availability
NI
SPQ F8671101 SPQ F8671101 Contact Us For Availability
NI
SPQ F8748601 SPQ F8748601 Contact Us For Availability
NI
SPQ F8519009 SPQ F8519009 Contact Us For Availability
NI
SPQ F8519004 SPQ F8519004 Contact Us For Availability
NI
SPQ F8519003 SPQ F8519003 Contact Us For Availability
NI
Power Harness SPQ F360202 Contact Us For Availability
NI
Steam Filter SPQ 70321501 Contact Us For Availability
NI
Steam Kit SPQ F410300 Contact Us For Availability
NI
SPQ F8520704 SPQ F8520704 Contact Us For Availability
NI
SPQ F8233704 SPQ F8233704 Contact Us For Availability
NI
Central Pay Kit SPQ F8673202 Contact Us For Availability
NI
Basket Rental Tool Kit SPQ 390P4-1 Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
× ![]()
