Model Huebsch HCK080VC Washer – Common Parts & Diagrams

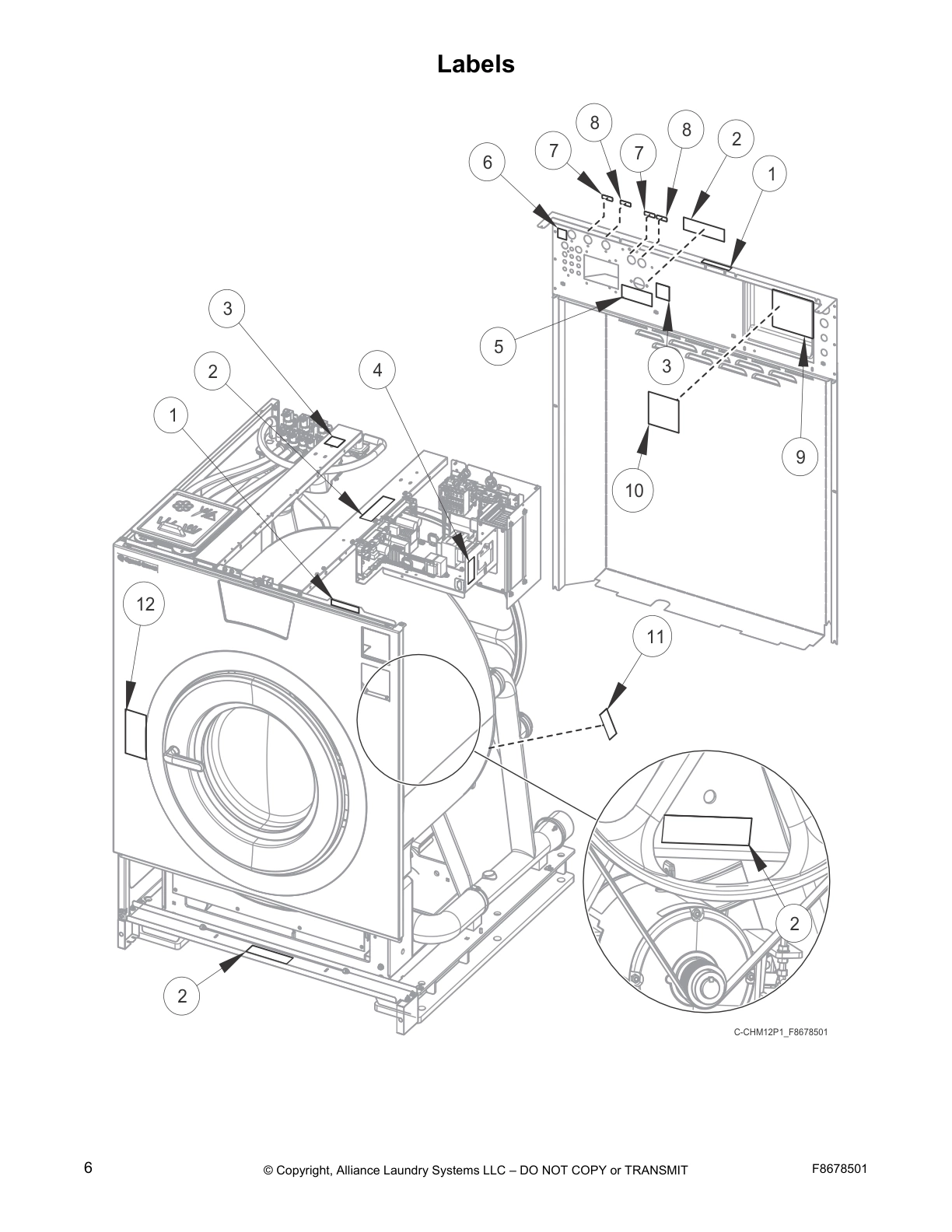

Labels

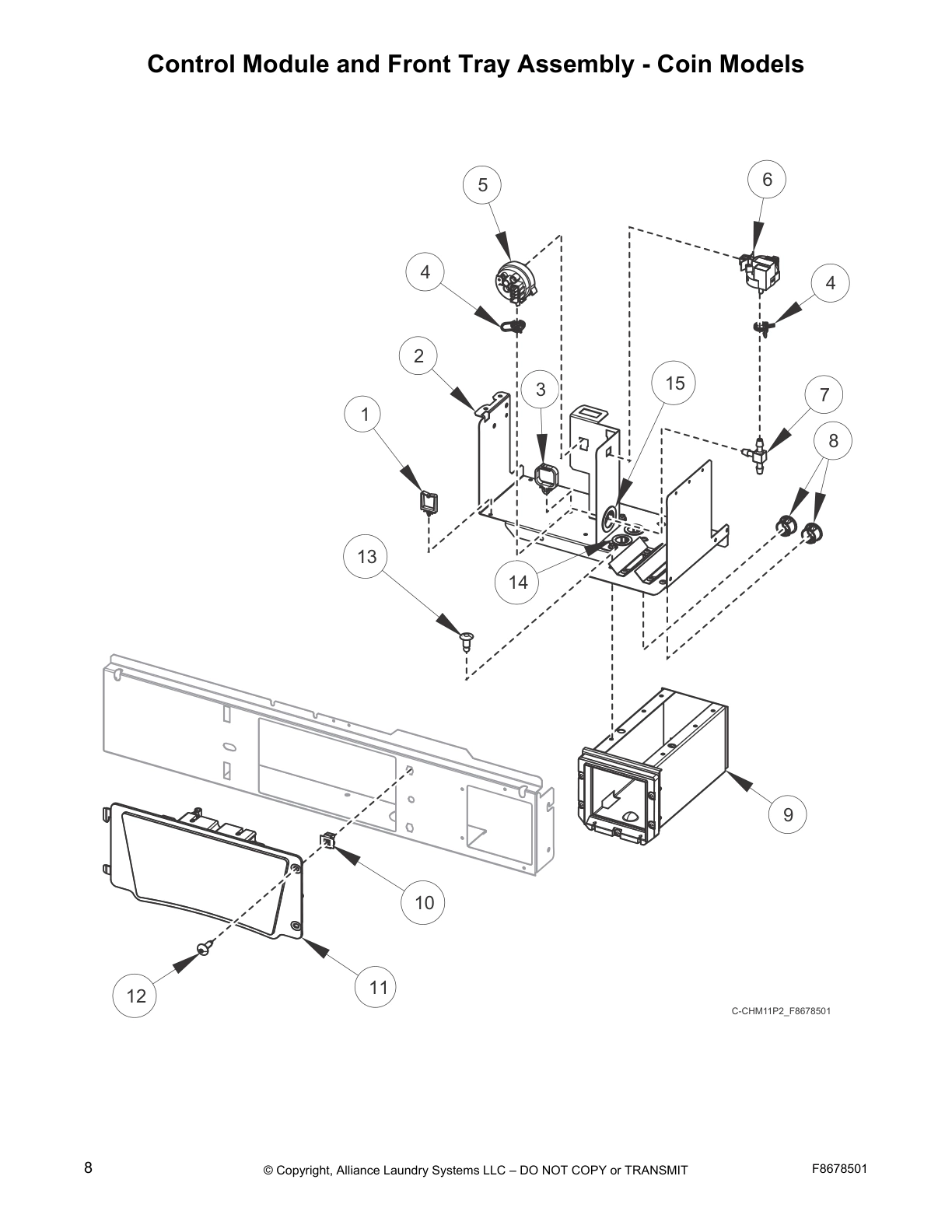

Control Module and Front Tray Assembly - Coin Models

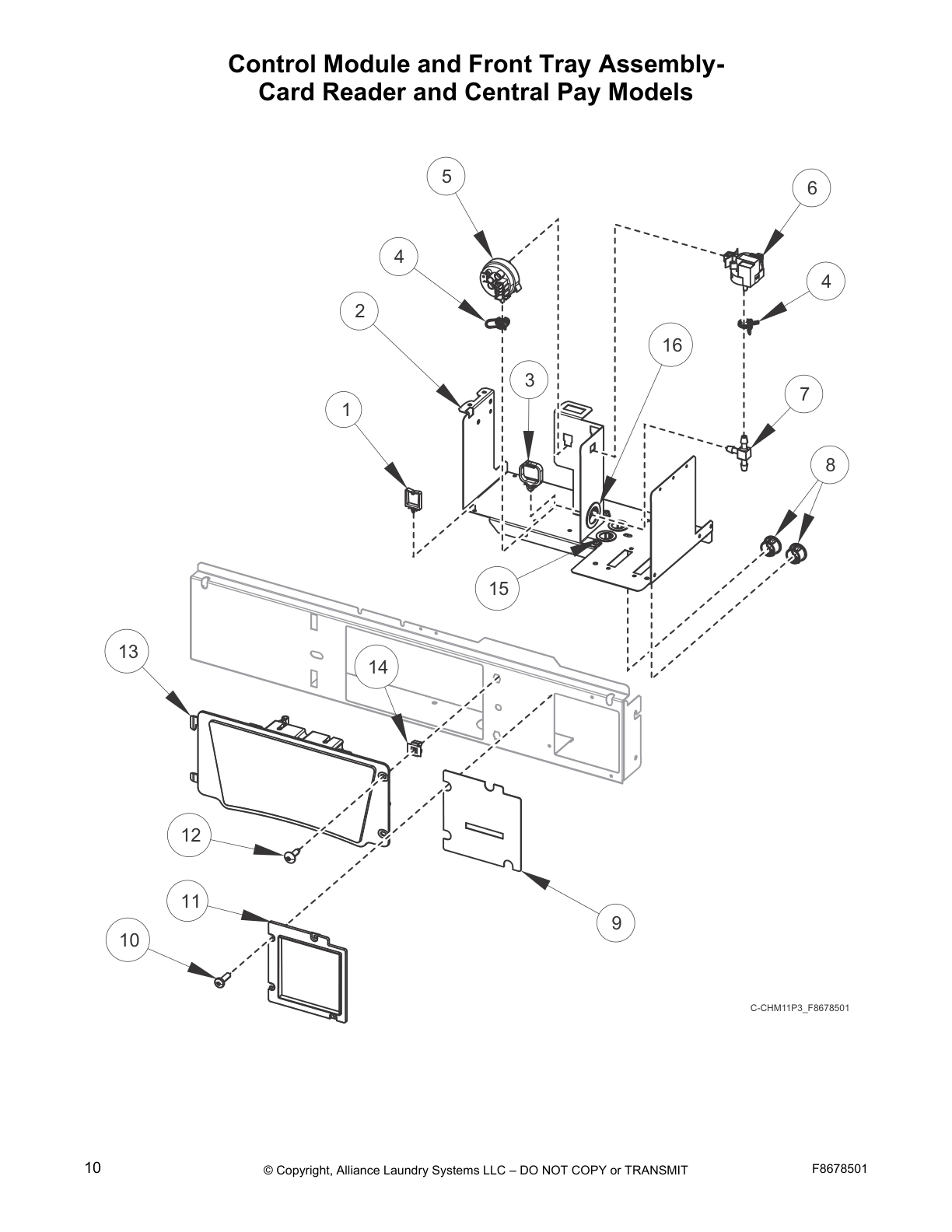

Control Module and Front Tray Assembly-
Card Reader and Central Pay Models

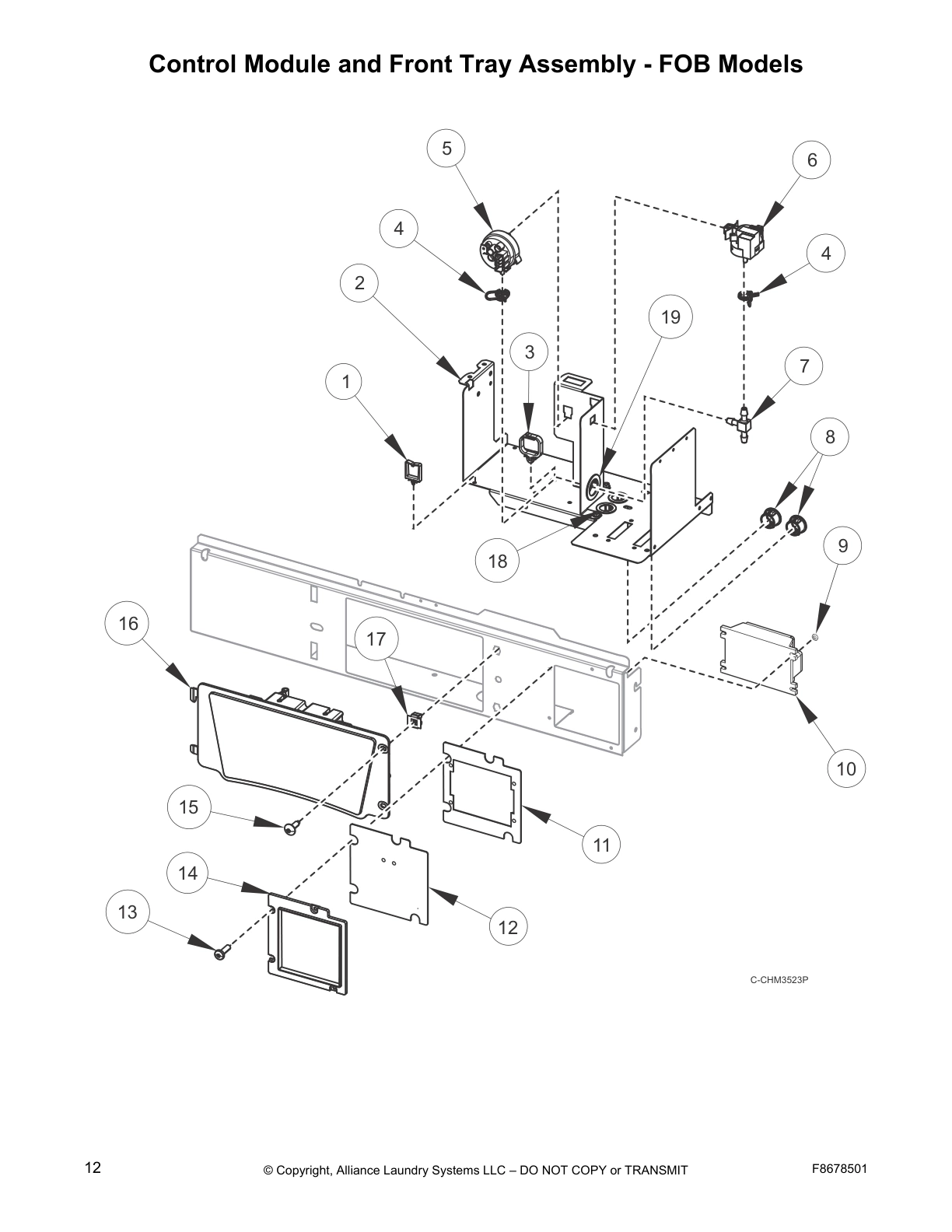

Control Module and Front Tray Assembly - FOB Models
Control Tray Assembly

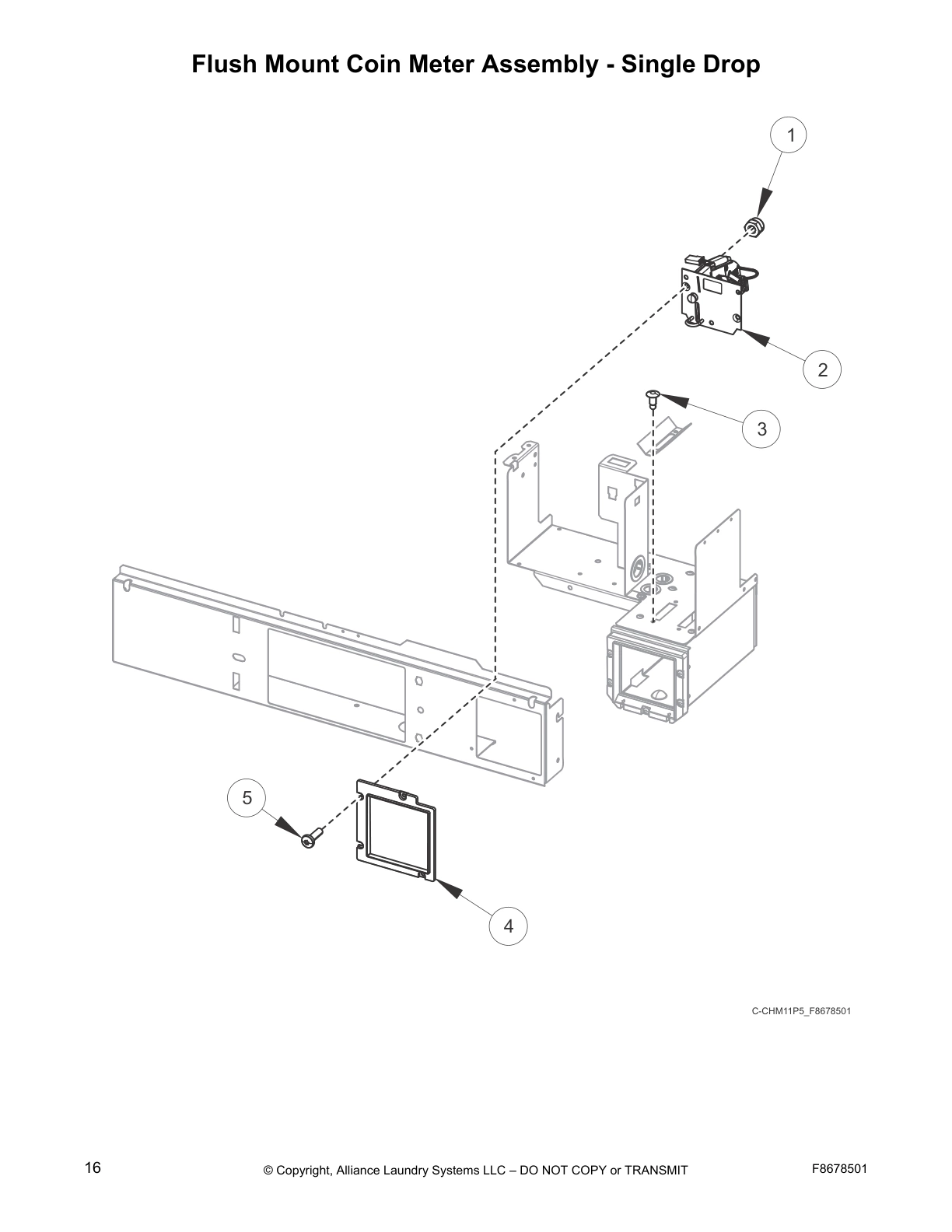

Flush Mount Coin Meter Assembly - Single Drop

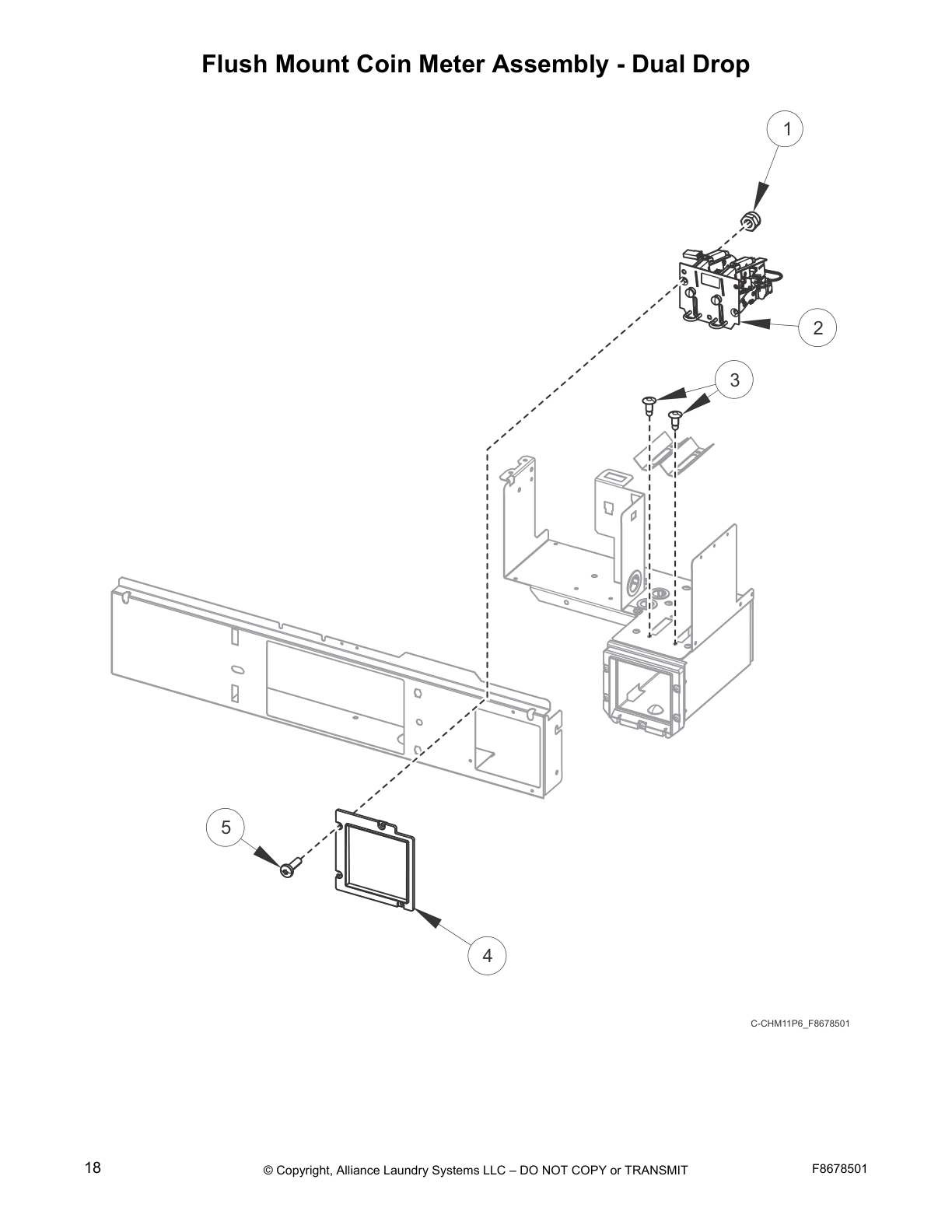

Flush Mount Coin Meter Assembly - Dual Drop

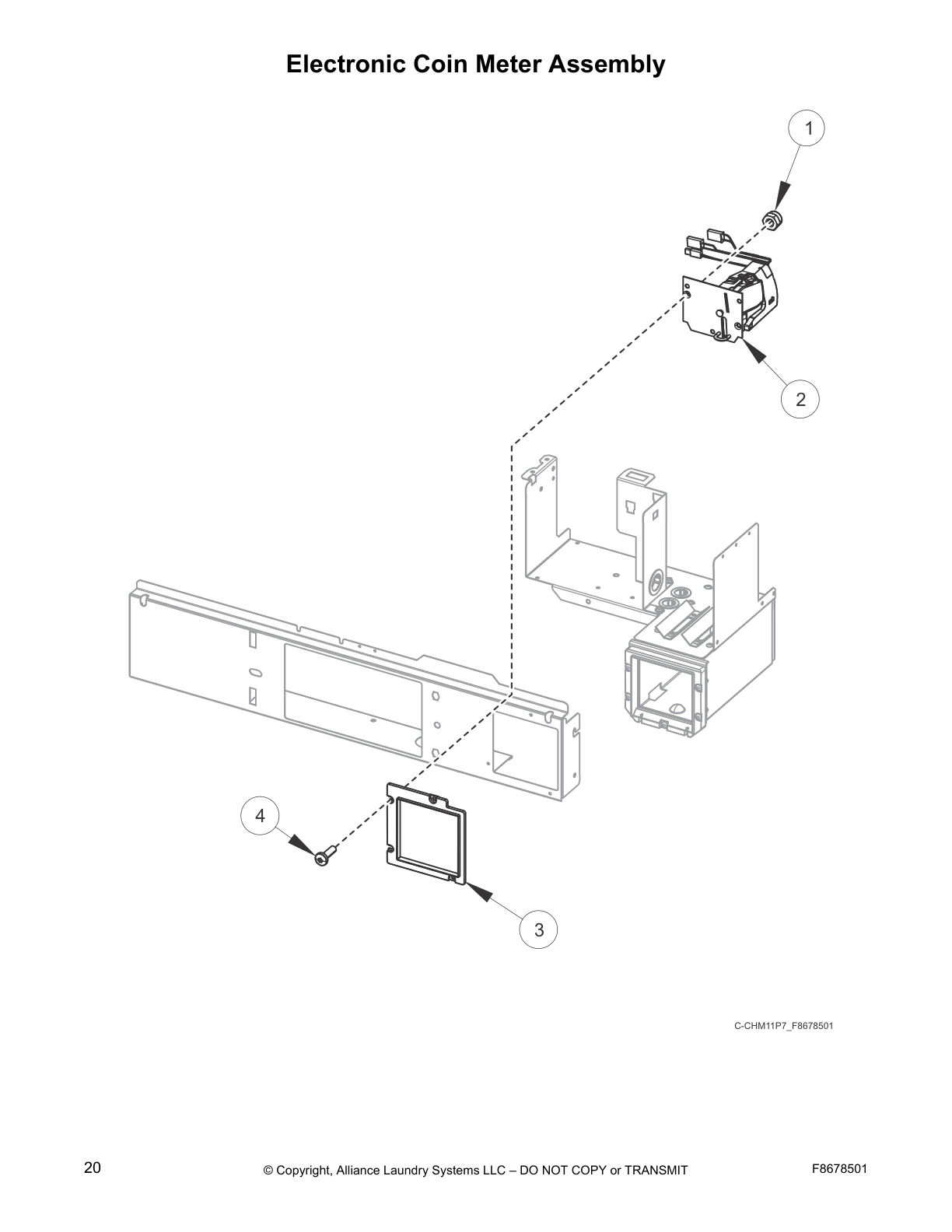

Electronic Coin Meter Assembly
Optional Coin Box

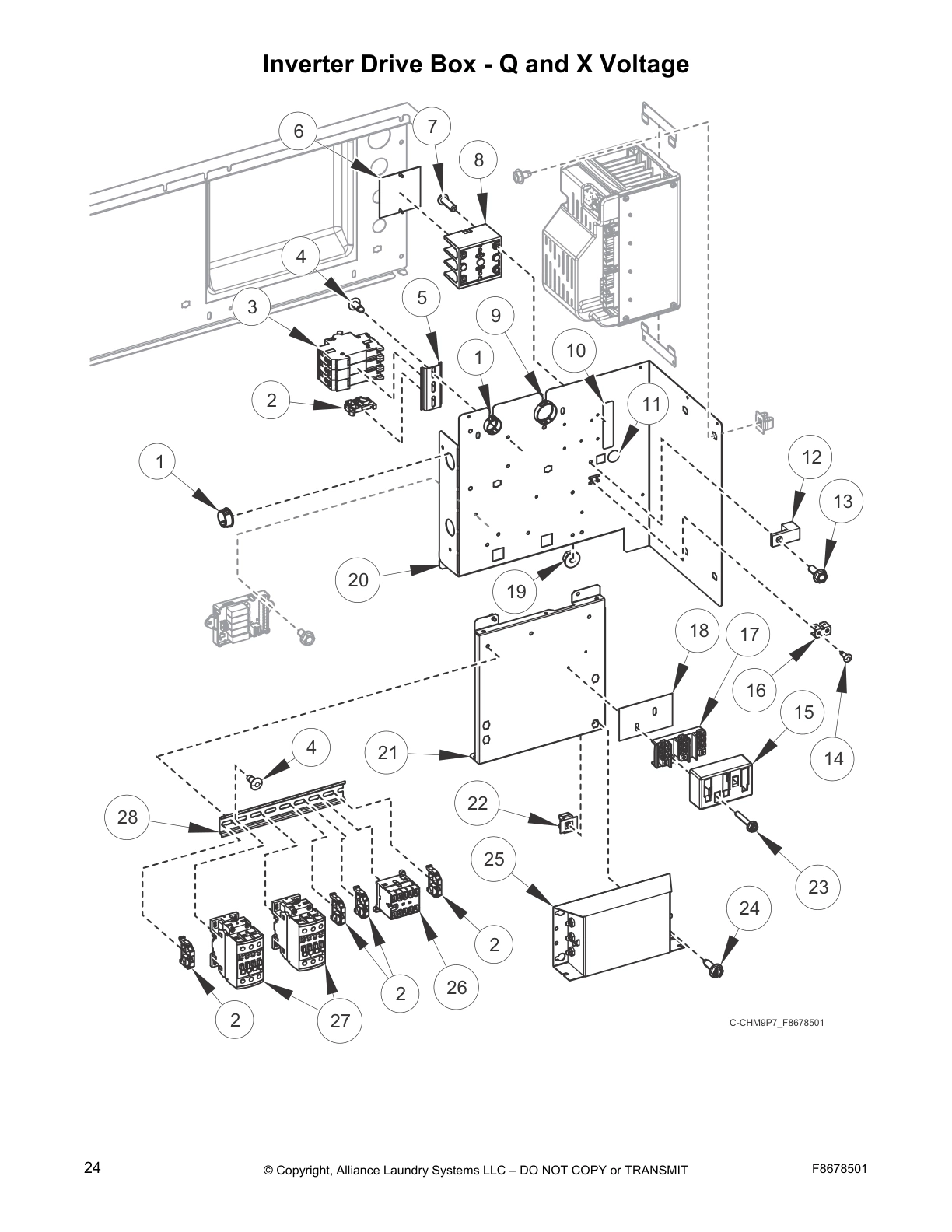

Inverter Drive Box - Q and X Voltage
Inverter Drive Box - N and P Voltage

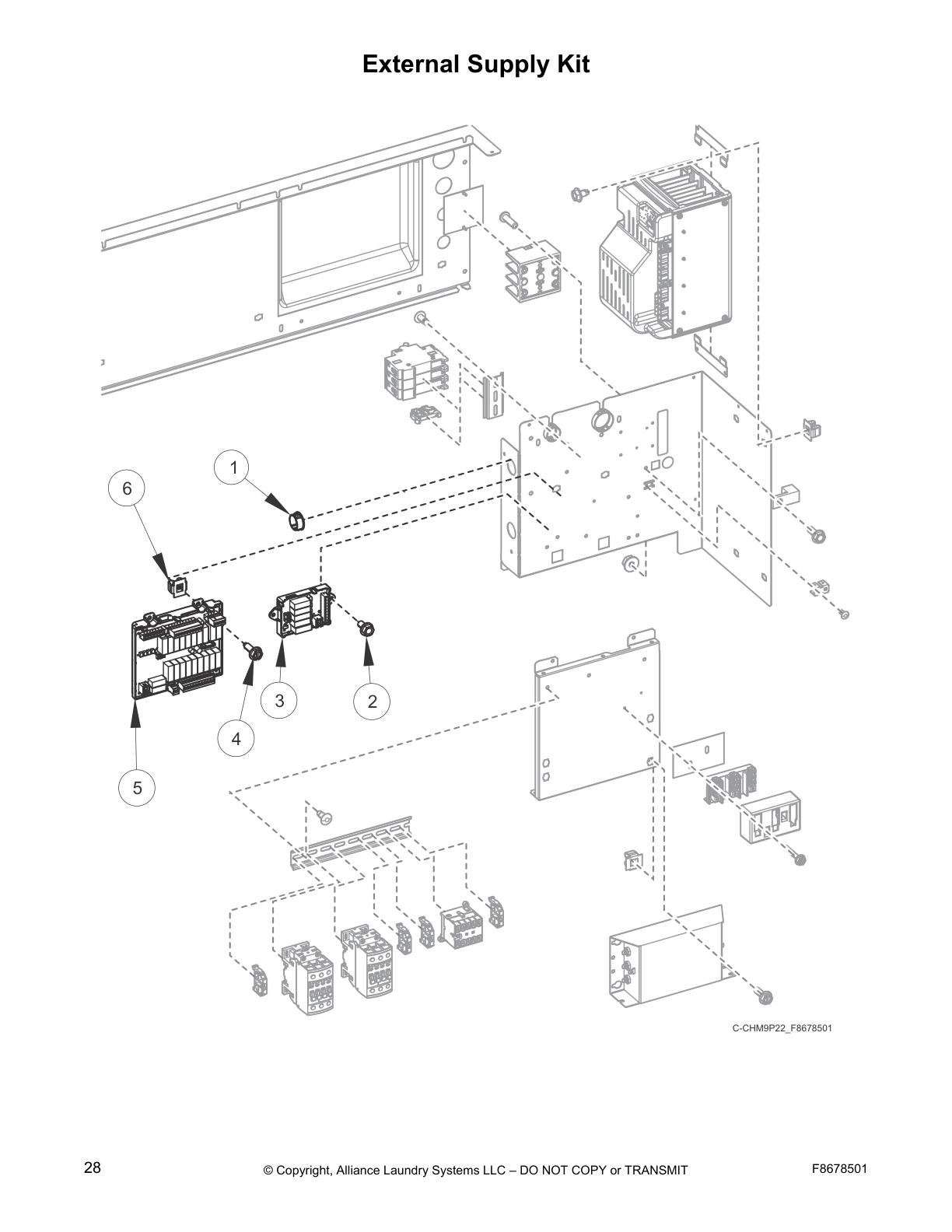

External Supply Kit

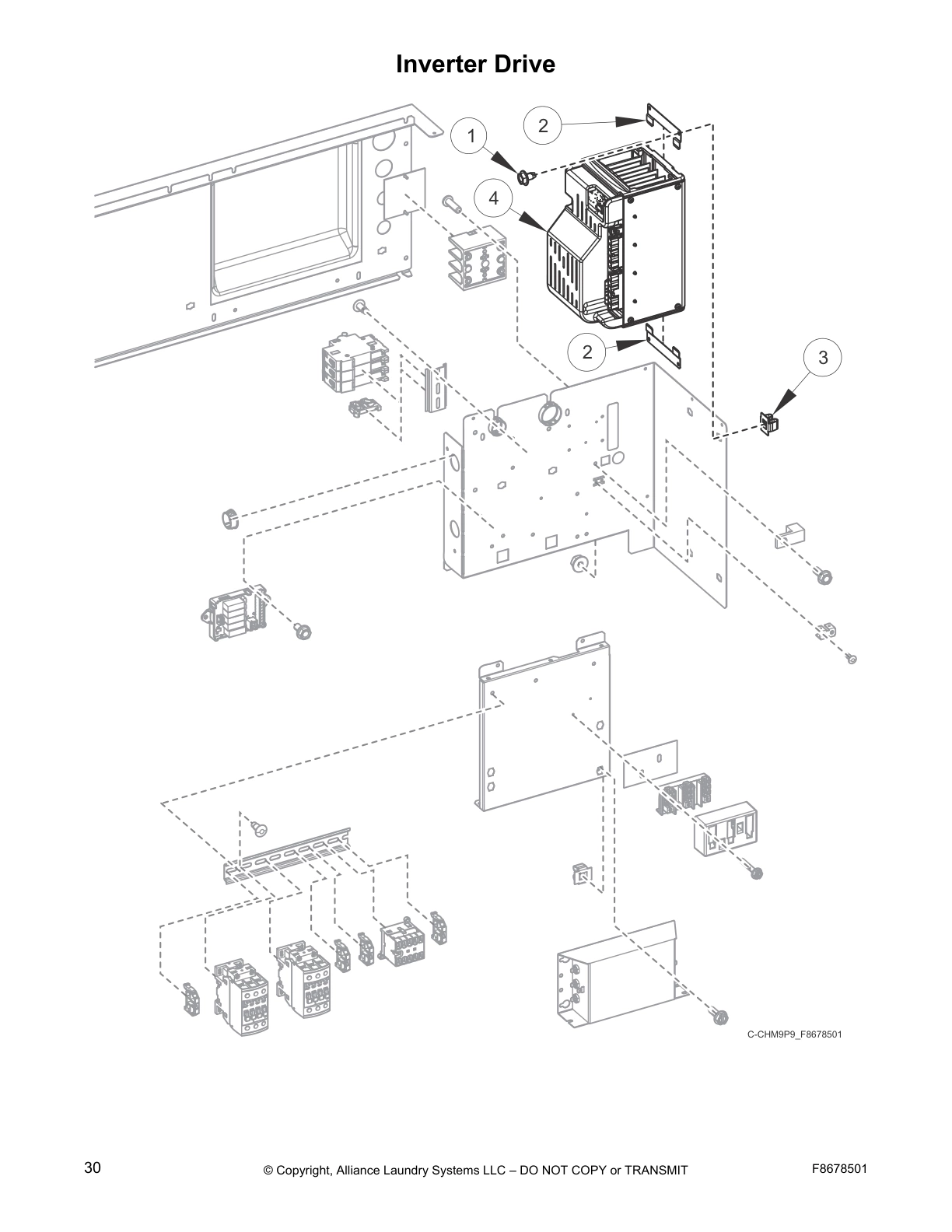

Inverter Drive

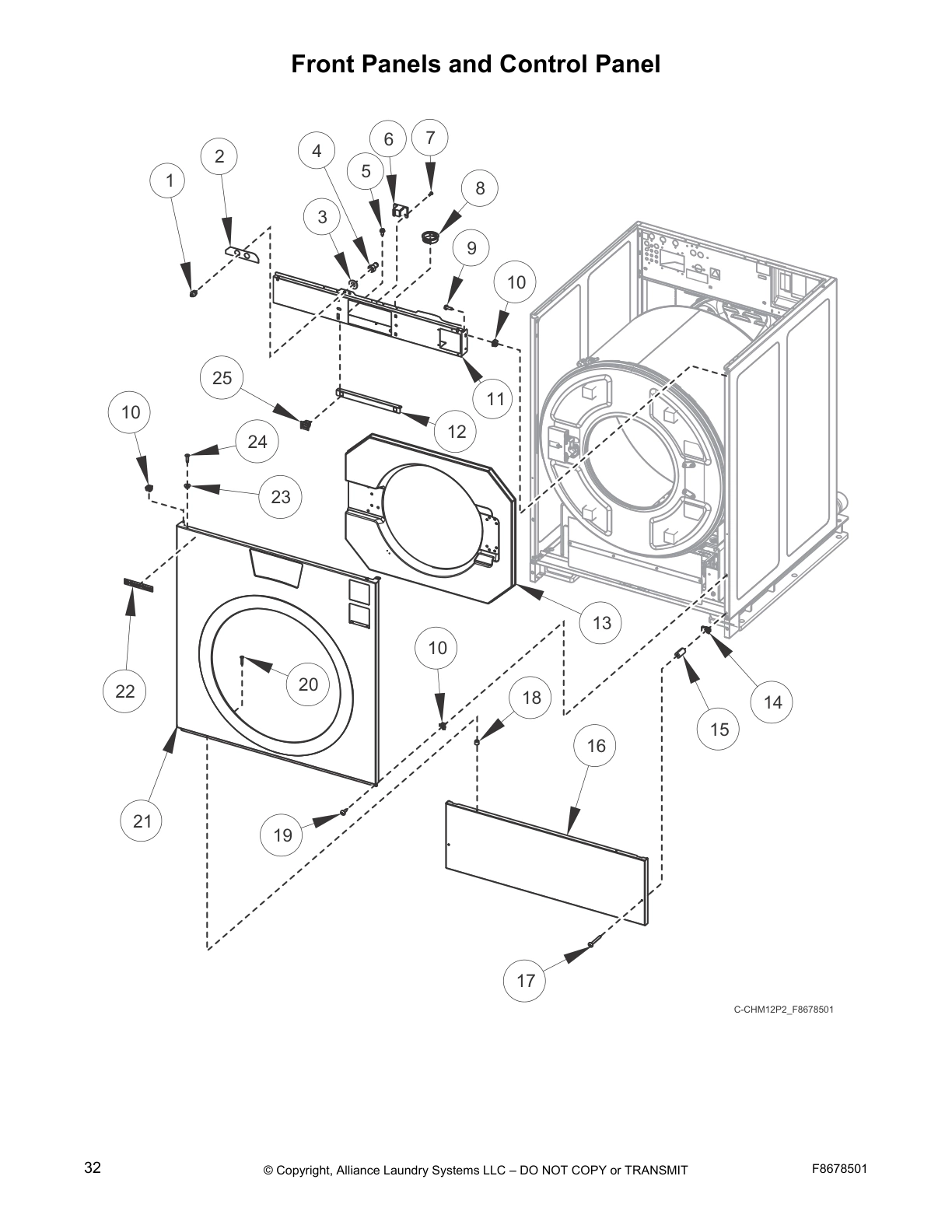

Front Panels and Control Panel

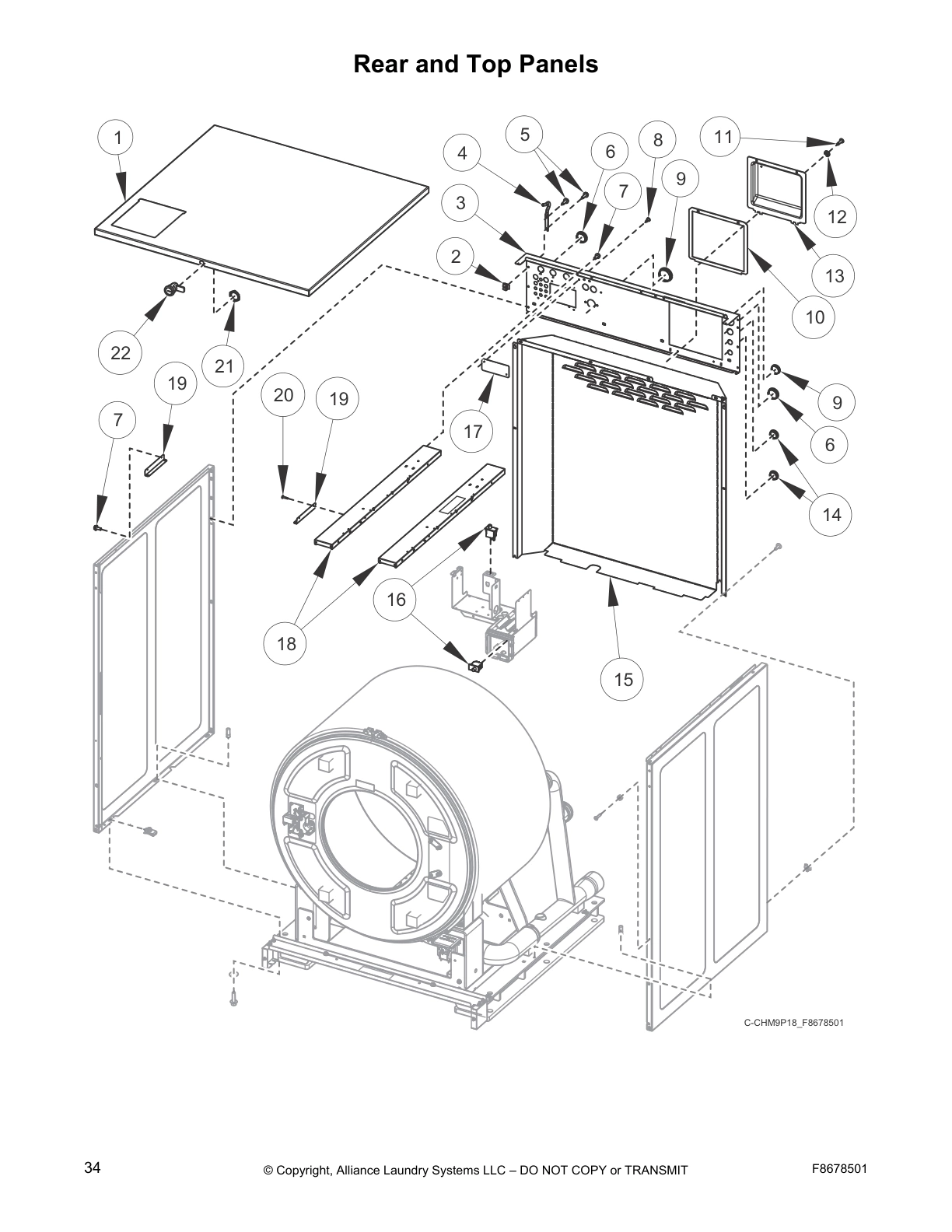

Rear and Top Panels

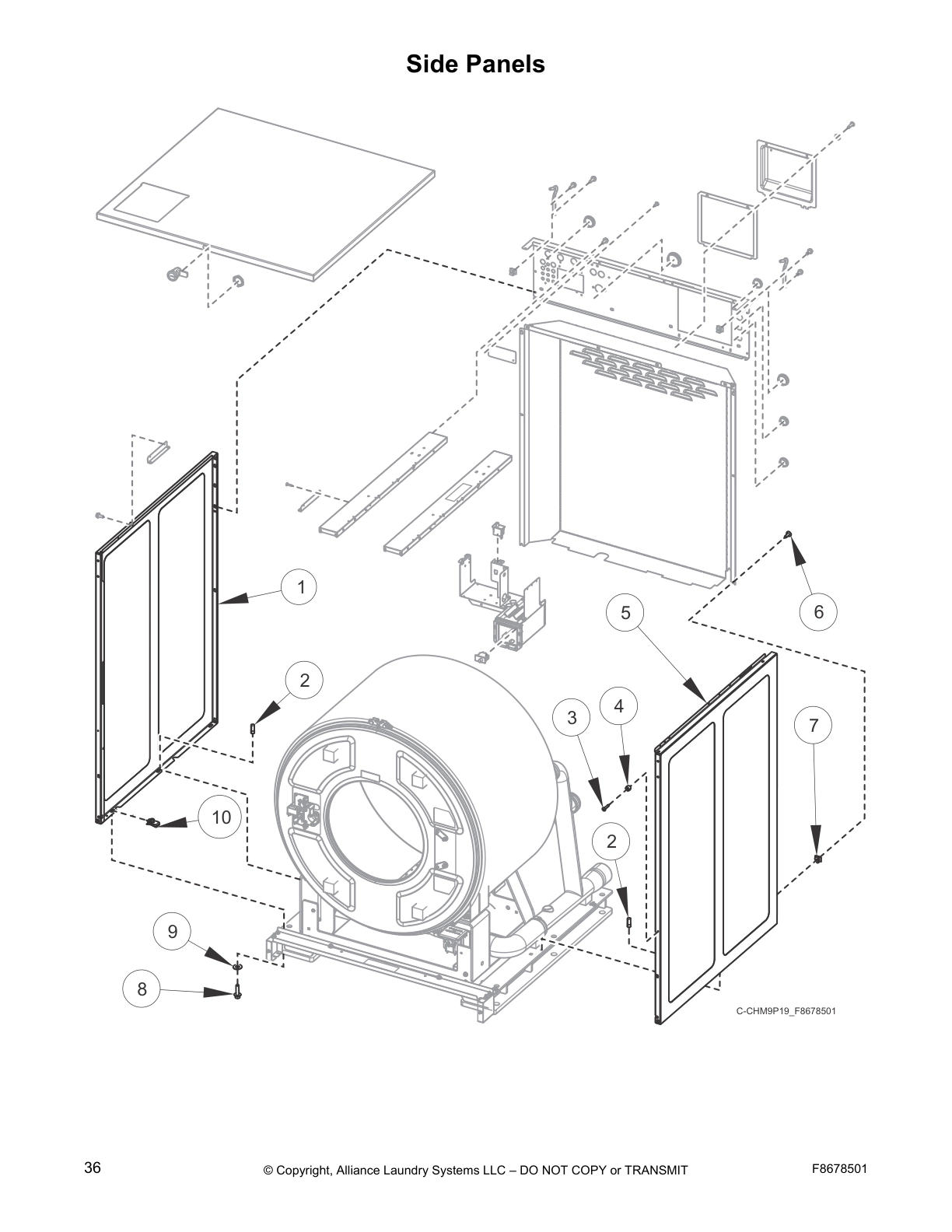

Side Panels

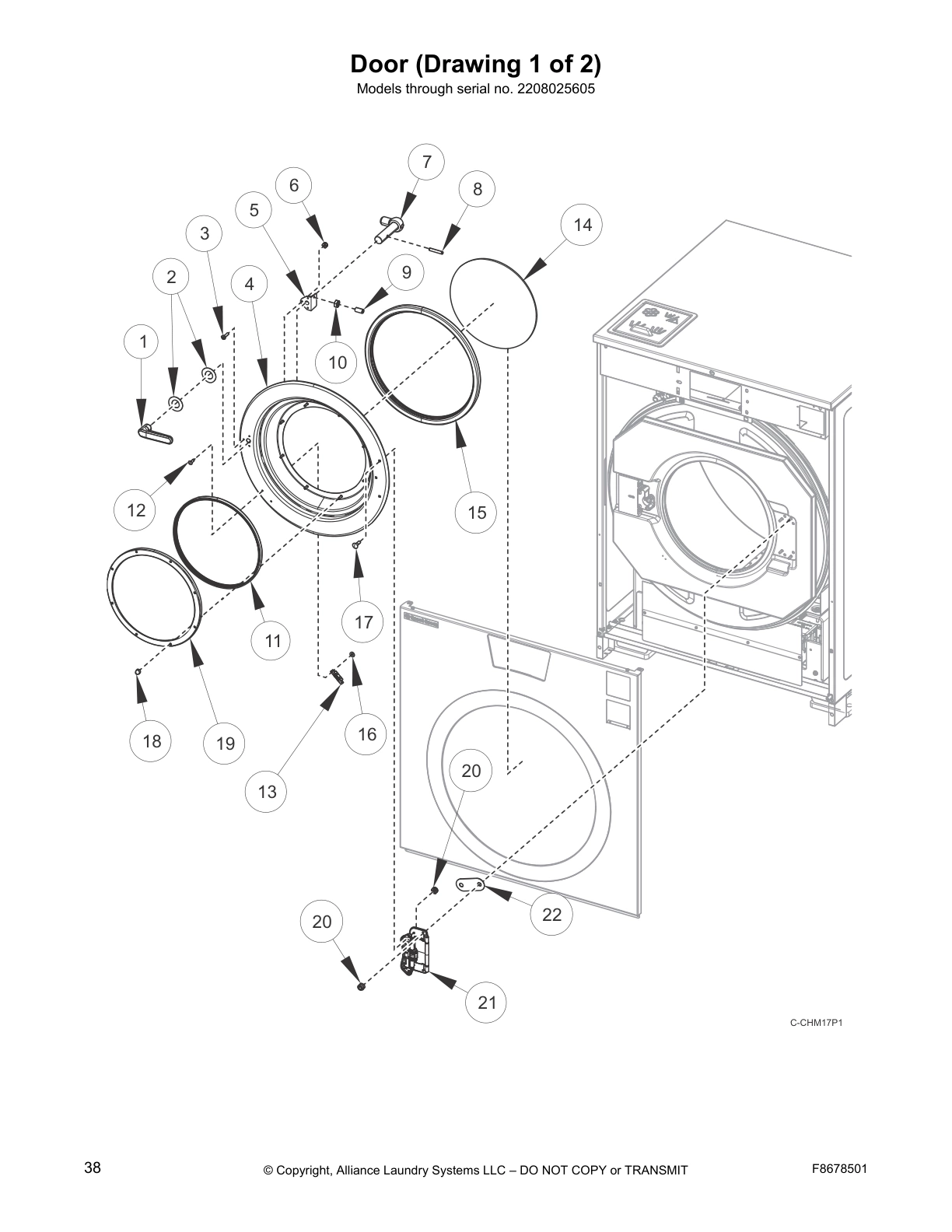

Door (Drawing 1 of 2)

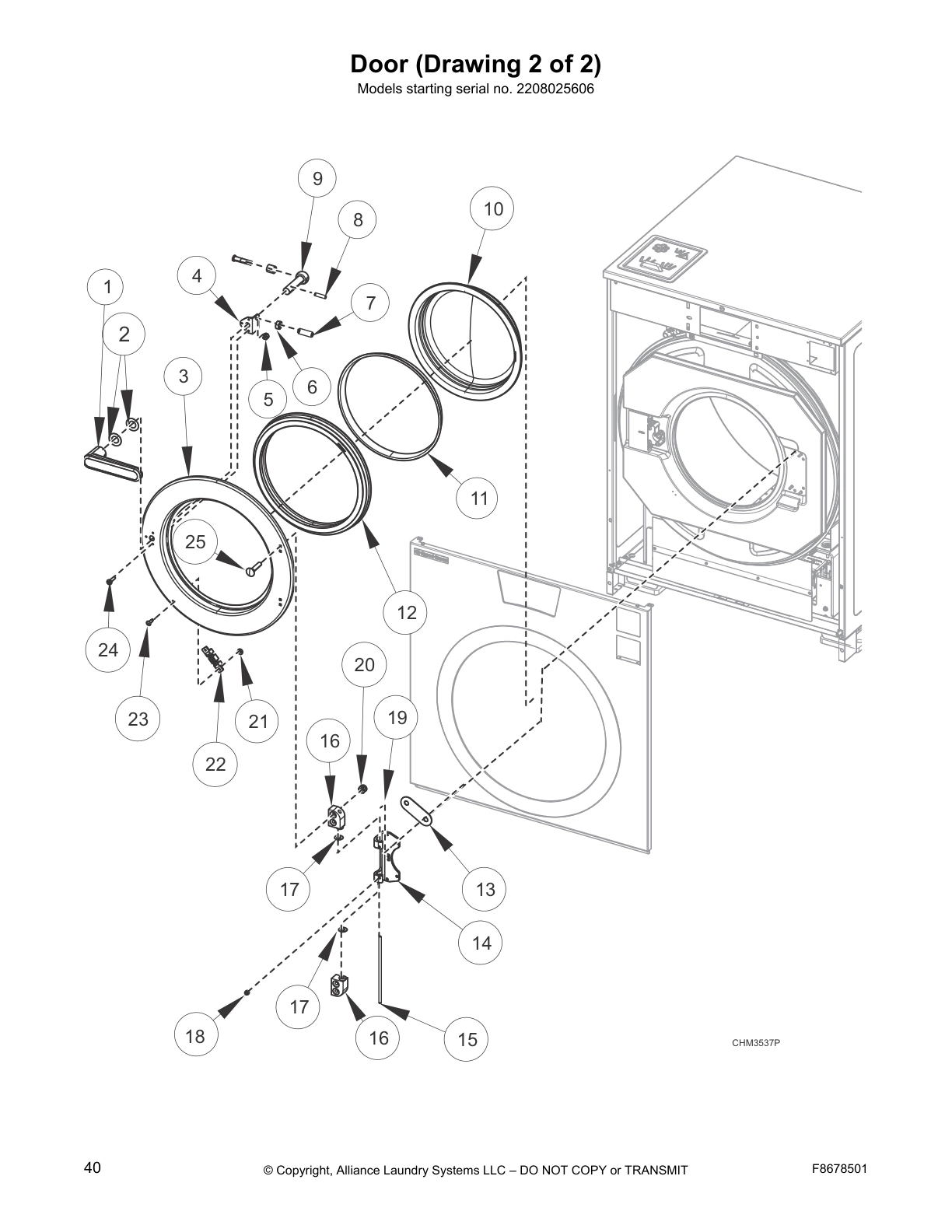

Door (Drawing 2 of 2)
Door Lock

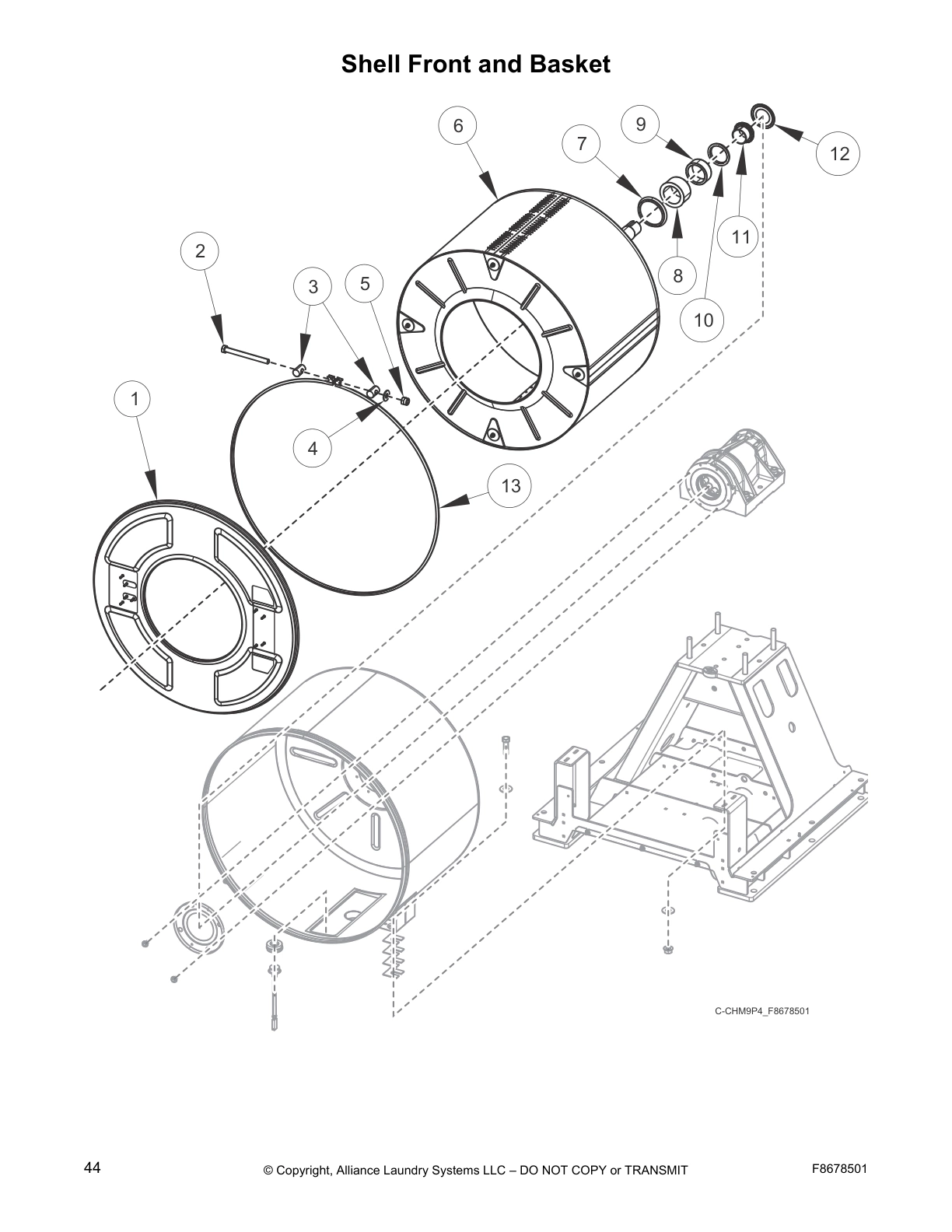

Shell Front and Basket

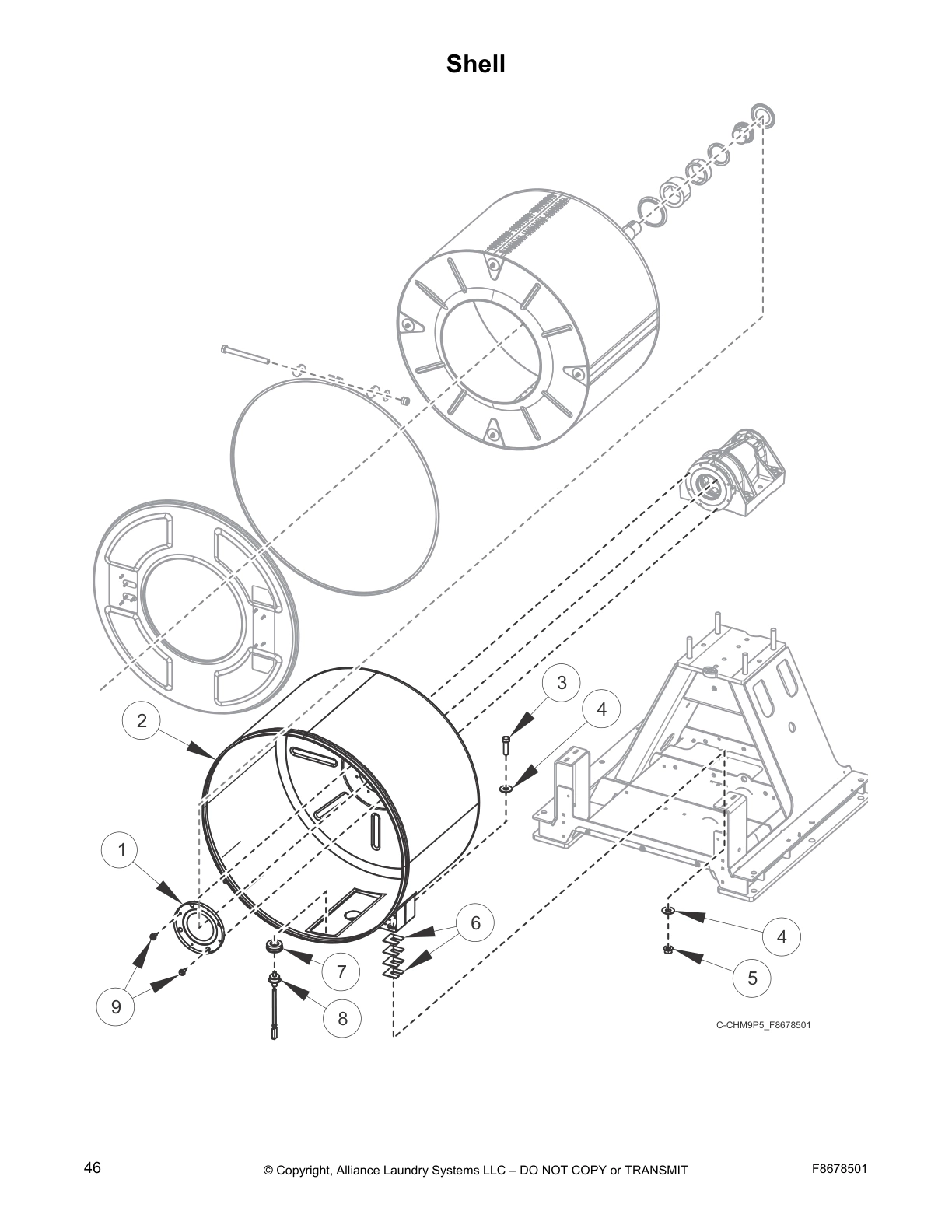

Shell

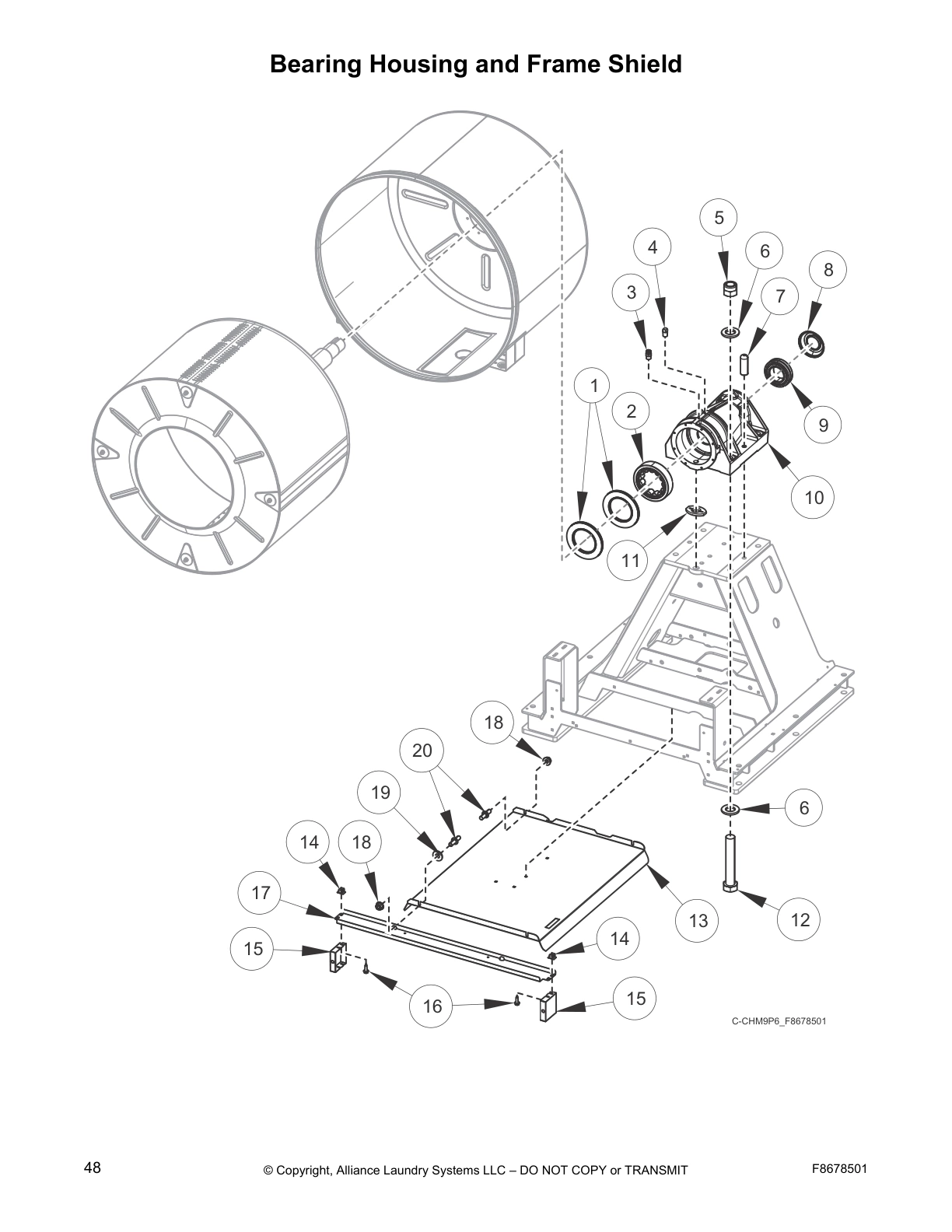

Bearing Housing and Frame Shield

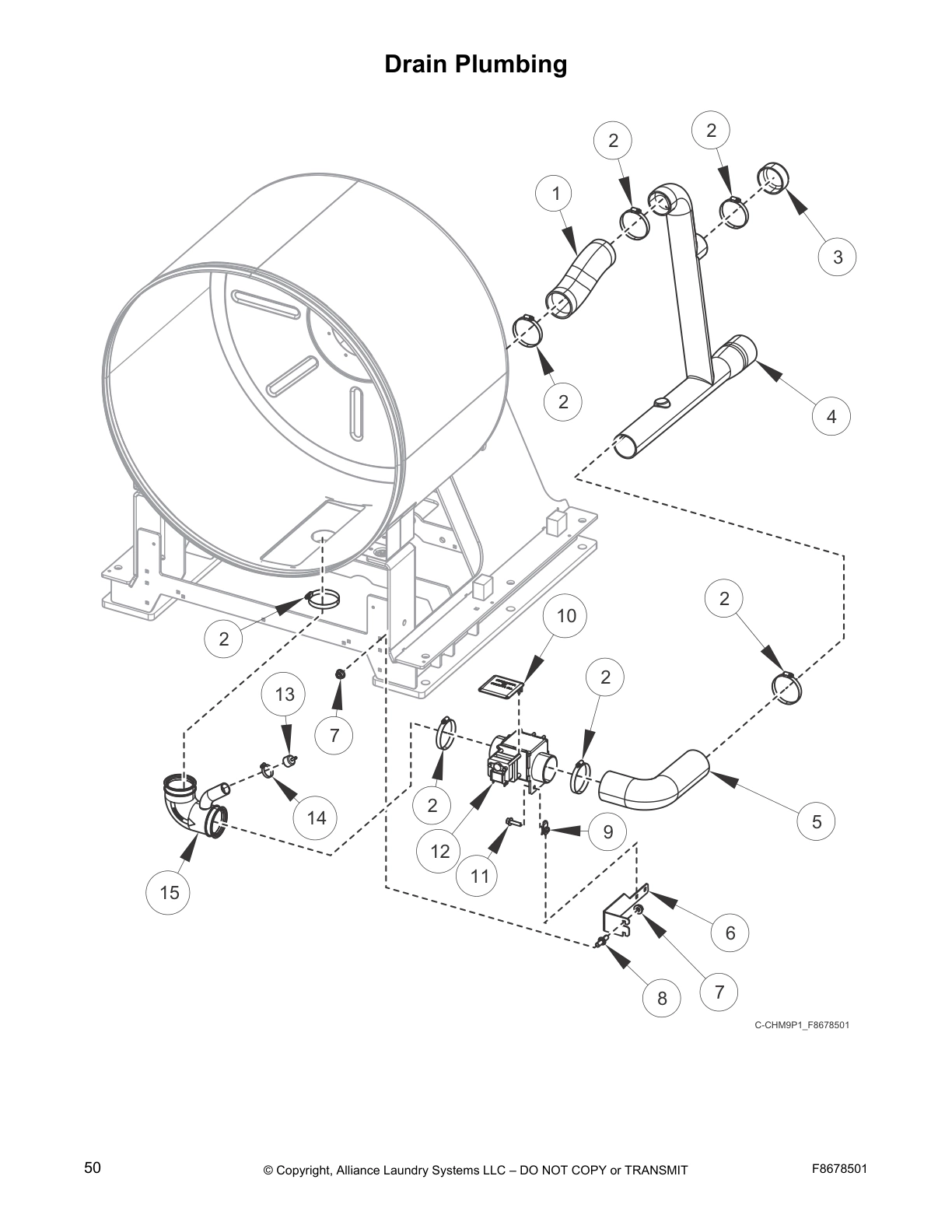

Drain Plumbing

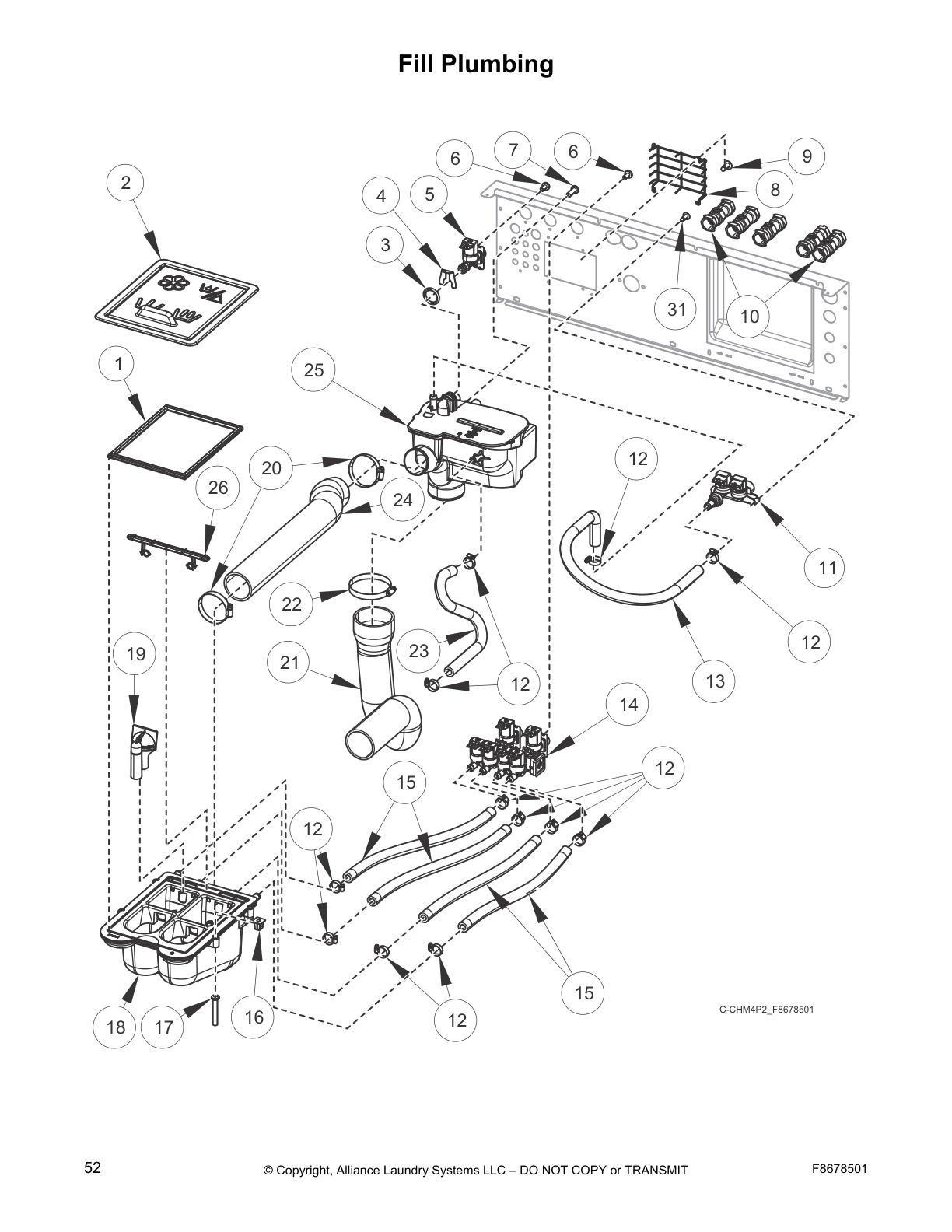

Fill Plumbing

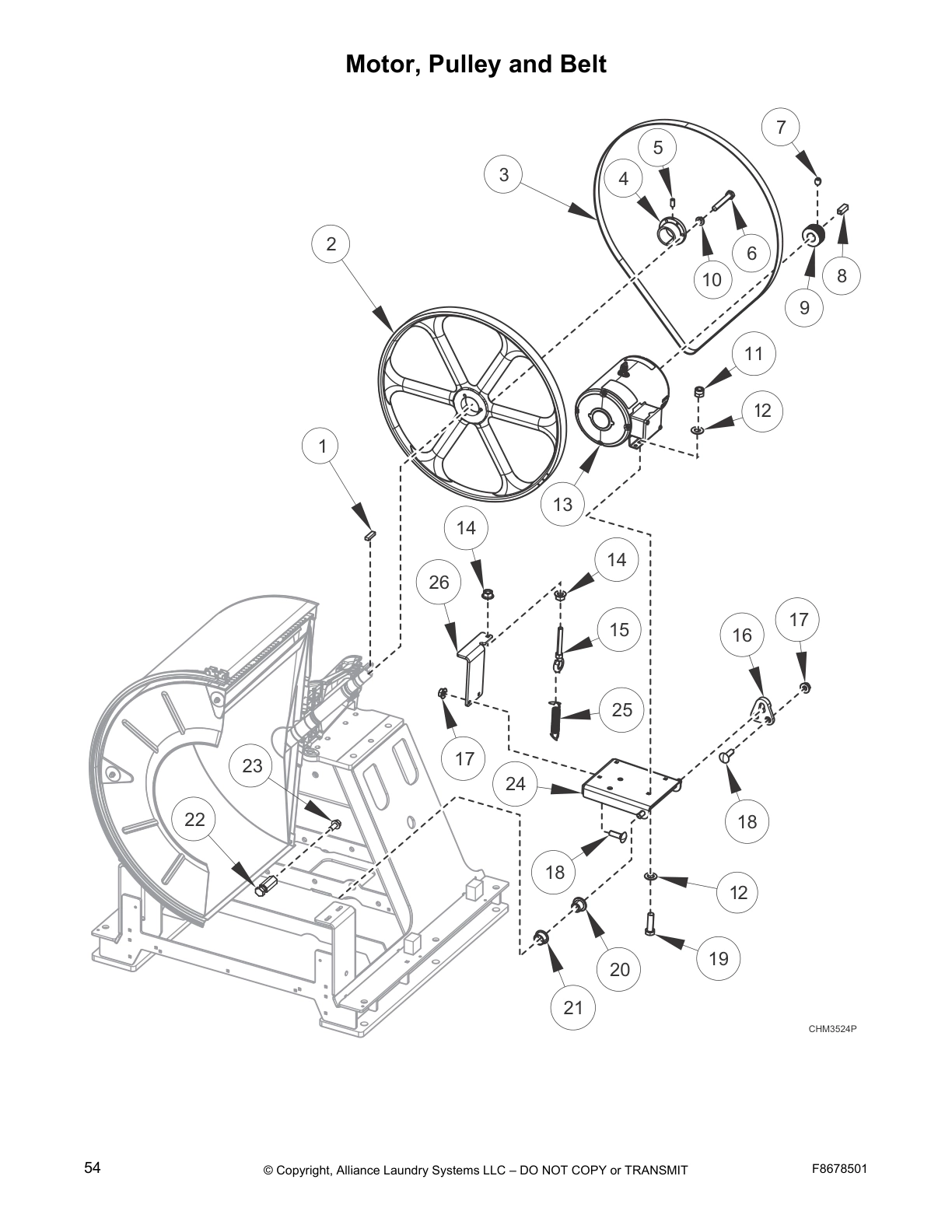

Motor, Pulley and Belt

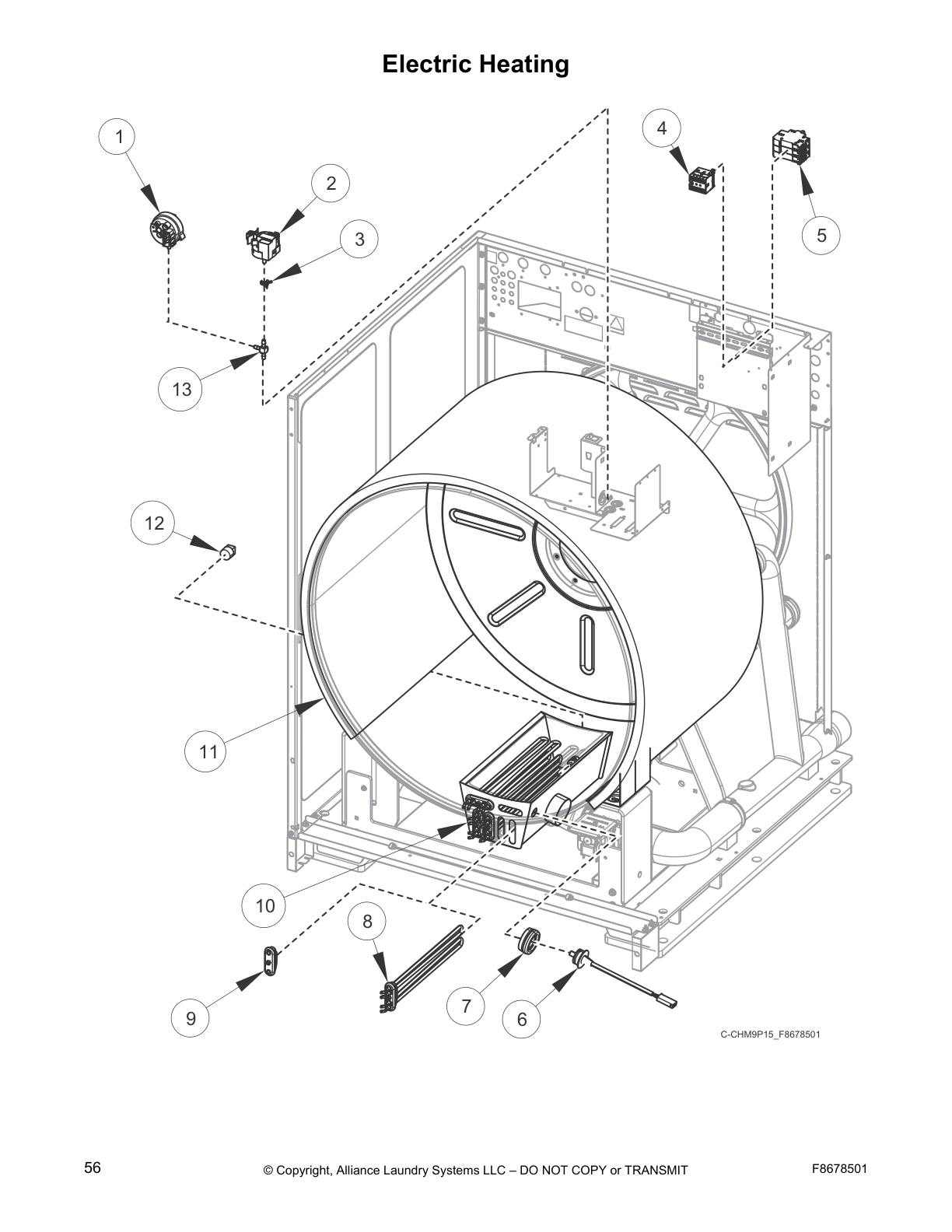

Electric Heating

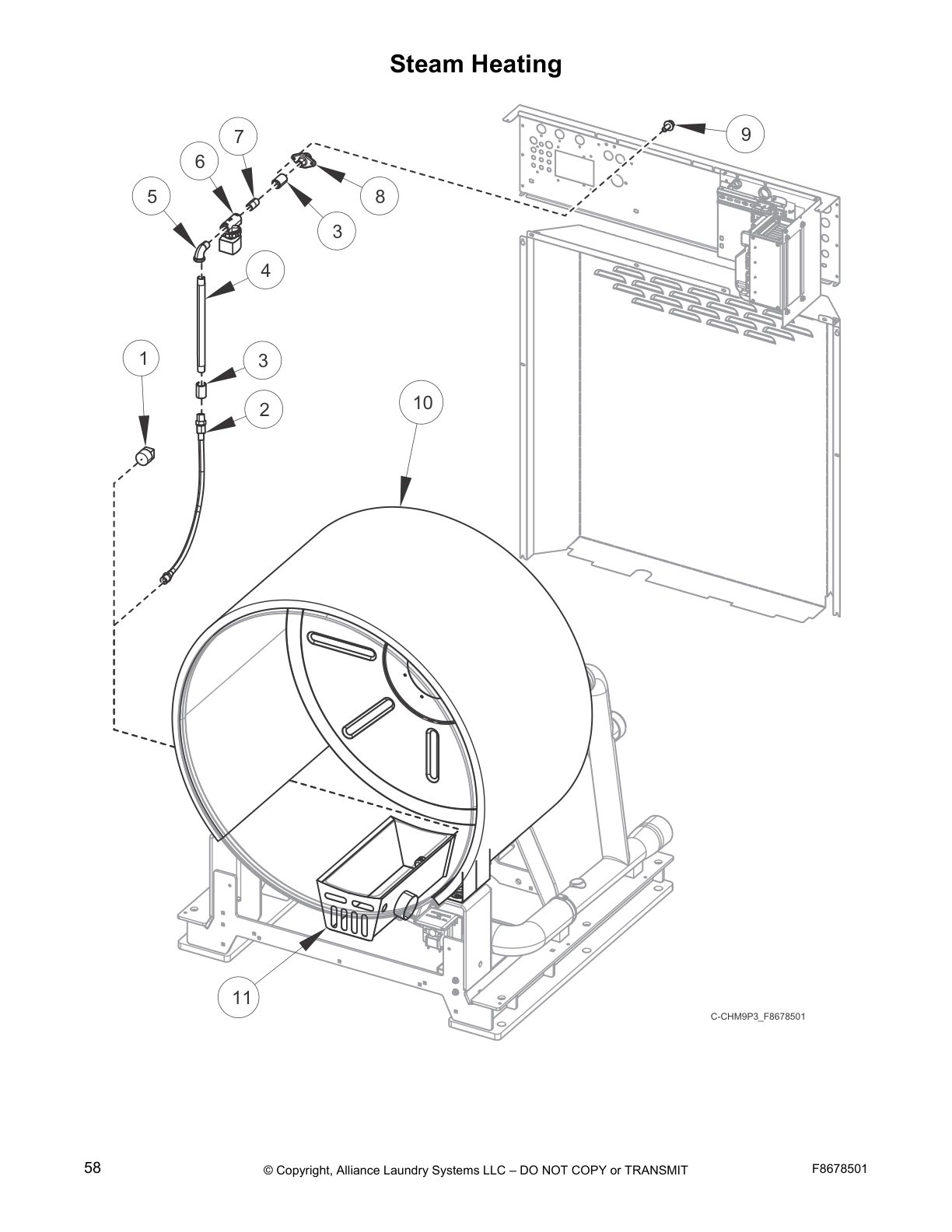

Steam Heating

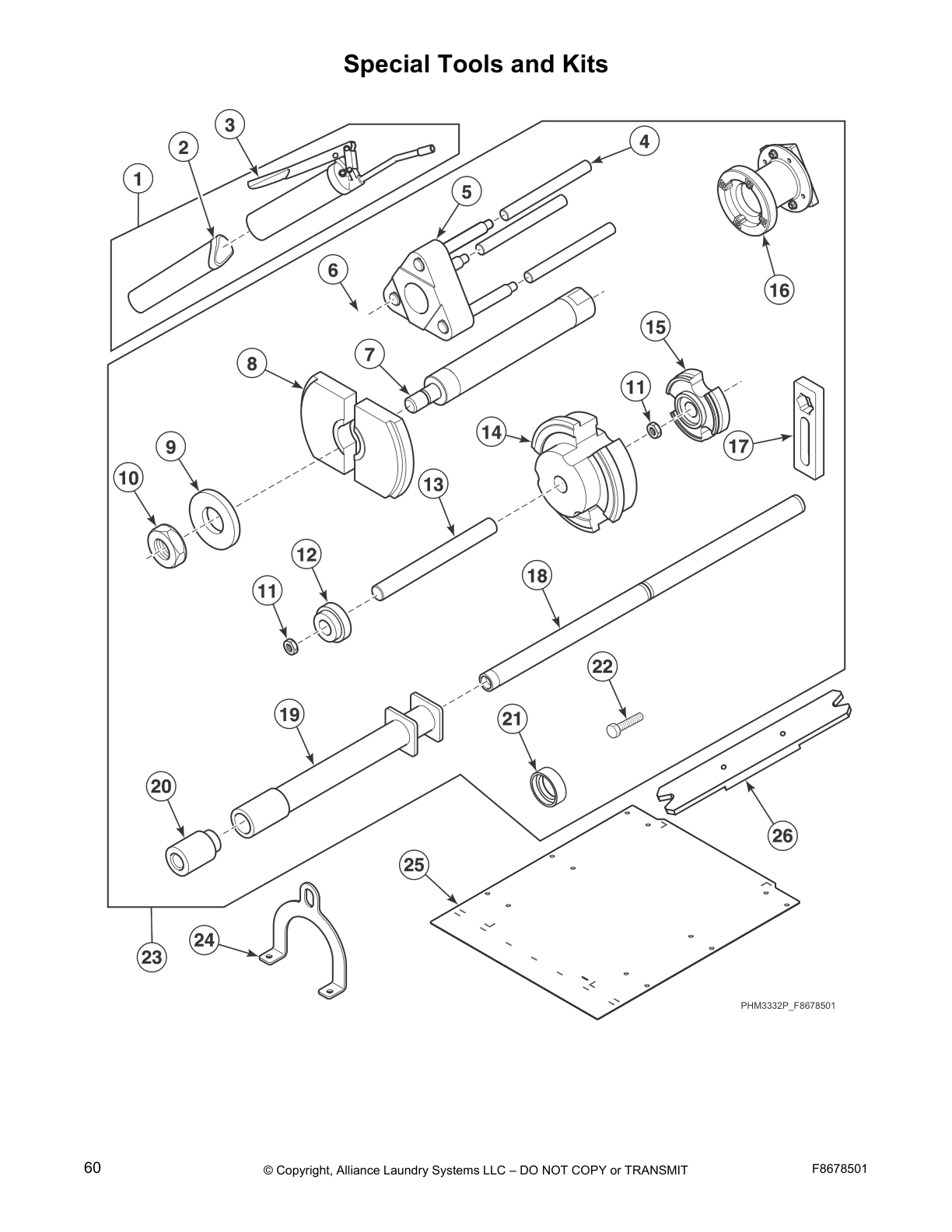

Special Tools and Kits
Common parts from model Huebsch HCK080VC Washer
SPQ F8619102 SPQ F8619102 Contact Us For Availability
SPQ F8518606 SPQ F8518606 Contact Us For Availability
SPQ F8518503 SPQ F8518503 Contact Us For Availability
SPQ F8555402 SPQ F8555402 Contact Us For Availability
SPQ F8497401 SPQ F8497401 Contact Us For Availability
SPQ F8662512 SPQ F8662512 Contact Us For Availability
SPQ F8528204 SPQ F8528204 Contact Us For Availability
SPQ F8519203 SPQ F8519203 Contact Us For Availability
SPQ F8519201 SPQ F8519201 Contact Us For Availability
SPQ 70030401 SPQ 70030401 Contact Us For Availability
SPQ F8343911 SPQ F8343911 Contact Us For Availability
SPQ F8503701 SPQ F8503701 Contact Us For Availability
SPQ F200166 SPQ F200166 Contact Us For Availability
SPQ F8544601 SPQ F8544601 Contact Us For Availability
SPQ F8520704 SPQ F8520704 Contact Us For Availability
SPQ F8233704 SPQ F8233704 Contact Us For Availability
1
Wire Clip SPQ 70366201 Contact Us For Availability
1
Snap Bushing SPQ F140938 Contact Us For Availability
1
Coin Drawer Assembly SPQ F8182001 Contact Us For Availability
1
Grease Fitting SPQ F190701 Contact Us For Availability
1
Top Cover SPQ F8553301 Contact Us For Availability
1
Door Handle SPQ F8624603 Contact Us For Availability
1
Nut SPQ F431024 Contact Us For Availability
1
Shell Front SPQ F8222701 Contact Us For Availability
1
Seal Wear Plate SPQ F8550101 Contact Us For Availability
1
Radial Seal SPQ F8203808 Contact Us For Availability
1
Overflow Hose SPQ F0150488-00 Contact Us For Availability
1
Dispenser Gasket SPQ B12568601 Contact Us For Availability
1
Key SPQ 44049002 Contact Us For Availability
1
Plug SPQ F420408 Contact Us For Availability
1
Grease Gun Kit SPQ F798700 Contact Us For Availability
2
Coin Drop Kit SPQ CK503 Contact Us For Availability
2
End Stop SPQ F8449801 Contact Us For Availability
2
Drive Mounting Bracket SPQ F8322401 Contact Us For Availability
2
Pin SPQ F8502101 Contact Us For Availability
2
Nut SPQ C001236 Contact Us For Availability
2
Expansion Clip SPQ F8344401 Contact Us For Availability
2
Stud SPQ F8381801 Contact Us For Availability
2
Water Pressure Switch SPQ F8404401 Contact Us For Availability
2
Steam Hose SPQ F200197 Contact Us For Availability
2
Excluder Seal Fixture SPQ F210206P Contact Us For Availability
3
Pressure Sensor SPQ F8623401 Contact Us For Availability
3
Chemical Injection Control SPQ 804528 Contact Us For Availability
3
Air Coupling SPQ 70292801 Contact Us For Availability
3
Rivet SPQ M412763 Contact Us For Availability
3
Top Cover Hinge SPQ F8553401 Contact Us For Availability
3
Door Handle Spacer Kit SPQ F430974 Contact Us For Availability
3
Pin SPQ F8302701 Contact Us For Availability
3
Screw SPQ F8543801 Contact Us For Availability
3
Molded Drain SPQ F8542201 Contact Us For Availability
3
Coupling SPQ F8116301 Contact Us For Availability
3
Washer SPQ F8634802 Contact Us For Availability
4
Barbed Tee SPQ F8609101 Contact Us For Availability
4
Contactor SPQ 70482601 Contact Us For Availability
4
Connector SPQ 70493102 Contact Us For Availability
4
Drive Assembly SPQ F8496901 Contact Us For Availability
4
Top Cover Latch SPQ F422114 Contact Us For Availability
4
Screw SPQ F8258601 Contact Us For Availability
4
Spring Pin SPQ F8508101 Contact Us For Availability
4
Screw SPQ F8223202 Contact Us For Availability
4
Washer SPQ F430900 Contact Us For Availability
4
Dowel Pin SPQ J1408004 Contact Us For Availability
4
Water Reuse Hose SPQ F8542001 Contact Us For Availability
4
SPQ F8649401 SPQ F8649401 Contact Us For Availability
4
Pipe Nipple SPQ 70214101 Contact Us For Availability
5
Hinge Replacement Kit SPQ F8567501 Contact Us For Availability
5
Expansion Clip SPQ 807211 Contact Us For Availability
5
Circuit Breaker SPQ 70488101 Contact Us For Availability
5
Door Latch Arm Assembly
Includes latch arm sh SPQ F8687105 Contact Us For Availability
5
Radial Lip Seal SPQ M403052 Contact Us For Availability
5
SPQ 44048902 SPQ 44048902 Contact Us For Availability
5
Street Elbow SPQ H86070034 Contact Us For Availability
6
Filter Kit SPQ 44014901P Contact Us For Availability
6
External Supply Kit SPQ F8555405 Contact Us For Availability
6
App Pay Overlay Kit SPQ F8201001 Contact Us For Availability
6
SPQ F8223901 SPQ F8223901 Contact Us For Availability
6
Door Lock Catch SPQ F8245001 Contact Us For Availability
6
Basket Assembly SPQ F8516903 Contact Us For Availability
6
Thermistor SPQ F8538801 Contact Us For Availability
6
Bearings and Seals Kit SPQ F430248 Contact Us For Availability
6
Nut SPQ F0150502-00 Contact Us For Availability
6
Water Hose SPQ F8047801 Contact Us For Availability
6
SPQ 44079203 SPQ 44079203 Contact Us For Availability
6
Coil SPQ F8515001 Contact Us For Availability
6
Concrete Hardware Kit SPQ F210207P Contact Us For Availability
7
App Pay Overlay Kit SPQ M411826 Contact Us For Availability
7
Pop Rivet SPQ 70347601 Contact Us For Availability
7
Washer SPQ F8344501 Contact Us For Availability
7
Basket SPQ F8516902 Contact Us For Availability
7
Bearing Housing Assemb SPQ F8171201 Contact Us For Availability
7
Stud SPQ F8386807 Contact Us For Availability
7
Fill Hose Kit SPQ F8230301 Contact Us For Availability
7
SPQ M400077 SPQ M400077 Contact Us For Availability
7
Valve SPQ F8322805 Contact Us For Availability
8
SPQ F431222 SPQ F431222 Contact Us For Availability
8
SPQ M413865 SPQ M413865 Contact Us For Availability
8
Machine ID Control Assembly SPQ F8663002 Contact Us For Availability
8
SPQ 70346501 SPQ 70346501 Contact Us For Availability
8
Washer SPQ 202175 Contact Us For Availability
8
SPQ F431041 SPQ F431041 Contact Us For Availability
8
Bolt SPQ F8193101 Contact Us For Availability
8
Excluder Seal SPQ F8516901 Contact Us For Availability
8
SPQ F8402701 SPQ F8402701 Contact Us For Availability
8
SPQ F8406502 SPQ F8406502 Contact Us For Availability
8
Drain Valve Harness SPQ C000412 Contact Us For Availability
8
SPQ H8752006H SPQ H8752006H Contact Us For Availability
8
Screw SPQ 70435601 Contact Us For Availability
9
SPQ F8223801 SPQ F8223801 Contact Us For Availability
9
SPQ M405535 SPQ M405535 Contact Us For Availability
9
SPQ F430532 SPQ F430532 Contact Us For Availability
9
Door Lock Harness SPQ F8270701 Contact Us For Availability
9
Seal Sleeve SPQ F8337101 Contact Us For Availability
9
SPQ F8528501 SPQ F8528501 Contact Us For Availability
9
SPQ F8543601 SPQ F8543601 Contact Us For Availability
9
SPQ F8362601 SPQ F8362601 Contact Us For Availability
9
Heating Element Plug SPQ F360202 Contact Us For Availability
9
Pipe Insulation SPQ F8362701 Contact Us For Availability
9
USB Gateway Kit SPQ F8459101 Contact Us For Availability
10
Wire Clip SPQ F8449501 Contact Us For Availability
10
Torsion/Door Lock Spring SPQ F430232 Contact Us For Availability
10
Door Glass SPQ 535439P Contact Us For Availability
10
Insertion Sleeve SPQ F8464901 Contact Us For Availability
10
Bearing Housing SPQ F8203807 Contact Us For Availability
10
Drain Valve Cover SPQ F200133600 Contact Us For Availability
10
Double Check Valve SPQ F8301201 Contact Us For Availability
10
Washer SPQ M400013 Contact Us For Availability
10
Shell Insulation SPQ F8209105 Contact Us For Availability
10
Nut SPQ F8455801 Contact Us For Availability
11
Screw SPQ F8117601 Contact Us For Availability
11
Control Tray SPQ F8530701 Contact Us For Availability
11
Pop Rivet SPQ 70412601 Contact Us For Availability
11
Sleeve Adapter SPQ F8382501 Contact Us For Availability
11
Shell SPQ F8543802 Contact Us For Availability
11
Seal Scupper Pad SPQ F8465001 Contact Us For Availability
11
Nut SPQ F8387601 Contact Us For Availability
11
Bearing Sleeve Assembly SPQ F8457701 Contact Us For Availability
12
Input and Output Control Assembly SPQ F8494101P Contact Us For Availability
12
Ground Lug Connector SPQ M411283 Contact Us For Availability
12
Washer SPQ 804501 Contact Us For Availability
12
Door Gasket SPQ F8636501 Contact Us For Availability
12
Door Lock Microswitch SPQ F8070301 Contact Us For Availability
12
Seal SPQ F8379301 Contact Us For Availability
12
Screw SPQ F8452701 Contact Us For Availability
12
Drain Valve Kit SPQ F200166402 Contact Us For Availability
12
Motor
5 hp SPQ F8366601 Contact Us For Availability
13
Door Lock Switch Lever SPQ F200203200 Contact Us For Availability
13
Magnet SPQ F8390801 Contact Us For Availability
13
Screw SPQ 685837 Contact Us For Availability
13
Terminal Tray Cover SPQ F8518301 Contact Us For Availability
13
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
13
Shell Band Kit SPQ F8537808 Contact Us For Availability
13
Frame Shield SPQ F8313701 Contact Us For Availability
13
Eye Bolt SPQ F8510001 Contact Us For Availability
14
Hose Clamp SPQ F200166302 Contact Us For Availability
14
Pop Rivet SPQ M400003 Contact Us For Availability
14
Plug SPQ M400985 Contact Us For Availability
14
Glass SPQ F290210P Contact Us For Availability
14
Door Hinge SPQ F190216P Contact Us For Availability
14
Spacer SPQ F8223401 Contact Us For Availability
14
Expansion Clip SPQ F8509501 Contact Us For Availability
14
Manifold Valve SPQ F8529702P Contact Us For Availability
15
Terminal Block Shield SPQ 70333001 Contact Us For Availability
15
Rear Panel SPQ F8555301 Contact Us For Availability
15
Door Gasket SPQ F8440801P Contact Us For Availability
15
Rod SPQ F602813-3 Contact Us For Availability
15
Door Lock Solenoid Replacement Kit SPQ F431901 Contact Us For Availability
15
Drain Hose SPQ F8577201 Contact Us For Availability
15
Bolt SPQ F8319503 Contact Us For Availability
16
Door Mount SPQ F150271 Contact Us For Availability
16
Pushbutton Switch SPQ 70413301 Contact Us For Availability
16
Door Lock Plate Shim SPQ F977P3 Contact Us For Availability
16
Screw SPQ F8542101 Contact Us For Availability
16
Bearing Grease SPQ F8530201 Contact Us For Availability
17
Terminal Block SPQ 430642 Contact Us For Availability
17
Fill Cover SPQ F8586301 Contact Us For Availability
17
Washer
Non-ferrous SPQ F431929 Contact Us For Availability
17
Screw SPQ F0431807-00 Contact Us For Availability
18
Washer SPQ F8206901 Contact Us For Availability
18
Insulator SPQ M413862 Contact Us For Availability
18
Cabinet Brace SPQ F8556901 Contact Us For Availability
18
Door Glass Retainer SPQ F8549401 Contact Us For Availability
18
Washer SPQ F431147 Contact Us For Availability
18
Dispenser Weldment SPQ F8535601 Contact Us For Availability
18
Flanged Isolator SPQ F8402801 Contact Us For Availability
19
Hose Clamp SPQ F8531001 Contact Us For Availability
19
Nut SPQ 44088001 Contact Us For Availability
19
Dispenser Bracket SPQ F8525701 Contact Us For Availability
19
Door Hinge Shim Kit SPQ F8504902 Contact Us For Availability
19
Screw SPQ F430536 Contact Us For Availability
19
Siphon Cover SPQ F8437902 Contact Us For Availability
20
Nut SPQ F431215 Contact Us For Availability
20
Magnet SPQ F431916 Contact Us For Availability
20
Connector SPQ F8280504 Contact Us For Availability
20
Access Cover SPQ F8047901 Contact Us For Availability
20
Motor Bracket Weldment SPQ F8535202 Contact Us For Availability
21
Pop Rivet SPQ F430215 Contact Us For Availability
21
Contactor Tray SPQ F8530901 Contact Us For Availability
21
Key SPQ 44088801 Contact Us For Availability
21
Extension Spring SPQ F8333302 Contact Us For Availability
21
Screw SPQ F8537502 Contact Us For Availability
22
Nameplate SPQ F8664901 Contact Us For Availability
22
Valve Panel SPQ 70155603 Contact Us For Availability
22
Bolt SPQ F431133 Contact Us For Availability
22
Pop Rivet SPQ F200213 Contact Us For Availability
22
Motor Spring Bracket SPQ F8634701 Contact Us For Availability
22
Bearing Seal Insertion and Removal Kit SPQ M400063 Contact Us For Availability
23
Contactor SPQ 51783 Contact Us For Availability
23
Washer SPQ F8201101 Contact Us For Availability
23
Motor Pulley
80 pound models SPQ 70126104 Contact Us For Availability
23
Frame Template SPQ F8599401-1 Contact Us For Availability
24
Door
Design 6 SPQ F431223 Contact Us For Availability
24
Spring Stud Kit
Contains F8634701 Stud and M4 SPQ F8441805 Contact Us For Availability
25
Chrome SPQ F8535501 Contact Us For Availability
25
Motor Harness
EMI filter SPQ F8440701 Contact Us For Availability
25
Clamp SPQ F8599401 Contact Us For Availability
26
Hose Fitting SPQ F200201 Contact Us For Availability
26
Motor Harness
5 hp SPQ F8342201 Contact Us For Availability
26
Grease Gun SPQ F8413101 Contact Us For Availability
27
Power Distribution Block Cover SPQ 70482701 Contact Us For Availability
28
Power Distribution Block SPQ M412689 Contact Us For Availability
NI
SPQ F8519403 SPQ F8519403 Contact Us For Availability
NI
SPQ F8519301 SPQ F8519301 Contact Us For Availability
NI
SPQ 44374701 SPQ 44374701 Contact Us For Availability
NI
Gateway SPQ F8674004 Contact Us For Availability
NI
Wireless Control Label SPQ 205391P Contact Us For Availability
NI
SPQ 204692 SPQ 204692 Contact Us For Availability
NI
Pulse Expander Assembly SPQ F8034701P Contact Us For Availability
NI
SPQ F8518403 SPQ F8518403 Contact Us For Availability
NI
SPQ F8662813 SPQ F8662813 Contact Us For Availability
NI
SPQ F8662808 SPQ F8662808 Contact Us For Availability
NI
Power Harness SPQ F8619101 Contact Us For Availability
NI
SPQ F8518404 SPQ F8518404 Contact Us For Availability
NI
SPQ F8518401 SPQ F8518401 Contact Us For Availability
NI
SPQ F8662814 SPQ F8662814 Contact Us For Availability
NI
SPQ F8662807 SPQ F8662807 Contact Us For Availability
NI
SPQ F8518504 SPQ F8518504 Contact Us For Availability
NI
SPQ F8518501 SPQ F8518501 Contact Us For Availability
NI
Harness SPQ F8555404 Contact Us For Availability
NI
Harness SPQ F8555403 Contact Us For Availability
NI
SPQ F8555401 SPQ F8555401 Contact Us For Availability
NI
SPQ F8662508 SPQ F8662508 Contact Us For Availability
NI
SPQ F8520602 SPQ F8520602 Contact Us For Availability
NI
Drive Communication Harness SPQ F8496601 Contact Us For Availability
NI
Drive Power Harness SPQ F8519204 Contact Us For Availability
NI
SPQ F8519202 SPQ F8519202 Contact Us For Availability
NI
SPQ F8518603 SPQ F8518603 Contact Us For Availability
NI
SPQ F8535502 SPQ F8535502 Contact Us For Availability
NI
SPQ F8221403 SPQ F8221403 Contact Us For Availability
NI
SPQ F8749101 SPQ F8749101 Contact Us For Availability
NI
SPQ F8653510 SPQ F8653510 Contact Us For Availability
NI
Reed Switch Assembly SPQ F8520202 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
Bearing SPQ F8527701 Contact Us For Availability
NI
SPQ F8442702 SPQ F8442702 Contact Us For Availability
NI
SPQ 70334702 SPQ 70334702 Contact Us For Availability
NI
SPQ F8375401 SPQ F8375401 Contact Us For Availability
NI
SPQ F8503801 SPQ F8503801 Contact Us For Availability
NI
SPQ F8474602 SPQ F8474602 Contact Us For Availability
NI
SPQ F8474601 SPQ F8474601 Contact Us For Availability
NI
SPQ F8520002 SPQ F8520002 Contact Us For Availability
NI
SPQ 44069101 SPQ 44069101 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ F8520102 SPQ F8520102 Contact Us For Availability
NI
SPQ F8047403 SPQ F8047403 Contact Us For Availability
NI
SPQ F8748601 SPQ F8748601 Contact Us For Availability
NI
SPQ F8519010 SPQ F8519010 Contact Us For Availability
NI
SPQ F8519005 SPQ F8519005 Contact Us For Availability
NI
Steam Filter SPQ 70321501 Contact Us For Availability
NI
Steam Kit SPQ F410300 Contact Us For Availability
NI
Insulation SPQ F8662601 Contact Us For Availability
NI
SPQ F8233708 SPQ F8233708 Contact Us For Availability
NI
SPQ F8233702 SPQ F8233702 Contact Us For Availability
NI
SPQ F8456101 SPQ F8456101 Contact Us For Availability
NI
SPQ 1112P SPQ 1112P Contact Us For Availability
NI
SPQ NK330 SPQ NK330 Contact Us For Availability
× ![]()
