Model Huebsch HAT30N Dryer – Common Parts & Diagrams

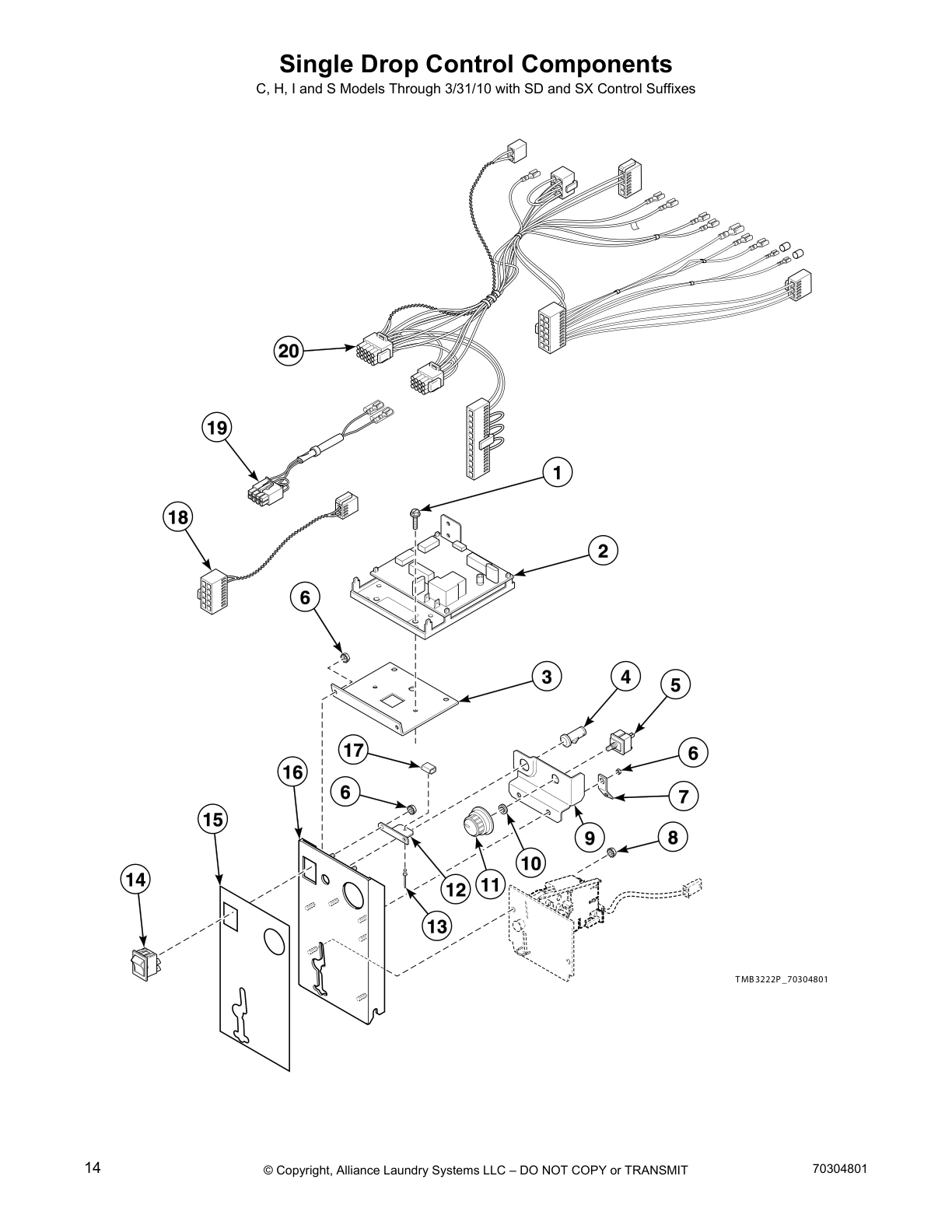

Single Drop Control Components

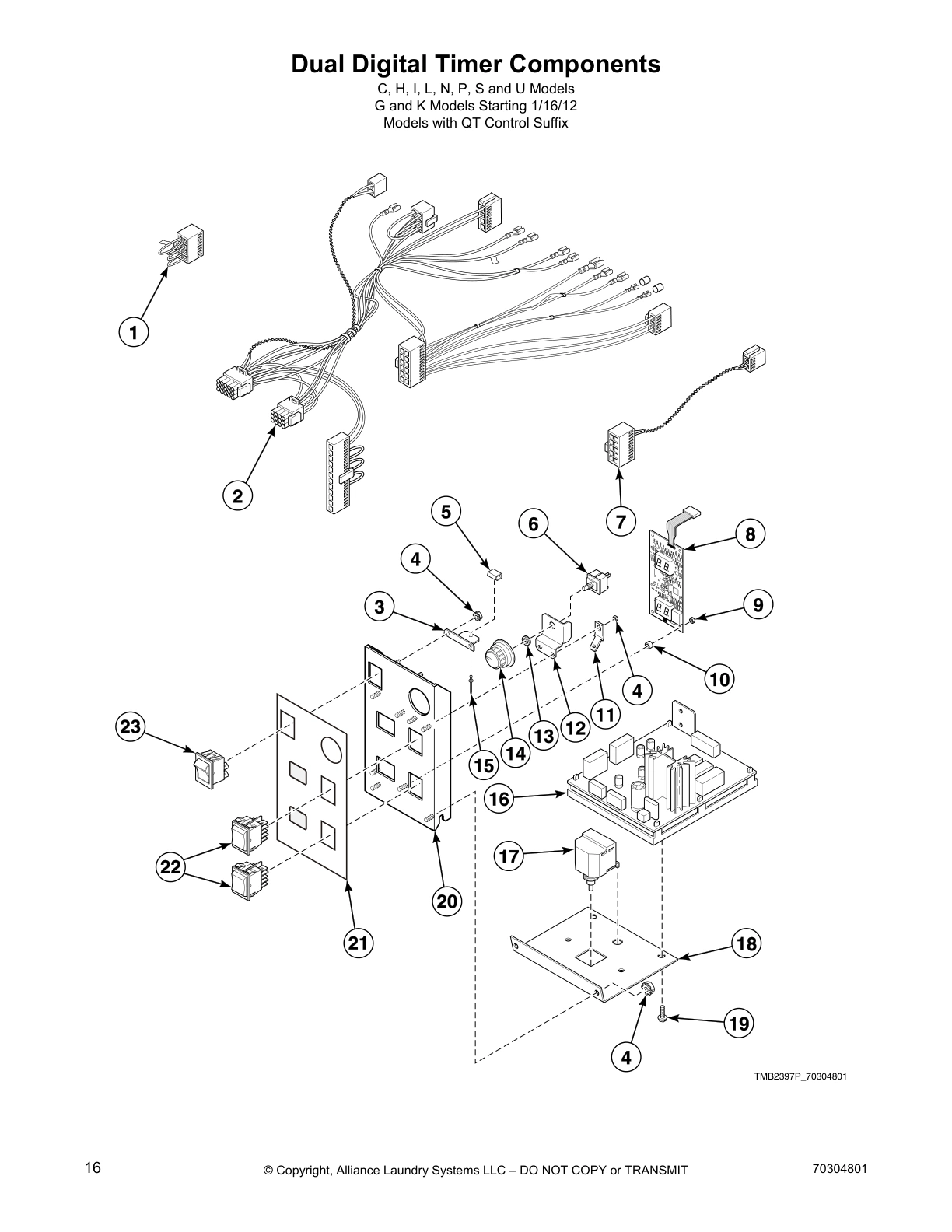

Dual Digital Timer Components
DX4 Control Components
Coin Drop Components for MDC Models
Card Reader Components for MDC Models
Coin Drops
Coin Drop Kits
Electronic Coin Drop Components
Card Reader Components for Micro Models
Coin Drop Components for NetMaster Models
Card Reader Components for NetMaster Models
Network Board for NetMaster Models
Coin Drop Components for Quantum Models
Card Reader Components for Quantum Models
Communication Board
Coin Drop Components for Galaxy 600 Models
Card Reader Components for Galaxy 600 Models
LED OPL Control
Door Assemblies
Door Ring and Handle
Door Components
Door Hinge Components
Upper Front Panel Assemblies and False Fronts
Lower Front Panel Assemblies
Upper Cabinet Front Components (Drawing 1 of 2)
Upper Cabinet Front Components (Drawing 2 of 2)
Lower Cabinet Front Components
Lint Drawer Components
Lint Drawer Overlays
Cylinder and Trunnion Components
Bearing Components
Cabinet Components
Touch-Up Paint
Drive Motor Components
Drive Motors and Motor Capacitors
Exhaust Components
Blower Components
Moisture Sensing Components
Gas Burner Housing and Secondary Stove Limit
Airflow Switch
Gas Valve and Piping - All Non-CE and Non-Australian Gas Models
and CE and Australian Models Starting 1/1/14
Burner Orifices - Non-CE and Non-Australian Gas Models
Gas Valve and Piping - CE and Australian Gas Models
Through 12/31/13
Electric Heater Components
Steam Heater Components
Control Tray Harness - Gas Models
Control Tray Components - Non-CE and Non-Australian
Gas Models (Drawing 1 of 2)
Control Tray Components - Non-CE and Non-Australian
Gas Models (Drawing 2 of 2)
Control Tray Components - CE and Australian Gas Models
(Drawing 1 of 2)
Control Tray Components - CE and Australian Gas Models
(Drawing 2 of 2)
Control Tray Harnesses - Steam Models
Control Tray Components - Non-CE Steam Models
Control Tray Components - CE Steam Models
Accessory Box Harnesses - Electric Models
Accessory Box Components - Non-CE Electric Models
Accessory Box Components - CE Electric Models
Common parts from model Huebsch HAT30N Dryer
Motor Capacitor SPQ 70211502 Contact Us For Availability
SPQ 70017301 SPQ 70017301 Contact Us For Availability
SPQ 70449001 SPQ 70449001 Contact Us For Availability
SPQ 70342402 SPQ 70342402 Contact Us For Availability
SPQ 215P4P SPQ 215P4P Contact Us For Availability
SPQ 70346301 SPQ 70346301 Contact Us For Availability
SPQ 70684110 SPQ 70684110 Contact Us For Availability
Jumper Harness Assembly SPQ 70316201 Contact Us For Availability
Jumper Harness Assembly SPQ M413508 Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
1
Lint Drawer Gasket SPQ 70117901P Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Front Panel Seal SPQ 70173401P Contact Us For Availability
1
Main Harness SPQ 70346001P Contact Us For Availability
1
Communication Board SPQ 210097 Contact Us For Availability
1
Overlay SPQ 70445102 Contact Us For Availability
1
Door Assembly SPQ 44058001P Contact Us For Availability
1
Door Handle SPQ 44057701 Contact Us For Availability
1
False Front Kit SPQ 70371702P Contact Us For Availability
1
Screw SPQ 70069901 Contact Us For Availability
1
Overlay SPQ 70395901 Contact Us For Availability
1
Cylinder Assembly SPQ 70372502P Contact Us For Availability
1
Drive Motor SPQ 70338101P Contact Us For Availability
1
Blower Motor SPQ 70342601P Contact Us For Availability
1
Nut SPQ M400035 Contact Us For Availability
1
Stove Top and Sides SPQ 70333401 Contact Us For Availability
1
Airflow Switch Cover SPQ 70356601 Contact Us For Availability
1
Burner Orifice SPQ 70684136 Contact Us For Availability
1
Elbow SPQ 70208701 Contact Us For Availability
1
Junction Box Harness SPQ 70315801 Contact Us For Availability
2
Latch Mounting Bracket SPQ 70246301 Contact Us For Availability
2
Control Door and Studs Assembly SPQ 70441101 Contact Us For Availability
2
Door Ring Assembly SPQ 70543901 Contact Us For Availability
2
Door Hinge SPQ 70115902 Contact Us For Availability
2
Lower Front Panel Assembly SPQ 70454502 Contact Us For Availability
2
Shadow Box Clip SPQ 70275801 Contact Us For Availability
2
SPQ 70375301 SPQ 70375301 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 70070101 Contact Us For Availability
2
Washer SPQ 70411301 Contact Us For Availability
2
Motor Conduit Mounting Bracket SPQ M400022 Contact Us For Availability
2
Switch SPQ 70357701 Contact Us For Availability
2
Double Ended Stud SPQ 70440301 Contact Us For Availability
2
Drive Motor Kit SPQ 70338001P Contact Us For Availability
2
Duct Cover SPQ 70207501 Contact Us For Availability
2
Airflow Switch Wrapper SPQ 70465701 Contact Us For Availability
2
Gas Valve Coil SPQ 70210201 Contact Us For Availability
2
Ignition Control Harness SPQ 44186701 Contact Us For Availability
2
Fuse Holder Body SPQ M413544P Contact Us For Availability
3
Rear Cylinder Seal SPQ 70013701P Contact Us For Availability
3
Manual Reset Thermostat SPQ M409219 Contact Us For Availability
3
Jumper Calibration Assembly SPQ 70211703P Contact Us For Availability
3
Upper Front Panel Assembly SPQ 70454501 Contact Us For Availability
3
Lower Front Panel Assembly SPQ 70391204 Contact Us For Availability
3
Door Latch SPQ 70180101 Contact Us For Availability
3
Lint Screen Bracket SPQ 70026901 Contact Us For Availability
3
Screw SPQ 70070102 Contact Us For Availability
3
Fan Motor Harness SPQ 70341001 Contact Us For Availability
3
Switch SPQ 70356101 Contact Us For Availability
3
Gas Valve Harness Assembly SPQ 70071801 Contact Us For Availability
3
Power Harness SPQ M413878 Contact Us For Availability
3
Fuse SPQ 44155601P Contact Us For Availability
3
Fuse Holder Cap SPQ 70333001 Contact Us For Availability
4
Hinge Cam Kit SPQ M4772P3 Contact Us For Availability
4
Rear Cylinder Seal Support SPQ 70506402 Contact Us For Availability
4
Washer SPQ 70292801 Contact Us For Availability
4
Card Reader Network Harness Assembly SPQ 70206601 Contact Us For Availability
4
Communication Harness Assembly SPQ 70211101 Contact Us For Availability
4
Control Panel Harness SPQ 70410401P Contact Us For Availability
4
Door Glass SPQ M414215 Contact Us For Availability
4
Upper Front Panel Assembly SPQ 70391302P Contact Us For Availability
4
Control Trim SPQ 70120501 Contact Us For Availability
4
Lint Frame Gasket SPQ 70333101 Contact Us For Availability
4
Cylinder Guide Tool SPQ 70433002 Contact Us For Availability
4
Clip SPQ 70226701 Contact Us For Availability
4
Top Panel SPQ 70339401 Contact Us For Availability
4
SPQ 70334701 SPQ 70334701 Contact Us For Availability
4
Moisture Sensor Harness Assembly SPQ 70448902 Contact Us For Availability
4
Gas Valve Cover SPQ 70397101 Contact Us For Availability
4
Airflow Switch Arm SPQ 70411901 Contact Us For Availability
4
Valve Coil Bracket SPQ 70131901 Contact Us For Availability
4
Power Harness SPQ 70445501 Contact Us For Availability
4
SPQ 70329501 SPQ 70329501 Contact Us For Availability
5
Relay SPQ 70210901P Contact Us For Availability
5
L.P. Valve SPQ 70260101 Contact Us For Availability
5
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
5
Control Door Latch SPQ 431318 Contact Us For Availability
5
Card Reader Harness Assembly SPQ 70211801 Contact Us For Availability
5
Terminating Resistor SPQ 210162 Contact Us For Availability
5
Door Glass Seal Kit SPQ 70133601P Contact Us For Availability
5
Coin Vault Trim SPQ 70182601 Contact Us For Availability
5
Lint Drawer Handle Plate SPQ 70323201 Contact Us For Availability
5
SPQ 70284203 SPQ 70284203 Contact Us For Availability
5
Duct Access Cover SPQ 70340301 Contact Us For Availability
5
Thermistor Cover SPQ 70440401 Contact Us For Availability
5
Pipe Clip SPQ 70186301 Contact Us For Availability
5
Screw SPQ 70319401 Contact Us For Availability
5
Relay SPQ 70439001 Contact Us For Availability
6
Support Bearing SPQ 70448701 Contact Us For Availability
6
Nut SPQ M400003 Contact Us For Availability
6
Control Assembly SPQ 70450502P Contact Us For Availability
6
Pushbutton Switch SPQ 70033502 Contact Us For Availability
6
Lint Drawer Front Kit SPQ 70322901P Contact Us For Availability
6
SPQ 70284201 SPQ 70284201 Contact Us For Availability
6
Exhaust Duct Gaskets Assembly SPQ 70340401 Contact Us For Availability
6
Gasket SPQ 70440001P Contact Us For Availability
6
Motor Contactor Harness SPQ 70438901 Contact Us For Availability
6
Motor Contactor Harness SPQ 70320201 Contact Us For Availability
7
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
7
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
7
SPQ 70406701 SPQ 70406701 Contact Us For Availability
7
Slot Card Plate Assembly SPQ 44089501 Contact Us For Availability
7
Lint Drawer Gasket SPQ M401223 Contact Us For Availability
7
Lint Drawer Handle SPQ 70322902P Contact Us For Availability
7
Rear Cylinder Channel Plate SPQ 70257101 Contact Us For Availability
7
SPQ 70066003 SPQ 70066003 Contact Us For Availability
7
SPQ 70317001 SPQ 70317001 Contact Us For Availability
7
Igniter Cover SPQ 70203701 Contact Us For Availability
7
Airflow Switch and Arm Bracket SPQ 70356301 Contact Us For Availability
7
Valve Bracket and Cover Kit SPQ 70260601 Contact Us For Availability
7
SPQ 70347601 SPQ 70347601 Contact Us For Availability
8
L.P. Conversion Kit SPQ 70457302P Contact Us For Availability
8
SPQ 430642 SPQ 430642 Contact Us For Availability
8
SPQ M400991 SPQ M400991 Contact Us For Availability
8
SPQ D512218P SPQ D512218P Contact Us For Availability
8
SPQ 70144101 SPQ 70144101 Contact Us For Availability
8
Mounting Plate SPQ 70208801 Contact Us For Availability
8
Overlay SPQ 70235101 Contact Us For Availability
8
Control Panel Harness SPQ 44186101 Contact Us For Availability
8
Pin SPQ 70071401 Contact Us For Availability
8
Panel Clip SPQ 70119901 Contact Us For Availability
8
Front Panel Baffle Seal SPQ 44166601 Contact Us For Availability
8
Nut SPQ 70257102 Contact Us For Availability
8
Stove Limit Harness SPQ 70032801P Contact Us For Availability
8
Airflow Switch Vane SPQ 70319602 Contact Us For Availability
8
Jumper Configuration Assembly SPQ 44142601P Contact Us For Availability
8
Jumper Configuration Assembly SPQ 70347701P Contact Us For Availability
9
Drywall Screw Magnet Kit SPQ 70564803 Contact Us For Availability
9
Wire Clip SPQ 70119001 Contact Us For Availability
9
Control Door Assembly SPQ 70184201 Contact Us For Availability
9
Control Door and Studs Assembly SPQ 70498401 Contact Us For Availability
9
SPQ 44240301 SPQ 44240301 Contact Us For Availability
9
Lock Shim SPQ 70320802 Contact Us For Availability
9
SPQ 70339501 SPQ 70339501 Contact Us For Availability
9
SPQ 70062401 SPQ 70062401 Contact Us For Availability
9
Stove Limits Kit SPQ 05161 Contact Us For Availability
9
Gas Valve Harness SPQ 431482 Contact Us For Availability
9
Jumper Harness Assembly SPQ M413510 Contact Us For Availability
9
Jumper Harness Assembly SPQ 70316101P Contact Us For Availability
10
Audit Switch Bracket SPQ 70292601 Contact Us For Availability
10
Main Harness SPQ 70441401 Contact Us For Availability
10
Kickplate SPQ 70117606 Contact Us For Availability
10
Panel Latch SPQ 70399201 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70443901P Contact Us For Availability
10
Channel Base Assembly SPQ 70288201 Contact Us For Availability
10
Motor Mount Bracket SPQ 70127301 Contact Us For Availability
10
Blower Motor Kit SPQ 70337701P Contact Us For Availability
10
Limit Thermostat SPQ 70299001 Contact Us For Availability
10
Screw SPQ 431484 Contact Us For Availability
10
Network Capacitor Harness Assembly SPQ 44143401P Contact Us For Availability
10
Bushing SPQ M406124 Contact Us For Availability
11
Temperature Knob SPQ 44104601 Contact Us For Availability
11
Audit Switch Bracket SPQ 70183901 Contact Us For Availability
11
Bypass Harness SPQ 70364103 Contact Us For Availability
11
Screw SPQ M400661 Contact Us For Availability
11
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
11
Pop Rivet SPQ 70126401 Contact Us For Availability
11
Panel Latch Kit SPQ 70399201P Contact Us For Availability
11
Washer SPQ 70443902 Contact Us For Availability
11
Thermostat Cover SPQ M414477 Contact Us For Availability
11
Spud Adapter SPQ 70223501 Contact Us For Availability
11
Ignition Control SPQ 70458601P Contact Us For Availability
12
Key SPQ 70155602 Contact Us For Availability
12
Latch Mounting Bracket SPQ 70184501 Contact Us For Availability
12
Jumper Calibration Wire SPQ 70324603 Contact Us For Availability
12
Snap Bushing SPQ 70366201 Contact Us For Availability
12
Control Overlay SPQ 70472102 Contact Us For Availability
12
Coin Vault Assembly SPQ 70126301 Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
12
Motor Channel SPQ 70261701 Contact Us For Availability
12
Limit Thermostat SPQ M411307 Contact Us For Availability
12
Gas Burner SPQ 70229801P Contact Us For Availability
12
Transformer SPQ M414229P Contact Us For Availability
13
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
13
Key SPQ 70155601 Contact Us For Availability
13
Pop Rivet SPQ 70334201 Contact Us For Availability
13
Coin Cover Overlay SPQ 70472101 Contact Us For Availability
13
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
13
Fuse Cover SPQ M411072 Contact Us For Availability
13
Blower Housing Cover Assembly SPQ 70341401 Contact Us For Availability
13
Burner Grill SPQ 70188801 Contact Us For Availability
13
Valve Support Bracket SPQ 70233301 Contact Us For Availability
14
Roller Seal SPQ 70443601 Contact Us For Availability
14
Washer SPQ 70443301 Contact Us For Availability
14
Stove Back SPQ 70371501 Contact Us For Availability
14
Street Elbow SPQ 70457701 Contact Us For Availability
15
Control Panel Harness SPQ 70315501P Contact Us For Availability
15
Roller Shaft SPQ 70249501 Contact Us For Availability
15
Tube SPQ 23222 Contact Us For Availability
15
Drum Idler Spring SPQ 70270301 Contact Us For Availability
15
Blower Housing Scroll SPQ 70340801 Contact Us For Availability
16
Washer SPQ 70261401 Contact Us For Availability
16
Screw SPQ 70045301 Contact Us For Availability
16
Blower Inlet Cone SPQ 70014101 Contact Us For Availability
16
Gas Valve Cover SPQ H86070034 Contact Us For Availability
17
Sheet Metal Edge Gasket SPQ 70288801 Contact Us For Availability
17
Cylinder Motor Harness SPQ 70265901 Contact Us For Availability
17
Rear Stabilizer Bracket SPQ 70200301 Contact Us For Availability
17
Pipe Nipple SPQ 70079601 Contact Us For Availability
17
Fuse Holder SPQ 70313301 Contact Us For Availability
18
Idler Wheel Assembly SPQ 431539 Contact Us For Availability
18
Tee SPQ 70281603 Contact Us For Availability
19
Nut SPQ M400034 Contact Us For Availability
19
Top Panel Assembly SPQ 70015711 Contact Us For Availability
19
Cylinder Idler Arm SPQ 430648 Contact Us For Availability
19
Adapter SPQ 70233401 Contact Us For Availability
19
Transformer SPQ 70313401 Contact Us For Availability
20
Cylinder Shroud SPQ 70015712 Contact Us For Availability
20
Motor Pulley SPQ 70439901 Contact Us For Availability
21
Terminal Block SPQ M414312P Contact Us For Availability
21
Blower Assembly SPQ 70321701 Contact Us For Availability
21
Motor Conduit Mounting Bracket SPQ 70316801P Contact Us For Availability
22
Rear Panel SPQ 70030401 Contact Us For Availability
22
Bolt SPQ 70316701P Contact Us For Availability
23
Rear Cylinder Seal Support SPQ 70339301 Contact Us For Availability
23
Drive Access Cover SPQ 70050401P Contact Us For Availability
24
Rear Cylinder Seal SPQ 70339302 Contact Us For Availability
24
Belt Tension Tool Kit SPQ 70259901 Contact Us For Availability
24
Fuse SPQ M414230P Contact Us For Availability
29
Fuse SPQ 51783 Contact Us For Availability
29
Fuse Bracket SPQ M414228P Contact Us For Availability
31
SPQ 70406601 SPQ 70406601 Contact Us For Availability
32
Fuse Holder Cap SPQ 70313602 Contact Us For Availability
33
Contactor SPQ 70313601 Contact Us For Availability
33
SPQ M413862 SPQ M413862 Contact Us For Availability
34
Snap Bushing SPQ 70329401P Contact Us For Availability
35
SPQ 00177 SPQ 00177 Contact Us For Availability
36
SPQ 70406501 SPQ 70406501 Contact Us For Availability
NI
SPQ 70211401 SPQ 70211401 Contact Us For Availability
NI
SPQ CK103 SPQ CK103 Contact Us For Availability
NI
Base Harness SPQ 70413301 Contact Us For Availability
NI
SPQ 70364104P SPQ 70364104P Contact Us For Availability
NI
SPQ 70175911 SPQ 70175911 Contact Us For Availability
NI
SPQ 70211901P SPQ 70211901P Contact Us For Availability
NI
SPQ 70418101 SPQ 70418101 Contact Us For Availability
NI
Instruction Label SPQ 70391202P Contact Us For Availability
NI
SPQ 44088801 SPQ 44088801 Contact Us For Availability
NI
SPQ 70534301 SPQ 70534301 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70320801 SPQ 70320801 Contact Us For Availability
NI
SPQ 70342401 SPQ 70342401 Contact Us For Availability
NI
SPQ 70115201 SPQ 70115201 Contact Us For Availability
NI
SPQ 70257201 SPQ 70257201 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
Spray Paint SPQ 298P4P Contact Us For Availability
NI
Porcelain Touch-Up Paint SPQ 297P4 Contact Us For Availability
NI
SPQ 370P4P SPQ 370P4P Contact Us For Availability
NI
SPQ 70202501 SPQ 70202501 Contact Us For Availability
NI
SPQ 70566401 SPQ 70566401 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
Motor Capacitor SPQ M410296 Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
SPQ 70126101 SPQ 70126101 Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
Moisture Sensor Test Wires SPQ 70468901 Contact Us For Availability
NI
SPQ 70159601 SPQ 70159601 Contact Us For Availability
NI
SPQ 70316501 SPQ 70316501 Contact Us For Availability
NI
SPQ M4903P3 SPQ M4903P3 Contact Us For Availability
NI
SPQ 70319201 SPQ 70319201 Contact Us For Availability
NI
SPQ M4707P3 SPQ M4707P3 Contact Us For Availability
NI
Harness Assembly SPQ M412997 Contact Us For Availability
NI
Burner Orifice SPQ 70684142 Contact Us For Availability
NI
SPQ 70684116 SPQ 70684116 Contact Us For Availability
NI
SPQ M4746P3 SPQ M4746P3 Contact Us For Availability
NI
SPQ 70184001 SPQ 70184001 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ 70439501 Contact Us For Availability
NI
Network Capacitor Harness Assembly SPQ 70323601 Contact Us For Availability
NI
SPQ M413863 SPQ M413863 Contact Us For Availability
NI
SPQ 70058502 SPQ 70058502 Contact Us For Availability
NI
SPQ 70306901 SPQ 70306901 Contact Us For Availability
NI
SPQ M400985 SPQ M400985 Contact Us For Availability
NI
SPQ M402917 SPQ M402917 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ M413509 Contact Us For Availability
× ![]()
