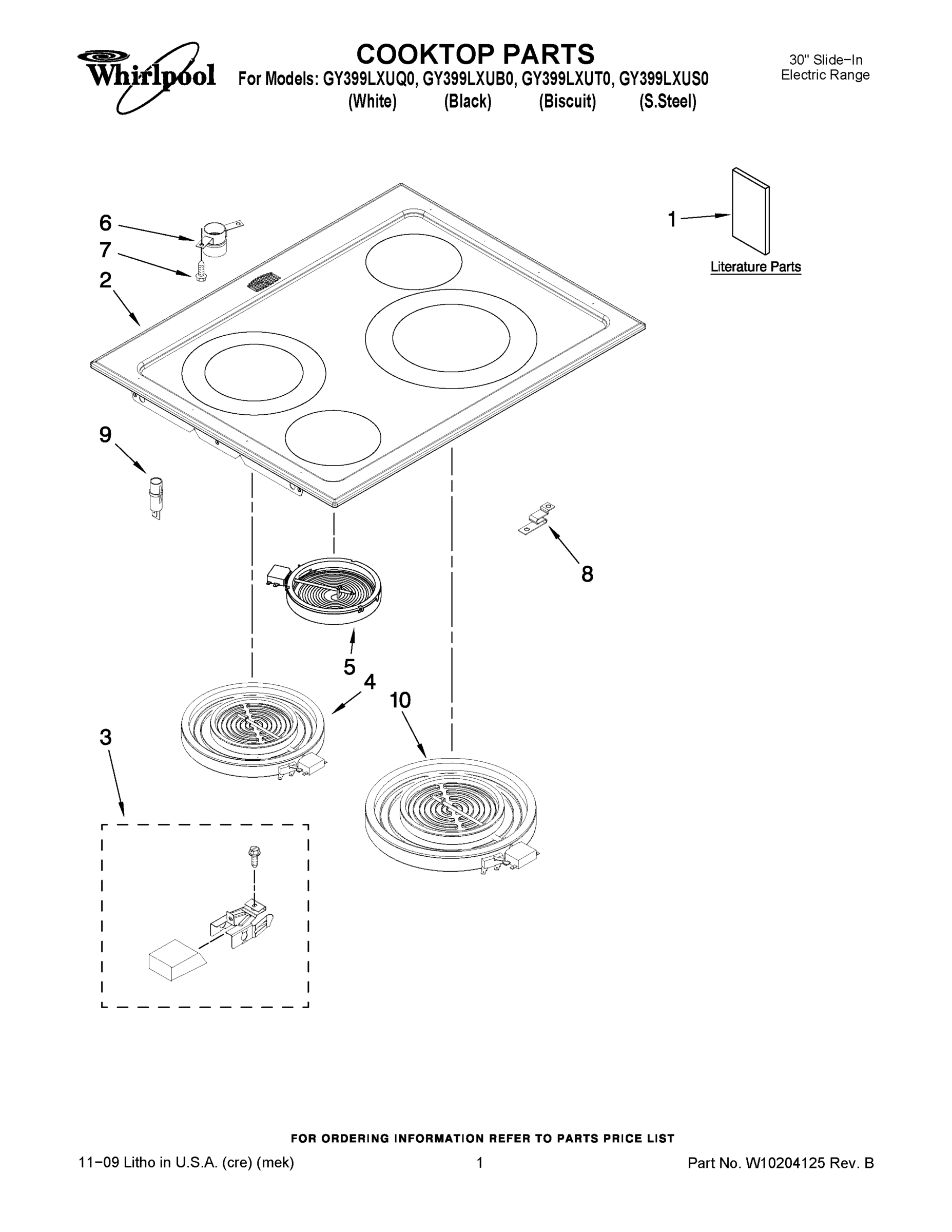

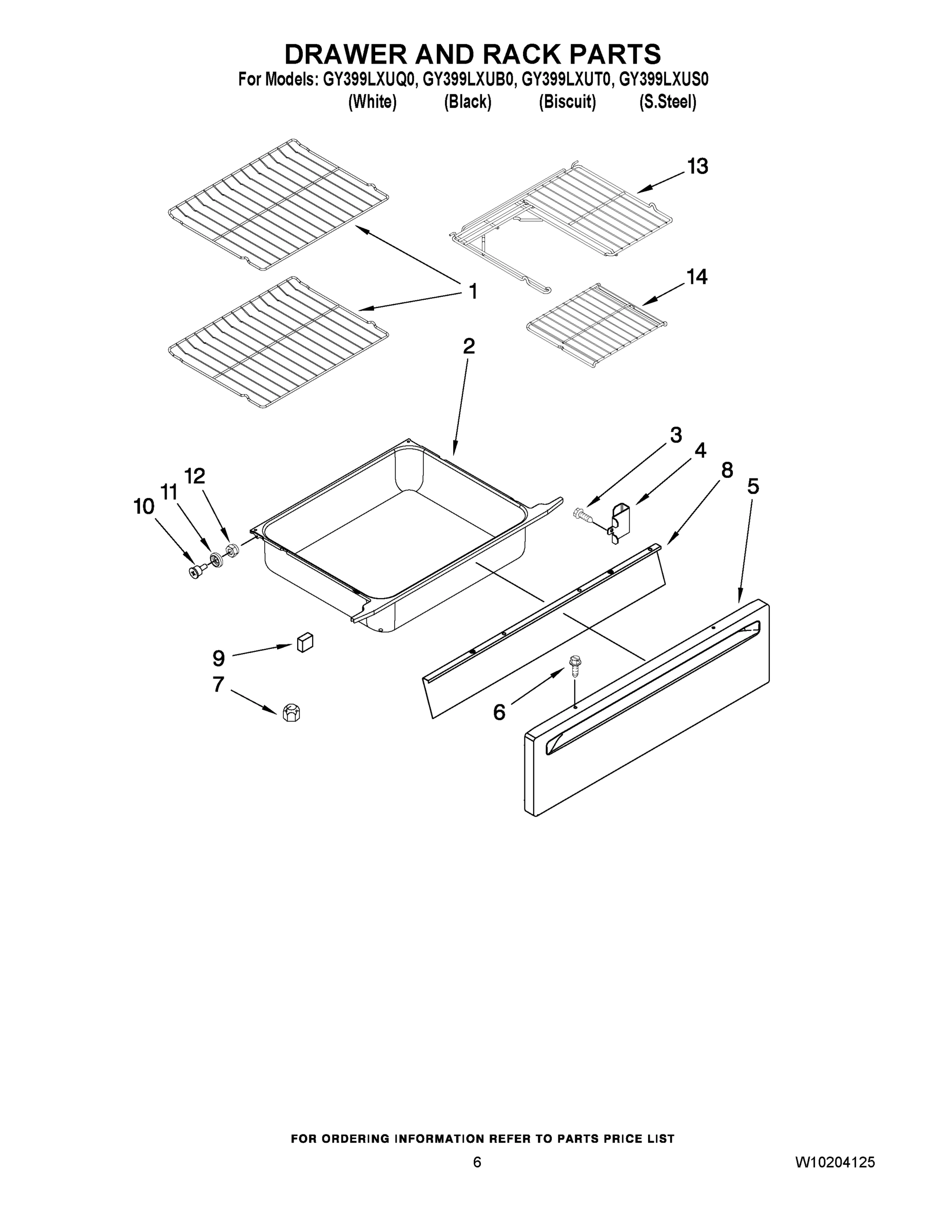

Model Whirlpool GY399LXUT0 30`` SLIDE-IN ELECTRIC RANGE – Common Parts &amp; Diagrams

1

WP22001948 Whirlpool Indicator Lens Backorder WPL WP22001948 $5.31

1

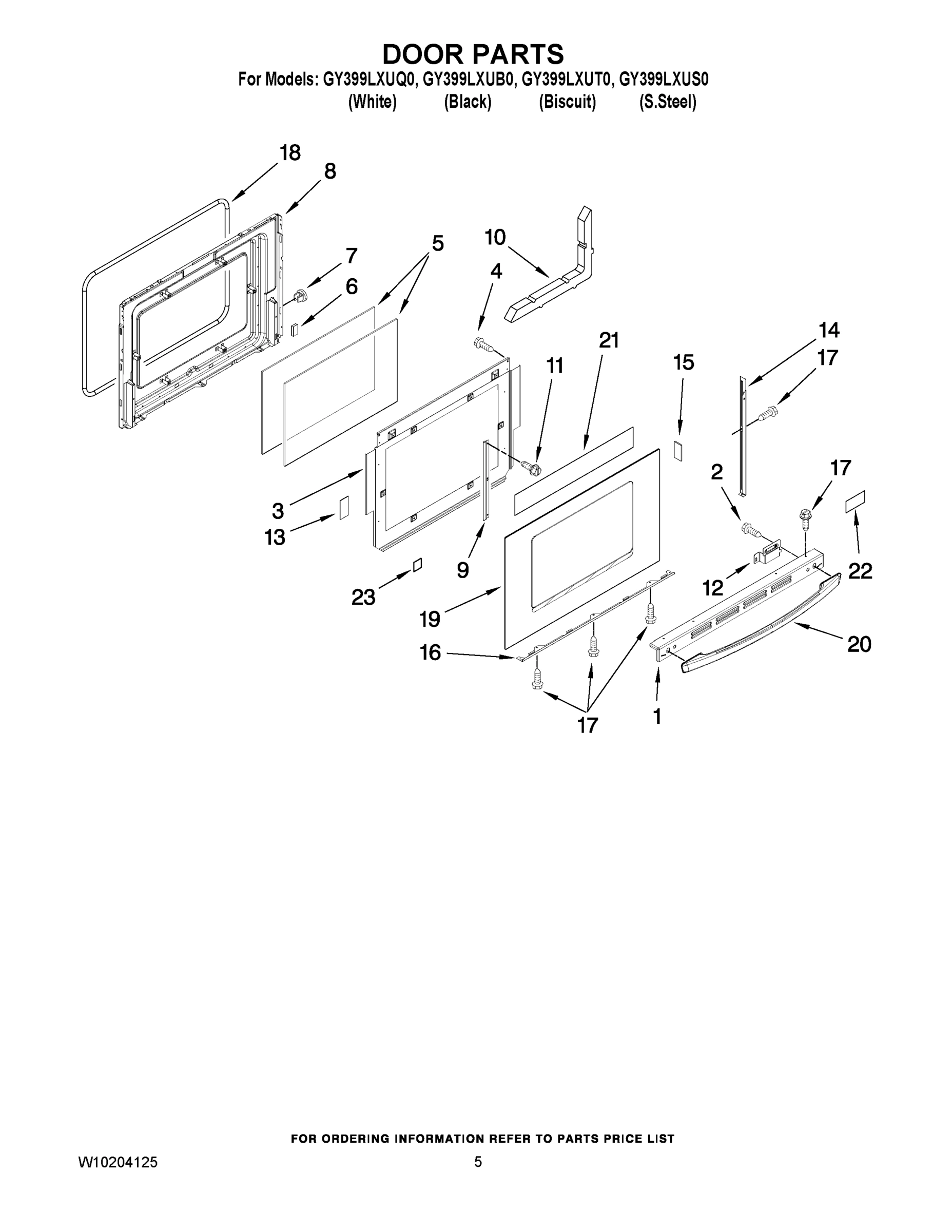

WP3608F141-71 Whirlpool Door Trim Backorder WPL WP3608F141-71 $80.31

1

Panel, Shield (Left) WPL 74010821 Contact Us For Availability

1

Trim, Door Top (Black) WPL W10165729 Contact Us For Availability

1

Trim, Door Top (S.Steel) WPL W10168887 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL W10177497 Contact Us For Availability

2

74010819 Whirlpool Latch Assembly Backorder WPL 74010819 $147.05

2

W10170209 Whirlpool Cooktop Backorder WPL W10170209 $603.42

2

W11396735 Whirlpool Screw Backorder WPL W11396735 $9.59

2

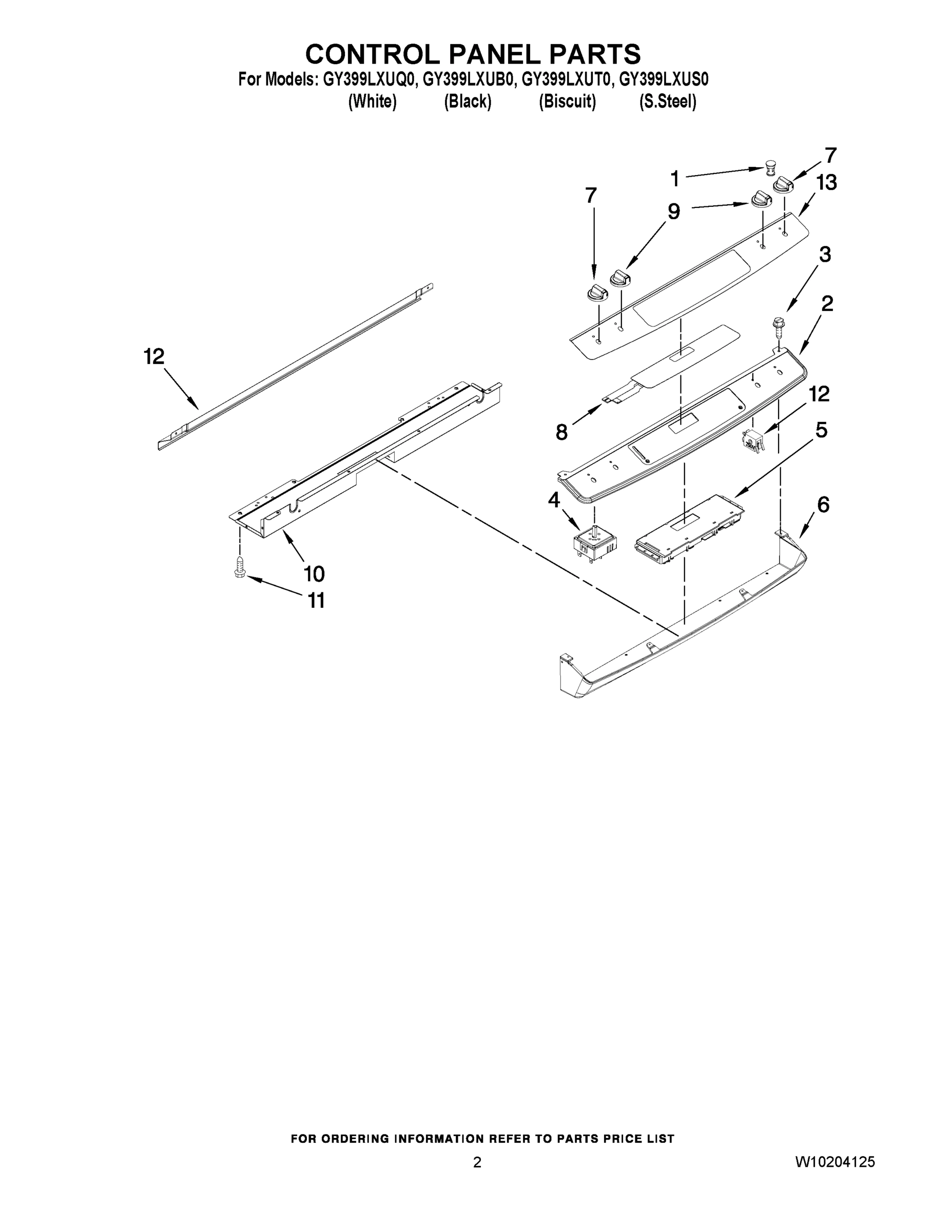

Panel, Control (Black) WPL 7720P53560 Contact Us For Availability

2

Panel, Control (White) WPL 7720P53660 Contact Us For Availability

2

Panel, Control (Biscuit) WPL 7720P53760 Contact Us For Availability

2

Panel, Control (S.Steel) WPL W10182766 Contact Us For Availability

3

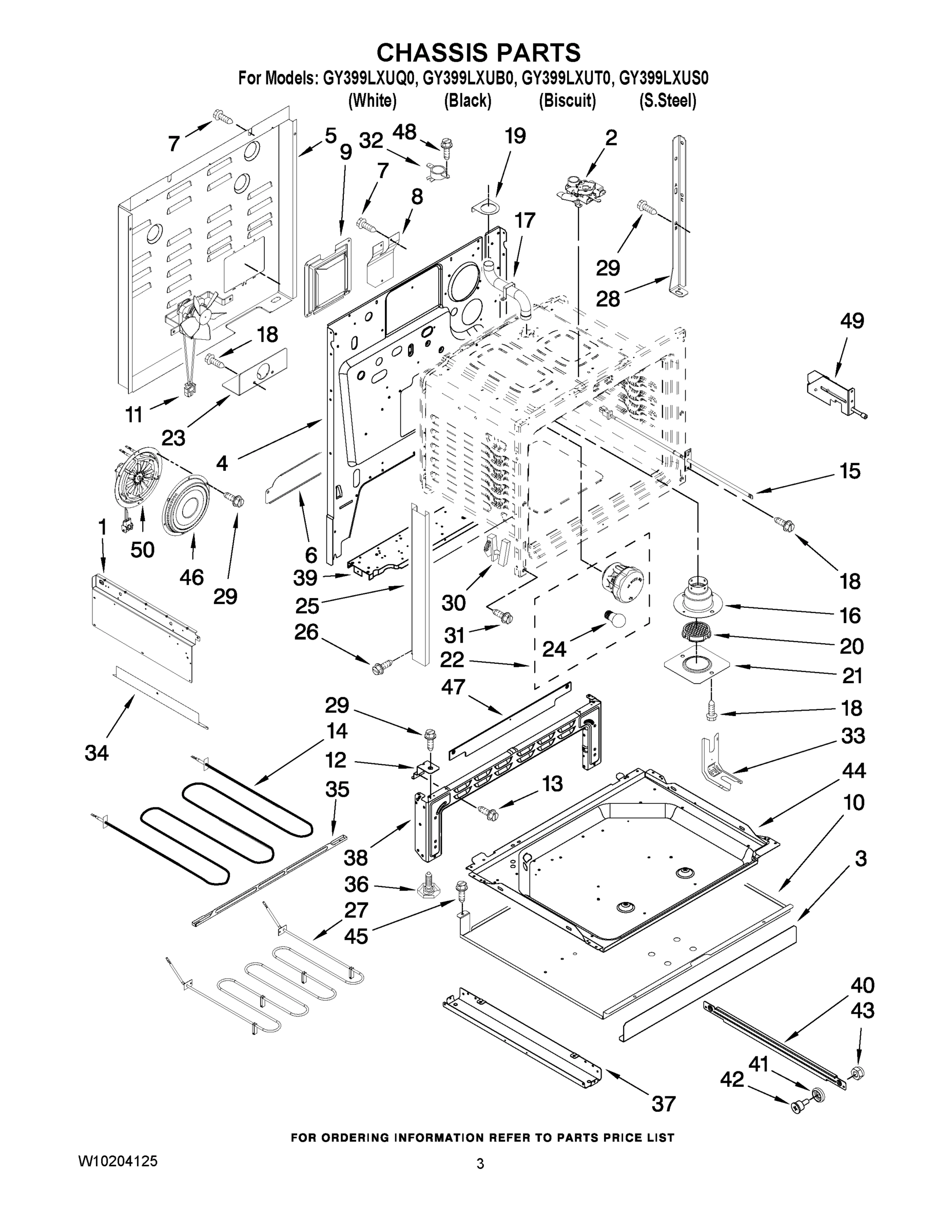

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $6.71

3

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $103.03

3

Screw WPL 7101P30960 Contact Us For Availability

3

Cover, Front WPL 74010807 Contact Us For Availability

4

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 $117.46

4

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

4

WP74010824 Whirlpool Dishwasher Element Contr In Stock WPL WP74010824 $60.00

4

SWITCH, INFINTE (6`` (LF,RR)) WPL 7403P23860 Contact Us For Availability

4

Main Back WPL 74011465 Contact Us For Availability

5

4005F810-51 Whirlpool Access Cover Backorder WPL 4005F810-51 $83.10

5

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $86.34

5

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $100.91

5

WP8507P390-60 Whirlpool Control Board and Clo In Stock WPL WP8507P390-60 $220.26

6

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.21

6

PANEL,CONTROL(LWR) (BLACK) WPL W10185606 Contact Us For Availability

6

PANEL,CONTROL(LWR) (WHITE) WPL W10185607 Contact Us For Availability

6

Tube, Vent Upper WPL 74005759 Contact Us For Availability

6

PANEL,CONTROL(LWR) (BISCUIT) WPL W10185609 Contact Us For Availability

6

Extension, Back WPL 74010815 Contact Us For Availability

7

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.58

7

KNOB (LF,RR) (BLACK) WPL 7737P41460 Contact Us For Availability

7

KNOB (LF,RR) (WHITE) WPL 7737P41560 Contact Us For Availability

7

KNOB (LF,RR) (BISCUIT) WPL 7737P41660 Contact Us For Availability

8

8004P093-60 Whirlpool Support C Backorder WPL 8004P093-60 $5.23

8

WPW10207932 Whirlpool Membrane Switch In Stock WPL WPW10207932 $148.22

8

Switch, Membrane (Black) WPL 7450P11760 Contact Us For Availability

8

SWITCH, MEMBRANE (WHITE) WPL 7450P11860 Contact Us For Availability

8

Insulator, Cord WPL 74006364 Contact Us For Availability

8

Lining, Door WPL 74011456 Contact Us For Availability

9

3801F886-51 Whirlpool Mounting Bracket Backorder WPL 3801F886-51 $14.59

9

3804F300-51 Whirlpool Retainer Backorder WPL 3804F300-51 $28.80

9

7407P193-60 Whirlpool Light Indicator Backorder WPL 7407P193-60 $31.11

9

KNOB (RF,LR) (BLACK) WPL 7737P41760 Contact Us For Availability

9

KNOB (RF,LR) (WHITE) WPL 7737P41860 Contact Us For Availability

9

KNOB (RF,LR) (BISCUIT) WPL 7737P41960 Contact Us For Availability

W10823713 Whirlpool Surface Element In Stock WPL W10823713 $110.40

Support, Control Panel WPL W10203695 Contact Us For Availability

Shield, Warmer WPL W10177095 Contact Us For Availability

Insulation, Door WPL 74003647 Contact Us For Availability

11

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $128.64

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $10.76

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $10.76

WP74004153 Whirlpool Indicator Light In Stock WPL WP74004153 $3.70

SUPPORT,OVEN BTM WPL 74010812 Contact Us For Availability

13

Overlay (S.Steel Mdl Only) WPL W10187161 Contact Us For Availability

13

Screw WPL 7101P12460 Contact Us For Availability

13

Tape, White WPL 74004224 Contact Us For Availability

WP3608F116-70 Whirlpool Door Trim Backorder WPL WP3608F116-70 $44.62

WP3608F116-71 Whirlpool Door Trim Backorder WPL WP3608F116-71 $44.69

WP3608F117-70 Whirlpool Door Trim Backorder WPL WP3608F117-70 $44.62

WP3608F117-71 Whirlpool Door Trim Backorder WPL WP3608F117-71 $44.62

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $68.38

Trim, Door Side (Biscuit, Right) WPL 74009696 Contact Us For Availability

Trim, Door Side (Biscuit, Left) WPL 74009697 Contact Us For Availability

15

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

15

WP74009025 Whirlpool Double Sided Tape Backorder WPL WP74009025 $4.96

15

Tape, Double Sided (White) WPL 74009014 Contact Us For Availability

WP3807F708-71 Whirlpool Support Backorder WPL WP3807F708-71 $66.19

Tube, Vent Lower WPL W10165722 Contact Us For Availability

Trim, Door Bottom (Black) WPL 74009686 Contact Us For Availability

Trim, Door Bottom (Biscuit) WPL 74009688 Contact Us For Availability

W10828565 Whirlpool Screw Backorder WPL W10828565 $3.02

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $2.51

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.64

Tube, Vent Upper WPL 74010816 Contact Us For Availability

18

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $54.35

Holder, Vent Tube WPL 74010817 Contact Us For Availability

GLASS, DOOR (WHITE) WPL W10170228 Contact Us For Availability

GLASS, DOOR (BLACK) WPL W10170229 Contact Us For Availability

GLASS, DOOR (BISCUIT) WPL W10170230 Contact Us For Availability

GLASS, DOOR (S.STEEL (ORDER ITEMS 13 & 21 WHE WPL W10170231 Contact Us For Availability

W10118431 Whirlpool Door Handle Backorder WPL W10118431 $86.14

WPW10118430 Whirlpool Door Handle Backorder WPL WPW10118430 $115.52

WPW10144883 Whirlpool Door Handle Backorder WPL WPW10144883 $104.87

Smoke Eliminator WPL 74008597 Contact Us For Availability

Handle, Door (Biscuit) WPL W10118432 Contact Us For Availability

21

Plate, Smoke Elm. WPL 74010809 Contact Us For Availability

21

Tape, Foil WPL 74003664 Contact Us For Availability

22

WP7407P182-60 Whirlpool Lamp Backorder WPL WP7407P182-60 $37.04

22

Nameplate, Logo WPL 8303810 Contact Us For Availability

23

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.71

23

Spacer, Rubber WPL 74010267 Contact Us For Availability

24

BULB-OVEN WPL 7407P10360 Contact Us For Availability

25

WP3608F138-70 Whirlpool Side Trim Backorder WPL WP3608F138-70 $46.30

25

WP3608F138-71 Whirlpool Side Trim Assembly Backorder WPL WP3608F138-71 $28.80

27

WP7406P411-60 Whirlpool Bake Element Backorder WPL WP7406P411-60 $144.96

28

Support, Oven Rear WPL 74010884 Contact Us For Availability

29

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.51

30

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $69.65

31

WP4159193 Whirlpool Screw In Stock WPL WP4159193 $2.91

32

WP7450P034-60 Whirlpool Limit Switch Backorder WPL WP7450P034-60 $72.64

33

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.02

34

Extention, Shield WPL 74010820 Contact Us For Availability

35

Support, Element WPL 74003386 Contact Us For Availability

36

WP74010805 Whirlpool Screw Backorder WPL WP74010805 $3.70

37

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $40.61

38

Pedestal, Front WPL 74010882 Contact Us For Availability

39

Support WPL 74007129 Contact Us For Availability

40

Runner, Drawer (2) WPL 74003565 Contact Us For Availability

41

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

42

Shaft, Roller (2) WPL 74005231 Contact Us For Availability

43

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $9.59

44

3804F231-51 Whirlpool Retainer Backorder WPL 3804F231-51 $57.16

46

COVER,CONV.FAN WPL 74008315 Contact Us For Availability

47

Trim, Front WPL W10159823 Contact Us For Availability

48

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

49

WP7450P108-60 Whirlpool Lite Switch Backorder WPL WP7450P108-60 $55.46

50

Fan, Convect WPL 74011094 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8019P013-60 Whirlpool Clip Backorder WPL 8019P013-60 $6.92

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Insulation, Back WPL W10165725 Contact Us For Availability

Insulation, Oven Bottom WPL 74010986 Contact Us For Availability

Insulation, Wrap WPL 74010987 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, BLUE 14 G WPL 242821 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 WPL 242822 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, GREEN 14 WPL 242823 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, ORANGE 14 WPL 242824 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA WPL 242825 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 WPL 242827 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 12 WPL 242828 Contact Us For Availability

SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 WPL 242830 Contact Us For Availability

REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

WPL 5171P97660 WPL 5171P97660 Contact Us For Availability

WPL 74010849 WPL 74010849 Contact Us For Availability

WPL 74011549 WPL 74011549 Contact Us For Availability

WPL 74011572 WPL 74011572 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL W10204629 WPL W10204629 Contact Us For Availability
