Model Whirlpool GY399LXUB03 30`` SLIDE-IN ELECTRIC RANGE – Common Parts & Diagrams

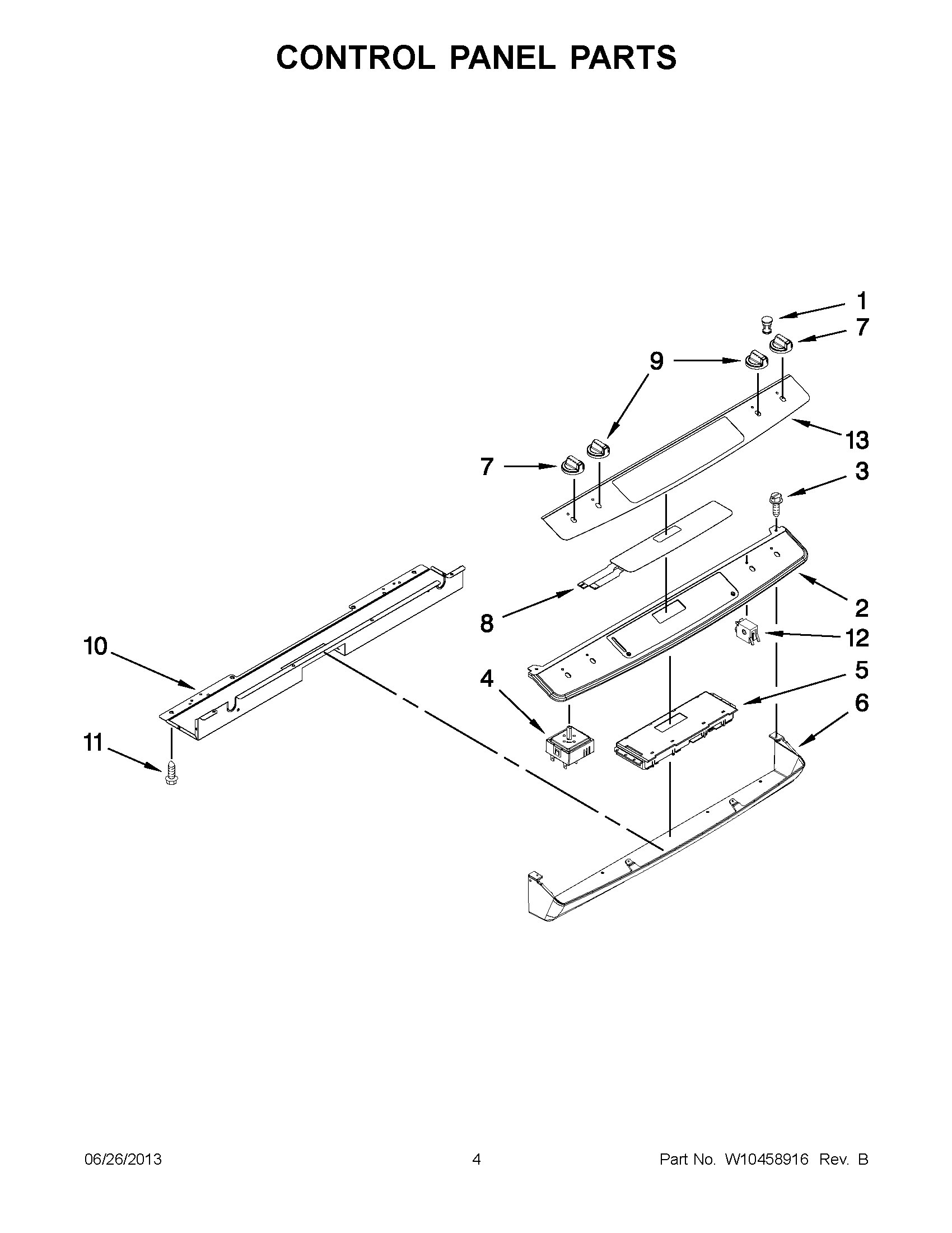

02 - CONTROL PANEL PARTS

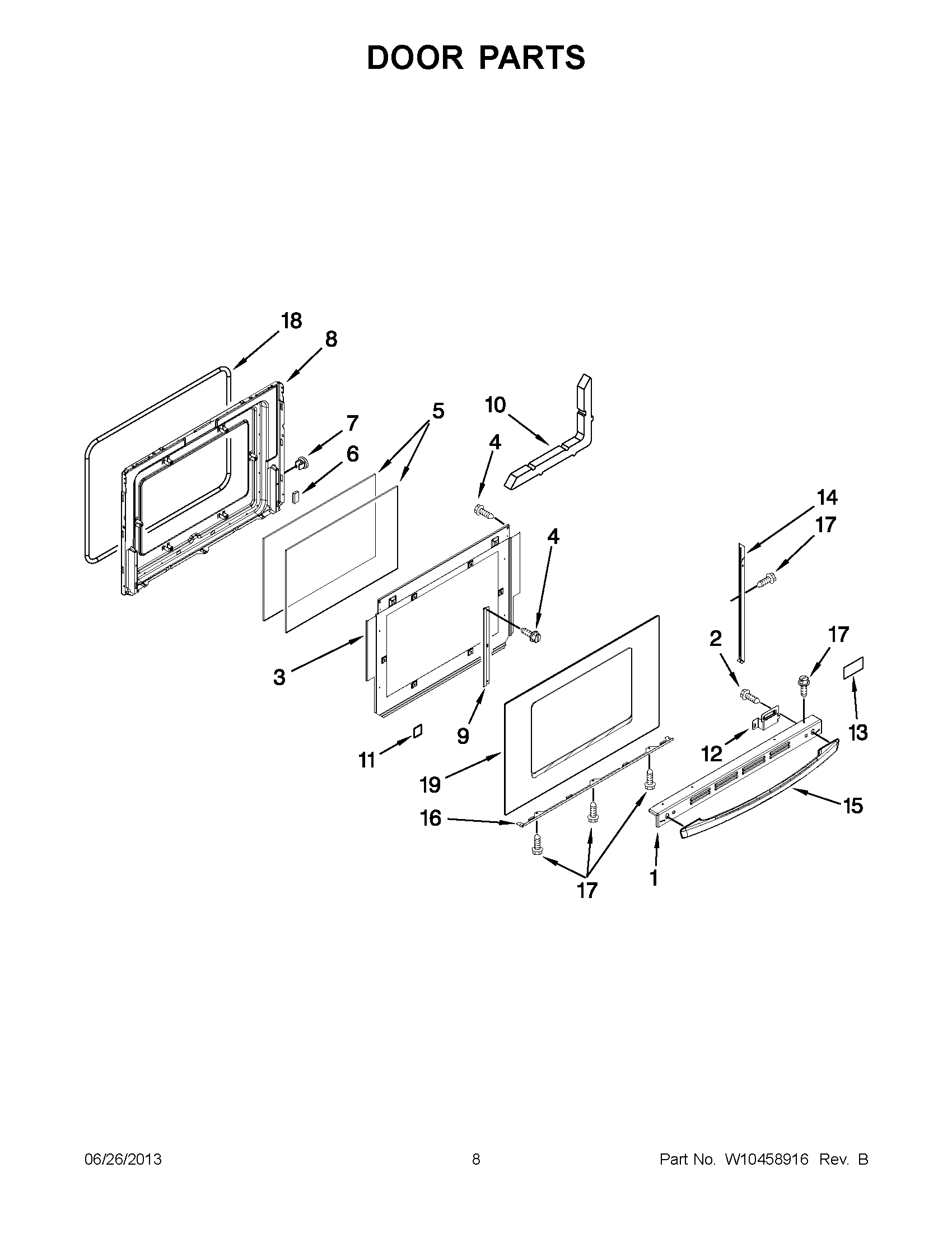

04 - DOOR PARTS
06 - OPTIONAL PARTS
01 - COOKTOP PARTS
03 - CHASSIS PARTS
05 - DRAWER AND RACK PARTS
Common parts from model Whirlpool GY399LXUB03 30`` SLIDE-IN ELECTRIC RANGE
1
DIAGRAM, WIRING WPL W10394681 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION WPL W10430949 Contact Us For Availability
1
USE & CARE GUIDE WPL W10546294 Contact Us For Availability
1
Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability
1
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10202560 Contact Us For Availability
2
Drawer, Storage WPL 3405F03380 Contact Us For Availability
3
BLOCK, BARE WIRE ADAPTER WPL 7401P15760 Contact Us For Availability
3
COVER, FRONT WPL 4005F74945 Contact Us For Availability
3
Screw WPL 7101P07260 Contact Us For Availability
4
BACK, MAIN WPL 3804F31351 Contact Us For Availability
4
Bracket, Drawer WPL 3801F88751 Contact Us For Availability
5
PANEL, DRAWER (STAINLESS) WPL W10253205 Contact Us For Availability
5
COVER, BOTTOM WIRE WPL 4005F81051 Contact Us For Availability
5
Panel, Drawer (Black) WPL 2416F05970 Contact Us For Availability
6
PANEL, LOWER CONTROL (BLACK) WPL W10185606 Contact Us For Availability
6
Tube, Vent Upper WPL W10233479 Contact Us For Availability
6
EXTENSION, MAIN BACK WPL 3826F06651 Contact Us For Availability
6
Screw, Panel WPL 7101P63460 Contact Us For Availability
7
SCREW WPL 7101P42660 Contact Us For Availability
7
Nut, Lock WPL 7103P19060 Contact Us For Availability
8
SUPPORT,ELEMENT WPL 8004P09360 Contact Us For Availability
8
Insulator, Cord WPL 7003P10160 Contact Us For Availability
8
LINING, DOOR WPL 2404F03051 Contact Us For Availability
9
LIGHT, INDICATOR WPL 7407P19360 Contact Us For Availability
9
RETAINER, INSULATION WPL 3804F30051 Contact Us For Availability
9
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
10
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
10
SHIELD, WARMING DRAWER WPL 3604F32645 Contact Us For Availability
11
Shaft, Roller WPL 7118P03260 Contact Us For Availability
12
SUPPORT, OVEN BOTTOM WPL 3807F72745 Contact Us For Availability
12
Nut, Lock WPL 7103P08260 Contact Us For Availability
13
OVERLAY (STAINLESS) WPL W10279070 Contact Us For Availability
13
BADGE (GREY (OVAL)) WPL W10175320 Contact Us For Availability
13
Screw WPL 7101P43460 Contact Us For Availability
14
INSERT, HALF RACK WPL W10275560 Contact Us For Availability
15
HANDLE, DRAWER (STAINLESS) WPL W10180296 Contact Us For Availability
15
Sensor, Oven WPL 7430P04260 Contact Us For Availability
16
Tube, Vent Lower WPL 8026P09660 Contact Us For Availability
17
SCREW, TRIM WPL 7101P63860 Contact Us For Availability
17
TUBE, VENT UPPER WPL 8026P08460 Contact Us For Availability
18
Cover, Door Lock WPL 4005F75051 Contact Us For Availability
19
PANEL, OUTER DOOR (STAINLESS) WPL 7760P24260 Contact Us For Availability
19
PANEL, OUTER DOOR (BLACK) WPL 7902P81560 Contact Us For Availability
19
Holder, Vent Tube WPL 3605F34551 Contact Us For Availability
20
SCREEN, SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
21
PLATE, SMOKE ELIMINATOR WPL 3605F35445 Contact Us For Availability
22
ASSEMBLY, LIGHT WPL 7407P18260 Contact Us For Availability
24
BULB, LIGHT WPL 7407P10360 Contact Us For Availability
25
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
26
GUARD, EDGE WPL W10183566 Contact Us For Availability
28
Panel, Access WPL 4005F61251 Contact Us For Availability
29
PAN, HIDDEN BAKE WPL 3401F09245 Contact Us For Availability
30
HINGE, DOOR WPL 7106P14160 Contact Us For Availability
31
Screw WPL 7101P33660 Contact Us For Availability
32
Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability
33
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
34
EXTENSION, HEAT SHIELD WPL 3826F06451 Contact Us For Availability
35
SUPPORT, BROIL ELEMENT WPL 3807F49445 Contact Us For Availability
36
Leg, Leveling WPL 7101P66060 Contact Us For Availability
37
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
39
SUPPORT, REGULATOR VALVE WPL 3807F64051 Contact Us For Availability
40
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
44
RETAINER, INSULATION WPL 3804F23151 Contact Us For Availability
46
COVER, CONVECT WPL 3605F32319 Contact Us For Availability
47
TRIM, FRAME WPL 7713P05460 Contact Us For Availability
48
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
49
BOTTOM, OVEN WPL 2205F06019 Contact Us For Availability
50
ASSEMBLY, CONVECTION WPL W10210594 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) WPL 4392900 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SWITCH (RIGHT) WPL 5171P55060 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SWITCH (LEFT) WPL 5171P55760 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE LOCK WPL 8019P01360 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN WPL W10394658 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR WPL W10394790 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
INSULATION, OVEN WRAP WPL 7002P47160 Contact Us For Availability
× ![]()
