Model Whirlpool GY397LXUQ04 30`` SLIDE-IN ELECTRIC RANGE – Common Parts & Diagrams

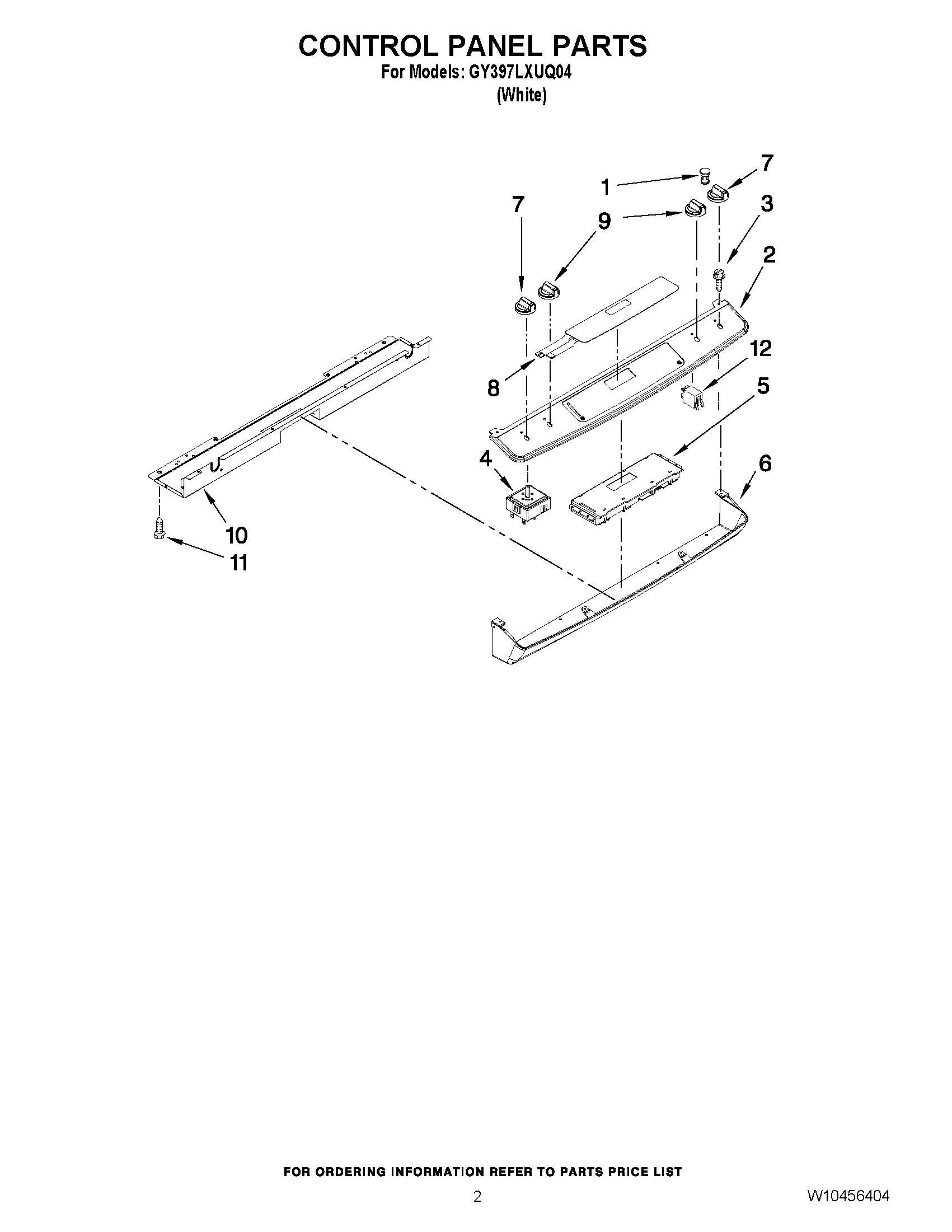

02 - CONTROL PANEL PARTS

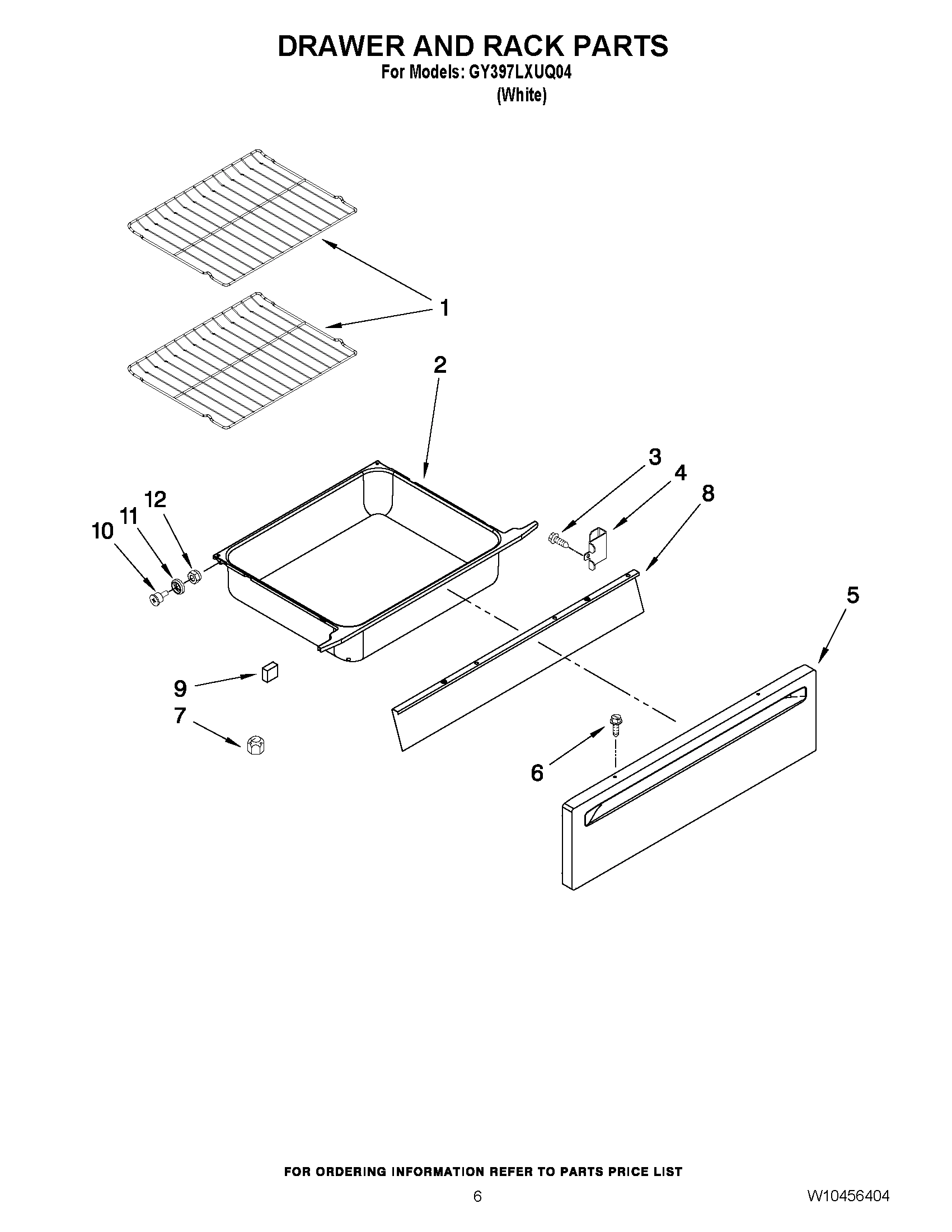

05 - DRAWER AND RACK PARTS
03 - CHASSIS PARTS
04 - DOOR PARTS
01 - COOKTOP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool GY397LXUQ04 30`` SLIDE-IN ELECTRIC RANGE
1
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
1
TRIM, DOOR TOP (WHITE) WPL 3608F14171 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P75060 Contact Us For Availability
1
USE & CARE GUIDE WPL 8113P68060 Contact Us For Availability
1
DIAGRAM, WIRING WPL W10394681 Contact Us For Availability
3
COVER, TERMINAL WPL 4005F61251 Contact Us For Availability
3
Baffel, Retainer WPL 3601F37351 Contact Us For Availability
4
Main Back WPL 3804F31351 Contact Us For Availability
5
Cover, Main Wire WPL 4005F81051 Contact Us For Availability
5
GLASS, INNER WPL 7902P43660 Contact Us For Availability
6
PANEL,CONTROL(LWR) (WHITE) WPL W10185607 Contact Us For Availability
6
Extension, Back WPL 3826F06651 Contact Us For Availability
6
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
6
Tube, Vent Upper WPL W10233479 Contact Us For Availability
7
SCREW WPL 7101P42660 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
8
Insulator, Cord WPL 7003P10160 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
SUPPORT,ELEMENT WPL 8004P09360 Contact Us For Availability
9
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
9
LIGHT, INDICATOR WPL 7407P19360 Contact Us For Availability
10
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
10
GUARD, EDGE WPL W10183566 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
10
BLOCK, ELEMENT WPL 8255P41260 Contact Us For Availability
12
Retainer, Bottom WPL 3804F23151 Contact Us For Availability
12
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
12
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
13
Spacer, Rubber WPL 8010P15260 Contact Us For Availability
14
Trim, Door Side (White, Right) WPL 3608F11671 Contact Us For Availability
14
Trim, Door Side (White, Left) WPL 3608F11771 Contact Us For Availability
15
BADGE WPL W10175320 Contact Us For Availability
15
Sensor, Oven WPL 7430P04260 Contact Us For Availability
16
Tube, Vent Lower WPL 8026P09660 Contact Us For Availability
16
TRIM, DOOR BOTTOM (WHITE) WPL 3807F70871 Contact Us For Availability
17
Tube, Vent Upper WPL 8026P08560 Contact Us For Availability
17
Screw, Trim (White) WPL 7101P63660 Contact Us For Availability
19
Holder, Vent Tube WPL 3605F34551 Contact Us For Availability
19
PANEL, OUTER DOOR (WHITE) WPL 7902P81460 Contact Us For Availability
20
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
21
PLATE, SMOKE ELM. WPL 3605F34445 Contact Us For Availability
22
Light Assembly WPL 7407P18260 Contact Us For Availability
24
BULB-OVEN WPL 7407P10360 Contact Us For Availability
25
TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability
28
SUPPORT, REAR OVEN WPL 3807F73251 Contact Us For Availability
29
Screw WPL 7101P43460 Contact Us For Availability
30
HINGE WPL 7106P14160 Contact Us For Availability
31
SCREW, HINGE WPL 7101P28260 Contact Us For Availability
32
Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability
33
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
34
Extention, Shield WPL 3826F06451 Contact Us For Availability
35
Support, Element WPL 3807F49445 Contact Us For Availability
36
Leg, Leveling WPL 7101P66060 Contact Us For Availability
37
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
39
Support WPL 3807F64051 Contact Us For Availability
40
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
42
Shaft, Roller WPL 7118P03260 Contact Us For Availability
43
Nut, Lock WPL 7103P19060 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
RETAINER, WRAP WPL 3804F28951 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P42660 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
U3, HARNESS (RT) WPL 5171P55060 Contact Us For Availability
NI
COIL,HARNESS (LT) WPL 5171P55760 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
HARNESS, MAIN WPL W10394657 Contact Us For Availability
NI
HARNESS,SENSOR WPL W10394790 Contact Us For Availability
× ![]()
