Model Whirlpool GW397LXUT05 30`` GAS SLIDE-IN – Common Parts & Diagrams
02 - CHASSIS PARTS
04 - DOOR PARTS

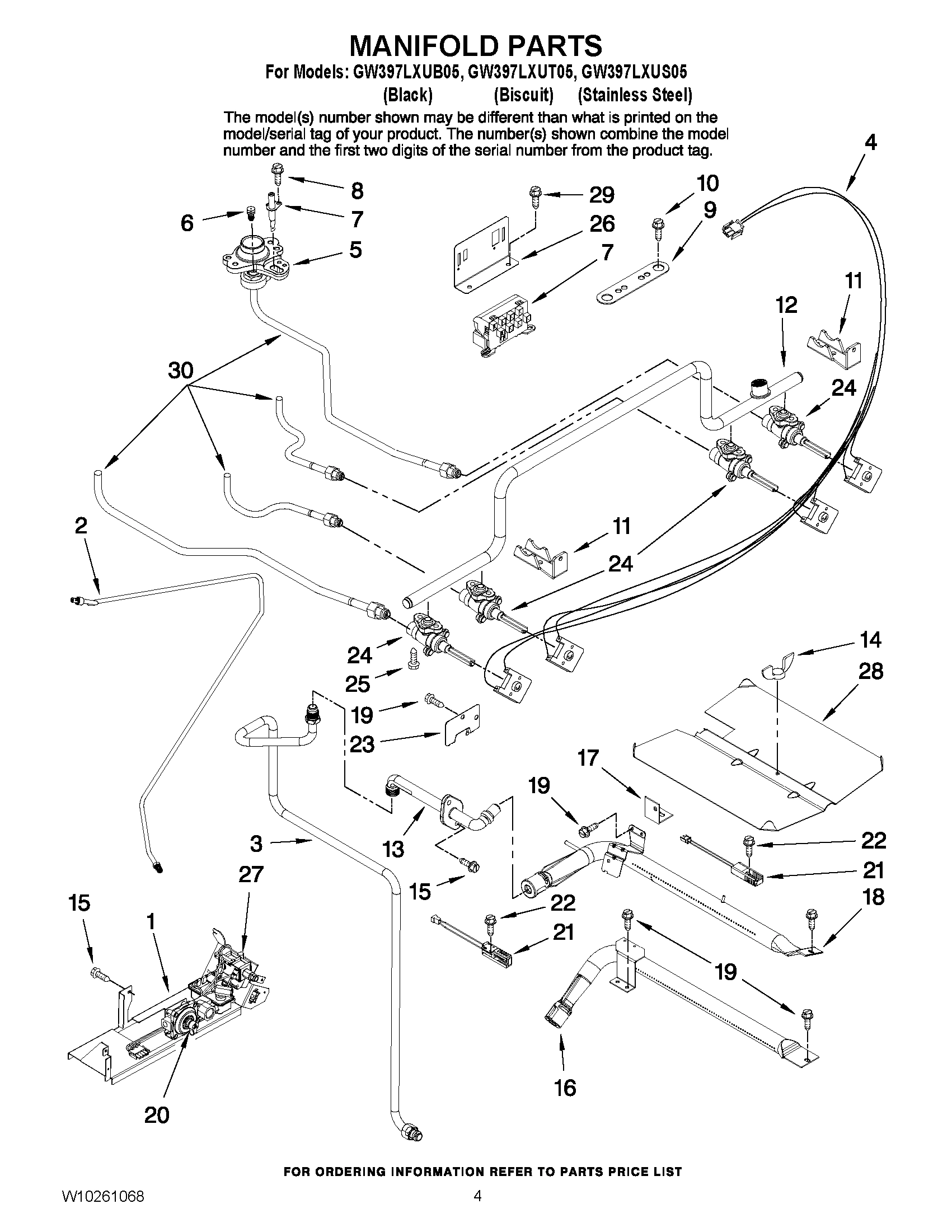

03 - MANIFOLD PARTS

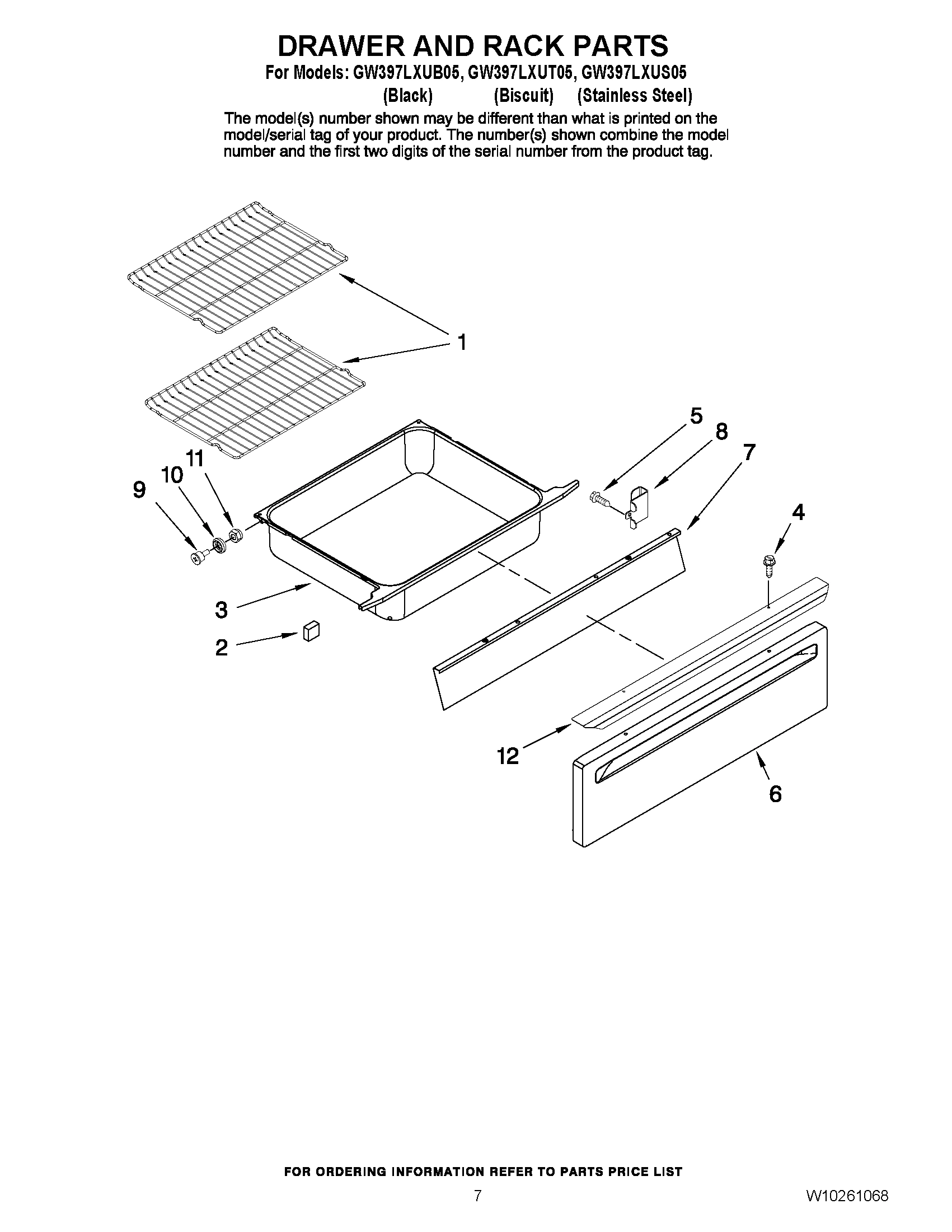

05 - DRAWER AND RACK PARTS

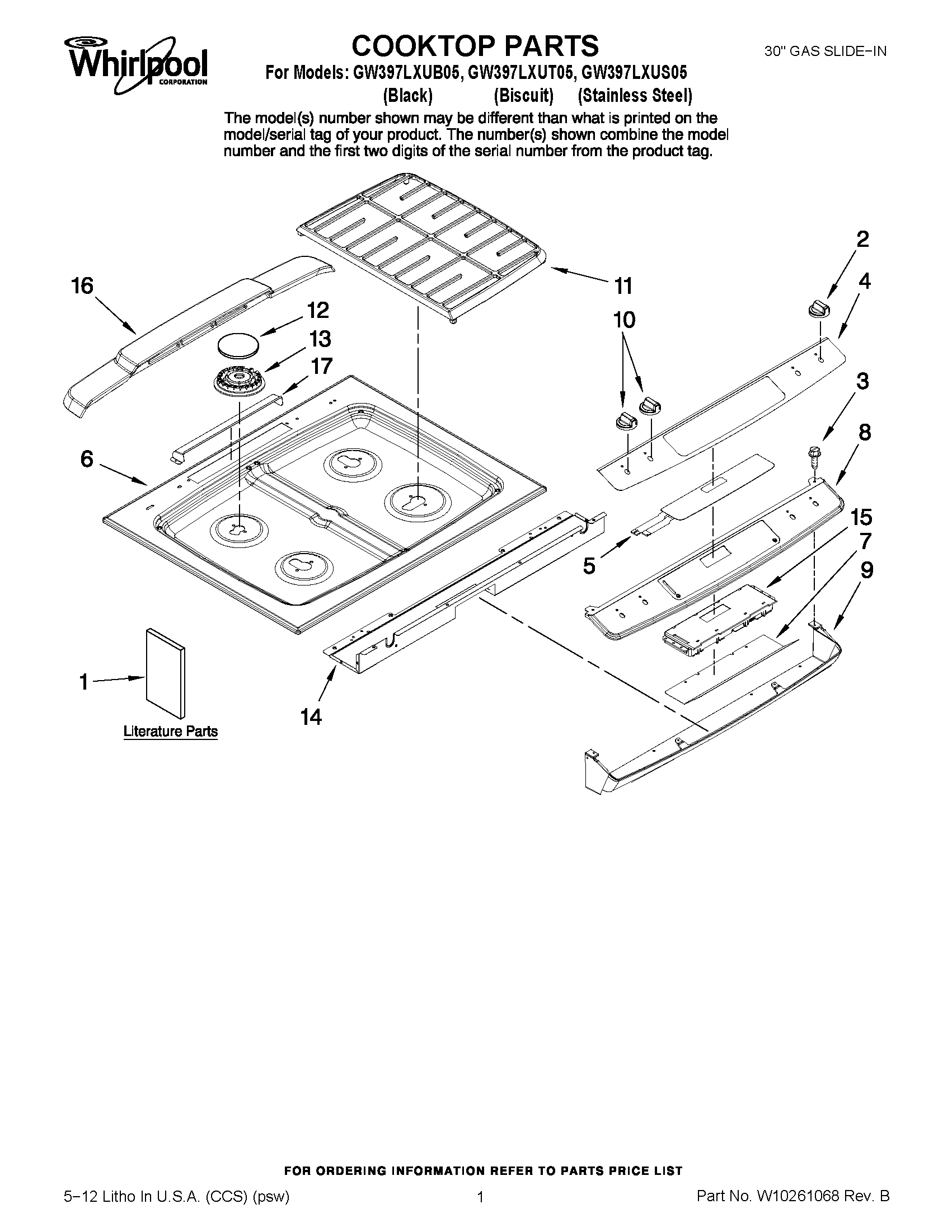

01 - COOKTOP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool GW397LXUT05 30`` GAS SLIDE-IN
1
Trim, Door Top (Black) WPL 3608F14170 Contact Us For Availability
1
Trim, Door Top (Biscuit) WPL 3608F14178 Contact Us For Availability
1
Cover, Bnr Valve WPL 4005F62051 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
1
Owners Manual WPL 8113P67960 Contact Us For Availability
1
Installation Instructions WPL 8113P68160 Contact Us For Availability
2
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
2
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
2
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
2
Tubing, Gas Supply WPL 7506P53560 Contact Us For Availability
2
Knob, AccuSimmer (Black) WPL 7733P53260 Contact Us For Availability
2
Knob, AccuSimmer (Biscuit) WPL 7733P53460 Contact Us For Availability
3
SCREW (SS ONLY) WPL 7101P37660 Contact Us For Availability
3
Tube, Broil WPL 7450P12860 Contact Us For Availability
3
Drawer, Service WPL 3405F03380 Contact Us For Availability
3
Screw WPL 7101P50160 Contact Us For Availability
4
Handle, Door (Biscuit) WPL W10118432 Contact Us For Availability
4
Screw, Panel (Black) WPL 7101P63560 Contact Us For Availability
4
Screw, Panel (Biscuit) WPL 7101P63760 Contact Us For Availability
4
SCREW, PANEL (STAINLESS) WPL 7101P63460 Contact Us For Availability
4
OVERLAY (SS ONLY) WPL W10181485 Contact Us For Availability
5
NAMEPLATE WPL W10175320 Contact Us For Availability
5
Screw WPL 7101P38860 Contact Us For Availability
6
Liner, Door WPL 2402W31219 Contact Us For Availability
6
ORIFICE (14K RF) WPL 7527P08160 Contact Us For Availability
6
ORIFICE (9.2K LF, RR) WPL 7527P08360 Contact Us For Availability
6
ORIFICE (5K LR) WPL 7527P08460 Contact Us For Availability
6
Panel, Drawer Front (Black) WPL 2416F05970 Contact Us For Availability
6
PANEL,DRAWER FRONT (BISCUIT) WPL 2416F05978 Contact Us For Availability
6
PANEL,DRAWER FRONT (STAINLESS) WPL W10196357 Contact Us For Availability
6
Cooktop (Black) WPL 2001W23109 Contact Us For Availability
6
Cooktop (Biscuit) WPL 2001W23188 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
7
Lining, Drawer WPL 2404F03051 Contact Us For Availability
7
Shield, Control WPL W10166279 Contact Us For Availability
8
SCREW, TRIM (STAINLESS) WPL 7101P63860 Contact Us For Availability
8
Bracket, Drawer WPL 3801F88751 Contact Us For Availability
8
Panel, Cntl Shield (Black) WPL 7720P53160 Contact Us For Availability
8
Panel, Cntl Shield (Biscuit) WPL 7720P53360 Contact Us For Availability
8
PANEL, CNTL SHIELD (STAINLESS) WPL W10182766 Contact Us For Availability
9
Panel, Cntl (LWR) (Black) WPL W10185606 Contact Us For Availability
9
Insulation, Door WPL 7002P24660 Contact Us For Availability
9
Roller, Drawer WPL 8014P02260 Contact Us For Availability
9
PANEL, CNTL (LWR) (WHITE) WPL W10185609 Contact Us For Availability
10
RETAINER, BASE WPL W10160530 Contact Us For Availability
10
Shaft, Roller WPL 7118P03260 Contact Us For Availability
10
KNOB, VALVE (BLACK) WPL 7733P52660 Contact Us For Availability
10
KNOB, VALVE (BISCUIT) WPL 7733P52860 Contact Us For Availability
11
Nut, Lock WPL 7103P08260 Contact Us For Availability
11
GRATE, BURNER (BLACK) WPL 7518P48560 Contact Us For Availability
11
GRATE, BURNER (GRAY) WPL 7518P48660 Contact Us For Availability
12
HANDLE (SS ONLY) WPL W10180296 Contact Us For Availability
12
Baffle, Retainer WPL 3601F37351 Contact Us For Availability
12
BRACKET, VALVE WPL W10160655 Contact Us For Availability
13
Pipe, Manifold WPL 7513P53660 Contact Us For Availability
14
GLASS, INNER CLEAR WPL 7902P43660 Contact Us For Availability
14
GLASS, INNER (COATED) WPL 7902P76860 Contact Us For Availability
14
Fitting, Broil WPL 7507P40760 Contact Us For Availability
14
Support, Cntrl Pnl WPL 3807F76951 Contact Us For Availability
15
Glass, Includes Glass, Tape & Logo (Black) WPL W10170229 Contact Us For Availability
15
Glass, Includes Glass, Tape & Logo (Biscuit) WPL W10170230 Contact Us For Availability
15
Nut, Wing WPL 7103P03060 Contact Us For Availability
15
Control, (ERC) WPL 8507P38960 Contact Us For Availability
16
Trim, Door Bottom (Black) WPL 3807F70870 Contact Us For Availability
16
Trim, Door Bottom (Biscuit) WPL 3807F70878 Contact Us For Availability
16
Screw WPL 7101P27460 Contact Us For Availability
16
Cover, Vent (Black) WPL 7724P20160 Contact Us For Availability
16
Cover, Vent (Gray) WPL 7724P20260 Contact Us For Availability
17
BRACKET, GLASS (SS ONLY) WPL 3801F88651 Contact Us For Availability
17
Burner, Bake WPL 7505P25460 Contact Us For Availability
17
Baffle, Vent Cover WPL 3601F22145 Contact Us For Availability
18
Trim, Door Side (Black, Right) WPL 3608F11670 Contact Us For Availability
18
Trim, Door Side (Biscuit, Right) WPL 3608F11678 Contact Us For Availability
18
Trim, Door Side (Black, Left) WPL 3608F11770 Contact Us For Availability
18
Trim, Door Side (Biscuit, Left) WPL 3608F11778 Contact Us For Availability
18
Support, Bake Bnr WPL 3807F48045 Contact Us For Availability
19
PNL, OVEN DR(SS) WPL 7760P24260 Contact Us For Availability
19
Burner, Broil WPL 7505P29360 Contact Us For Availability
20
INSULATION, FOIL (SS ONLY) WPL 7002P46360 Contact Us For Availability
20
Screw WPL 7101P43460 Contact Us For Availability
21
Clip, Glass WPL 7112P03460 Contact Us For Availability
21
Ignitor (Bake/Broil) WPL 7432P10660 Contact Us For Availability
21
Valve/Regulator WPL 7510P07960 Contact Us For Availability
22
Shield, Door WPL 3604F41851 Contact Us For Availability
22
Screw WPL 7101P28260 Contact Us For Availability
23
RETAINER, GLASS (SS ONLY) WPL 3804F29345 Contact Us For Availability
23
COVER, IGNITOR WIRE WPL 4005F42145 Contact Us For Availability
24
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
24
VALVE, BURNER (LF, RF, RR) WPL 7502P56660 Contact Us For Availability
25
SUPPORT, SCREW WPL 7101P33860 Contact Us For Availability
26
Support, Spark Mod WPL 3807F75245 Contact Us For Availability
27
Valve, Safety WPL 7501P23260 Contact Us For Availability
28
BAFFLE (BRAKE) WPL 3601F23945 Contact Us For Availability
28
Baffle (Broil) WPL 3601F30745 Contact Us For Availability
30
Tube, Burner (RF) WPL 7506P52160 Contact Us For Availability
30
Tube, Burner (LF) WPL 7506P52260 Contact Us For Availability
30
Tube, Burner (RR) WPL 7506P52360 Contact Us For Availability
30
Tube, Burner (LR) WPL 7506P52460 Contact Us For Availability
NI
KIT, COOKTOP CARE WPL 31605 Contact Us For Availability
NI
CLEANER, STAINLESS WPL W10355016 Contact Us For Availability
NI
CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability
NI
CLEANER, GAS GRATE & DRIP PAN WPL 31617A Contact Us For Availability
NI
CLEANER & POLISH (GRANITE) WPL W10275756 Contact Us For Availability
NI
Spuds, LP Gas WPL W10168551 Contact Us For Availability
NI
FOIL, ALUMINUM (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
KIT, CANNING ELEMENT WPL 242905 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
NI
Harness, Spark WPL 7431P06460 Contact Us For Availability
NI
PROTECTANT,COOKTOP WPL 31463 Contact Us For Availability
NI
Harness,Sensor WPL 5171P56060 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
Harness, Main WPL W10160394 Contact Us For Availability
× ![]()
