Model Whirlpool GW395LEGT3 SLIDE IN GAS RANGE – Common Parts & Diagrams

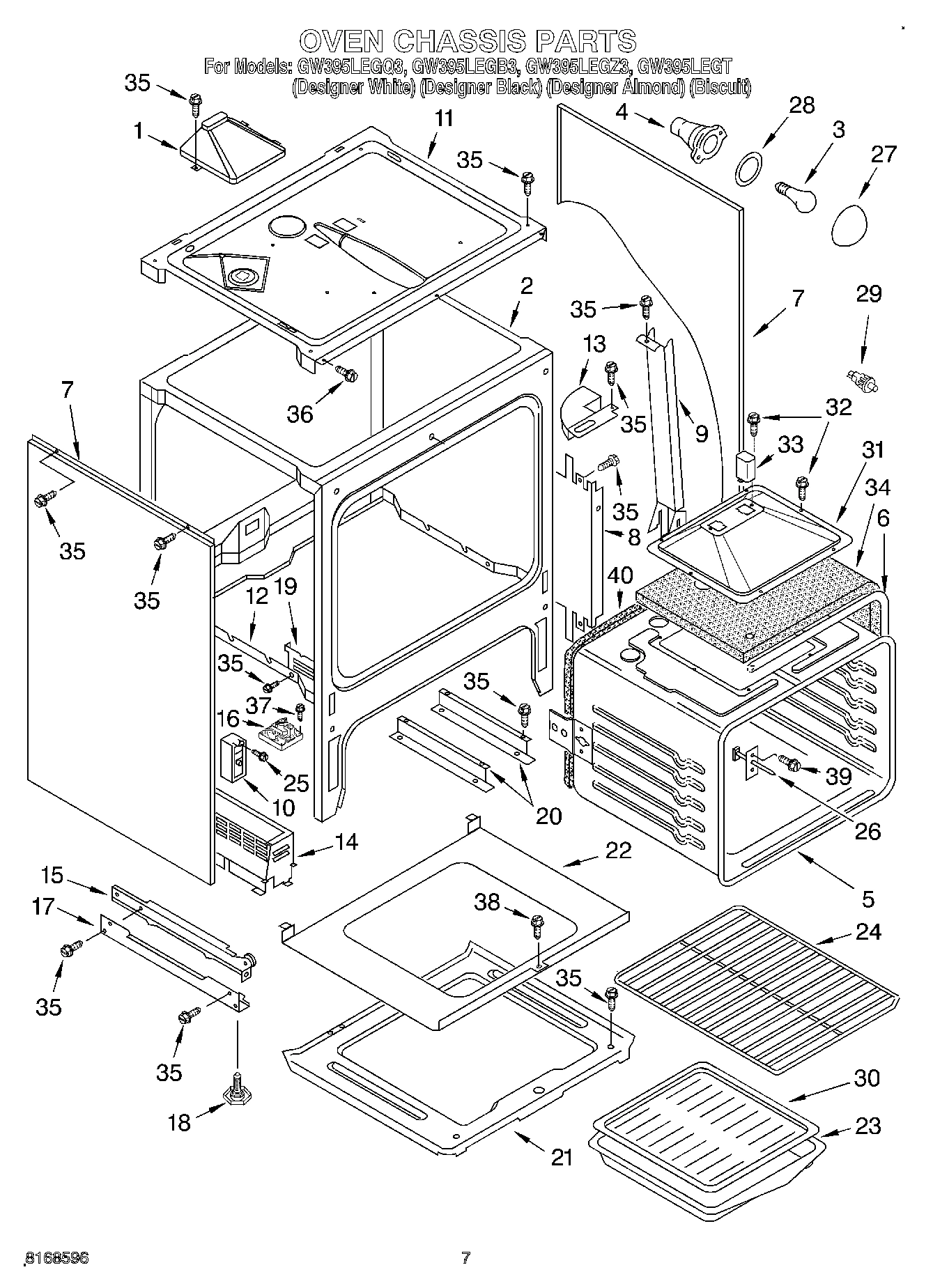

06 - OVEN CHASSIS

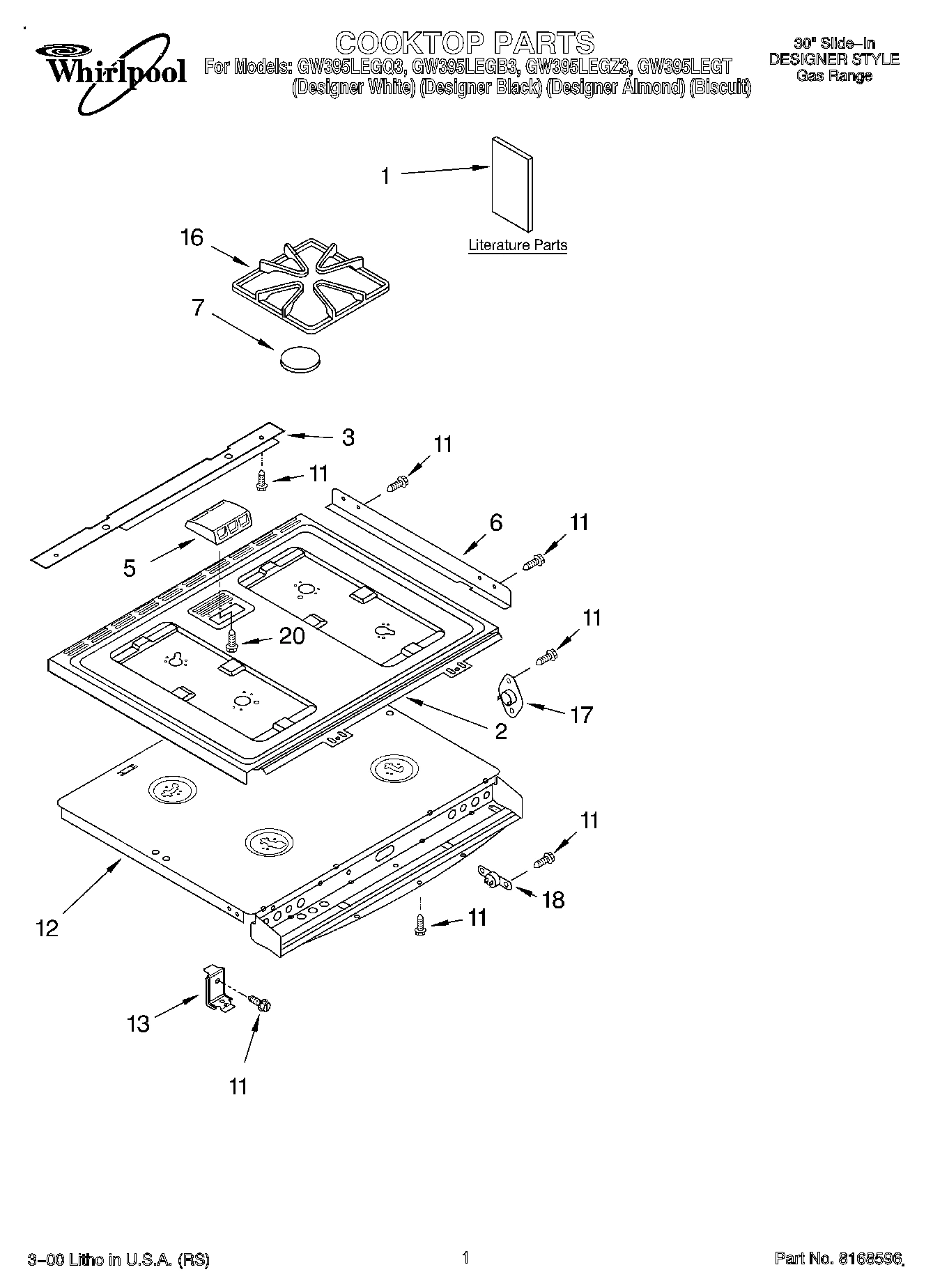

01 - COOKTOP, LITERATURE

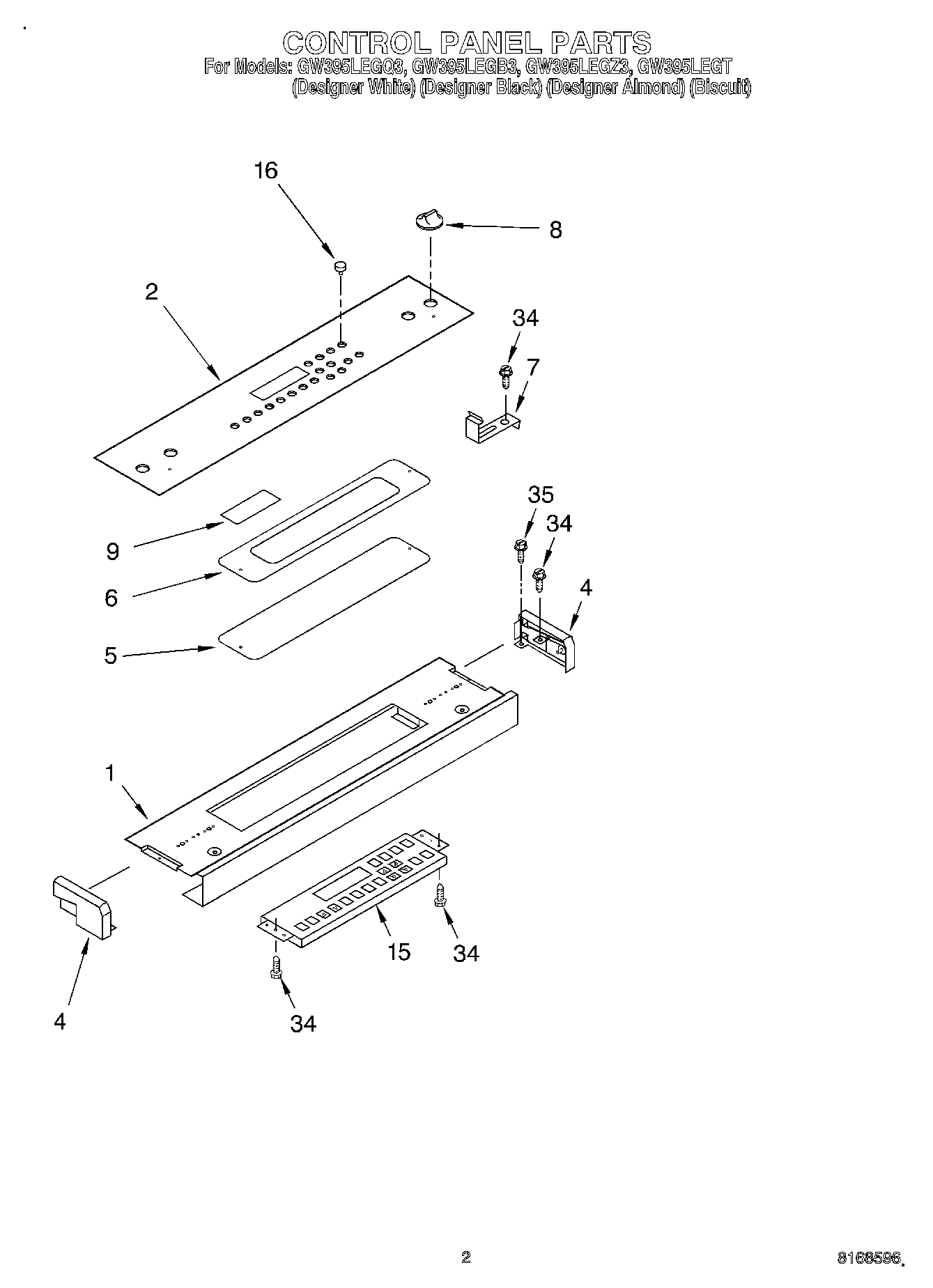

02 - CONTROL PANEL

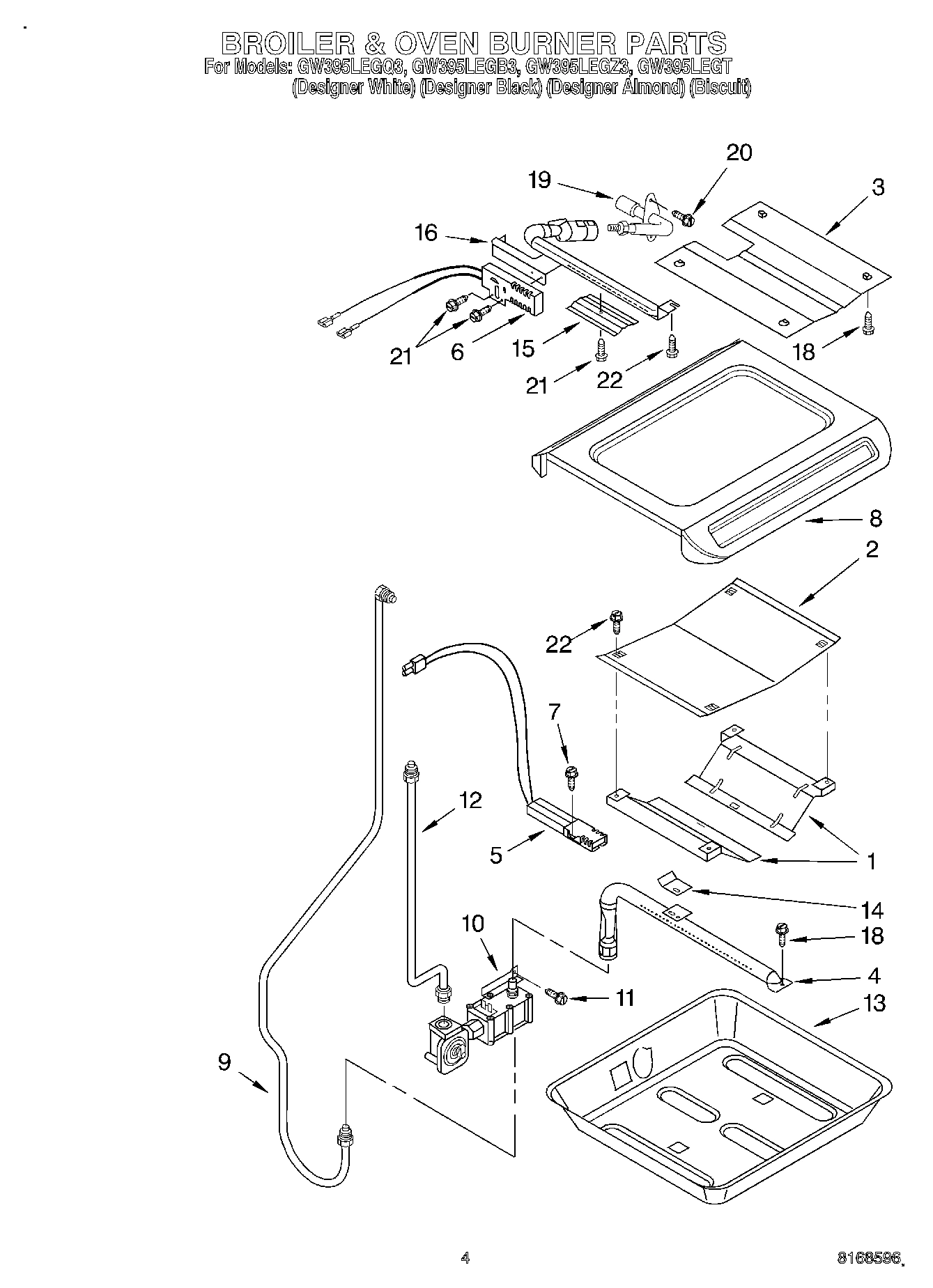

04 - BROILER AND OVEN BURNER

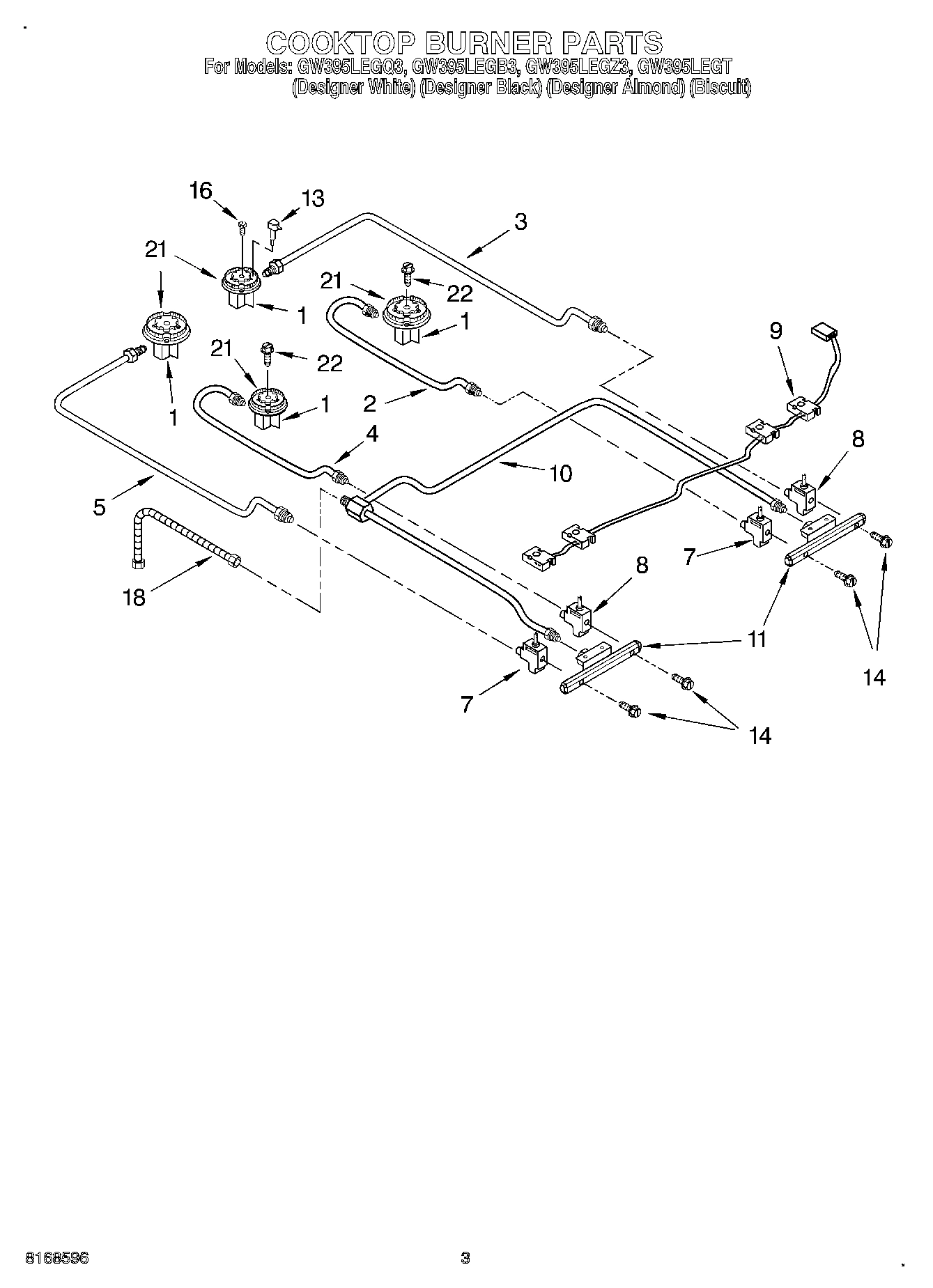

03 - COOKTOP BURNER

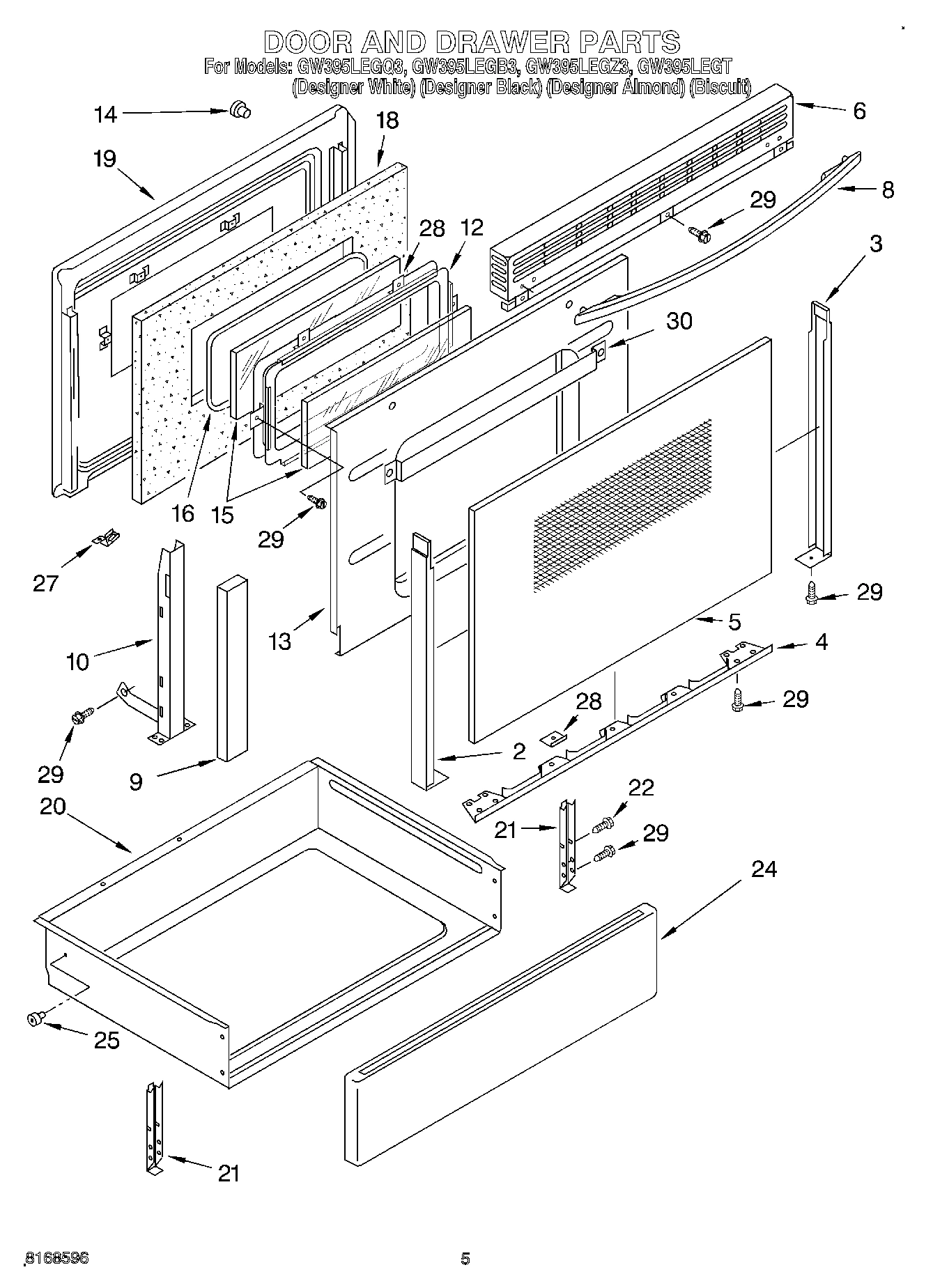

05 - DOOR AND DRAWER

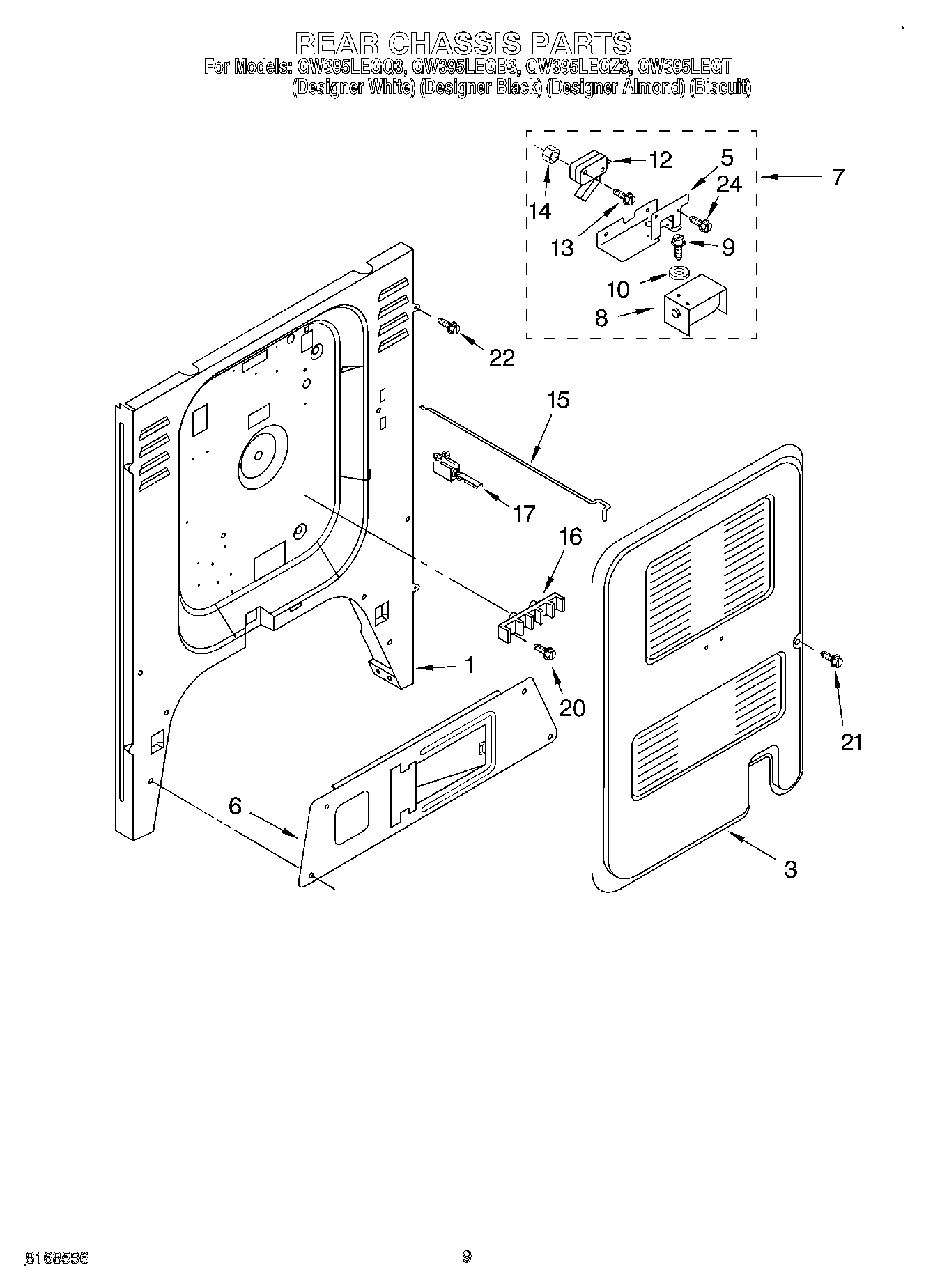

07 - REAR CHASSIS
Common parts from model Whirlpool GW395LEGT3 SLIDE IN GAS RANGE
1
Panel, Control (Black) WPL 9752897PB Contact Us For Availability
1
Panel, Control (Biscuit) WPL 9752897PC Contact Us For Availability
1
Panel, Control (Almond) WPL 9752897PT Contact Us For Availability
1
Panel, Control (White) WPL 9752897PW Contact Us For Availability
1
Shield, Oven (2) WPL 9752737 Contact Us For Availability
1
Burner Base w/Orifice (Small (2)) WPL 9754183 Contact Us For Availability
1
Burner Base w/Orifice (Large (2)) WPL 9754189 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
2
Cooktop, Gas (Almond) WPL 9781890GT Contact Us For Availability
2
Cooktop, Gas (White) WPL 9781890GW Contact Us For Availability
2
Glass-Console (Black) WPL 9752901CB Contact Us For Availability
2
Glass-Console (Biscuit) WPL 9752901CC Contact Us For Availability
2
Glass-Console (Almond) WPL 9752901CT Contact Us For Availability
2
Glass-Console (White) WPL 9752901CW Contact Us For Availability
2
Flame Shield, Bake WPL 9752738 Contact Us For Availability
2
Tubing, Burner (RF) WPL 9753005 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9782003PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
3
Trim, Rear WPL 9752889 Contact Us For Availability
3
Shield, Flame WPL 9752980 Contact Us For Availability
3
Tubing, Burner (RR) WPL 9753006 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9782004PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
(End Cap Right) (Black) WPL 9781888FB Contact Us For Availability
4
(End Cap Right) (Biscuit) WPL 9781888FC Contact Us For Availability
4
(End Cap Right) (Almond) WPL 9781888FT Contact Us For Availability
4
End Cap Left (Black) WPL 9781889FB Contact Us For Availability
4
End Cap Left (Biscuit) WPL 9781889FC Contact Us For Availability
4
End Cap Left (Almond) WPL 9781889FT Contact Us For Availability
4
Tubing, Burner (LF) WPL 9753003 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Cap, Vent (Black) WPL 9753772GB Contact Us For Availability
5
Cap, Vent (White) WPL 9753772GW Contact Us For Availability
5
Gasket, Cover WPL 9753504 Contact Us For Availability
5
Tubing, Burner (LR) WPL 9753004 Contact Us For Availability
5
Glass, Door (Black) WPL 9781694PB Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781694PC Contact Us For Availability
5
Glass, Door (Almond) WPL 9781694PT Contact Us For Availability
5
Glass, Door (White) WPL 9781694PW Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
6
Trim, Side WPL 9752890 Contact Us For Availability
6
Cover, Control WPL 9752955 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
6
Bracket, Regulator Valve WPL 9751500 Contact Us For Availability
7
Cap, Burner (Small) (Grey) WPL 3191899 Contact Us For Availability
7
Valve, Burner Small (2) WPL 9753045 Contact Us For Availability
7
Clip, Glass (2) WPL 9752906 Contact Us For Availability
7
Oven Lock Assembly (Includes Key No.17) WPL 9752404 Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
Knob, Control (4) (Almond) WPL 3187768 Contact Us For Availability
8
Knobs, Control (4) (Biscuit) WPL 9753990FC Contact Us For Availability
8
Pan, Oven Bottom WPL 9752736GM Contact Us For Availability
8
Valve, Burner Large (2) WPL 9753044 Contact Us For Availability
8
Handle, Door (Black) WPL 9752701PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9752701PC Contact Us For Availability
8
Handle, Door (Almond) WPL 9752701PT Contact Us For Availability
8
Handle, Door (White) WPL 9752701PW Contact Us For Availability
9
Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability
9
Label-WPSI Control WPL 9753503 Contact Us For Availability
9
Tubing, Broil WPL 9752985 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Screw WPL 422222 Contact Us For Availability
10
Tubing, Manifold WPL 9754148 Contact Us For Availability
10
Washer WPL 424238 Contact Us For Availability
11
Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability
11
Manifold (Left Hand) WPL 9754116L Contact Us For Availability
11
Manifold (Right Hand) WPL 9754116R Contact Us For Availability
12
Support, Cooktop WPL 9752974 Contact Us For Availability
12
Tubing, Valve WPL 9781015 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
13
Bracket, Pivot WPL 9751629 Contact Us For Availability
13
Pan Support, Bake WPL 9752734 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Screw, (2) WPL 9750887 Contact Us For Availability
14
Bracket, Bake WPL 9751600 Contact Us For Availability
14
Bolt, Valve (4) WPL 3185829 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
15
Control, Range WPL 9753639 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Deflector, Broil WPL 9753409 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Knob, Timer (18) (White) WPL 9781954FW Contact Us For Availability
16
Knob, Timer (18) (Black) WPL 9781954FB Contact Us For Availability
16
Knob, Timer (18) (Biscuit) WPL 9781954FC Contact Us For Availability
16
Knob, Timer (18) (Almond) WPL 9781954FT Contact Us For Availability
16
Burner, Broil WPL 9752981 Contact Us For Availability
17
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
18
Thermostat, SPST WPL 341196 Contact Us For Availability
18
Screw, 10-24 x 1/2 WPL 9751644 Contact Us For Availability
18
Tubing, Flex WPL 9751854 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Fitting, Broiler WPL 9752984 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Screw WPL 98884 Contact Us For Availability
21
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Screw, No.10 x 3/8 WPL 9751643 Contact Us For Availability
22
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
22
Screw WPL 423247 Contact Us For Availability
24
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
24
Rack, Standard (2) WPL 9750498 Contact Us For Availability
24
WPL 9753054 WPL 9753054 Contact Us For Availability
24
WPL 9751745 WPL 9751745 Contact Us For Availability
24
WPL 9752717 WPL 9752717 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
24
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
24
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
24
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
24
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
24
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
24
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
24
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
24
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
24
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
24
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
24
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
24
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
24
Grease WPL 261582 Contact Us For Availability
24
Coffee WPL 261886 Contact Us For Availability
24
New Avocado WPL 261888 Contact Us For Availability
24
Harvest Gold WPL 261890 Contact Us For Availability
24
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
24
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
24
WPL 72108 WPL 72108 Contact Us For Availability
24
WPL 799832 WPL 799832 Contact Us For Availability
24
WPL 9750221 WPL 9750221 Contact Us For Availability
24
WPL 9750744 WPL 9750744 Contact Us For Availability
24
WPL 9751164 WPL 9751164 Contact Us For Availability
24
WPL 9751323 WPL 9751323 Contact Us For Availability
24
WPL 9751868 WPL 9751868 Contact Us For Availability
24
WPL 9752769 WPL 9752769 Contact Us For Availability
24
WPL 9753101 WPL 9753101 Contact Us For Availability
24
WPL 9753158 WPL 9753158 Contact Us For Availability
24
WPL 9753267PB WPL 9753267PB Contact Us For Availability
24
WPL 9753267PC WPL 9753267PC Contact Us For Availability
24
WPL 9753267PT WPL 9753267PT Contact Us For Availability
24
WPL 9753267PW WPL 9753267PW Contact Us For Availability
24
WPL 9753758 WPL 9753758 Contact Us For Availability
24
WPL 9781055 WPL 9781055 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
26
Sensor, Oven WPL 8053344 Contact Us For Availability
27
Retainer, Panel WPL 9750676 Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781580 Contact Us For Availability
30
Channel, Heat WPL 9750693 Contact Us For Availability
30
Insulation, Drawer Rear WPL 9754005 Contact Us For Availability
× ![]()
