Model Electrolux GW30SPED1 RANGE – Common Parts & Diagrams

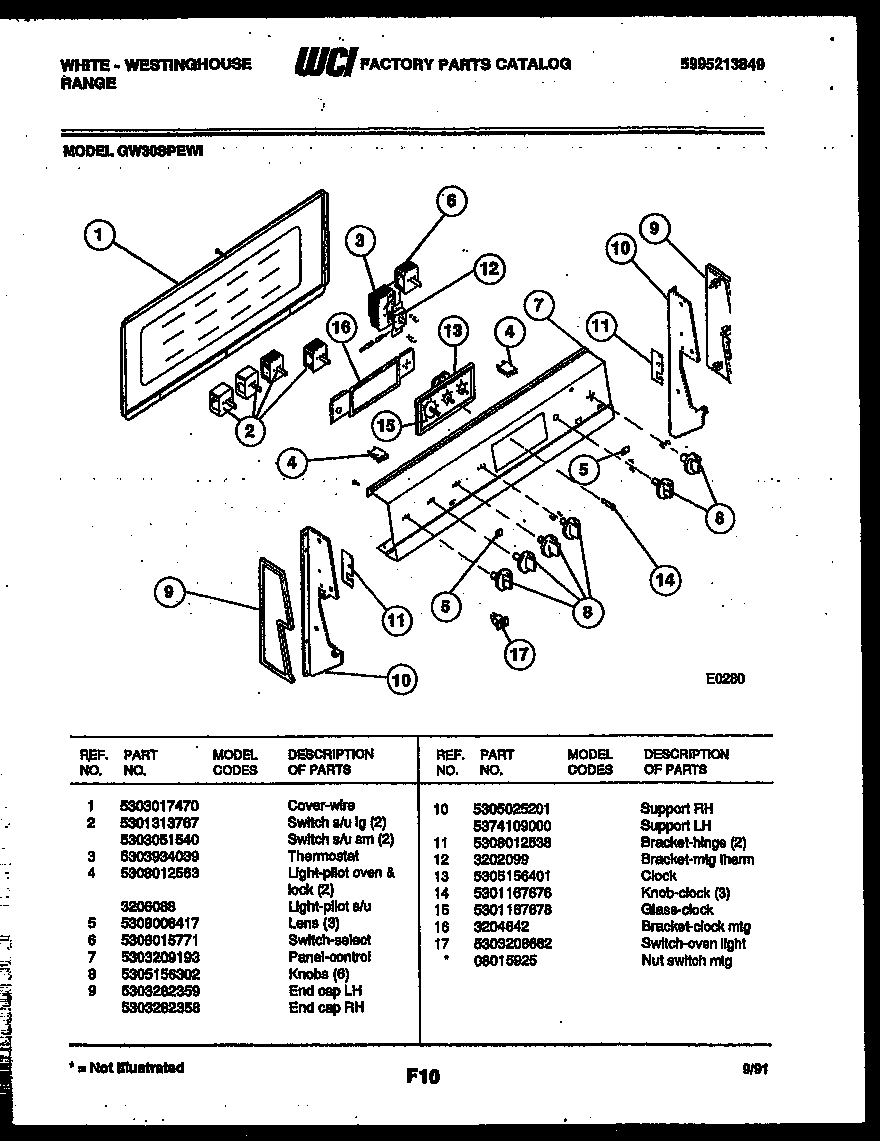

02 - CONTROL PANEL

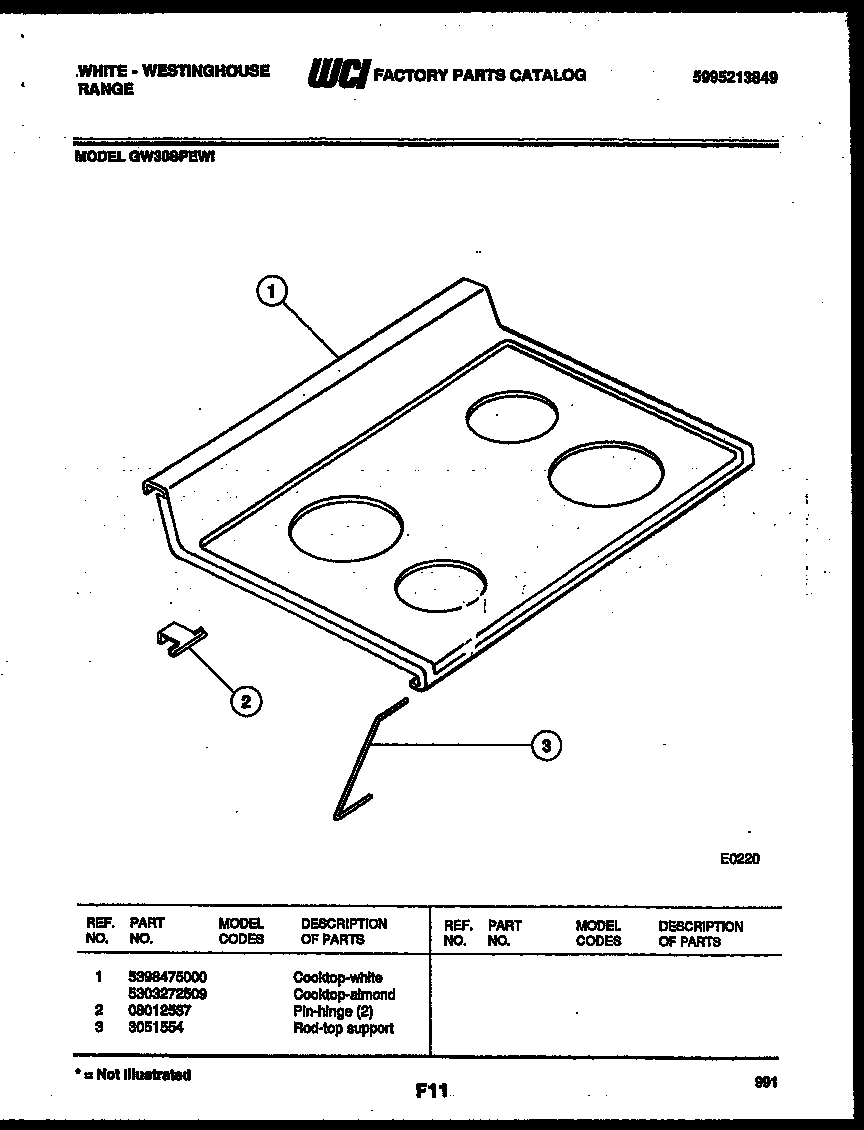

03 - COOKTOP PARTS
04 - DOOR PARTS
05 - BROILER PARTS
06 - DRAWER PARTS
07 - BODY PARTS
Common parts from model Electrolux GW30SPED1 RANGE
*54508
INSULATION-AIRWASH (2) WCI 5303212546 Contact Us For Availability
*54521
WCI 3934063 WCI 3934063 Contact Us For Availability
*54522
WCI 19100210130 WCI 19100210130 Contact Us For Availability
*54522
WCI 5300009126 WCI 5300009126 Contact Us For Availability
1
WCI 5303272509 WCI 5303272509 Contact Us For Availability
1
WCI 5303212550 WCI 5303212550 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
SIDE PNL, RH (ALMD) WCI 5308012529 Contact Us For Availability
1A
SIDE PNL, LH (ALMD) WCI 5308012530 Contact Us For Availability
2
GUIDE-DRAWER REAR WCI 5303209487 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
GASKET-WINDOW WCI 5303212544 Contact Us For Availability
2
WCI 5303207390 WCI 5303207390 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
PANEL - ALMOND WCI 5301325100 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
4
BAFFLE WCI 5303212553 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
5
LENS (3) WCI 5308006417 Contact Us For Availability
5
GASKET WCI 3206078 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 5303205540 Contact Us For Availability
6
INSULATION-BAFFLE WCI 5303212545 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 5303212548 WCI 5303212548 Contact Us For Availability
7
GUIDE - DRWR FRONT (2) WCI 3051654 Contact Us For Availability
8
OVEN LINER WCI 3206079 Contact Us For Availability
9
WCI 3051511 WCI 3051511 Contact Us For Availability
9
END CAP LH WCI 5303282359 Contact Us For Availability
9
COLLAR-GLASS WCI 5303212552 Contact Us For Availability
9A
END CAP RH WCI 5303282358 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10A
SUPPORT LH WCI 5374109000 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 5301318805 WCI 5301318805 Contact Us For Availability
12
BRACKET-MTG THERM WCI 3202099 Contact Us For Availability
12
SCREW 10 X 24 (2) WCI 5303051859 Contact Us For Availability
12
RETAINER-LENS WCI 5303205904 Contact Us For Availability
13
WCI 5305156401 WCI 5305156401 Contact Us For Availability
13
WASHER-PADDED (2) WCI 3051785 Contact Us For Availability
14
KNOB, CLOCK (3) WCI 5301167676 Contact Us For Availability
14
WCI 3017530 WCI 3017530 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
WCI 5301167678 WCI 5301167678 Contact Us For Availability
15
HINGE, ASSY (2) WCI 5303207589 Contact Us For Availability
15
GRILLE, BROILER WCI 3205234 Contact Us For Availability
16
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
16
SPRING (2) WCI 5308003186 Contact Us For Availability
16
WCI 3205539 WCI 3205539 Contact Us For Availability
17
WCI 5303282360 WCI 5303282360 Contact Us For Availability
17A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
18
MOULDING-J WCI 5301313568 Contact Us For Availability
19
RETAINER - GLASS (2) WCI 5303269554 Contact Us For Availability
19
WCI 5301145190 WCI 5301145190 Contact Us For Availability
20
INSULATION- AIRWASH WCI 5303212547 Contact Us For Availability
20
WCI 5303207391 WCI 5303207391 Contact Us For Availability
21
PANEL-AIRWASH WCI 5303212549 Contact Us For Availability
21
WCI 3206275 WCI 3206275 Contact Us For Availability
22
WCI 5308003153 WCI 5308003153 Contact Us For Availability
22
WCI 3202082 WCI 3202082 Contact Us For Availability
23
GLASS-INNER WCI 5303209512 Contact Us For Availability
24
GLASS-OUTER WCI 5303212542 Contact Us For Availability
24
WCI 3016334 WCI 3016334 Contact Us For Availability
25
PANEL-INSULATOR PAD WCI 5303212551 Contact Us For Availability
25
WCI 3201632 WCI 3201632 Contact Us For Availability
26
WCI 3016281 WCI 3016281 Contact Us For Availability
27
WCI 3051634 WCI 3051634 Contact Us For Availability
28
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
29
WCI 3017481 WCI 3017481 Contact Us For Availability
29A
WCI 3017482 WCI 3017482 Contact Us For Availability
30
WCI 5303051856 WCI 5303051856 Contact Us For Availability
31
WCI 3205757 WCI 3205757 Contact Us For Availability
32
WCI 08012542 WCI 08012542 Contact Us For Availability
33
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
34
WCI 08007445 WCI 08007445 Contact Us For Availability
35
WCI 08007444 WCI 08007444 Contact Us For Availability
36
TUBE-OVEN VENT WCI 08012574 Contact Us For Availability
37
LATCH, MOTOR WCI 5308015743 Contact Us For Availability
38
LATCH, DOOR WCI 3202387 Contact Us For Availability
39
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
40
AXLE WCI 5308012004 Contact Us For Availability
41
WCI 3051649 WCI 3051649 Contact Us For Availability
42
WCI 3206095 WCI 3206095 Contact Us For Availability
43
WCI 3019063 WCI 3019063 Contact Us For Availability
44
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
× ![]()
