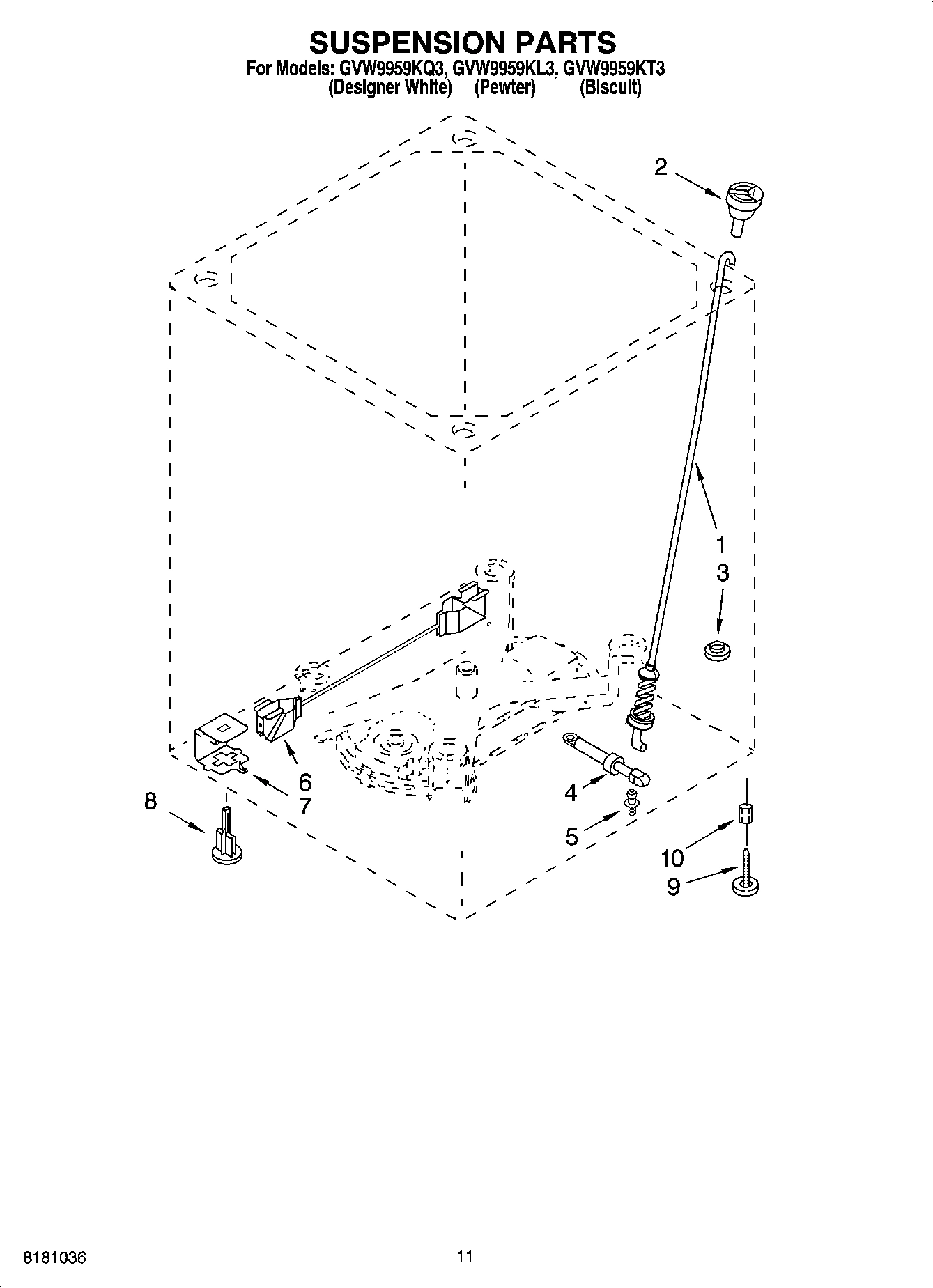

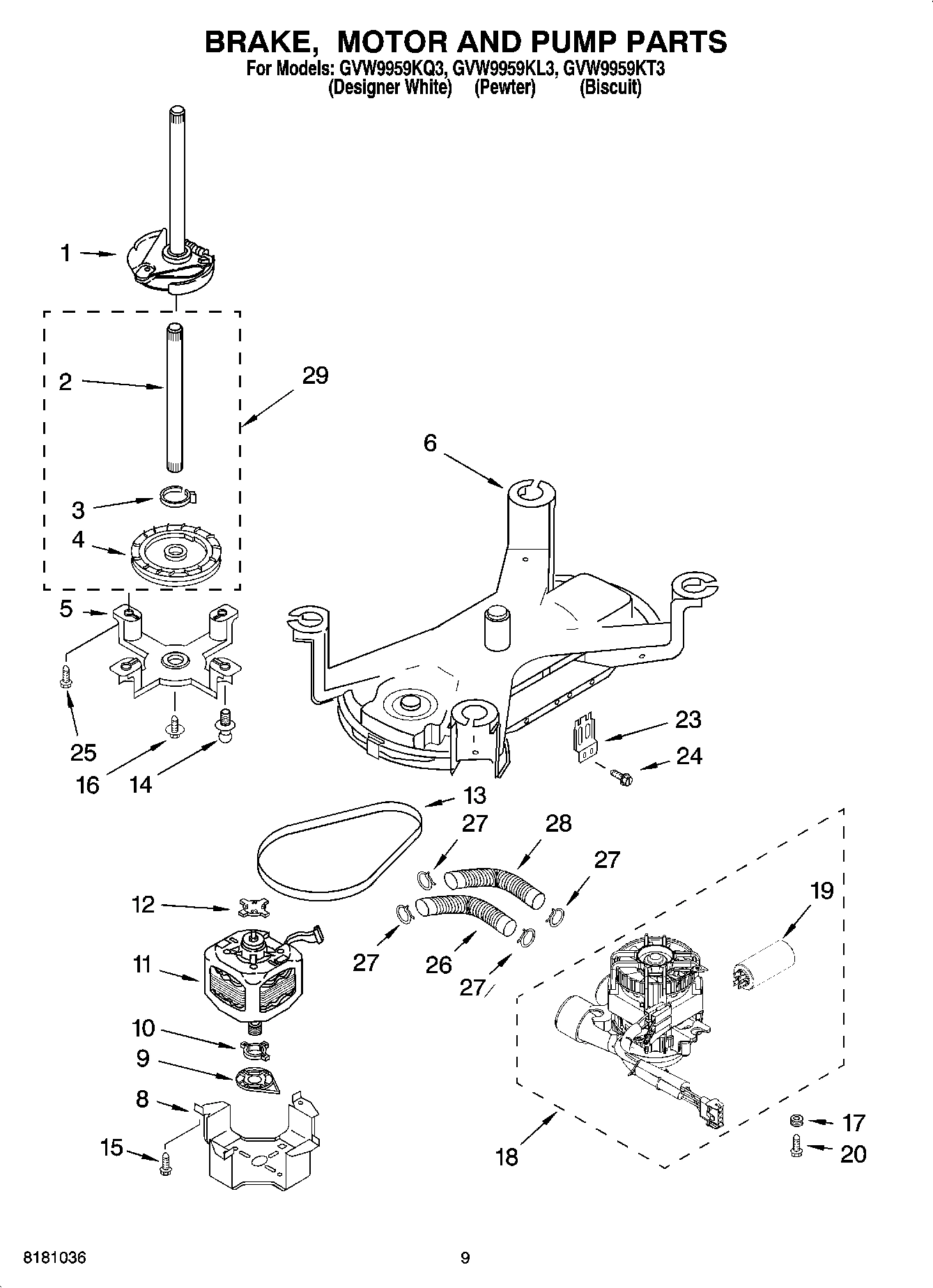

Model Whirlpool GVW9959KL3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

285835 Whirlpool Drain Hose Connector Kit Backorder WPL 285835 $17.84

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

WP4396174 Whirlpool Touch-Up Paint Backorder WPL WP4396174 $10.30

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter) WPL 4396175 Contact Us For Availability

LUBRICANT WPL ARI74491A8 Contact Us For Availability

SEALER WPL ARI74492A6 Contact Us For Availability

COUPLING WPL ARI74493A2 Contact Us For Availability

INSTALLATION KIT WPL ARI74494A2 Contact Us For Availability

1

285908 Whirlpool Dryer Kit Backorder WPL 285908 $11.22

1

Brake & Drive Tube (Complete) (Refer to Page WPL 8271972 Contact Us For Availability

1

Energy Guide WPL 3957469 Contact Us For Availability

1

Tech Sheet WPL 8530143 Contact Us For Availability

1

Wiring Diagram WPL 8530145 Contact Us For Availability

1

Use & Care Guide WPL 8578239 Contact Us For Availability

1

Damper Asm (4) WPL 9723241 Contact Us For Availability

2

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

2

Washplate (Outer) WPL 8522194 Contact Us For Availability

2

Shaft, Washplate WPL 8055094 Contact Us For Availability

2

Ring, Thrust WPL 9724189 Contact Us For Availability

2

Top (White) WPL 8318130 Contact Us For Availability

2

Top (Biscuit) WPL 8318131 Contact Us For Availability

2

Top (Pewter) WPL 8318132 Contact Us For Availability

2

Ball, Suspension (Upper) WPL 8055179 Contact Us For Availability

3

Bolt WPL 3400231 Contact Us For Availability

3

Spring Assembly (Shift) WPL 8055224 Contact Us For Availability

3

Tube, Spin WPL 8318243 Contact Us For Availability

3

Bushing, Harness WPL 8300010 Contact Us For Availability

3

Socket, Suspension WPL 8054964 Contact Us For Availability

4

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

4

WP9723335 Whirlpool Shock Absorber Backorder WPL WP9723335 $43.46

4

Washplate (Inner) WPL 8533210 Contact Us For Availability

4

Pulley, Drive WPL 8282498 Contact Us For Availability

4

Filter, Line WPL 8528338 Contact Us For Availability

5

Control, Motor (Electronic) WPL 8541034 Contact Us For Availability

5

Screw 8-18 x 5/8 WPL 1166054 Contact Us For Availability

5

Leveler WPL 8519518 Contact Us For Availability

5

Bearing Plate, Lower Drive WPL 8055091 Contact Us For Availability

5

Shoe, Brake WPL 8271887 Contact Us For Availability

5

Stud, Ball (2) WPL 8312710 Contact Us For Availability

6

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

6

Support, Tub WPL 8054942 Contact Us For Availability

6

Nut, Lock WPL 8520855 Contact Us For Availability

6

Cap, Brake Spring (2) WPL 8055260 Contact Us For Availability

6

Link, Leveling WPL 8271819 Contact Us For Availability

7

Valve, Water Inlet WPL 9724754 Contact Us For Availability

7

Cap, End (L.H.) (Includes Item 13) (Pewter) WPL 8299685 Contact Us For Availability

7

Spring, Brake WPL 8271969 Contact Us For Availability

7

Clip, Leveling (2) WPL 8054532 Contact Us For Availability

8

Foot, Rear (2) WPL 8054747 Contact Us For Availability

8

Switch, Pressure (Operating - Marked ``OPR``) WPL 8054766 Contact Us For Availability

8

Tub Ring Assembly WPL 8317383 Contact Us For Availability

8

Plate, Motor WPL 8283349 Contact Us For Availability

8

Sleeve, Cam WPL 8055314 Contact Us For Availability

8

Screw, Lid Switch WPL 3400611 Contact Us For Availability

9

8518891 Whirlpool Rivet Backorder WPL 8518891 $9.59

9

Panel, Console (Pewter) WPL 8563810 Contact Us For Availability

9

Seal, Tub Ring WPL 8054355 Contact Us For Availability

9

Panel, Console (Pearl) WPL 8563809 Contact Us For Availability

9

Socket, Isolator WPL 8054912 Contact Us For Availability

9

Cam, Brake Release WPL 8546463 Contact Us For Availability

9

Lid Spring (Includes Item 10) WPL 384463 Contact Us For Availability

9

Foot, Front (2) WPL 8281198 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

Cap, End (R.H.) (Includes Item 13) (White) WPL 8299686 Contact Us For Availability

Cap, End (R.H.) (Includes Item 13) (Biscuit) WPL 8299687 Contact Us For Availability

Cap, End (R.H.) (Includes Item 13) (Pewter) WPL 8299688 Contact Us For Availability

BASKET WPL 8529754 Contact Us For Availability

Isolator, Motor (Lower) WPL 8054996 Contact Us For Availability

Driver, Brake Cam WPL 8054992 Contact Us For Availability

Plug, Button WPL 54690 Contact Us For Availability

Control, Machine (Electronic) WPL 8571359 Contact Us For Availability

Switch, Lid WPL 8272124 Contact Us For Availability

Balance Ring WPL 9724323 Contact Us For Availability

Motor, Main Drive WPL 9724551 Contact Us For Availability

Bearing, Thrust (Upper) WPL 8282568 Contact Us For Availability

12

U-Joint WPL 8562580 Contact Us For Availability

12

Isolator, Motor (Upper) WPL 8054913 Contact Us For Availability

12

Splash Shield Assembly WPL 8055191 Contact Us For Availability

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $8.69

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Belt, Drive WPL 8562613 Contact Us For Availability

Tub WPL 8529943 Contact Us For Availability

W10491617 Whirlpool Seal Backorder WPL W10491617 $10.82

Harness, Wiring WPL 3957285 Contact Us For Availability

Stud, Ball (2) WPL 8272127 Contact Us For Availability

Clip, Push-In Retainer WPL W10000080 Contact Us For Availability

Hinge, Lid (Left) WPL 8055257 Contact Us For Availability

Panel, Rear (Console) WPL 8299987 Contact Us For Availability

Gasket Centerpost WPL 8055288 Contact Us For Availability

Screw WPL 3400214 Contact Us For Availability

16

Tube, Overflow WPL 8283307 Contact Us For Availability

16

Screw, 1/4 x 3/4 WPL 8055225 Contact Us For Availability

16

Hinge, Lid (Right) WPL 8055256 Contact Us For Availability

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Screw, 10-24 x 7/16 WPL 8533972 Contact Us For Availability

Plug, Overflow WPL 8283308 Contact Us For Availability

Isolator, Pump Motor (3) WPL 8283536 Contact Us For Availability

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Hose, Drain WPL 9724100 Contact Us For Availability

Clip, Pressure Hose WPL 8055297 Contact Us For Availability

Bag, Overflow WPL 8055135 Contact Us For Availability

Motorized Pump Assembly WPL 8544412 Contact Us For Availability

Clip, Tub Retainer (4) WPL 9724609 Contact Us For Availability

Capacitor, Pump Motor WPL 8571814 Contact Us For Availability

Lid Assembly (Includes Items 13, 15, 21, 23, WPL 8318136 Contact Us For Availability

Lid Assembly (Includes Items 13, 15, 21, 23, WPL 8318137 Contact Us For Availability

Lid Assembly (Includes Items 13, 15, 21, 23, WPL 8318138 Contact Us For Availability

20

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

20

Screw WPL 3400206 Contact Us For Availability

21

Seal, Lid WPL 8054939 Contact Us For Availability

21

Absorber, Sound (Tub) WPL 8541606 Contact Us For Availability

23

Tube, Water Recirculation WPL 8054989 Contact Us For Availability

23

Bracket, Motor Connector WPL 9725000 Contact Us For Availability

23

Lid, Inner WPL 8316688 Contact Us For Availability

24

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

24

Retainer, Push-In WPL 3351189 Contact Us For Availability

24

Clip, Two Stage WPL 8299698 Contact Us For Availability

25

Shield, Splash (Tub Ring) WPL 8318231 Contact Us For Availability

25

Screw WPL 3400215 Contact Us For Availability

26

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

26

Hose, Tub to Pump (Inner) WPL 8054944 Contact Us For Availability

27

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

27

Dispenser, Bleach & Fabric Softener WPL 8055022 Contact Us For Availability

28

Hose, Tub to Pump (Outer) WPL 8054988 Contact Us For Availability

28

Hose, Diverter to Venturi WPL 8054366 Contact Us For Availability

29

Pulley Assembly- Drive (Complete) WPL 8055089 Contact Us For Availability

29

Cover, Dispenser WPL 8571813 Contact Us For Availability

30

Dispenser, Detergent WPL 8571812 Contact Us For Availability

31

Venturi WPL 8055168 Contact Us For Availability

32

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

32

Nozzle Assembly (Bleach) WPL 8542373 Contact Us For Availability

34

Hose, Detergent WPL 8530273 Contact Us For Availability

36

Hose, Venturi to Bleach WPL 8538442 Contact Us For Availability

37

Hose, Fabric Softener WPL 8054365 Contact Us For Availability

39

Restraint WPL 8271943 Contact Us For Availability

40

Hose, Fresh Rinse WPL 8316761 Contact Us For Availability

41

Hose, Tub to Venturi WPL 8316762 Contact Us For Availability

42

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

44

Shield, Splash WPL 8529937 Contact Us For Availability

45

Gasket, Nozz WPL 8563776 Contact Us For Availability

48

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

49

WPL 8527686 WPL 8527686 Contact Us For Availability

49

WPL 8527687 WPL 8527687 Contact Us For Availability

50

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

51

WPL 8316751 WPL 8316751 Contact Us For Availability

52

WPL 8520850 WPL 8520850 Contact Us For Availability

52

WPL 8520851 WPL 8520851 Contact Us For Availability

53

WPL 8519764 WPL 8519764 Contact Us For Availability

54

WPL 8532031 WPL 8532031 Contact Us For Availability

55

WPL 8530271 WPL 8530271 Contact Us For Availability

56

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59
