Model GE GTWS8650D0WS – Common Parts & Diagrams
CONTROLS & BACKSPLASH
TOP PANEL & LID

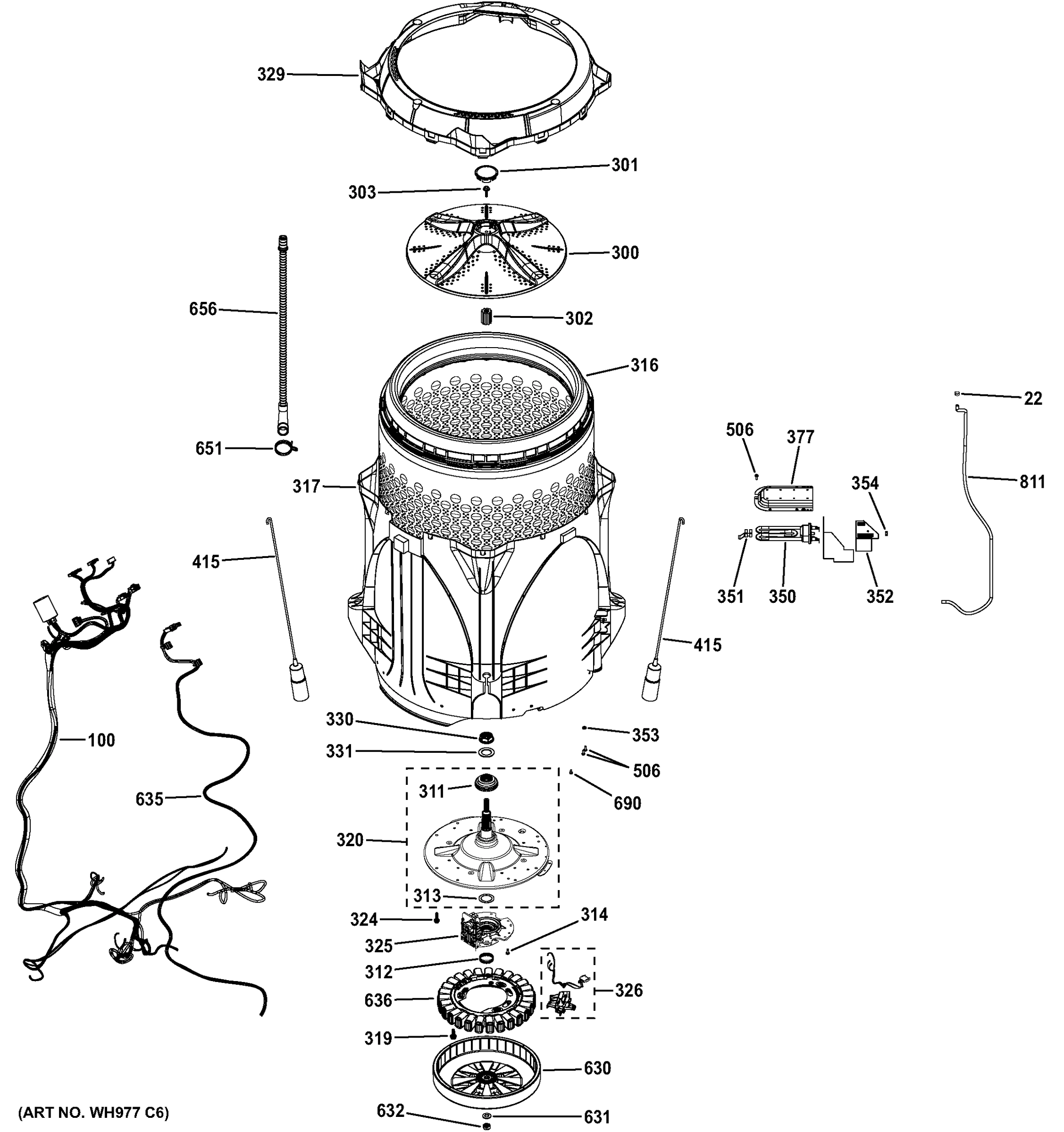

TUB & MOTOR

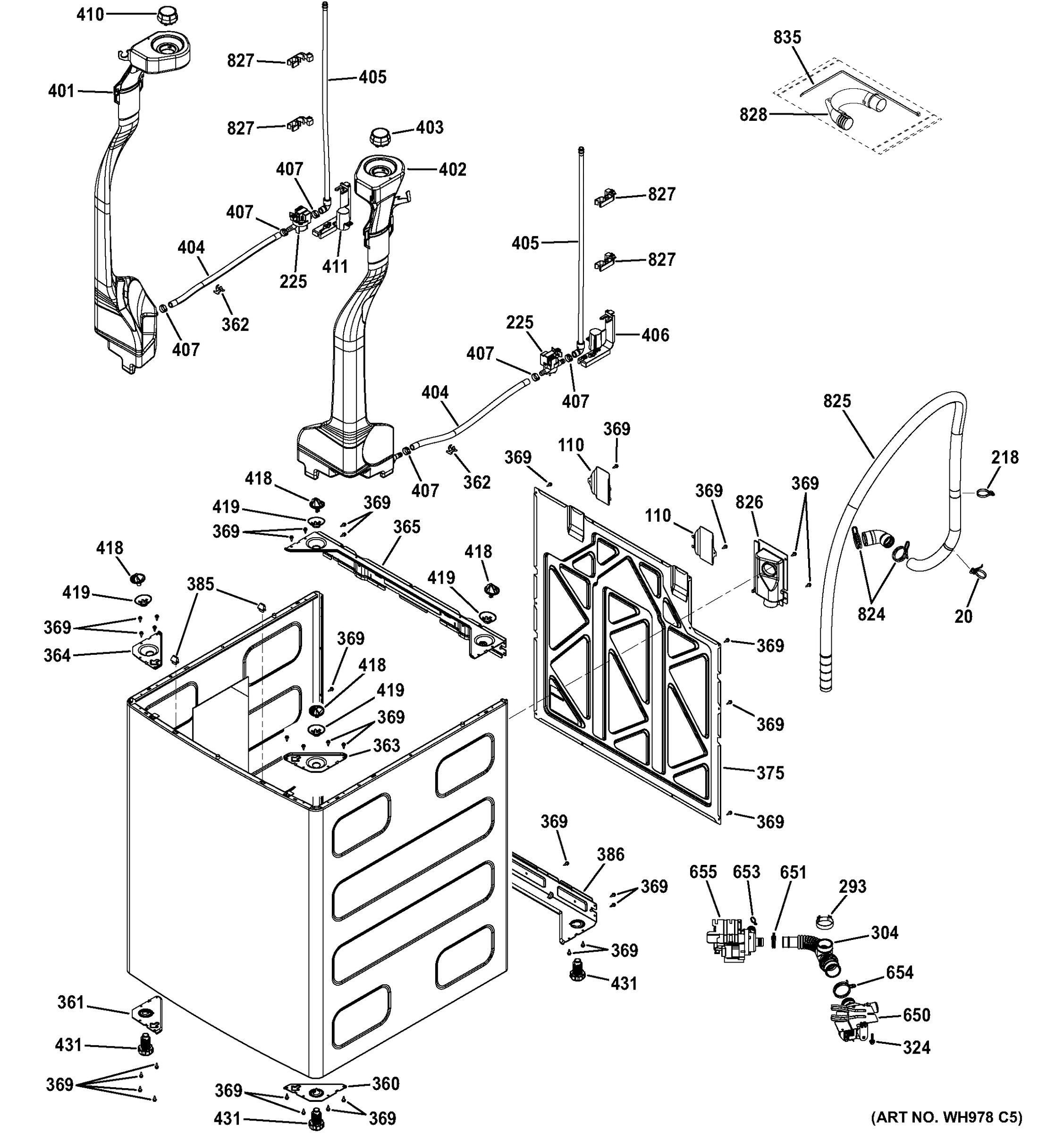

CABINET
Common parts from model GE GTWS8650D0WS
10
SENSOR PRESSURE GEN WH12X10556 Contact Us For Availability
12
LIGHT GUIDE ASM GEN WH12X20313 Contact Us For Availability
13
BACKSPLASH BDY ASM GEN WH42X10962 Contact Us For Availability
15
END CAP RH WHITE GEN WH42X11009 Contact Us For Availability
20
WIRE TIE GEN WH01X10702 Contact Us For Availability
72
REAR COVER GEN WH46X10283 Contact Us For Availability
101
HARNESS USER INTERFACE GEN WH19X10118 Contact Us For Availability
110
HARNESS COVER GEN WH44X10314 Contact Us For Availability
225
SENSOR - BULK DISPENSER GEN WH12X10564 Contact Us For Availability
293
CLAMP HOSE GEN WH01X10134 Contact Us For Availability
301
CAP IMPELLER ASM GEN WH01X10669 Contact Us For Availability
302
INSERT IMPELLER GEN WH01X10676 Contact Us For Availability
310
TUB LIGHT GEN WH12X10568 Contact Us For Availability
311
TUB SEAL GEN WH02X10362 Contact Us For Availability
312
WASHER IMPELLER GEN WH01X10712 Contact Us For Availability
329
COVER TUB GEN WH45X23414 Contact Us For Availability
350
HEATER ASM GEN WH12X10565 Contact Us For Availability
351
HEATER SUPPORT GEN WH01X10674 Contact Us For Availability
352
HEATER SHIELD GEN WH01X10675 Contact Us For Availability
361
FRONT LEG SUPPORT LH GEN WH16X10183 Contact Us For Availability
362
CLIP GEN WH02X10387 Contact Us For Availability
363
SUPPORT ROD FRONT GEN WH16X10166 Contact Us For Availability
364
SUPPORT ROD FRONT GEN WH16X10167 Contact Us For Availability
365
BAR CROSS REAR TOP GEN WH16X10169 Contact Us For Availability
375
PANEL REAR GEN WH44X10307 Contact Us For Availability
377
COVER FILTER GEN WH44X10309 Contact Us For Availability
380
COVER & GRAPHIC ASM GEN WH44X10321 Contact Us For Availability
386
BAR CROSS REAR BTM GEN WH16X10170 Contact Us For Availability
400
DROP IN DETRGNT DISP ASM GEN WH47X10022 Contact Us For Availability
401
TANK BULK LEFT ASM GEN WH47X22999 Contact Us For Availability
402
TANK BULK RIGHT ASM GEN WH47X23095 Contact Us For Availability
403
CAP HRT ASM GEN WH43X10061 Contact Us For Availability
404
HOSE SUCTION GEN WH41X10333 Contact Us For Availability
405
HOSE BARBED GEN WH41X10329 Contact Us For Availability
406
BRACKET SENSOR GEN WH16X10176 Contact Us For Availability
410
CAP HRT ASM GEN WH43X10062 Contact Us For Availability
411
BRACKET SENSOR GEN WH16X10177 Contact Us For Availability
418
BALL JOINT UPPER GEN WH01X10662 Contact Us For Availability
419
BALL SOCKET UPPER GEN WH01X10663 Contact Us For Availability
431
FOOT AND BASE ASM GEN WH02X10358 Contact Us For Availability
511
HOSE DISPENSING GEN WH41X10321 Contact Us For Availability
635
HARNESS MOTOR GEN WH19X10107 Contact Us For Availability
650
DRAIN PUMP ASM GEN WH23X10047 Contact Us For Availability
653
CLIP HARNESS GEN WH01X10715 Contact Us For Availability
654
CLAMP GEN WH01X10699 Contact Us For Availability
655
RECIRC PUMP & HOSE ASM GEN WH23X10048 Contact Us For Availability
656
HOSE RECIRC ASM GEN WH41X10324 Contact Us For Availability
811
HOSE GEN WH41X10330 Contact Us For Availability
824
CLAMP GEN WH01X10700 Contact Us For Availability
826
BOX DRAIN GEN WH01X10668 Contact Us For Availability
827
DRAIN HOSE CLIP GEN WH01X10670 Contact Us For Availability
828
BRACKET STANDPIPE GEN WH16X10178 Contact Us For Availability
× ![]()
