Model GE GTWN8250D0WS Washer – Common Parts & Diagrams
CONTROLS & BACKSPLASH
TOP PANEL & LID

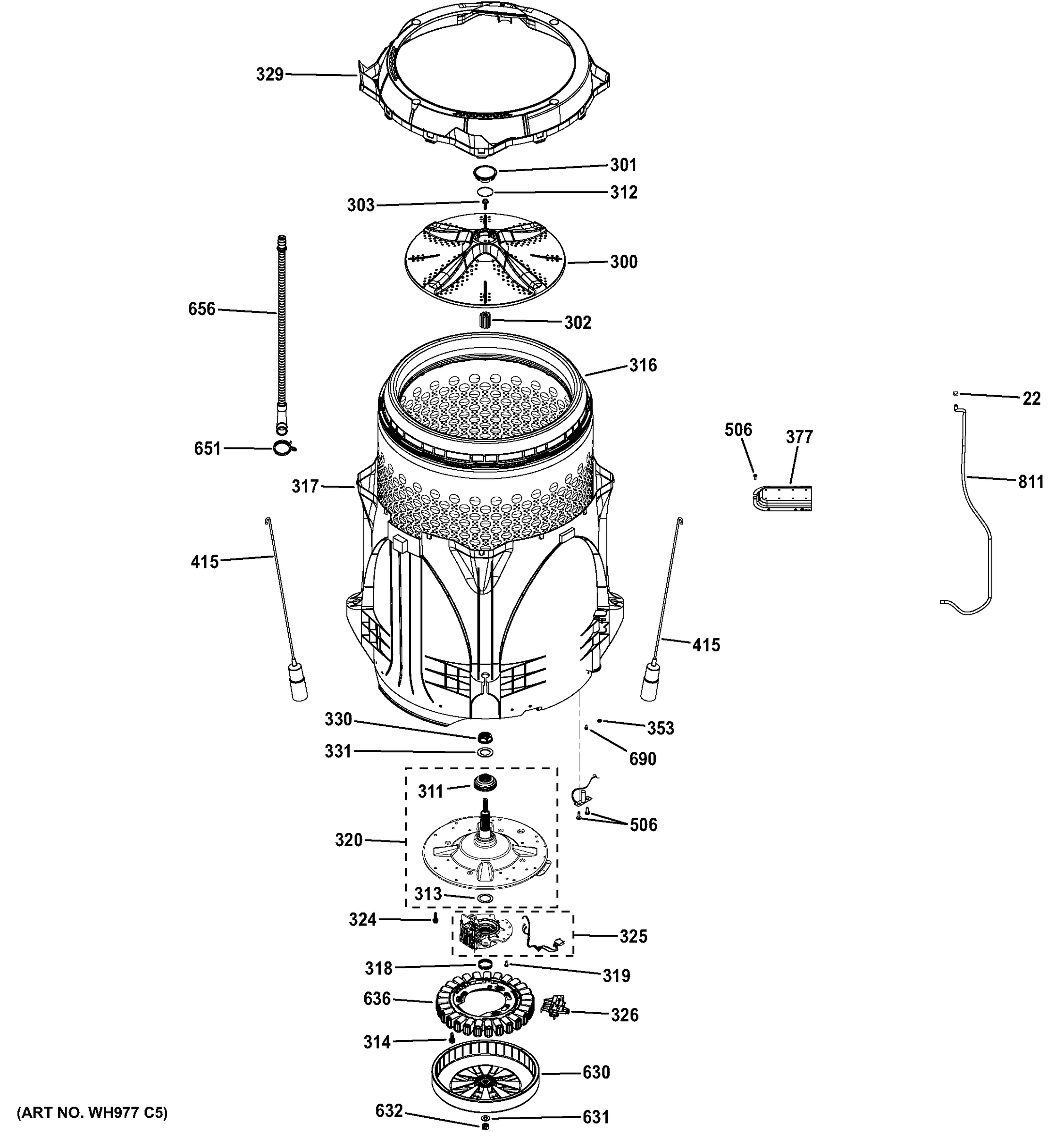

TUB & MOTOR

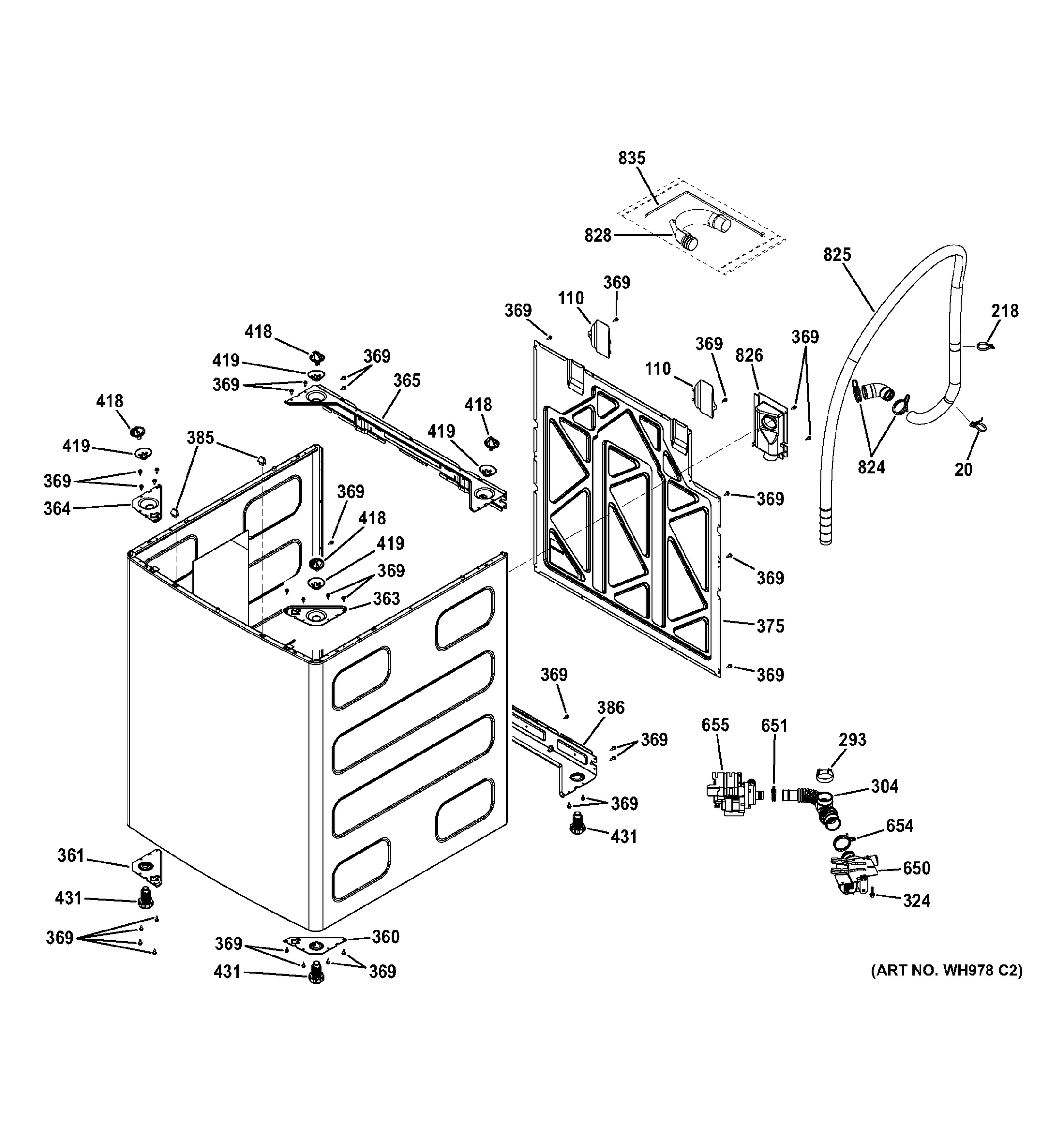

CABINET
Common parts from model GE GTWN8250D0WS Washer
10
SENSOR PRESSURE GEN WH12X10556 Contact Us For Availability
15
CAP END GEN WH42X20385 Contact Us For Availability
16
CAP END GEN WH42X20384 Contact Us For Availability
72
REAR COVER GEN WH46X10283 Contact Us For Availability
101
HARNESS USER INTERFACE GEN WH19X10118 Contact Us For Availability
293
CLAMP HOSE GEN WH01X10134 Contact Us For Availability
301
CAP IMPELLER ASM GEN WH01X10669 Contact Us For Availability
302
INSERT IMPELLER GEN WH01X10676 Contact Us For Availability
310
TUB LIGHT GEN WH12X10568 Contact Us For Availability
311
TUB SEAL GEN WH02X10362 Contact Us For Availability
312
WASHER IMPELLER GEN WH01X10712 Contact Us For Availability
316
SRV-5 BASKET ASM KIT GEN WH49X22414 Contact Us For Availability
317
TUB ASM - 4.5/4.8/5.0 GEN WH45X10124 Contact Us For Availability
318
SPRING CLUTCH GEN WH01X10758 Contact Us For Availability
329
TUB COVER ASSEMBLY GEN WH45X10123 Contact Us For Availability
377
COVER FILTER GEN WH44X10309 Contact Us For Availability
380
TOP COVER FINISHED WHITE GEN WH44X10306 Contact Us For Availability
392
COUNTER BALANCE DAMPER GEN WH01X20168 Contact Us For Availability
397
SIPHON BLEACH LARGE ASM GEN WH47X10024 Contact Us For Availability
399
FABRIC SOFTENER DISPENSE GEN WH47X20140 Contact Us For Availability
400
DROP IN DETRGNT DISP ASM GEN WH47X10022 Contact Us For Availability
510
HOSE DISPENSING GEN WH41X10320 Contact Us For Availability
511
HOSE DISPENSING GEN WH41X10321 Contact Us For Availability
513
HOSE BULK GEN WH41X10323 Contact Us For Availability
650
DRAIN PUMP ASM GEN WH23X10047 Contact Us For Availability
656
HOSE RECIRC ASM GEN WH41X10324 Contact Us For Availability
804
FILL NOZZLE ASM - 4.5 GEN WH47X10030 Contact Us For Availability
807
FLAT WASHER/WATER VALVE GEN WH02X10366 Contact Us For Availability
826
BOX DRAIN GEN WH01X10668 Contact Us For Availability
× ![]()
