Model GE GTWN7450D0WW – Common Parts & Diagrams
CONTROLS & BACKSPLASH
TOP PANEL & LID

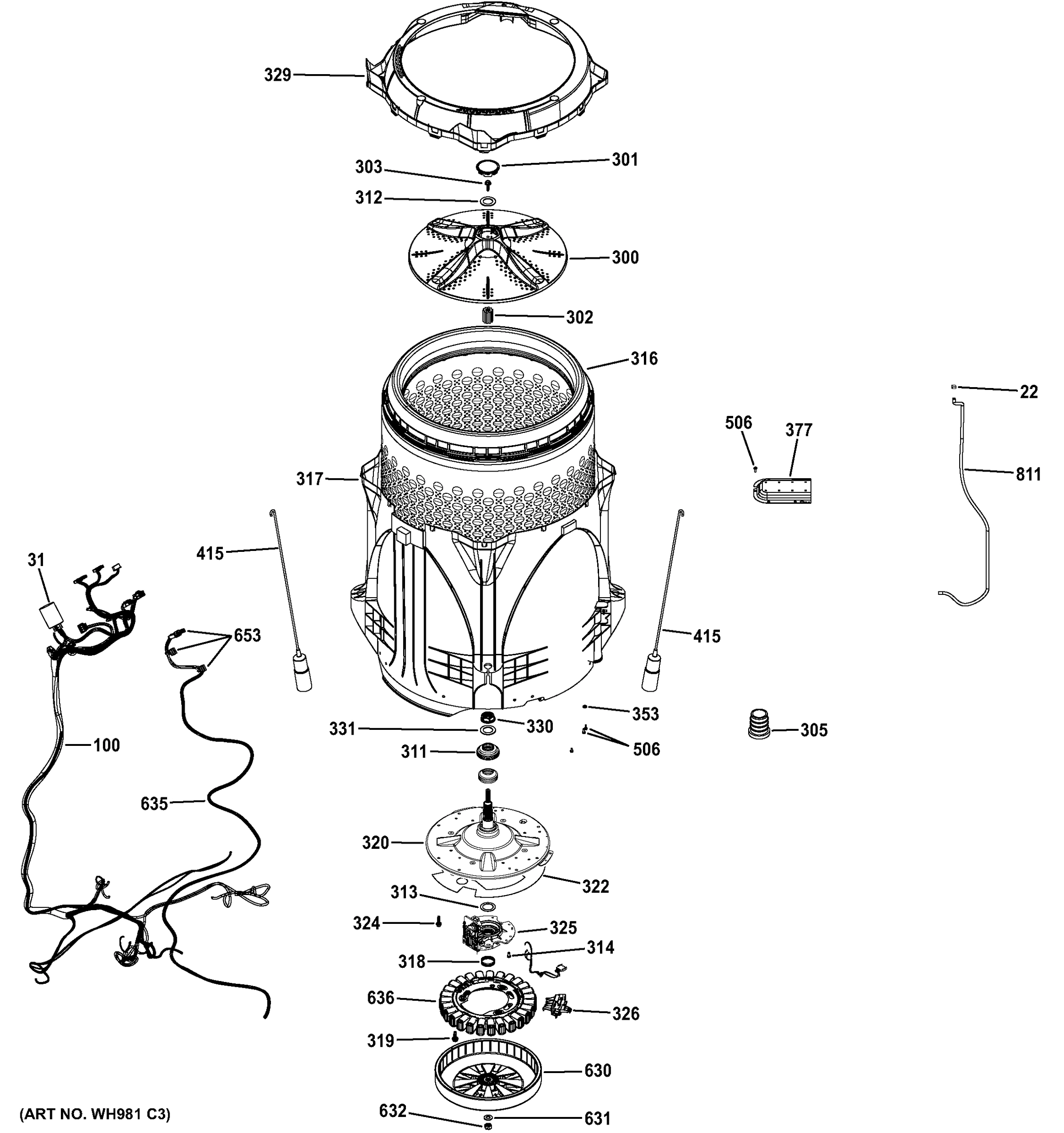

TUB & MOTOR

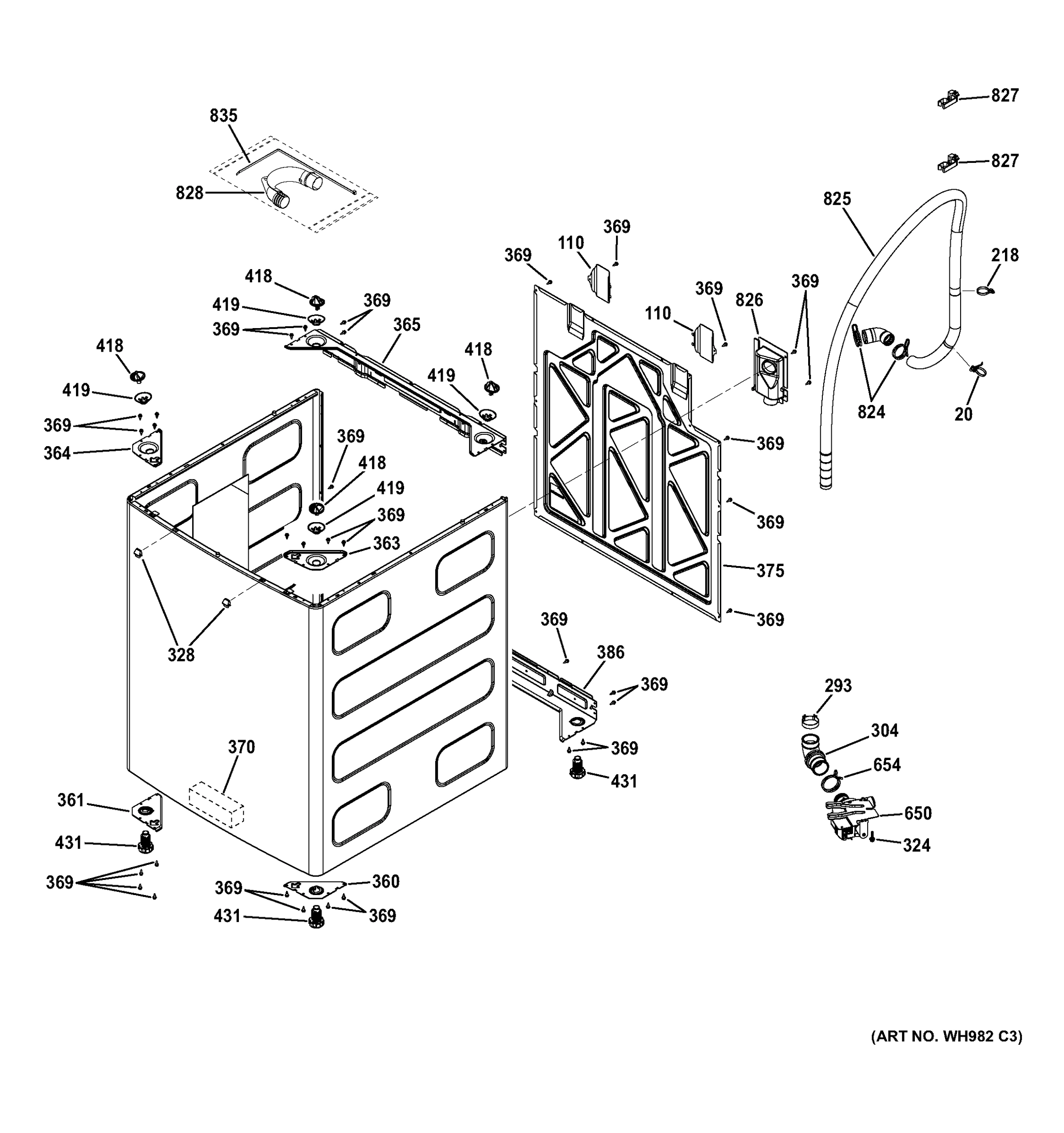

CABINET
Common parts from model GE GTWN7450D0WW
10
SENSOR PRESSURE GEN WH12X10556 Contact Us For Availability
30
CONTROL AND FIRMWARE ASM GEN WH12X20503 Contact Us For Availability
72
REAR COVER GEN WH46X10283 Contact Us For Availability
100
HARNESS MAIN - YELLOW GEN WH19X10117 Contact Us For Availability
101
HARNESS USER INTERFACE GEN WH19X10118 Contact Us For Availability
110
HARNESS COVER GEN WH44X10314 Contact Us For Availability
215
MAGNET HOUSING ASM GEN WH01X10685 Contact Us For Availability
293
CLAMP HOSE GEN WH01X10134 Contact Us For Availability
301
CAP IMPELLER ASM GEN WH01X10669 Contact Us For Availability
302
INSERT IMPELLER GEN WH01X10676 Contact Us For Availability
304
HOSE INLET GEN WH41X10327 Contact Us For Availability
311
TUB SEAL GEN WH02X10362 Contact Us For Availability
312
WASHER IMPELLER GEN WH01X10712 Contact Us For Availability
317
TUB ASM - 4.5/4.8/5.0 GEN WH45X10124 Contact Us For Availability
318
SPRING CLUTCH GEN WH01X10758 Contact Us For Availability
361
FRONT LEG SUPPORT LH GEN WH16X10183 Contact Us For Availability
363
SUPPORT ROD FRONT GEN WH16X10166 Contact Us For Availability
364
SUPPORT ROD FRONT GEN WH16X10167 Contact Us For Availability
365
BAR CROSS REAR TOP GEN WH16X10169 Contact Us For Availability
370
FOAM BRACKET GEN WH01X10714 Contact Us For Availability
375
PANEL REAR GEN WH44X10307 Contact Us For Availability
377
COVER FILTER GEN WH44X10309 Contact Us For Availability
380
TOP COVER FINISHED GEN WH44X10316 Contact Us For Availability
386
BAR CROSS REAR BTM GEN WH16X10170 Contact Us For Availability
396
FUNNEL BLEACH LARGE GEN WH47X10031 Contact Us For Availability
418
BALL JOINT UPPER GEN WH01X10662 Contact Us For Availability
419
BALL SOCKET UPPER GEN WH01X10663 Contact Us For Availability
431
FOOT AND BASE ASM GEN WH02X10358 Contact Us For Availability
510
HOSE DISPENSING GEN WH41X10320 Contact Us For Availability
513
HOSE BULK GEN WH41X10323 Contact Us For Availability
650
DRAIN PUMP ASM GEN WH23X10047 Contact Us For Availability
653
CLIP HARNESS GEN WH01X10715 Contact Us For Availability
654
CLAMP GEN WH01X10699 Contact Us For Availability
804
FILL NOZZLE ASM - 4.5 GEN WH47X10030 Contact Us For Availability
807
FLAT WASHER/WATER VALVE GEN WH02X10366 Contact Us For Availability
811
HOSE GEN WH41X10330 Contact Us For Availability
824
CLAMP GEN WH01X10700 Contact Us For Availability
825
HOSE DRAIN GEN WH41X10326 Contact Us For Availability
826
BOX DRAIN GEN WH01X10668 Contact Us For Availability
827
DRAIN HOSE CLIP GEN WH01X10670 Contact Us For Availability
828
BRACKET STANDPIPE GEN WH16X10178 Contact Us For Availability
× ![]()
