Model Whirlpool GT19DKXJW00 – Common Parts & Diagrams
06 - FREEZER DOOR, OPTIONAL
01 - CABINET, LITERATURE

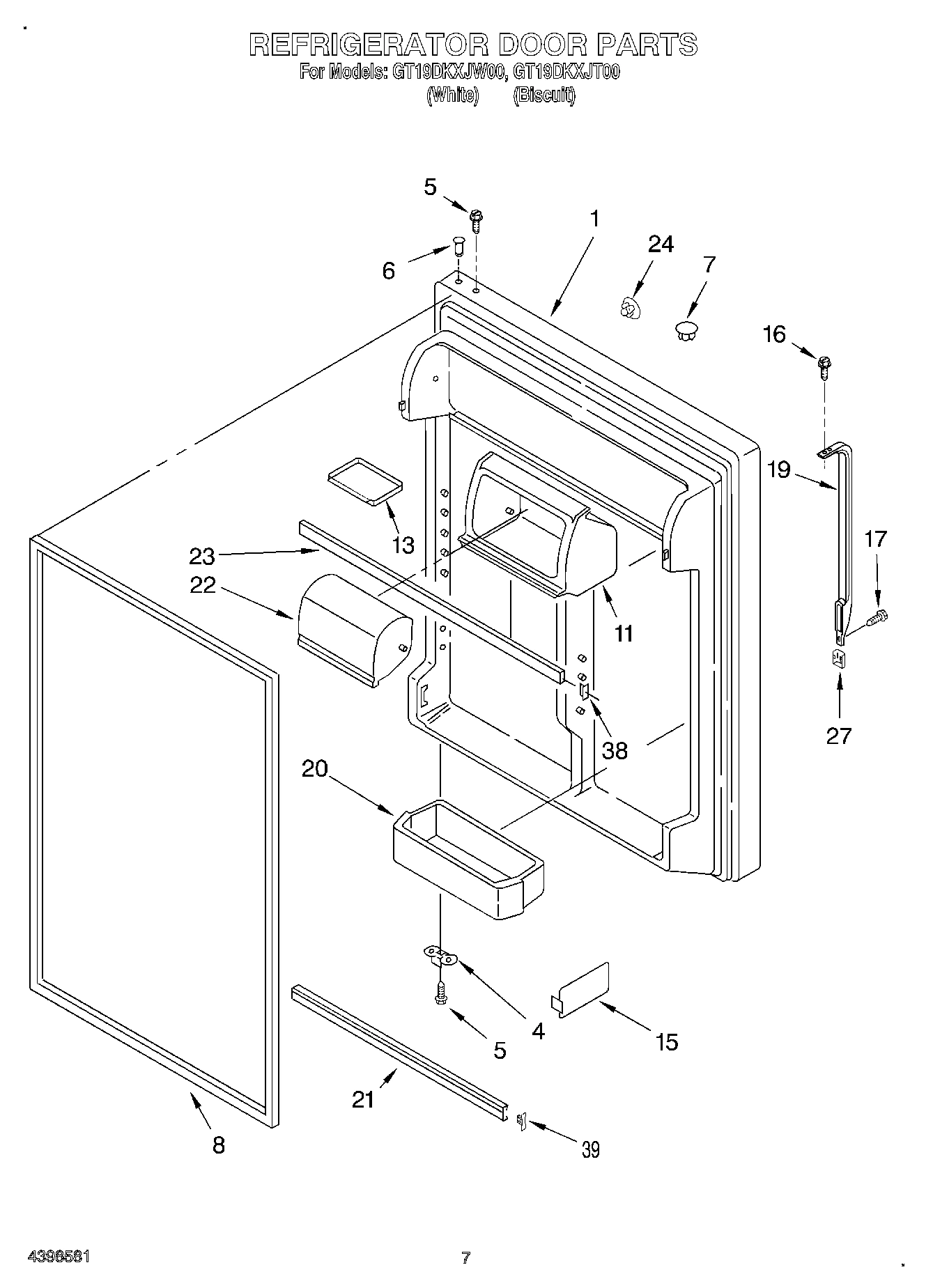

04 - REFRIGERATOR DOOR

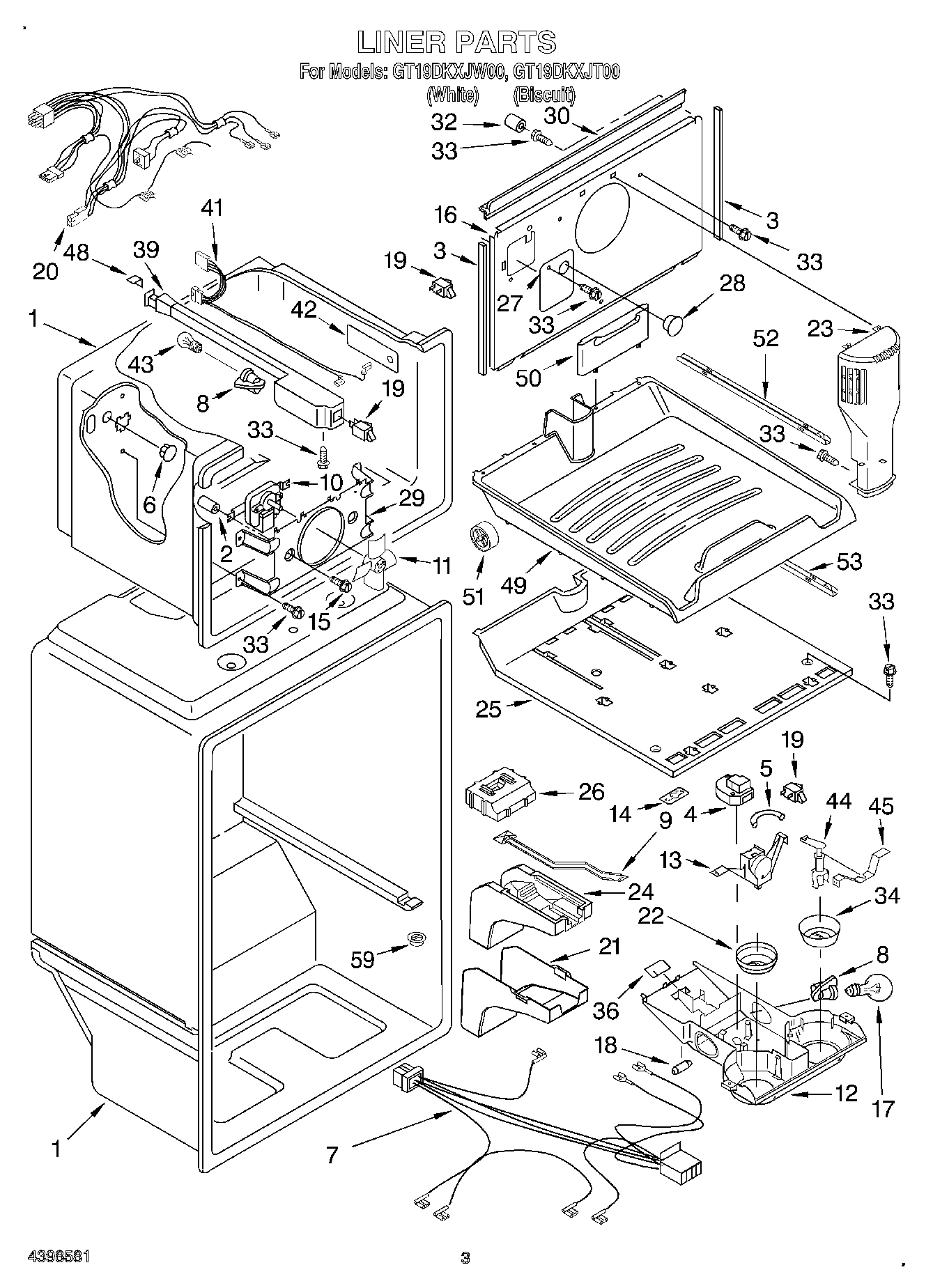

02 - SECTION

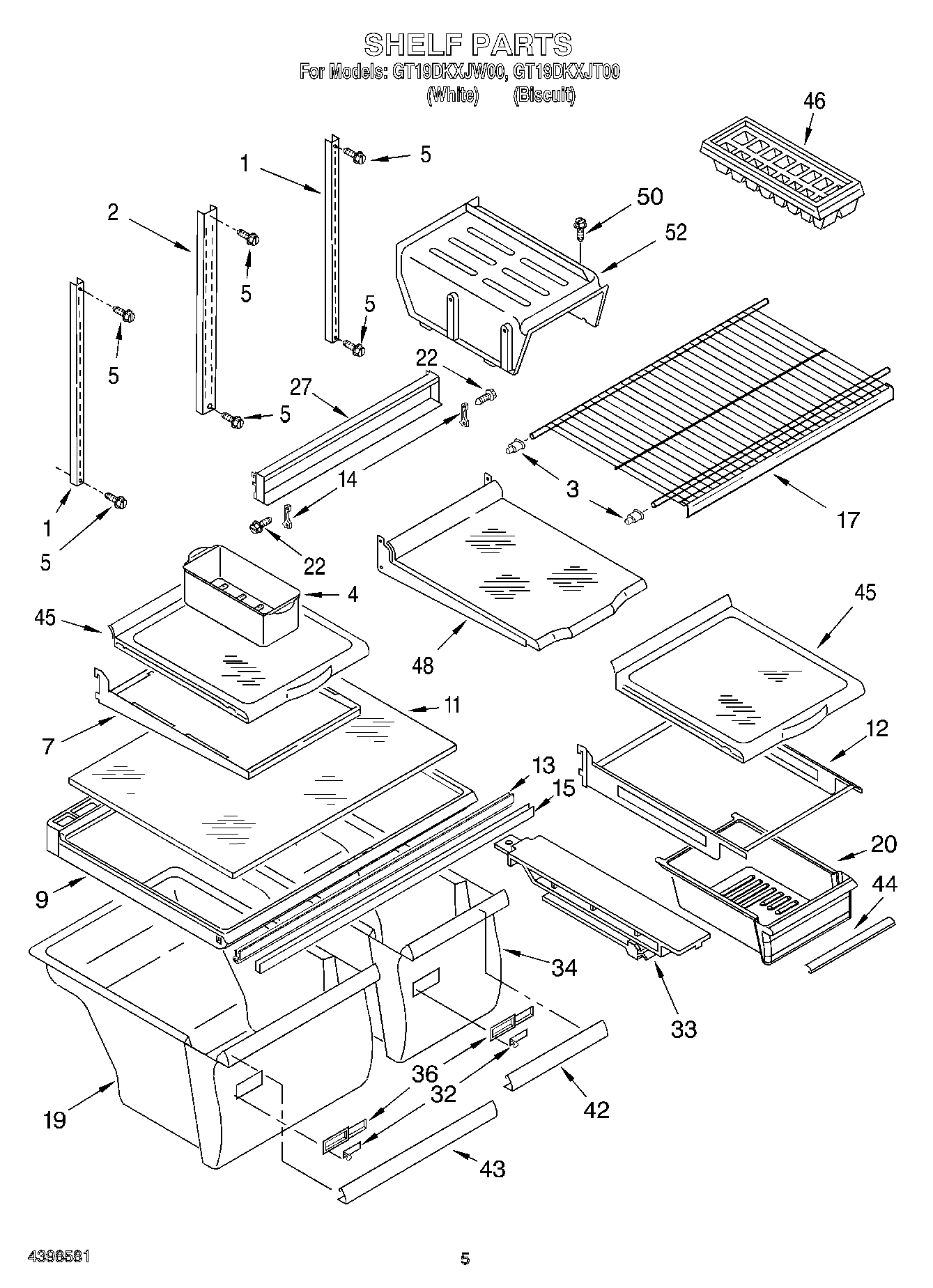

03 - SHELF

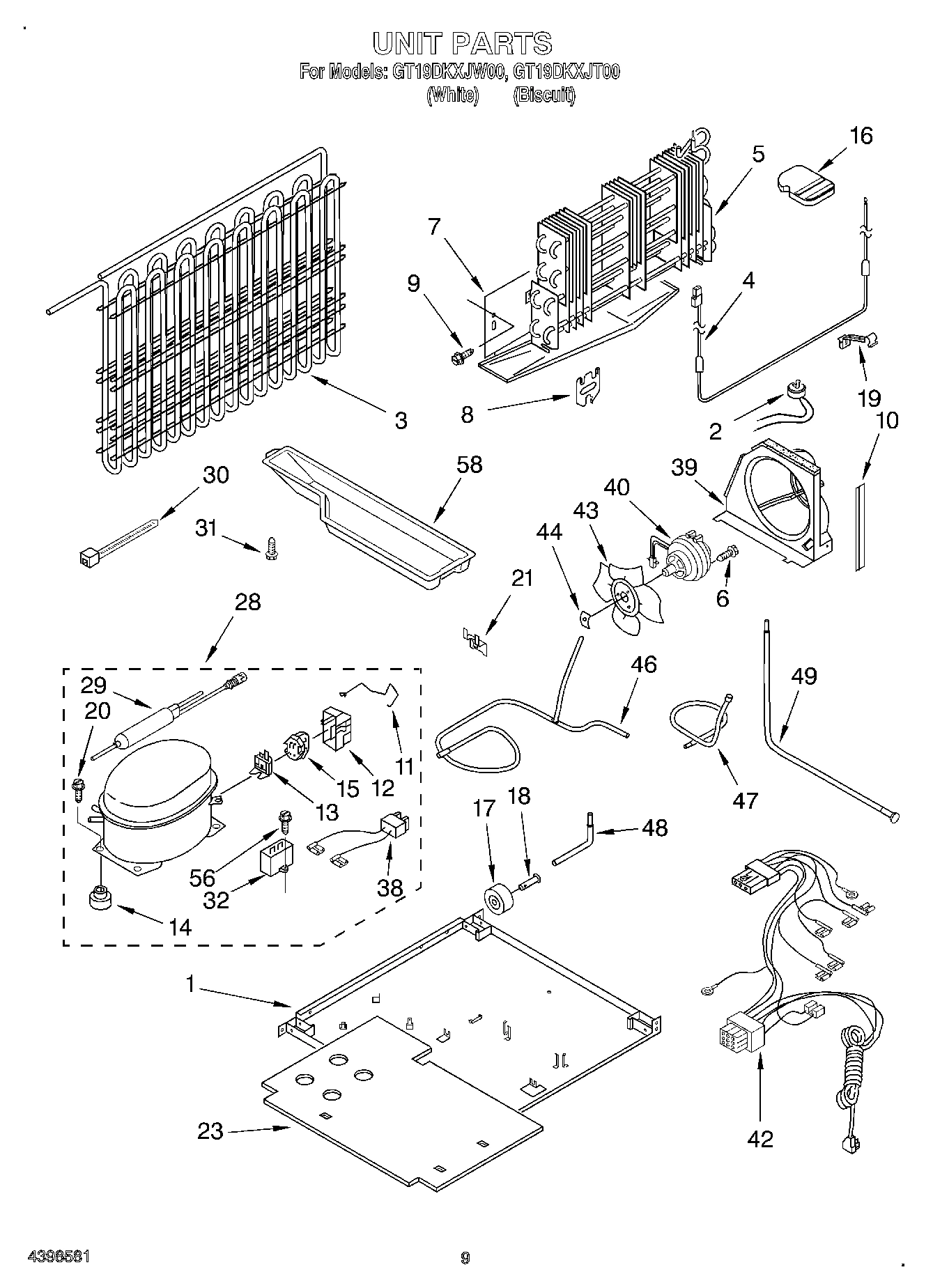

05 - UNIT
Common parts from model Whirlpool GT19DKXJW00
1
Shelf, Ladder (2) WPL 2202822 Contact Us For Availability
1
Plate, Unit Mounting WPL 2201161 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
3
Condenser WPL 2183849 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Frame Assembly, Shelf WPL 2174446 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Retainer WPL 943322 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179716 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
15
Relay (Production (Service - See Overload)) WPL 2176805 Contact Us For Availability
16
Support Block WPL 2201184 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
22
Torx Key WPL 1117510 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
26
Air Diffuser, Top WPL 2200793 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176240 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
31
Screw (4) WPL 489462 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Housing Base WPL 2201152 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability
42
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assy. Unit WPL 2200628 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
44
Trim, Meat Pan WPL 2176356 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
45
Shelf Assembly, Spillguard (2) WPL 2195500 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2195349 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2189429 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
52
Shelf, Ice Tray WPL 2183995 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
