Model Whirlpool GT19DKXGW00 – Common Parts & Diagrams
06 - FREEZER DOOR, LIT/OPTIONAL
01 - CABINET

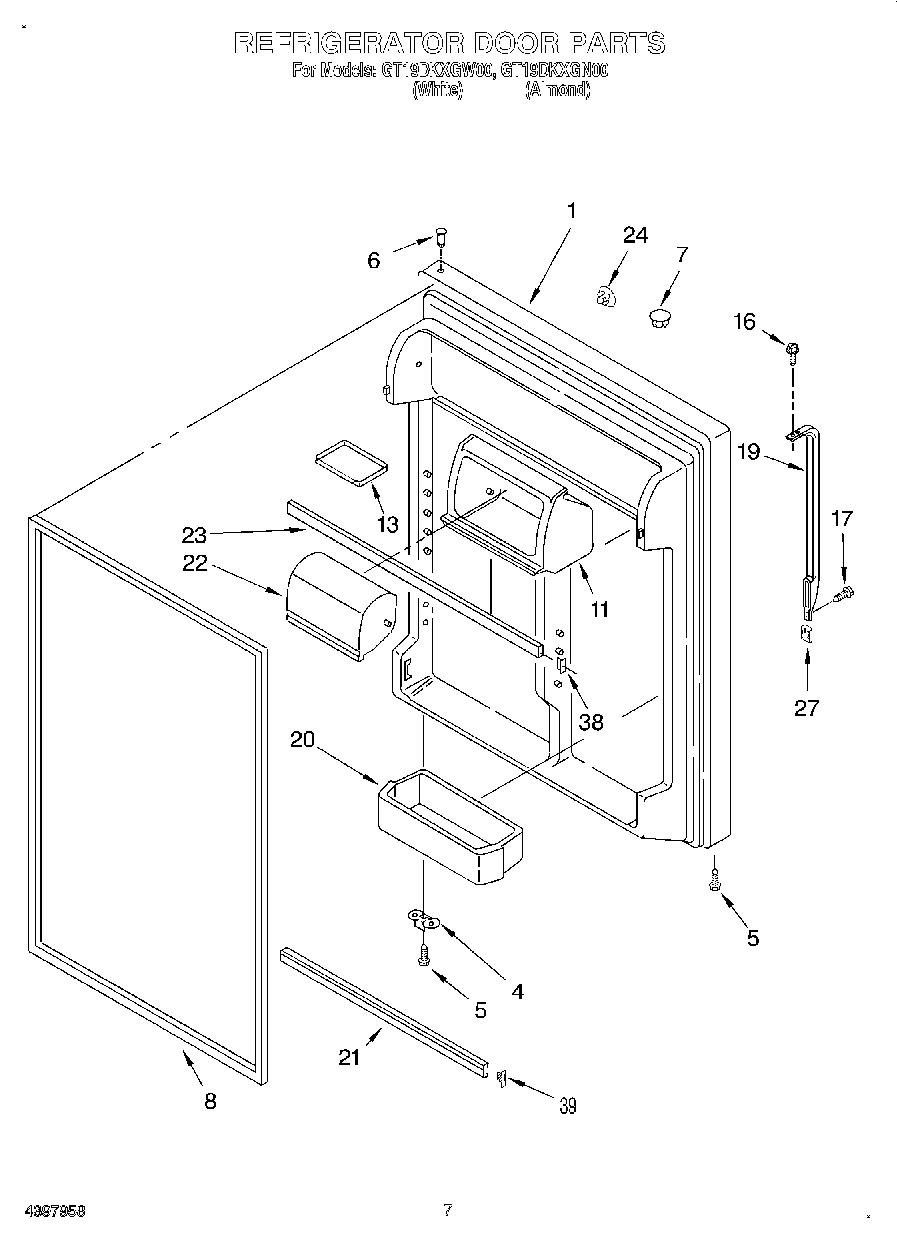

04 - REFRIGERATOR DOOR

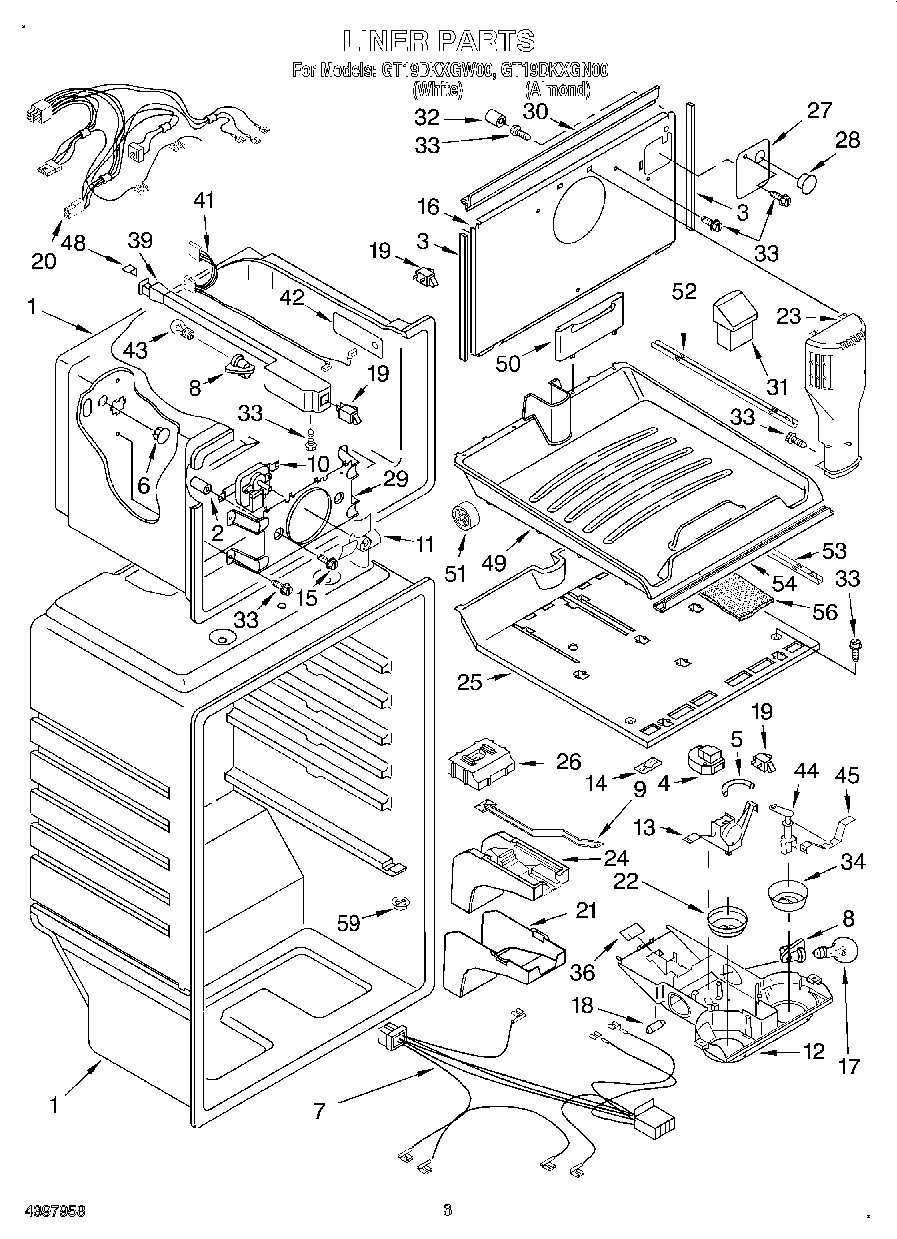

02 - LINER
03 - SHELF

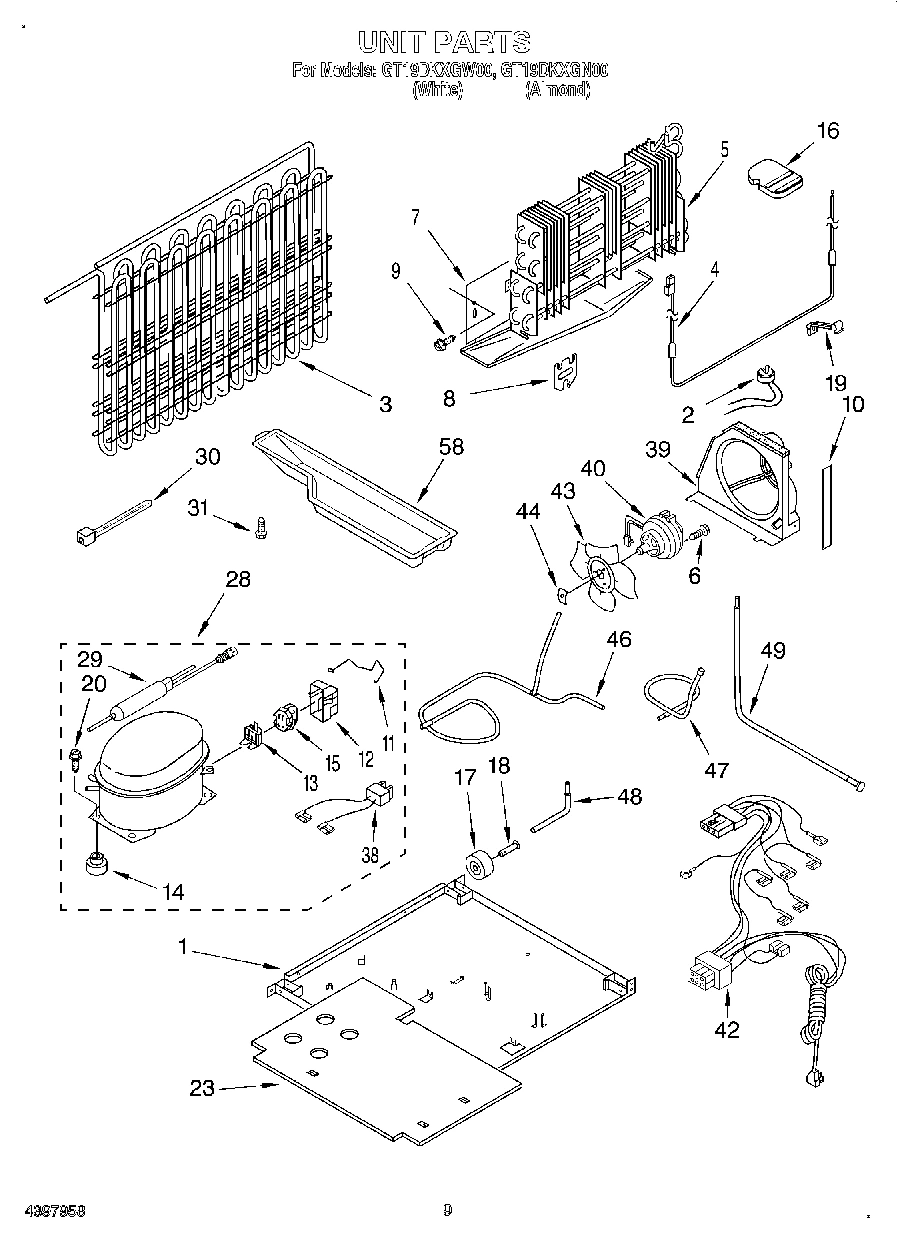

05 - UNIT
Common parts from model Whirlpool GT19DKXGW00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195273 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
6
Screw Support WPL 2189314 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
7
Frame Assembly, Shelf WPL 2174446 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183448 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production Only) WPL 2169464 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179716 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Relay (See Overload) WPL ARI72203A7 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
16
Support Block WPL 2176302 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Air Diffuser, Top (Includes Item 37) WPL 2179877 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176240 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
31
Screw (4) WPL 489462 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
41
Wire Harness, Freezer light WPL 2198891 Contact Us For Availability
42
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assy. Unit WPL 2184584 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
44
Trim, Meat Pan WPL 2176356 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
45
Shelf Assembly, Spillguard (2) WPL 2195500 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2189161 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2195348 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2195483 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
52
Shelf, Ice Tray WPL 2183995 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
FeaturePak (Includes 12, 14, 20 22, 27, 44, 4 WPL 2199043 Contact Us For Availability
× ![]()
