Model Maytag GT1522NDEW REFRIGERATOR – Common Parts & Diagrams
01 - COMPRESSOR
02 - CONTROLS

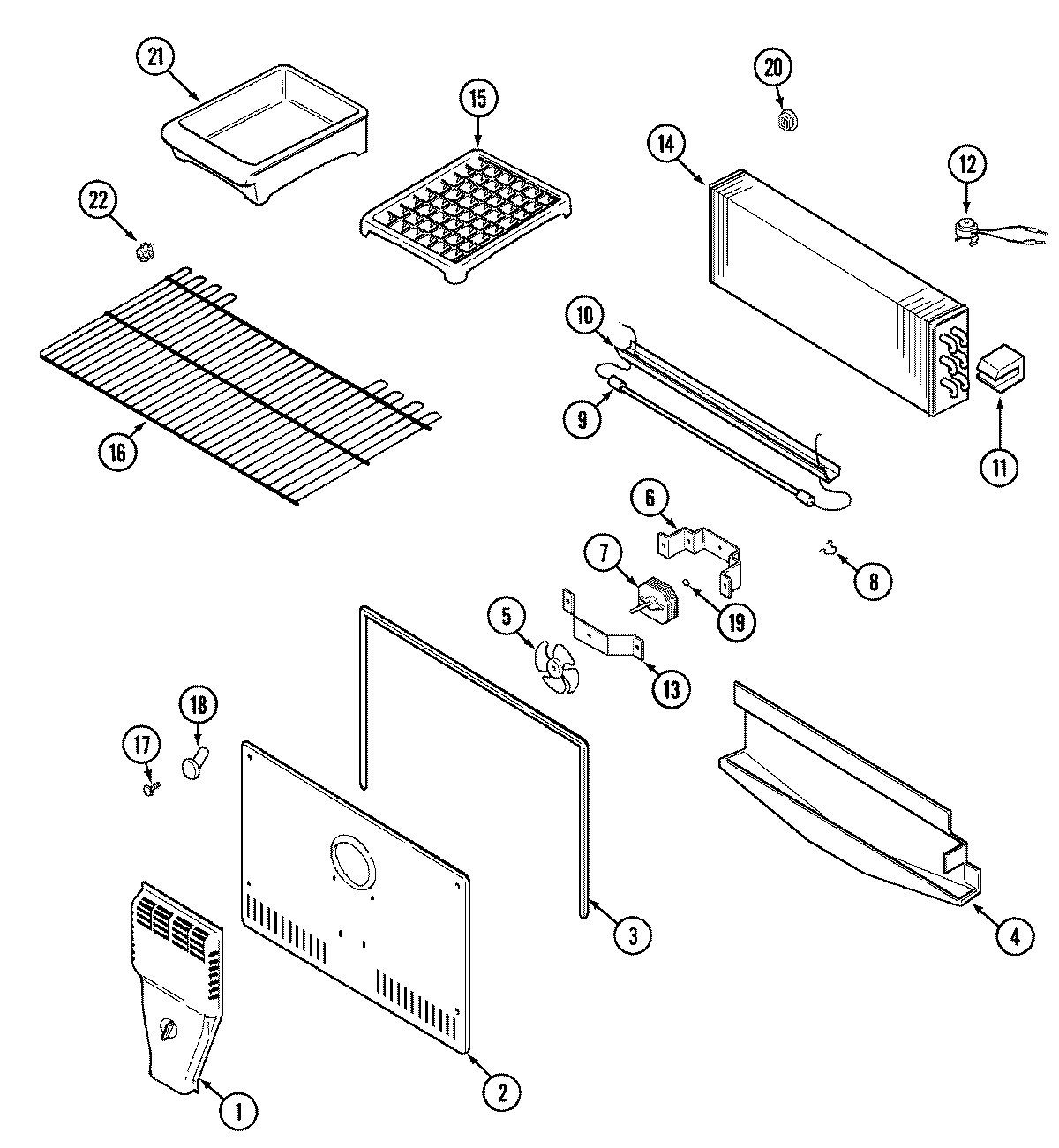

03 - FREEZER COMPARTMENT

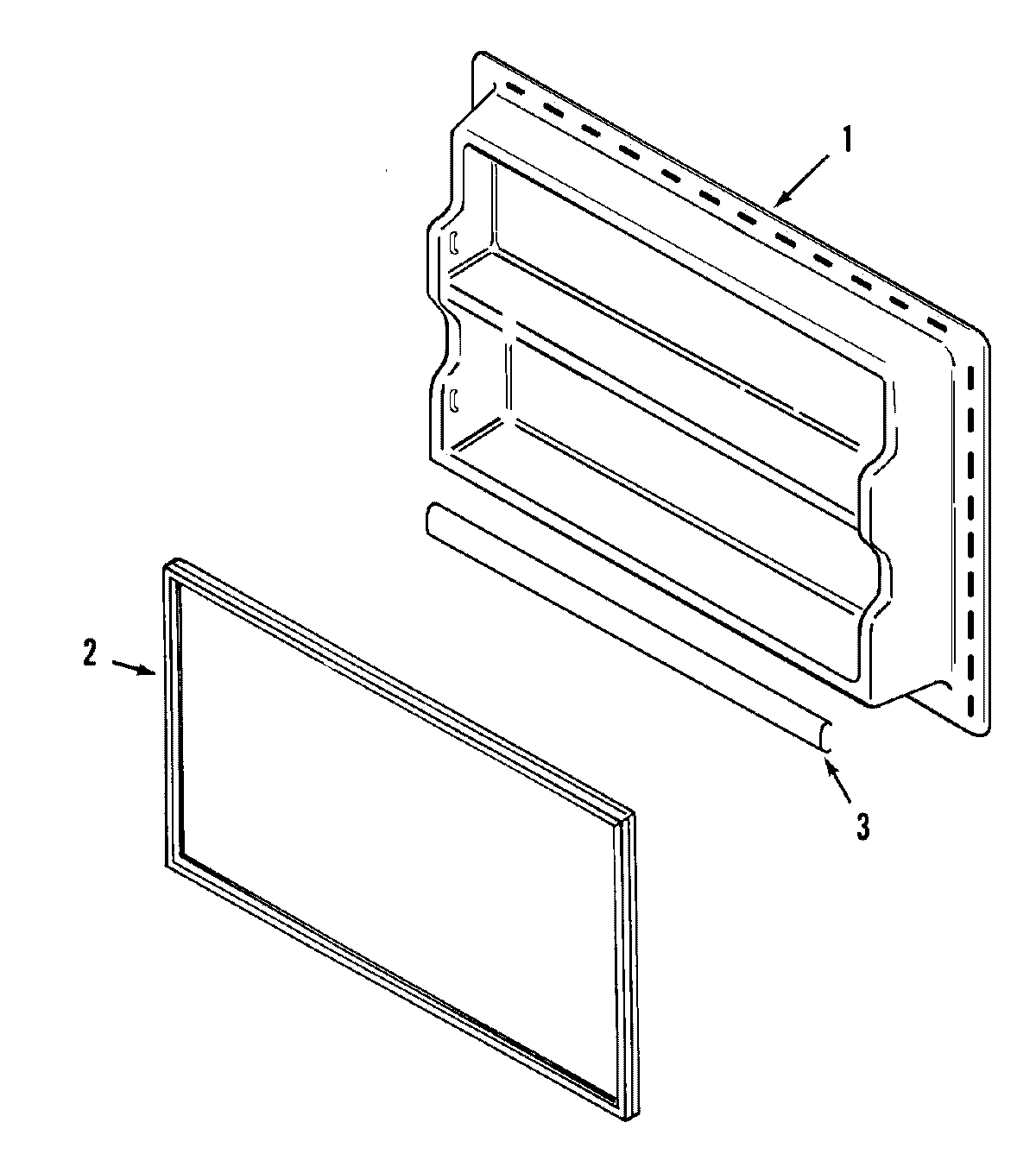

04 - FREEZER INNER DOOR

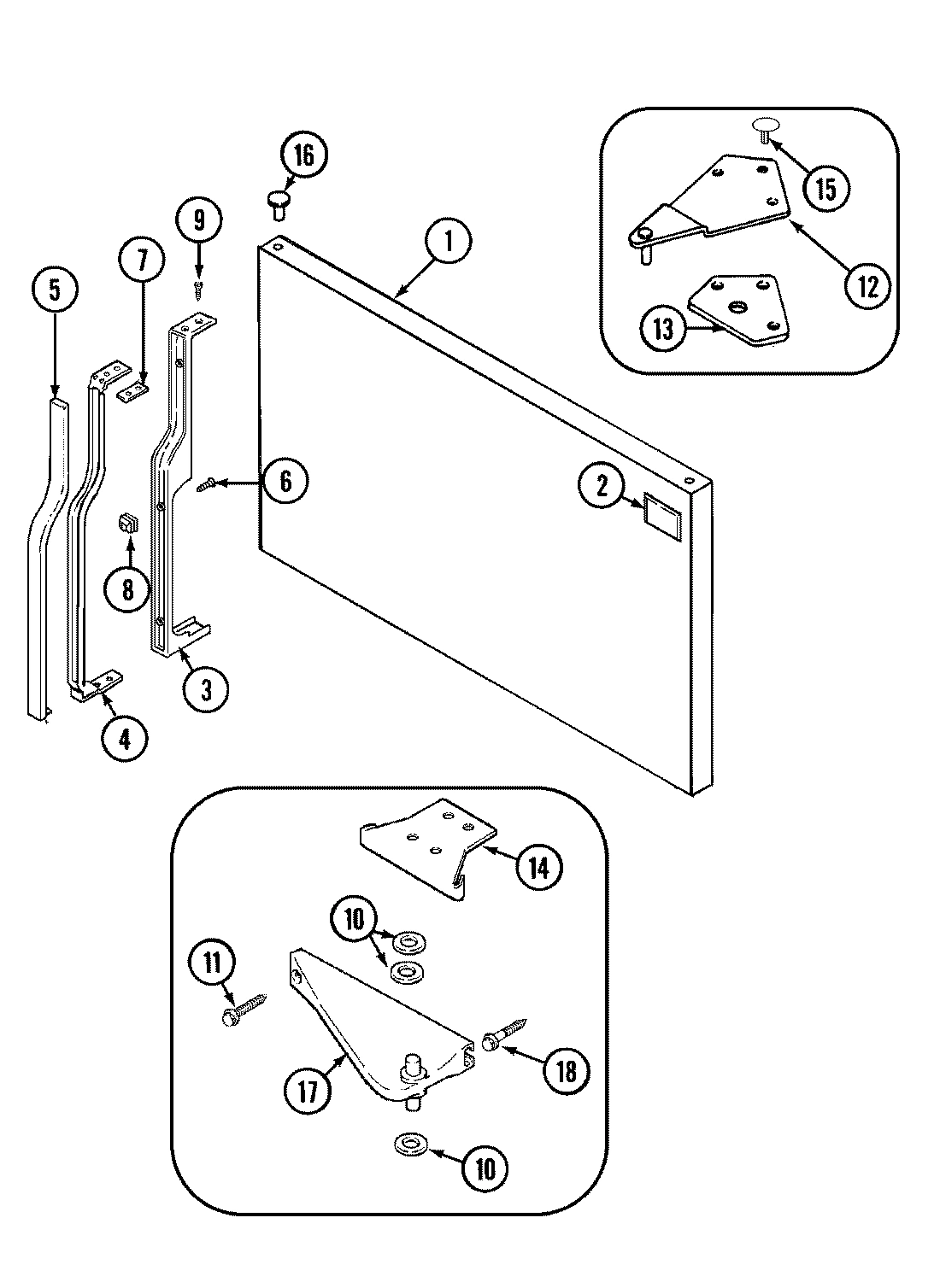

05 - FREEZER OUTER DOOR

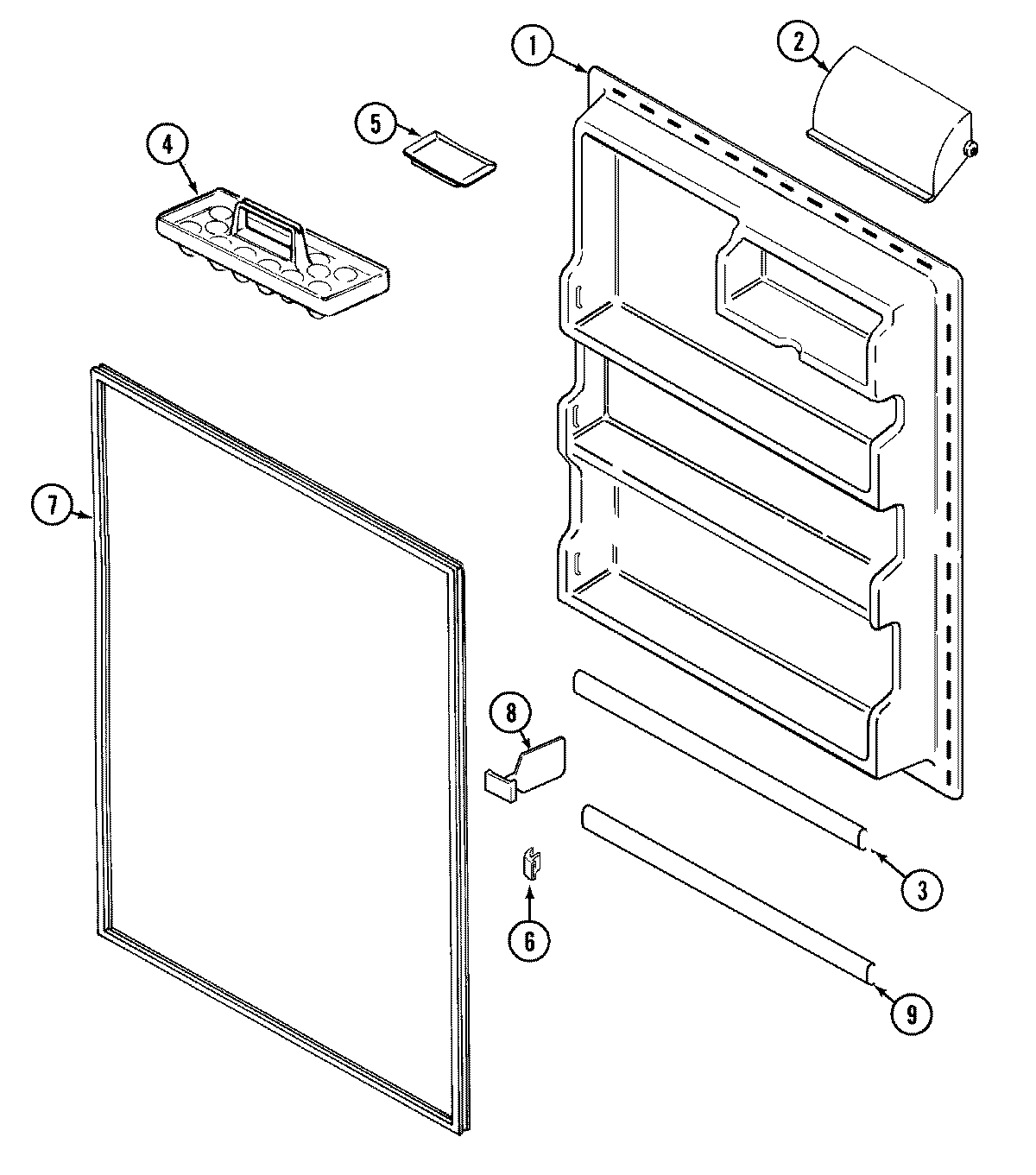

06 - FRESH FOOD INNER DOOR

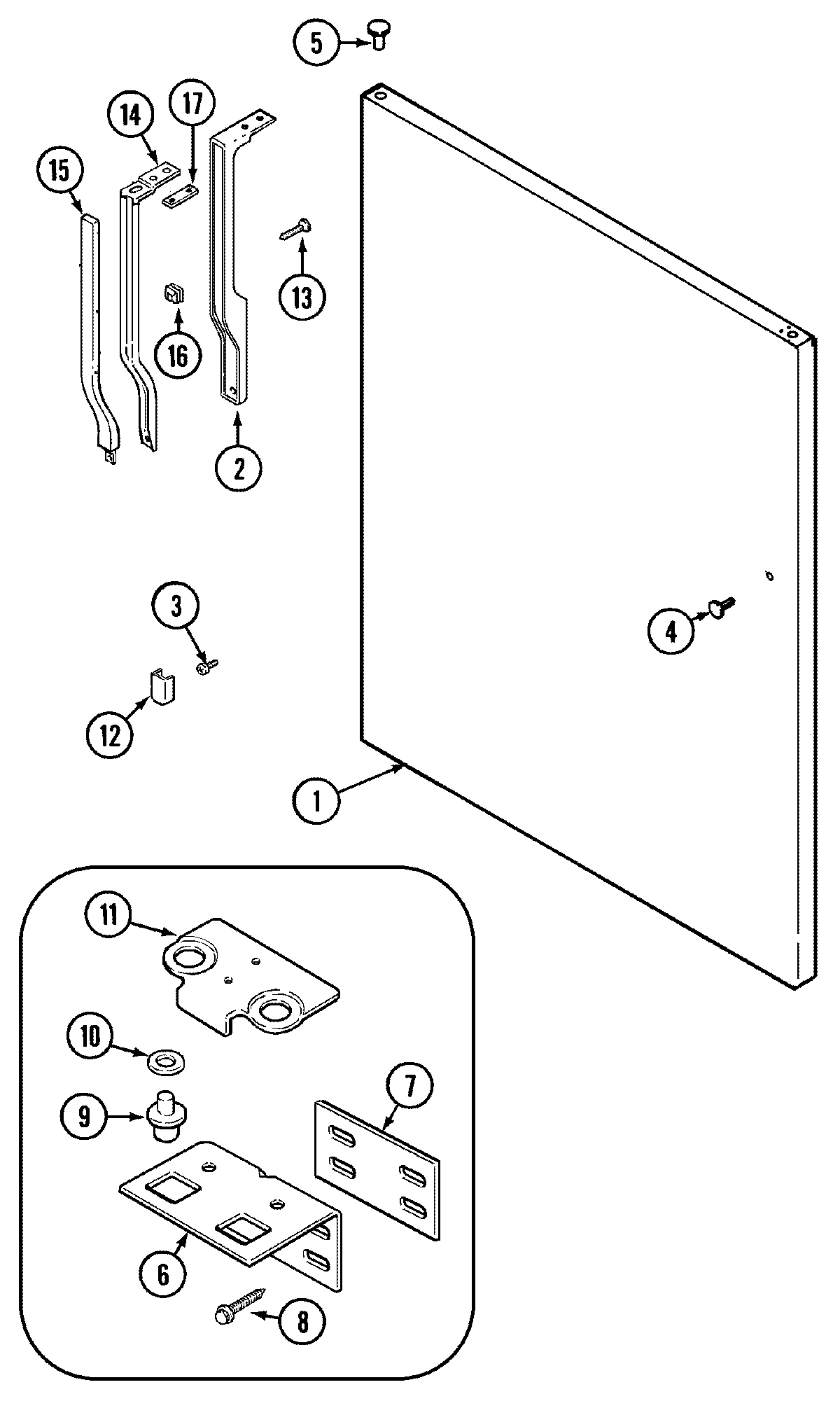

07 - FRESH FOOD OUTER DOOR

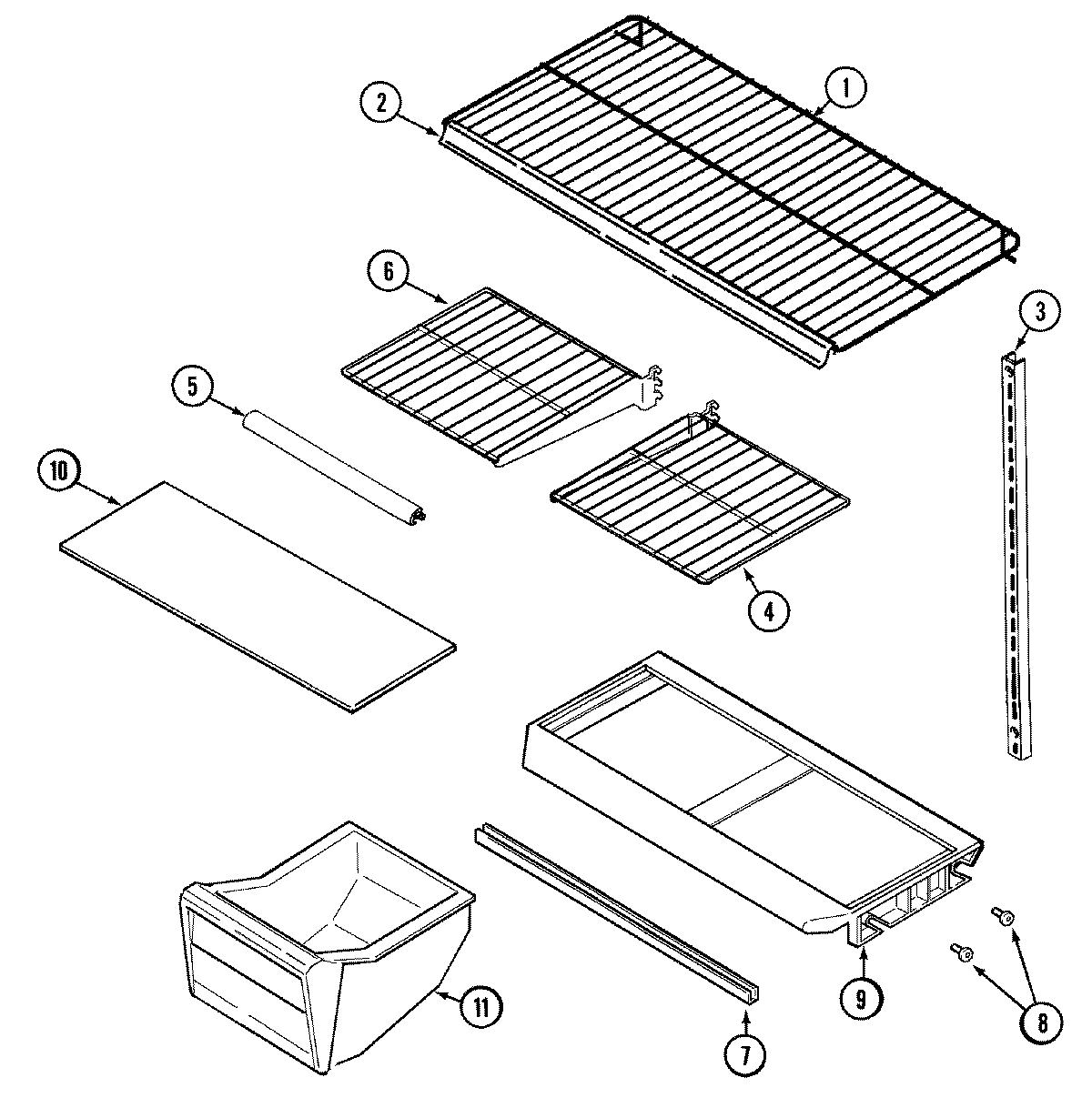

08 - SHELVES & ACCESSORIES (GT1522NDEW)

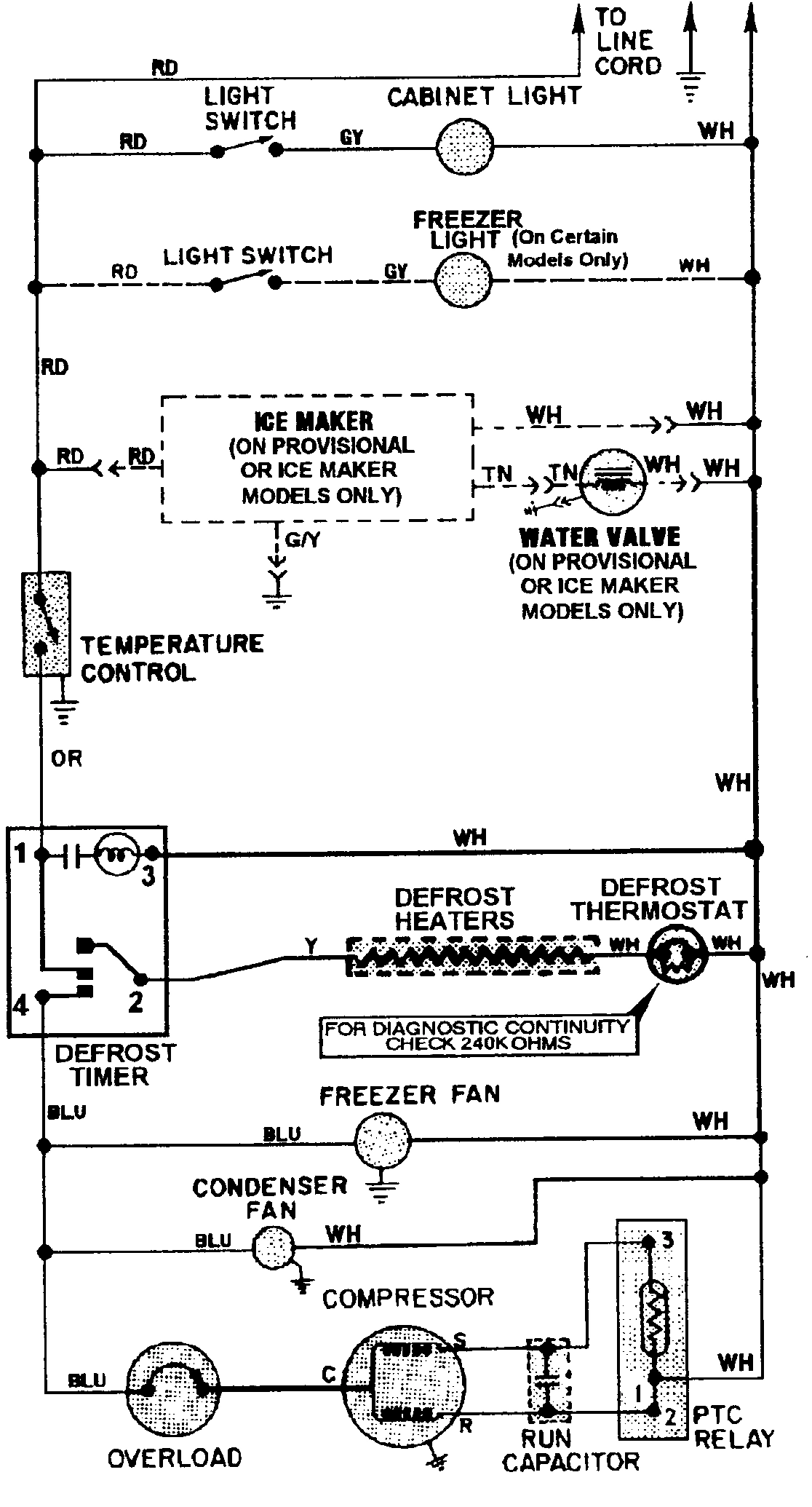

09 - WIRING INFORMATION
Common parts from model Maytag GT1522NDEW REFRIGERATOR
1
MAY 12001432 MAY 12001432 Contact Us For Availability
1
MAY 61004582 MAY 61004582 Contact Us For Availability
1
MAY 61001927 MAY 61001927 Contact Us For Availability
1
MAY 65275-5 MAY 65275-5 Contact Us For Availability
1
MAY 61002154 MAY 61002154 Contact Us For Availability
1
MAY 61001936 MAY 61001936 Contact Us For Availability
1
MAY 61002203 MAY 61002203 Contact Us For Availability
1
MAY 61001950 MAY 61001950 Contact Us For Availability
2
MAY 61001977 MAY 61001977 Contact Us For Availability
2
MAY 61004002 MAY 61004002 Contact Us For Availability
2
MAY 70051-3 MAY 70051-3 Contact Us For Availability
2
MAY 61002106 MAY 61002106 Contact Us For Availability
2
BEZEL, NAMEPLATE (WHT) MAY 66981-5 Contact Us For Availability
2
MAY 61002924 MAY 61002924 Contact Us For Availability
2
MAY 61002111 MAY 61002111 Contact Us For Availability
2
MAY 61002167 MAY 61002167 Contact Us For Availability
3
MAY 61001795 MAY 61001795 Contact Us For Availability
3
MAY 61002091 MAY 61002091 Contact Us For Availability
3
MAY 61001967 MAY 61001967 Contact Us For Availability
3
MAY 61004560 MAY 61004560 Contact Us For Availability
3
MAY 61002219 MAY 61002219 Contact Us For Availability
3
MAY 400037-28 MAY 400037-28 Contact Us For Availability
3
MAY 61002123 MAY 61002123 Contact Us For Availability
4
MAY 70458-1 MAY 70458-1 Contact Us For Availability
4
MAY 61002015 MAY 61002015 Contact Us For Availability
4
MAY 61002220 MAY 61002220 Contact Us For Availability
4
MAY 67678-2 MAY 67678-2 Contact Us For Availability
4
MAY 61003074 MAY 61003074 Contact Us For Availability
5
MAY 61001935 MAY 61001935 Contact Us For Availability
5
MAY 61002221 MAY 61002221 Contact Us For Availability
5
MAY 61001908 MAY 61001908 Contact Us For Availability
5
MAY 29936-2 MAY 29936-2 Contact Us For Availability
5
MAY 61002169 MAY 61002169 Contact Us For Availability
6
MAY 61001918 MAY 61001918 Contact Us For Availability
6
MAY 61002100 MAY 61002100 Contact Us For Availability
6
MAY 61001930 MAY 61001930 Contact Us For Availability
6
MAY 61003075 MAY 61003075 Contact Us For Availability
7
MAY 61003999 MAY 61003999 Contact Us For Availability
7
MAY 61002099 MAY 61002099 Contact Us For Availability
7
MAY 61002107 MAY 61002107 Contact Us For Availability
7
MAY 61001926 MAY 61001926 Contact Us For Availability
7
MAY 61002133 MAY 61002133 Contact Us For Availability
8
MAY 67764-1 MAY 67764-1 Contact Us For Availability
8
MAY 61003098 MAY 61003098 Contact Us For Availability
9
MAY 61002108 MAY 61002108 Contact Us For Availability
9
MAY 61002171 MAY 61002171 Contact Us For Availability
10
MAY 61004442 MAY 61004442 Contact Us For Availability
10
MAY 61004485 MAY 61004485 Contact Us For Availability
10
MAY 61001956 MAY 61001956 Contact Us For Availability
10
MAY 61002174 MAY 61002174 Contact Us For Availability
11
MAY 405007-1 MAY 405007-1 Contact Us For Availability
11
MAY 61001791 MAY 61001791 Contact Us For Availability
11
MAY 61001953 MAY 61001953 Contact Us For Availability
11
MAY 61001954 MAY 61001954 Contact Us For Availability
11
MAY 61001876 MAY 61001876 Contact Us For Availability
11
MAY 61001969 MAY 61001969 Contact Us For Availability
11
MAY 61002175 MAY 61002175 Contact Us For Availability
12
MAY 70058-2 MAY 70058-2 Contact Us For Availability
12
MAY 61001263 MAY 61001263 Contact Us For Availability
12
MAY 61004570 MAY 61004570 Contact Us For Availability
13
MAY 61001922 MAY 61001922 Contact Us For Availability
13
MAY 61002000 MAY 61002000 Contact Us For Availability
13
MAY 61002234 MAY 61002234 Contact Us For Availability
13
MAY 415033-1 MAY 415033-1 Contact Us For Availability
14
MAY 61002084 MAY 61002084 Contact Us For Availability
14
MAY 61001999 MAY 61001999 Contact Us For Availability
14
MAY 12001396 MAY 12001396 Contact Us For Availability
14
MAY 61004481 MAY 61004481 Contact Us For Availability
14
MAY 70052-1 MAY 70052-1 Contact Us For Availability
15
MAY 61002110 MAY 61002110 Contact Us For Availability
15
MAY 61001923 MAY 61001923 Contact Us For Availability
15
MAY 70053-18 MAY 70053-18 Contact Us For Availability
16
MAY 61001912 MAY 61001912 Contact Us For Availability
16
MAY 61002141 MAY 61002141 Contact Us For Availability
16
MAY 61002218 MAY 61002218 Contact Us For Availability
17
MAY 61001920 MAY 61001920 Contact Us For Availability
17
MAY 67557-2 MAY 67557-2 Contact Us For Availability
17
MAY 67934-1 MAY 67934-1 Contact Us For Availability
18
MAY 61002109 MAY 61002109 Contact Us For Availability
18
MAY 61002025 MAY 61002025 Contact Us For Availability
19
MAY 61002235 MAY 61002235 Contact Us For Availability
20
MAY 61002028 MAY 61002028 Contact Us For Availability
21
MAY 61002177 MAY 61002177 Contact Us For Availability
22
MAY 61002142 MAY 61002142 Contact Us For Availability
22
MAY 61002143 MAY 61002143 Contact Us For Availability
23
MAY 61002914 MAY 61002914 Contact Us For Availability
26
MAY 61002214 MAY 61002214 Contact Us For Availability
27
MAY 61002680 MAY 61002680 Contact Us For Availability
28
MAY 61001975 MAY 61001975 Contact Us For Availability
29
MAY 61001978 MAY 61001978 Contact Us For Availability
31
MAY 61002104 MAY 61002104 Contact Us For Availability
32
MAY 61002105 MAY 61002105 Contact Us For Availability
32
MAY 69810-1 MAY 69810-1 Contact Us For Availability
33
MAY 61003623 MAY 61003623 Contact Us For Availability
34
MAY 16008248 MAY 16008248 Contact Us For Availability
34
MAY 16008421 MAY 16008421 Contact Us For Availability
NI
MAY 15002425 MAY 15002425 Contact Us For Availability
× ![]()
