Model Whirlpool GSHF7801W0 – Common Parts & Diagrams

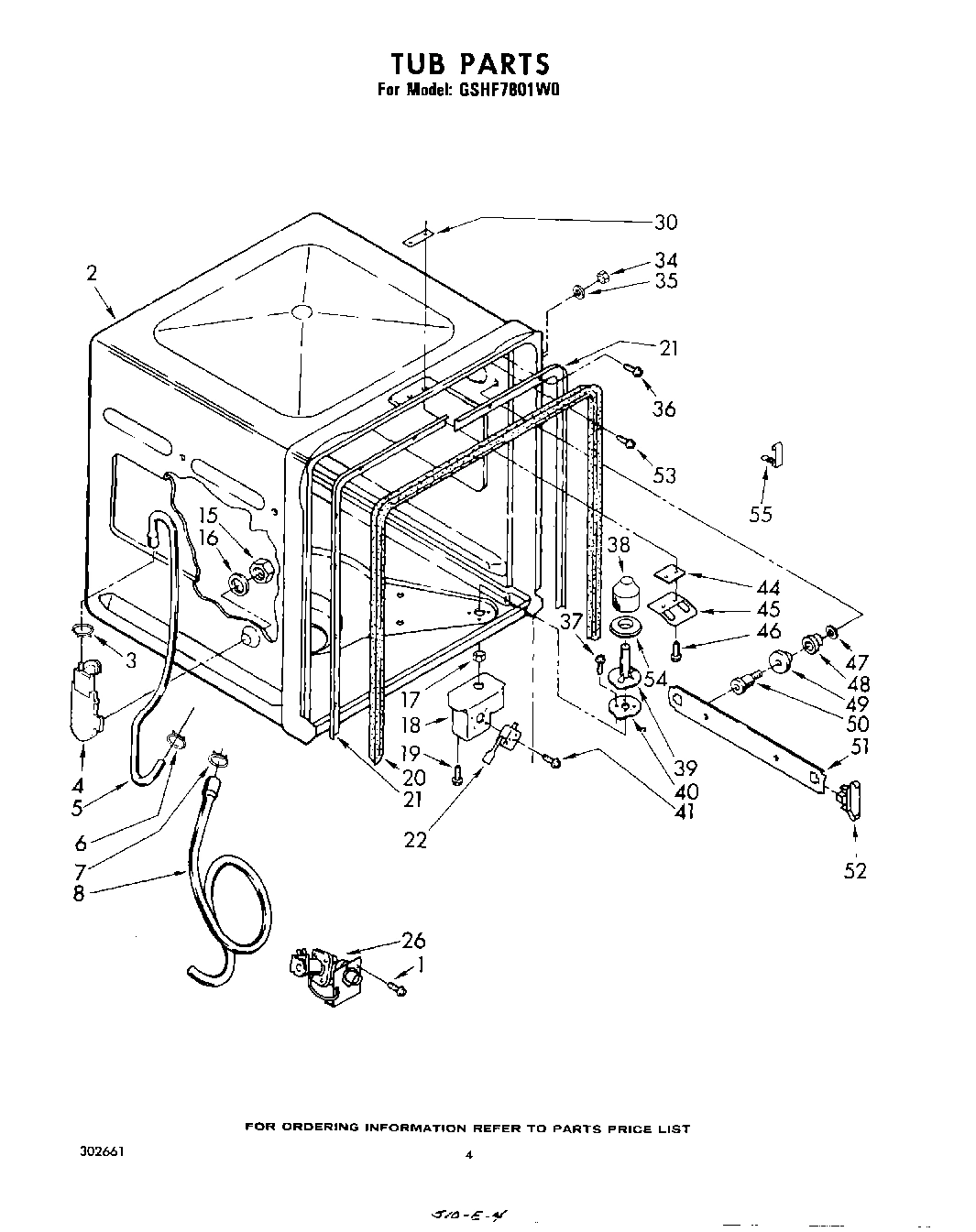

03 - TUB , LIT/OPTIONAL

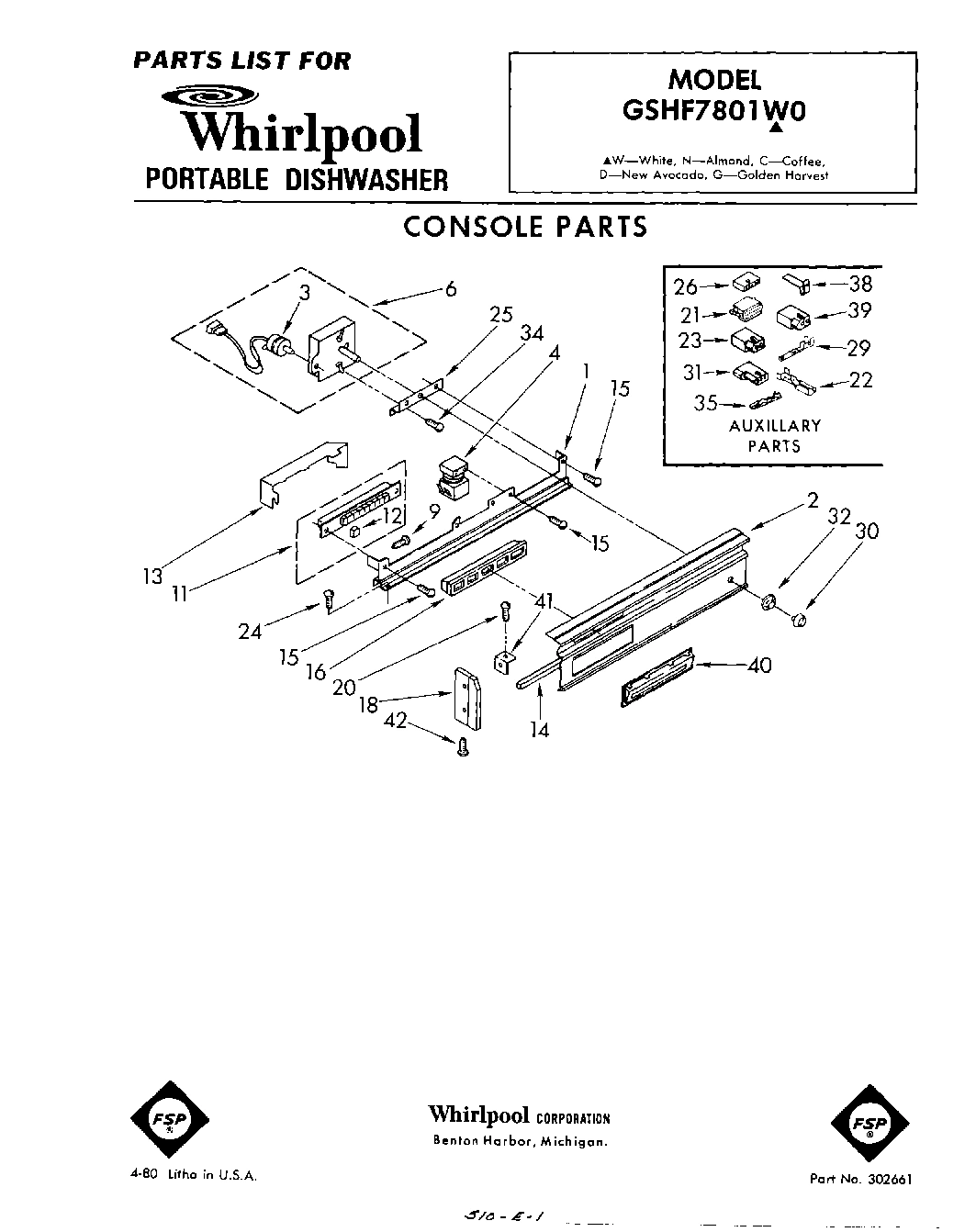

01 - CONSOLE

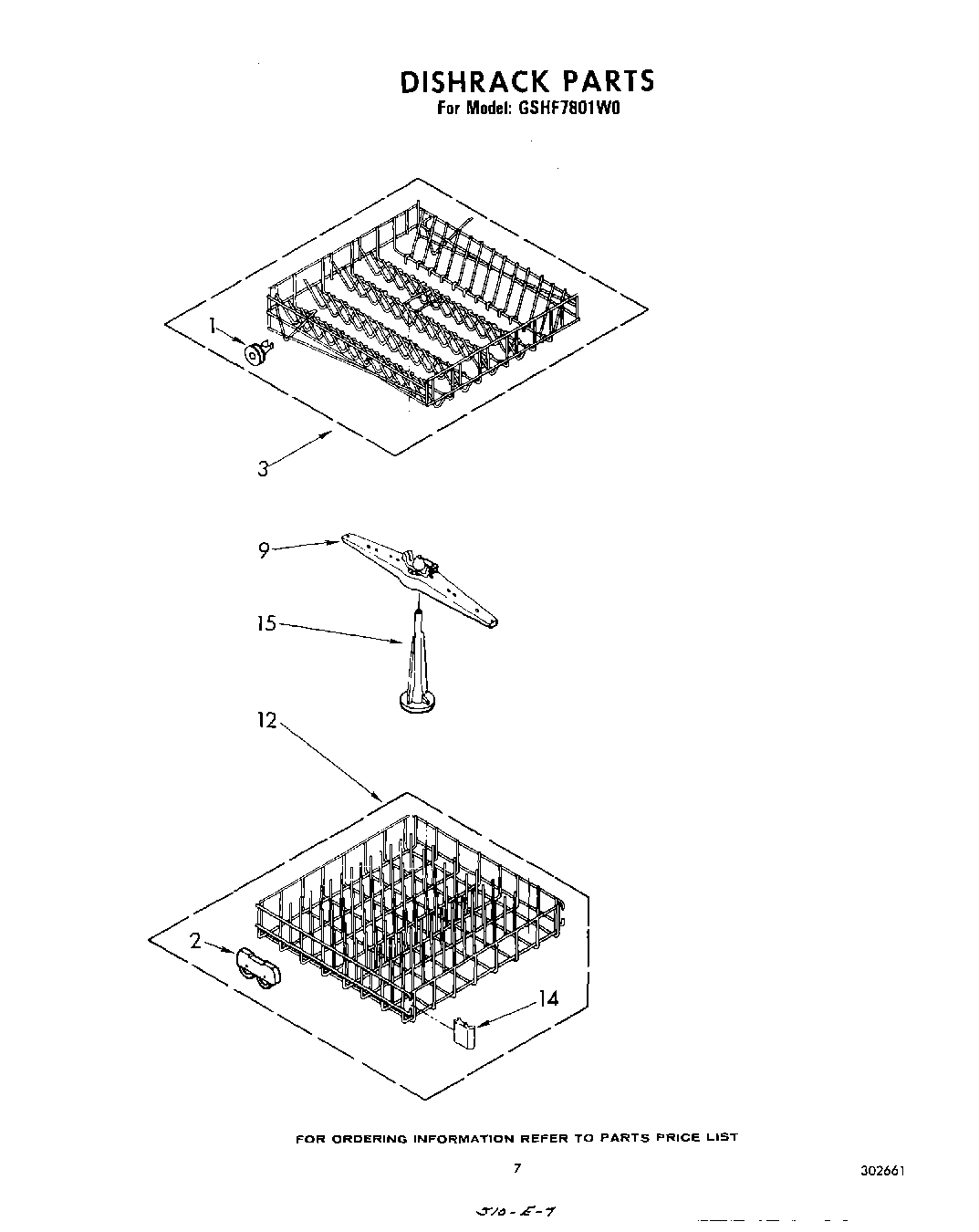

05 - DISHRACK

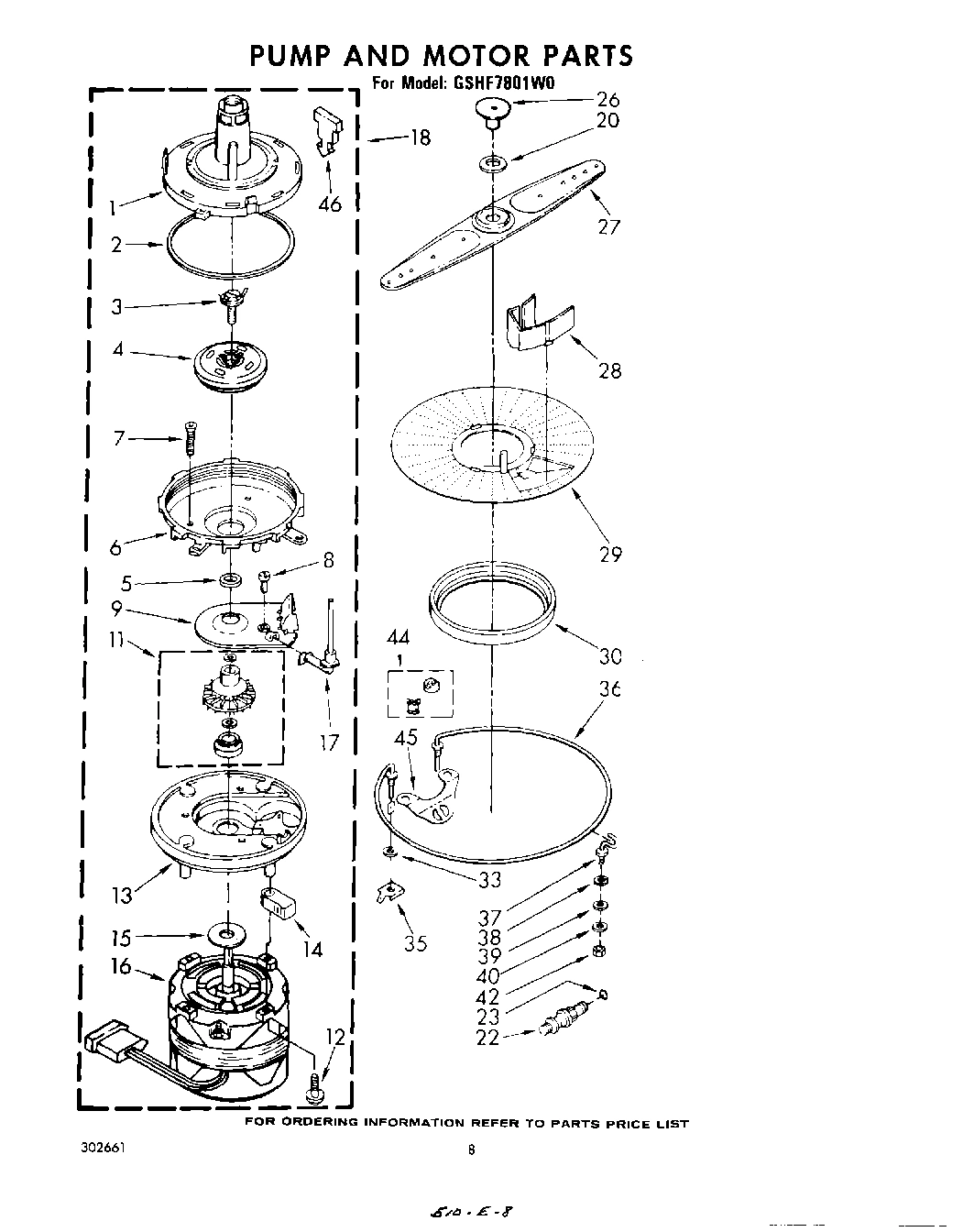

06 - PUMP AND MOTOR

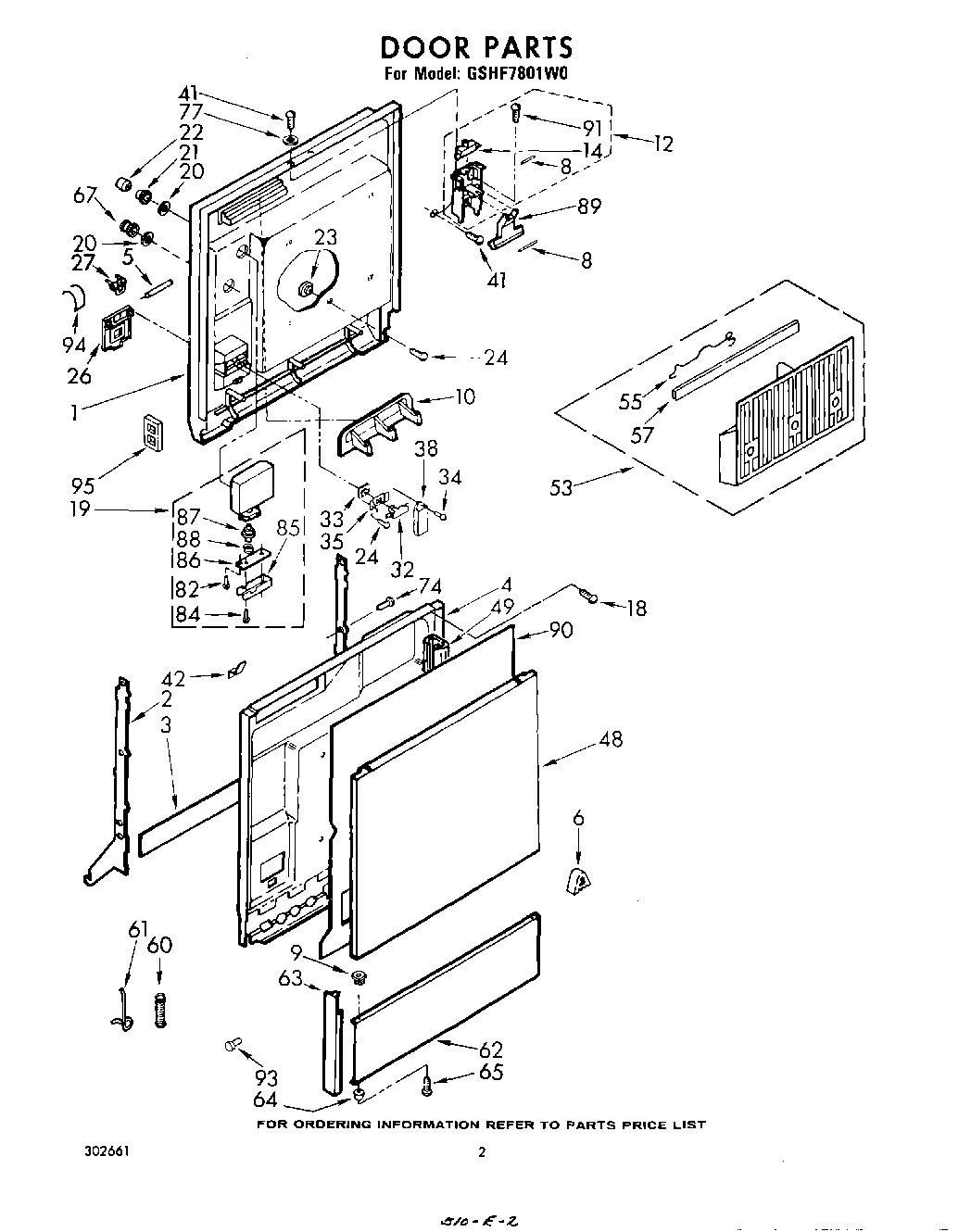

02 - DOOR

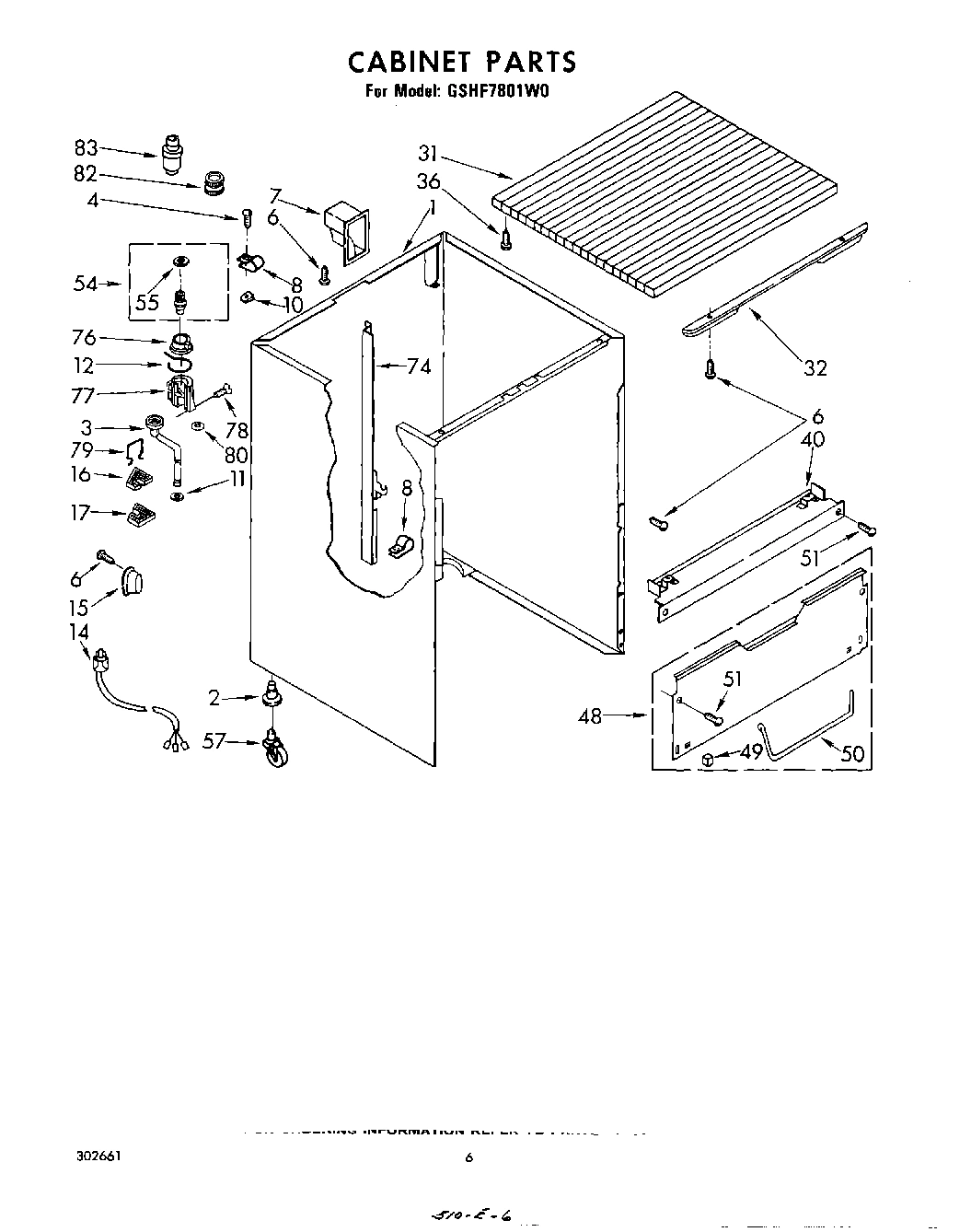

04 - CABINET
Common parts from model Whirlpool GSHF7801W0
1
Bracket, Control WPL 300750 Contact Us For Availability
1
Wheel & Axle Assembly WPL 300995 Contact Us For Availability
1
Pump Housing, Upper WPL 301558 Contact Us For Availability
1
Door, Inner (Includes Illus. 4) WPL 302035 Contact Us For Availability
1
Shell Assembly (Golden Harvest) WPL 301736 Contact Us For Availability
1
Shell Assembly (Coffee) WPL 301737 Contact Us For Availability
1
Shell Assembly (New Avocado) WPL 301738 Contact Us For Availability
1
Shell Assembly (Almond) WPL 301743 Contact Us For Availability
1
Shell Assembly (White) WPL 719614 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Socket, Caster (Alternate) WPL 300450 Contact Us For Availability
2
Panel, Escutcheon WPL 302265 Contact Us For Availability
2
Support, Door (L.H.) WPL 300225 Contact Us For Availability
2
Support, Door (R.H.) WPL 300226 Contact Us For Availability
2
Socket, Caster (Alternate) WPL 717588 Contact Us For Availability
3
Motor, Timer WPL 301320 Contact Us For Availability
3
Screw, 10-32 x .75 WPL 718326 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Coupler Assembly WPL 718056 Contact Us For Availability
4
Relay, Start WPL 300553 Contact Us For Availability
4
Impeller WPL 719949 Contact Us For Availability
4
Liner, Door WPL 302031 Contact Us For Availability
5
Spacer WPL 301619 Contact Us For Availability
6
Timer, Disconnect WPL 302573 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
6
Retainer WPL 301596 Contact Us For Availability
7
Housing, Hose WPL 718030 Contact Us For Availability
8
Pin, Pivot WPL 300234 Contact Us For Availability
8
Clamp, Strain Relief WPL 596553 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
9
Grommet WPL 356592 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
10
Nut, J-Type WPL 717337 Contact Us For Availability
11
Switch, Pushbutton WPL 302068 Contact Us For Availability
11
Kit, Impeller Drain WPL 675297 Contact Us For Availability
12
Button (7) WPL 301978 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
12
Latch Assembly WPL 300235 Contact Us For Availability
12
Spring, Coupler WPL 717958 Contact Us For Availability
13
Barrier, Pushbutton Switch WPL 300242 Contact Us For Availability
13
Base, Pump WPL 301812 Contact Us For Availability
14
Baffle WPL 719860 Contact Us For Availability
14
Bumper WPL 719964 Contact Us For Availability
14
Support, Pump (4) WPL 718260 Contact Us For Availability
14
Switch, Interlock WPL 300232 Contact Us For Availability
14
Cord, Power WPL 302325 Contact Us For Availability
15
Tower WPL 302030 Contact Us For Availability
15
Housing, Cord WPL 716234 Contact Us For Availability
16
Grille, Vent WPL 301878 Contact Us For Availability
16
Motor, Emerson WPL 301863 Contact Us For Availability
16
Flow Divider, Upper WPL 300273 Contact Us For Availability
17
Nut, .125 WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
17
Flow Divider, Lower WPL 300274 Contact Us For Availability
18
Cap, End (R.H.) WPL 301877 Contact Us For Availability
18
Cap, End (L.H.) WPL 301934 Contact Us For Availability
18
Pump & Motor Assembly WPL 301862 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 719341 Contact Us For Availability
20
Washer WPL 713080 Contact Us For Availability
21
Nut WPL 718575 Contact Us For Availability
22
Terminal, Female (Disconnect Black) WPL 352088 Contact Us For Availability
22
Cap WPL 718577 Contact Us For Availability
23
Receptacle, Terminal (Timer Motor) WPL 717252 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Button, Retainer WPL 300239 Contact Us For Availability
24
Screw, 8-18 x 3/8 WPL 300250 Contact Us For Availability
25
Bracket, Timer Mounting WPL 301875 Contact Us For Availability
26
Connector, Terminal (Motor) WPL 719585 Contact Us For Availability
26
Cap, Assembly WPL 300992 Contact Us For Availability
27
Spray Arm, Lower WPL 719691 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
30
Knob, Timer WPL 302180 Contact Us For Availability
31
Receptacle (Wetting Agent Dispenser) WPL 353425 Contact Us For Availability
31
Panel, Top WPL 302182 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Dial, Indicator WPL 302067 Contact Us For Availability
32
Trim, Front WPL 302250 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut WPL 718829 Contact Us For Availability
34
Screw, 8 x 1/2 WPL 718250 Contact Us For Availability
35
Washer WPL 717624 Contact Us For Availability
35
Nut, 7/16-20 WPL 718537 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
36
Heater WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
36
Screw WPL 343826 Contact Us For Availability
37
Support, Heater WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
38
Retainer, Harness WPL 302162 Contact Us For Availability
38
Washer, Retainer WPL 717289 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
39
Washer WPL 14351 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Bezel Assembly WPL 302258 Contact Us For Availability
40
Washer WPL 711284 Contact Us For Availability
40
Toeplate Assembly (Includes Illus. 2) WPL 719513 Contact Us For Availability
41
Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability
41
Bracket, End Cap WPL 301872 Contact Us For Availability
42
Screw, 8-18 WPL 358225 Contact Us For Availability
42
Nut, 10-32 WPL 9420162 Contact Us For Availability
42
Clip, Ground WPL 718533 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
44
Thermostat WPL 302104 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Bracket WPL 715073 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer WPL 718750 Contact Us For Availability
48
Washer, Cup WPL 718817 Contact Us For Availability
48
Panel, Front WPL ARI72132A1 Contact Us For Availability
48
Plate, Cover WPL 719091 Contact Us For Availability
49
Wheel Assembly WPL 300844 Contact Us For Availability
49
Trim, Door (L.H.) WPL 301019 Contact Us For Availability
49
Trim, Door (R.H.) WPL 301020 Contact Us For Availability
49
Bumper, Rubber WPL 719235 Contact Us For Availability
50
Screw, Shoulder WPL 712499 Contact Us For Availability
50
Bar, Torsion (R.H.) WPL 719093 Contact Us For Availability
50
Bar, Torsion (L.H.) WPL 719094 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Basket Silverware Assembly WPL 301994 Contact Us For Availability
54
Gasket, Standpipe WPL 301662 Contact Us For Availability
55
(13 Oz.) (Leveler (Thinner)) WPL 206925 Contact Us For Availability
55
(1 Qt.) (Coffee (Uncut)) WPL 261837 Contact Us For Availability
55
(13 Oz.) (Coffee) WPL 261886 Contact Us For Availability
55
(13 Oz.) (New Avocado) WPL 261888 Contact Us For Availability
55
(1 Qt.) (New Avocado (Uncut)) WPL 261889 Contact Us For Availability
55
(13 Oz.) (Golden Harvest) WPL 261890 Contact Us For Availability
55
(1 Qt.) (Golden Harvest (Uncut)) WPL 261891 Contact Us For Availability
55
Instructions, Installation WPL 301315 Contact Us For Availability
55
Clip, Gasket WPL 301663 Contact Us For Availability
55
Guide, Use & Care WPL 302019 Contact Us For Availability
55
Harness, Wiring WPL 302177 Contact Us For Availability
55
List, Parts WPL 302661 Contact Us For Availability
55
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
55
WPL 799351 WPL 799351 Contact Us For Availability
55
WPL 799640 WPL 799640 Contact Us For Availability
55
WPL 978883 WPL 978883 Contact Us For Availability
55
Handle, Basket WPL 300086 Contact Us For Availability
55
Washer WPL 300445 Contact Us For Availability
57
Trim, Basket WPL 717528 Contact Us For Availability
62
Panel, Access WPL ARI72133A7 Contact Us For Availability
63
Cap, End (R.H.) WPL 302621 Contact Us For Availability
63
Cap, End (L.H.) WPL 302622 Contact Us For Availability
64
Foot WPL 719581 Contact Us For Availability
65
Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
74
Leg Assembly, L.H. WPL 719621 Contact Us For Availability
74
Leg Assembly, R.H. WPL 719622 Contact Us For Availability
76
Latch, Cap WPL 717939 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
77
Cover, R.H. WPL 717941 Contact Us For Availability
77
Cover, L.H. WPL 717942 Contact Us For Availability
78
Screw, 8-18 x 3/4 (3) WPL 718032 Contact Us For Availability
79
Coupler, Pull Ring WPL 718073 Contact Us For Availability
80
``O`` Ring WPL 718738 Contact Us For Availability
82
Adapter, Faucet (Garden Hose) WPL 715676 Contact Us For Availability
83
Adapter, Faucet (Universal) WPL 715677 Contact Us For Availability
85
Acutator Assembly WPL 718646 Contact Us For Availability
86
Plate WPL 718596 Contact Us For Availability
87
Diaphragm Assembly WPL 718595 Contact Us For Availability
88
Spring WPL 718592 Contact Us For Availability
89
Lever, Release WPL 300230 Contact Us For Availability
90
Spacer WPL 300801 Contact Us For Availability
91
Screw, 6-32 x 1 WPL 301582 Contact Us For Availability
93
Bumper WPL 715779 Contact Us For Availability
94
Clip, Wire WPL 301857 Contact Us For Availability
95
Barrier, Detergent Dispenser WPL 302159 Contact Us For Availability
× ![]()
