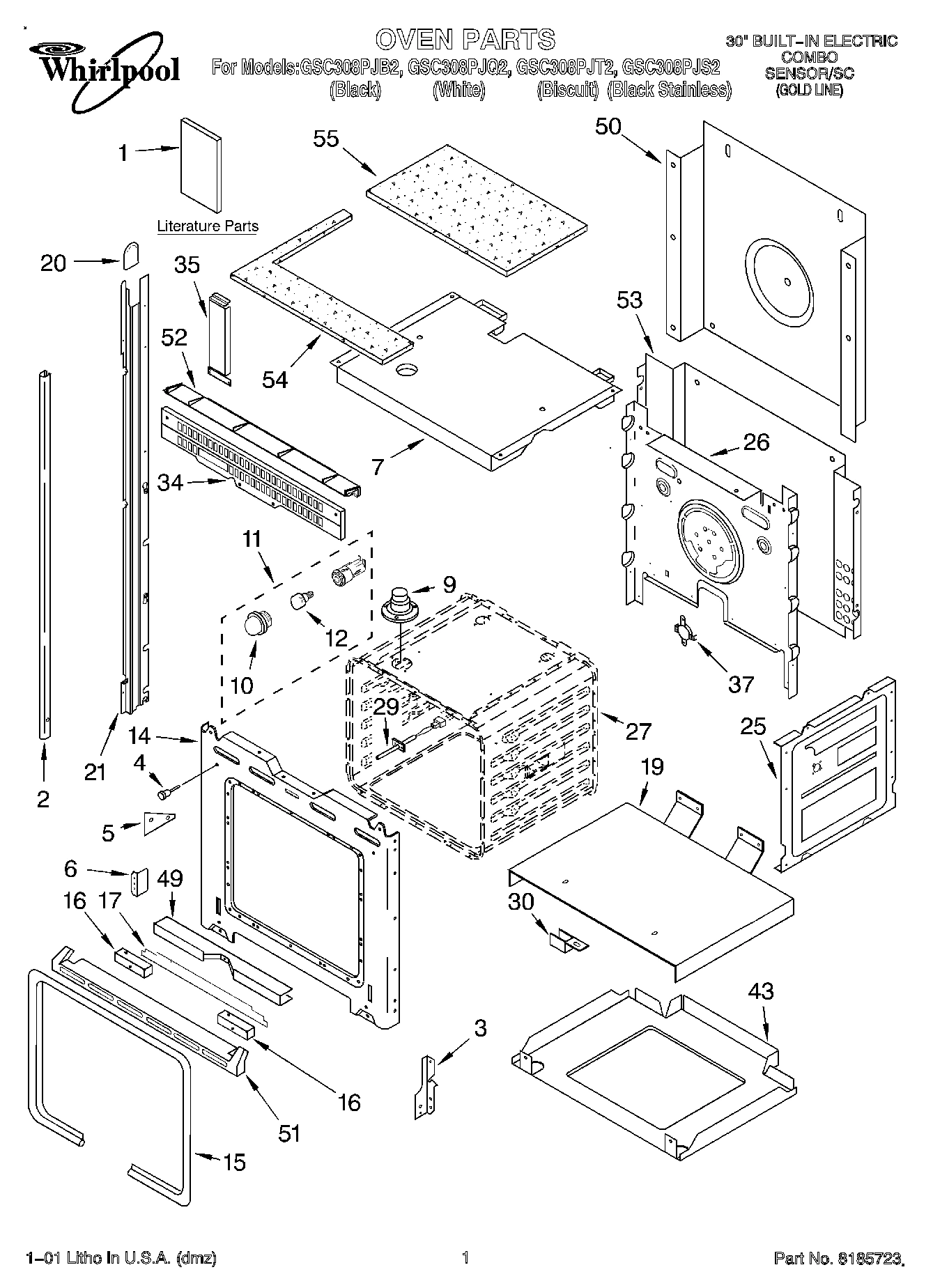

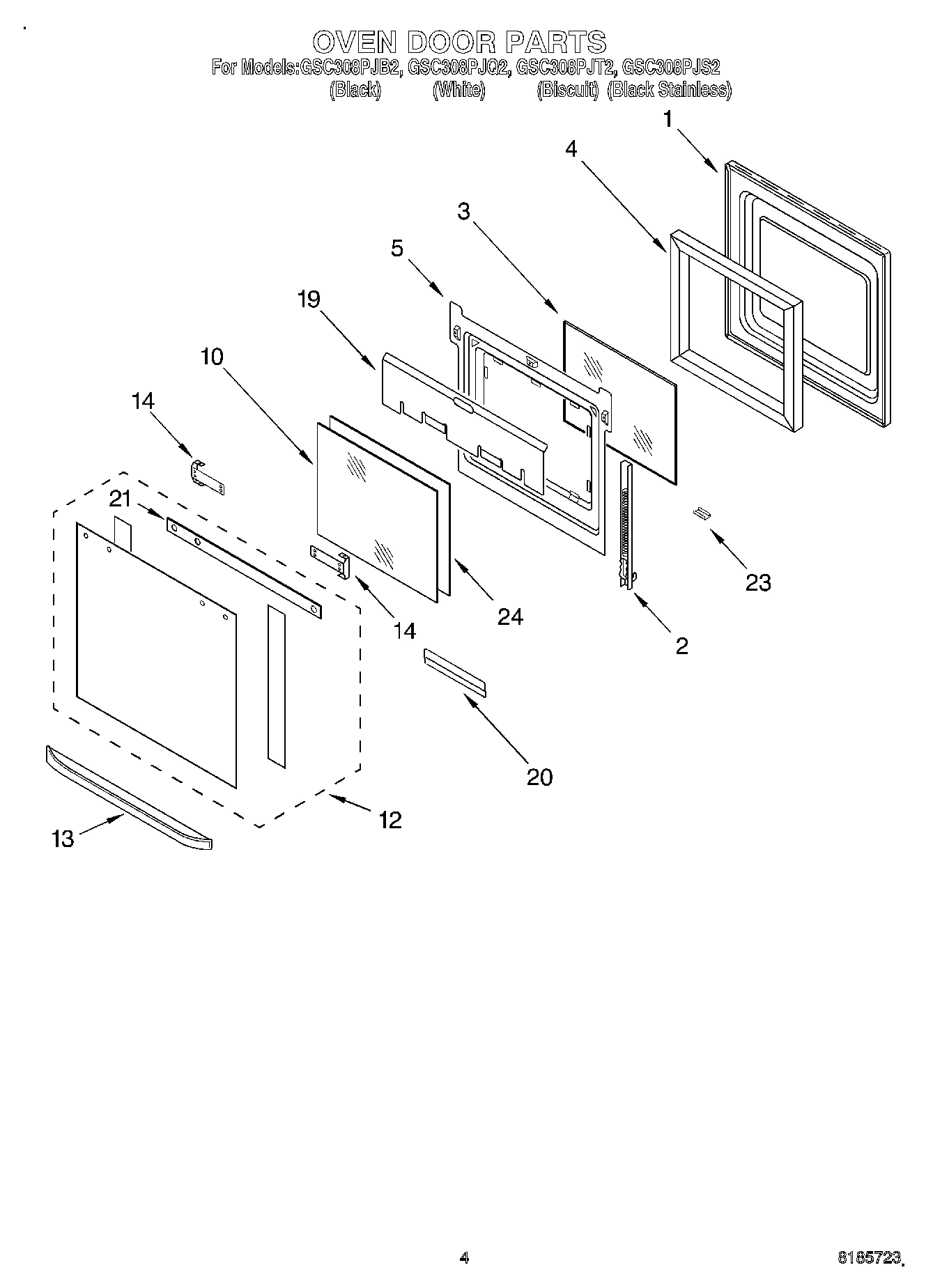

Model Whirlpool GSC308PJB2 COOKTOP – Common Parts &amp; Diagrams

1

Control Panel Assy (Black Stainless) WPL 4451791 Contact Us For Availability

1

Control Panel Assy (Black) WPL 4452604 Contact Us For Availability

1

Control Panel Assy (White) WPL 4452605 Contact Us For Availability

1

Control Panel Assy (Biscuit) WPL 4452974 Contact Us For Availability

1

Bracket, Capacitor WPL 4375299 Contact Us For Availability

2

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $41.25

2

WP4455526 Whirlpool Door Hinge In Stock WPL WP4455526 $49.56

2

Trim, Side (LH Black) WPL 4455431 Contact Us For Availability

2

Switch Membrane (White) WPL 8300548 Contact Us For Availability

2

Switch Membrane (Black) WPL 8300550 Contact Us For Availability

2

Switch Membrane (Biscuit) WPL 8300552 Contact Us For Availability

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

Reciever, Hinge (Right Hand) WPL 4455723 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455722 Contact Us For Availability

3

Insulation, Board WPL 4452248 Contact Us For Availability

3

Rubber Ring WPL 4375037 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

Insulation, Board Support WPL 4452249 Contact Us For Availability

4

Screw WPL 4375038 Contact Us For Availability

5

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

5

Spacer, Foam WPL 4452260 Contact Us For Availability

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

6

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

6

Insulator, Dialectric WPL 4452345 Contact Us For Availability

7

Screw WPL 3400406 Contact Us For Availability

7

Microcomputer WPL 8300245 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

Convection Motor WPL 4451583 Contact Us For Availability

9

Glass, Middle WPL 4448937 Contact Us For Availability

9

Baffle, Rear WPL 4450408 Contact Us For Availability

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $114.92

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

Latch Assembly WPL 4451424 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

Rear Channel WPL 4452548 Contact Us For Availability

Solenoid WPL 4451663 Contact Us For Availability

Damper WPL 4375315 Contact Us For Availability

12

Microswitch N.C. WPL 4452312 Contact Us For Availability

12

Duct, Inlet WPL 4375260 Contact Us For Availability

12

Side, Combo WPL 4452559 Contact Us For Availability

13

Door Handle (Black) WPL 4448854 Contact Us For Availability

13

Microswitch WPL 4451426 Contact Us For Availability

13

Insulation, Switch WPL 4375316 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

Scre WPL 4449040 Contact Us For Availability

Spring, Latch WPL 4451537 Contact Us For Availability

Fan Wheel WPL 4375322 Contact Us For Availability

Filler, Side (Right Side) WPL 4449083 Contact Us For Availability

Filler, Side (Left) WPL 4449086 Contact Us For Availability

Back, Control WPL 4452244 Contact Us For Availability

Duct, Air WPL 4375317 Contact Us For Availability

WP4450551 Whirlpool Top Cabinet Backorder WPL WP4450551 $52.43

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

Block, Side WPL 4375264 Contact Us For Availability

Handle, Door (White) WPL 4448855 Contact Us For Availability

Handle, Door (Biscuit) WPL 4448856 Contact Us For Availability

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

Cover Plate, Upper WPL 4375248 Contact Us For Availability

Glass, Outer (Black Model) WPL 4450382 Contact Us For Availability

Glass, Outer (White) WPL 4451220 Contact Us For Availability

Glass, Outer (Black Stainless) WPL 4452471 Contact Us For Availability

Glass, Outer (Biscuit) WPL 4452862 Contact Us For Availability

18

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $45.99

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Plate, Cover WPL 4452247 Contact Us For Availability

20

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

20

Suppressor WPL 4451934 Contact Us For Availability

20

Retainer, Glass-Clip WPL 4451668 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

21

Duct, Exhaust WPL 4451634 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

4455191 Whirlpool Oven Mounting Plate Backorder WPL 4455191 $8.69

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (Bl) WPL 4378944 Contact Us For Availability

Filler Kit (Wh) WPL 4378945 Contact Us For Availability

Filler Kit (Al) WPL 4378946 Contact Us For Availability

Grown (M/W) WPL 4450831 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Latch WPL 4452239 Contact Us For Availability

WPL 4455741 WPL 4455741 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

23

Spacer WPL 4451055 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Bracket, Handle WPL 4452331 Contact Us For Availability

24

Screw WPL 4451040 Contact Us For Availability

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $94.01

Retainer, Glass-Clip (Black & Biscuit Models) WPL 4450863 Contact Us For Availability

RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability

Retainer, Glass-Clip (Black Stainless) WPL 4451432 Contact Us For Availability

26

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $135.56

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

30

Thermostat WPL 4375279 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $33.38

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

34

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

35

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

35

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

36

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $47.54

36

WP4452396 Whirlpool Microwave Spring In Stock WPL WP4452396 $46.92

37

Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability

37

Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability

38

Inlet WPL 4375329 Contact Us For Availability

39

Strap, Door WPL 4375330 Contact Us For Availability

40

Fan Cap WPL 4375333 Contact Us For Availability

41

Fan Cap Bottom WPL 4375334 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

43

Isolation Plate WPL 4375337 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

45

Plate, Door WPL 4375339 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

47

Side Plate (Left) WPL 4375341 Contact Us For Availability

47

Side Plate (Right) WPL 4375342 Contact Us For Availability

48

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $43.52

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

49

Ring Assembly WPL 4375344 Contact Us For Availability

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

50

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

51

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

51

WPL 4455147 WPL 4455147 Contact Us For Availability

52

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $72.24

53

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

53

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $12.94

54

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $11.69

55

Cable WPL 4375350 Contact Us For Availability

56

Holder, Lamp WPL 4375351 Contact Us For Availability

57

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $60.64
