Model Whirlpool GS563LXSB0 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN – Common Parts & Diagrams

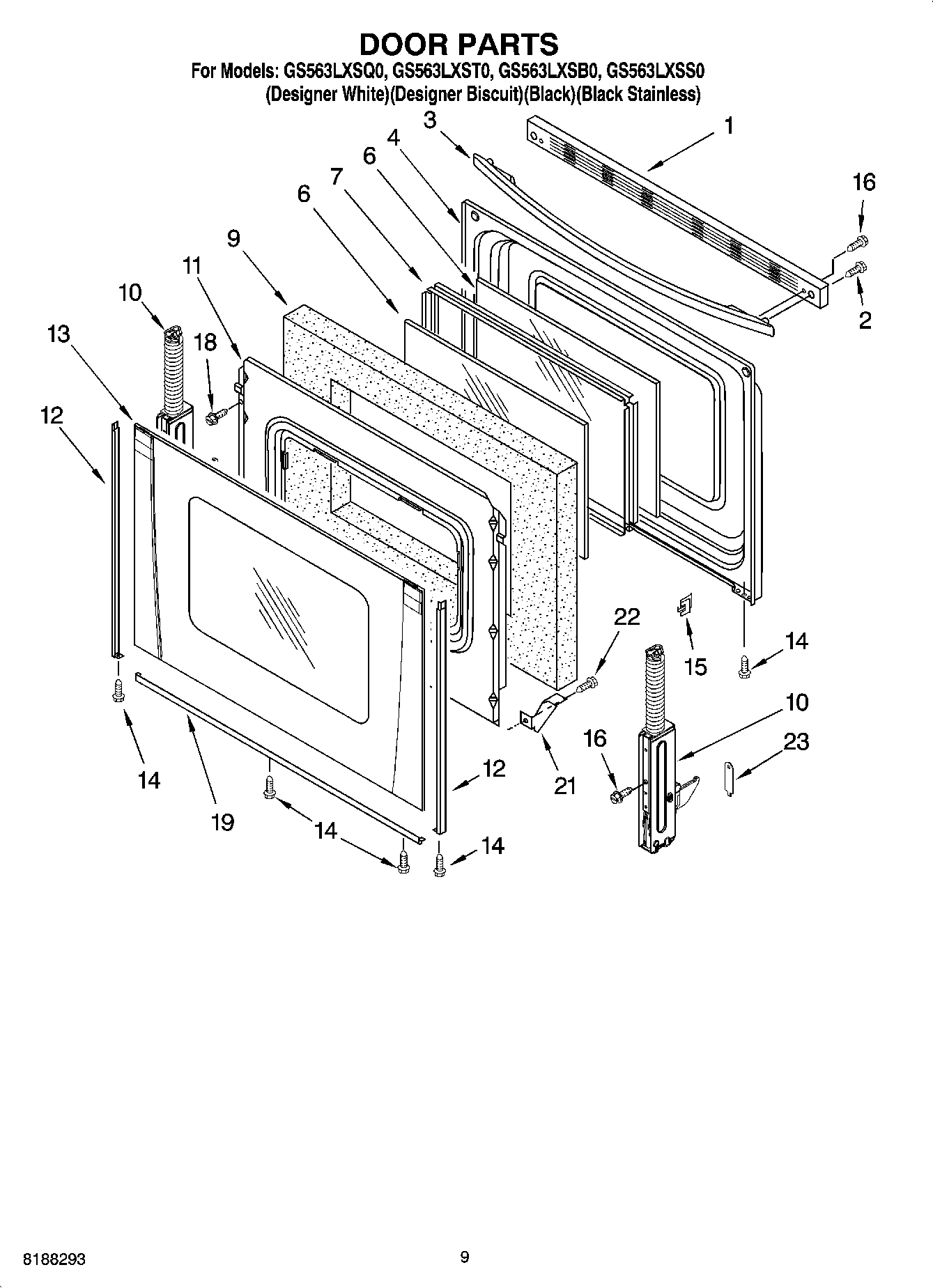

06 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
03 - MANIFOLD PARTS
05 - CONTROL PANEL PARTS
01 - COOKTOP PARTS
02 - DRAWER & BROILER PARTS
04 - CHASSIS PARTS
Common parts from model Whirlpool GS563LXSB0 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN
WPL 350930 WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
WPL 285006 WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 350956 WPL 350956 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
WPL 814381 WPL 814381 Contact Us For Availability
WPL 8524207 WPL 8524207 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 8523599 WPL 8523599 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
1
Endcap (Left Hand Biscuit) WPL W10009060 Contact Us For Availability
1
Anti-Tip Template (English/Spanish) WPL 9757142 Contact Us For Availability
1
French WPL 9757143 Contact Us For Availability
1
Safer Cooking Tips (French) WPL 9759133 Contact Us For Availability
1
SAFER COOKING TIPS (ENGLISH WPL 9762761 Contact Us For Availability
1
Tech Sheet (English) WPL 9762983 Contact Us For Availability
1
Instructions, Installation WPL 9762997 Contact Us For Availability
1
Guide, Use & Care WPL 9763002 Contact Us For Availability
1
Tech Sheet (French) WPL W10041630 Contact Us For Availability
2
Burner Base (Small (1)) WPL 8273701 Contact Us For Availability
2
Cap, Burner (LF, RF) (Black) WPL 3192488 Contact Us For Availability
2
Cap, Burner LR (Grey) WPL 9763244 Contact Us For Availability
2
Cap, Burner RR (Espresso) WPL 9763246 Contact Us For Availability
2
Cap, Burner LF - RF (Espresso) WPL 9763247 Contact Us For Availability
2
Cap, Burner LR (Black) WPL 3192487 Contact Us For Availability
2
Cap, Burner RR (Grey) WPL 9763242 Contact Us For Availability
2
Cap, Burner LF - RF (Grey) WPL 9763243 Contact Us For Availability
2
Cap, Burner LR (Espresso) WPL 9763248 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Rear) WPL 8273697 Contact Us For Availability
3
Panel, Control (White) WPL 9762585 Contact Us For Availability
3
Panel, Control (Black) WPL 9762586 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 9762587 Contact Us For Availability
3
Panel, Control (Unvsl Slvr fr SS) WPL 9762588 Contact Us For Availability
4
Bracket, Control (Black) WPL 9763262 Contact Us For Availability
4
Bracket, Control (Biscuit) WPL 9763252 Contact Us For Availability
4
Bracket, Control (White) WPL 9763256 Contact Us For Availability
4
Drawer, Storage WPL 9761031 Contact Us For Availability
6
Shield, Lower Heat WPL 8053505 Contact Us For Availability
6
Panel, Manifold (Black) WPL 8523855 Contact Us For Availability
6
Brkt, Manifold Mtg WPL 8523249 Contact Us For Availability
6
Panel, Manifold (Biscuit) WPL 8523856 Contact Us For Availability
6
Rivet, Push (2) (Almond) WPL 3196815 Contact Us For Availability
7
Knob, Control (2) (Black) WPL 8273279 Contact Us For Availability
7
Knob, Control (2) (Biscuit) WPL 8522626 Contact Us For Availability
7
Bracket, Support WPL 8523412 Contact Us For Availability
7
Panel, Drawer Front (Biscuit) WPL 8272502 Contact Us For Availability
8
Valve (Right Rear) WPL 8273004 Contact Us For Availability
8
Knob, Accusimmer (White) WPL 8522625 Contact Us For Availability
8
Cover, Upper WPL W10036170 Contact Us For Availability
8
Knob, Accusimmer (Black) WPL 8273280 Contact Us For Availability
8
Knob, Accusimmer (Biscuit) WPL 8522628 Contact Us For Availability
8
Frame, Front Not Serviced WPL ARI150547A Contact Us For Availability
9
Nut (4) WPL 8273060 Contact Us For Availability
9
Knob, Powerburner (Black) WPL 8273281 Contact Us For Availability
9
Shield, Heat WPL 8053910 Contact Us For Availability
9
Knob, Powerburner (Biscuit) WPL 8522627 Contact Us For Availability
9
Liner, Drawer WPL 9761033 Contact Us For Availability
10
Cover, Lower WPL 8273132 Contact Us For Availability
12
Control, Range WPL 9762969 Contact Us For Availability
12
Grate (Gray) WPL 9762228 Contact Us For Availability
12
Grate (Espresso) WPL 9762229 Contact Us For Availability
12
Grate (Black) WPL 9763283 Contact Us For Availability
13
Baffle, Burner WPL 8053967 Contact Us For Availability
13
Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability
13
Stnlss Mdl Only WPL ARI150545A Contact Us For Availability
14
Cnntr, Cable Flex WPL 9760080 Contact Us For Availability
14
Panel, Stainless WPL 9755797 Contact Us For Availability
14
Shield, Heat WPL 8053969 Contact Us For Availability
15
Handle, Drawer WPL 9762251 Contact Us For Availability
15
Nameplate WPL 9757613 Contact Us For Availability
15
Shield, Lower WPL 8053968 Contact Us For Availability
16
Support, Glass WPL 9757490 Contact Us For Availability
17
Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability
17
Module, Light WPL 9762589 Contact Us For Availability
18
Fitting, Broiler WPL 3186489 Contact Us For Availability
18
Seal, Oven Flange WPL W10008830 Contact Us For Availability
18
Brkt-Mntg, Console WPL 9762855 Contact Us For Availability
20
Bracket, DSI WPL 9762253 Contact Us For Availability
20
Back, Main WPL 9757098 Contact Us For Availability
22
Valv-Soln/Shtoff WPL 9758382 Contact Us For Availability
22
Brace, Main Back WPL 8053971 Contact Us For Availability
23
Screw WPL 3196265 Contact Us For Availability
23
Retainer, Insul. (Right Hand) WPL 9761448 Contact Us For Availability
23
Retainer, Insul. (Left Hand) WPL 9761449 Contact Us For Availability
24
Clip, Panel (6) WPL 3196576 Contact Us For Availability
26
Rod - Dr Switch WPL 9757239 Contact Us For Availability
36
Button, Plug WPL 3196439 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
39
Screw (White) WPL 3196166 Contact Us For Availability
39
Screw (Almond) WPL 3196167 Contact Us For Availability
41
SUPPRESSOR WPL 9756911 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
43
Insulation WPL 9761490 Contact Us For Availability
46
Clip - Mounting WPL 3195813 Contact Us For Availability
47
Insulation WPL ARI150548A Contact Us For Availability
× ![]()
