Model Electrolux GRT21TRCW2 REFRIGERATOR – Common Parts & Diagrams

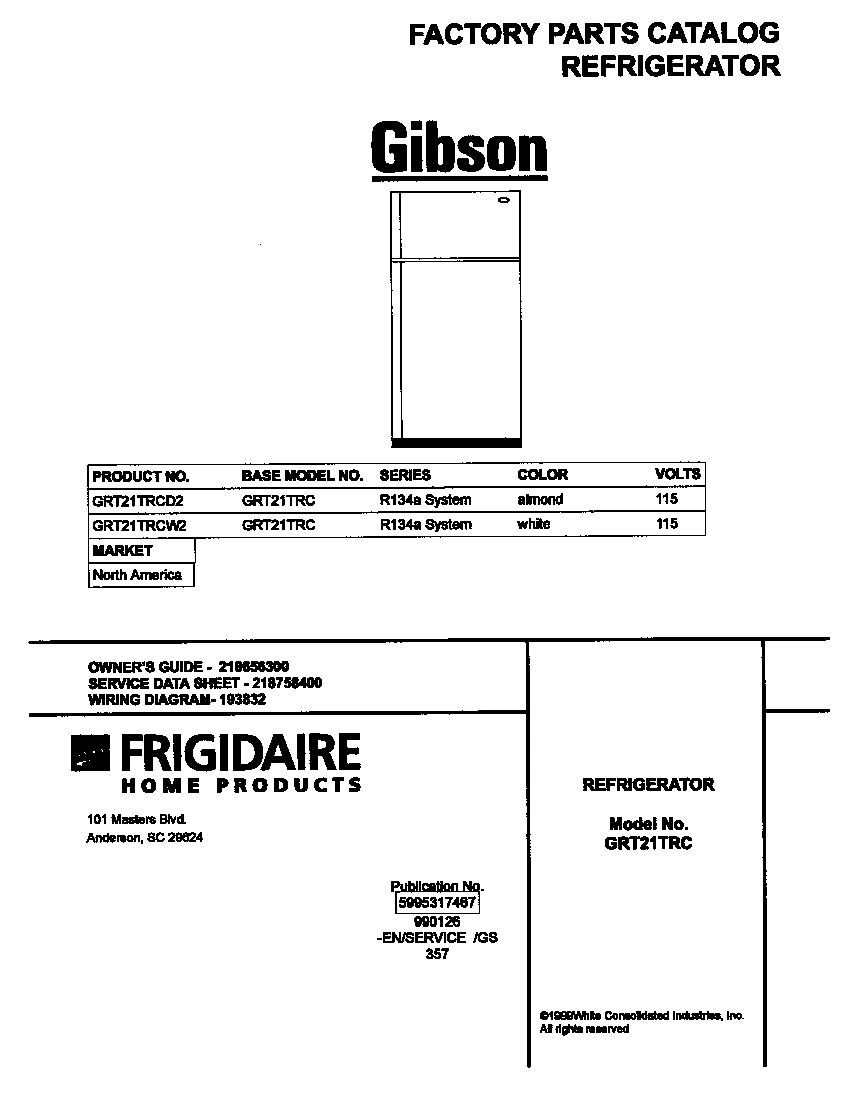

01 - COVER

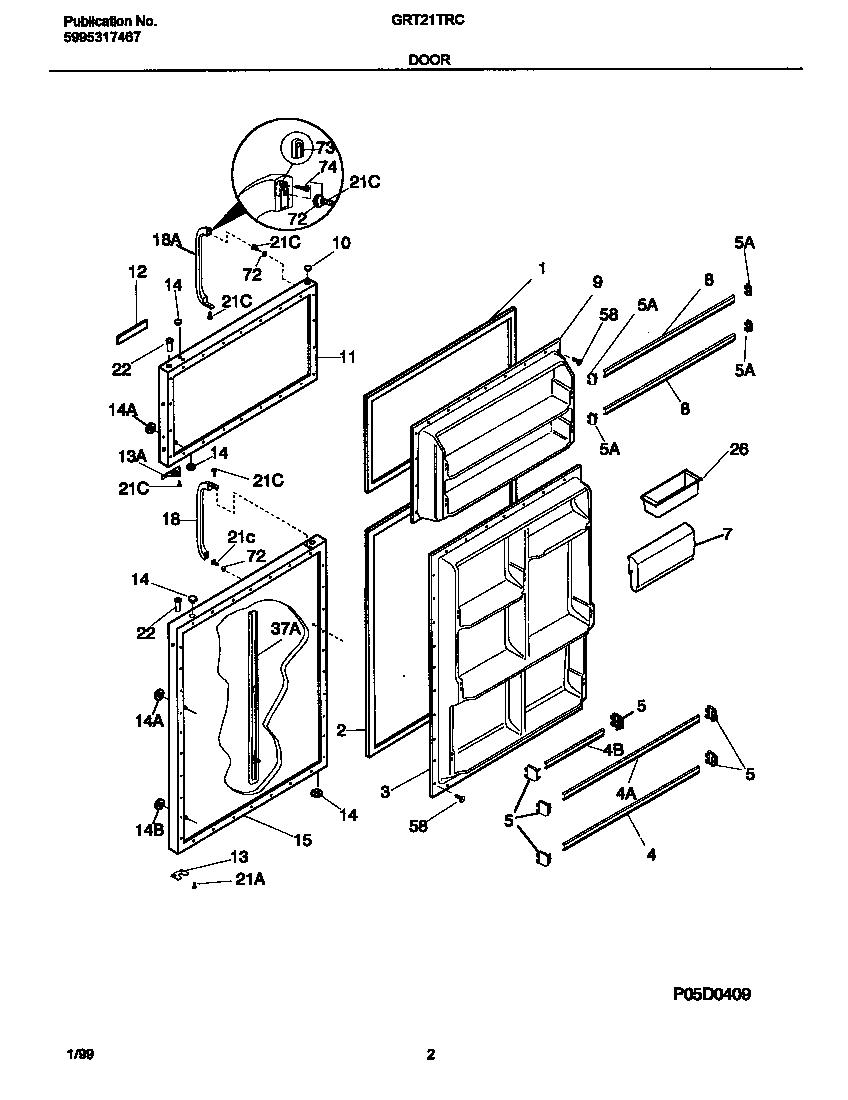

02 - DOOR

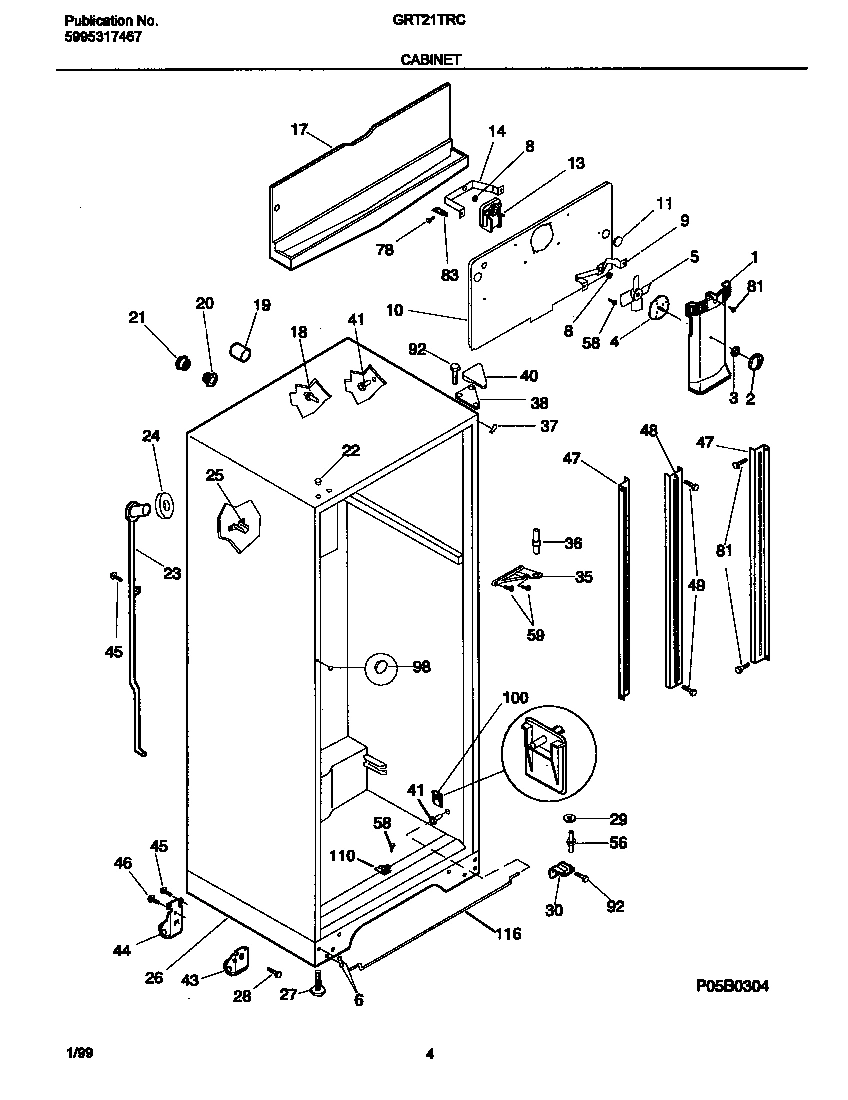

03 - CABINET

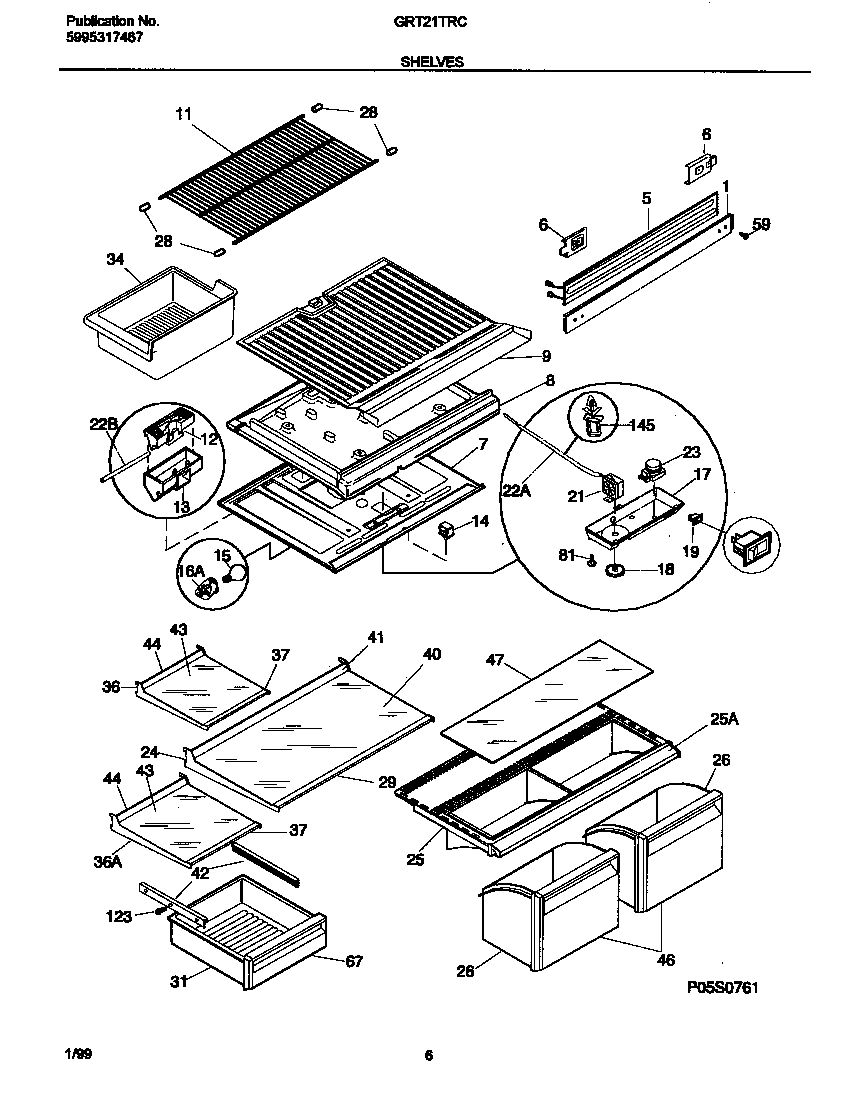

04 - SHELVES

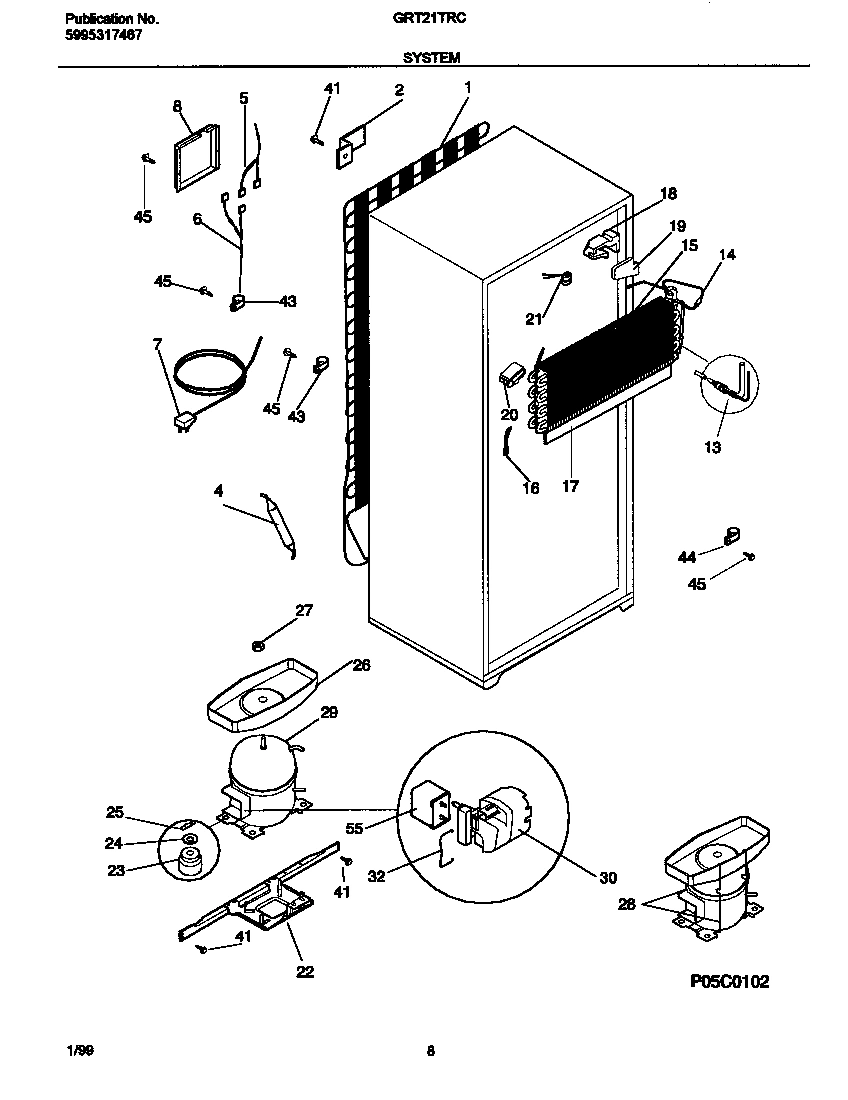

05 - SYSTEM

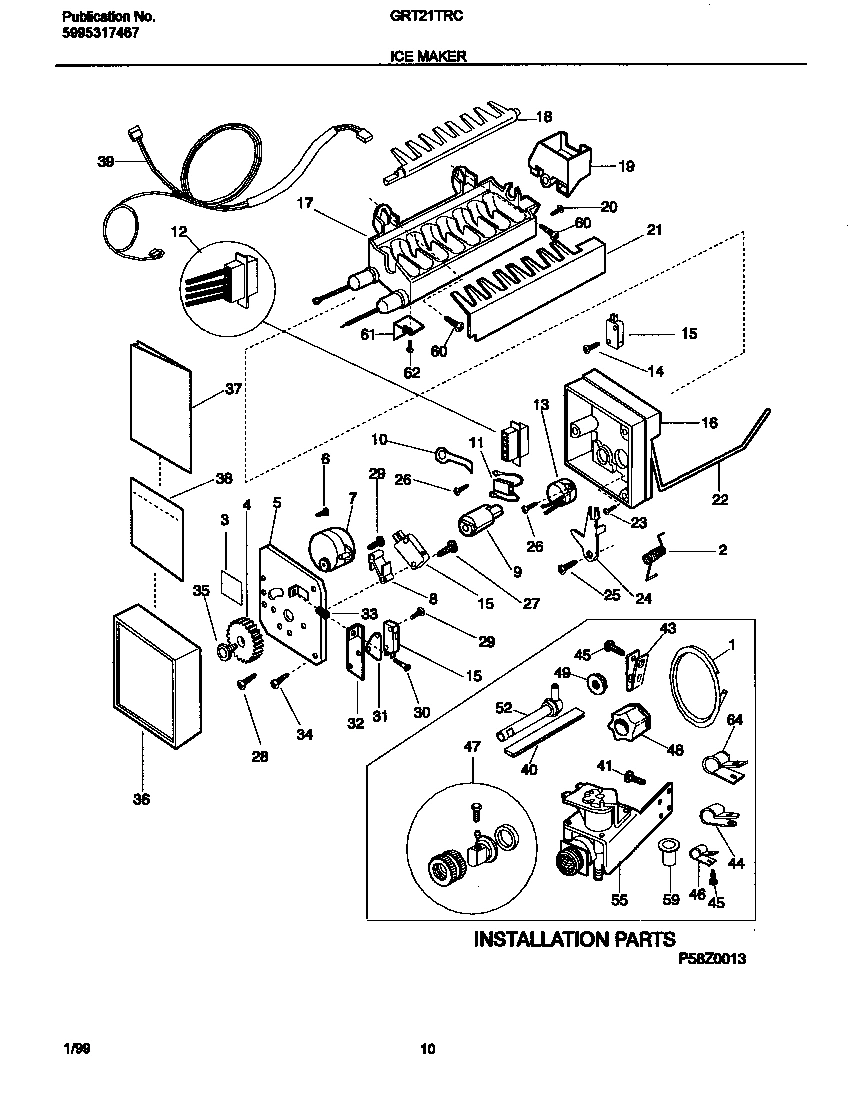

06 - ICEMAKER

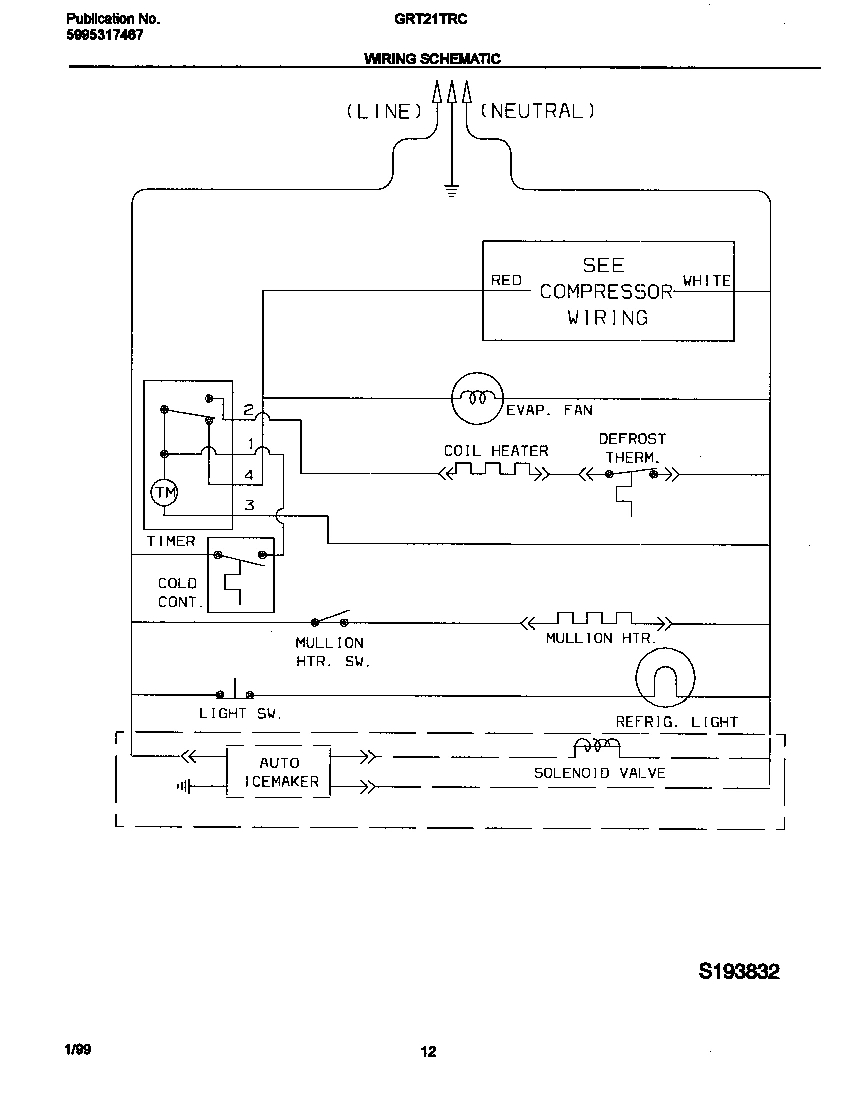

07 - WIRING DIAGRAM
08 - WIRING DIAGRAM
Common parts from model Electrolux GRT21TRCW2 REFRIGERATOR
*95321
WCI 5303015102 WCI 5303015102 Contact Us For Availability
*95322
WCI 08000185 WCI 08000185 Contact Us For Availability
*95326
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*95342
SPACER-SHELF WCI 218159700 Contact Us For Availability
*95345
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*95346
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*95349
WCI 218755000 WCI 218755000 Contact Us For Availability
*95351
WCI 5304406039 WCI 5304406039 Contact Us For Availability
*95352
WCI 5304406040 WCI 5304406040 Contact Us For Availability
*95353
SPACER-TUBE,5/8 OD X .81``LG WCI 5304406721 Contact Us For Availability
*95354
WCI 5304406722 WCI 5304406722 Contact Us For Availability
*95355
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*95356
SCREW,HEX HD SER WSHR ,8-18 X 3/8 WCI 218754500 Contact Us For Availability
*95358
WCI 218905701 WCI 218905701 Contact Us For Availability
*95359
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 218651900 WCI 218651900 Contact Us For Availability
1
WCI 218657100 WCI 218657100 Contact Us For Availability
2
WCI 218730609 WCI 218730609 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
5
WCI 218878600 WCI 218878600 Contact Us For Availability
5
WCI 218781002 WCI 218781002 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 218845602 WCI 218845602 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
WCI 218866101 WCI 218866101 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218866000 WCI 218866000 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 218865900 WCI 218865900 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 5303288243 WCI 5303288243 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
12B
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
13
WCI 218878801 WCI 218878801 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
WCI 215076405 WCI 215076405 Contact Us For Availability
14
PLUG-BUTTON, WHITE, REFR DOOR FRONT, LOWER WCI 218074001 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
WCI 218765400 WCI 218765400 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
18
WCI 218397501 WCI 218397501 Contact Us For Availability
18
WCI 218397504 WCI 218397504 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218773700 WCI 218773700 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
SCREW,8 OVAL HEAD ,10-32CA X .625 ,CROSS RECE WCI 218251900 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919117 WCI 215919117 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 215363203 WCI 215363203 Contact Us For Availability
25
TRIM - CRISPER COVER WCI 5303299975 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
WCI 215363301 WCI 215363301 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW&SPCR/PLATE,4-40 X 1 WCI 3206338 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR ,FRZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215919450 WCI 215919450 Contact Us For Availability
29
SCREW-MTR&SW/PLATE,4-40 X 3/4 WCI 3206340 Contact Us For Availability
30
WCI 218721101 WCI 218721101 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW-MTG PLATE/SPRT,8-18 X 7/16 WCI 3206345 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 215919115 WCI 215919115 Contact Us For Availability
36
WCI 215919121 WCI 215919121 Contact Us For Availability
36
COVER-ICE MAKER,COMPLETE WCI 3206347 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
37
WCI 215919451 WCI 215919451 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
37A
WCI 215782300 WCI 215782300 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
HARNESS-WIRING, ICE MAKER WCI 3206358 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
40
WCI 218390504 WCI 218390504 Contact Us For Availability
41
WCI 215919805 WCI 215919805 Contact Us For Availability
43
WCI 218390505 WCI 218390505 Contact Us For Availability
44
TRIM-GLASS SHELF,13.07`` ,REAR WCI 215919811 Contact Us For Availability
46
WCI 215363407 WCI 215363407 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
WCI 218390506 WCI 218390506 Contact Us For Availability
48
WCI 5303292395 WCI 5303292395 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
52
WCI 218462000 WCI 218462000 Contact Us For Availability
55
WCI 218720300 WCI 218720300 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
67
WCI 5303310724 WCI 5303310724 Contact Us For Availability
72
WCI 218397000 WCI 218397000 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
110
WCI 215363501 WCI 215363501 Contact Us For Availability
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
