Model Electrolux GRT21PRHW4 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOORS

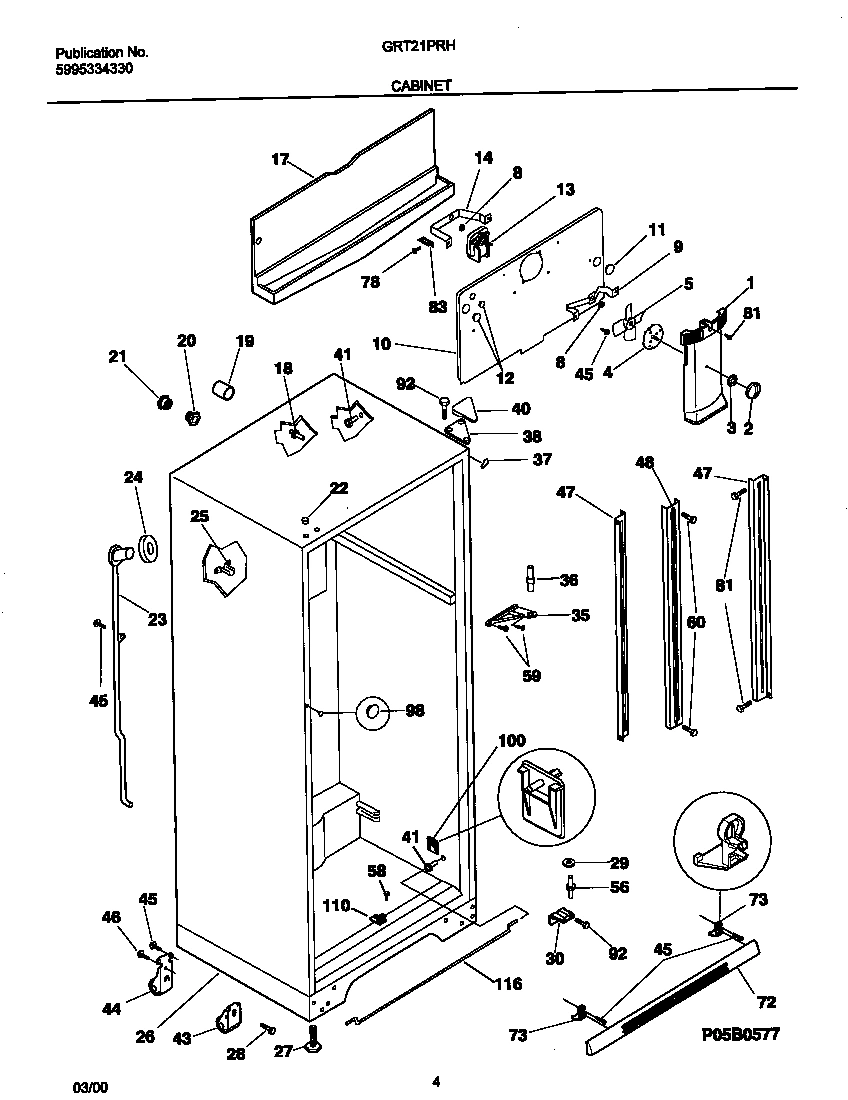

03 - CABINET

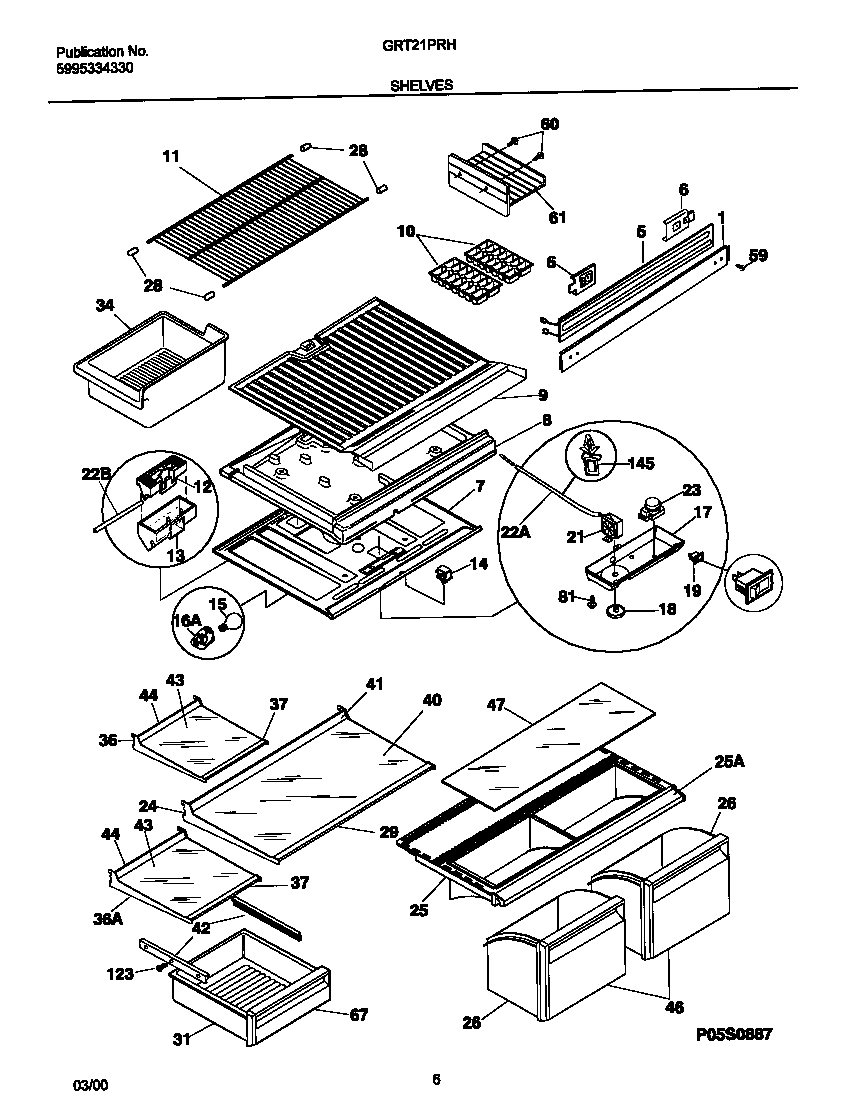

04 - SHELVES

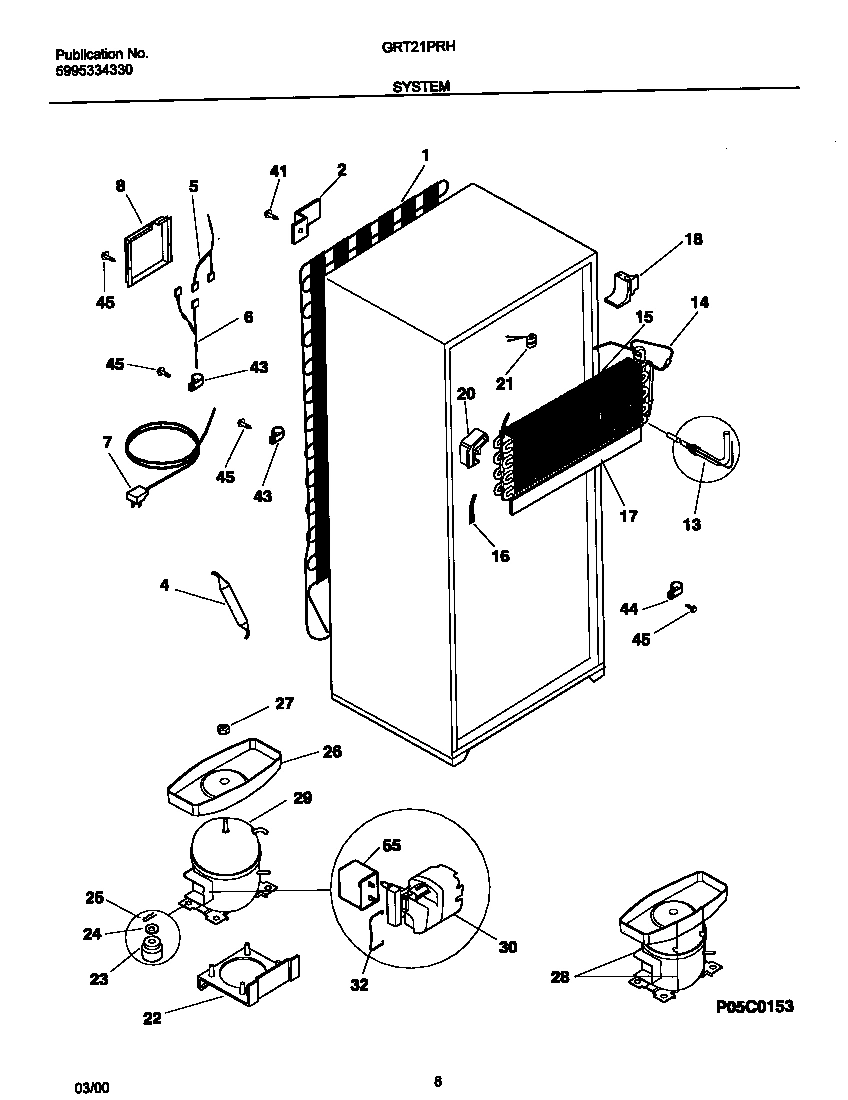

05 - SYSTEM
06 - WIRING DIAGRAM

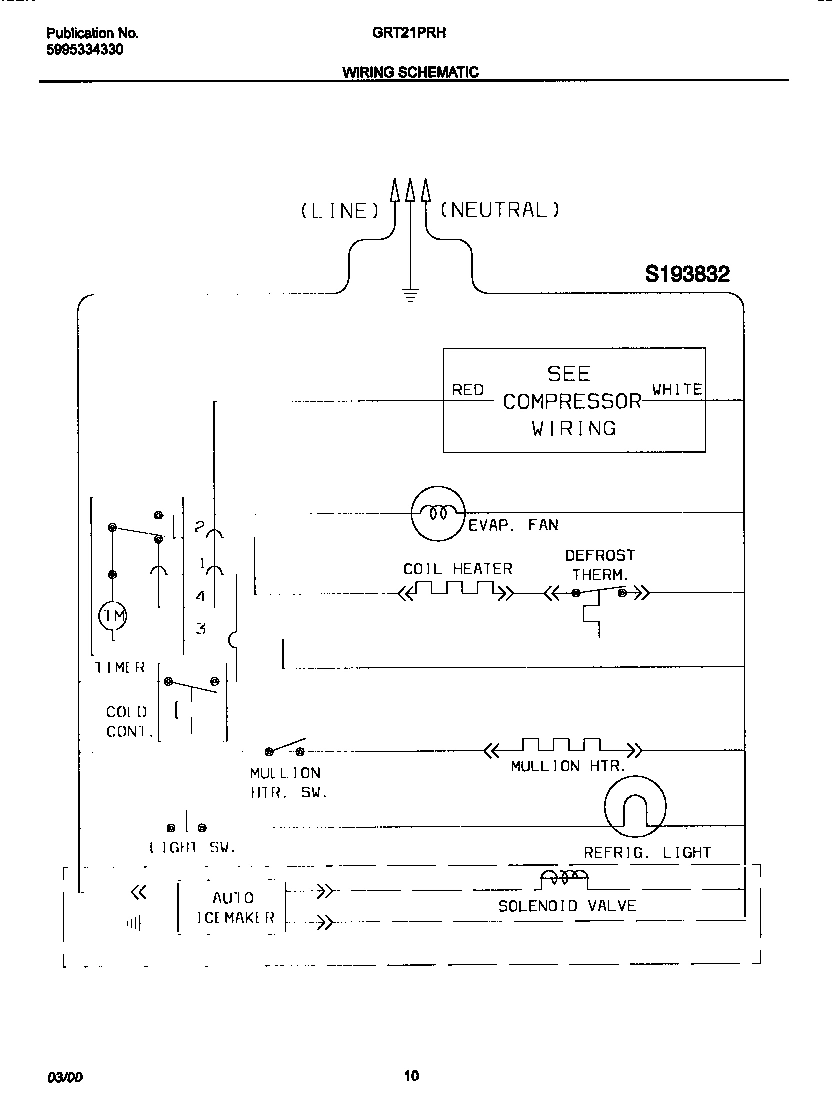

07 - WIRING DIAGRAM
Common parts from model Electrolux GRT21PRHW4 REFRIGERATOR
*52245
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*52253
PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability
*52256
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*52257
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*52260
WCI 5304406039 WCI 5304406039 Contact Us For Availability
*52261
WCI 5304406040 WCI 5304406040 Contact Us For Availability
*52262
WCI 5304406721 WCI 5304406721 Contact Us For Availability
*52263
WCI 5304406722 WCI 5304406722 Contact Us For Availability
*52264
Washer,ext tooth lock ,No.10 ,grounding WCI 5308009617 Contact Us For Availability
*52266
WCI 218905701 WCI 218905701 Contact Us For Availability
*52267
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 218651900 WCI 218651900 Contact Us For Availability
1
WCI 218657100 WCI 218657100 Contact Us For Availability
2
WCI 218730609 WCI 218730609 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218781002 WCI 218781002 Contact Us For Availability
5
WIRING HARNESS,CONTROL/DIVIDER WCI 218878600 Contact Us For Availability
6
WCI 218845602 WCI 218845602 Contact Us For Availability
6
WIRING HARNESS,COMPRESSOR WCI 215257001 Contact Us For Availability
7
WCI 218866101 WCI 218866101 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218909706 No Longer Available
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 218865900 WCI 218865900 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
WCI 5303288243 WCI 5303288243 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218878801 WCI 218878801 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
WCI 215076406 WCI 215076406 Contact Us For Availability
14A
PLUG-BUTTON,WHITE ,REFR DOOR FRONT ,1 ,LOWER WCI 218074001 Contact Us For Availability
15
WCI 218765400 WCI 218765400 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5304414816 WCI 5304414816 Contact Us For Availability
18
WCI 218397501 WCI 218397501 Contact Us For Availability
18
WCI 218397504 WCI 218397504 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218773700 WCI 218773700 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919117 WCI 215919117 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 215363203 WCI 215363203 Contact Us For Availability
25
WCI 5303918154 WCI 5303918154 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 215363301 WCI 215363301 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR ,FRZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 215919450 WCI 215919450 Contact Us For Availability
29B
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
30
WCI 218721108 No Longer Available
36
WCI 215919115 WCI 215919115 Contact Us For Availability
36
WCI 215919173 WCI 215919173 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
37
WCI 215919451 WCI 215919451 Contact Us For Availability
37A
WCI 215782300 No Longer Available
40
WCI 3206101 WCI 3206101 Contact Us For Availability
40
WCI 218390504 WCI 218390504 Contact Us For Availability
41
WCI 215919805 WCI 215919805 Contact Us For Availability
43
WCI 218390505 WCI 218390505 Contact Us For Availability
44
TRIM-GLASS SHELF,13.07`` ,REAR WCI 215919811 Contact Us For Availability
46
WCI 215363407 WCI 215363407 Contact Us For Availability
47
WCI 218390506 WCI 218390506 Contact Us For Availability
48
WCI 5303292395 WCI 5303292395 Contact Us For Availability
61
WCI 215781501 WCI 215781501 Contact Us For Availability
67
WCI 5303310724 WCI 5303310724 Contact Us For Availability
72
WCI 218397000 No Longer Available
73
WCI 218896704 WCI 218896704 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
WCI 215099701 WCI 215099701 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
110
WCI 215363501 WCI 215363501 Contact Us For Availability
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
