Model Electrolux GRT21PRCD3 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

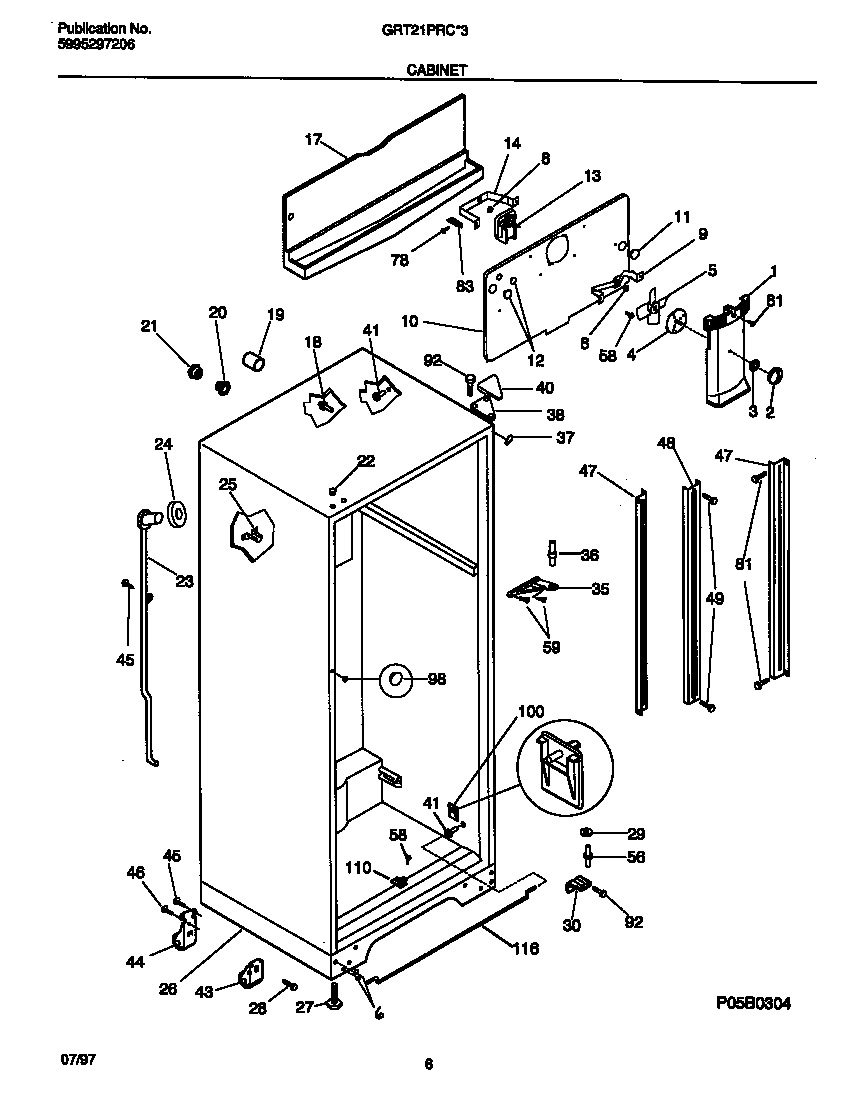

03 - CABINET

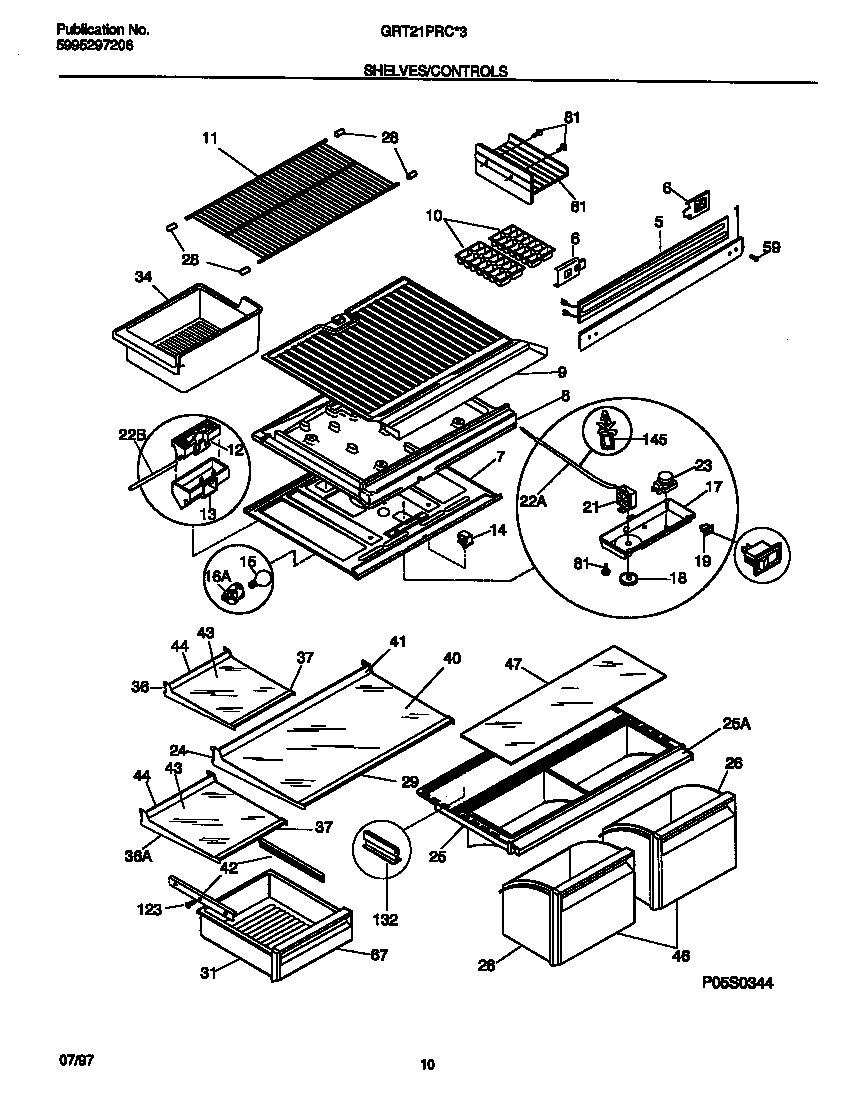

04 - SHELVES/CONTROLS

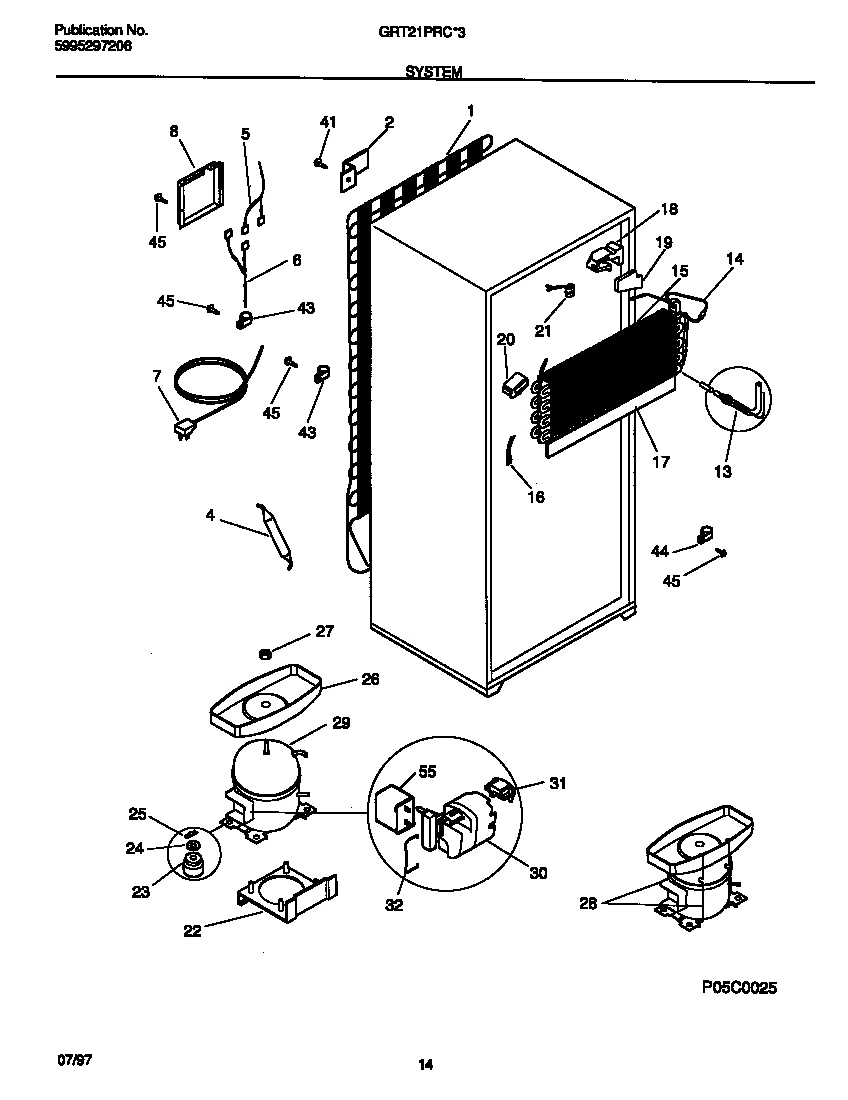

05 - SYSTEM
06 - WIRING DIAGRAM
Common parts from model Electrolux GRT21PRCD3 REFRIGERATOR
*22120
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*22122
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*22126
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*22127
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 218651901 WCI 218651901 Contact Us For Availability
1A
WCI 218657100 WCI 218657100 Contact Us For Availability
2
WCI 218730610 No Longer Available
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218781002 WCI 218781002 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 218767600 Contact Us For Availability
6
PLUG-BUTTON, ALMOND WCI 5303001389 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 218738800 WCI 218738800 Contact Us For Availability
7B
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 218781400 WCI 218781400 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
11A
WCI 5303288243 WCI 5303288243 Contact Us For Availability
11B
SPACER-SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
12A
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 215076402 WCI 215076402 Contact Us For Availability
15
WCI 218765400 WCI 218765400 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17A
WCI 5303321455 WCI 5303321455 Contact Us For Availability
17B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218773700 WCI 218773700 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32CA X .625, CROSS WCI 218251900 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919117 WCI 215919117 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 215363203 WCI 215363203 Contact Us For Availability
25
TRIM - CRISPER COVER WCI 5303299975 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 215363301 WCI 215363301 Contact Us For Availability
26A
WCI 215372500 WCI 215372500 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 215919450 WCI 215919450 Contact Us For Availability
29B
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
30
STARTER-PTC WCI 218721100 Contact Us For Availability
30C
WCI 218605300 WCI 218605300 Contact Us For Availability
31
WCI 5303299560 WCI 5303299560 Contact Us For Availability
35
WCI 218220102 WCI 218220102 Contact Us For Availability
36
WCI 215919115 WCI 215919115 Contact Us For Availability
36
FRAME-PAN MTG SHELF, CANTILEVER, HALF WIDTH, WCI 215919121 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
37
WCI 215919451 WCI 215919451 Contact Us For Availability
37B
LOCK-HANDLE TRIM, SNAP-IN (NOT ILLUSTRATED) WCI 215782300 No Longer Available
38A
WCI 3206100 WCI 3206100 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRAT WCI 5308012296 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
40
WCI 218390504 WCI 218390504 Contact Us For Availability
41
WCI 215919805 WCI 215919805 Contact Us For Availability
43
WCI 218703001 WCI 218703001 Contact Us For Availability
43
WCI 218390505 WCI 218390505 Contact Us For Availability
44
WCI 218713600 WCI 218713600 Contact Us For Availability
44
TRIM-GLASS SHELF,13.07`` ,REAR WCI 215919811 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 0. WCI 5308009762 Contact Us For Availability
46
WCI 215363407 WCI 215363407 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
47
WCI 218390506 WCI 218390506 Contact Us For Availability
48
WCI 5303292395 WCI 5303292395 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
61
WCI 215781501 WCI 215781501 Contact Us For Availability
67
WCI 5303310724 WCI 5303310724 Contact Us For Availability
72
WCI 218397000 No Longer Available
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
110
WCI 215363501 WCI 215363501 Contact Us For Availability
116
WCI 215426703 WCI 215426703 Contact Us For Availability
132
WCI 215426600 WCI 215426600 Contact Us For Availability
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
