Model Gibson GRT21LRGD2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

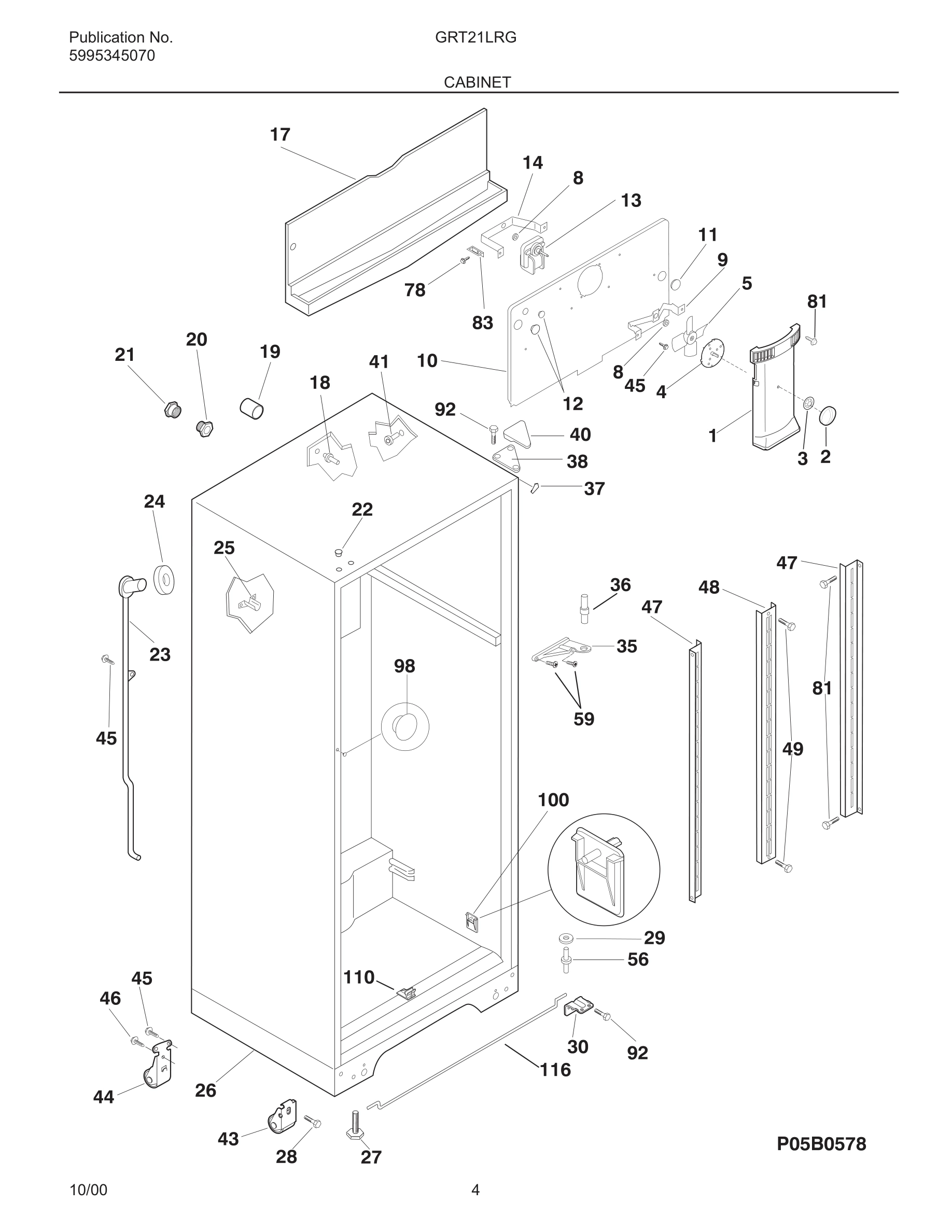

05 - CABINET

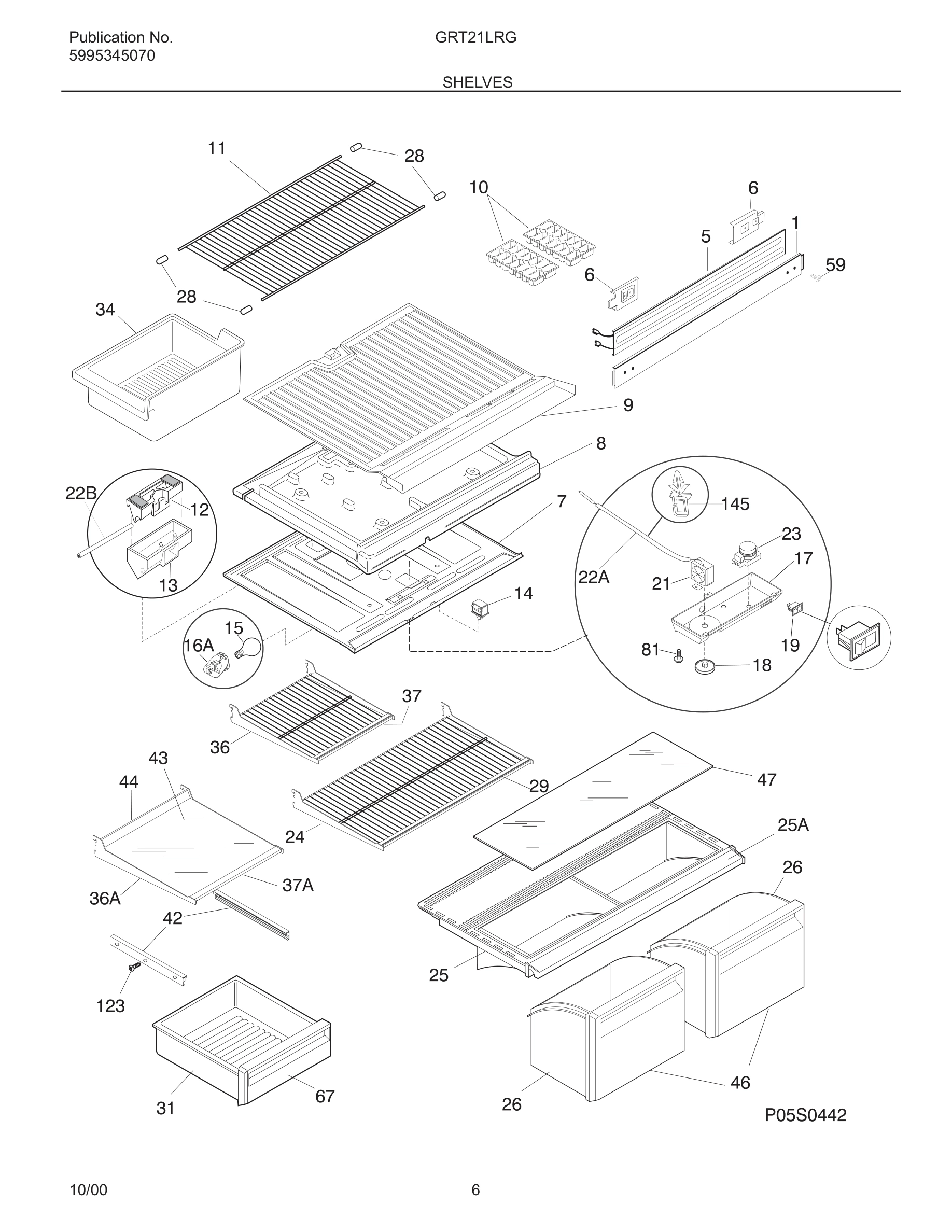

07 - SHELVES

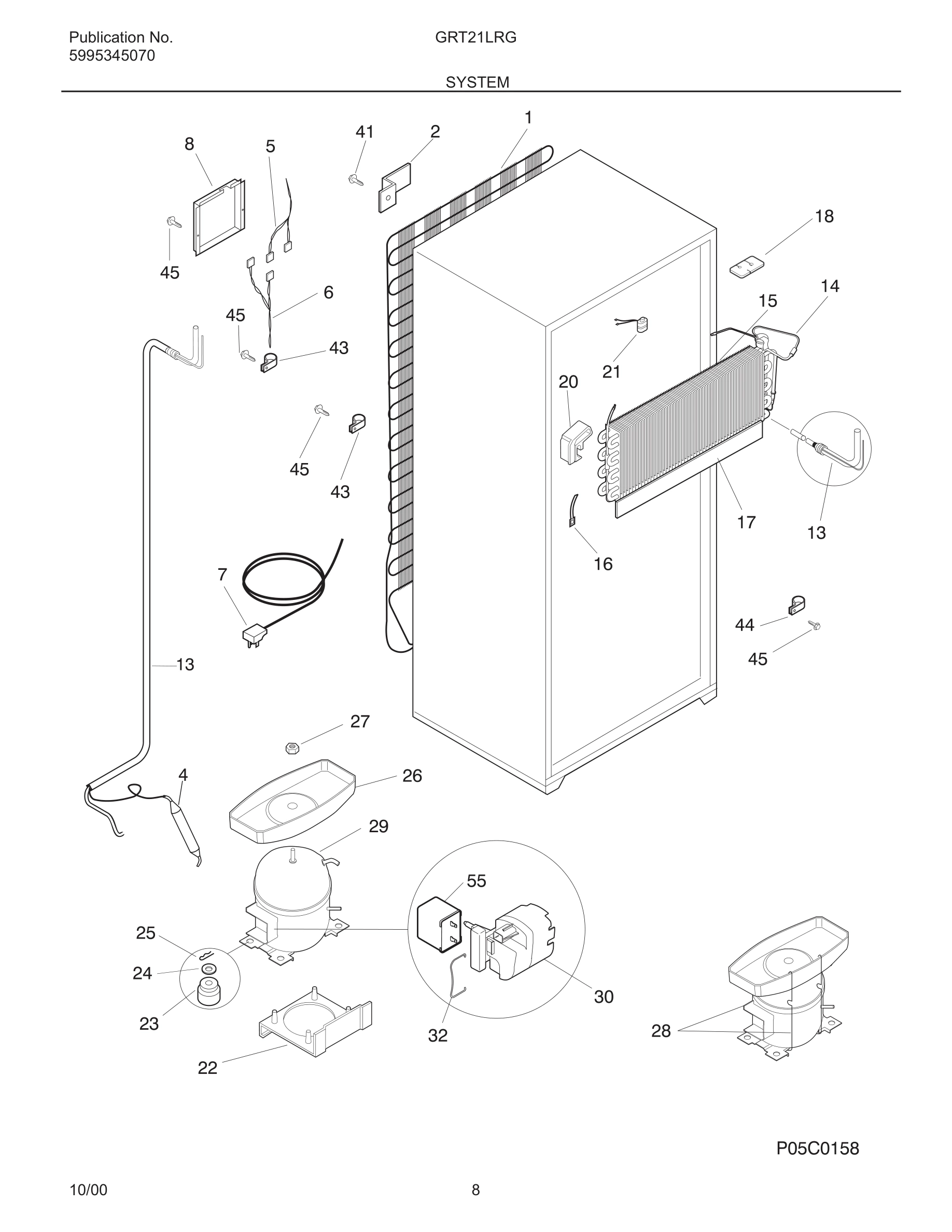

09 - SYSTEM

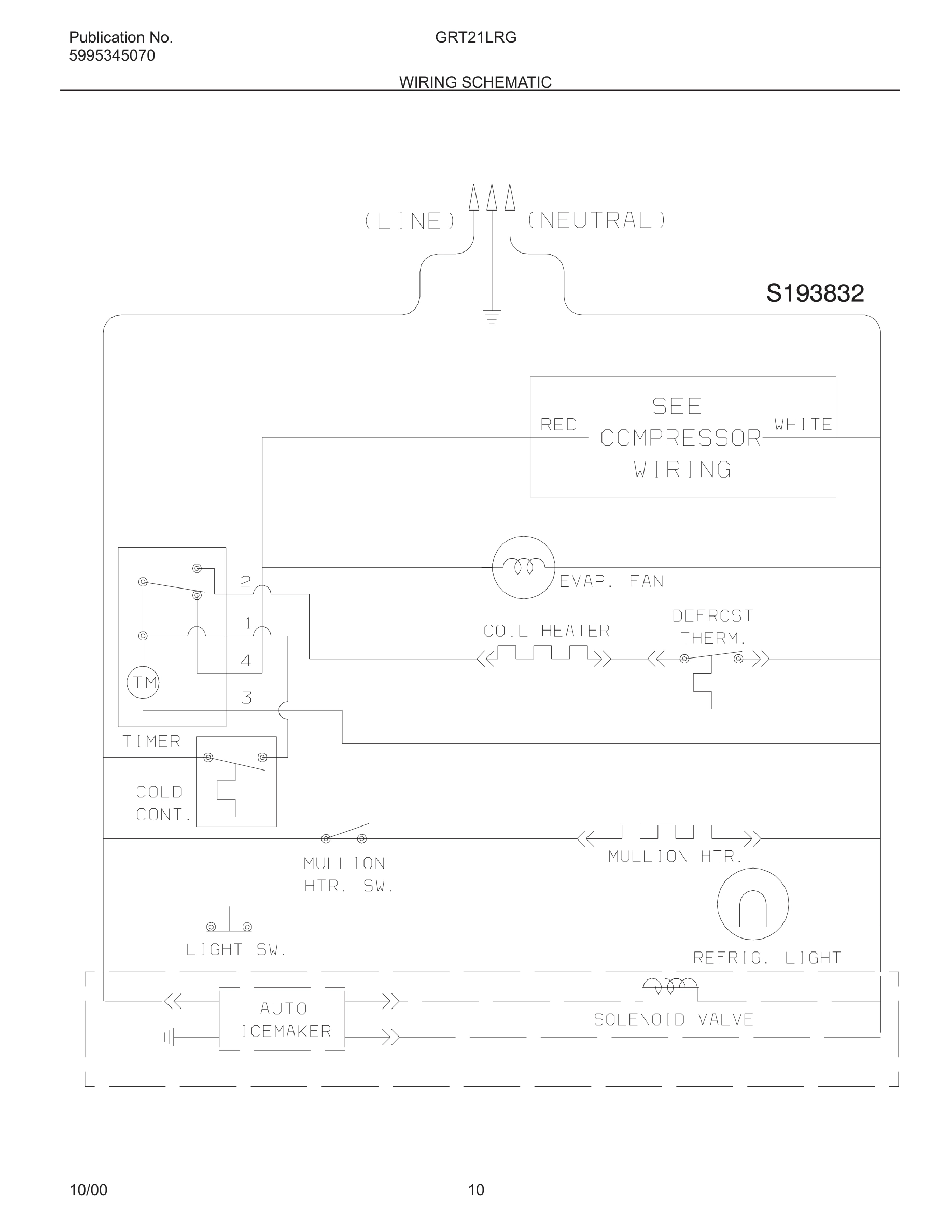

10 - WIRING SCHEMATIC
11 - WIRING DIAGRAM
Common parts from model Gibson GRT21LRGD2 REFRIGERATOR
*
Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability
*
Cover-sound insul, pressboard/foam, machine c WCI 218905701 Contact Us For Availability
*
Plug-button,cab liner holes WCI 5308016571 Contact Us For Availability
*#
Hot Tube Repair Kit,Service WCI 5300189383 Contact Us For Availability
1
Mullion,almond WCI 218651901 Contact Us For Availability
1#
Condenser WCI 218657100 Contact Us For Availability
1*
Spacer-tube,5/8 OD x 3" lg WCI 5304406039 Contact Us For Availability
1*
Spacer-tube,5/8 OD x 12" lg WCI 5304406040 Contact Us For Availability
1*
Spacer-cond tube,round ,5/8 OD x .81"lg WCI 5304406721 Contact Us For Availability
1*
Spacer-tube,5/8 OD x 2" lg WCI 5304406722 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2#
Gasket-refr door,white ,magnetic WCI 218730609 No Longer Available
2*
Washer,ext tooth lock ,#10 ,grounding WCI 5308009617 Contact Us For Availability
5#
Heater-mullion WCI 218781002 Contact Us For Availability
5#
Wiring Harness,control/divider WCI 218878600 Contact Us For Availability
6
Tapping Plate,mullion mtg ,(2) WCI 218845602 Contact Us For Availability
6#
Wiring Harness,compressor WCI 215257001 Contact Us For Availability
7
Top Panel-refr WCI 218866101 Contact Us For Availability
7#
Cord-electric power WCI 5316254901 Contact Us For Availability
8
Divider,styrofoam ,w/foil tape WCI 218909706 No Longer Available
8
Cover-wiring WCI 5303001197 Contact Us For Availability
9
Bottom Panel-frzr WCI 218865900 Contact Us For Availability
10
Plug-button,almond ,hinge brg hole WCI 5303001308 Contact Us For Availability
11
Shelf-freezer, fixed/flat, full width, wire WCI 5303288243 Contact Us For Availability
12
Deflector-air WCI 218730000 Contact Us For Availability
12
Plug-harness hole,round WCI 215079000 Contact Us For Availability
12
Plug-wtr inlet tube,round WCI 215079100 Contact Us For Availability
13
Motor-evap fan WCI 218878801 Contact Us For Availability
13
Cover-air deflector WCI 218631001 Contact Us For Availability
13#
Heat Exchanger,suction line WCI 215076408 Contact Us For Availability
15#
Evaporator,bundy WCI 218955701 Contact Us For Availability
17
Control Box WCI 5304414816 Contact Us For Availability
17
Insulator-evap,plastic WCI 218973901 Contact Us For Availability
17*
Nut-anchor WCI 5308016567 Contact Us For Availability
18
Knob-temp control WCI 5303311079 Contact Us For Availability
18
Block-evap coil,styrofoam insul ,RH WCI 218998101 Contact Us For Availability
19#
Switch-energy saver,rocker type WCI 5303286905 Contact Us For Availability
20
Insulation Block,LH WCI 218821201 Contact Us For Availability
21*
Screw-control mtg,pan hd ,6-32 x 0.250 WCI 5303001260 Contact Us For Availability
22
Bearing-hinge WCI 218519300 Contact Us For Availability
22
Plug-button,almond ,upr hinge holes WCI 215774911 Contact Us For Availability
22
Plate-compr mtg WCI 5308013663 Contact Us For Availability
22B
Tube, PVC, white, @ air deflector, insulator WCI 218731104 Contact Us For Availability
23
Tube-drain,w/seal ring WCI 5303210377 Contact Us For Availability
24
Seal Ring,drain tube WCI 5303207353 Contact Us For Availability
24
Shelf,cantilever ,full width ,wire WCI 5303300042 Contact Us For Availability
24
Washer-compr mtg WCI 5308003633 Contact Us For Availability
25
Cover-crisper pan,less insert WCI 215363203 Contact Us For Availability
25
Clip-compressor mtg WCI 5308003596 Contact Us For Availability
25A
Trim-crisper cover WCI 5303299975 Contact Us For Availability
26
Pan-crisper,tilt-out WCI 215363301 Contact Us For Availability
26
Pan-defrost drain WCI 215372500 Contact Us For Availability
27
Screw-leveling WCI 5303212922 Contact Us For Availability
27
Nut-lock,1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
End Cap-shelf,protector ,frzr shelf WCI 3201150 No Longer Available
28
Pan Retainer Kit,Service WCI 5303916001 Contact Us For Availability
29
Trim-shelf,26.80" ,front WCI 5303284483 Contact Us For Availability
30#
Starter-PTC WCI 218721108 No Longer Available
35
Bracket-ctr hinge,almond WCI 218998902 Contact Us For Availability
36
Shelf,cantilever ,half width ,wire WCI 5303310497 Contact Us For Availability
36A
Frame-half shelf,cantilever WCI 215919173 Contact Us For Availability
37
Trim-cabinet corner,almond WCI 5303321082 Contact Us For Availability
37
Trim-shelf,13.06" ,front WCI 5303284484 Contact Us For Availability
37A
Trim-half shelf,front WCI 215919411 Contact Us For Availability
43
Glass-shelf,13.03" x 14.57" WCI 218390505 Contact Us For Availability
43*
Washer,.34 x .62 x .02 ,nylon WCI 5308011326 Contact Us For Availability
44
Trim-glass shelf,13.07" ,rear WCI 215919811 Contact Us For Availability
44
Clamp,nylon ,1.00 OD tube WCI 218974101 Contact Us For Availability
45*
Screw,hex hd ser wshr ,8-18 x 0.375 WCI 218754500 Contact Us For Availability
46
Front-crisper pan WCI 215363406 Contact Us For Availability
46
Bolt-roller mtg, hex wshr hd, 1/4-28 x 0.500, WCI 5308009762 Contact Us For Availability
47
Channel-shelf mtg,side ,(2) WCI 218233300 Contact Us For Availability
47
Insert-pan cover,glass WCI 218390506 Contact Us For Availability
48
Channel-shelf mtg,center WCI 5303292395 Contact Us For Availability
67
Front-meat pan WCI 5303307363 Contact Us For Availability
72
Button-handle mtg,dovetail WCI 218397000 No Longer Available
83
Bracket-connector WCI 5308000107 Contact Us For Availability
98
Plug-button,almond WCI 215099711 Contact Us For Availability
100
Support-pan cover WCI 5303288973 No Longer Available
110
Support-crisper rod WCI 215363501 Contact Us For Availability
116
Rod-crisper support WCI 215426703 Contact Us For Availability
145
Clip,plastic ,temp sensor mtg ,snap-in WCI 218660800 Contact Us For Availability
× ![]()
