Model Electrolux GRT18RRCW2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

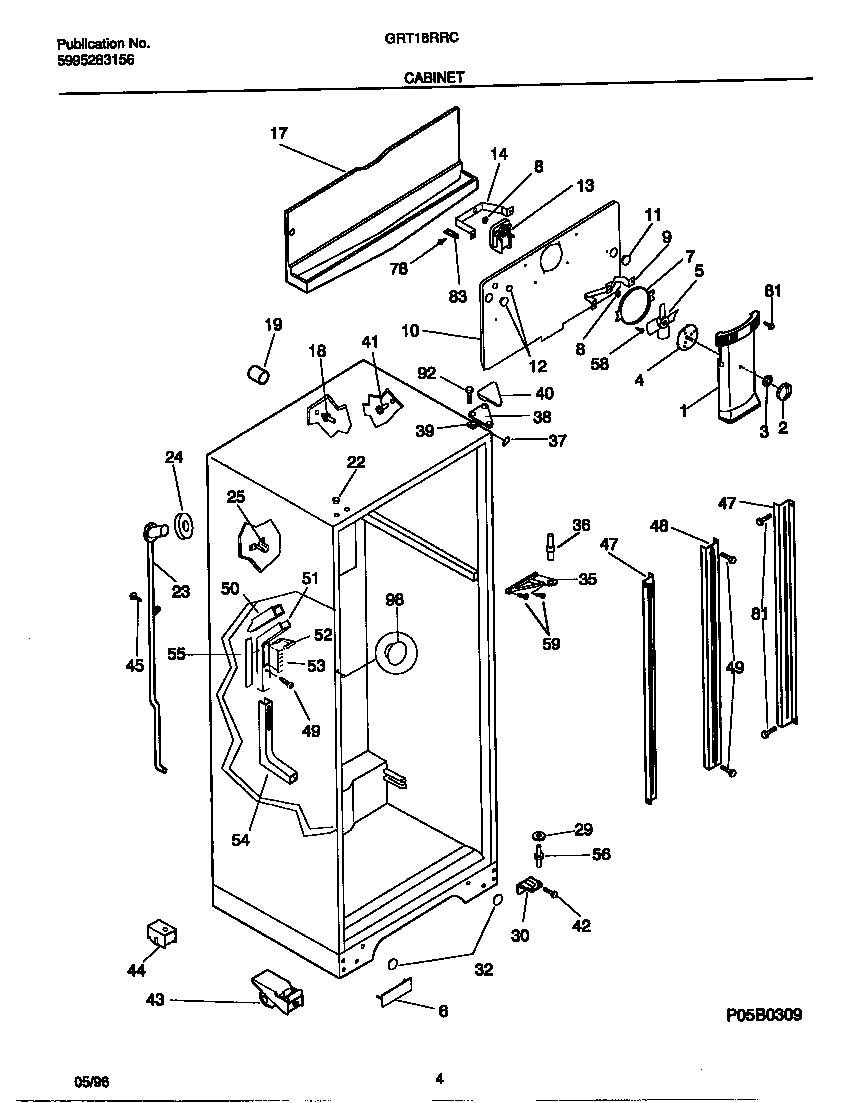

03 - CABINET

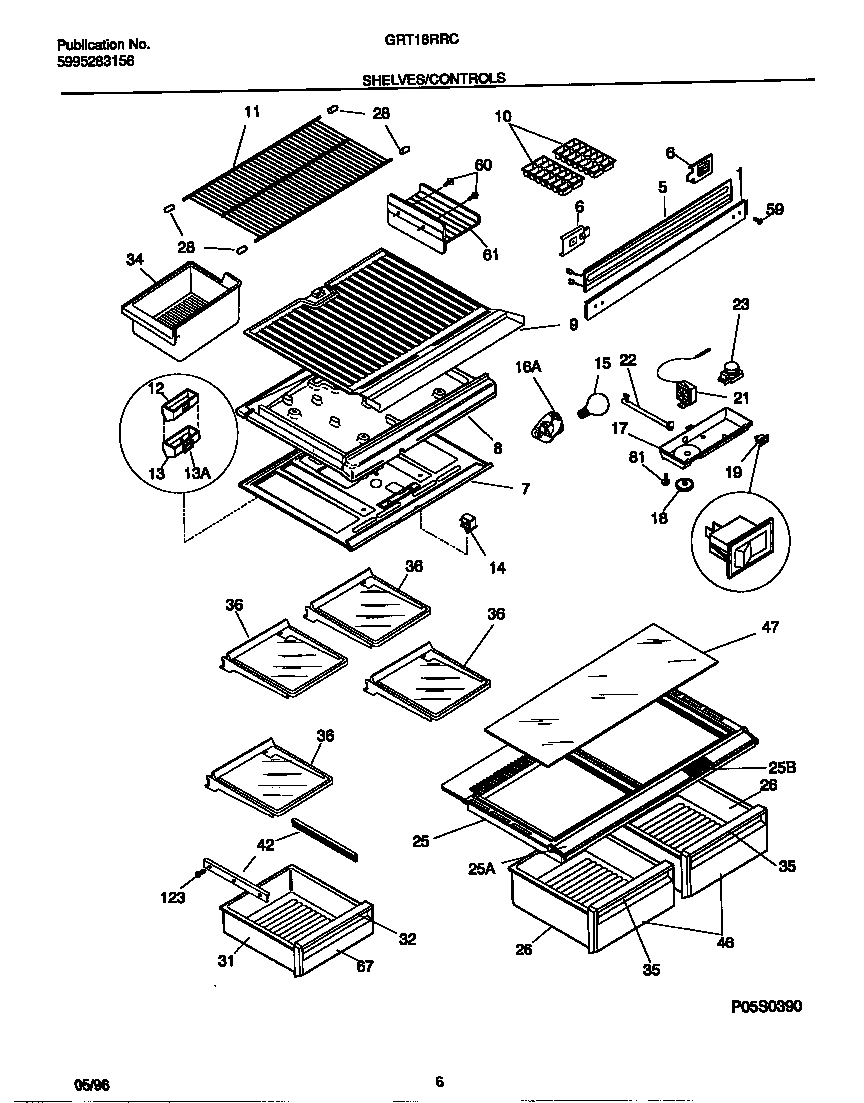

04 - SHELVES/CONTROLS

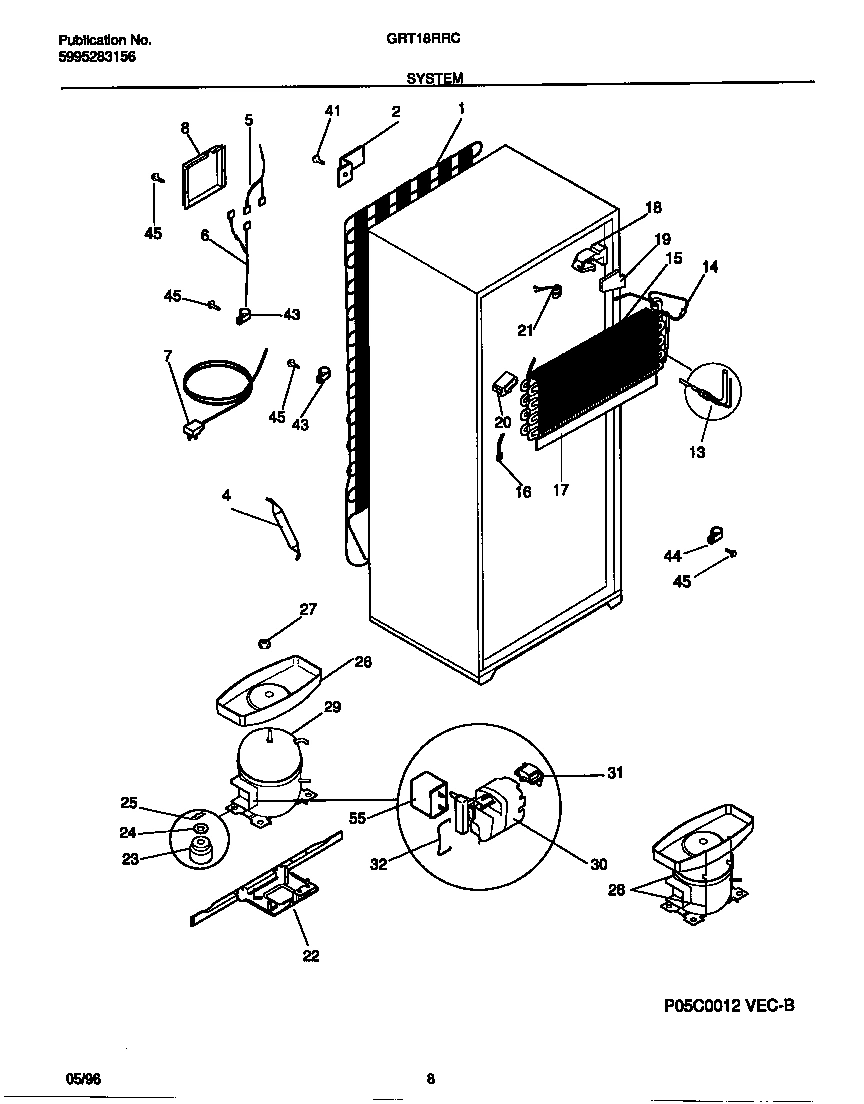

05 - SYSTEM
Common parts from model Electrolux GRT18RRCW2 REFRIGERATOR
*33640
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*33641
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*33644
WCI 3916557 WCI 3916557 Contact Us For Availability
1
WCI 215608916 WCI 215608916 Contact Us For Availability
1
WCI 218430801 WCI 218430801 Contact Us For Availability
1
WCI 218461000 WCI 218461000 Contact Us For Availability
2A
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2B
WASHER, EXT TOOTH LOCK, NO. 10 (NOT ILLUSTRAT WCI 5308009617 Contact Us For Availability
5
WCI 218271403 WCI 218271403 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257003 WCI 215257003 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 218597500 WCI 218597500 Contact Us For Availability
7B
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8A
WCI 3206456 WCI 3206456 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 3206455 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE WCI 5303288242 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12A
WCI 218630800 WCI 218630800 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
EXTENSION, AIR DEFLECTOR, FOR 2-PC COVER WCI 5303200590 Contact Us For Availability
13
WCI 218429300 WCI 218429300 Contact Us For Availability
14
WCI 218074001 WCI 218074001 Contact Us For Availability
15
EVAPORATOR WCI 3206452 Contact Us For Availability
17
WCI 5303207493 WCI 5303207493 Contact Us For Availability
17A
CONTROL BOX WCI 5303307349 Contact Us For Availability
17B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
18
WCI 218397501 WCI 218397501 Contact Us For Availability
18
WCI 218397504 WCI 218397504 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19A
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19B
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CRO WCI 218251900 Contact Us For Availability
21A
WCI 5303305486 WCI 5303305486 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
HOUSING-TEMP SENSOR, PLASTIC WCI 3018891 Contact Us For Availability
22
WCI 3206126 WCI 3206126 Contact Us For Availability
23
WCI 5303269702 WCI 5303269702 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 215681400 WCI 215681400 Contact Us For Availability
25
WCI 5303313914 WCI 5303313914 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30C
SHIM, LOWER HINGE (NOT ILLUSTRATED) WCI 218368500 Contact Us For Availability
31
WCI 5303299560 WCI 5303299560 Contact Us For Availability
32
WCI 5303310715 WCI 5303310715 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
35
WCI 5303310712 WCI 5303310712 Contact Us For Availability
36
WCI 215406108 WCI 215406108 Contact Us For Availability
37A
LOCK-HANDLE TRIM, SNAP-IN (NOT ILLUSTRATED) WCI 215782300 No Longer Available
40
WCI 3206101 WCI 3206101 Contact Us For Availability
43D
SPRING-ROLLER ADJ (NOT ILLUSTRATED) WCI 5308009790 Contact Us For Availability
43E
WASHER, .34 X .62 X .02, NYLON (NOT ILLUSTRAT WCI 5308011326 Contact Us For Availability
44
ROLLER ASSY, METAL HOUSING WCI 5303283014 Contact Us For Availability
46
WCI 5303310711 WCI 5303310711 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
47
WCI 215723596 WCI 215723596 Contact Us For Availability
48
WCI 5303292395 WCI 5303292395 Contact Us For Availability
48
WCI 218286003 WCI 218286003 Contact Us For Availability
50
INSULATION-AIR DUCT, UPPER WCI 5308009765 Contact Us For Availability
51
DUCT-MEAT PAN, UPPER WCI 3203820 Contact Us For Availability
52
CONTROL-DAMPER, MEAT PAN DUCT WCI 5303001445 Contact Us For Availability
53
WCI 218465401 WCI 218465401 Contact Us For Availability
54
DUCT-MEAT PAN, LOWER WCI 5303001443 Contact Us For Availability
55
INSULATION-AIR DUCT, LOWER WCI 5308009764 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
61
WCI 215781501 WCI 215781501 Contact Us For Availability
67
WCI 5303313911 WCI 5303313911 Contact Us For Availability
72
WCI 218397000 No Longer Available
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR WCI 215099701 Contact Us For Availability
× ![]()
