Model Gibson GRT18QNHD0 REFRIGERATOR – Common Parts & Diagrams

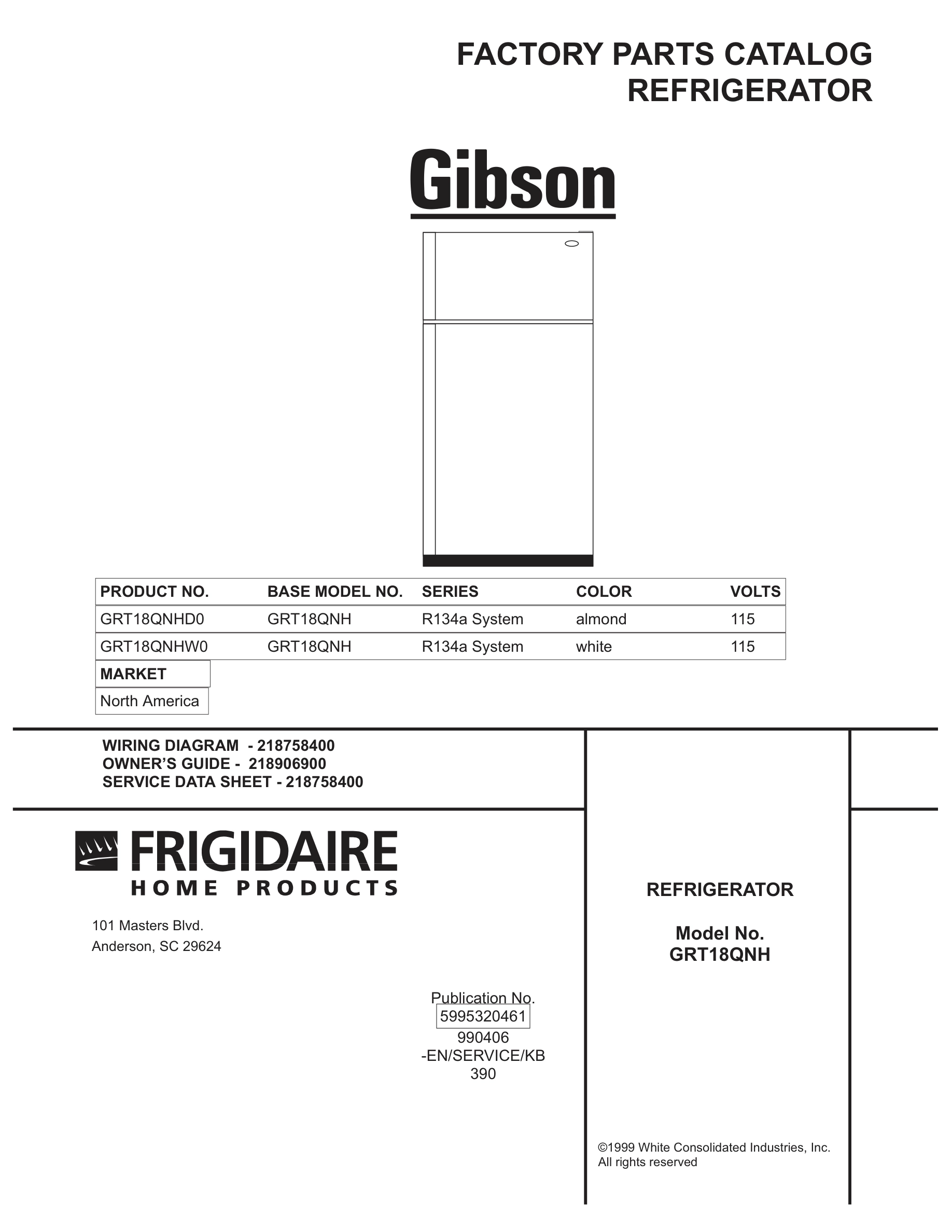

01 - COVER

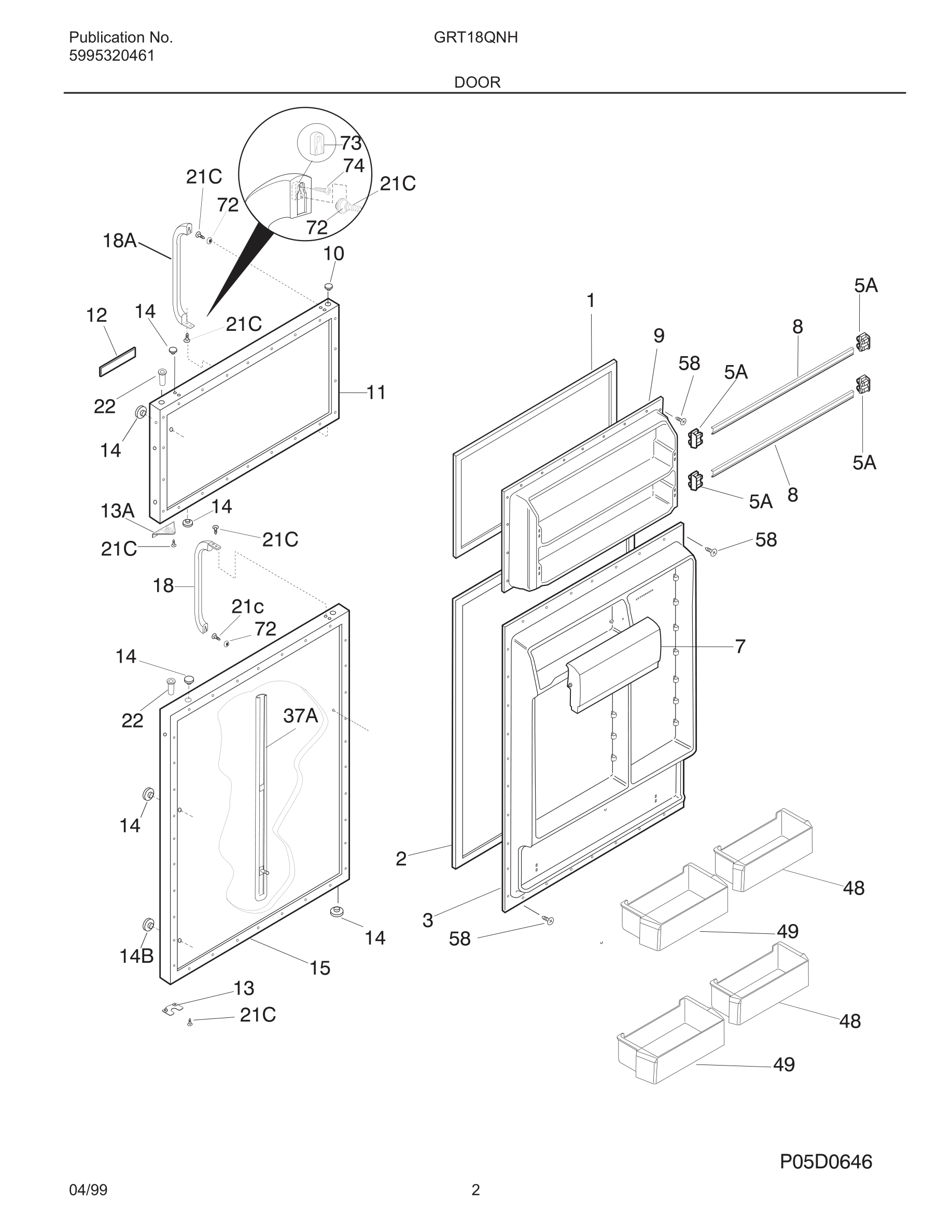

03 - DOOR
05 - CABINET
07 - SHELVES
09 - SYSTEM
Common parts from model Gibson GRT18QNHD0 REFRIGERATOR
*
Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability
*#
Hot Tube Repair Kit,Service WCI 3916557 Contact Us For Availability
1
Mullion,almond ,1 WCI 218874311 Contact Us For Availability
1#
Condenser WCI 218173900 Contact Us For Availability
1*
Spacer-cond tube,black WCI 5303208866 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2*
Washer,ext tooth lock ,#10 ,grounding WCI 5308009617 Contact Us For Availability
5#
Heater-mullion WCI 218781003 Contact Us For Availability
5#
Harness-wiring,control/divider WCI 218878500 Contact Us For Availability
6
Tapping Plate,mullion mtg ,(2) WCI 218845602 Contact Us For Availability
6#
Harness-wiring,compressor WCI 215257004 Contact Us For Availability
7
Panel-top,refr cavity WCI 218814800 Contact Us For Availability
7#
Cord-electric power WCI 5316254901 Contact Us For Availability
7*
Screw,truss head ,8-10 x 1.625 WCI 5303001380 Contact Us For Availability
8
Divider,styrofoam ,w/foil tape WCI 218872903 Contact Us For Availability
8
Cover-wiring WCI 5303001197 Contact Us For Availability
8*
Divider,styrofoam WCI 218814600 Contact Us For Availability
9
Panel-bottom,frzr cavity WCI 218814700 Contact Us For Availability
10
Plug-button,almond ,hinge brg hole WCI 5303001308 Contact Us For Availability
11
Shelf-freezer, fixed/flat, full width, wire WCI 5303288242 Contact Us For Availability
12
Deflector-air WCI 218730000 Contact Us For Availability
12
Plug-harness hole,round WCI 215079000 Contact Us For Availability
12
Plug-wtr inlet tube,round WCI 215079100 Contact Us For Availability
13
Cover-air deflector WCI 218631001 Contact Us For Availability
13#
Heat Exchanger,suction line WCI 218429306 Contact Us For Availability
15#
Evaporator WCI 3206452 Contact Us For Availability
17
Control Box WCI 5303321455 Contact Us For Availability
17
Insulator-evap,plastic WCI 5303207493 Contact Us For Availability
17*
Nut-anchor WCI 5308016567 Contact Us For Availability
18
Knob-temp control WCI 5303311079 Contact Us For Availability
18
Insulation Block,RH WCI 5308013648 Contact Us For Availability
19
Insulation Plug,RH WCI 5303007287 Contact Us For Availability
19#
Switch-energy saver,rocker type WCI 5303286905 Contact Us For Availability
20
Insulation Block,LH WCI 5308017227 Contact Us For Availability
21*
Screw-control mtg,pan hd ,6-32 x 0.250 WCI 5303001260 Contact Us For Availability
22
Bearing-hinge WCI 218519300 Contact Us For Availability
22
Plug-button,almond ,upr hinge holes WCI 215774911 Contact Us For Availability
22
Plate-compr mtg,with rail WCI 218802500 Contact Us For Availability
22B
Tube, PVC, white, @ air deflector, insulator WCI 218731104 Contact Us For Availability
23
Tube-drain,w/seal ring WCI 5303269702 Contact Us For Availability
24
Seal Ring,drain tube WCI 5303207353 Contact Us For Availability
24
Washer-compr mtg WCI 5308003633 Contact Us For Availability
25
Cover-crisper pan,with beam WCI 215686501 Contact Us For Availability
25
Clip-compressor mtg WCI 5308003596 Contact Us For Availability
25A
Trim-storage pan cvr,w/humidity hole WCI 218905804 Contact Us For Availability
26
Pan-defrost drain WCI 215372500 Contact Us For Availability
27
Nut-lock,1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
End Cap-shelf,protector ,frzr shelf WCI 3201150 No Longer Available
28
Pan Retainer Kit,Service WCI 5303916001 Contact Us For Availability
29
Washer,.34 x .62 x .10 ,nylon WCI 5308000186 No Longer Available
30
Bracket-lower hinge WCI 5304409595 Contact Us For Availability
36
Frame-half shelf,cantilever WCI 215919160 Contact Us For Availability
37
Trim-cabinet corner,almond WCI 5303321082 Contact Us For Availability
37
Trim-glass shelf,12.13" ,front WCI 218830349 Contact Us For Availability
37A*
Lock-handle trim,snap-in WCI 215782300 No Longer Available
43
Glass-shelf,12.09" x 14.57" WCI 218390501 Contact Us For Availability
43*
(cid:149) Spring-roller adj WCI 5308009790 Contact Us For Availability
44
Roller Assy,metal housing WCI 5303283014 Contact Us For Availability
44
Trim-glass shelf,12.13" ,rear WCI 215919809 Contact Us For Availability
46
Front-crisper pan WCI 5303310711 Contact Us For Availability
46*
Trim-crisper pan WCI 5303310712 Contact Us For Availability
47
Channel-shelf mtg,side ,(2) WCI 218233300 Contact Us For Availability
47
Insert-pan cover,glass WCI 215723596 Contact Us For Availability
48
Channel-shelf mtg,center WCI 5303292395 Contact Us For Availability
48
Bin-door WCI 218286003 Contact Us For Availability
61
Shelf-ice tray,wire WCI 215781501 Contact Us For Availability
67
Front-meat pan WCI 5303310724 Contact Us For Availability
67*
Trim-meat pan WCI 5303310715 Contact Us For Availability
72
Button-handle mtg,dovetail WCI 218397000 No Longer Available
72
Grille/Kickplate,almond ,assy WCI 218915402 Contact Us For Availability
72
(cid:149) Grille/Kickplate,almond ,grille onl WCI 218896602 Contact Us For Availability
72
(cid:149) Plug-button-Grille mounting, plg bt WCI 218896804 Contact Us For Availability
83
Bracket-connector WCI 5308000107 Contact Us For Availability
98
Plug-button,almond ,ctr hinge hole WCI 215099711 Contact Us For Availability
145
Clip,plastic ,temp sensor mtg ,snap-in WCI 218660800 Contact Us For Availability
× ![]()
