Model Gibson GRT16CRHD4 REFRIGERATOR – Common Parts & Diagrams

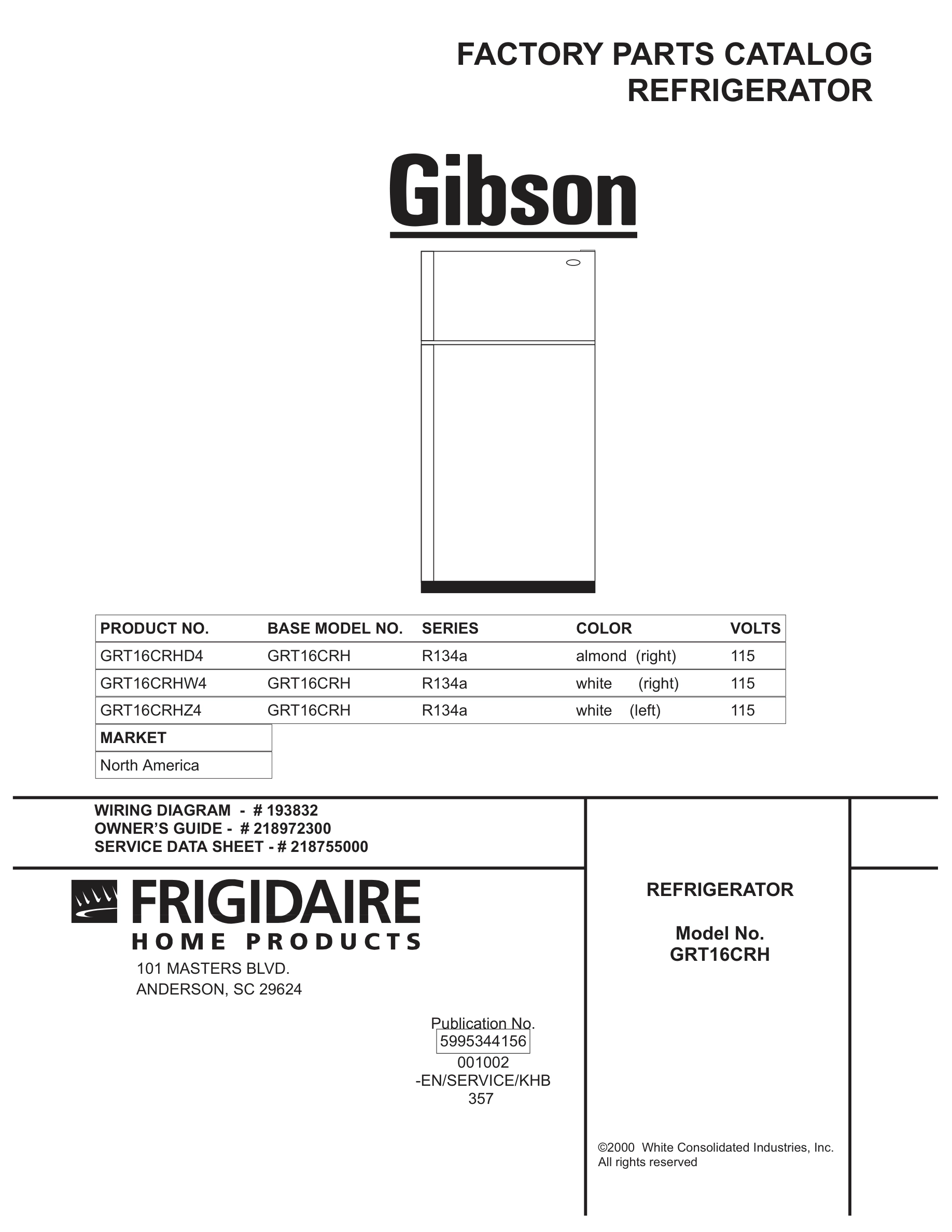

01 - COVER

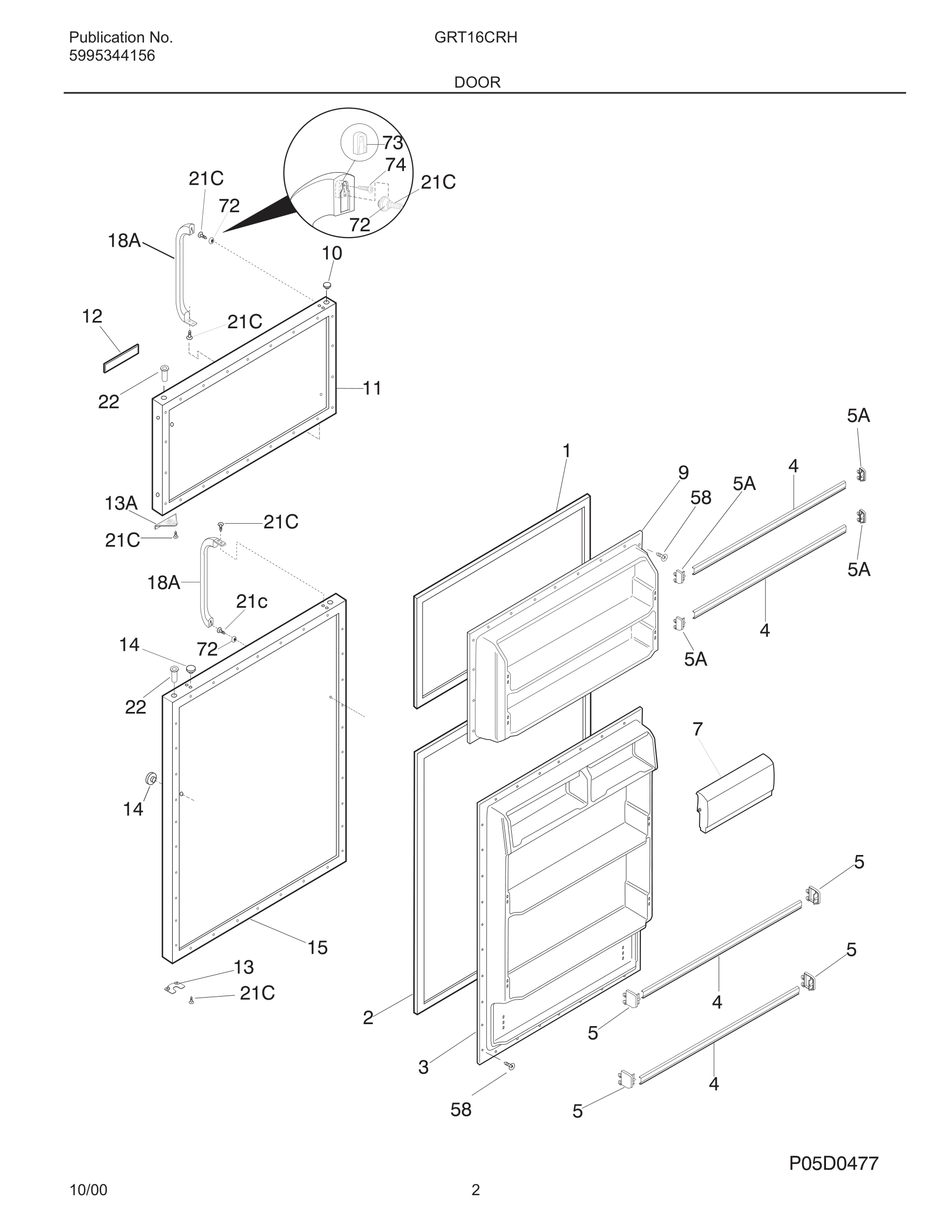

03 - DOOR
05 - CABINET
07 - SHELVES
09 - SYSTEM
10 - WIRING SCHEMATIC
11 - WIRING DIAGRAM
Common parts from model Gibson GRT16CRHD4 REFRIGERATOR
*
Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability
*
Plug-button,cab liner holes WCI 5308016571 Contact Us For Availability
*#
Hot Tube Repair Kit,Service WCI 5300189383 Contact Us For Availability
1
Mullion,almond WCI 218651801 Contact Us For Availability
1#
Gasket-frzr door,white ,magnetic WCI 5308007123 Contact Us For Availability
1#
Condenser WCI 218491000 Contact Us For Availability
1*
Spacer-cond tube,black WCI 5303208866 Contact Us For Availability
1*
Spacer-cond tube,round ,5/8 OD x .81"lg WCI 5304406721 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2*
Washer,ext tooth lock ,#10 ,grounding WCI 5308009617 Contact Us For Availability
5#
Heater-mullion WCI 218781004 Contact Us For Availability
5#
Wiring Harness,control/divider WCI 218878500 Contact Us For Availability
6
Plug-button,almond WCI 5303001389 Contact Us For Availability
6
Tapping Plate,mullion mtg ,(2) WCI 218845602 Contact Us For Availability
6#
Wiring Harness,compressor WCI 215257001 Contact Us For Availability
7
Door-dairy, 10.71" wide, white, no graphics WCI 218287801 Contact Us For Availability
7
Panel-top,refr cavity WCI 218865801 Contact Us For Availability
7#
Cord-electric power WCI 5316254901 Contact Us For Availability
7*
Screw,truss head ,8-10 x 1.625 WCI 5303001380 Contact Us For Availability
8
Divider,styrofoam ,w/foil tape WCI 218909705 Contact Us For Availability
8
Cover-wiring WCI 5303001197 Contact Us For Availability
9
Panel-bottom,frzr cavity WCI 218865600 Contact Us For Availability
10
Plug-button,almond ,hinge brg hole WCI 5303001308 Contact Us For Availability
11
Shelf-freezer,"table type" WCI 5303283280 Contact Us For Availability
12
Deflector-air WCI 218730000 Contact Us For Availability
12
Plug-harness hole,round WCI 215079000 Contact Us For Availability
12
Plug-wtr inlet tube,round WCI 215079100 Contact Us For Availability
13
Cover-air deflector WCI 218631001 Contact Us For Availability
13#
Heat Exchanger,suction line WCI 215076403 Contact Us For Availability
14#
Heater-defrost WCI 5308009754 Contact Us For Availability
15#
Evaporator WCI 218818701 Contact Us For Availability
17
Insulator-evap,plastic WCI 5316651102 Contact Us For Availability
17
Control Box WCI 5304414816 Contact Us For Availability
17*
Nut-anchor WCI 5308016567 Contact Us For Availability
18
Knob-temp control WCI 5303311079 Contact Us For Availability
18
Insulation Block,RH WCI 218821301 Contact Us For Availability
19
Insulation Plug,RH WCI 5303007287 Contact Us For Availability
19#
Switch-energy saver,rocker type WCI 5303286905 Contact Us For Availability
20
Insulation Block,LH WCI 218821201 Contact Us For Availability
21*
Screw-control mtg,pan hd ,6-32 x 0.250 WCI 5303001260 Contact Us For Availability
22
Bearing-hinge WCI 218519300 Contact Us For Availability
22
Plug-button,almond ,upr hinge holes WCI 215774911 Contact Us For Availability
22
Plate-compr mtg WCI 5308013663 Contact Us For Availability
22B
Tube, PVC, white, @ air deflector, insulator WCI 218731104 Contact Us For Availability
23
Tube-drain,w/seal ring WCI 5303210377 Contact Us For Availability
24
Shelf,sliding ,wire WCI 218272502 Contact Us For Availability
24
(cid:149) Seal Ring,drain tube WCI 5303207353 Contact Us For Availability
24
Washer-compr mtg WCI 5308003633 Contact Us For Availability
25
Cover-crisper pan,w/support beam WCI 218314101 Contact Us For Availability
25
Clip-compressor mtg WCI 5308003596 Contact Us For Availability
26
Pan-crisper WCI 3206180 No Longer Available
26
Pan-defrost drain WCI 215372500 Contact Us For Availability
27
Nut-lock,1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
Pan Retainer Kit,Service WCI 5303916001 Contact Us For Availability
35
Bracket-ctr hinge,almond WCI 218998902 Contact Us For Availability
37
Trim-cabinet corner,almond WCI 5303321082 Contact Us For Availability
41*
Washer,#10 steel ,7/32 x 7/16 OD WCI 5308003607 Contact Us For Availability
43
Roller Assy,front ,(2) WCI 218703001 Contact Us For Availability
44
Roller Assy,rear ,(2) WCI 218713600 Contact Us For Availability
46
Front-crisper pan WCI 5303303588 Contact Us For Availability
46
Bolt-roller mtg, hex wshr hd, 1/4-28 x 0.500, WCI 5308009762 Contact Us For Availability
56
Pin-lower hinge WCI 218220300 Contact Us For Availability
72
Button-handle mtg,dovetail WCI 218397000 No Longer Available
81
Cover-sound insul, pressboard/foam, machine c WCI 218905701 Contact Us For Availability
83
Bracket-connector WCI 5308000107 Contact Us For Availability
98
Plug-button,almond WCI 215099711 Contact Us For Availability
100
Support-pan cover WCI 5303288973 No Longer Available
145
Clip,plastic ,temp sensor mtg ,snap-in WCI 218660800 Contact Us For Availability
× ![]()
