Model GE GRS60LAV2FS – Common Parts & Diagrams

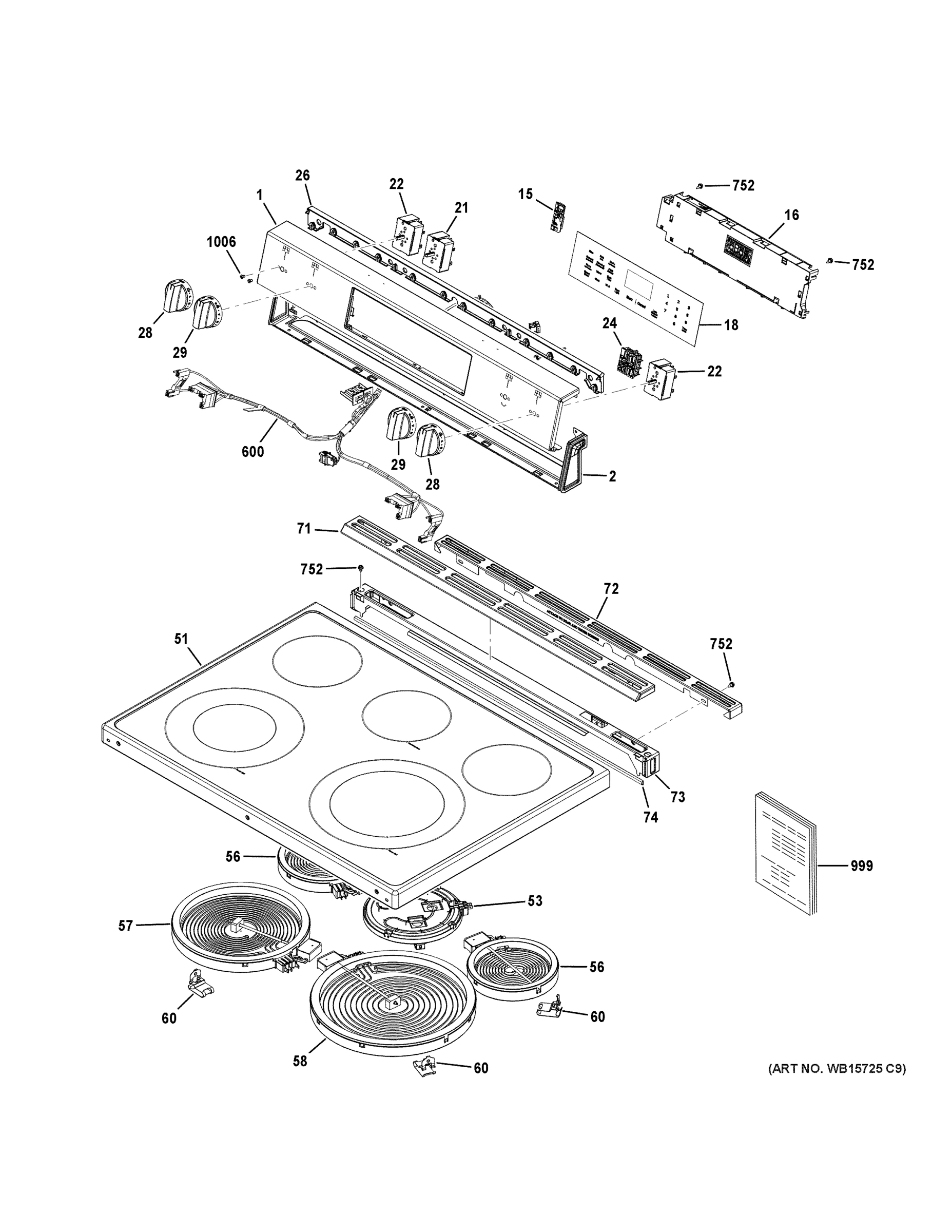

CONTROL PANEL & COOKTOP

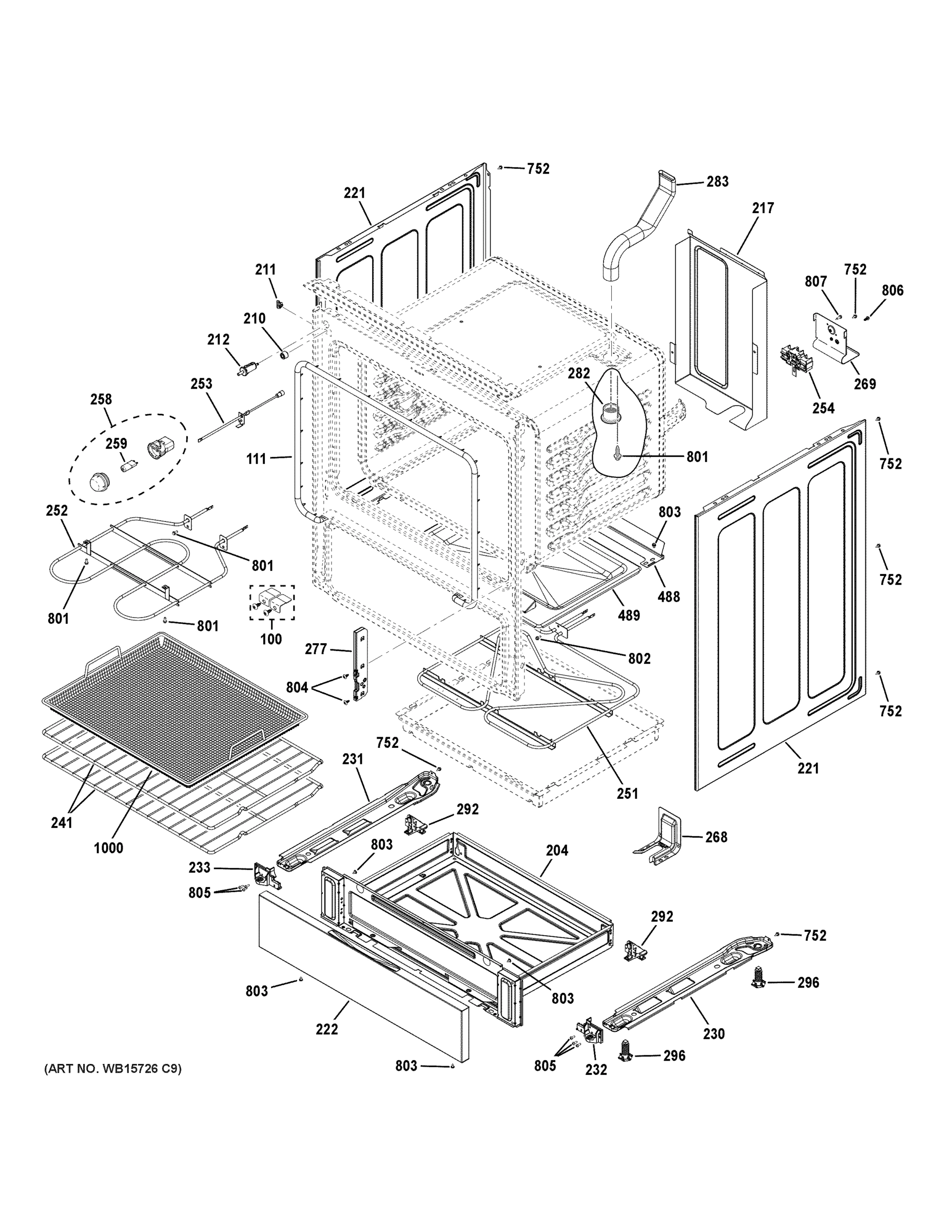

BODY PARTS
DOOR
CONVECTION FAN
Common parts from model GE GRS60LAV2FS
22
INF SWITCH CONTROL 1250W GEN WB24T10022 Contact Us For Availability
24
SWITCH INFINITE CONTROL GEN WB24X25013 Contact Us For Availability
29
KNOB GEN WB03X47119 Contact Us For Availability
43
HUB BLADE ASM GEN WB02X47067 Contact Us For Availability
51
MAINTOP GEN WB62X48367 Contact Us For Availability
53
WARMER ELEMENT GEN WB30X47091 Contact Us For Availability
56
5.5 IN RADIANT ELEMENT GEN WB30X47331 Contact Us For Availability
57
RADIANT ELEMENT 9 IN DUAL GEN WB30X49746 Contact Us For Availability
58
12 IN DUAL RADIANT ELEMENT GEN WB30X47328 Contact Us For Availability
60
RETAINER CLIP GEN WB02X48326 Contact Us For Availability
71
UPPER VENT TRIM- BLACK GEN WB07X47262 Contact Us For Availability
72
VENT TRIM- BLACK GEN WB07X47260 Contact Us For Availability
73
LOWER VENT TRIM-BLACK GEN WB07X47254 Contact Us For Availability
74
VENT TRIM GASKET GEN WB35X47145 Contact Us For Availability
100
CAVITY CHIP COVER KIT GEN WB49X48986 Contact Us For Availability
101
DOOR INSULATION GEN WB35X47299 Contact Us For Availability
111
DOOR GASKET GEN WB35X47302 Contact Us For Availability
112
OVEN DOOR LINNER GEN WB56X47297 Contact Us For Availability
113
OVEN DOOR LINER GEN WB56X47289 Contact Us For Availability
136
HANDLE-STAINLESS GEN WB15X47291 Contact Us For Availability
140
OUTER DOOR SIDE TRIM-BLACK GEN WB07X47287 Contact Us For Availability
142
HANDLE SPACER GEN WB02X47307 Contact Us For Availability
145
OUTER DOOR BTM TRIM-BLACK GEN WB07X47303 Contact Us For Availability
204
DRAWER BODY GEN WB63X47309 Contact Us For Availability
210
BUMPER GEN WB02X47106 Contact Us For Availability
211
GROMMET GEN WB01X47066 Contact Us For Availability
212
PLUNGER SWITCH GEN WB24X27550 Contact Us For Availability
217
TERMINAL COVER GEN WB34X47314 Contact Us For Availability
221
SIDE PANEL-BLACK GEN WB56X47101 Contact Us For Availability
222
DRAWER PANEL-STAINLESS GEN WB56X47274 Contact Us For Availability
230
RAIL BASE RH GEN WB10X48827 Contact Us For Availability
231
RAIL BASE LH GEN WB10X48826 Contact Us For Availability
232
RH DRAWER SUPPORT GEN WB02X47103 Contact Us For Availability
233
LH DRAWER SUPPORT GEN WB02X47107 Contact Us For Availability
241
RACK GEN WB48X47102 Contact Us For Availability
251
HIDDEN BAKE ELEMENT GEN WB44X47327 Contact Us For Availability
252
BROIL ELEMENT GEN WB44X47338 Contact Us For Availability
253
OVEN TEMP SEMSOR GEN WB17X47506 Contact Us For Availability
254
TERMINAL BLOCK GEN WB18X47088 Contact Us For Availability
258
HALOGEN LAMP ASSEMBLY GEN WB25X42688 Contact Us For Availability
259
LAMP HALOGEN BULB G9 GEN WB25T10102 Contact Us For Availability
268
ANTI-TIP BRACKET GEN WB02X47104 Contact Us For Availability
269
TERMINAL BLOCK BRACKET GEN WB18X47099 Contact Us For Availability
277
HINGE RECEIVER GEN WB10X47298 Contact Us For Availability
281
HINGE GEN WB10X47305 Contact Us For Availability
282
VENT TUBE GEN WB38X48866 Contact Us For Availability
283
VENT TUBE GEN WB38X47110 Contact Us For Availability
338
INNER DOOR GLASS GEN WB56X47992 Contact Us For Availability
488
VENT TRIM-BACK GEN WB07X47209 Contact Us For Availability
489
OVEN CAVITY BOTTOM GEN WB34X47207 Contact Us For Availability
511
CONVECTION MOTOR GEN WB26X47087 Contact Us For Availability
514
CONVX FAN COVER GEN WB34X47206 Contact Us For Availability
515
GASKET CONV FAN GEN WB04T10080 Contact Us For Availability
520
CONVX MOTOR ASSEMBLY GEN WB26X47210 Contact Us For Availability
534
CONVECTION MOTOR BRACKET GEN WB02X29181 Contact Us For Availability
600
MAINTOP HARNESS GEN WB18X49831 Contact Us For Availability
801
SCREW GEN WB00X6901 Contact Us For Availability
803
SCREW 8-18 AB TRT-15 3/8 S GEN WB01X48946 Contact Us For Availability
804
SCR 10-32 TRWT-20 1/2 S GEN WB01X47090 Contact Us For Availability
805
SCREW 8-18 AB PNT-20 1/2 S GEN WB01X34726 Contact Us For Availability
806
SCR 10-32 GX HXW 7/16 S GEN WS02X10087 Contact Us For Availability
807
SCR 10-32, 1/4 HEX, .350 GEN WB01T10125 Contact Us For Availability
808
SCR 10-32 GX 1.309 HWX S GEN WH02X24116 Contact Us For Availability
809
SCREW 10-18 PL TRT20 3/4 S GEN WB01X34649 Contact Us For Availability
909
WASHER SPRING GEN WB01X36465 Contact Us For Availability
999
PM INSTALL INSTRUCTIONS GEN 312001194 Contact Us For Availability
999
PM MINI MANUAL AND WIRING GEN 312001199 Contact Us For Availability
999
PM OWNERS MANUAL GEN 492001192 Contact Us For Availability
1000
AIRFRY BASKET GEN WB32X48366 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
× ![]()
