GE GRS600AV3DS Electric Range Parts List

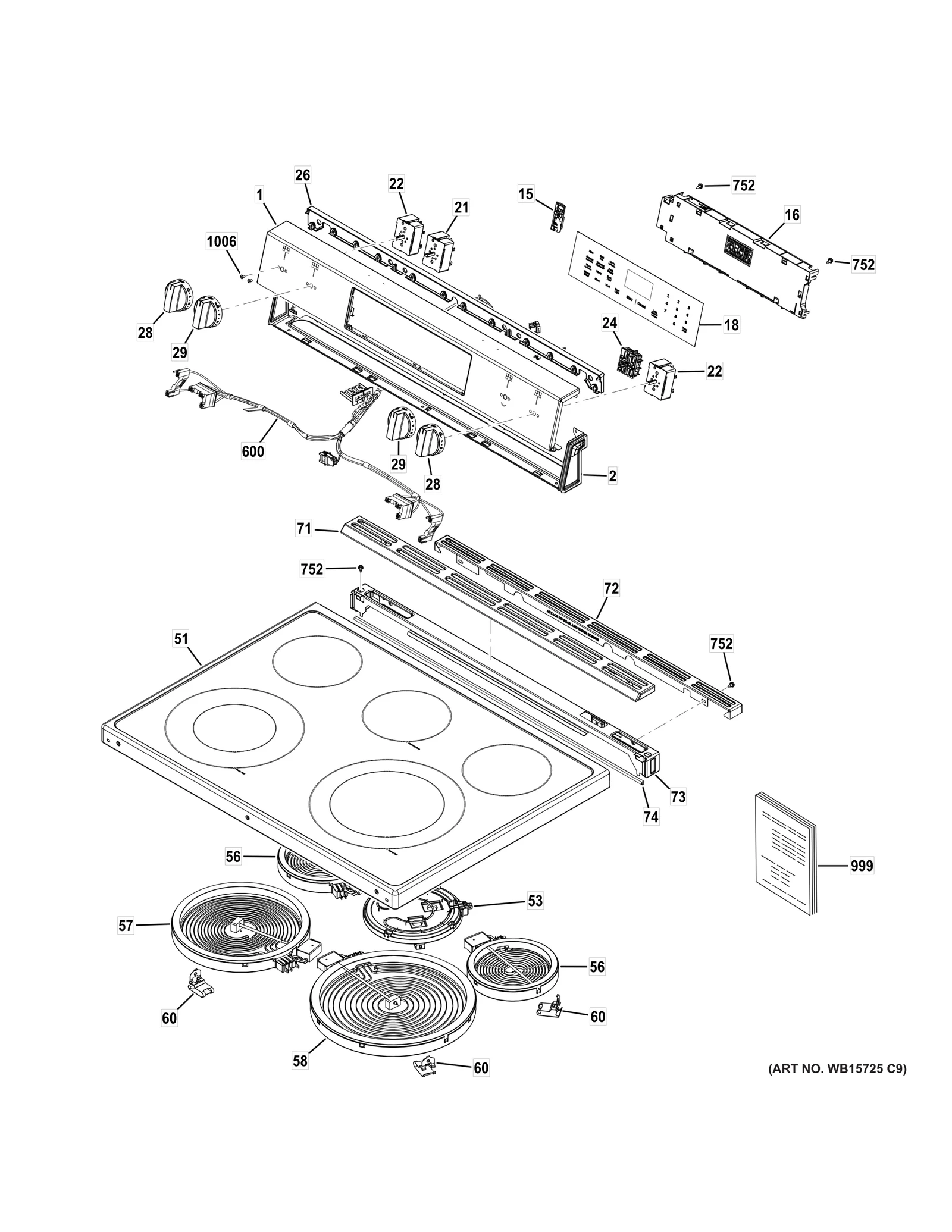

22

WB24T10022 GE Oven Infinite Switch In Stock GEN WB24T10022 $97.94

View on Model

28

KNOB GEN WB03X47123 Contact Us For Availability

View on Model

29

KNOB GEN WB03X47118 Contact Us For Availability

View on Model

43

WB02X47067 GE Hub Blade Assembly Backorder GEN WB02X47067 $10.36

View on Model

51

WB62X48367 GE Maintop Backorder GEN WB62X48367 $277.22

View on Model

53

WB30X47091 GE Warmer Element Backorder GEN WB30X47091 $19.51

View on Model

56

WB30X47331 GE 5.5-Inch Radiant Element In Stock GEN WB30X47331 $28.23

View on Model

57

WB30X49746 GE Dual 9 Inch Radiant Element In Stock GEN WB30X49746 $51.75

View on Model

58

WB30X47328 GE 12-Inch Dual Radiant Element Backorder GEN WB30X47328 $54.44

View on Model

60

WB02X48326 GE Retainer Clip Backorder GEN WB02X48326 $4.98

View on Model

71

WB07X47262 GE Upper Vent Trim - Black Backorder GEN WB07X47262 $6.77

View on Model

72

WB07X47260 GE Vent Trim Black Backorder GEN WB07X47260 $4.98

View on Model

73

LOWER VENT TRIM-BLACK GEN WB07X47254 Contact Us For Availability

View on Model

74

WB35X47145 GE Vent Trim Gasket Backorder GEN WB35X47145 $8.02

View on Model

97

WB02X35585 GE Hex Nut Backorder GEN WB02X35585 $5.65

View on Model

100

WB49X48986 GE Cavity Chip Cover Kit Backorder GEN WB49X48986 $4.98

View on Model

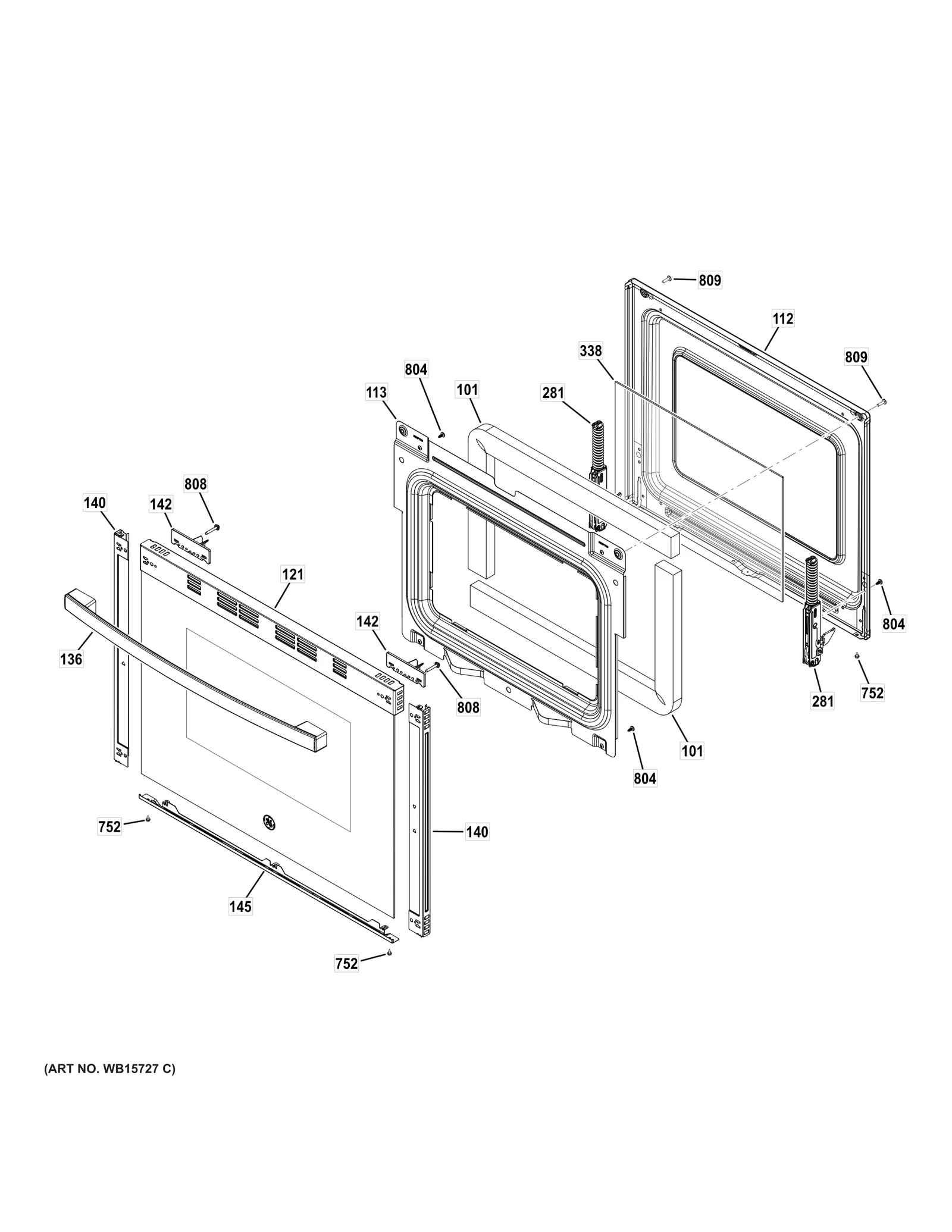

101

WB35X47299 GE Door Insulation Backorder GEN WB35X47299 $4.98

View on Model

111

WB35X47302 GE Door Gasket Backorder GEN WB35X47302 $21.26

View on Model

112

WB56X47297 GE Oven Door Liner Backorder GEN WB56X47297 $96.84

View on Model

113

WB56X47289 GE Door Liner Backorder GEN WB56X47289 $23.88

View on Model

121

OUTER DOOR GLASS AND TRIM GEN WB56X47993 Contact Us For Availability

View on Model

136

HANDLE-BLACK STAINLESS GEN WB15X47293 Contact Us For Availability

View on Model

140

WB07X47287 GE Outer Door Side Trim - Black Backorder GEN WB07X47287 $4.98

View on Model

142

WB02X47307 GE Handle Spacer Backorder GEN WB02X47307 $4.98

View on Model

145

WB07X47303 GE Outer Door Bottom Trim-Black Backorder GEN WB07X47303 $4.98

View on Model

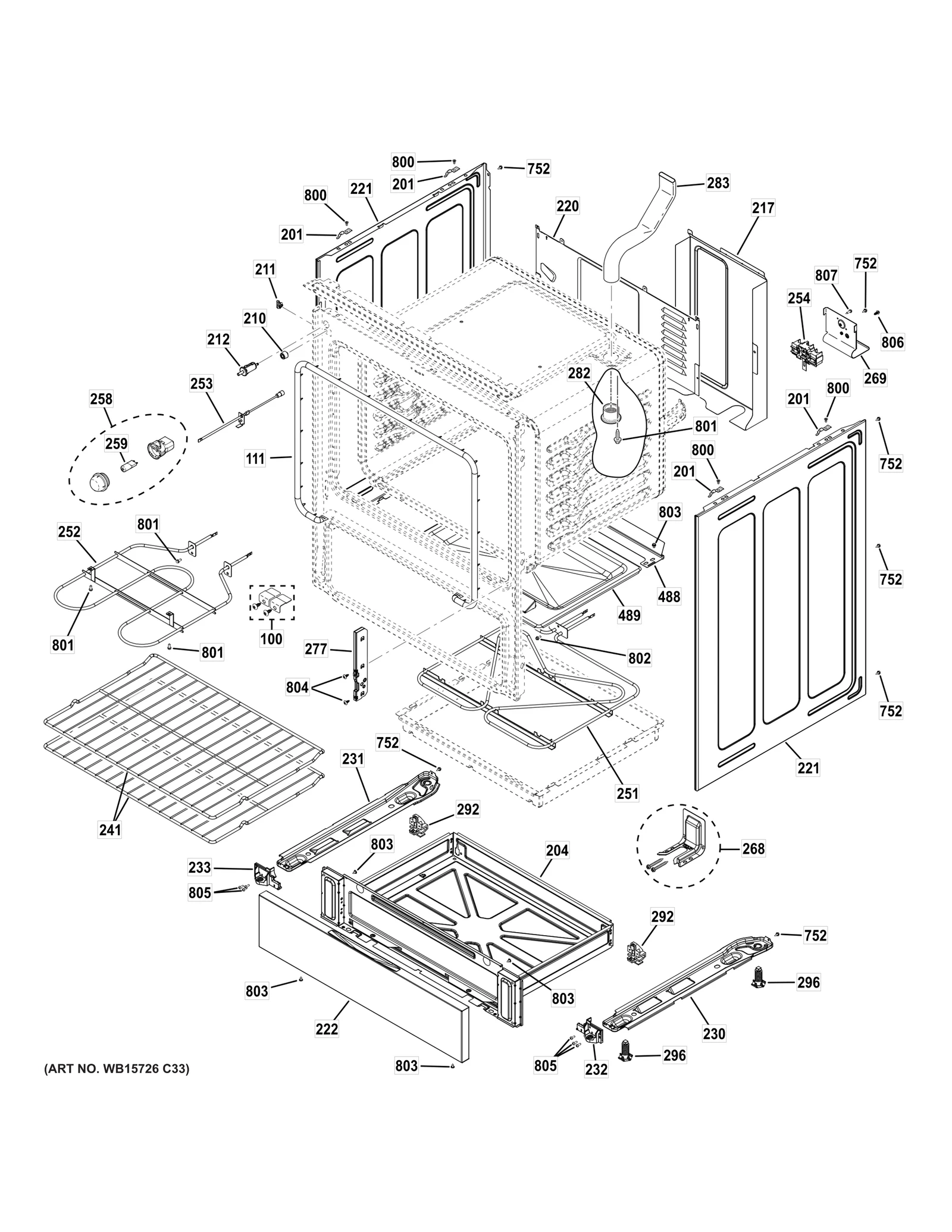

201

WB01X51326 GE Maintop Bracket Backorder GEN WB01X51326 $4.98

View on Model

204

WB63X47309 GE Body Drawer In Stock GEN WB63X47309 $58.36

View on Model

210

WB02X47106 GE Bumper Backorder GEN WB02X47106 $5.04

View on Model

211

WB01X47066 GE Grommet Backorder GEN WB01X47066 $4.98

View on Model

212

WB24X27550 GE Range Plunger Switch In Stock GEN WB24X27550 $8.50

View on Model

217

TERMINAL COVER GEN WB34X47314 Contact Us For Availability

View on Model

220

CONTROL COVER GEN WB34X51428 Contact Us For Availability

View on Model

221

WB56X47101 GE Side Panel - Black Backorder GEN WB56X47101 $45.59

View on Model

222

WB56X47281 GE Drawer Panel Black Slate Backorder GEN WB56X47281 $38.73

View on Model

230

WB10X48827 GE Right Hand Rail Base Backorder GEN WB10X48827 $9.75

View on Model

231

WB10X48826 GE Left Hand Base Rail Backorder GEN WB10X48826 $9.75

View on Model

232

WB02X47103 GE Drawer Support Backorder GEN WB02X47103 $5.08

View on Model

233

WB02X47107 GE Left Drawer Support Backorder GEN WB02X47107 $5.08

View on Model

241

WB48X47102 GE Rack Backorder GEN WB48X47102 $22.04

View on Model

251

WB44X47327 GE Bake Element Hidden Backorder GEN WB44X47327 $36.18

View on Model

252

WB44X47338 GE Broil Element In Stock GEN WB44X47338 $29.00

View on Model

253

WB17X47506 GE Oven Temperature Sensor Backorder GEN WB17X47506 $16.03

View on Model

254

WB18X47088 GE Terminal Block In Stock GEN WB18X47088 $6.49

View on Model

258

WB25X42688 GE Halogen Lamp Assembly Backorder GEN WB25X42688 $10.86

View on Model

259

WB25T10102 GE Oven Top-Mounted Halogen Bulb G In Stock GEN WB25T10102 $10.92

View on Model

268

WB02X49306 GE Anti-Tip Bracket Kit Backorder GEN WB02X49306 $15.44

View on Model

269

WB18X47099 GE Terminal Block Bracket Backorder GEN WB18X47099 $4.98

View on Model

277

HINGE RECEIVER Backorder GEN WB10X47298 $27.88

View on Model

281

WB10X47305 GE Hinge Backorder GEN WB10X47305 $39.84

View on Model

282

VENT TUBE GEN WB38X48866 Contact Us For Availability

View on Model

283

VENT TUBE GEN WB38X47110 Contact Us For Availability

View on Model

292

REAR DRAWER GUIDE GEN WB02X51047 Contact Us For Availability

View on Model

296

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $9.84

View on Model

338

WB56X47992 GE Inner Door Glass Backorder GEN WB56X47992 $84.86

View on Model

488

WB07X47209 GE Vent Trim-Back Backorder GEN WB07X47209 $4.98

View on Model

489

WB34X47207 GE Oven Cavity Bottom Backorder GEN WB34X47207 $47.80

View on Model

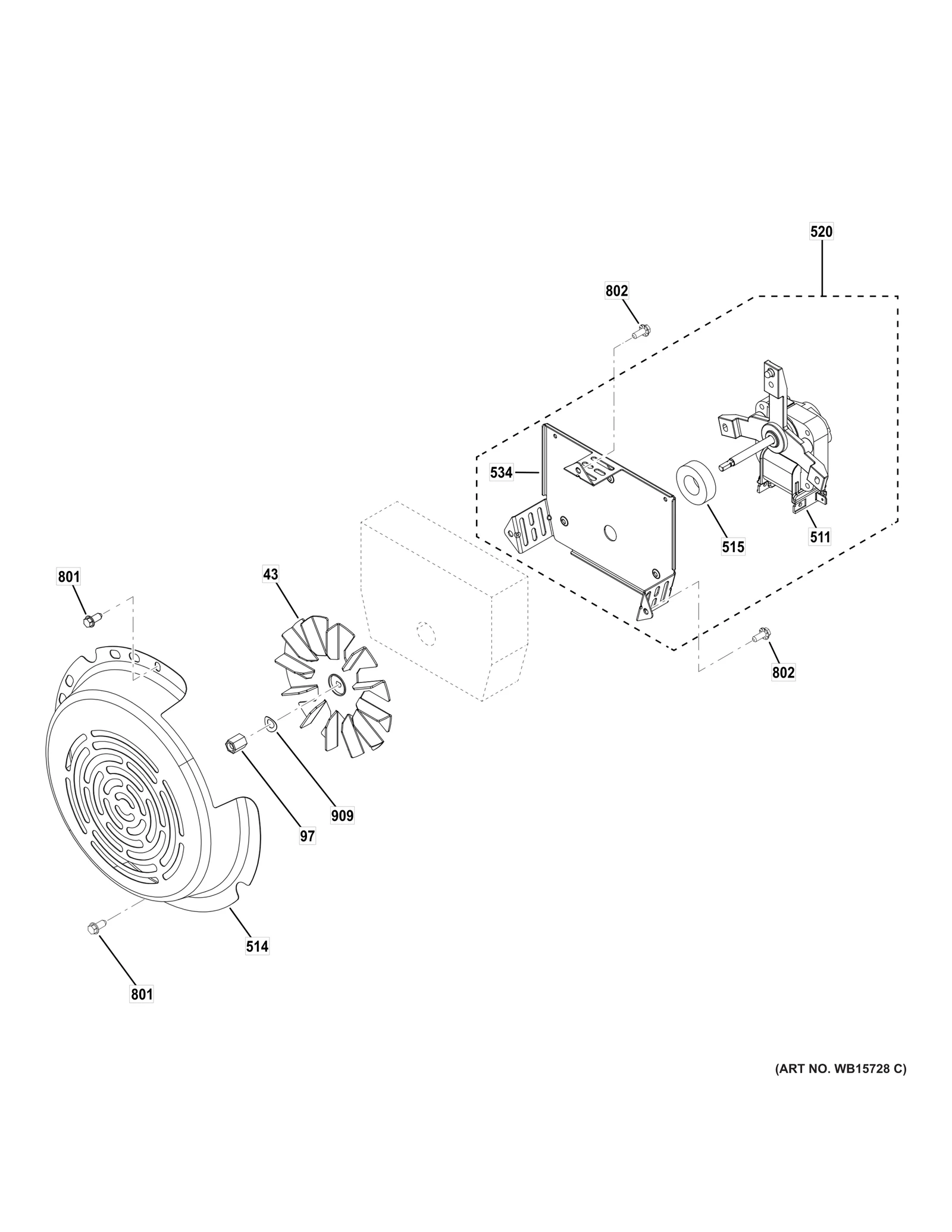

511

WB26X47087 GE Convection Motor Backorder GEN WB26X47087 $38.65

View on Model

514

WB34X47206 GE Convx Fan Cover Backorder GEN WB34X47206 $6.57

View on Model

515

WB04T10080 GE Oven Convection Fan Gasket Backorder GEN WB04T10080 $5.65

View on Model

520

WB26X47210 GE Convx Motor Assembly Backorder GEN WB26X47210 $39.71

View on Model

534

WB02X29181 GE Convection Motor Bracket Backorder GEN WB02X29181 $15.79

View on Model

600

MAINTOP HARNESS GEN WB18X49831 Contact Us For Availability

View on Model

752

WH2X930 GE Screw Backorder GEN WH2X930 $5.65

View on Model

800

WB01T10012 GE Oven Screw Backorder GEN WB01T10012 $5.65

View on Model

801

WB01M10002 GE Oven Screw Backorder GEN WB01M10002 $5.65

View on Model

802

WB1X536 GE Oven Screw Backorder GEN WB1X536 $6.90

View on Model

803

WB01X48946 GE Screw 8-18 AB Trt-15 3/8" Backorder GEN WB01X48946 $4.98

View on Model

804

SCR 10-32 TRWT-20 1/2 S GEN WB01X47090 Contact Us For Availability

View on Model

805

WB01X34726 GE Screw 8-18 Ab Pnt-20 Backorder GEN WB01X34726 $5.65

View on Model

806

WS02X10087 GE Screws 10-32 GX HXW 7/16 S Backorder GEN WS02X10087 $5.02

View on Model

807

WB01T10125 GE Screw 10-32 1/4 Hex .350 Backorder GEN WB01T10125 $5.23

View on Model

808

WH02X24116 GE Screw 10-32 GX 1.309 HWX Backorder GEN WH02X24116 $5.65

View on Model

809

WB01X34649 GE Screw 10-18 Pl Tread 20 3/4 S Backorder GEN WB01X34649 $5.45

View on Model

909

WB01X36465 GE Washer Spring Backorder GEN WB01X36465 $5.65

View on Model

999

PM INSTALL INSTRUCTIONS GEN 31-2001194 Contact Us For Availability

View on Model

999

PM OWNERS MANUAL GEN 49-2001192 Contact Us For Availability

View on Model

999

PM MINI MANUAL AND WIRING GEN 31-2001199 Contact Us For Availability

View on Model

1006

WB01X23501 GE Oven Screw 8-32 Tapping Flat He Backorder GEN WB01X23501 $5.65

View on Model

Model GE GRS600AV3DS Electric Range – Common Parts & Diagrams

Common parts from model GE GRS600AV3DS Electric Range
