Model Whirlpool GR478LXPS3 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN – Common Parts & Diagrams

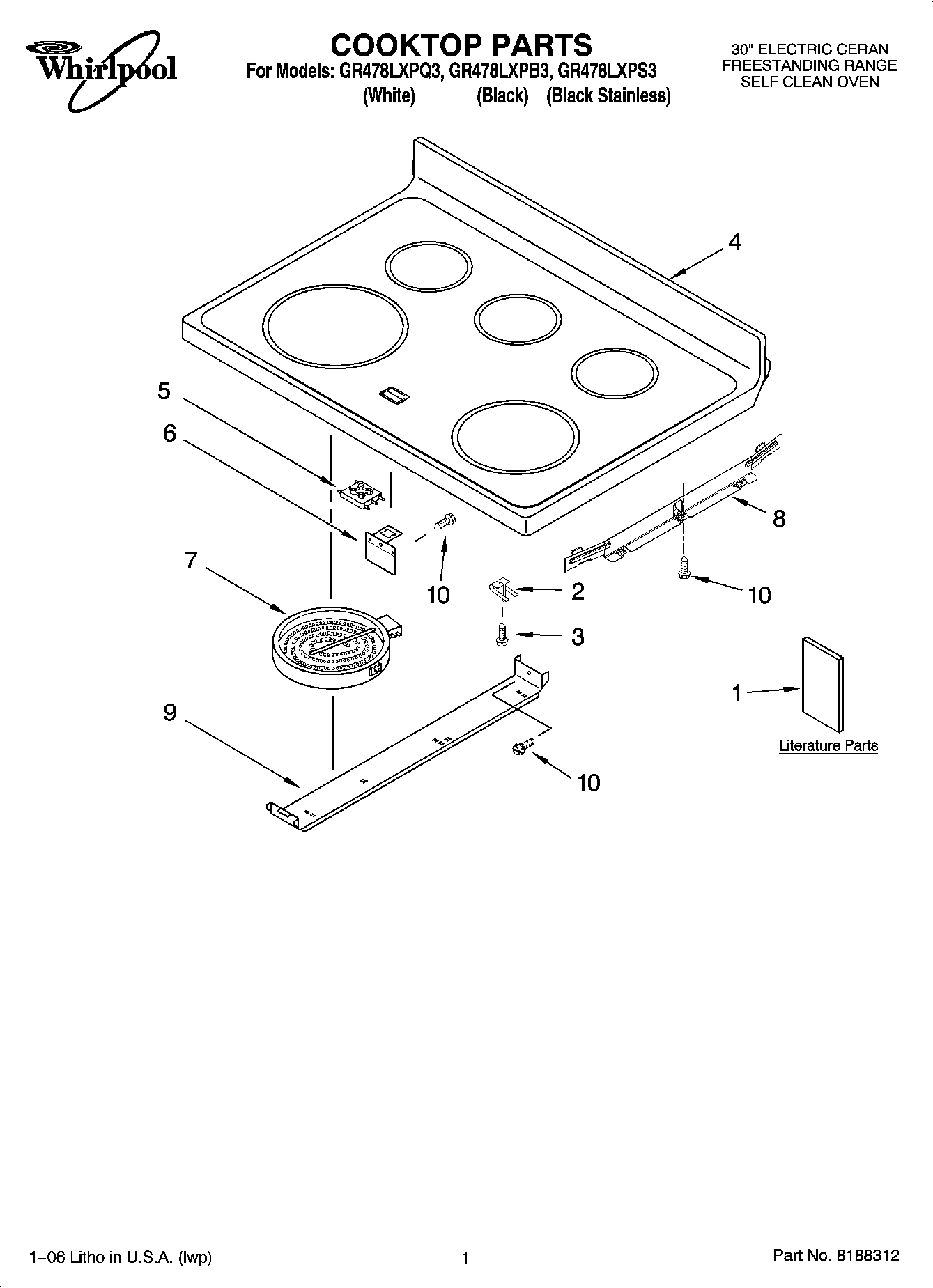

01 - COOKTOP PARTS

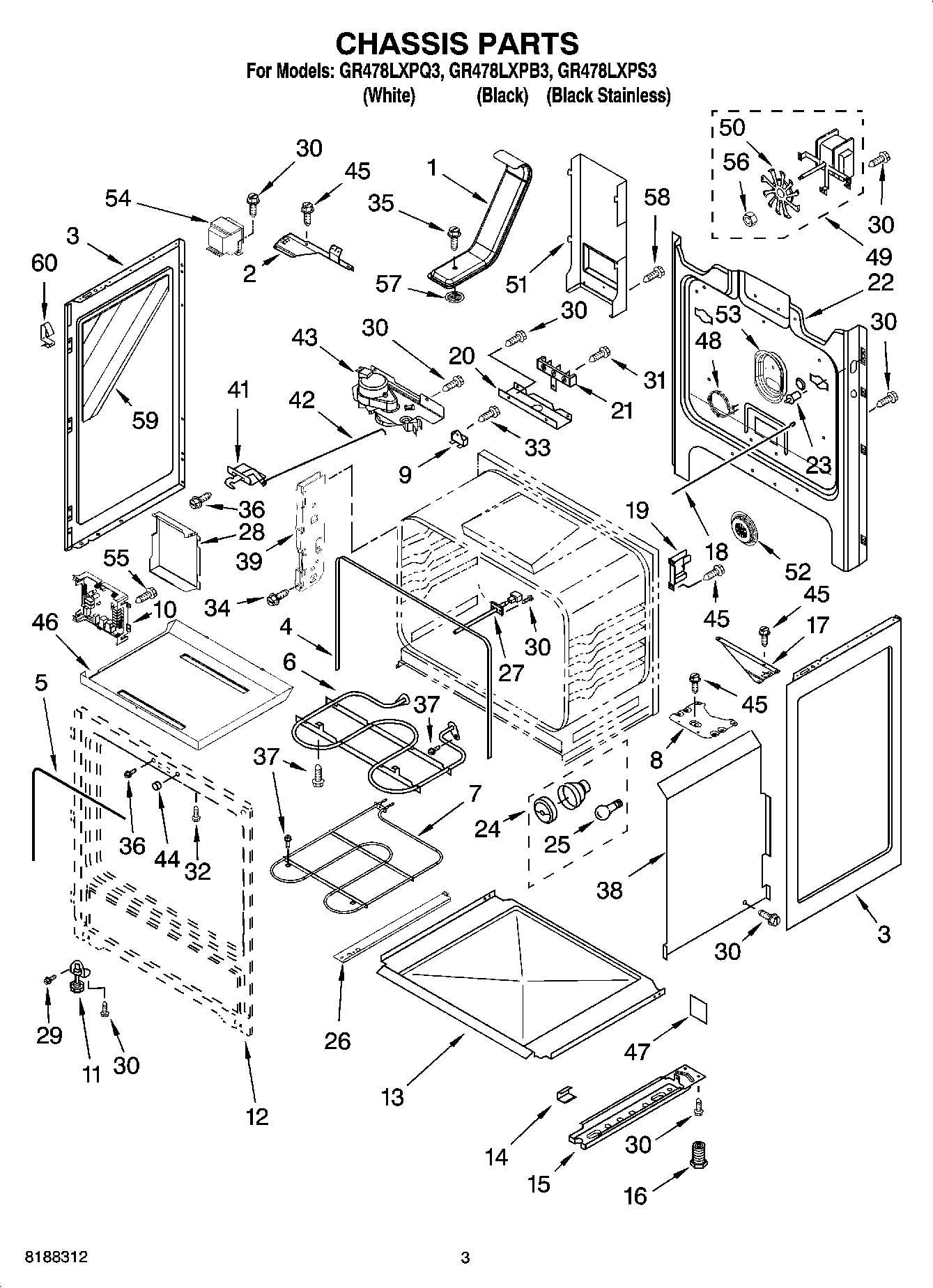

03 - CHASSIS PARTS
04 - DRAWER & BROILER PARTS
02 - CONTROL PANEL PARTS
05 - DOOR PARTS, OPTIONAL PARTS
Common parts from model Whirlpool GR478LXPS3 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN
WPL 350930 WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 1 WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
WPL 313660 WPL 313660 Contact Us For Availability
WPL 3196696 WPL 3196696 Contact Us For Availability
WPL 4392900 WPL 4392900 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 9756550 WPL 9756550 Contact Us For Availability
WPL 9758193 WPL 9758193 Contact Us For Availability
WPL 9758438 WPL 9758438 Contact Us For Availability
WPL 9759001 WPL 9759001 Contact Us For Availability
WPL 9761453 WPL 9761453 Contact Us For Availability
WPL 9761455 WPL 9761455 Contact Us For Availability
WPL ARI149462A WPL ARI149462A Contact Us For Availability
WPL ARI149463A WPL ARI149463A Contact Us For Availability
WPL ARI149464A WPL ARI149464A Contact Us For Availability
WPL ARI149465A WPL ARI149465A Contact Us For Availability
WPL ARI149466A WPL ARI149466A Contact Us For Availability
WPL ARI149467A WPL ARI149467A Contact Us For Availability
WPL ARI149468A WPL ARI149468A Contact Us For Availability
WPL ARI149469A WPL ARI149469A Contact Us For Availability
WPL ARI149470A WPL ARI149470A Contact Us For Availability
1
Trim, Top (Black) WPL W10016380 Contact Us For Availability
1
Trim, Top (Stainless Model) WPL W10016420 Contact Us For Availability
2
Spring, Locator WPL 3149191 Contact Us For Availability
2
Bracket, Console WPL 9756364 Contact Us For Availability
3
Panel, Backguard (White) WPL 9759030 Contact Us For Availability
3
Panel, Backguard (Black) WPL 9759031 Contact Us For Availability
3
Panel, Backguard (Stainless Steel) WPL 9759033 Contact Us For Availability
4
Seal, Oven Flange WPL W10010350 Contact Us For Availability
4
Drawer, Storage WPL 9761030 Contact Us For Availability
5
Seal, Window WPL 8522414 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability
7
Knob, Infinite (4) (White) WPL 9757132 Contact Us For Availability
8
Rack, Roasting WPL 3181534 Contact Us For Availability
8
Shield, Heat WPL 8523280 Contact Us For Availability
9
Glss Swtch Membrne (White) WPL 9757624 Contact Us For Availability
9
Glss Swtch Membrne (Black) WPL 9758475 Contact Us For Availability
10
Rail, Drawer (Right Hand) WPL 8274190 Contact Us For Availability
10
Rail, Drawer (Left Hand) WPL 8274191 Contact Us For Availability
10
Cover, Rear WPL 9756999 Contact Us For Availability
11
Spacer, Glide WPL 8522669 Contact Us For Availability
11
Bezel, Keep Warm (White) WPL 9757489 Contact Us For Availability
11
Bezel, Keep Warm (Black) WPL 9758489 Contact Us For Availability
11
Glass, Outer (Stainless Steel) WPL 9756435 Contact Us For Availability
12
Heat Shield, Drawer WPL 9756711 Contact Us For Availability
12
Control, Range WPL 9762733 Contact Us For Availability
13
Liner, Drawer WPL 9761032 Contact Us For Availability
15
Cover, Rear (Console) WPL 9756366 Contact Us For Availability
15
Clip, Glass (4) WPL 3196025 Contact Us For Availability
16
Stainless Model Only WPL ARI149461A Contact Us For Availability
17
Guard, Wire WPL 3195987 Contact Us For Availability
17
Panel, Stainless WPL 9755798 Contact Us For Availability
18
Rod - Dr Switch WPL 9757239 Contact Us For Availability
18
Button (Black) WPL 9758491 Contact Us For Availability
18
Handle WPL 9757237 Contact Us For Availability
18
Button (White) WPL 9757492 Contact Us For Availability
19
CLIP,DOOR MNTG WPL 9761517 Contact Us For Availability
21
Reflector, Light WPL 9757358 Contact Us For Availability
22
Screw (White) WPL 3196166 Contact Us For Availability
22
Back, Main WPL 9757029 Contact Us For Availability
23
Support, Glass WPL 9757490 Contact Us For Availability
26
Cover, Tray WPL 9755771 Contact Us For Availability
28
Cover WPL 9757970 Contact Us For Availability
29
Screw WPL 3196179 Contact Us For Availability
33
Screw WPL 3196172 Contact Us For Availability
42
Rod, Latch WPL 3196961 Contact Us For Availability
46
Tray, Hidden Bake Element WPL 9755769 Contact Us For Availability
51
Cover, Box WPL 9757972 Contact Us For Availability
53
Bracket, Fan WPL 9755776 Contact Us For Availability
54
Transformer WPL 9757311 Contact Us For Availability
55
Screw WPL 8533930 Contact Us For Availability
56
Nut WPL 4452227 Contact Us For Availability
57
SCREEN, CATALYST WPL 9761301 Contact Us For Availability
59
Insulation WPL 9761490 Contact Us For Availability
60
Clip - Mounting WPL 3195813 Contact Us For Availability
60
Insulation, Back WPL 9755772 Contact Us For Availability
60
Insulation WPL ARI149460A Contact Us For Availability
× ![]()
