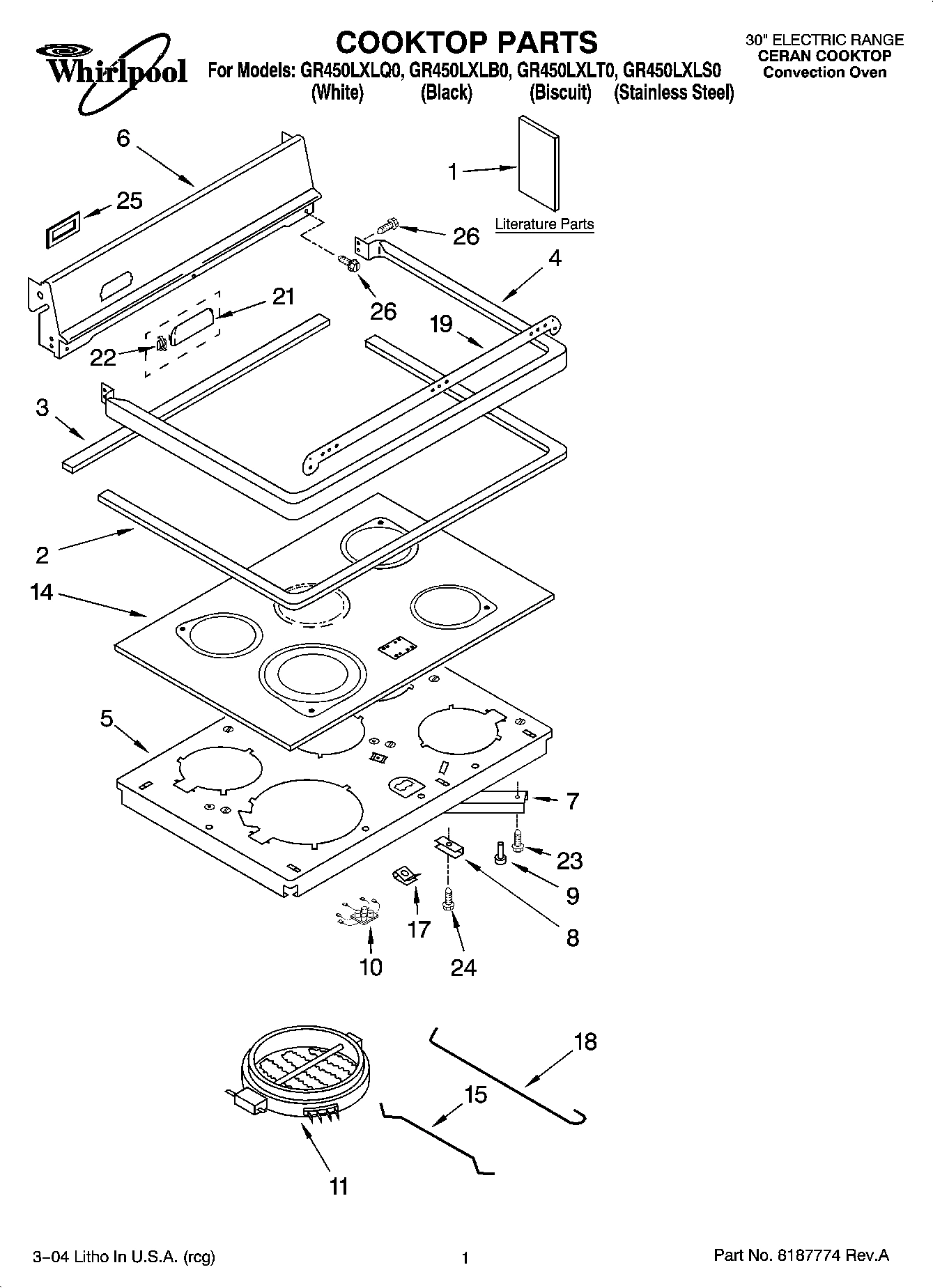

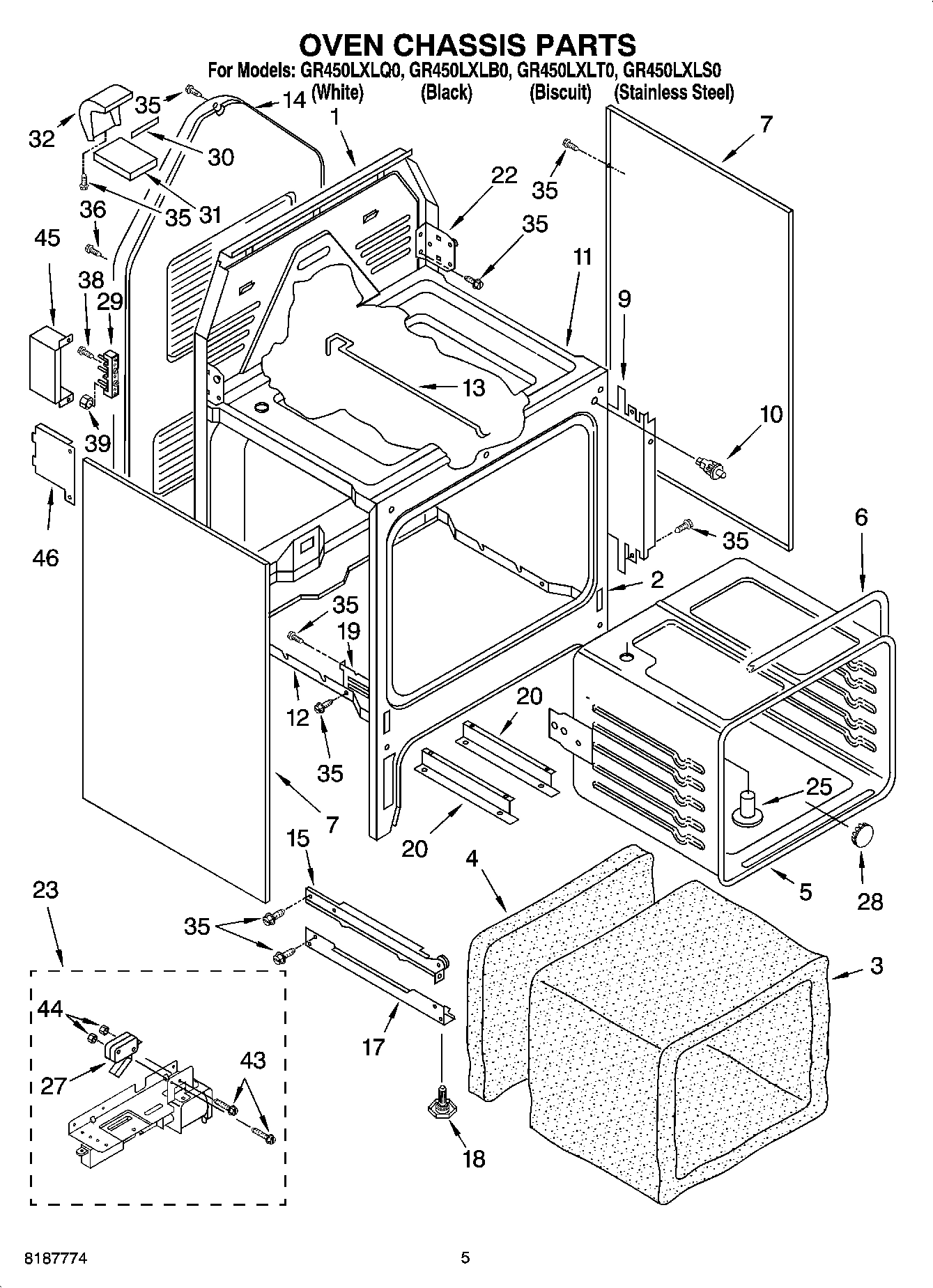

Model Whirlpool GR450LXLB0 30`` ELECTRIC RANGE – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

1

Element, Broil WPL 9750211 Contact Us For Availability

1

Bracket, Timer WPL 9781881 Contact Us For Availability

1

Main Chassis, Back WPL 9782399 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Template, Anti-Tip) WPL LIT9752776 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT9757984 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT9782643 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT9782655 Contact Us For Availability

1

Gasket, Door Vent WPL 9756170 Contact Us For Availability

2

WP9780939 Whirlpool Cooktop Gasket Backorder WPL WP9780939 $30.25

2

ELMNT-BAKE WPL 9750213 Contact Us For Availability

2

Chassis, Front WPL 9750514GM Contact Us For Availability

2

Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability

2

Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability

2

Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability

3

Insulation, Wrap WPL 9754000 Contact Us For Availability

3

Rear Gasket WPL 9781614 Contact Us For Availability

3

Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability

3

Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability

3

Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability

4

End Cap Left Hand (Black) WPL 9752422FB Contact Us For Availability

4

End Cap Left Hand (Biscuit) WPL 9752422FC Contact Us For Availability

4

End Cap Left Hand (White) WPL 9752422FW Contact Us For Availability

4

End Cap Right Hand (Black) WPL 9752423FB Contact Us For Availability

4

End Cap Right Hand (Biscuit) WPL 9752423FC Contact Us For Availability

4

End Cap Right Hand (White) WPL 9752423FW Contact Us For Availability

4

Insulation, Rear WPL 9754011 Contact Us For Availability

4

Frame, Cooktop (Black) WPL 9750456PB Contact Us For Availability

4

Frame, Cooktop (Biscuit) WPL 9750456PC Contact Us For Availability

4

Frame, Cooktop (White) WPL 9750456PW Contact Us For Availability

4

Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability

4

Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability

4

Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability

5

Oven Liner WPL 9754249GM Contact Us For Availability

5

Support, Element WPL 9753674 Contact Us For Availability

5

Glass, Door Front (Stainless Steel) WPL 9754042 Contact Us For Availability

5

Glass, Door Front (Black) WPL 9781694PB Contact Us For Availability

5

Glass, Door Front (Biscuit) WPL 9781694PC Contact Us For Availability

5

Glass, Door Front (White) WPL 9781694PW Contact Us For Availability

6

Panel, Control (Black) WPL 9782816CB Contact Us For Availability

6

Panel, Control (Biscuit) WPL 9782816CC Contact Us For Availability

6

Panel, Control (Stainless Steel) WPL 9782816CS Contact Us For Availability

6

Panel, Control (White) WPL 9782816CW Contact Us For Availability

6

Gasket, Oven WPL 9755179 Contact Us For Availability

6

Back Splash (Black) WPL 9752337GB Contact Us For Availability

6

Back Splash (Biscuit) WPL 9752337GC Contact Us For Availability

6

Back Splash (White) WPL 9752337GW Contact Us For Availability

6

Vent, Door (Black) WPL 9753498GB Contact Us For Availability

6

Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability

6

Vent, Door (White) WPL 9753498GW Contact Us For Availability

7

Screw, 8-18 x 3/8 WPL 9780852 Contact Us For Availability

7

Oven, Side Panel (Black) WPL 9781907PB Contact Us For Availability

7

Oven, Side Panel (Biscuit) WPL 9781907PC Contact Us For Availability

7

Oven, Side Panel (White) WPL 9781907PW Contact Us For Availability

7

Brace, Support WPL 9753675 Contact Us For Availability

8

WP9752405FW Whirlpool Knob Backorder WPL WP9752405FW $15.79

8

Sensor WPL 9782081 Contact Us For Availability

8

Knobs, Control (Black) WPL 9752405FB Contact Us For Availability

8

Knobs, Control (Biscuit) WPL 9752405FC Contact Us For Availability

8

Support Clips (4) WPL 9753691 Contact Us For Availability

8

Handle, Door (Black) WPL 9752701PB Contact Us For Availability

8

Handle, Door (Biscuit) WPL 9752701PC Contact Us For Availability

8

Handle, Door (White) WPL 9752701PW Contact Us For Availability

9

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

9

Shield, Insulation WPL 9780664 Contact Us For Availability

9

Gasket, Door Glass WPL 9781449 Contact Us For Availability

WP9750343 Whirlpool Light Lens Backorder WPL WP9750343 $2.84

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $41.14

WP9782033 Whirlpool Door Hinge Backorder WPL WP9782033 $124.87

Door Switch (Oven Light) WPL 9781580 Contact Us For Availability

Hot Light WPL 9781935 Contact Us For Availability

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 $123.34

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 $120.30

W10823699 Whirlpool Right Front Surface Eleme In Stock WPL W10823699 $89.76

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

WP8523700 Whirlpool Surface Element Backorder WPL WP8523700 $97.34

Light Indicator WPL 313102 Contact Us For Availability

Burner Box WPL 9750478 Contact Us For Availability

Trim Strip (Black) WPL 9752440PB Contact Us For Availability

Trim Strip (Biscuit) WPL 9752440PC Contact Us For Availability

Trim Strip (White) WPL 9752440PW Contact Us For Availability

Oven Bottom WPL 9750142 Contact Us For Availability

Frame, Window WPL 9781602 Contact Us For Availability

13

Fan Assembly WPL 9781543 Contact Us For Availability

13

Rod, Lock WPL 9750523 Contact Us For Availability

13

Shield, Door WPL 9781586 Contact Us For Availability

Panel, Rear WPL 9750150 Contact Us For Availability

Cooktop, Ceran (Black) WPL 9754088CB Contact Us For Availability

Cooktop, Ceran (Biscuit) WPL 9754088CC Contact Us For Availability

Cooktop, Ceran (White) WPL 9754088CW Contact Us For Availability

WP9781593 Whirlpool Door Glass In Stock WPL WP9781593 $66.03

Drawer Rail, Right WPL 9750224 Contact Us For Availability

Timer (Black) WPL 9782677CB Contact Us For Availability

Timer (Biscuit) WPL 9782677CC Contact Us For Availability

Timer (White) WPL 9782677CW Contact Us For Availability

Drawer Rail, Left WPL 9750223 Contact Us For Availability

Rod, Small Ceran Element WPL 9781460 Contact Us For Availability

16

WP9755177 Whirlpool Wind Gasket Backorder WPL WP9755177 $82.52

340184 Whirlpool Screw Backorder WPL 340184 $9.59

WP9781235 Whirlpool Clip Backorder WPL WP9781235 $5.22

Bracket, Timer WPL 9781754 Contact Us For Availability

Bottom Rail (2) WPL 9750147 Contact Us For Availability

18

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

18

Rod, Large Ceran Element WPL 9781459 Contact Us For Availability

18

Insulation, Door WPL 9754006 Contact Us For Availability

WP9750638 Whirlpool Infinite Switch Backorder WPL WP9750638 $80.51

WP9750639 Whirlpool Infinite Switch Backorder WPL WP9750639 $85.81

WP9755173 Whirlpool Infinite Switch Backorder WPL WP9755173 $87.08

Liner, Door WPL 9781600GM Contact Us For Availability

Receiver, Hinge (R or L) WPL 9782005 Contact Us For Availability

Wire Guard WPL 9780585 Contact Us For Availability

20

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.64

20

Support Rail WPL 9781904 Contact Us For Availability

20

Drawer & Roller WPL 9780583 Contact Us For Availability

Cover, Vent (Black) WPL 9753040CB Contact Us For Availability

Cover, Vent (Biscuit) WPL 9753040CC Contact Us For Availability

Cover, Vent (White) WPL 9753040CW Contact Us For Availability

Bracket, Drawer WPL 9750169 Contact Us For Availability

814229 Whirlpool Primary Roller In Stock WPL 814229 $28.97

Clip, Vent Cover WPL 3149190 Contact Us For Availability

Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability

Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability

23

Oven Lock Assembly (Includes 21) WPL 9782611 Contact Us For Availability

23

Retainer, Door WPL 9750676 Contact Us For Availability

Base, Console WPL 9752439 Contact Us For Availability

Screw WPL 423248 Contact Us For Availability

Front, Drawer (Black) WPL 9782108PB Contact Us For Availability

Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability

Front, Drawer (White) WPL 9782108PW Contact Us For Availability

Front, Drawer (Stainless Model) WPL 9782109PB Contact Us For Availability

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Vent Tube WPL 9782380 Contact Us For Availability

Gasket WPL 9750767 Contact Us For Availability

Heat Channel WPL 9750693 Contact Us For Availability

WPW10163899 Whirlpool Switch Backorder WPL WPW10163899 $39.09

Screw WPL 3149333 Contact Us For Availability

Switch, Rocker Illuminated (White) WPL 9753261FW Contact Us For Availability

Switch, Rocker Illuminated (Insulation, Contr WPL 9754008 Contact Us For Availability

Switch, Rocker Illuminated (Black) WPL 9757138FB Contact Us For Availability

Switch, Rocker Illuminated (Biscuit On/Off) WPL 9757138FC Contact Us For Availability

Switch, Rocker Illuminated (White) WPL 9757138FW Contact Us For Availability

Spring, Warm Zone Element WPL 9753677 Contact Us For Availability

27

Switch, Interlock WPL 9754291 Contact Us For Availability

28

Plug, Button WPL 9780578 Contact Us For Availability

28

Spacer, Door (9) WPL 9781502 Contact Us For Availability

29

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

30

Screw WPL 9780272 Contact Us For Availability

31

WPW10001180 Whirlpool Refrigerator Screw Backorder WPL WPW10001180 $2.38

31

Cover, Vent WPL 9750393 Contact Us For Availability

32

Cover, Back WPL 9750394 Contact Us For Availability

33

Deflector, Steam WPL 9781771 Contact Us For Availability

34

For Stainless Model Only WPL ARI68437A4 Contact Us For Availability

35

Trim, Top WPL 9750614PB Contact Us For Availability

36

Screw WPL 9780275 Contact Us For Availability

36

Cushion, Insert WPL 9753329 Contact Us For Availability

37

Insert, Stainless WPL 9754062 Contact Us For Availability

38

Screw WPL 98884 Contact Us For Availability

38

Trim, Bottom WPL 9750613PB Contact Us For Availability

39

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

43

Screw WPL 9750887 Contact Us For Availability

44

Nut WPL 9750888 Contact Us For Availability

45

Box, Terminal WPL 9752344 Contact Us For Availability

46

Cover, Ternminal Box WPL 9752345 Contact Us For Availability
