Model Whirlpool GR395LXGZ2 ELECTRIC RANGE – Common Parts &amp; Diagrams

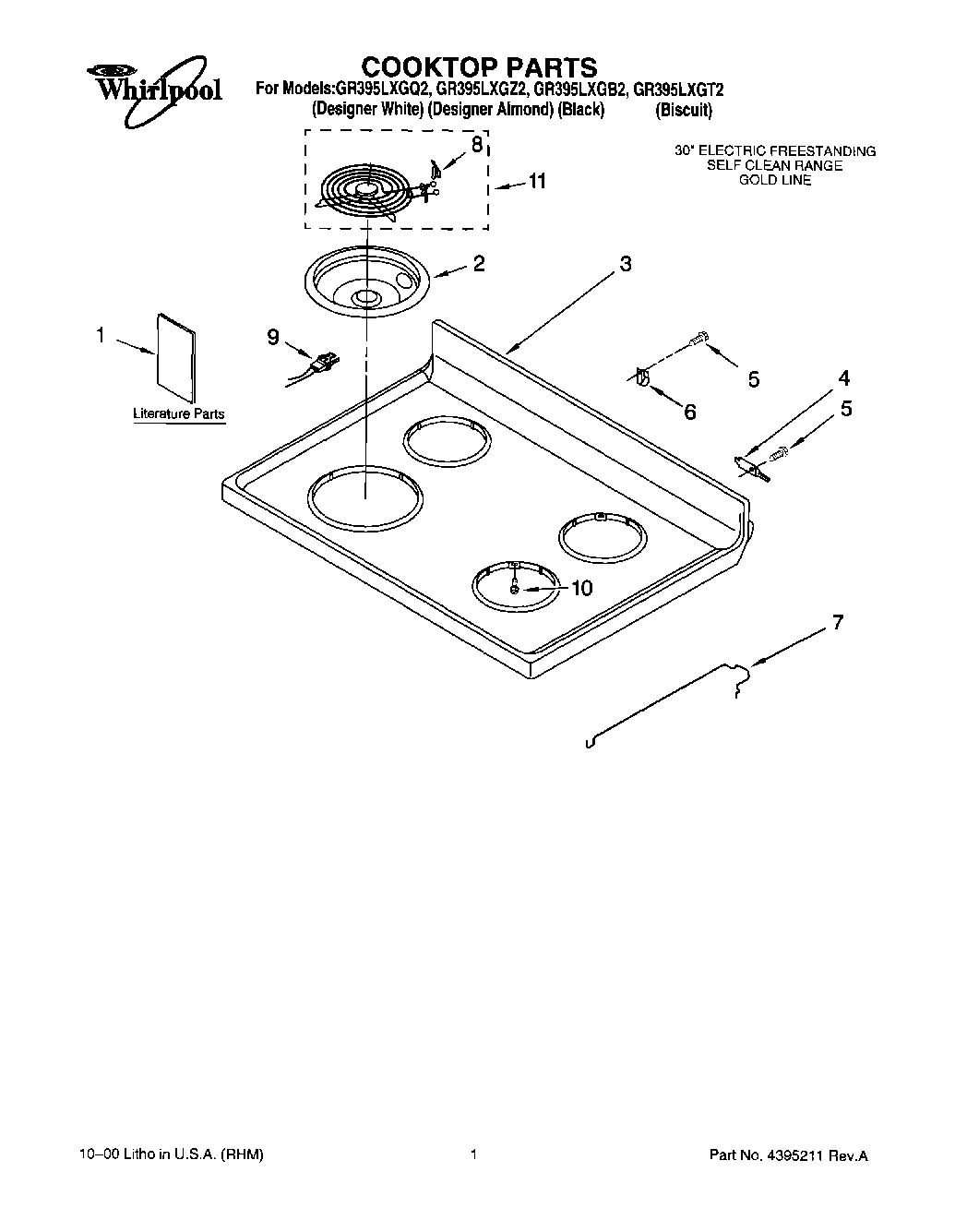

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $63.53

1

Trim, Door Top (Black) WPL 3196819 Contact Us For Availability

1

Trim, Door Top (Almond) WPL 3196820 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL 8272494 Contact Us For Availability

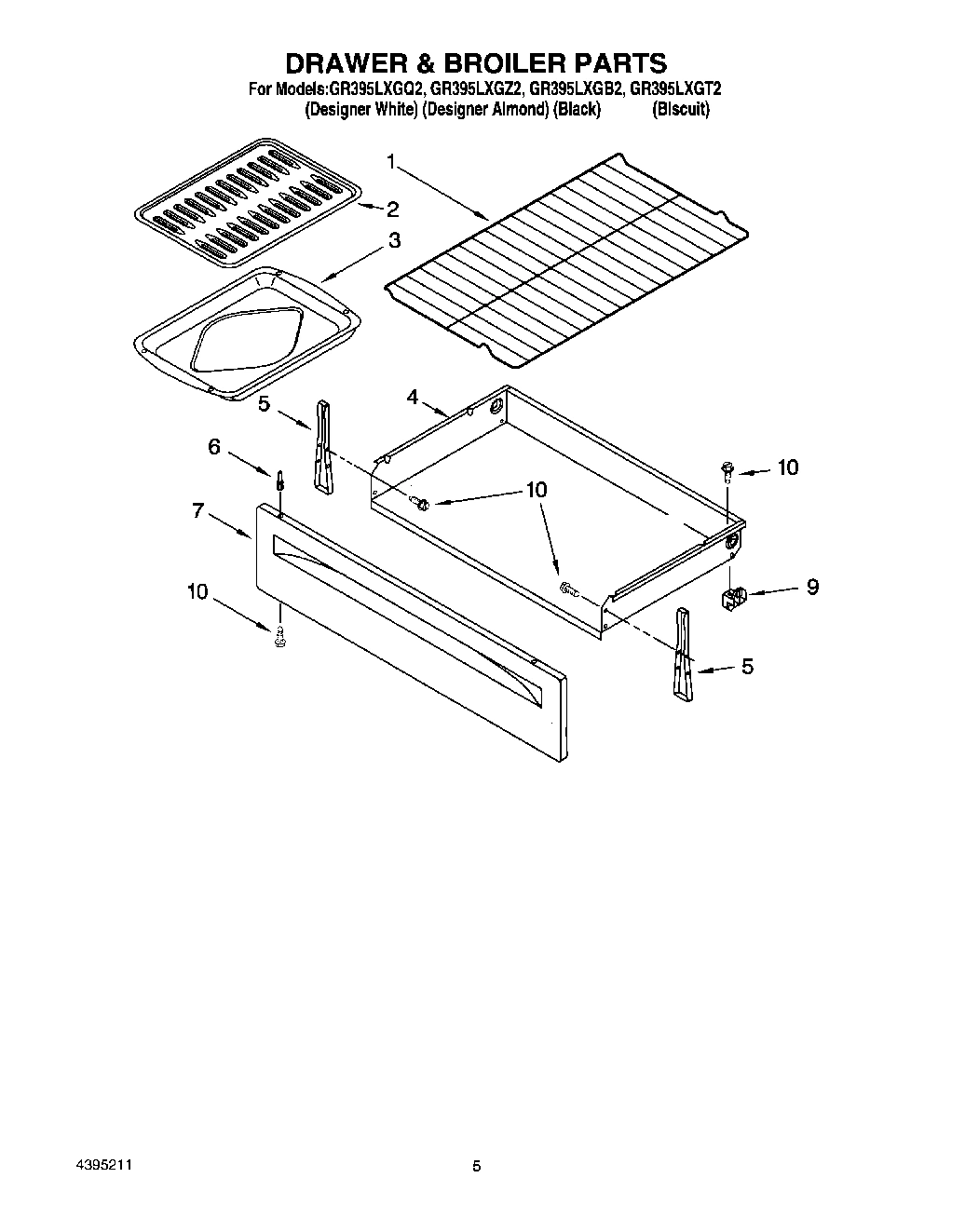

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.64

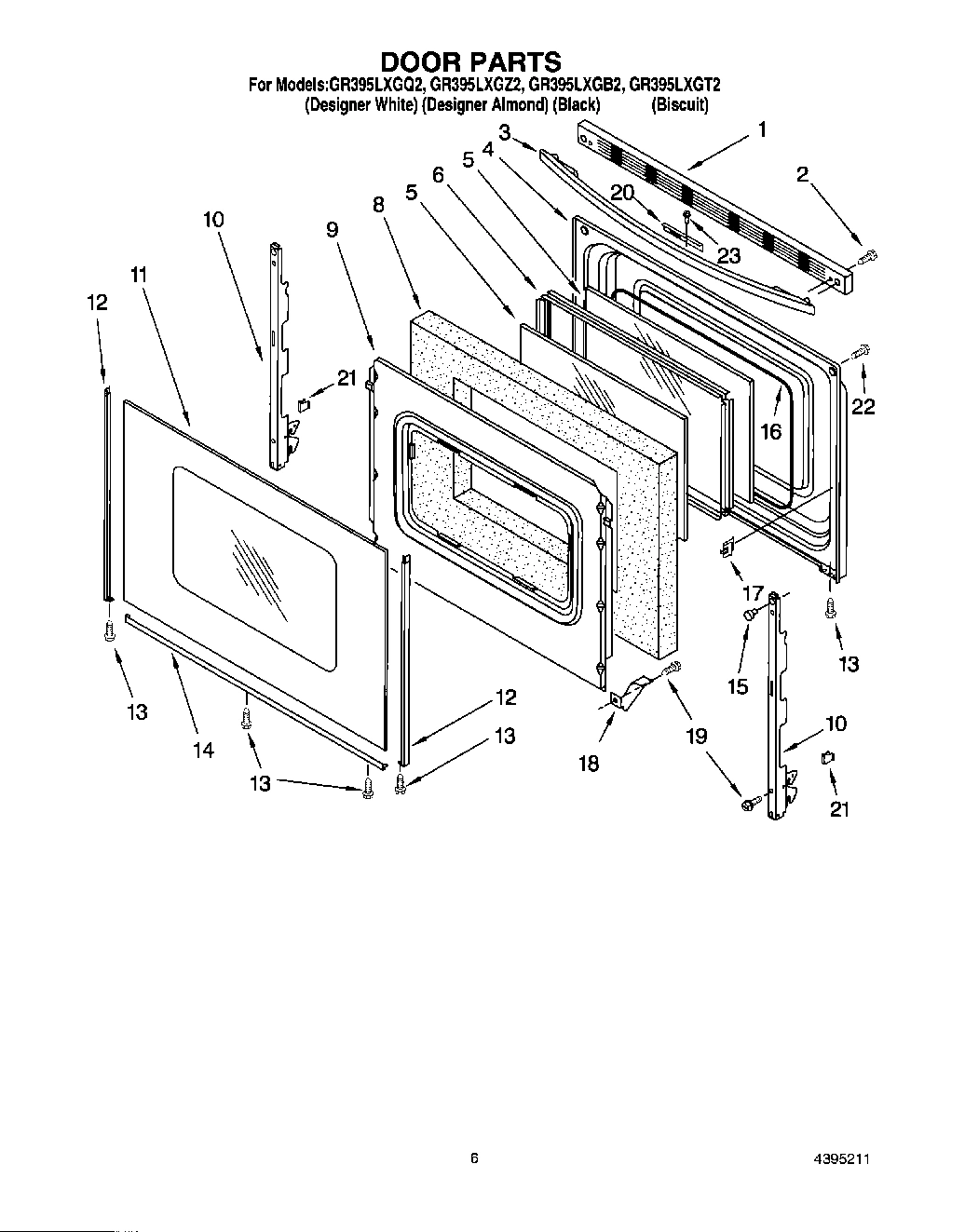

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $106.30

3

Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability

3

Handle, Door (Almond) WPL 3195921 Contact Us For Availability

3

Handle, Door (Biscuit) WPL 8272495 Contact Us For Availability

4

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $90.99

4

Liner, Door WPL 3186292 Contact Us For Availability

4

Drawer, Storage WPL 8272605 Contact Us For Availability

5

W10838990 Whirlpool Mounting Bracket Backorder WPL W10838990 $33.25

5

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $68.30

5

Rod, Latch WPL 3196961 Contact Us For Availability

6

3196815 Whirlpool Range Rivet Backorder WPL 3196815 $9.59

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.00

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $98.24

6

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $30.25

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $74.54

7

W11230476 Whirlpool Drawer Panel Backorder WPL W11230476 $74.54

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $74.54

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $25.94

7

Knob, Infinite (4) (White) WPL 3196232 Contact Us For Availability

7

Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

7

Panel, Drawer Front (Almond) WPL 8053340 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $88.31

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $42.51

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $15.52

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $84.51

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.88

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $38.70

9

Screw WPL 4449746 Contact Us For Availability

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

WP8053807 Whirlpool Range Door Hinge In Stock WPL WP8053807 $49.45

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $117.64

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $28.09

WP8053834 Whirlpool Door Glass Backorder WPL WP8053834 $135.30

WPW10118455 Whirlpool Door Glass Assembly In Stock WPL WPW10118455 $205.13

Glass, Outer Door (Almond) WPL 8053482 Contact Us For Availability

Glass, Outer Door (Biscuit) WPL 8272498 Contact Us For Availability

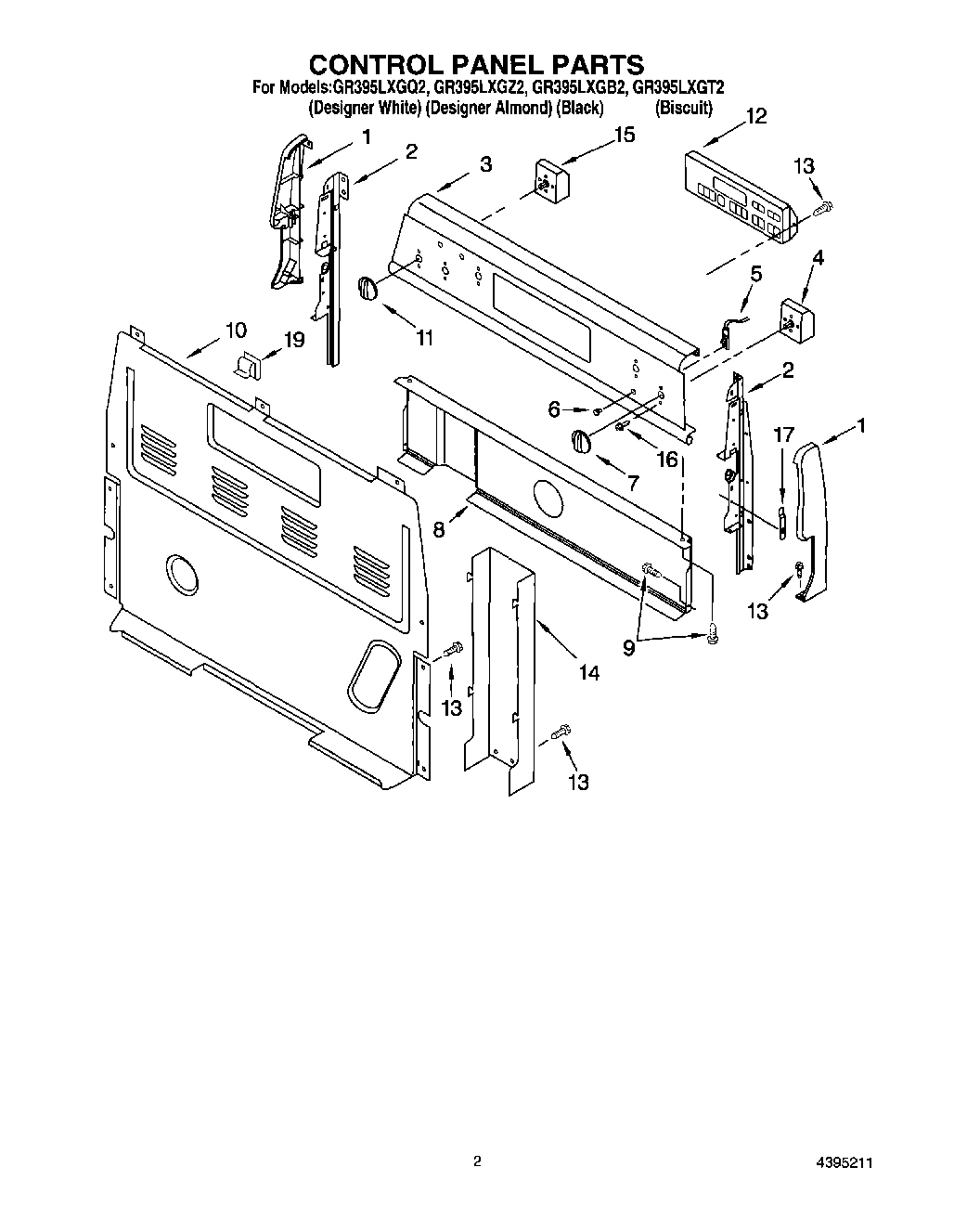

12

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $61.59

12

Control, Range (Black) WPL 6610169 Contact Us For Availability

13

W10491985 Whirlpool Screw Backorder WPL W10491985 $2.51

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

8184858 Whirlpool Door Trim Backorder WPL 8184858 $64.54

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $50.93

8184860 Whirlpool Range Door Trim Backorder WPL 8184860 $58.01

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $27.82

15

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

15

Frame, Front (Not Serviceable) WPL ARI68424A7 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.64

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $30.25

16

Seal, Window WPL 3195984 Contact Us For Availability

17

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

17

Clip, Glass (6) WPL 3196025 Contact Us For Availability

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $53.16

18

Bracket, Window (2) WPL 3196794 Contact Us For Availability

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

20

Bracket, Latch WPL 3195914 Contact Us For Availability

21

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

22

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.64

22

Retainer, Side (2) WPL 3195717 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $30.25

3196696 Whirlpool Clip In Stock WPL 3196696 $6.61

3400964 Whirlpool Range Clip Backorder WPL 3400964 $34.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

814381 Whirlpool Pin In Stock WPL 814381 $3.70

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

WPL W10355051 No Longer Available

W11396691 Whirlpool Element Receptacle and Wi In Stock WPL W11396691 $70.03

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8273340 Whirlpool Sensor Backorder WPL WP8273340 $108.44

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Bro WPL 242822 Contact Us For Availability

WPL 242823 WPL 242823 Contact Us For Availability

WPL 242824 WPL 242824 Contact Us For Availability

WPL 242825 WPL 242825 Contact Us For Availability

WPL 242826 WPL 242826 Contact Us For Availability

WPL 242827 WPL 242827 Contact Us For Availability

WPL 242828 WPL 242828 Contact Us For Availability

WPL 242829 WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 313660 WPL 313660 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8273266 WPL 8273266 Contact Us For Availability

WPL 8273327 WPL 8273327 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

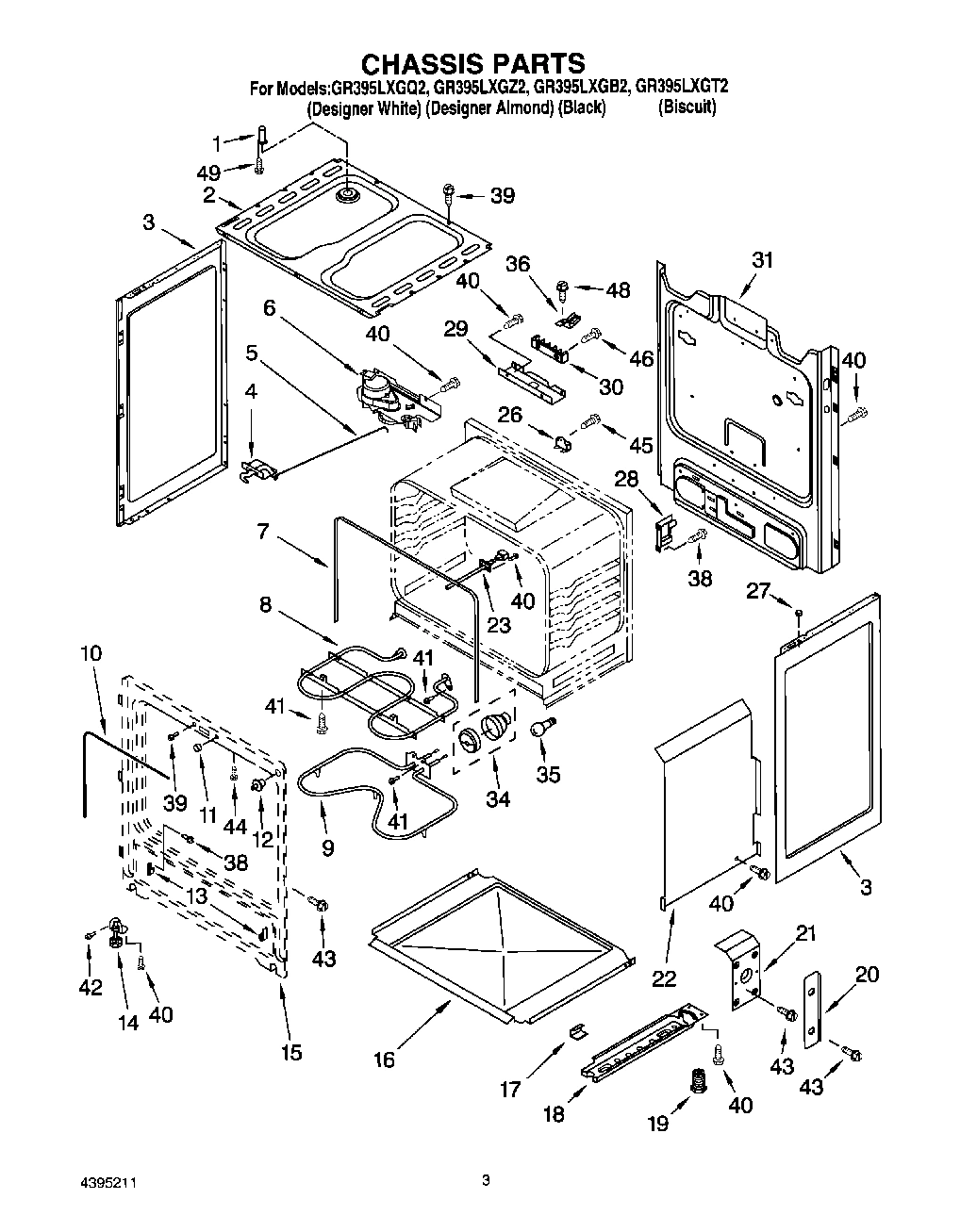

26

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $16.20

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $30.10

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

31

Back, Main WPL 8272922 Contact Us For Availability

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

36

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

36

Strap, Ground WPL 3169573 Contact Us For Availability

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

45

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

49

W11311894 Whirlpool Insulation Backorder WPL W11311894 $39.03

49

WP3196567 Whirlpool Screw Backorder WPL WP3196567 $2.51
