Model LG GR-S31FTKJM.ASBCNA0 – Common Parts & Diagrams

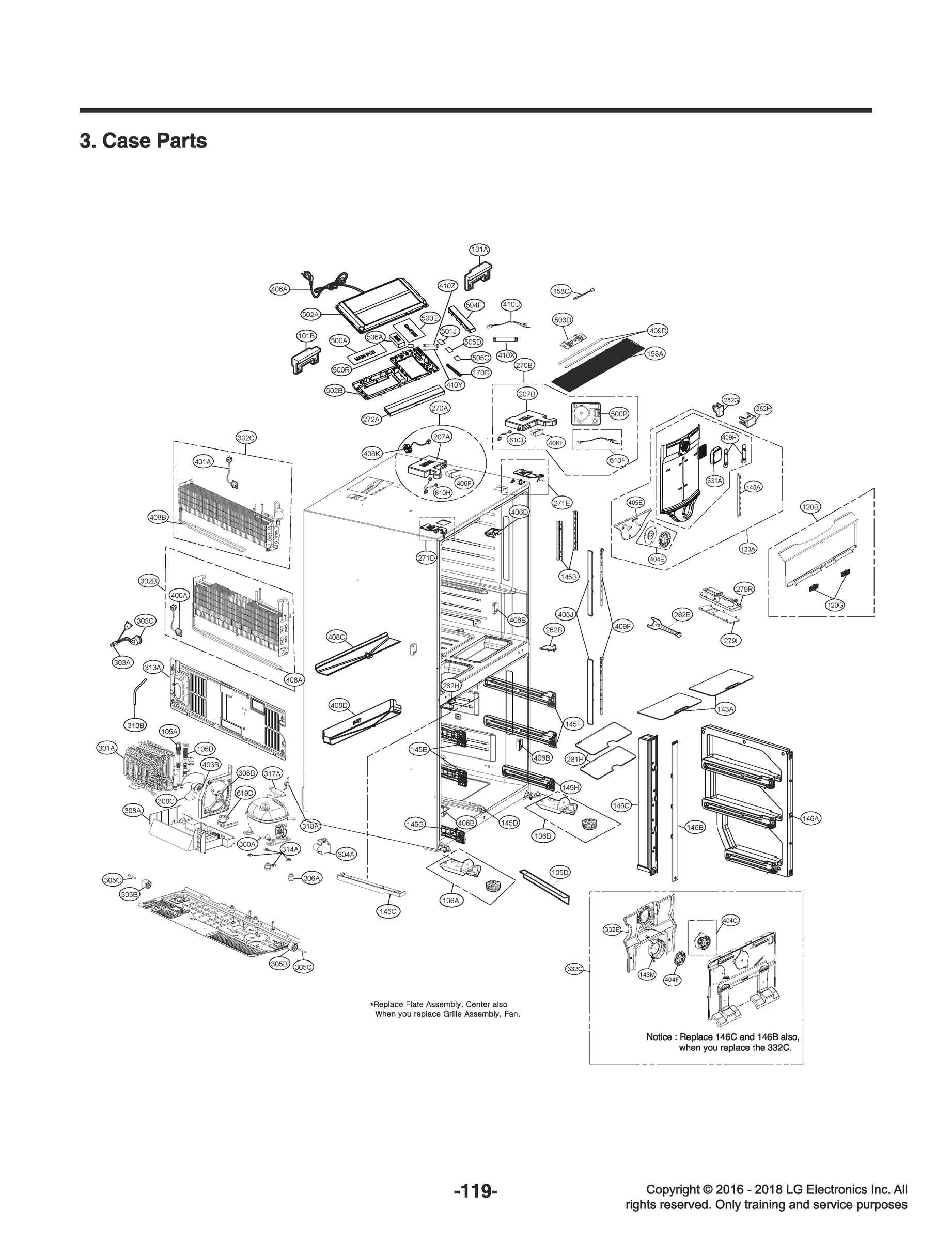

CASE PARTS
R-ROOM DOOR PART

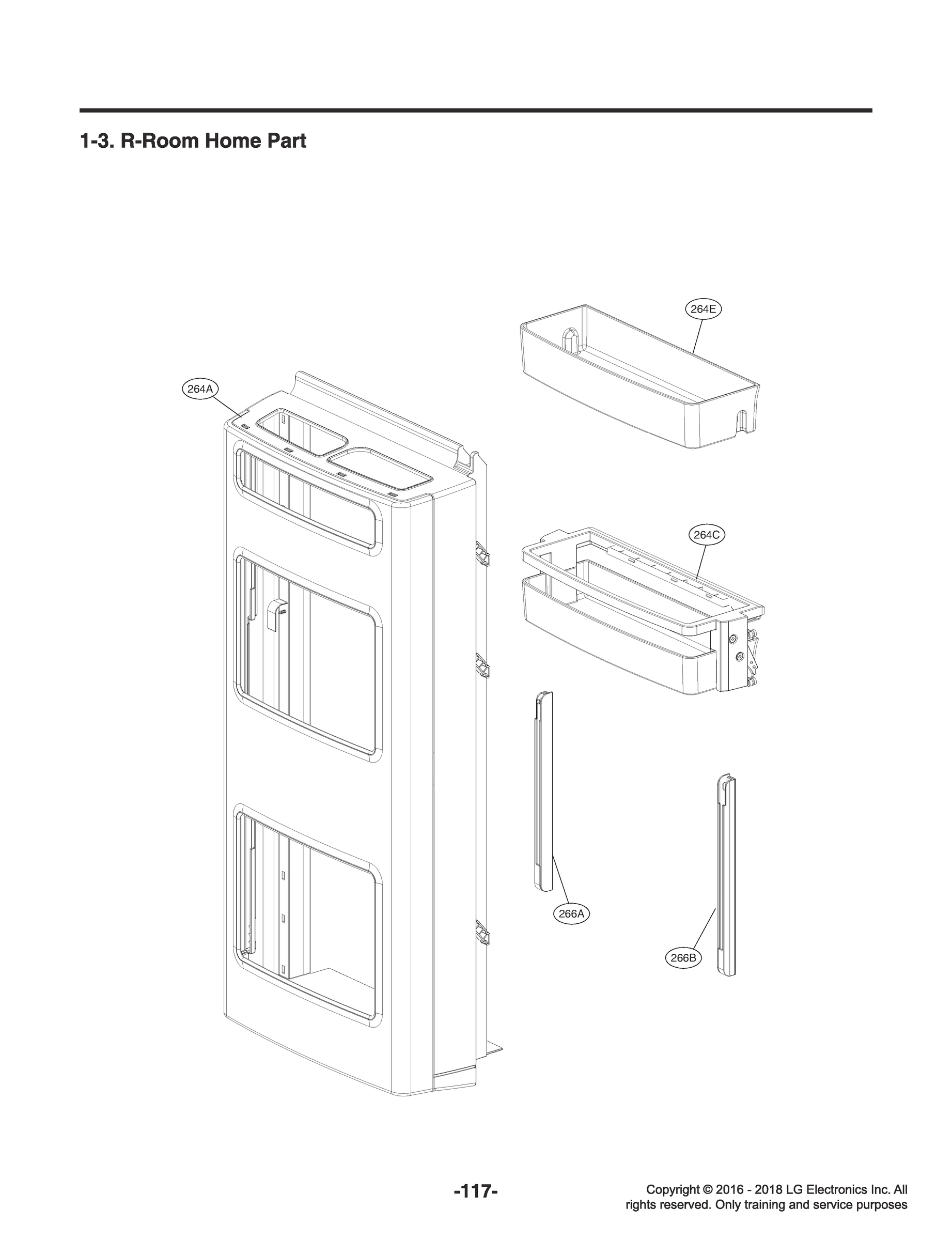

R-ROOM HOME PART

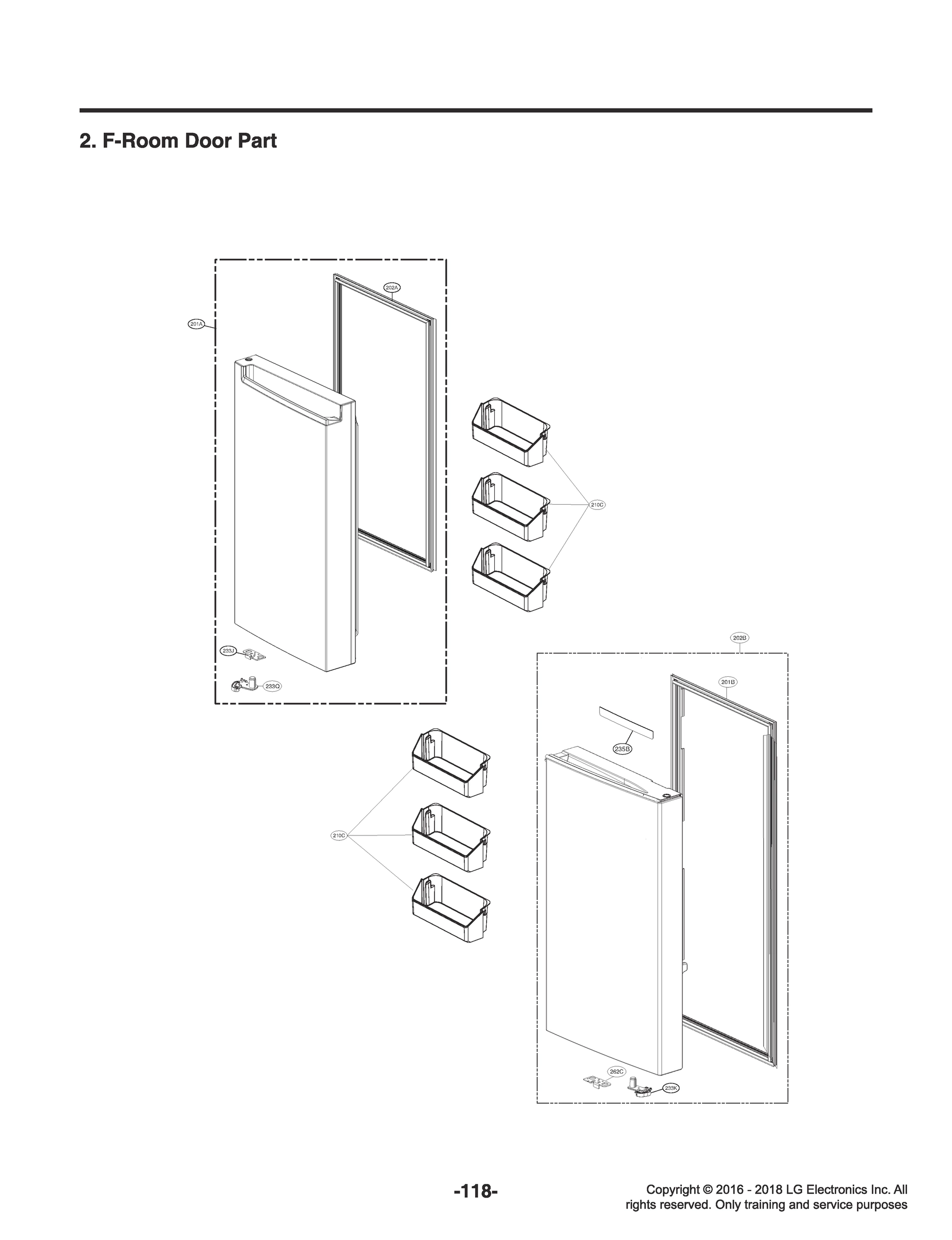

F-ROOM DOOR PART
CASE PARTS

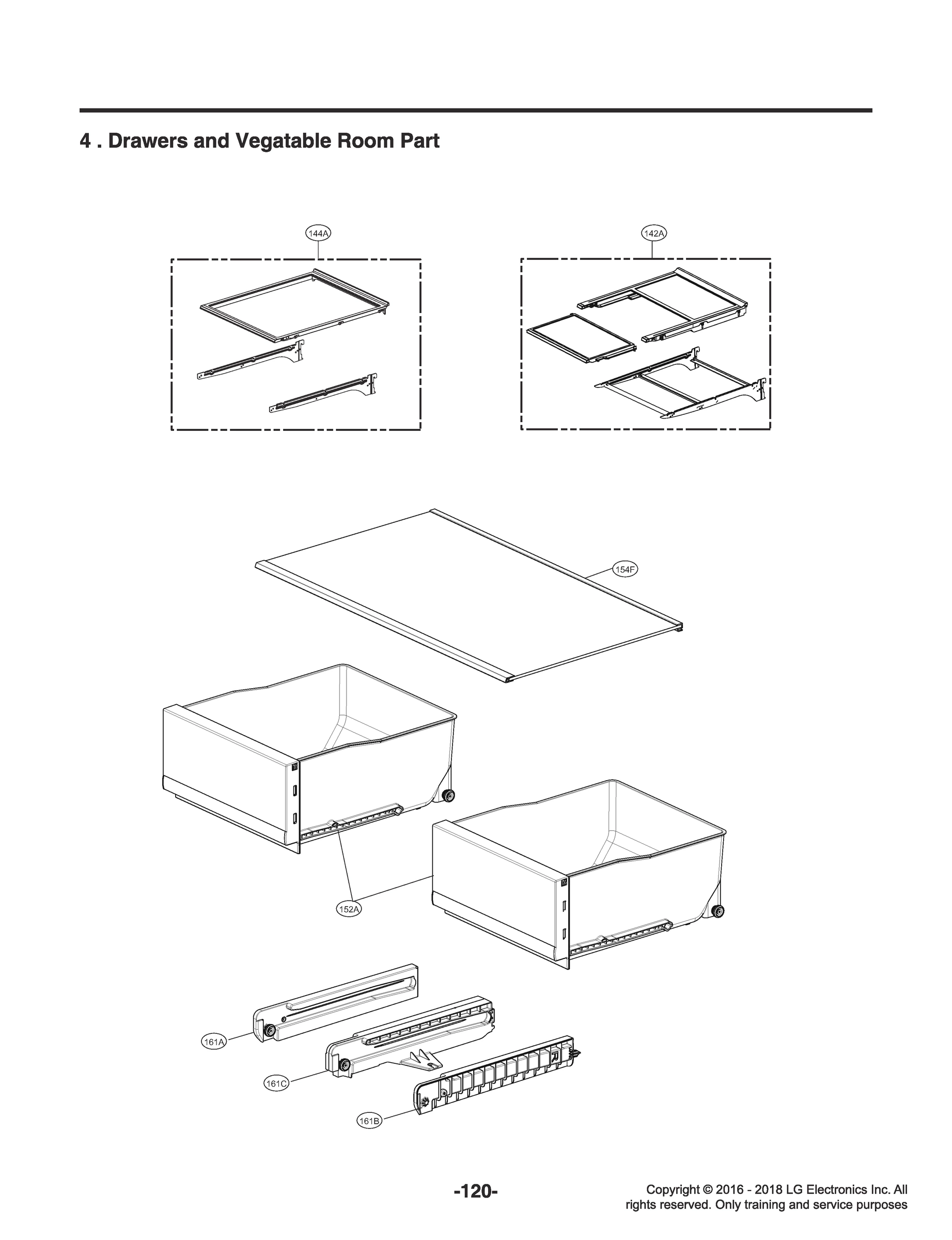

DRAWERS AND VEGATABLE ROOM PART

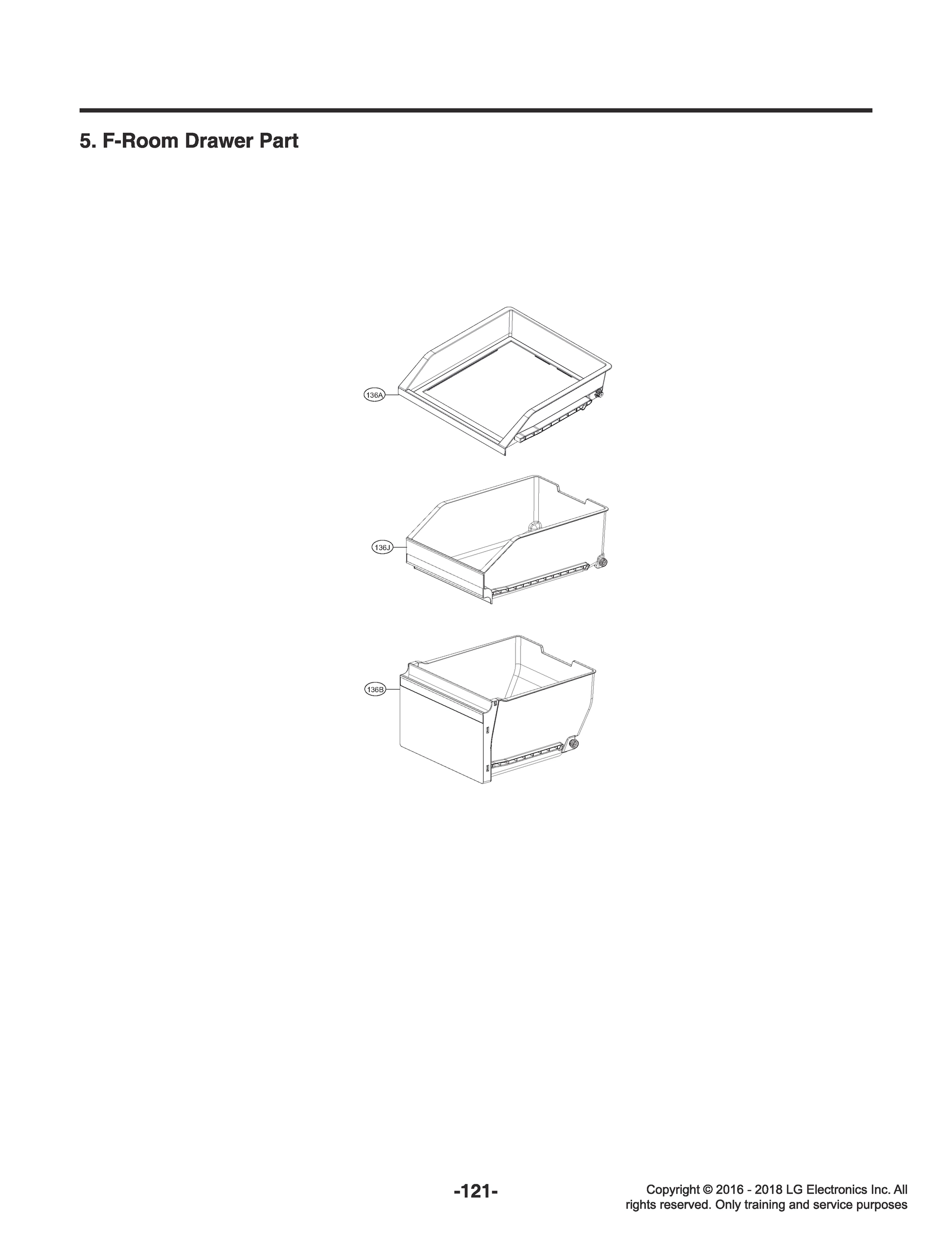

F-ROOM DRAWER PART
ICE MAKER PART

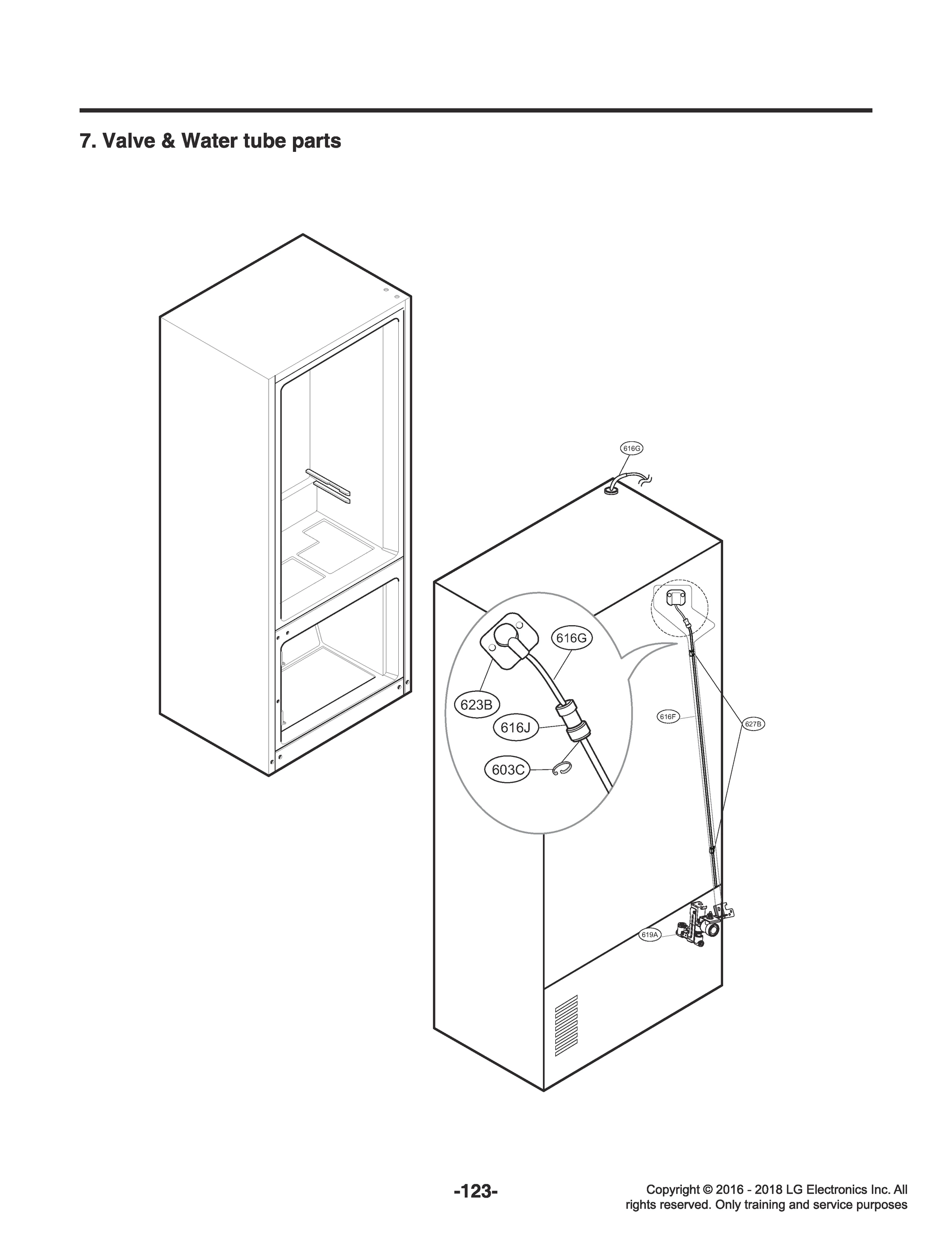

VALVE & WATER TUBE PARTS
Common parts from model LG GR-S31FTKJM.ASBCNA0
101B
Handle,Rear LGE 3650JA2113P Contact Us For Availability
105B
Tube Assembly,Drain LGE 5251JA3004E Contact Us For Availability
136A
Tray Assembly,Drawer LGE AJP73654823 Contact Us For Availability
136B
Tray Assembly,Drawer LGE AJP73654706 Contact Us For Availability
136J
Tray Assembly,Drawer LGE AJP73654825 Contact Us For Availability
142A
Shelf Assembly,Refrigerator LGE AHT73234034 Contact Us For Availability
143A
Cover Assembly LGE ACQ85959312 Contact Us For Availability
144A
Shelf Assembly,Refrigerator LGE AHT73233937 Contact Us For Availability
146B
Plate Assembly,Center LGE AGU73972110 Contact Us For Availability
152A
Tray Assembly,Vegetable LGE AJP73654644 Contact Us For Availability
154F
Cover Assembly,Tray Vegetable LGE ACQ88521302 Contact Us For Availability
161A
Guide Assembly,Rail LGE AEC73657813 Contact Us For Availability
161B
Guide Assembly,Rail LGE AEC73657814 Contact Us For Availability
161C
Guide Assembly,Rail LGE AEC73657706 Contact Us For Availability
180A
Magnet,Ferrite LGE RAB32775604 Contact Us For Availability
201B
Gasket Assembly,Door LGE ADX72930430 Contact Us For Availability
233E
Button Assembly LGE ABH74540602 Contact Us For Availability
235A
Plate Assembly,Front LGE AGU74268161 Contact Us For Availability
241K
Basket Assembly,Door LGE AAP74271301 Contact Us For Availability
243F
Stopper,Door LGE MJB63171101 Contact Us For Availability
243G
Stopper,Door LGE MJB63171201 Contact Us For Availability
262B
Hinge Assembly,Center LGE AEH74556313 Contact Us For Availability
271D
Hinge Assembly,Upper LGE AEH73998905 Contact Us For Availability
271E
Hinge Assembly,Upper LGE AEH73998906 Contact Us For Availability
278H
Spring LGE MHY62644404 Contact Us For Availability
279N
Button Assembly LGE ABH75619702 Contact Us For Availability
281A
Tray Assembly,Drain LGE AJP74654502 Contact Us For Availability
302C
Evaporator Assembly LGE ADL73683318 Contact Us For Availability
303A
Thermistor Assembly,PTC LGE EBG63205832 Contact Us For Availability
303C
Overload Protect LGE 6750C-0002C Contact Us For Availability
304A
Cover,PTC LGE MCK70052506 Contact Us For Availability
306A
Damper,Compressor LGE MCQ66921101 Contact Us For Availability
308A
Tray,Drip LGE MJS62233503 Contact Us For Availability
308C
Fan Assembly LGE ADP73273401 Contact Us For Availability
310B
Pipe,Compressor Sealing LGE MGE62010606 Contact Us For Availability
312B
Cover,Front LGE MCK67971001 Contact Us For Availability
314A
Stopper,Compressor LGE 4620JA3015A Contact Us For Availability
332C
Grille Assembly,Fan LGE AEB73784620 Contact Us For Availability
332E
Shroud,Freezer LGE MHN62562401 Contact Us For Availability
400A
Controller Assembly LGE ACM73919220 Contact Us For Availability
401A
Controller Assembly LGE ACM73919219 Contact Us For Availability
402B
Switch,Magnet LGE EBF61314813 Contact Us For Availability
403B
Motor,DC LGE EAU63103301 Contact Us For Availability
404C
Motor Assembly,DC LGE EAU64824803 Contact Us For Availability
404E
Motor Assembly,DC LGE EAU64824801 Contact Us For Availability
404F
Motor Assembly,DC LGE EAU64824802 Contact Us For Availability
405E
Shroud,Refrigerator LGE MHN62482301 Contact Us For Availability
405J
Cover,Lamp LGE MCK67195001 Contact Us For Availability
406A
Power Cord Assembly LGE EAD63914603 Contact Us For Availability
406D
Holder,Door LGE MEG63261302 Contact Us For Availability
406K
Switch,Rocker LGE 6600JB3003F Contact Us For Availability
408A
Heater,Sheath LGE MEE62225152 Contact Us For Availability
408B
Heater,Sheath LGE MEE62105215 Contact Us For Availability
408C
Tray Assembly,Drain LGE 3391JJ2013Y Contact Us For Availability
408D
Tray Assembly,Drain LGE 3391JJ2013M Contact Us For Availability
409D
LED Assembly LGE EAV61916703 Contact Us For Availability
409F
LED Assembly LGE EAV61916704 Contact Us For Availability
409H
LED Assembly LGE EAV61572001 Contact Us For Availability
410U
Harness Assembly LGE EAD64186602 Contact Us For Availability
410X
Cable,FFC LGE EAD64366301 Contact Us For Availability
410Y
Harness Assembly LGE EAD62670403 Contact Us For Availability
410Z
Harness Assembly LGE EAD64226001 Contact Us For Availability
500A
PCB Assembly,Main LGE EBR80437227 Contact Us For Availability
500C
Case Assembly,PCB LGE ABQ72940030 Contact Us For Availability
500E
PCB Assembly,Main LGE EBR85979201 Contact Us For Availability
500R
PCB Assembly,Sub LGE EBR85835501 Contact Us For Availability
501J
Module,WLAN LGE EAT63153401 Contact Us For Availability
502A
Cover Assembly,PCB LGE ACQ77079725 Contact Us For Availability
502B
Case Assembly,PCB LGE ABQ76400536 Contact Us For Availability
503D
Cover,Sensor LGE MCK67228501 Contact Us For Availability
504F
Cover,PCB LGE MCK69705501 Contact Us For Availability
505C
PCB Assembly,Module LGE EBR84422401 Contact Us For Availability
505D
PCB Assembly,Module LGE EBR84422601 Contact Us For Availability
506A
Adapters LGE EAY62949006 Contact Us For Availability
600C
Cover Assembly,Motor LGE ACQ90087901 Contact Us For Availability
600G
Duct,Multi LGE MCZ63273301 Contact Us For Availability
600H
Duct,Multi LGE MCZ63273401 Contact Us For Availability
600I
Gasket,Foam LGE MDS64013907 Contact Us For Availability
600J
Guide,Water LGE MEA63570501 Contact Us For Availability
606A
Motor, AC Indoor LGE EAU61083522 Contact Us For Availability
607A
Holder Assembly,Bracket LGE 4931JA3005B Contact Us For Availability
610H
PCB Assembly,Sensor LGE EBR78764903 Contact Us For Availability
610J
PCB Assembly,Sensor LGE EBR78764904 Contact Us For Availability
619B
Valve,Water LGE MJX62831301 Contact Us For Availability
619C
Filter Assembly,Water LGE ADQ73913306 Contact Us For Availability
624C
Connector,Tube LGE MCD62887401 Contact Us For Availability
627B
Holder,Pipe LGE 4930JA3087B Contact Us For Availability
630A
Door Assembly,Freeze Room LGE ADC72987144 Contact Us For Availability
630C
Gasket,Door LGE MDS62111103 Contact Us For Availability
630D
Handle,Home Bar LGE MEB61894003 Contact Us For Availability
630D
Handle,Home Bar LGE MEB62915403 Contact Us For Availability
630E
Cover,Lever LGE MCK63734907 Contact Us For Availability
630F
Hinge Assembly,Upper LGE AEH72976201 Contact Us For Availability
630G
Hinge Assembly,Lower LGE AEH73577903 Contact Us For Availability
630H
Cover,Home Bar LGE MCK66593601 Contact Us For Availability
630J
Gasket Assembly,Door LGE ADX73250609 Contact Us For Availability
631A
Decor,Cover LGE MCR64742907 Contact Us For Availability
× ![]()
