Model Whirlpool GMH3204XVB0 MICROWAVE OVEN/HOOD 2.0 CU. FT. – Common Parts & Diagrams

1

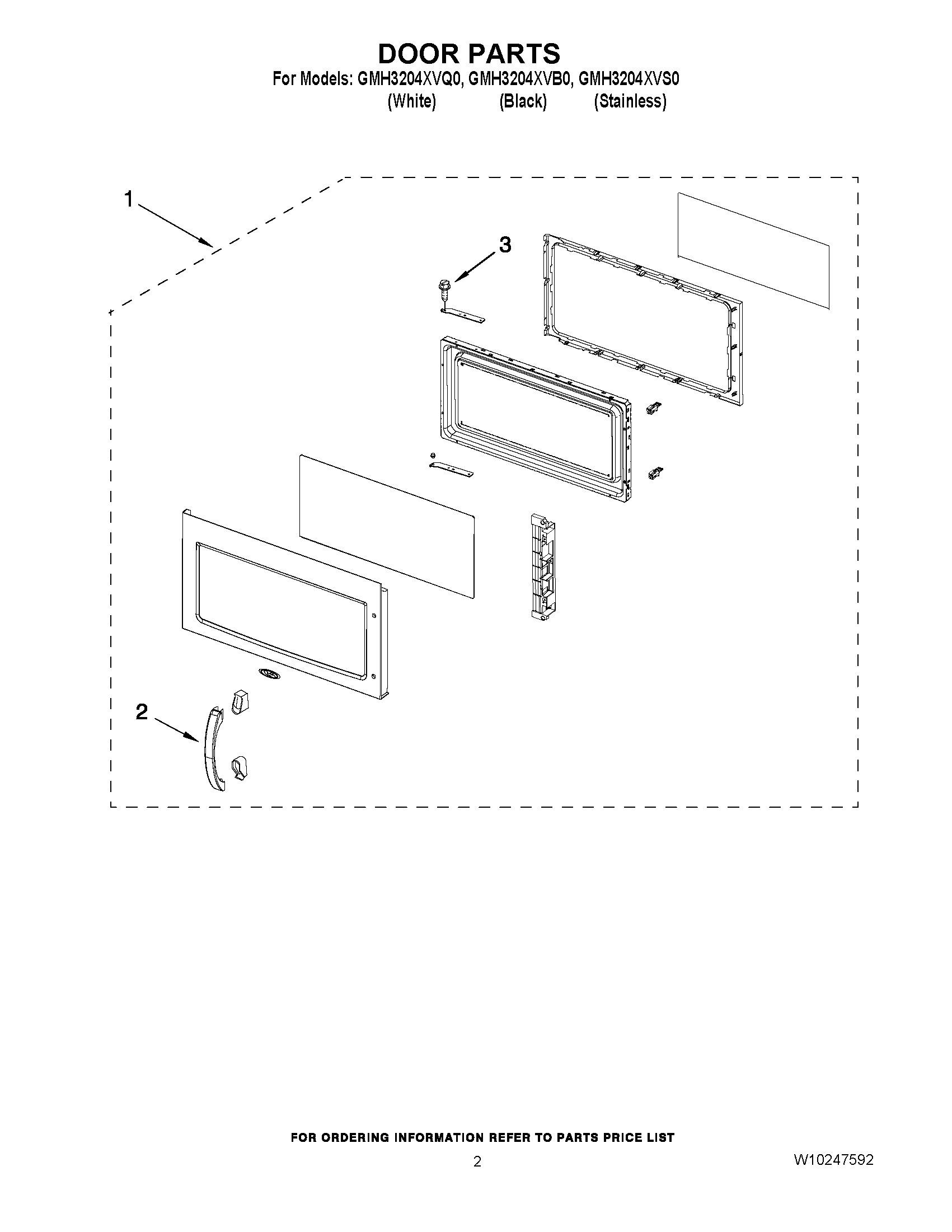

COMPLETE DOOR (Stainless)
COMPLETE DOOR (Stainless) WPL W10245222 Contact Us For Availability
View on Model
1
COMPLETE DOOR (White)
COMPLETE DOOR (White) WPL W10245221 Contact Us For Availability
View on Model
1
Cover, Inlet Includes Nails and Bushings
Cover, Inlet Includes Nails and Bushings WPL W10245224 Contact Us For Availability
View on Model
1
COMPLETE DOOR (Black)
COMPLETE DOOR (Black) WPL W10245220 Contact Us For Availability
View on Model
2
Handle (Stainless)
Handle (Stainless) WPL W10210887 Contact Us For Availability
View on Model
2
Cover, Lamp
Cover, Lamp WPL 8206382 Contact Us For Availability
View on Model
2
Support, Wire Clip
Support, Wire Clip WPL 8206385 Contact Us For Availability
View on Model
2
Panel Asy, Control Includes Lens and Membrane
Panel Asy, Control Includes Lens and Membrane WPL W10245204 Contact Us For Availability
View on Model
3
Holder, Lamp
Holder, Lamp WPL W10210871 Contact Us For Availability
View on Model
3
Sensor, Humidity
Sensor, Humidity WPL W10245178 Contact Us For Availability
View on Model
3
Bracket, Control
Bracket, Control WPL W10245199 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL W10138802 Contact Us For Availability
View on Model
4
Cord, Power
Cord, Power WPL 8206388 Contact Us For Availability
View on Model
5
Plate, Bottom
Plate, Bottom WPL W10245196 Contact Us For Availability
View on Model
6

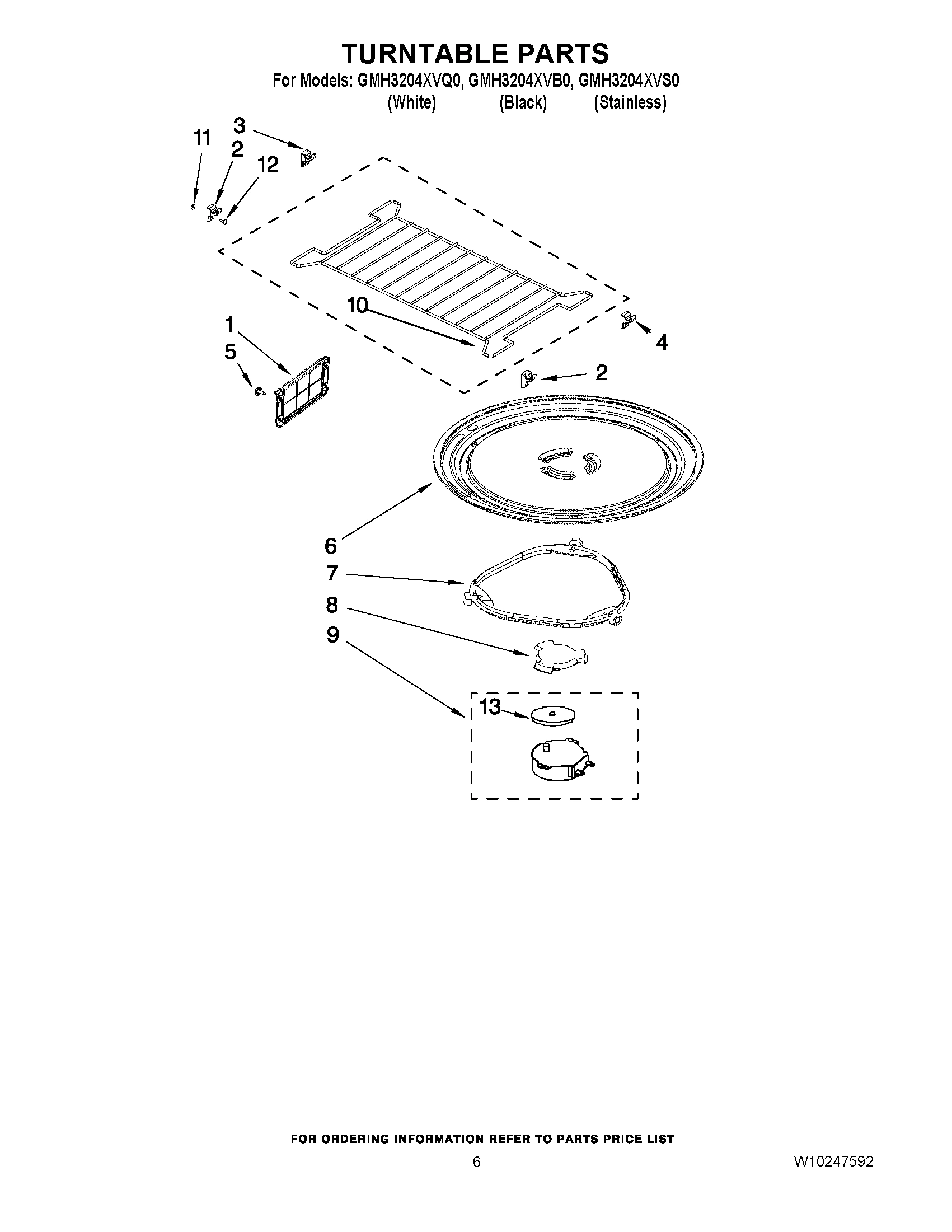

Turntable
Turntable WPL 4393799 Contact Us For Availability
View on Model
6
Grille, Vent (Stainless)
Grille, Vent (Stainless) WPL W10245216 Contact Us For Availability
View on Model
6
Grille, Vent (White)
Grille, Vent (White) WPL W10245217 Contact Us For Availability
View on Model
6
Grille, Vent (Black)
Grille, Vent (Black) WPL W10245218 Contact Us For Availability
View on Model
7
Plate, Damper
Plate, Damper WPL W10210832 Contact Us For Availability
View on Model
7
Holder, Glass
Holder, Glass WPL W10210873 Contact Us For Availability
View on Model
7
Support
Support WPL W10245179 Contact Us For Availability
View on Model
8
Switch, Micro V15T16-CZ200
Switch, Micro V15T16-CZ200 WPL W10211972 Contact Us For Availability
View on Model
10
Spring, Interlock
Spring, Interlock WPL W10156812 Contact Us For Availability
View on Model
11
Filter
Filter WPL 8206624 Contact Us For Availability
View on Model
11
Washer
Washer WPL W10107790 Contact Us For Availability
View on Model
12
SCREW
SCREW WPL 8206618 Contact Us For Availability
View on Model
13
Seal, Waterproof
Seal, Waterproof WPL 8184109 Contact Us For Availability
View on Model
13
Piston Assembly
Piston Assembly WPL W10197758 Contact Us For Availability
View on Model
15
THERMISTOR PCBA
THERMISTOR PCBA WPL W10163422 Contact Us For Availability
View on Model
16
Plate, Side
Plate, Side WPL W10245193 Contact Us For Availability
View on Model
18
MAGNETRON
MAGNETRON WPL W10245183 Contact Us For Availability
View on Model
18
Resistor, Cement
Resistor, Cement WPL W10245190 Contact Us For Availability
View on Model
19
SWITCH, MICRO V15T16-CP200
SWITCH, MICRO V15T16-CP200 WPL W10211974 Contact Us For Availability
View on Model
20
Holder, Fuse
Holder, Fuse WPL W10245194 Contact Us For Availability
View on Model
20
Plate, Water Proof
Plate, Water Proof WPL W10164716 Contact Us For Availability
View on Model
NI
Installation, Hardware
Installation, Hardware WPL 8205948 Contact Us For Availability
View on Model
NI
Template, Upper
Template, Upper WPL 8205871 Contact Us For Availability
View on Model
