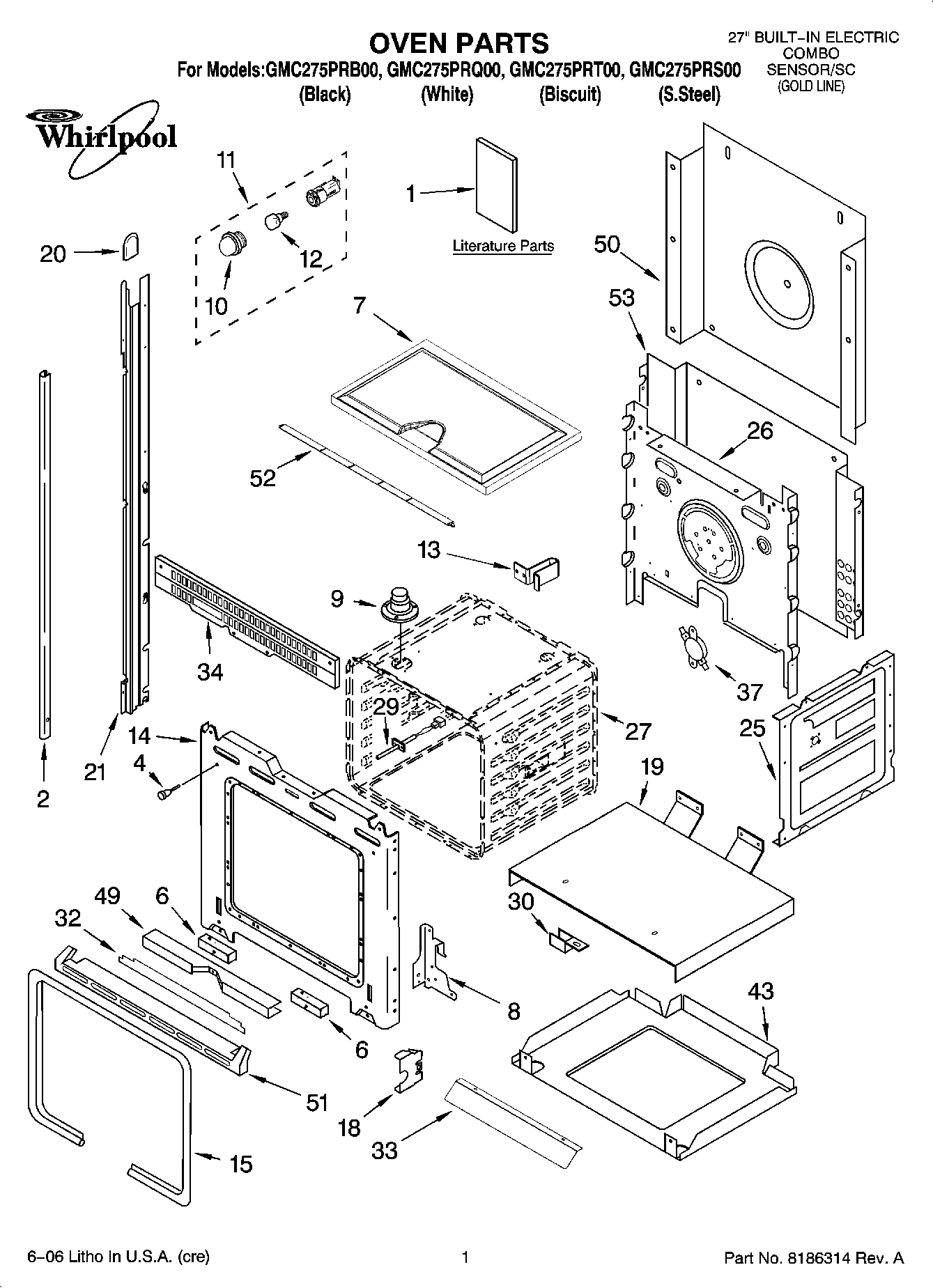

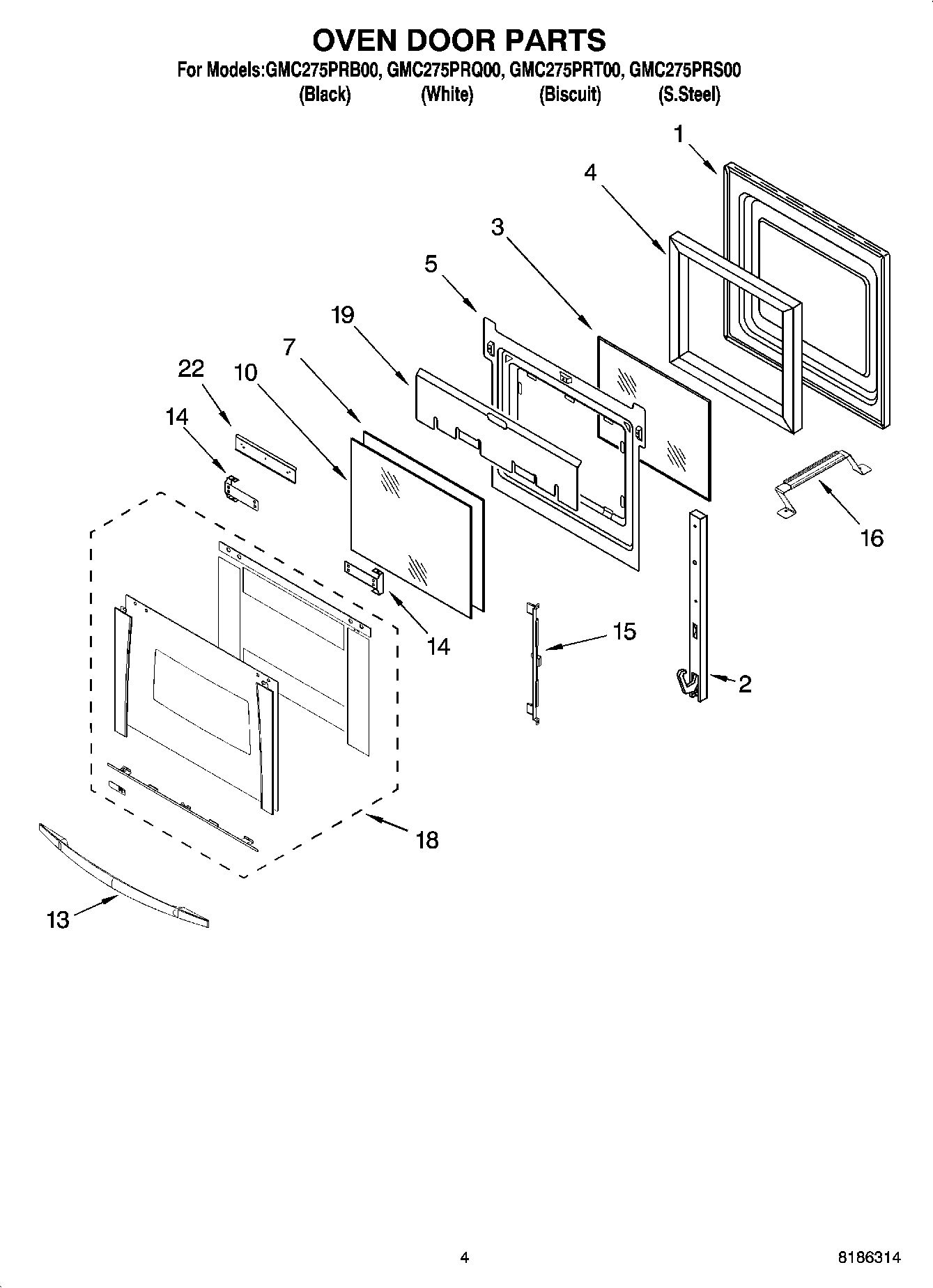

Model Whirlpool GMC275PRT00 27`` BUILT-IN ELECTRIC COMBO SENSOR/SC (GOLD LINE) – Common Parts &amp; Diagrams

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $114.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

8301909 Whirlpool Oven Wire Harness Backorder WPL 8301909 $68.62

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $10.71

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $25.71

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (BL) WPL 4378950 Contact Us For Availability

Filler Kit (WH) WPL 4378951 Contact Us For Availability

Ground (M/W) WPL 4450831 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Main WPL 4457128 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

WPL 8303837 WPL 8303837 Contact Us For Availability

WPL ARI67026A1 WPL ARI67026A1 Contact Us For Availability

WPL ARI67027A3 WPL ARI67027A3 Contact Us For Availability

WPL ARI67028A3 WPL ARI67028A3 Contact Us For Availability

WPL ARI67029A3 WPL ARI67029A3 Contact Us For Availability

WPL ARI67030A5 WPL ARI67030A5 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $34.33

1

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

1

Door Liner WPL 8303699 Contact Us For Availability

1

Screw WPL 4449040 Contact Us For Availability

1

Assy, Control WPL 8303819 Contact Us For Availability

1

Cover, Top WPL 4450377 Contact Us For Availability

1

Bracket, Capacitor WPL 4375299 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $2.51

2

Assy, Switch (Black & Steel Mdl) WPL 8303183 Contact Us For Availability

2

Assy, Switch (White Model) WPL 8303225 Contact Us For Availability

2

Assy, Switch (Biscuit Model) WPL 8303231 Contact Us For Availability

2

Baffle, Blower WPL 4448935 Contact Us For Availability

3

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

3

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $75.24

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Control, Bracket WPL 8302991 Contact Us For Availability

3

Blower WPL 4450920 Contact Us For Availability

3

Rubber Ring WPL 4375037 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

Board, Mtrzd Latch WPL 8301848 Contact Us For Availability

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Bracket, Duct WPL 4450027 Contact Us For Availability

4

Screw WPL 4375038 Contact Us For Availability

5

WP8302844 Whirlpool Control Panel Backorder WPL WP8302844 $156.73

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $95.80

5

Control Panel (White Model) WPL 8302845 Contact Us For Availability

5

Retainer, Glass WPL 4457131 Contact Us For Availability

5

Control Panel (Biscuit Model) WPL 8302846 Contact Us For Availability

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

5

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Filter WPL 4451592 Contact Us For Availability

6

Exhaust Duct WPL 8303844 Contact Us For Availability

7

Glass, Inner WPL 9759224 Contact Us For Availability

7

Bracket, Filter WPL 4451632 Contact Us For Availability

7

Plate, Mounting WPL 4451789 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

8

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.92

8

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.92

8

Trim-Panel (Use on S.Steel model only) WPL 8302878 Contact Us For Availability

8

Grommet WPL 4449964 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $30.25

9

Baffle, Rear WPL 4450407 Contact Us For Availability

10

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $193.95

10

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $7.61

10

Frame, Door WPL 8303555 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $11.80

Screw WPL 3400080 Contact Us For Availability

Damper WPL 4375315 Contact Us For Availability

Rear Channel WPL 4452547 Contact Us For Availability

12

Duct, Inlet WPL 4375260 Contact Us For Availability

12

Side, Combo WPL 4452559 Contact Us For Availability

13

Insulation, Switch WPL 4375316 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $35.63

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $30.23

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Fan Wheel WPL 4375322 Contact Us For Availability

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $72.04

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

Filler, Side WPL 4449083 Contact Us For Availability

Back, Control WPL 4452244 Contact Us For Availability

Duct, Air WPL 4375317 Contact Us For Availability

16

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $165.64

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

16

Block, Slide WPL 4375264 Contact Us For Availability

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

Glass, Outer (Black Stainless) WPL 8303246 Contact Us For Availability

Glass, Outer (Black Model) WPL 8303262 Contact Us For Availability

Glass, Outer (White Model) WPL 8303270 Contact Us For Availability

Glass, Outer (Biscuit Model) WPL 8303276 Contact Us For Availability

Cover Plate, Upper WPL 4375248 Contact Us For Availability

18

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

18

Cover, Top Front WPL 4452366 Contact Us For Availability

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $39.07

19

Transformer, Control WPL 8300642 Contact Us For Availability

20

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $38.50

20

SUPPRESSOR WPL 8302143 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $34.44

21

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

21

Plate, Cover WPL 4452247 Contact Us For Availability

22

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $8.69

24

Screw WPL 4451040 Contact Us For Availability

24

Bracket, Handle WPL 8303168 Contact Us For Availability

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $99.53

26

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $143.15

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $11.18

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

30

Thermostat WPL 4375279 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $35.87

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $159.20

34

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

35

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $55.71

35

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $54.73

36

WP4451008 Whirlpool Microwave Spring In Stock WPL WP4451008 $50.89

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $34.28

37

Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability

37

Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability

38

Inlet WPL 4375329 Contact Us For Availability

39

Door Strap WPL 4375331 Contact Us For Availability

40

Fan Cap WPL 4375333 Contact Us For Availability

41

Fan Cap Bottom WPL 4375334 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $95.69

43

Base, Chassis WPL 4455529 Contact Us For Availability

43

Isolation Plate WPL 4375337 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

45

Plate, Door WPL 4375339 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

47

Side Plate (Right) WPL 4375341 Contact Us For Availability

47

Side Plate (Left) WPL 4375342 Contact Us For Availability

48

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $55.73

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

49

Ring Assembly WPL 4375344 Contact Us For Availability

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $3.46

50

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

51

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.67

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

52

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $79.94

53

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $14.40

54

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $14.45

55

Cable WPL 4375350 Contact Us For Availability

56

Holder, Lamp WPL 4375351 Contact Us For Availability
