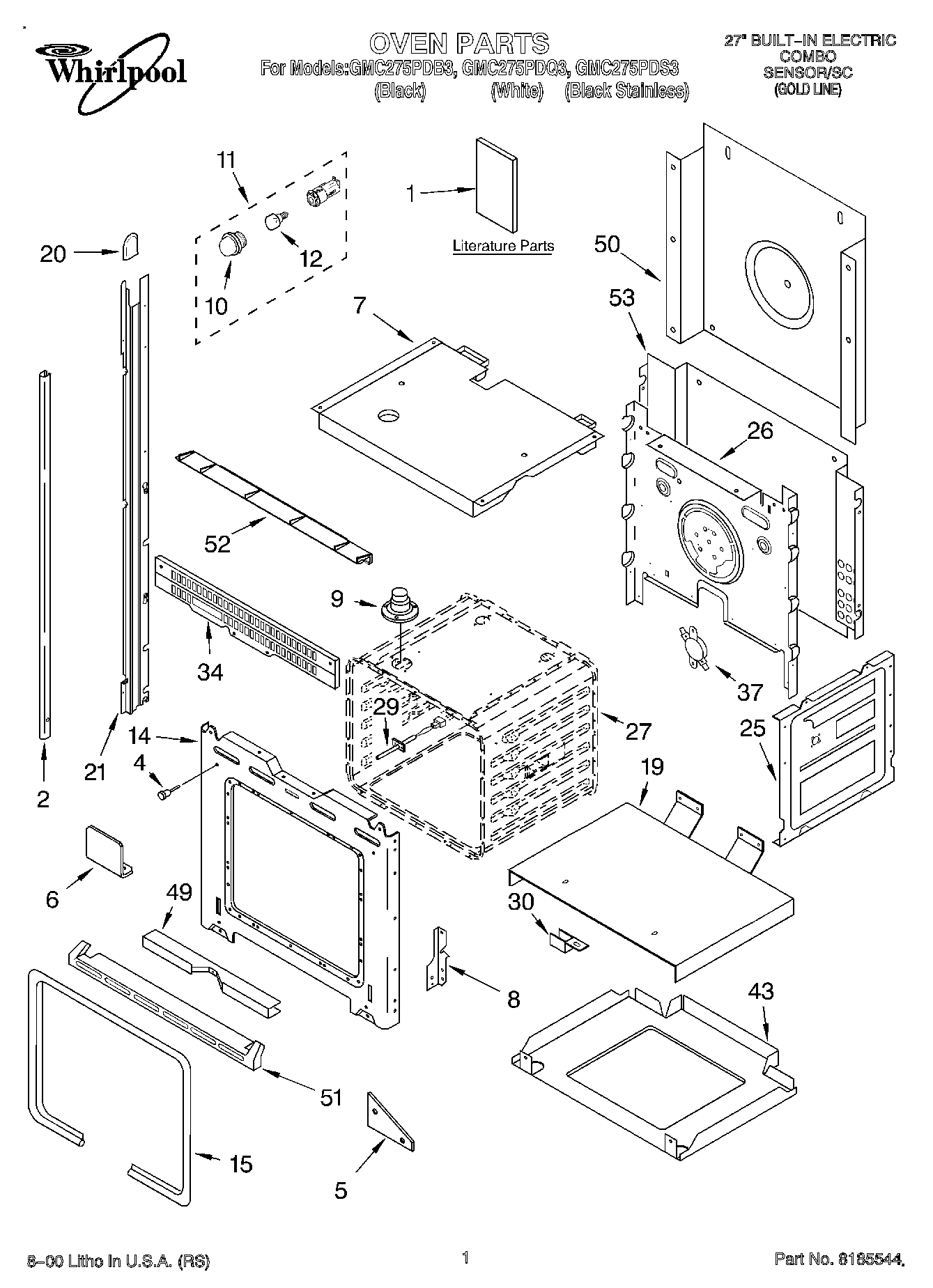

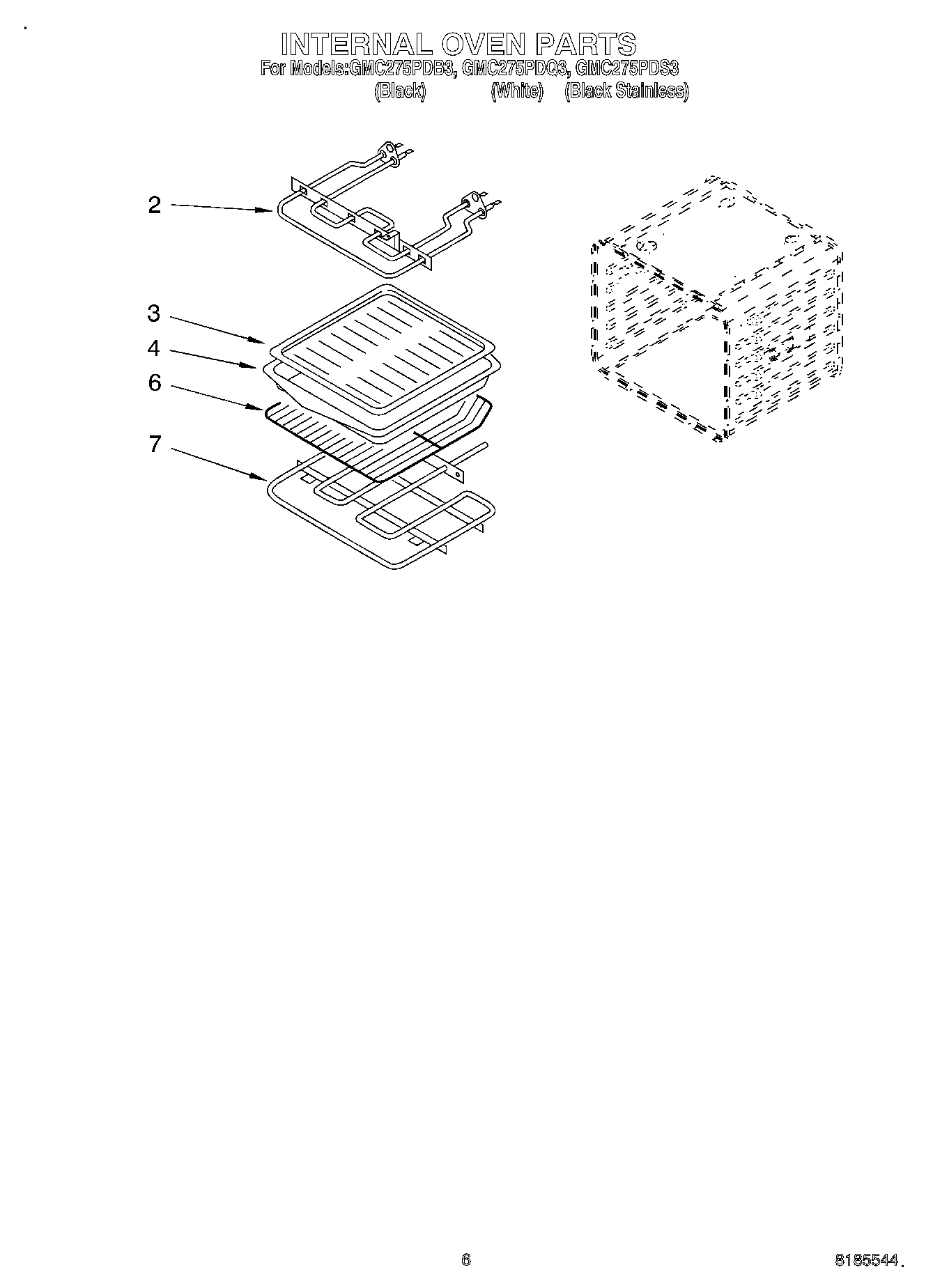

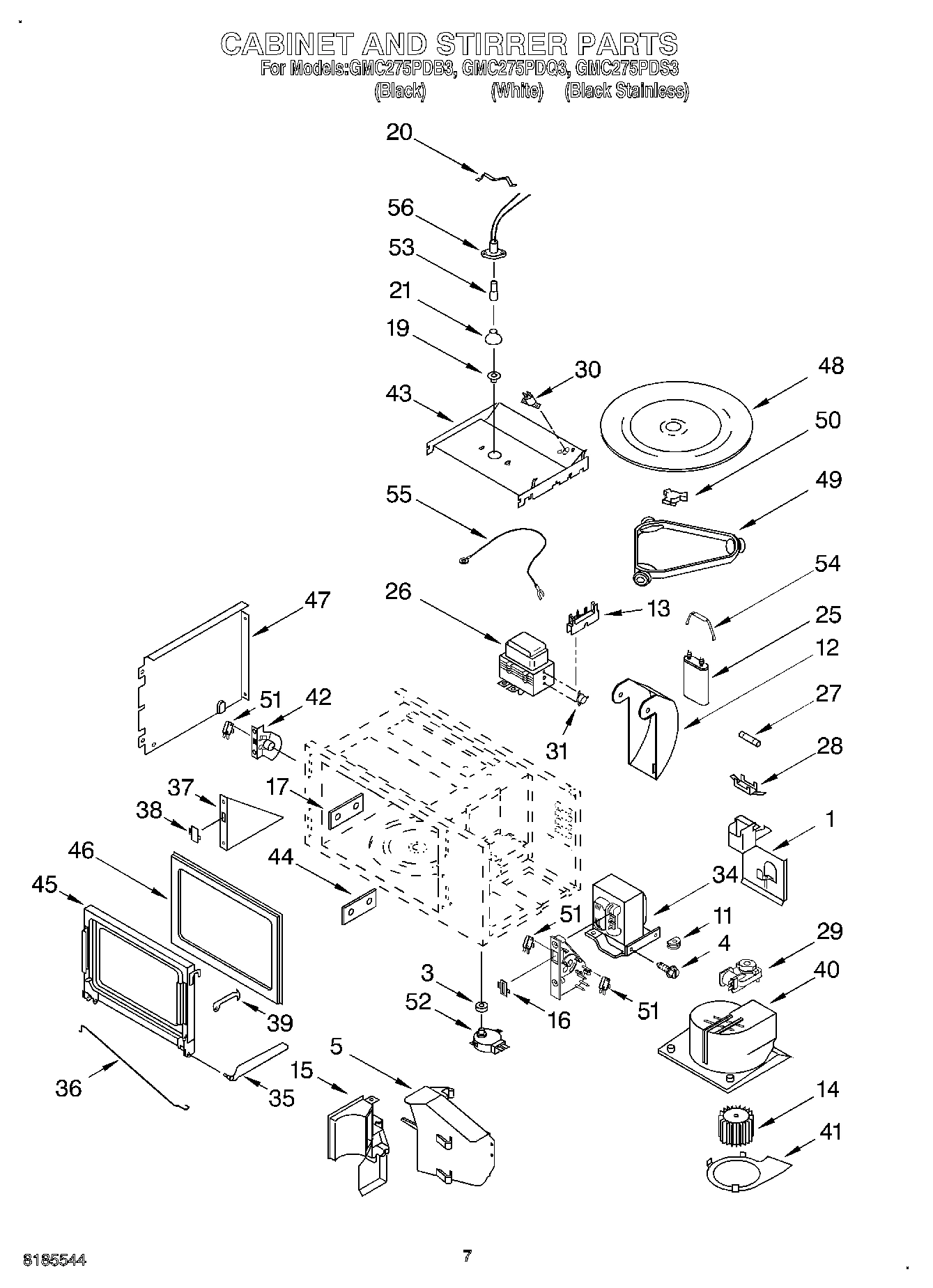

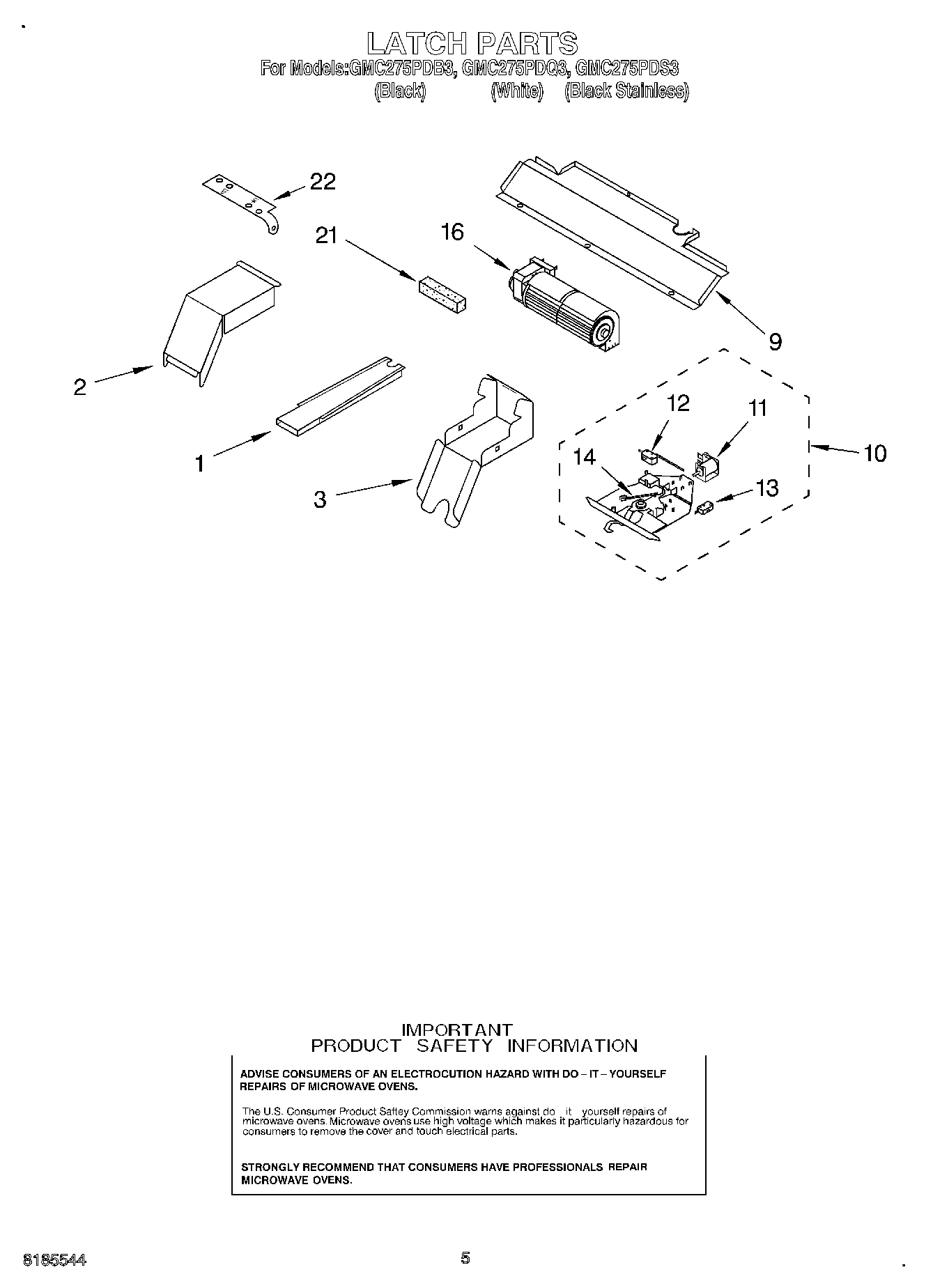

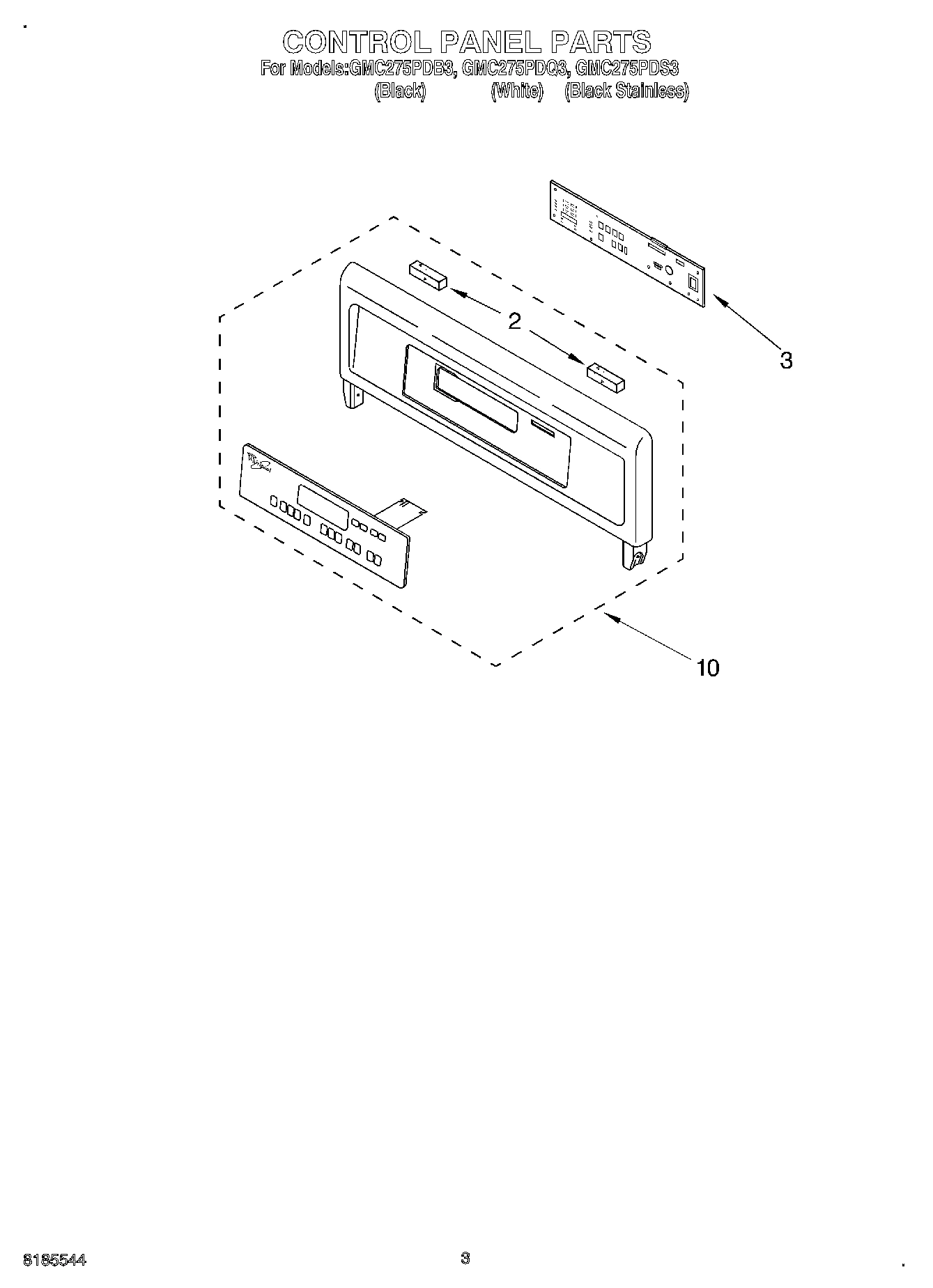

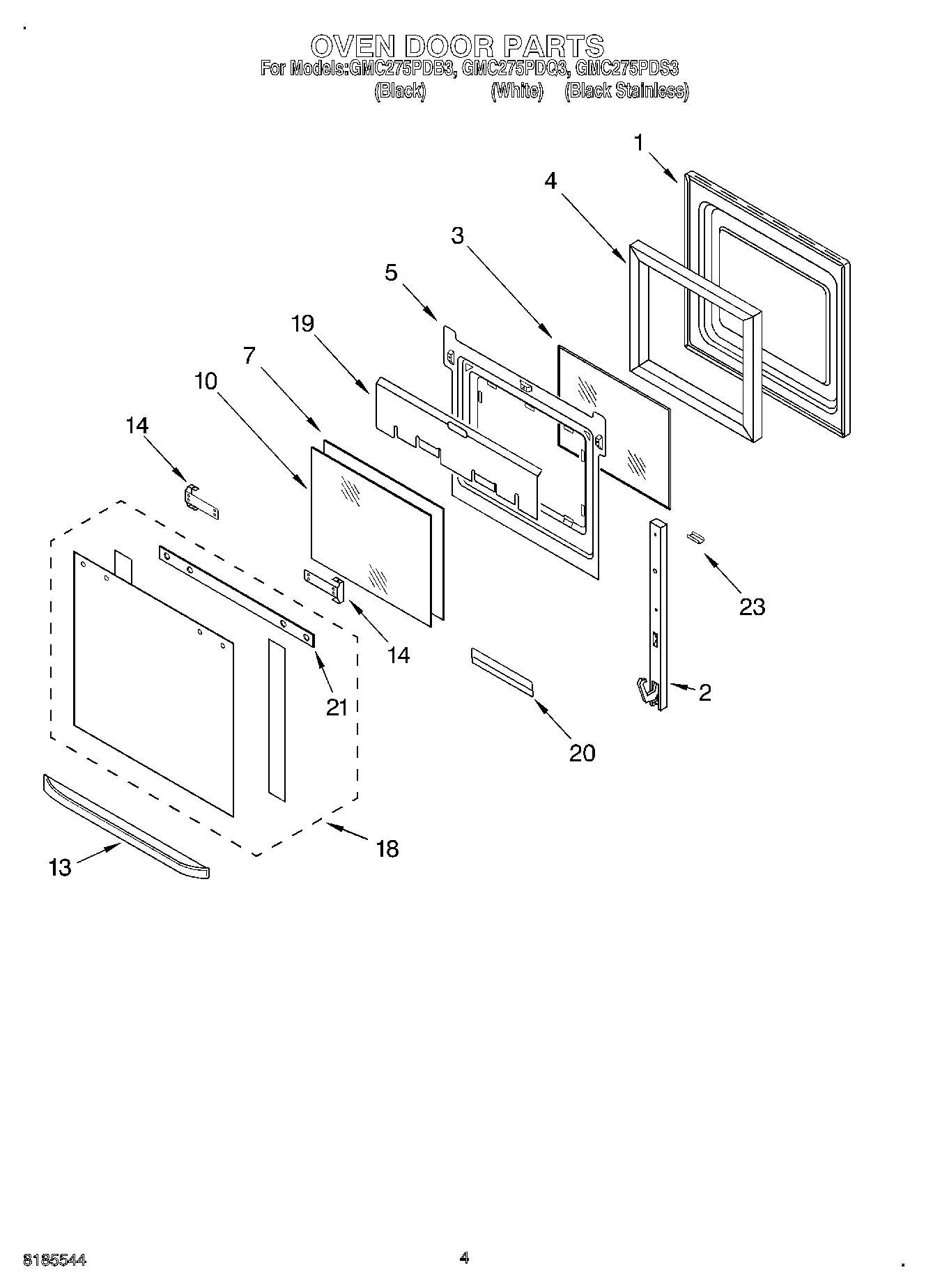

Model Whirlpool GMC275PDQ3 BUILT-ELECTRIC COMBO – Common Parts &amp; Diagrams

1

Screw WPL 4449040 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450412 Contact Us For Availability

1

Literature Parts (Cooking Guide (Label)) WPL LIT4450785 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Microwave WPL LIT4452005 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT4452006 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4455474 Contact Us For Availability

1

Bracket, Capacitor WPL 4375299 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $65.29

2

Trim, Side (Screw White) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450856 Contact Us For Availability

2

Trim, Side (RH White) WPL 4450857 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450859 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450860 Contact Us For Availability

2

Gasket WPL 4450356 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Microcomputer WPL 4451993 Contact Us For Availability

3

Rubber Ring WPL 4375037 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Screw WPL 4375038 Contact Us For Availability

5

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $27.76

5

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Bracket, Support WPL 4455510 Contact Us For Availability

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

7

Top, Chassis WPL 4455285 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

8

Reciever, Hinge (Left Hand) WPL 4455594 Contact Us For Availability

8

Reciever, Hinge (Right Hand) WPL 4455595 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Baffle, Rear WPL 4450407 Contact Us For Availability

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

Latch Assembly WPL 4451896 Contact Us For Availability

Control Panel Assy W/Membrane Switch (Black M WPL 8300411 Contact Us For Availability

Lens, Light WPL 4452165 Contact Us For Availability

Control Panel Assy W/Membrane Switch (White M WPL 8300410 Contact Us For Availability

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

Rear Channel WPL 4452547 Contact Us For Availability

Solenoid WPL 4452224 Contact Us For Availability

Damper WPL 4375315 Contact Us For Availability

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

12

Microswitch N.C. WPL 4452312 Contact Us For Availability

12

Duct, Inlet WPL 4375260 Contact Us For Availability

13

Microswitch WPL 4451426 Contact Us For Availability

13

Insulation, Switch WPL 4375316 Contact Us For Availability

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

Frame, Front WPL 4451739 Contact Us For Availability

Spring, Leaf WPL 4451537 Contact Us For Availability

Fan Wheel WPL 4375322 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Filler, Side WPL 4449083 Contact Us For Availability

15

Duct, Air WPL 4375317 Contact Us For Availability

16

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

16

Block, Slide WPL 4375264 Contact Us For Availability

17

Cover Plate, Upper WPL 4375248 Contact Us For Availability

18

Door Glass, Assy (Black, Stainless Model) WPL 4452478 Contact Us For Availability

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Shield, Heat WPL 4450361 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

Retainer, Glass WPL 4451668 Contact Us For Availability

Cap, Spacer WPL 4451605 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814375 Whirlpool Oven Rail Mount Backorder WPL 814375 $81.00

814376 Whirlpool Oven Rail Mount Backorder WPL 814376 $74.37

814381 Whirlpool Pin Backorder WPL 814381 $3.70

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Seal, Door Top WPL 4451673 Contact Us For Availability

22

4455191 Whirlpool Oven Mounting Plate Backorder WPL 4455191 $8.69

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

Bracket, Handle WPL 4452330 Contact Us For Availability

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $94.01

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $135.56

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

27

Liner, Oven (Not a Serviceable Part) WPL ARI66942A2 Contact Us For Availability

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Thermostat WPL 4375279 Contact Us For Availability

30

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $33.38

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

34

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

34

WP8304106 Whirlpool Oven Vent Backorder WPL WP8304106 $86.52

35

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

35

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

36

WP4451008 Whirlpool Microwave Spring In Stock WPL WP4451008 $41.08

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

37

Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability

37

Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability

38

Inlet WPL 4375329 Contact Us For Availability

39

Door Strap WPL 4375331 Contact Us For Availability

40

Fan Cap WPL 4375333 Contact Us For Availability

41

Fan Cap Bottom WPL 4375334 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

43

Base, Chassis WPL 4455529 Contact Us For Availability

43

Isolation Plate WPL 4375337 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

45

Plate, Door WPL 4375339 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

47

Side Plate (Right) WPL 4375341 Contact Us For Availability

47

Side Plate (Left) WPL 4375342 Contact Us For Availability

48

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $43.52

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

49

Ring Assembly WPL 4375344 Contact Us For Availability

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

50

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability

Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability

Trim, Bottom (White WPL 4448476 Contact Us For Availability

52

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $72.24

52

WPL 4450787 WPL 4450787 Contact Us For Availability

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $12.94

WPL 4449315 WPL 4449315 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability

WPL 4451755 WPL 4451755 Contact Us For Availability

WPL 4452260 WPL 4452260 Contact Us For Availability

54

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $11.69

55

Cable WPL 4375350 Contact Us For Availability

56

Holder, Lamp WPL 4375351 Contact Us For Availability
