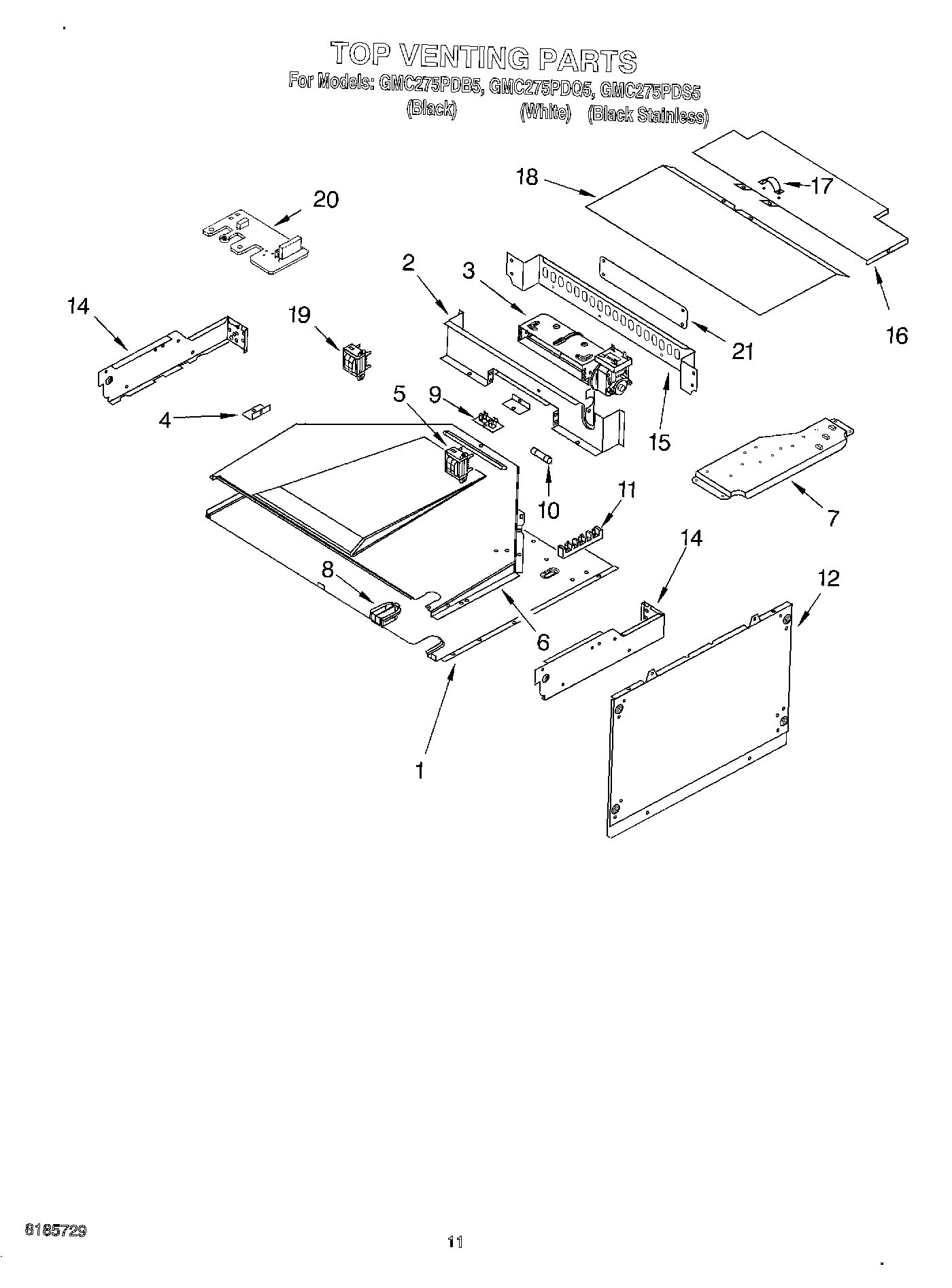

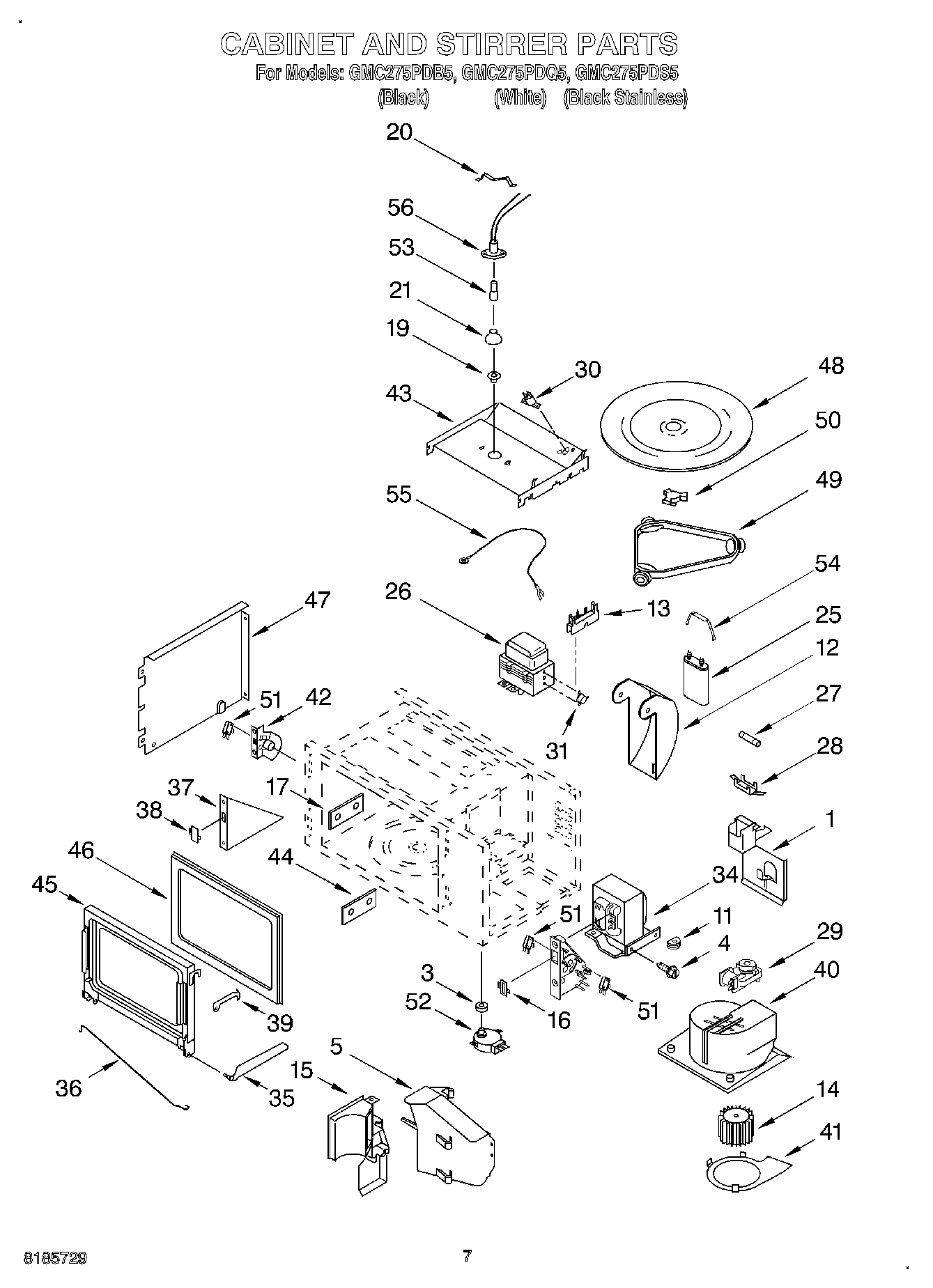

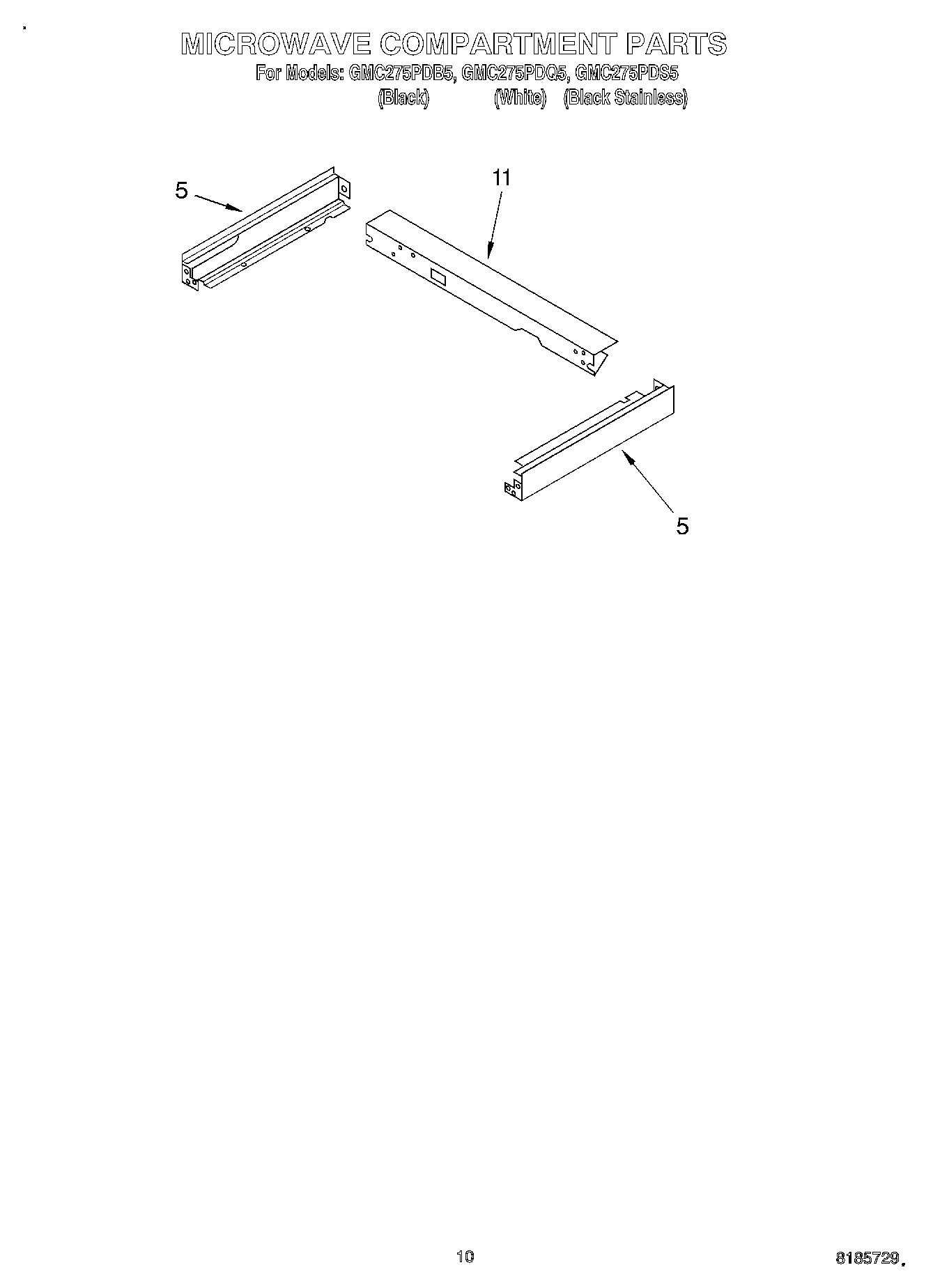

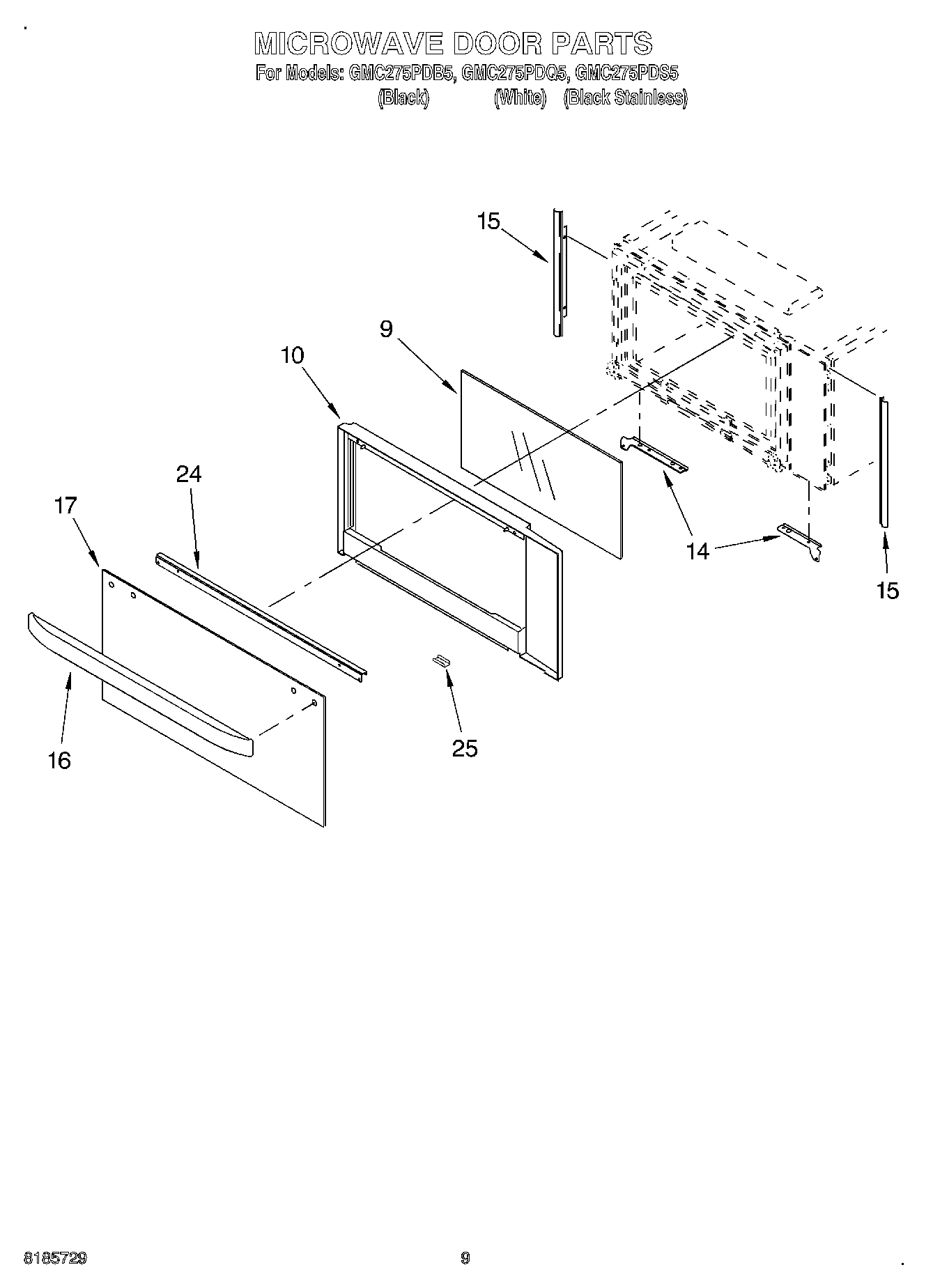

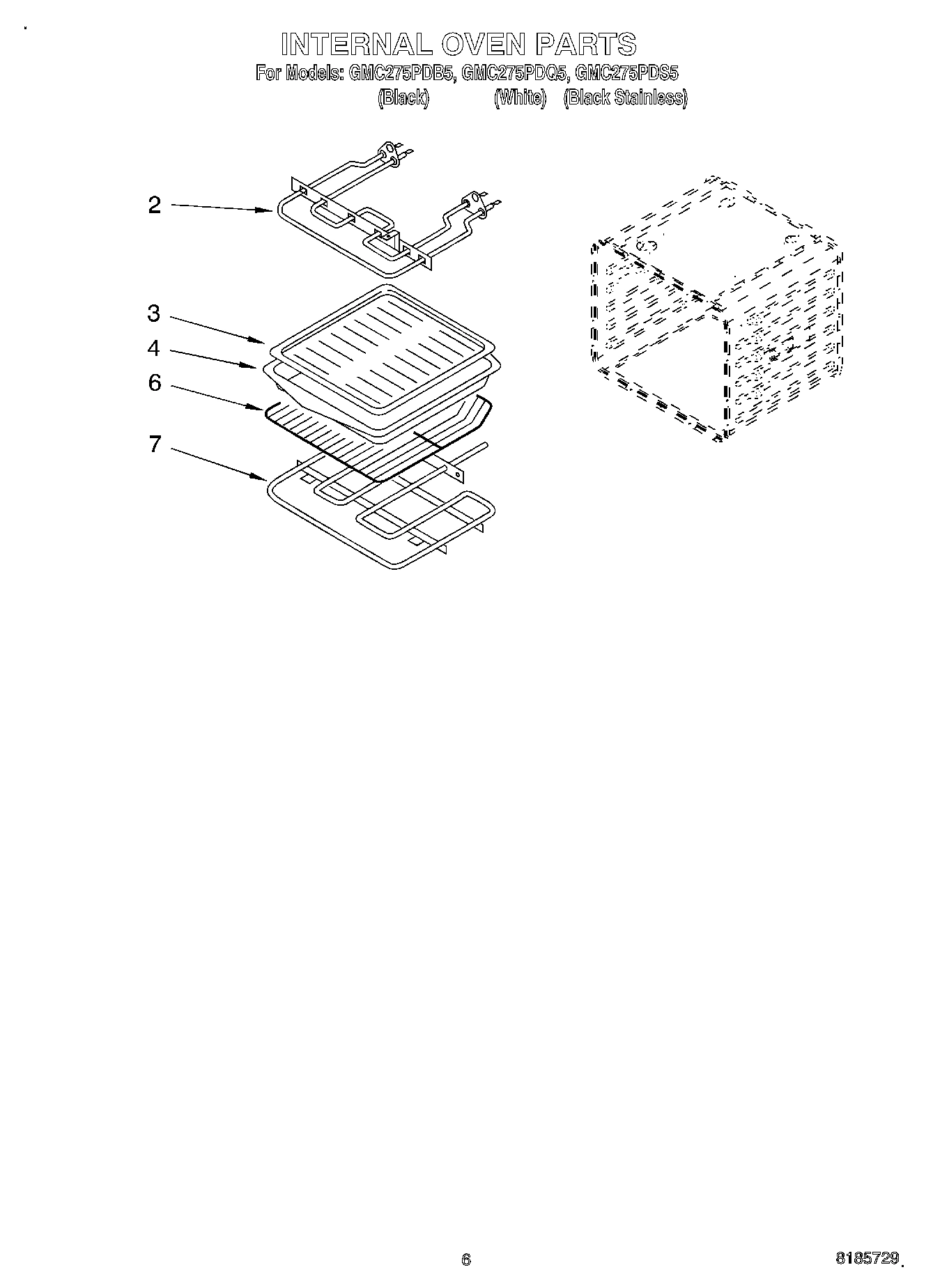

Model Whirlpool GMC275PDB5 BUILT-ELECTRIC COMBO – Common Parts &amp; Diagrams

1

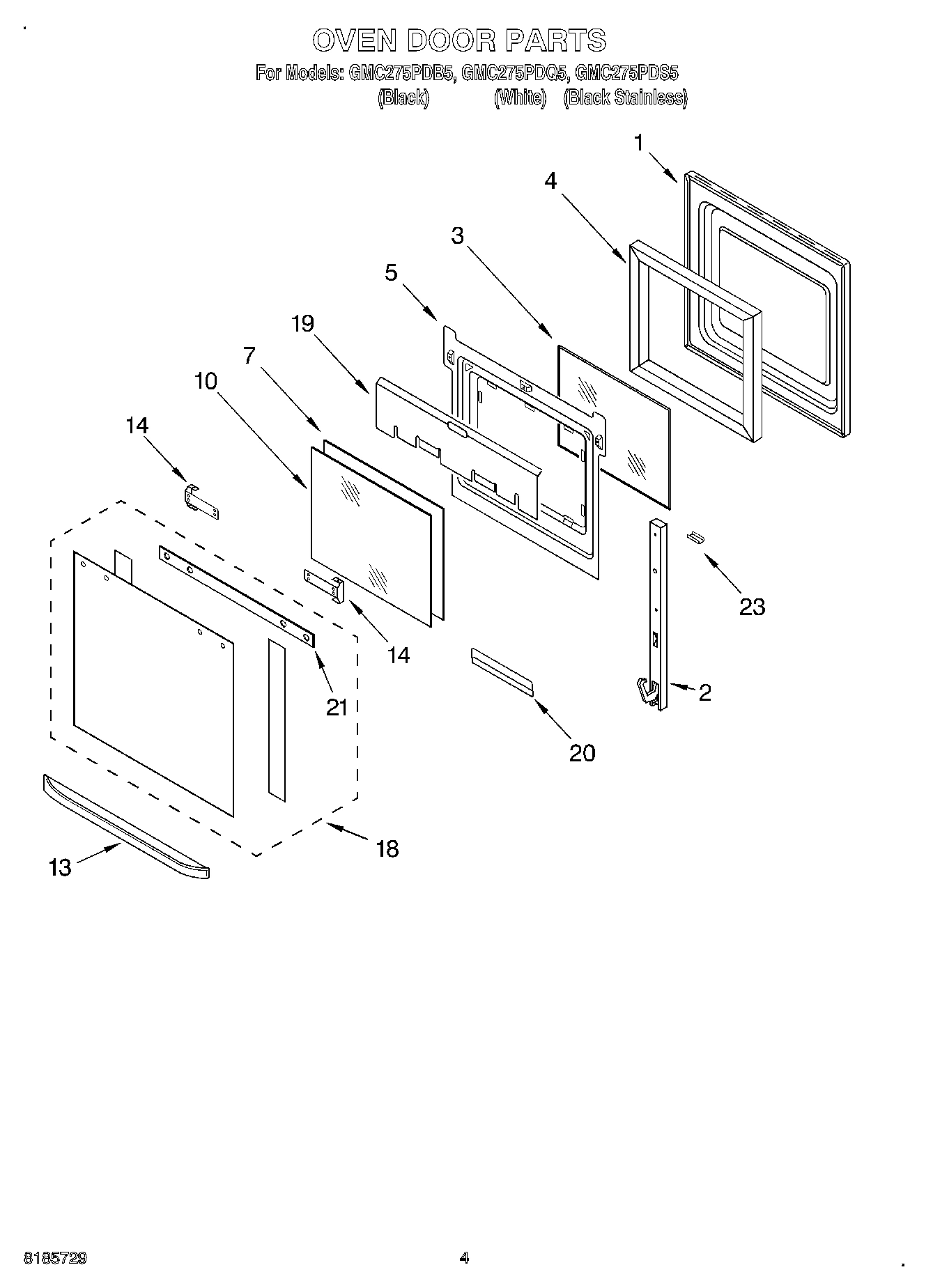

Door Liner WPL 4451718 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

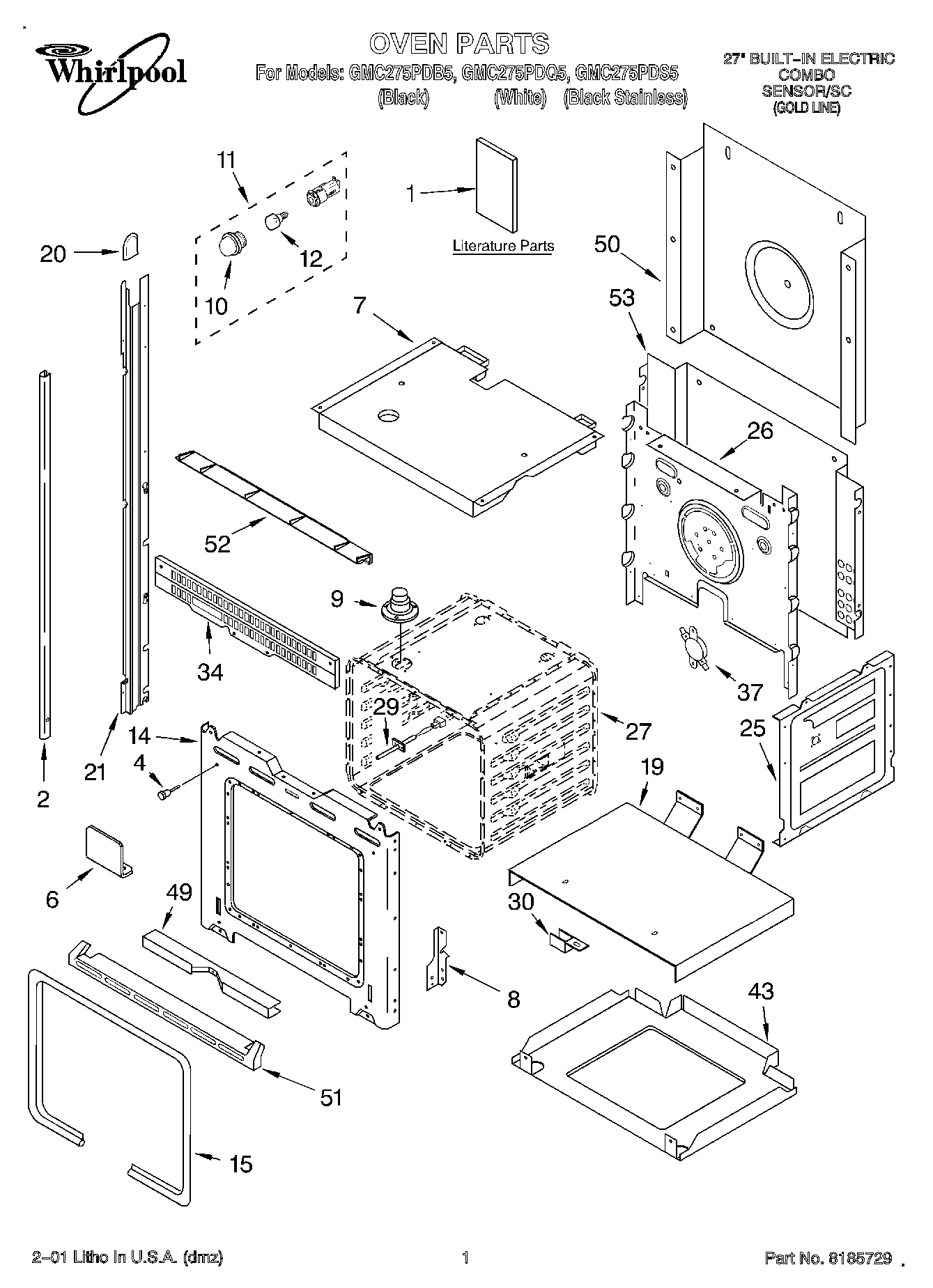

Literature Parts (Installation Instructions) WPL LIT4450412 Contact Us For Availability

1

Literature Parts (Cooking Guide (Label)) WPL LIT4450785 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Microwave WPL LIT4452005 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT4452006 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4455474 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455524 Whirlpool Door Hinge In Stock WPL WP4455524 $39.05

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $43.32

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $2.51

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $68.54

2

Trim, Side (Screw White) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450856 Contact Us For Availability

2

Trim, Side (RH White) WPL 4450857 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450859 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450860 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

3

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $74.43

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

Retainer, Glass WPL 4451670 Contact Us For Availability

5

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Bracket, Support WPL 4455510 Contact Us For Availability

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $52.29

7

Glass, Inner WPL 4455256 Contact Us For Availability

7

Top, Chassis WPL 4455285 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

8

Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability

8

Reciever, Hinge (Left Hand) WPL 4455520 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $30.25

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Glass, Middle WPL 4450834 Contact Us For Availability

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $96.15

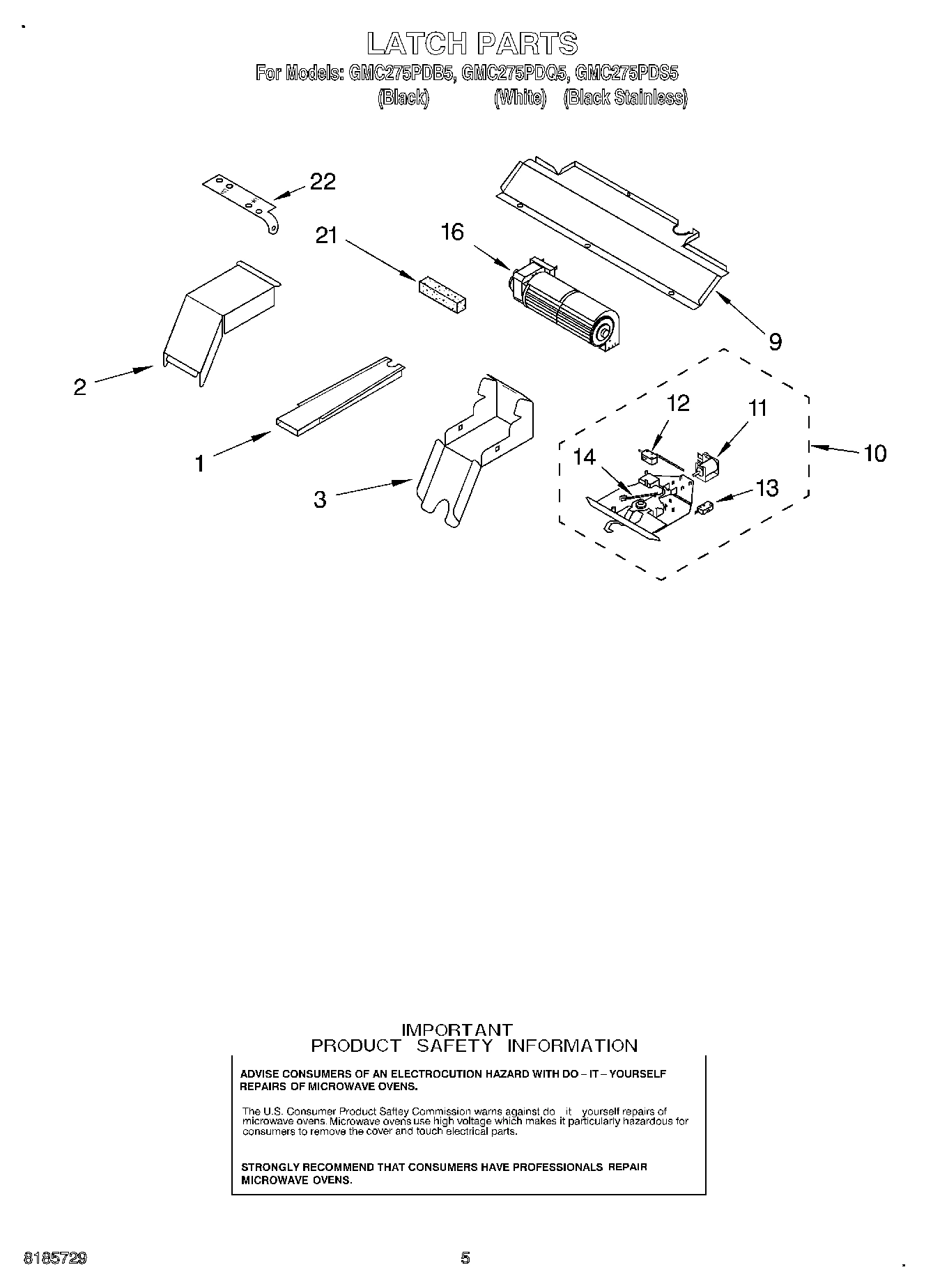

Latch Assembly WPL 4451896 Contact Us For Availability

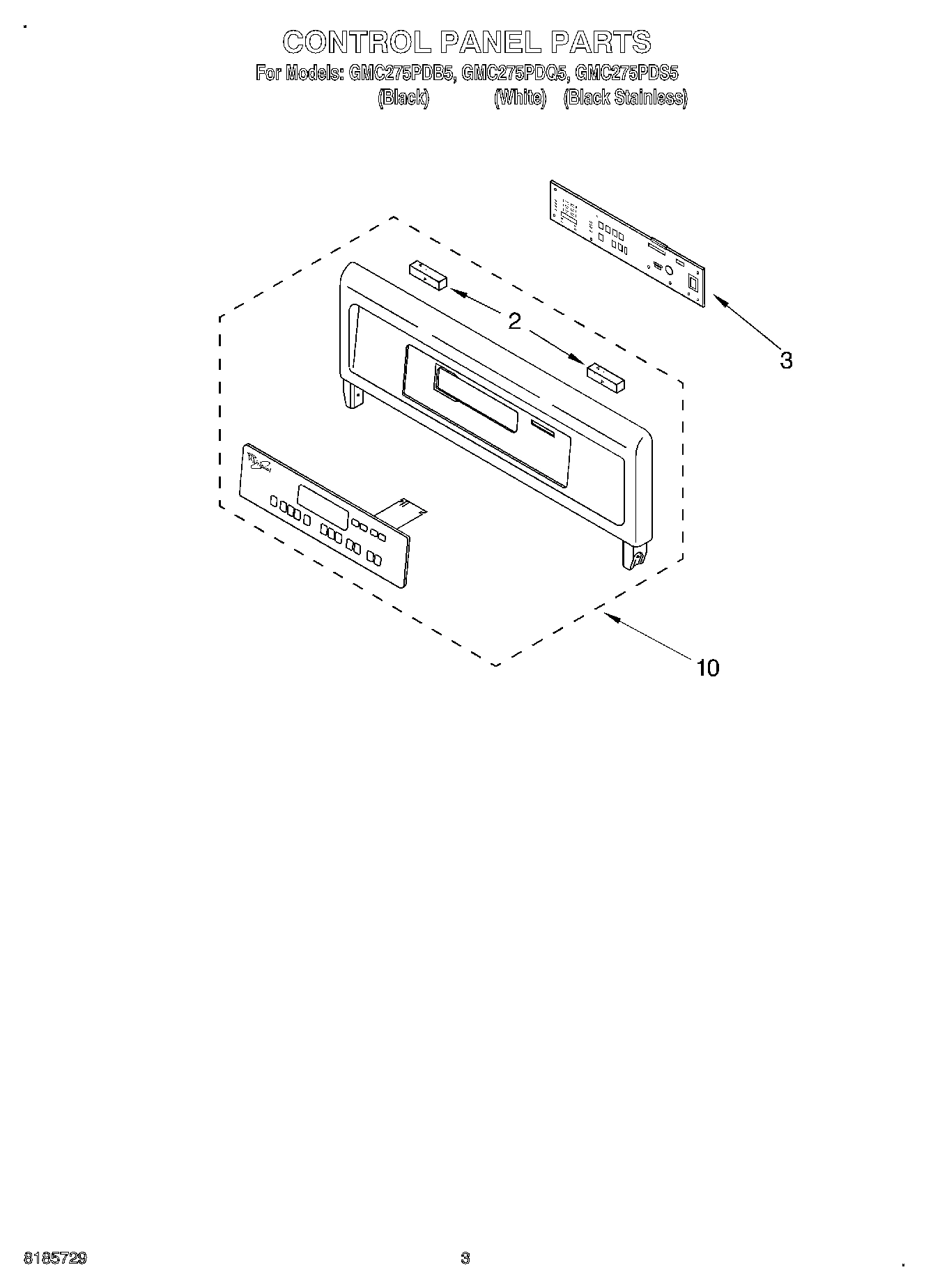

Control Panel Assy W/Membrane Switch (Black M WPL 8300411 Contact Us For Availability

Frame, Door WPL 4450945 Contact Us For Availability

Lens, Light WPL 4452165 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $37.09

11

Screw WPL 3400080 Contact Us For Availability

11

Rear Channel WPL 4452547 Contact Us For Availability

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $28.53

12

Microswitch N.C. WPL 4452312 Contact Us For Availability

12

Duct, Inlet WPL 4375260 Contact Us For Availability

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $71.22

15

Filler, Side WPL 4449083 Contact Us For Availability

16

Handle, Door (Black Model) WPL 4448405 Contact Us For Availability

16

Handle, Door (White Model) WPL 4448406 Contact Us For Availability

17

Glass, Outer (Black Model) WPL 4450379 Contact Us For Availability

17

Glass, Outer (White Model) WPL 4451219 Contact Us For Availability

17

Glass, Outer (Black Stainless) WPL 4452470 Contact Us For Availability

18

Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability

18

Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability

18

Door Glass, Assy (Black, Stainless Model) WPL 4452478 Contact Us For Availability

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Shield, Heat WPL 4450361 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

20

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $58.95

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $34.44

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $114.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (BL) WPL 4378950 Contact Us For Availability

Filler Kit (WH) WPL 4378951 Contact Us For Availability

Ground (M/W) WPL 4450831 Contact Us For Availability

Harness, Latch WPL 4451926 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Plate, Cover WPL 4452247 Contact Us For Availability

Harness, Main WPL 4455740 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

Seal, Door Top WPL 4451673 Contact Us For Availability

24

Bracket, Handle WPL 4452330 Contact Us For Availability

24

Screw WPL 4451040 Contact Us For Availability

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $98.72

Retainer, Glass-Clip (Black Model) WPL 4450863 Contact Us For Availability

Retainer, Glass-Clip (White Model) WPL 4450864 Contact Us For Availability

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

27

Liner, Oven (Not a Serviceable Part) WPL ARI66921A3 Contact Us For Availability

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Thermostat WPL 4375279 Contact Us For Availability

30

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $35.04

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $159.20

34

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

34

Vent, Center WPL 4451666 Contact Us For Availability

35

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $54.90

35

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $54.73

36

WP4451008 Whirlpool Microwave Spring In Stock WPL WP4451008 $50.89

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

38

Inlet WPL 4375329 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $95.69

43

Base, Chassis WPL 4455529 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.67

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability

Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability

52

Vent, Control WPL 4450787 Contact Us For Availability

I WPL 4449315 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability

WPL 4451755 WPL 4451755 Contact Us For Availability

WPL 4452260 WPL 4452260 Contact Us For Availability

55

Cable WPL 4375350 Contact Us For Availability
