Model Whirlpool GMC275PDB0 BUILT-ELECTRIC COMBO – Common Parts & Diagrams
01 - OVEN
04 - LATCH

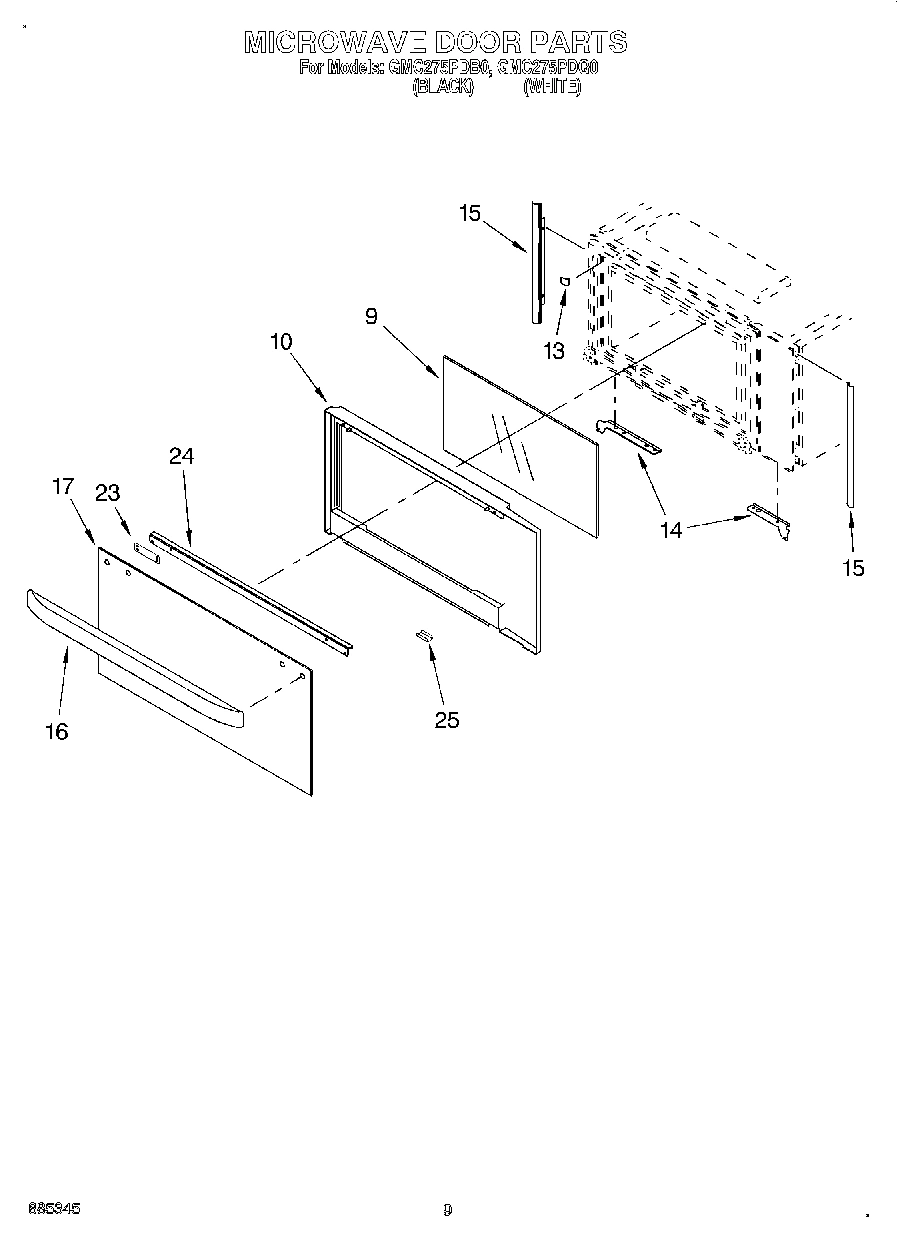

07 - MICROWAVE DOOR

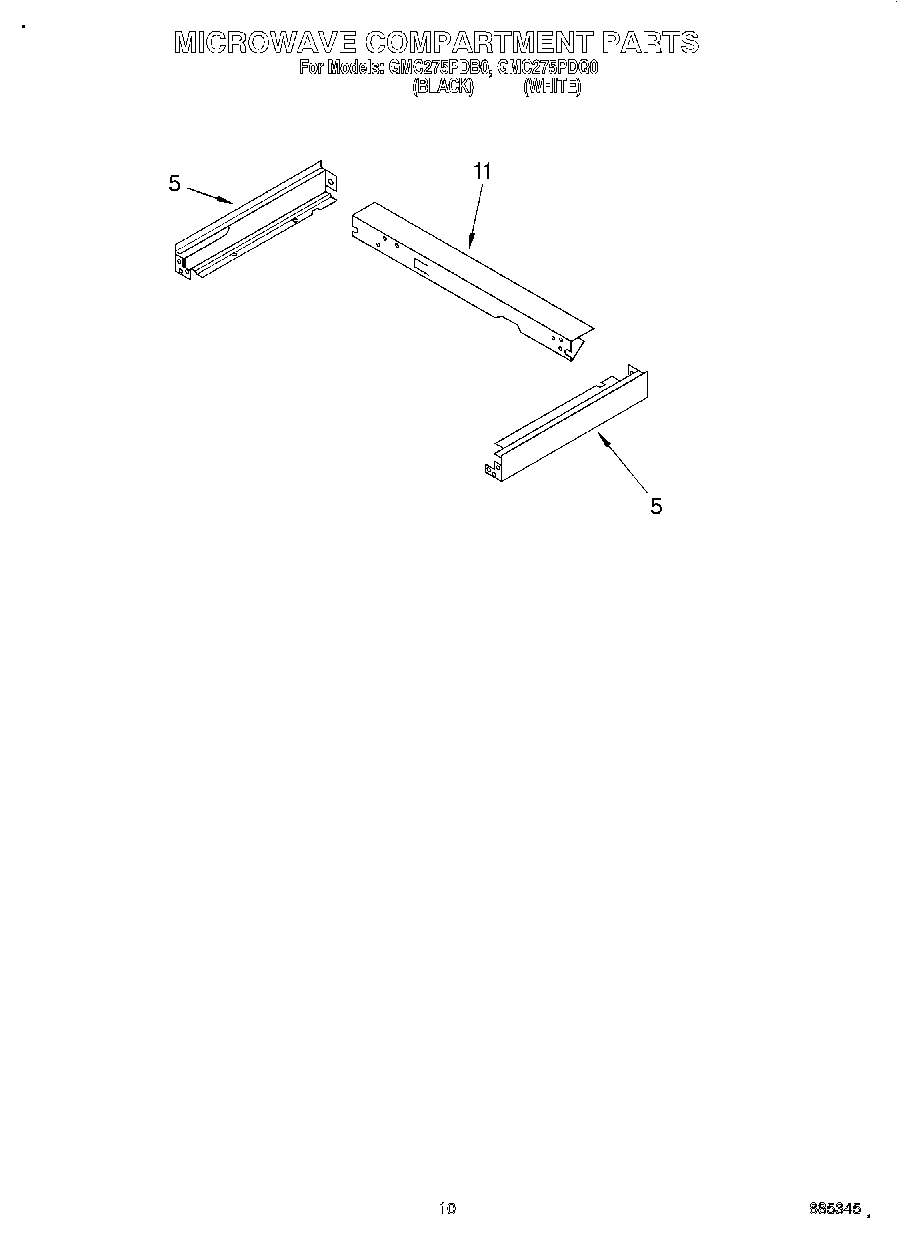

08 - MICROWAVE COMPARTMENT

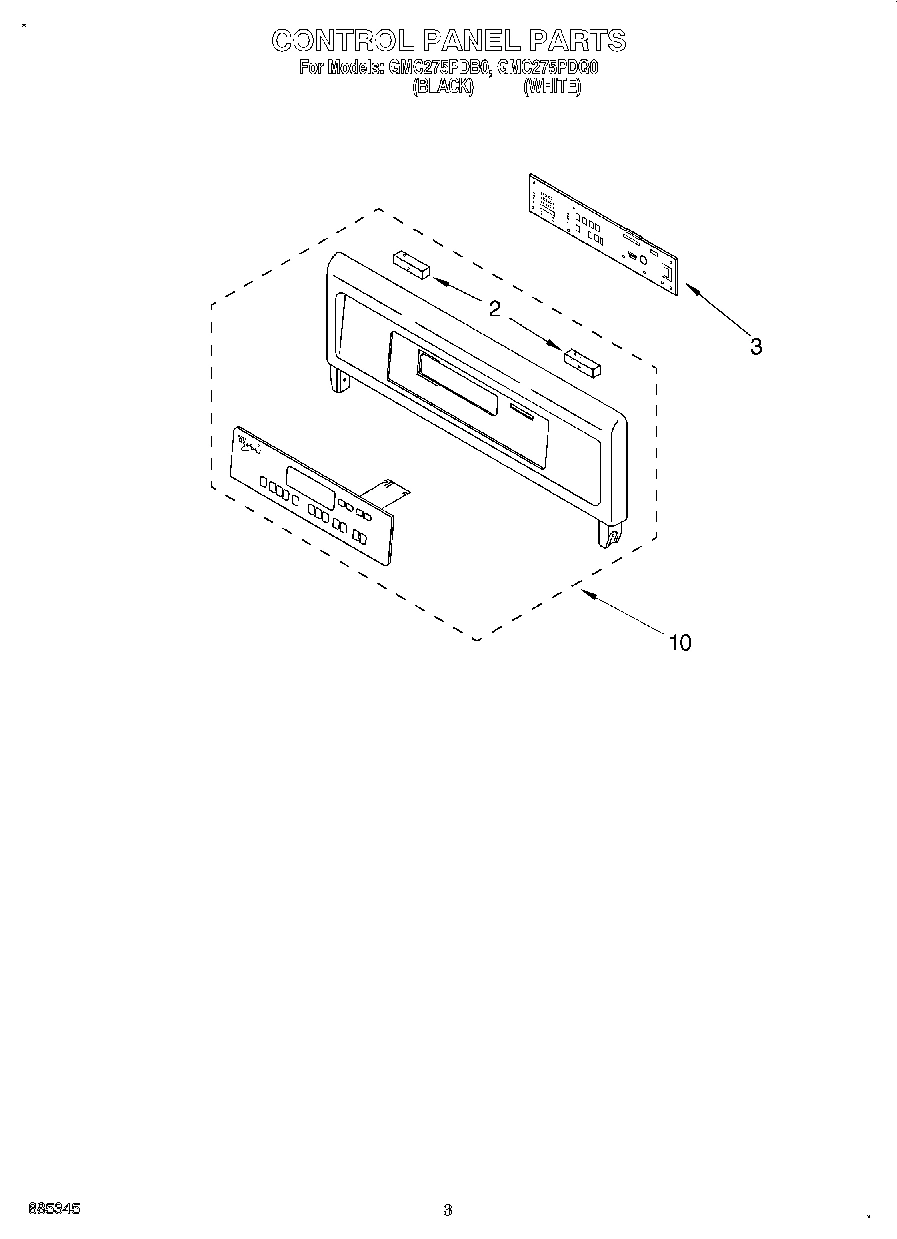

02 - CONTROL PANEL, LITERATURE

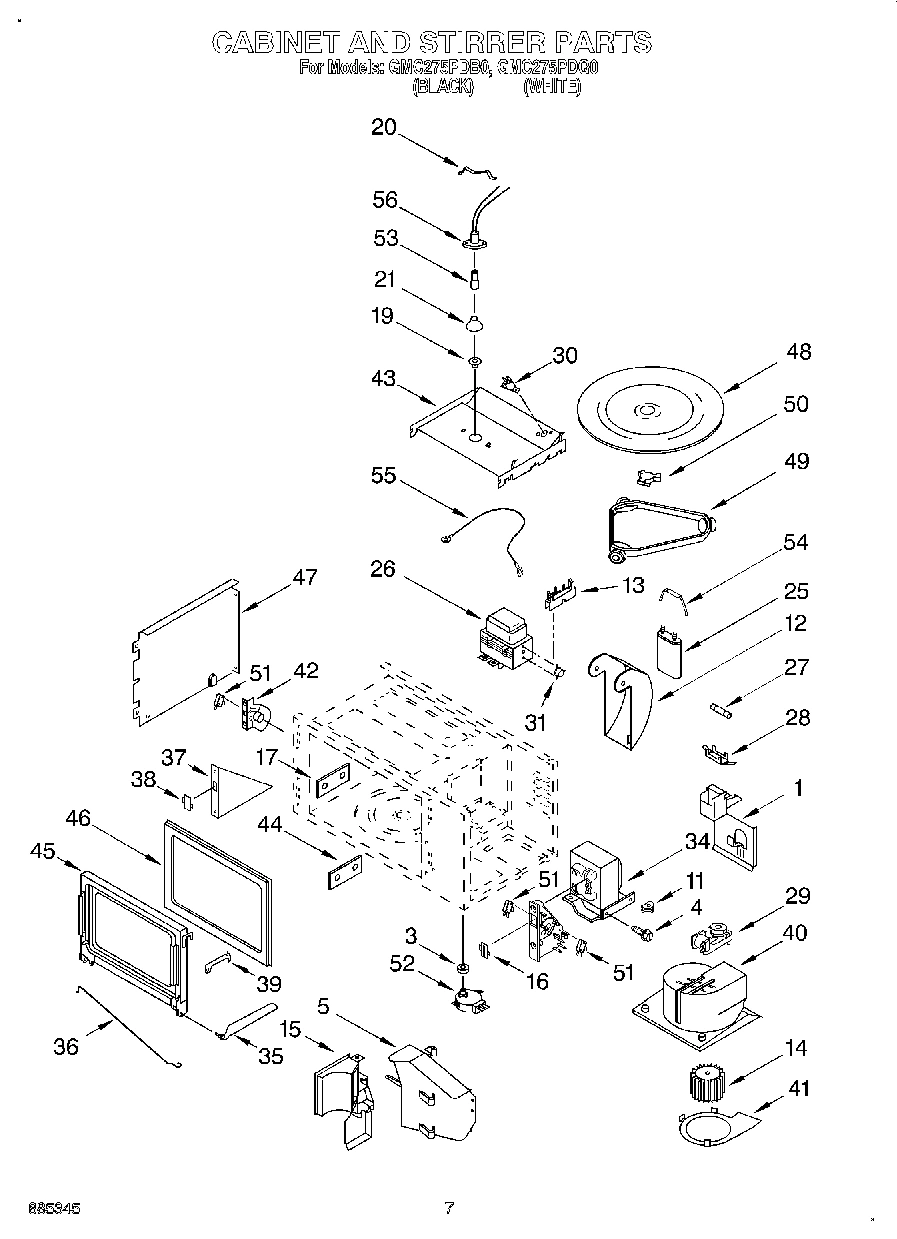

06 - CABINET AND STIRRER

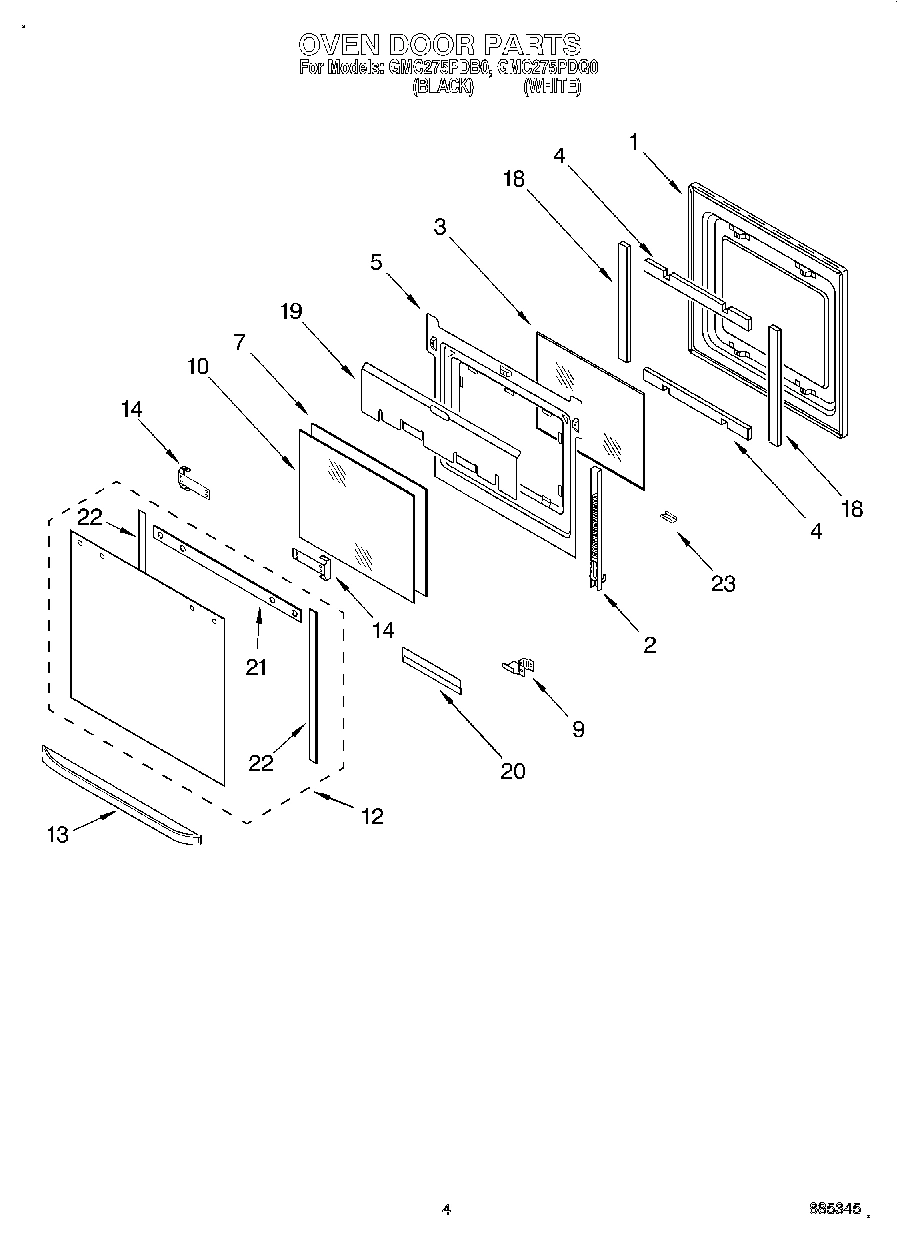

03 - OVEN DOOR

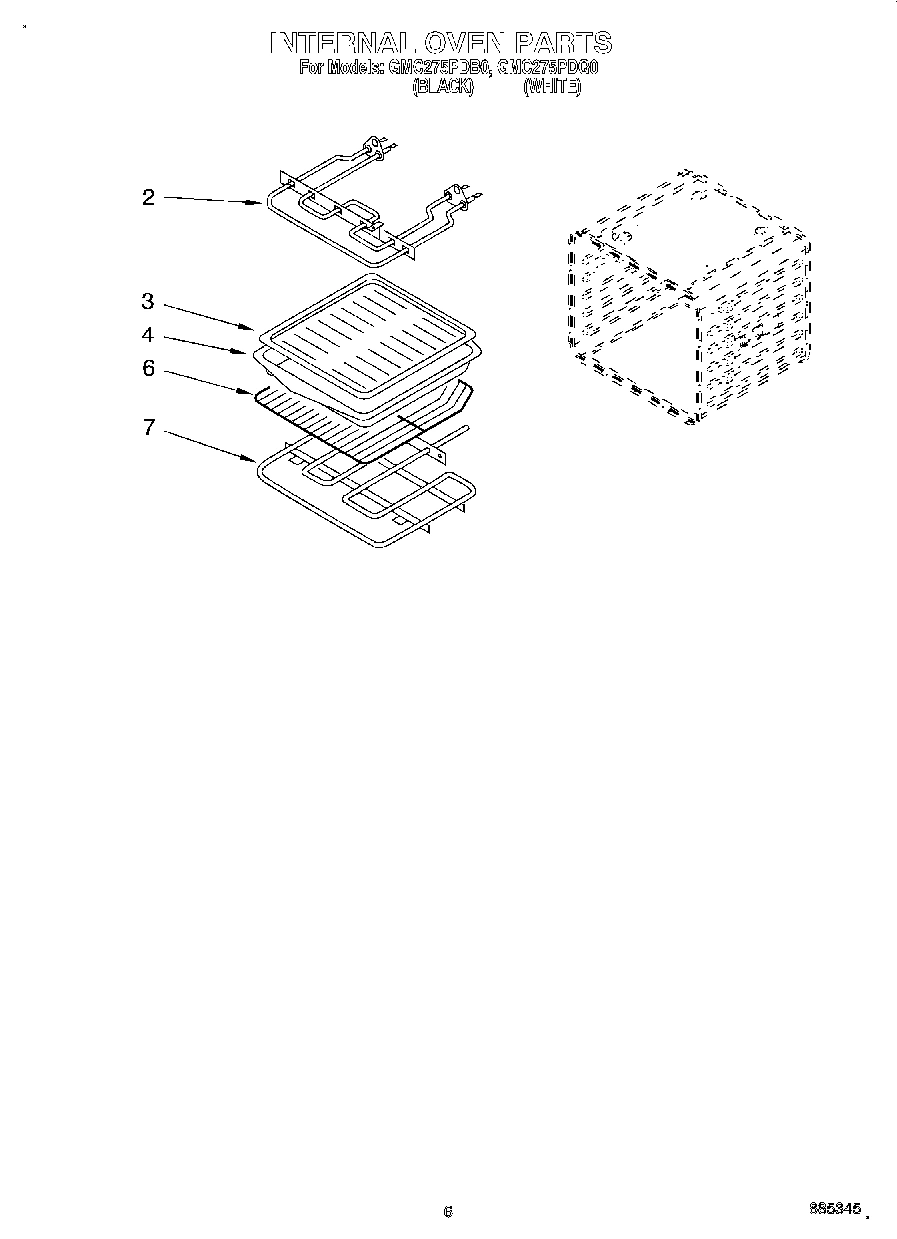

05 - INTERNAL OVEN

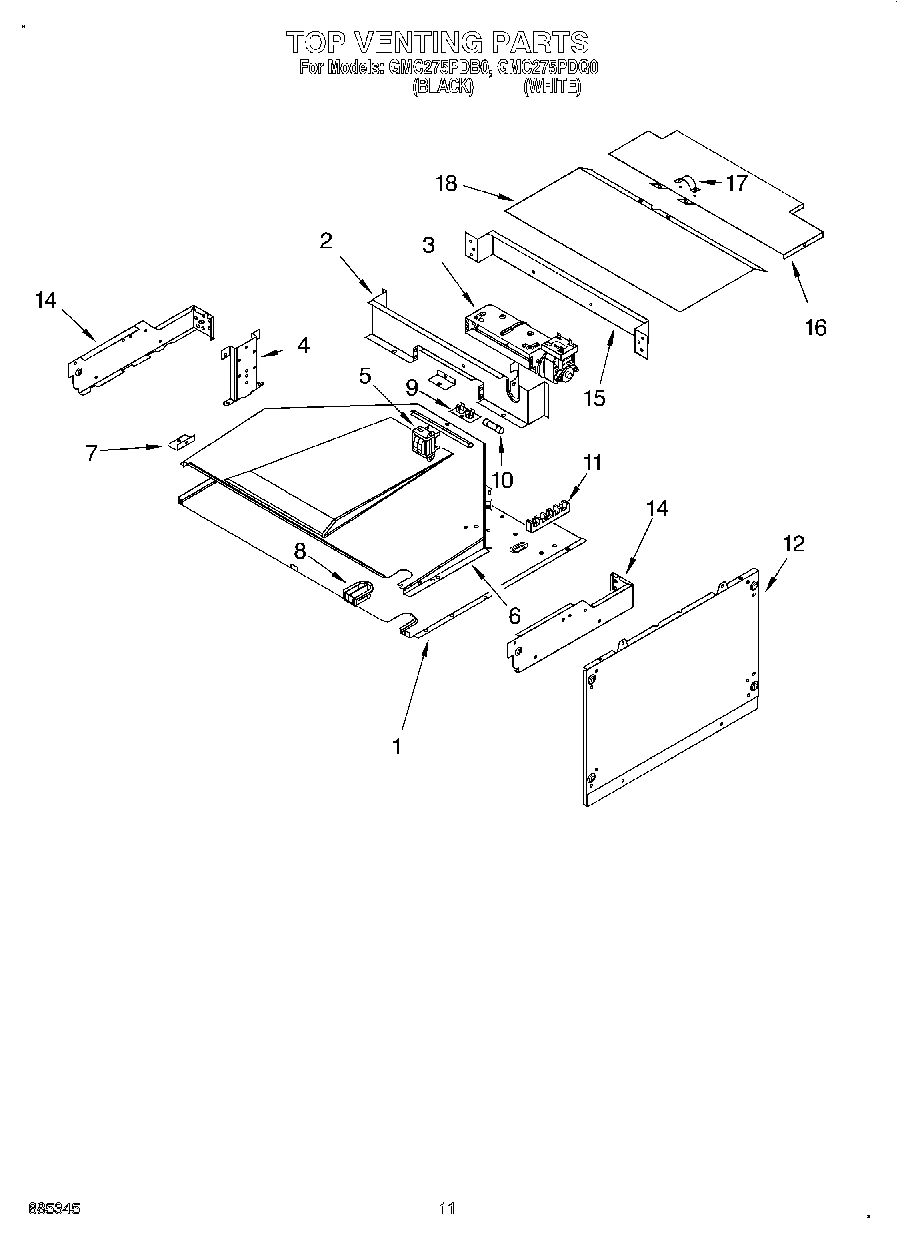

09 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool GMC275PDB0 BUILT-ELECTRIC COMBO
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation Instructions WPL LIT4450412 Contact Us For Availability
Cooking Guide (Label) WPL LIT4450785 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT4452005 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4452006 Contact Us For Availability
Tech Sheet WPL LIT4454772 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
1
Cover, Top WPL 4450377 Contact Us For Availability
2
Gasket WPL 4450356 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
3
Microcomputer WPL 4448877 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability
4
Bracket, Transformer WPL 4450066 Contact Us For Availability
5
Support Rails (Right Side) WPL 4450404 Contact Us For Availability
5
Support Rails (Left Side) WPL 4450405 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Black M WPL 4452035 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (White M WPL 4452036 Contact Us For Availability
11
Rear Channel WPL 4449702 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Door Glass (Black Model) WPL 4450689 Contact Us For Availability
12
Door Glass (White Model) WPL 4451212 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448405 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Filler, Side WPL 4449083 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Filler Kit (BL) WPL 4378950 Contact Us For Availability
18
Filler Kit (WH) WPL 4378951 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
18
Ground (M/W) WPL 4450831 Contact Us For Availability
18
Harness, Latch WPL 4454709 Contact Us For Availability
18
Harness, Main WPL 4454858 Contact Us For Availability
18
Harness, Door Switch WPL 4454871 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450836 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
37
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
37
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
38
Inlet WPL 4375329 Contact Us For Availability
39
Strap, Door WPL 4375330 Contact Us For Availability
40
Fan Cap WPL 4375333 Contact Us For Availability
41
Fan Cap Bottom WPL 4375334 Contact Us For Availability
43
Isolation Plate WPL 4375337 Contact Us For Availability
44
Cover Plate WPL 4375338 Contact Us For Availability
45
Plate, Door WPL 4375339 Contact Us For Availability
46
Inner Frame WPL 4375340 Contact Us For Availability
47
Side Plate (Right) WPL 4375341 Contact Us For Availability
47
Side Plate (Left) WPL 4375342 Contact Us For Availability
49
Ring Assembly WPL 4375344 Contact Us For Availability
55
Cable WPL 4375350 Contact Us For Availability
56
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
