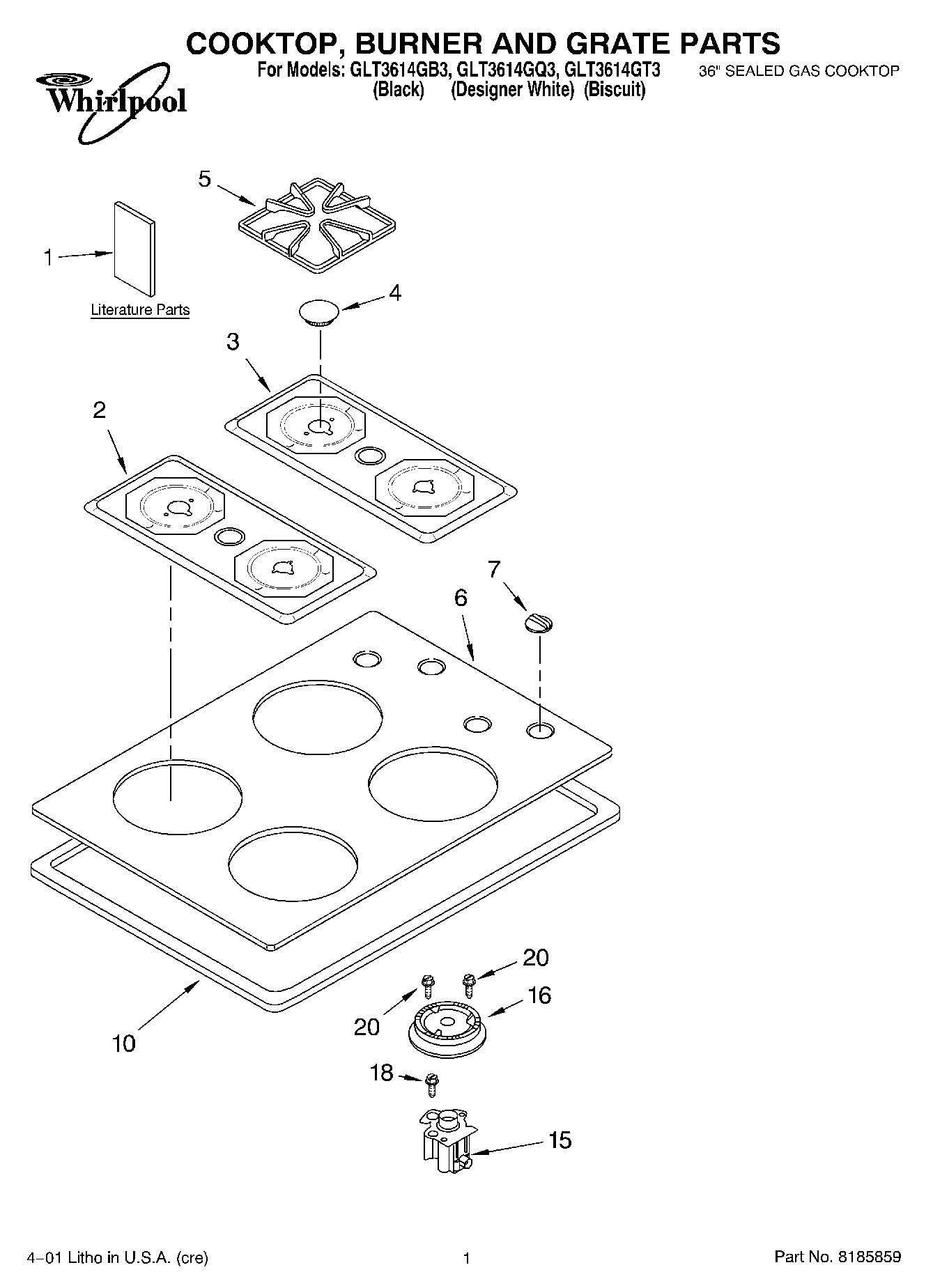

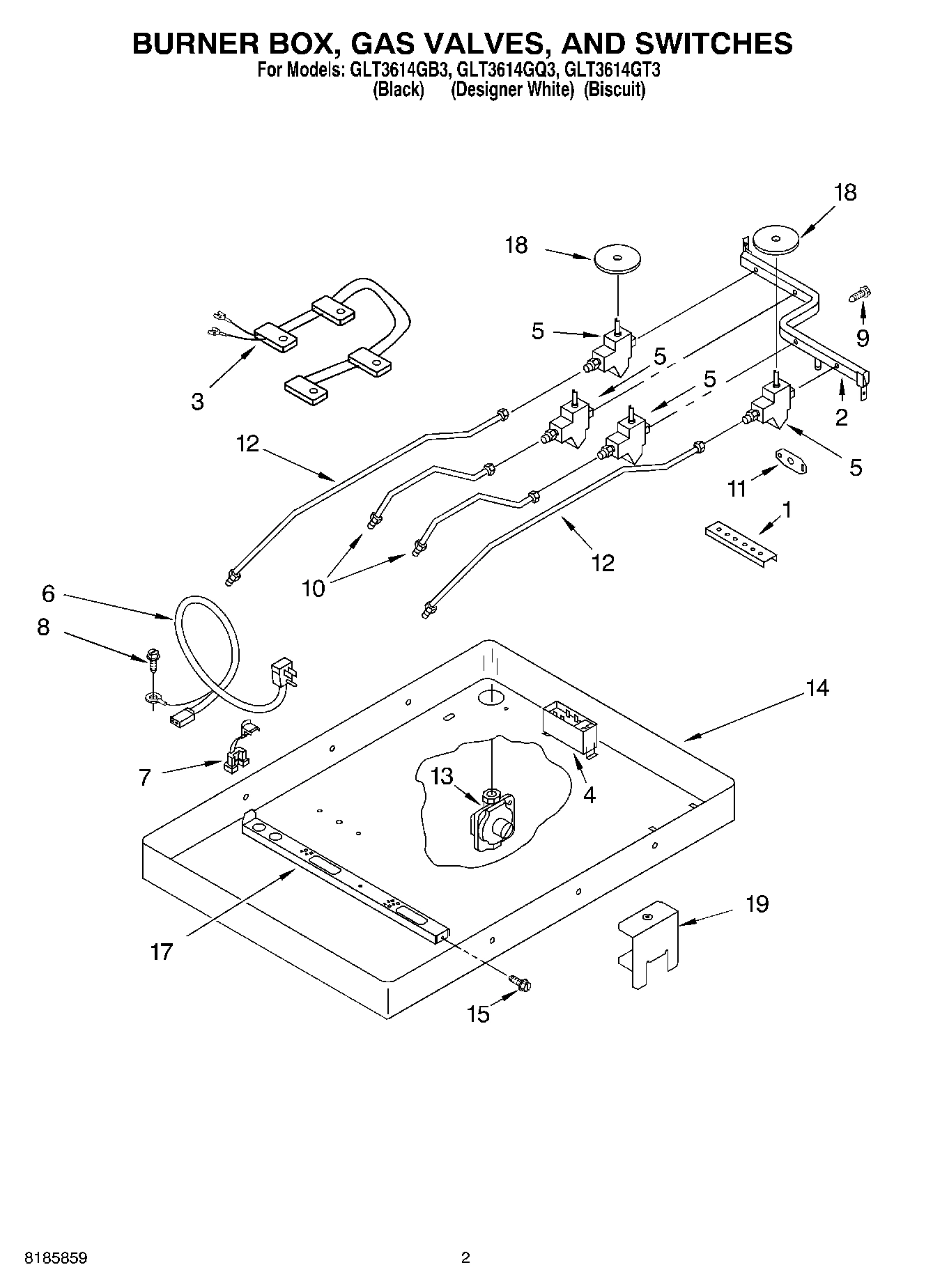

Model Whirlpool GLT3614GT3 GAS COOKTOP – Common Parts & Diagrams

1
Screw
Screw WPL 3179557 Contact Us For Availability
View on Model
1
Nut, Tinnerman
Nut, Tinnerman WPL 4167077 Contact Us For Availability
View on Model
2
Bowl, Left (Black)
Bowl, Left (Black) WPL 3191249 Contact Us For Availability
View on Model
2
Bowl, Left (White)
Bowl, Left (White) WPL 3191250 Contact Us For Availability
View on Model
2
Bowl, Left (Biscuit)
Bowl, Left (Biscuit) WPL 3192734 Contact Us For Availability
View on Model
3
Bowl, Right (Black)
Bowl, Right (Black) WPL 3191305 Contact Us For Availability
View on Model
3
Bowl, Right (White)
Bowl, Right (White) WPL 3191306 Contact Us For Availability
View on Model
3
Bowl, Right (Biscuit)
Bowl, Right (Biscuit) WPL 3192733 Contact Us For Availability
View on Model
4
Cap, Burner 6K (1) (Gray)
Cap, Burner 6K (1) (Gray) WPL 3191899 Contact Us For Availability
View on Model
5
Valve, Burner (Small (1))
Valve, Burner (Small (1)) WPL 3191292 Contact Us For Availability
View on Model
5
Valve, Burner (Large (3))
Valve, Burner (Large (3)) WPL 3191293 Contact Us For Availability
View on Model
6
Cooktop, Glass (Black)
Cooktop, Glass (Black) WPL 3192138 Contact Us For Availability
View on Model
6
Cooktop, Glass (White)
Cooktop, Glass (White) WPL 3192139 Contact Us For Availability
View on Model
6
Cooktop, Glass (BIscuit)
Cooktop, Glass (BIscuit) WPL 3192602 Contact Us For Availability
View on Model
7
Bushing, Cord
Bushing, Cord WPL 4173634 Contact Us For Availability
View on Model
9
Bolt (Gas Valve)
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
View on Model
10
Tubing, Burner RR & RF
Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability
View on Model
10
Seal, Foam
Seal, Foam WPL 3191933 Contact Us For Availability
View on Model
11
Bracket, Manifold
Bracket, Manifold WPL 3192491 Contact Us For Availability
View on Model
12
Tubing, Burner LR & LF
Tubing, Burner LR & LF WPL 3191322 Contact Us For Availability
View on Model
13
Regulator, Pressure
Regulator, Pressure WPL 3177120 Contact Us For Availability
View on Model
14
Box, Burner
Box, Burner WPL 4455816 Contact Us For Availability
View on Model
15
Holder, Orifice (Includes 13 & 14) (RF 6K)
Holder, Orifice (Includes 13 & 14) (RF 6K) WPL 9754182 Contact Us For Availability
View on Model
15
Holder, Orifice (Includes 13 & 14) (LF 12K)
Holder, Orifice (Includes 13 & 14) (LF 12K) WPL 9754187 Contact Us For Availability
View on Model
19
Hardware, Mounting
Hardware, Mounting WPL 3188310 Contact Us For Availability
View on Model
19
Bracket, Bow Reducer
Bracket, Bow Reducer WPL 3192341 Contact Us For Availability
View on Model
20
Harness, Wire Ignitor (Tape, Installation)
Harness, Wire Ignitor (Tape, Installation) WPL 3191239 Contact Us For Availability
View on Model
20
Harness, Wire Ignitor (15``)
Harness, Wire Ignitor (15``) WPL 3192229 Contact Us For Availability
View on Model
20
Harness, Wire Ignitor (28``)
Harness, Wire Ignitor (28``) WPL 3192230 Contact Us For Availability
View on Model
