Model Electrolux GLCS376ASB RANGE – Common Parts & Diagrams

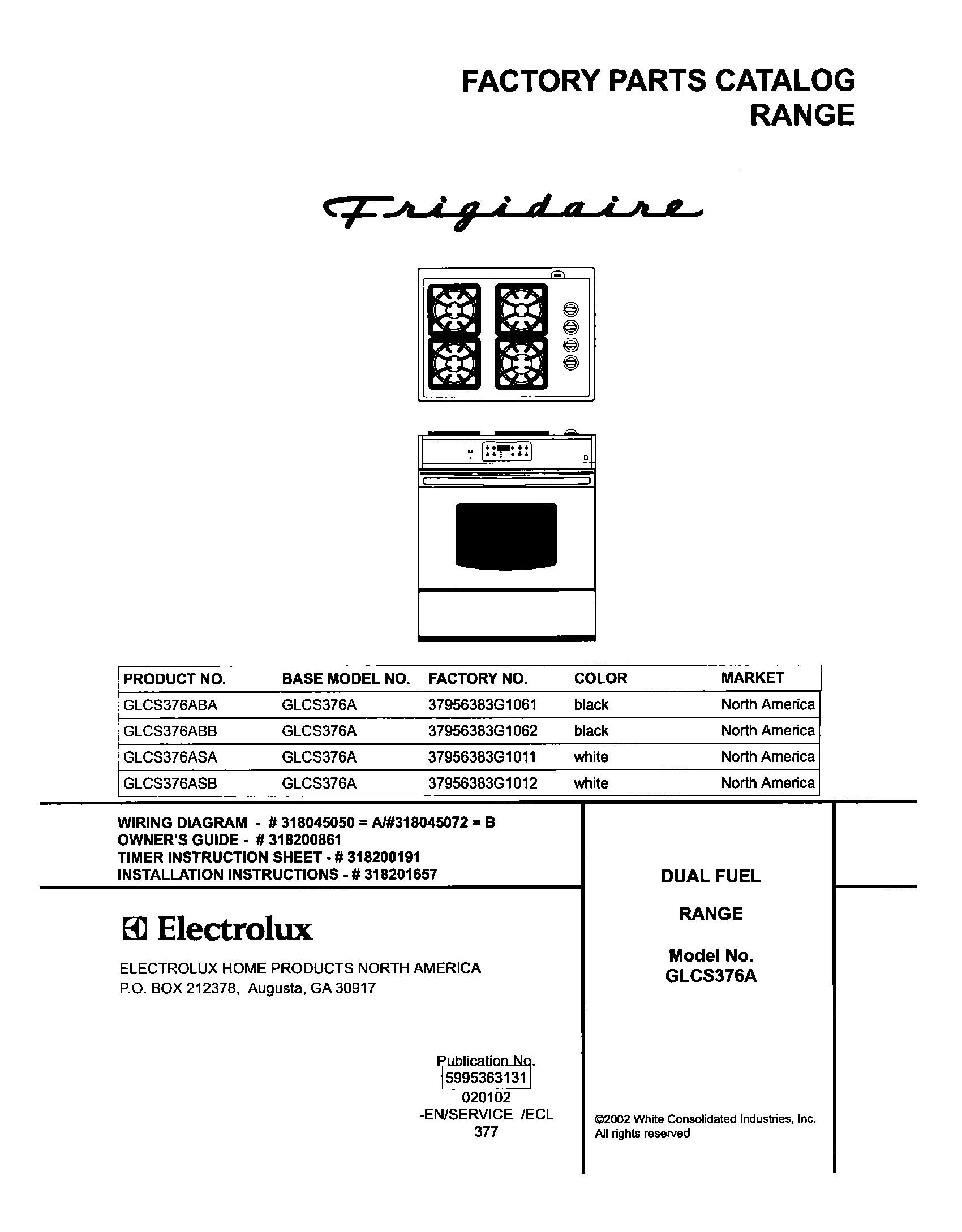

01 - COVER

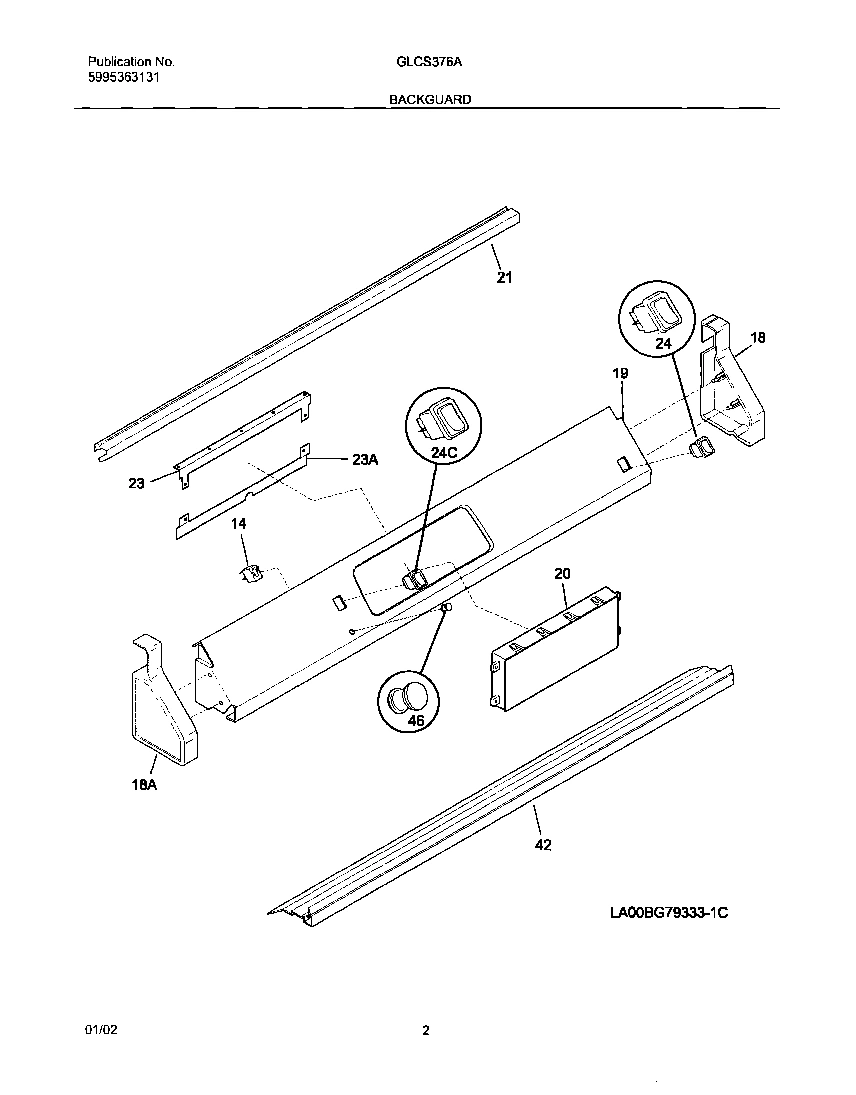

03 - BACKGUARD

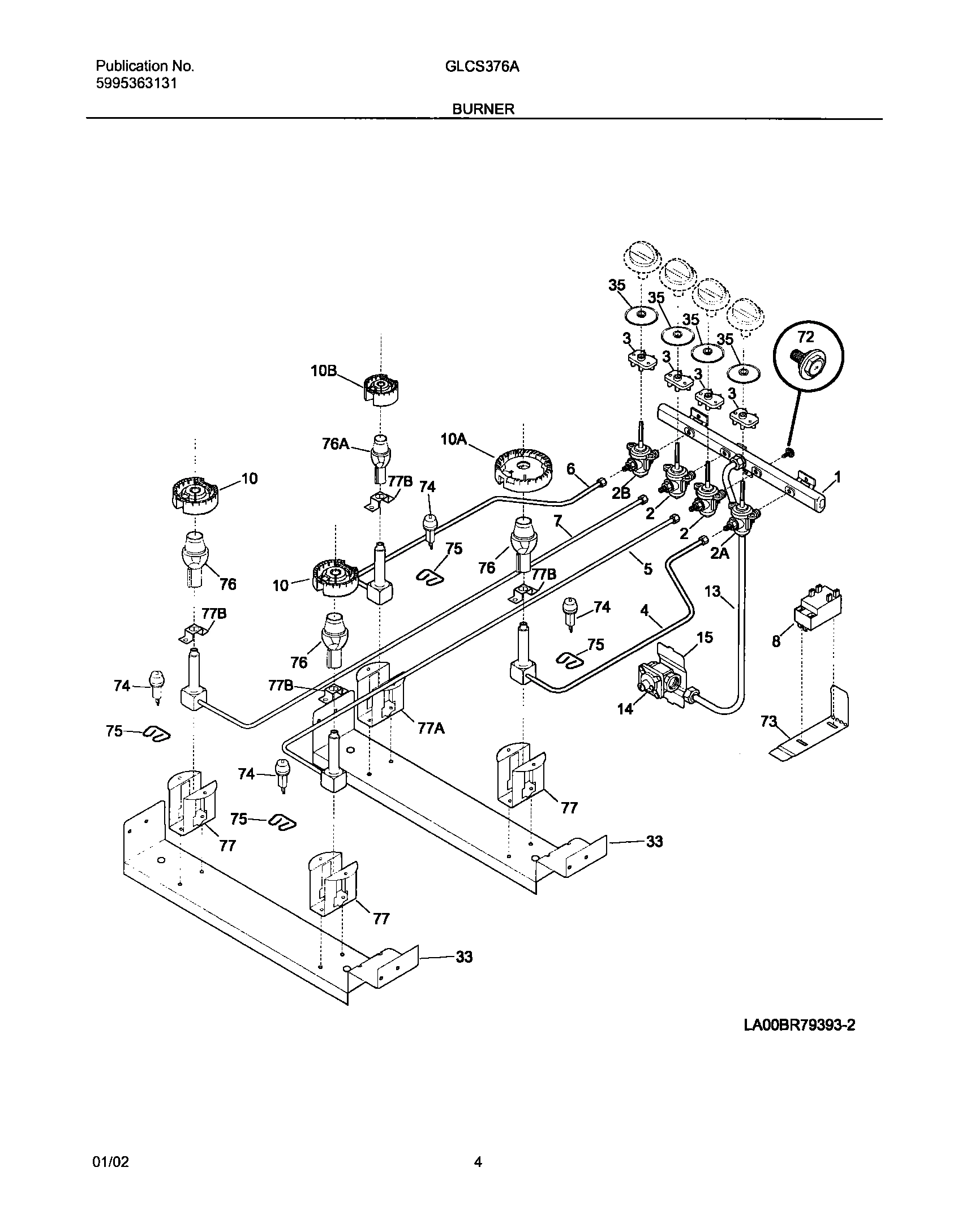

05 - BURNER

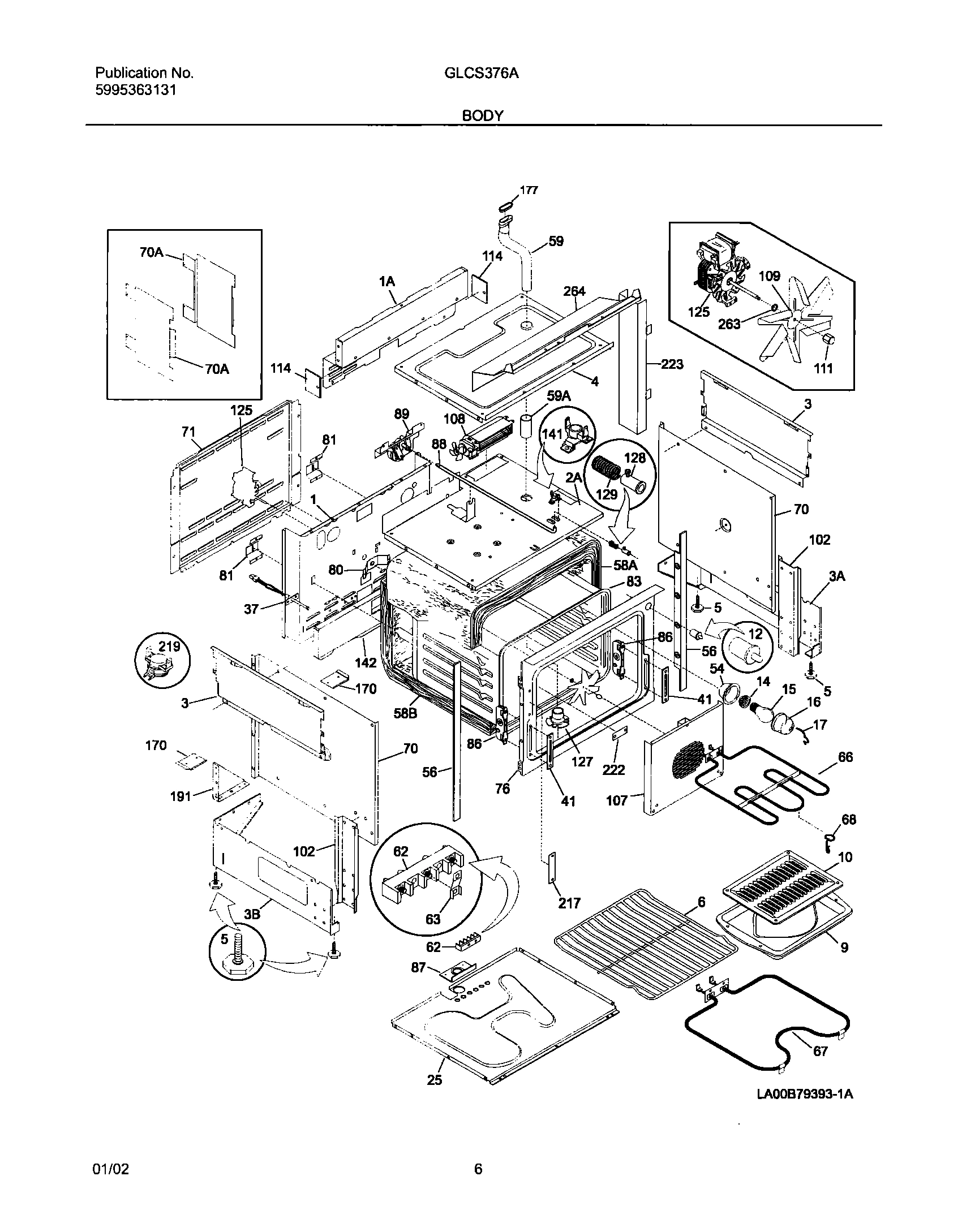

07 - BODY

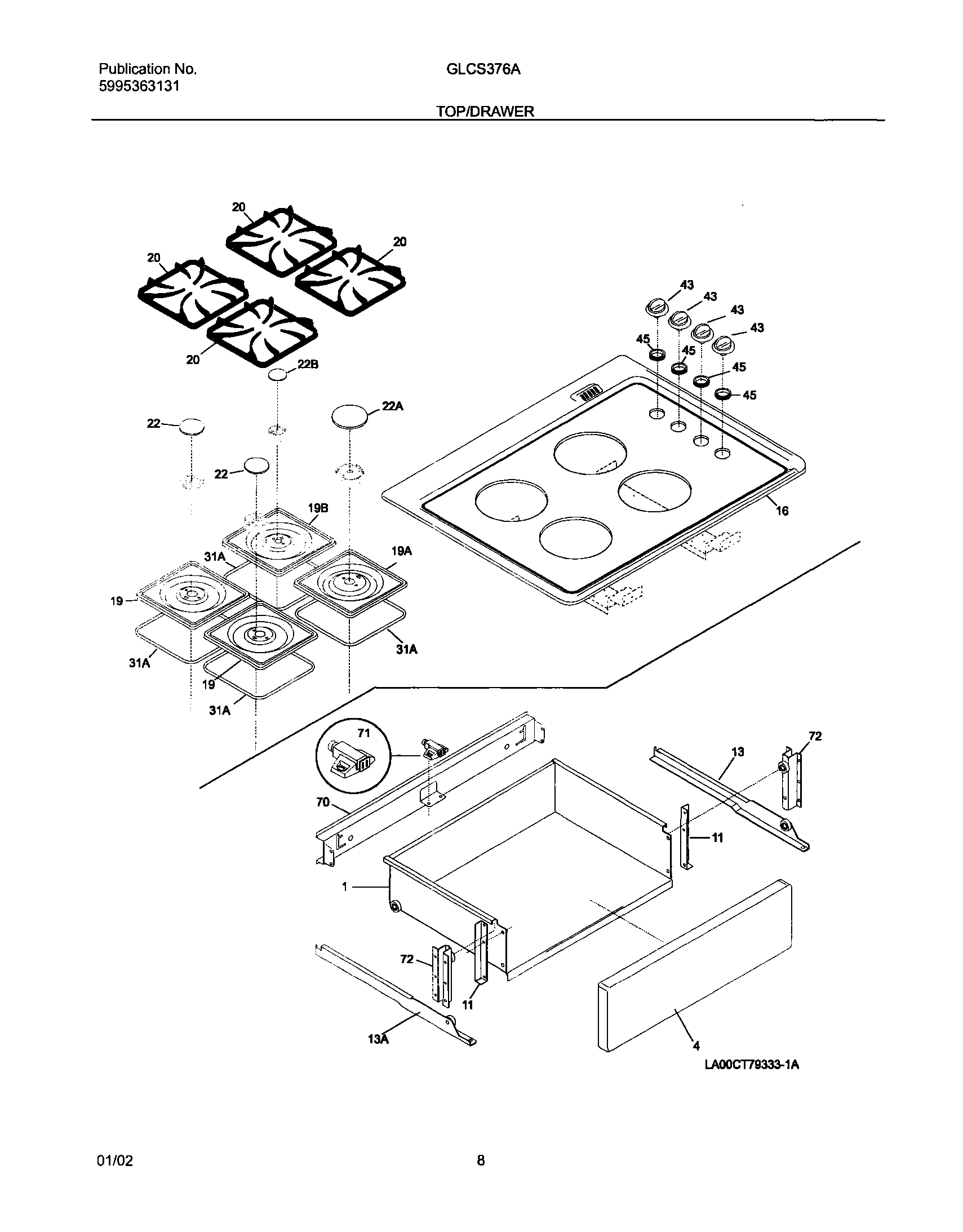

09 - TOP/DRAWER

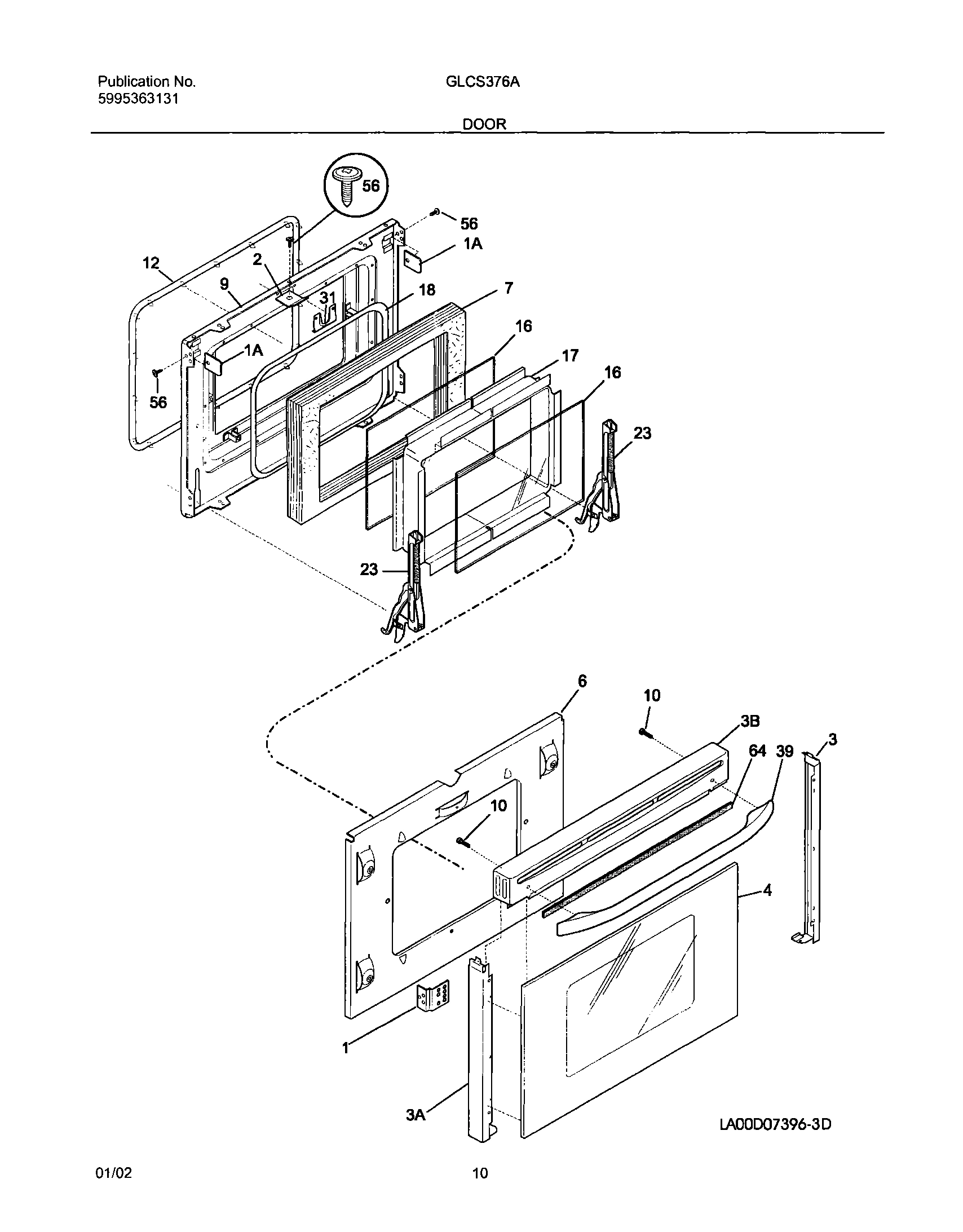

11 - DOOR

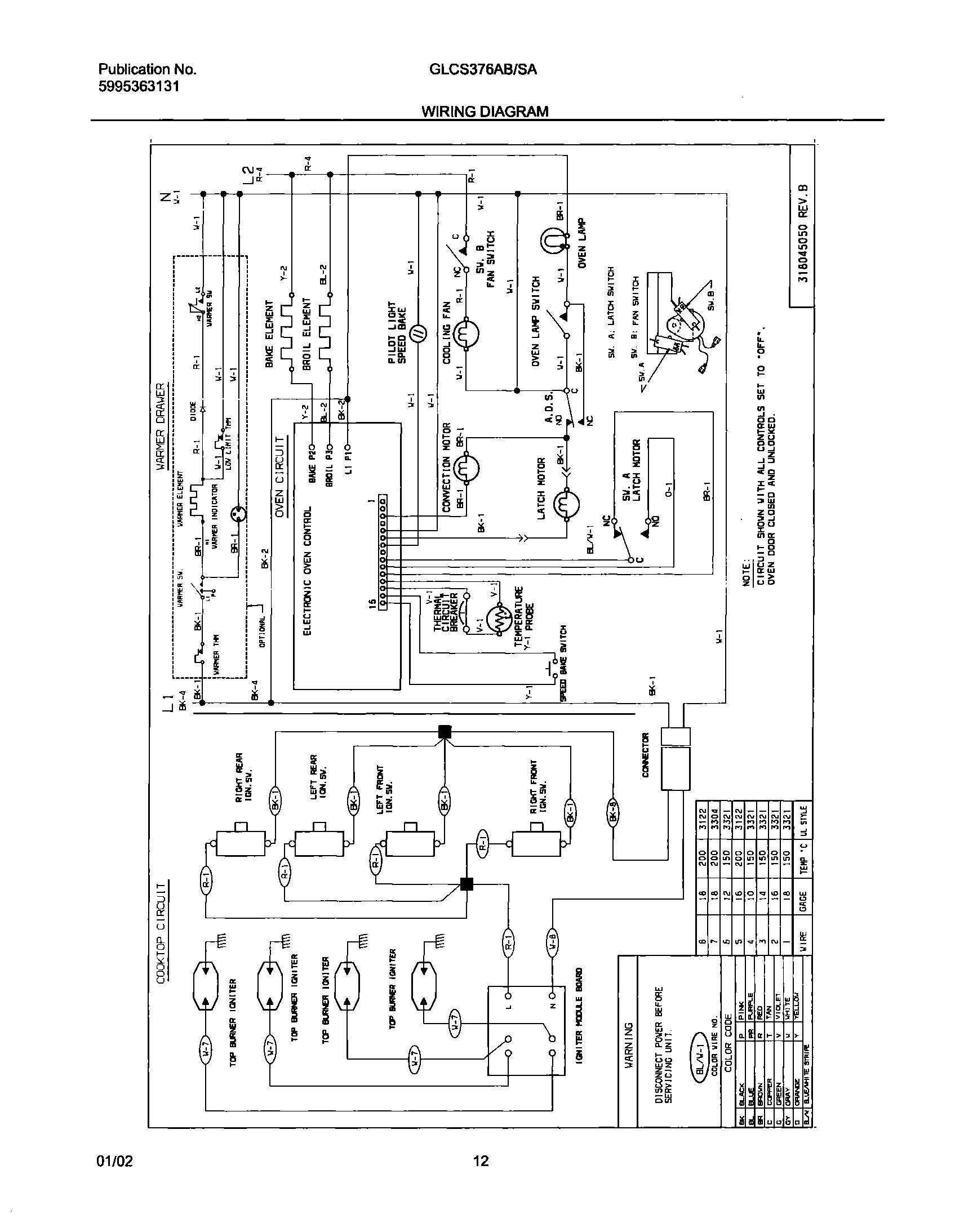

12 - WIRING DIAGRAM

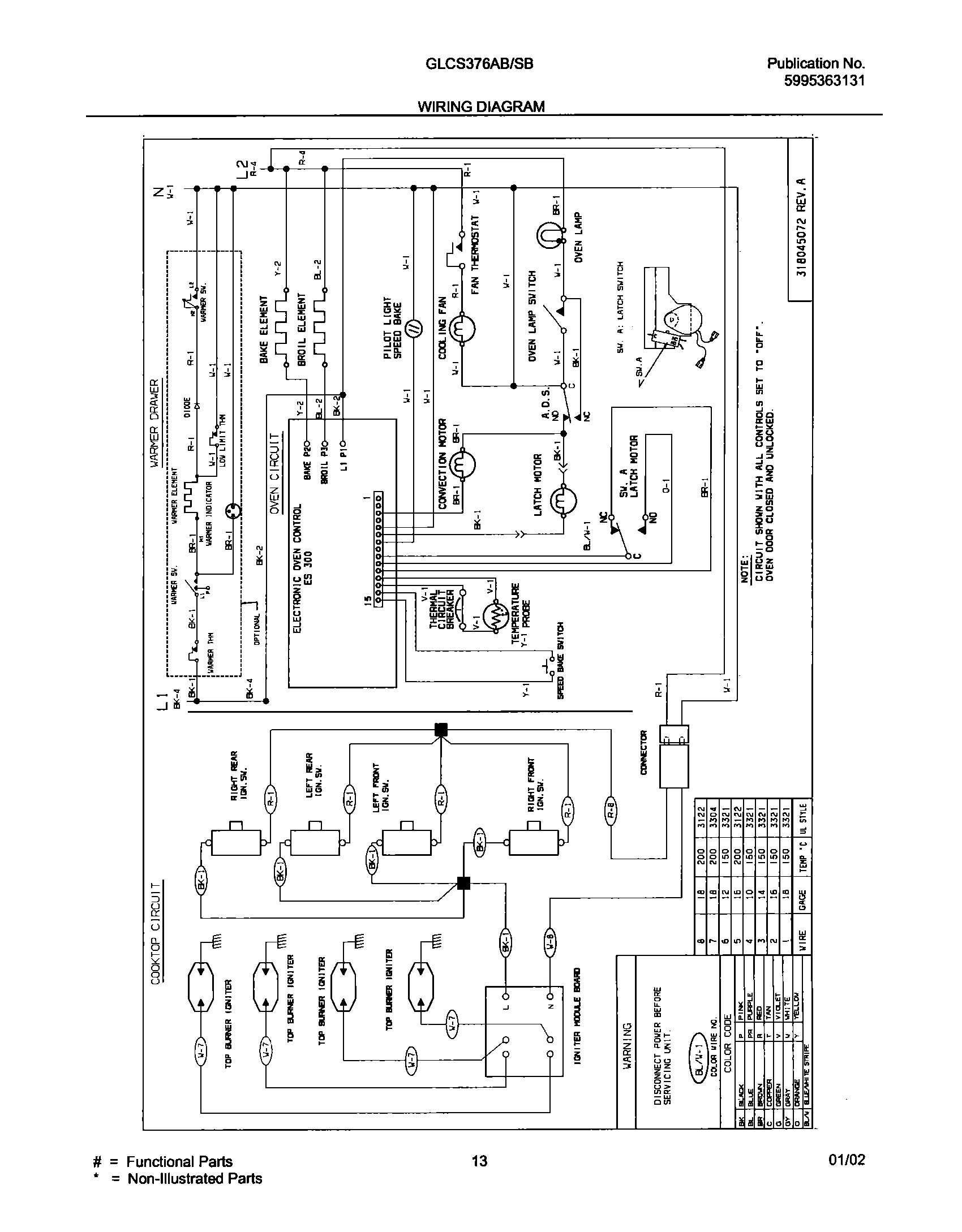

13 - WIRING DIAGRAM
Common parts from model Electrolux GLCS376ASB RANGE
1
WCI 318043100 WCI 318043100 Contact Us For Availability
1A
WCI 318180310 WCI 318180310 Contact Us For Availability
2
WCI 5303935042 WCI 5303935042 Contact Us For Availability
2
WCI 318180312 WCI 318180312 Contact Us For Availability
2A
WCI 318087001 WCI 318087001 Contact Us For Availability
2B
WCI 318087040 WCI 318087040 Contact Us For Availability
3
SWITCH-IGNITOR WCI 316032002 Contact Us For Availability
3
WCI 318187810 WCI 318187810 Contact Us For Availability
3A
WCI 318187811 WCI 318187811 Contact Us For Availability
3B
WCI 318176646 WCI 318176646 Contact Us For Availability
4
WCI 318187715 WCI 318187715 Contact Us For Availability
4
WCI 318134011 WCI 318134011 Contact Us For Availability
6
Tube,burner ,RR WCI 318167702 Contact Us For Availability
6
SHIELD-INSULATION WCI 318056802 Contact Us For Availability
7
WCI 318133754 WCI 318133754 Contact Us For Availability
9
WCI 318157011 WCI 318157011 Contact Us For Availability
10
WCI 318148001 WCI 318148001 Contact Us For Availability
10A
WCI 318148002 WCI 318148002 Contact Us For Availability
10B
WCI 318148000 WCI 318148000 Contact Us For Availability
11
WCI 5303311125 WCI 5303311125 Contact Us For Availability
13
WCI 5303311129 WCI 5303311129 Contact Us For Availability
13A
WCI 5303311130 WCI 5303311130 Contact Us For Availability
14
WCI 318122700 WCI 318122700 Contact Us For Availability
16
WCI 318041603 WCI 318041603 Contact Us For Availability
16
WCI 318079224 WCI 318079224 Contact Us For Availability
17
WCI 5304400195 WCI 5304400195 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
19
WCI 318168116 WCI 318168116 Contact Us For Availability
19A
WCI 318168126 WCI 318168126 Contact Us For Availability
19B
WCI 318168106 WCI 318168106 Contact Us For Availability
20
Grate,grey ,(4) WCI 318120104 Contact Us For Availability
22
Cap,burner ,grey ,medium LF & LR WCI 318076411 Contact Us For Availability
22A
Cap,burner ,grey ,large RF WCI 318076421 Contact Us For Availability
22B
Cap,burner ,grey ,small RR WCI 318076401 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
25
WCI 318179107 WCI 318179107 Contact Us For Availability
31
WCI 5303310536 WCI 5303310536 Contact Us For Availability
39
WCI 316108800 WCI 316108800 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
43
WCI 318196100 WCI 318196100 Contact Us For Availability
45
BUSHING WCI 318146200 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 318002612 WCI 318002612 Contact Us For Availability
58A
WCI 318133744 WCI 318133744 Contact Us For Availability
58B
WCI 318133769 WCI 318133769 Contact Us For Availability
59
Tube,oven vent ,upper WCI 318072519 Contact Us For Availability
59A
Tube,oven vent ,lower WCI 318072520 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
64
WCI 5304417120 WCI 5304417120 Contact Us For Availability
70
WCI 318194400 WCI 318194400 Contact Us For Availability
70
WCI 5303311143 WCI 5303311143 Contact Us For Availability
70A
WCI 318199801 WCI 318199801 Contact Us For Availability
71
WCI 5303310515 WCI 5303310515 Contact Us For Availability
71
WCI 5303311144 WCI 5303311144 Contact Us For Availability
72
WCI 5303311145 WCI 5303311145 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
76A
WCI 318167800 WCI 318167800 Contact Us For Availability
77
WCI 318112010 WCI 318112010 Contact Us For Availability
80
WCI 5303320846 WCI 5303320846 Contact Us For Availability
81
WCI 318192400 WCI 318192400 Contact Us For Availability
83
Liner,oven WCI 318089609 Contact Us For Availability
86
WCI 5303310524 WCI 5303310524 Contact Us For Availability
87
WCI 318111803 WCI 318111803 Contact Us For Availability
88
WCI 318118904 WCI 318118904 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
107
WCI 318119600 WCI 318119600 Contact Us For Availability
108
WCI 318073012 WCI 318073012 Contact Us For Availability
114
WCI 318175100 WCI 318175100 Contact Us For Availability
125
WCI 316234601 WCI 316234601 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
141
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
170
WCI 5304405244 WCI 5304405244 Contact Us For Availability
177
WCI 5303324040 WCI 5303324040 Contact Us For Availability
191
WCI 5303304030 WCI 5303304030 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
219
Thermostat,safety ,for fan WCI 318005000 Contact Us For Availability
222
WCI 318080000 WCI 318080000 Contact Us For Availability
223
WCI 318038400 WCI 318038400 Contact Us For Availability
264
WCI 318077602 WCI 318077602 Contact Us For Availability
NI
SCREW,TRUSS HEAD,8-18 X 0.375 WCI 08016432 Contact Us For Availability
NI
WCI 318082975 WCI 318082975 Contact Us For Availability
NI
Switch,cooktop shutoff WCI 318120710 Contact Us For Availability
NI
WCI 5303311207 WCI 5303311207 Contact Us For Availability
NI
WCI 5303325171 WCI 5303325171 Contact Us For Availability
NI
WCI 5303325173 WCI 5303325173 Contact Us For Availability
× ![]()
