Model Whirlpool GL8856EBB0 GAS COOKTOP – Common Parts & Diagrams
03 - SECTION
01 - SECTION

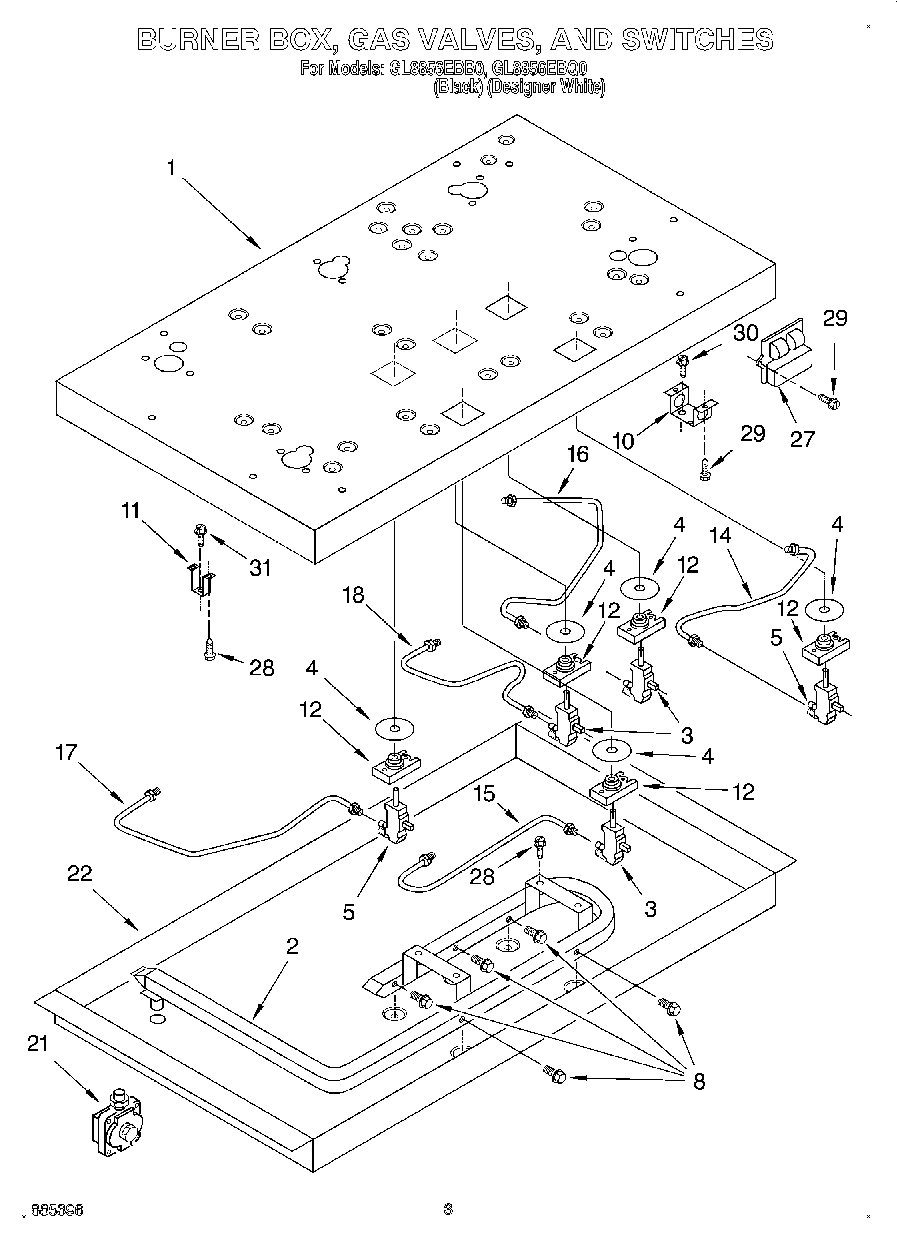

02 - SECTION
Common parts from model Whirlpool GL8856EBB0 GAS COOKTOP
Wiring Diagram WPL LIT3191129 Contact Us For Availability
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Use & Care Guide WPL LIT3191747 Contact Us For Availability
Installation Instructions WPL LIT3191748 Contact Us For Availability
1
Cooktop, Glass (Black) WPL 3191555 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3191556 Contact Us For Availability
1
Backer Plate WPL 3190396 Contact Us For Availability
2
Pipe, Manifold WPL 3190750 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black) WPL 4454595 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 4454597 Contact Us For Availability
3
Valve, Gas Burner (LF, RR, & CR) WPL 3185828 Contact Us For Availability
4
Electrode WPL 3185804 Contact Us For Availability
5
Tape, Foam WPL 3179164 Contact Us For Availability
5
Screw (2) WPL 3179557 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3185947 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3185948 Contact Us For Availability
5
Hardware, Mounting WPL 3188310 Contact Us For Availability
5
Sides WPL 3191111 Contact Us For Availability
5
Front & Back WPL 3191113 Contact Us For Availability
5
Harness, Ignitor Seal, Foam-Cooktop WPL 3191127 Contact Us For Availability
5
Harness, Switch WPL 3191128 Contact Us For Availability
5
Tinnerman Nut WPL 4167077 Contact Us For Availability
5
Conversion Kit Natural Gas To L.P. WPL 814428 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
7
Speed Nut (15) WPL 3189021 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 4454598 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 4454600 Contact Us For Availability
8
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
10
Bracket, Burner (4) WPL 4454647 Contact Us For Availability
11
Bracket, Burner Box (9) WPL 3191098 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Bla WPL 3186675 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Whi WPL 3186677 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Bla WPL 3186672 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Whi WPL 3186674 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3189880 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3189881 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
16
Tubing, Large Gas Gas Burner (RR) WPL 3189882 Contact Us For Availability
17
Knob, Control (4) (Black) WPL 3191763 Contact Us For Availability
17
Knob, Control (4) (White) WPL 3191764 Contact Us For Availability
17
Tubing, Small Gas Burner (LR) WPL 3189883 Contact Us For Availability
18
Burner, Small (2) WPL 3188799 Contact Us For Availability
18
Tubing, Small Burner (CR) WPL 3189884 Contact Us For Availability
19
Burner, Large (2) WPL 3188798 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Burner Box WPL 3190967 Contact Us For Availability
29
Screw WPL 3148443 Contact Us For Availability
30
Screw WPL 4454663 Contact Us For Availability
31
Screw WPL 3148442 Contact Us For Availability
× ![]()
