Model Whirlpool GJSP84902 30`` ELECTRIC RANGE CERAN COOKTOP – Common Parts & Diagrams

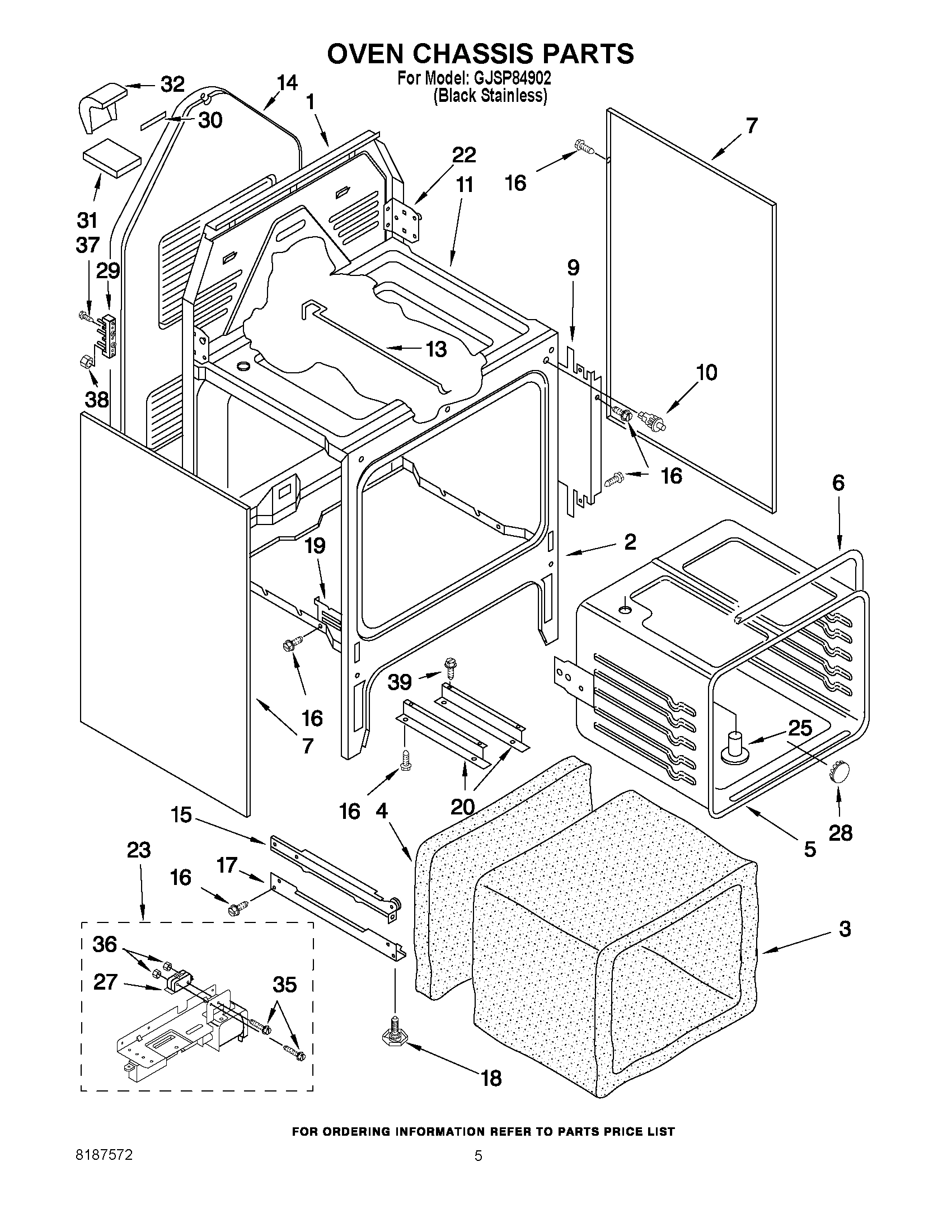

04 - OVEN CHASSIS PARTS

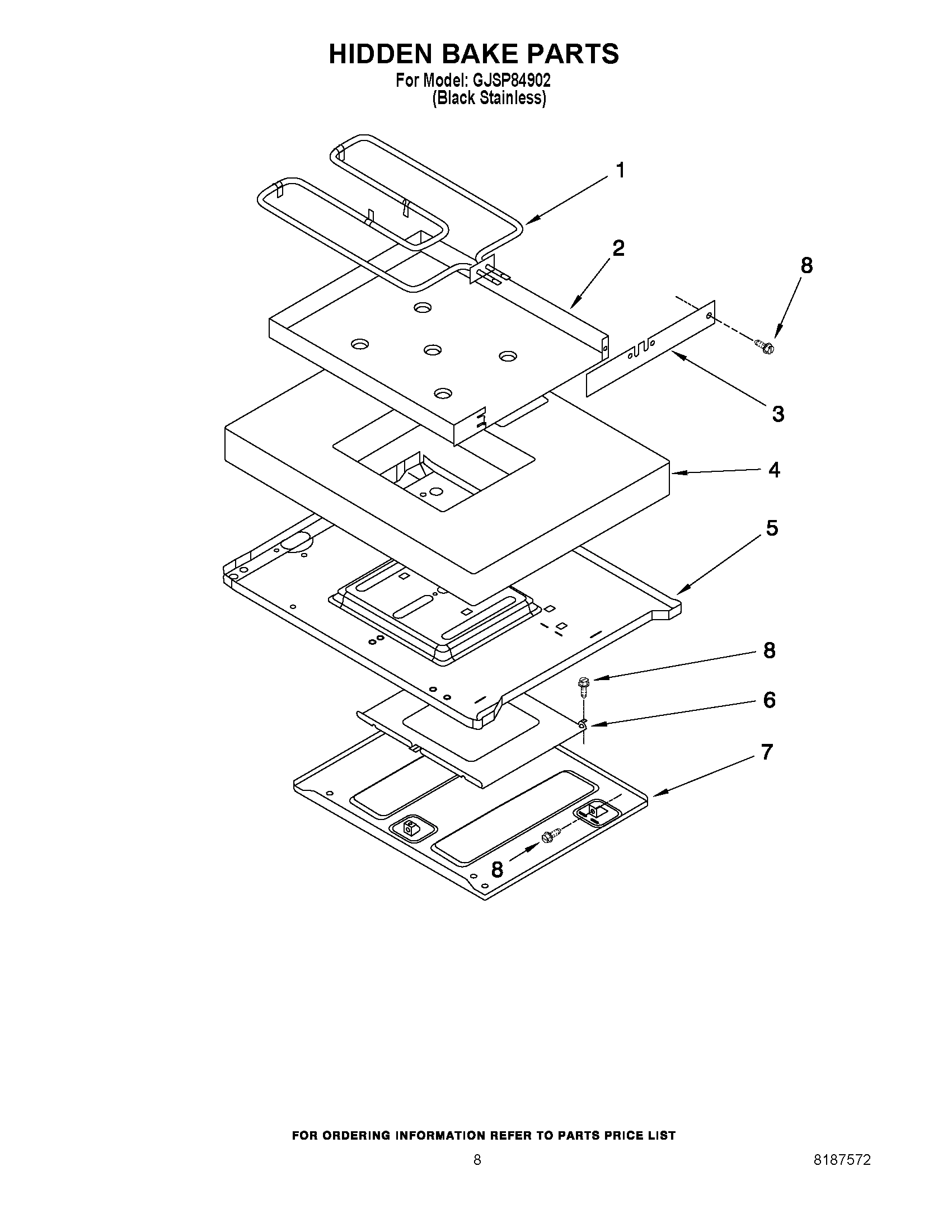

06 - HIDDEN BAKE PARTS
02 - CONTROL PANEL PARTS
03 - DOOR AND DRAWER PARTS
05 - OVEN PARTS
07 - MISCELLANEOUS PARTS
01 - COOKTOP PARTS
Common parts from model Whirlpool GJSP84902 30`` ELECTRIC RANGE CERAN COOKTOP
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Lamp Cover WPL 9752431PB Contact Us For Availability
1
Template, Anti-Tip WPL LIT9752776 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL LIT9752777 Contact Us For Availability
1
USE & CARE GUIDE WPL LIT9754172 Contact Us For Availability
1
SERVICE INSTRUCTIONS WPL LIT9781875 Contact Us For Availability
1
WIRING DIAGRAM WPL LIT9782238 Contact Us For Availability
2
Console-Glass (Control Panel) WPL 9754240 Contact Us For Availability
2
Trim, Door-Left WPL 9782003PB Contact Us For Availability
3
Cover, Hidden Bake WPL 9782049 Contact Us For Availability
3
Breaker, 15Amp. (2) WPL 3191072 Contact Us For Availability
3
Trim, Door-Right WPL 9782004PB Contact Us For Availability
3
Rear Gasket WPL 9781614 Contact Us For Availability
4
Insulation WPL 9754005 Contact Us For Availability
4
End Cap (Left) WPL 9752422FB Contact Us For Availability
4
End Cap (Right) WPL 9752423FB Contact Us For Availability
4
Trim, Door Bottom WPL 9781209PB Contact Us For Availability
4
Frame, Cooktop WPL 9750456PB Contact Us For Availability
5
Retainer, Insulation WPL 9752735 Contact Us For Availability
5
BUTTON, PLUG (2) WPL 9780577 Contact Us For Availability
5
Glass, Door Front WPL 9754042 Contact Us For Availability
5
Support, Element WPL 9753941 Contact Us For Availability
6
Plate, Reflector WPL 9782050 Contact Us For Availability
6
Panel, Control WPL 9753864 Contact Us For Availability
6
Vent, Door WPL 9753498GB Contact Us For Availability
6
Seal, Door Vent Side WPL 9781490 Contact Us For Availability
6
Gasket, Door Vent WPL 9781659 Contact Us For Availability
6
Back Splash WPL 9752337GB Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Shield WPL 9782051 Contact Us For Availability
7
Screw, 8-18 x 3/8 WPL 9780852 Contact Us For Availability
7
Brace, Support WPL 9753675 Contact Us For Availability
8
Sensor WPL 9782081 Contact Us For Availability
8
Knobs, Control (4) WPL 9752405FB Contact Us For Availability
8
Handle, Door WPL 9751136PB Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
9
Light, Indicator (2) WPL 313102 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Door Switch (Oven Light) WPL 9781580 Contact Us For Availability
10
Spacer, Glass WPL 9752854 Contact Us For Availability
10
Hot Light WPL 9781935 Contact Us For Availability
11
ELEMENT, SURFACE (BRIDGE ELEMENT) WPL 9872637 Contact Us For Availability
12
Trim Strip WPL 9752443PB Contact Us For Availability
12
Frame, Glass WPL 9781602 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
12
Cooktop, Ceran WPL 9754255CW Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Outlet, Untimed (2) WPL 9751480FB Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Timer WPL 9754260 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
16
Knob, Timer (17) WPL 9781954FB Contact Us For Availability
17
Bracket (2) WPL 9753304 Contact Us For Availability
17
Screw, 4-24 x 3/8 WPL 9780806 Contact Us For Availability
18
Insulation, Door WPL 9754006 Contact Us For Availability
18
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Infinite Switch (1800W) WPL 9750644 Contact Us For Availability
19
Infinite Switch (Dual, (2)) WPL 9755174 Contact Us For Availability
19
Cover Vent WPL 9753040CB Contact Us For Availability
20
Clip, Mounting WPL 3149190 Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
20
Spring, Warm Zone WPL 9753677 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
23
Gasket, Vent WPL 9750767 Contact Us For Availability
24
Screw, 10-16 x 1/2 WPL 3149333 Contact Us For Availability
24
Front, Drawer WPL 9782109PB Contact Us For Availability
25
Heat Channel WPL 9750693 Contact Us For Availability
25
Screw, 10-16 X 3/4 WPL 423248 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
28
Clip, Spring (2) WPL 9753017 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
30
Base, Console WPL 9752439 Contact Us For Availability
30
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
31
Trim, Upper WPL 9750614PB Contact Us For Availability
32
Insert WPL 9753076FB Contact Us For Availability
32
Spacer WPL 9753329 Contact Us For Availability
33
Insulation, Control Panel WPL 9750995 Contact Us For Availability
33
Switch, Rocker (Illuminated) WPL 9754017FB Contact Us For Availability
33
Panel, Drawer WPL 9754062 Contact Us For Availability
34
Trim, Lower WPL 9750613PB Contact Us For Availability
NI
INSULATION, FOIL, ALUMINUM OVEN (18`` X 25 WPL 241430 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 14 WPL 242820 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BLUE 14 G WPL 242821 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 WPL 242822 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, GREEN 14 WPL 242823 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, ORANGE 14 WPL 242824 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA WPL 242825 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, WHITE 14 WPL 242826 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 WPL 242827 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 12 WPL 242828 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, RED 12 GA WPL 242829 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 WPL 242830 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 WPL 242832 Contact Us For Availability
NI
REFINISHING MATERIAL (GRE WPL 261582 Contact Us For Availability
NI
WPL 799832 WPL 799832 Contact Us For Availability
NI
WPL 9750744 WPL 9750744 Contact Us For Availability
NI
WPL 9750984 WPL 9750984 Contact Us For Availability
NI
WPL 9752848 WPL 9752848 Contact Us For Availability
NI
WPL 9753680 WPL 9753680 Contact Us For Availability
NI
WPL 9753682 WPL 9753682 Contact Us For Availability
NI
WPL 9753683 WPL 9753683 Contact Us For Availability
NI
WPL 9754100 WPL 9754100 Contact Us For Availability
NI
WPL 9780585 WPL 9780585 Contact Us For Availability
NI
WPL 9781291 WPL 9781291 Contact Us For Availability
NI
WPL 9781903 WPL 9781903 Contact Us For Availability
NI
WPL 9782132 WPL 9782132 Contact Us For Availability
NI
WPL 9782139 WPL 9782139 Contact Us For Availability
NI
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
