Model Whirlpool GJD3644LP00 30`` ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP – Common Parts & Diagrams

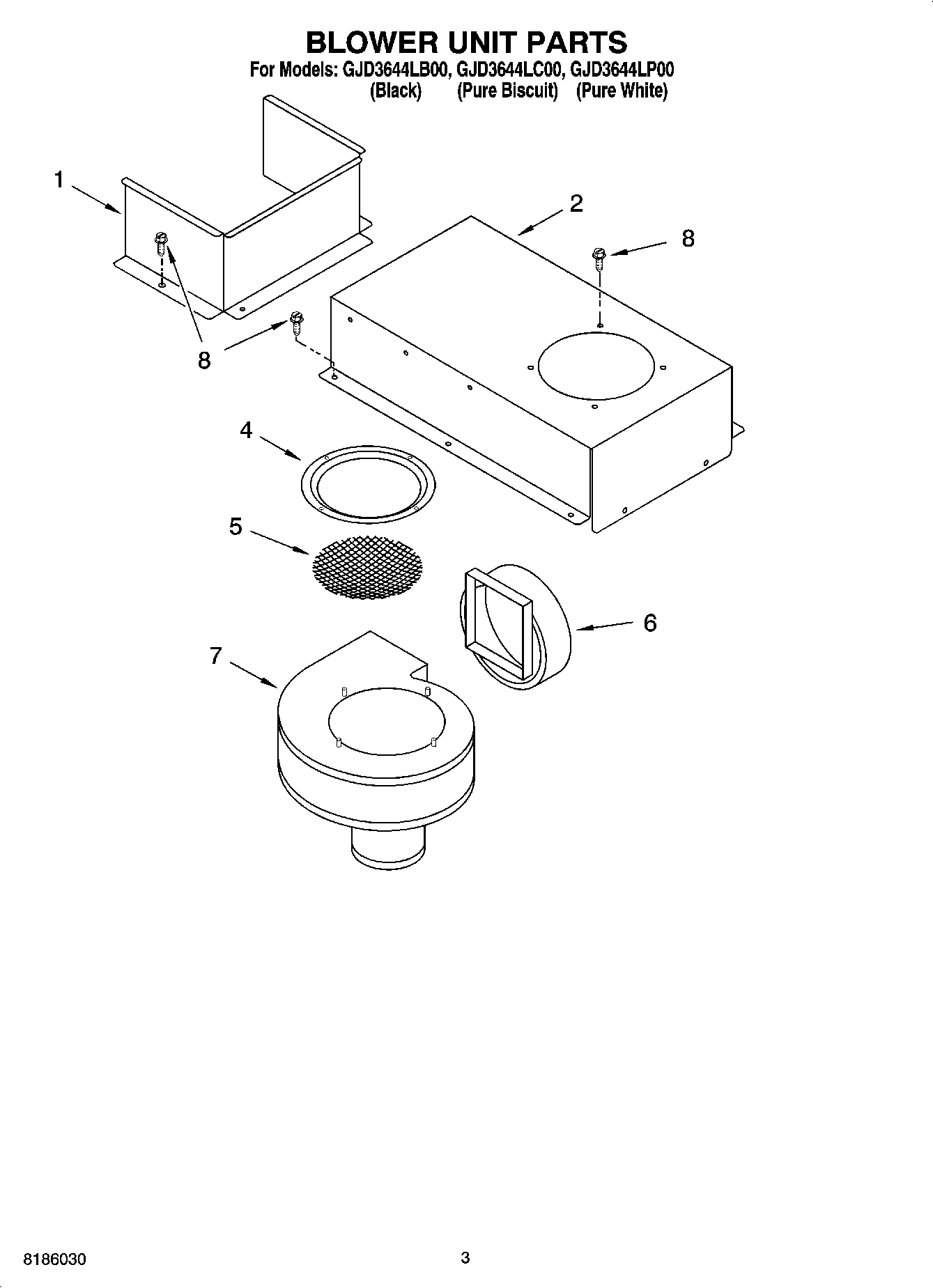

02 - BLOWER UNIT PARTS, MISCELLANEOUS PARTS

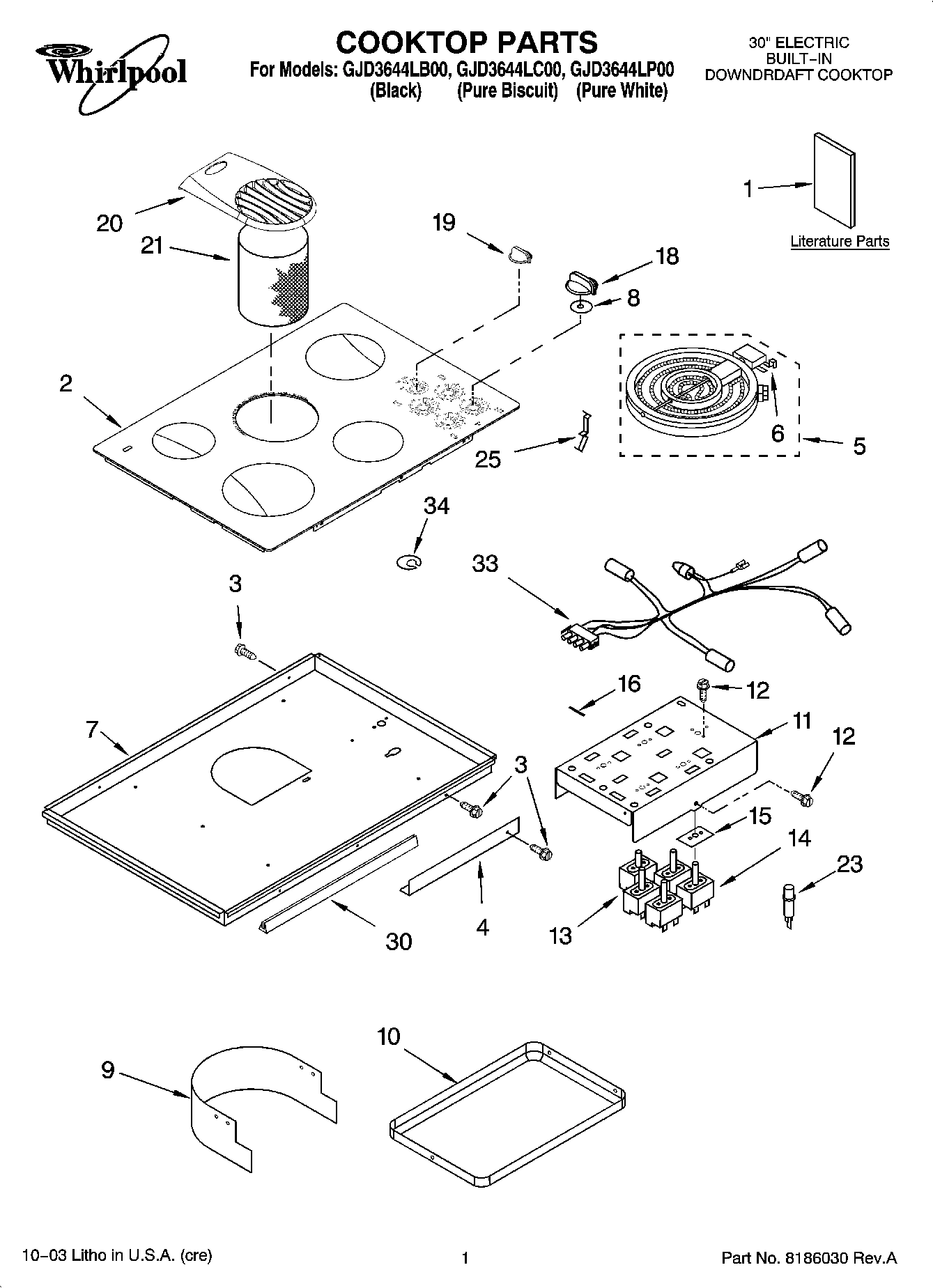

01 - COOKTOP PARTS
Common parts from model Whirlpool GJD3644LP00 30`` ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Hardware, Mounting WPL 3172515 Contact Us For Availability
Harness, Wire (Blower/Switch) WPL 3190722 Contact Us For Availability
Strain Relief WPL 3190962 Contact Us For Availability
Bracket, Mounting WPL 3192408 Contact Us For Availability
Harness, Wire (Ceran Downdraft) WPL 8285456 Contact Us For Availability
Conduit, Downdraft WPL 8285457 Contact Us For Availability
ACCESSORY PARTS WPL ARI66642A3 Contact Us For Availability
WIRING HARNESS PARTS WIRING HARNESS PARTS WPL ARI66643A6 Contact Us For Availability
Miscellaneous WPL ARI66644A5 Contact Us For Availability
1
Bracket, Shield WPL 4455355 Contact Us For Availability
1
COOKTOP PARTS WPL ARI66641A2 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8285116 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8285417 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8285454 Contact Us For Availability
2
Cooktop, Glass & Bracket Assembly (Black) WPL 8285237 Contact Us For Availability
2
Bracket, Blower Mounting WPL 3192403 Contact Us For Availability
2
Cooktop, Glass & Bracket Assembly (Pure White WPL 8285238 Contact Us For Availability
2
Cooktop, Glass & Bracket Assembly (Pure Biscu WPL 8285239 Contact Us For Availability
4
Ring, Inlet WPL 3190735 Contact Us For Availability
5
Screen, Inlet WPL 3190947 Contact Us For Availability
6
Adapter, Vent WPL 3190736 Contact Us For Availability
6
Rail, Element (Right Hand) WPL 3192520 Contact Us For Availability
6
Rail, Element (Left Hand) WPL 3192521 Contact Us For Availability
7
Blower Motor Asm. (Includes Fan Asm) WPL 3190737 Contact Us For Availability
7
Box, Burner WPL 4455514 Contact Us For Availability
9
Shield, Vent WPL 4455802 Contact Us For Availability
10
Drip Bowl, Grease WPL 3190656 Contact Us For Availability
11
Bracket, Control Mounting WPL 4455354 Contact Us For Availability
13
Switch, Speed Control WPL 3190639 Contact Us For Availability
14
Switch, Infinite (RR) WPL 8285292 Contact Us For Availability
14
Switch, Infinite (LF) WPL 8285307 Contact Us For Availability
15
Seal, Switch WPL 3182435 Contact Us For Availability
18
Knob, Control (Pure Biscuit) WPL 8522567 Contact Us For Availability
19
Knob, Downdraft (Black) WPL 8285355 Contact Us For Availability
19
Knob, Downdraft (Pure White) WPL 8285356 Contact Us For Availability
19
Knob, Downdraft (Pure Biscuit) WPL 8285357 Contact Us For Availability
20
Grille, Air (Black) WPL 8285115 Contact Us For Availability
20
Grille, Air (Pure White) WPL 8285228 Contact Us For Availability
20
Grille, Air (Biscuit) WPL 8285229 Contact Us For Availability
21
Filter, Grease WPL 3192530 Contact Us For Availability
25
Spring, Locator WPL 3191791 Contact Us For Availability
30
Gasket, Vent Shie WPL 3193032 Contact Us For Availability
33
WPL 3191343 WPL 3191343 Contact Us For Availability
34
WPL 3193094 WPL 3193094 Contact Us For Availability
× ![]()
