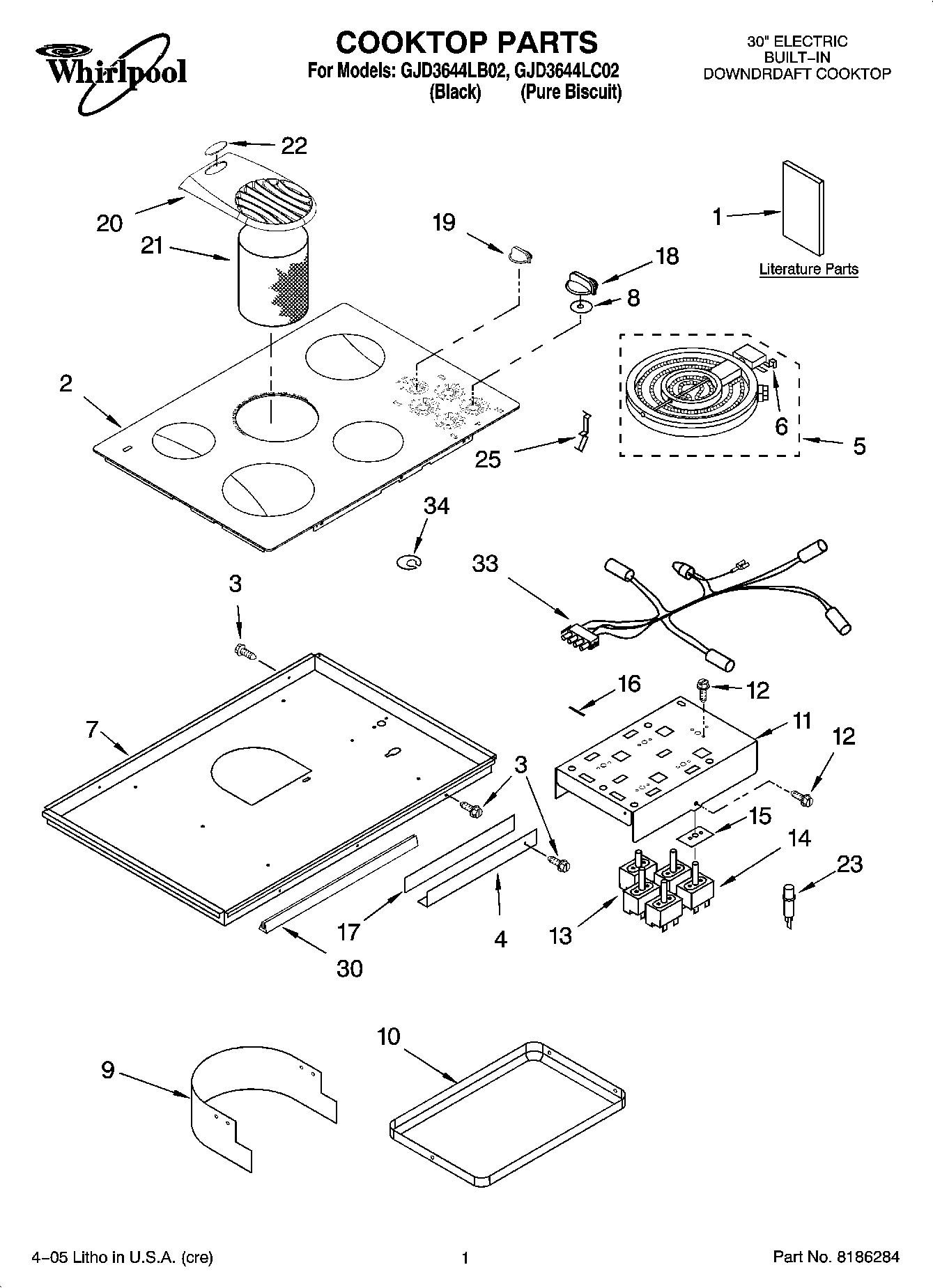

Model Whirlpool GJD3644LC02 30`` ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP – Common Parts & Diagrams

Cleaner, Glass
Cleaner, Glass WPL W10355051 No Longer Available
View on Model
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
Wire, White 14 Ga. 150~c
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
Wire, Red 12 Ga. 150~c
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
View on Model
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
Wire, Yellow 14 Ga. 200~c
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
View on Model
Hardware, Mounting
Hardware, Mounting WPL 3172515 Contact Us For Availability
View on Model
Harness, Wire (Blower/Switch)
Harness, Wire (Blower/Switch) WPL 3190722 Contact Us For Availability
View on Model
Strain Relief
Strain Relief WPL 3190962 Contact Us For Availability
View on Model
Bracket, Mounting
Bracket, Mounting WPL 3192408 Contact Us For Availability
View on Model
Conduit, Downdraft
Conduit, Downdraft WPL 4456618 Contact Us For Availability
View on Model
Harness, Wire (Ceran Downdraft)
Harness, Wire (Ceran Downdraft) WPL 4457136 Contact Us For Availability
View on Model
Miscellaneous
Miscellaneous WPL ARI66637A2 Contact Us For Availability
View on Model
FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRE
FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRE WPL ARI66638A1 Contact Us For Availability
View on Model
ACCESSORY PARTS
ACCESSORY PARTS WPL ARI66639A9 Contact Us For Availability
View on Model
WIRING HARNESS PARTS WIRING HARNESS PARTS
WIRING HARNESS PARTS WIRING HARNESS PARTS WPL ARI66640A7 Contact Us For Availability
View on Model
1
Bracket, Shield
Bracket, Shield WPL 4455355 Contact Us For Availability
View on Model
2
Cooktop, Glass & Bracket Assembly (Black)
Cooktop, Glass & Bracket Assembly (Black) WPL 8285237 Contact Us For Availability
View on Model
2

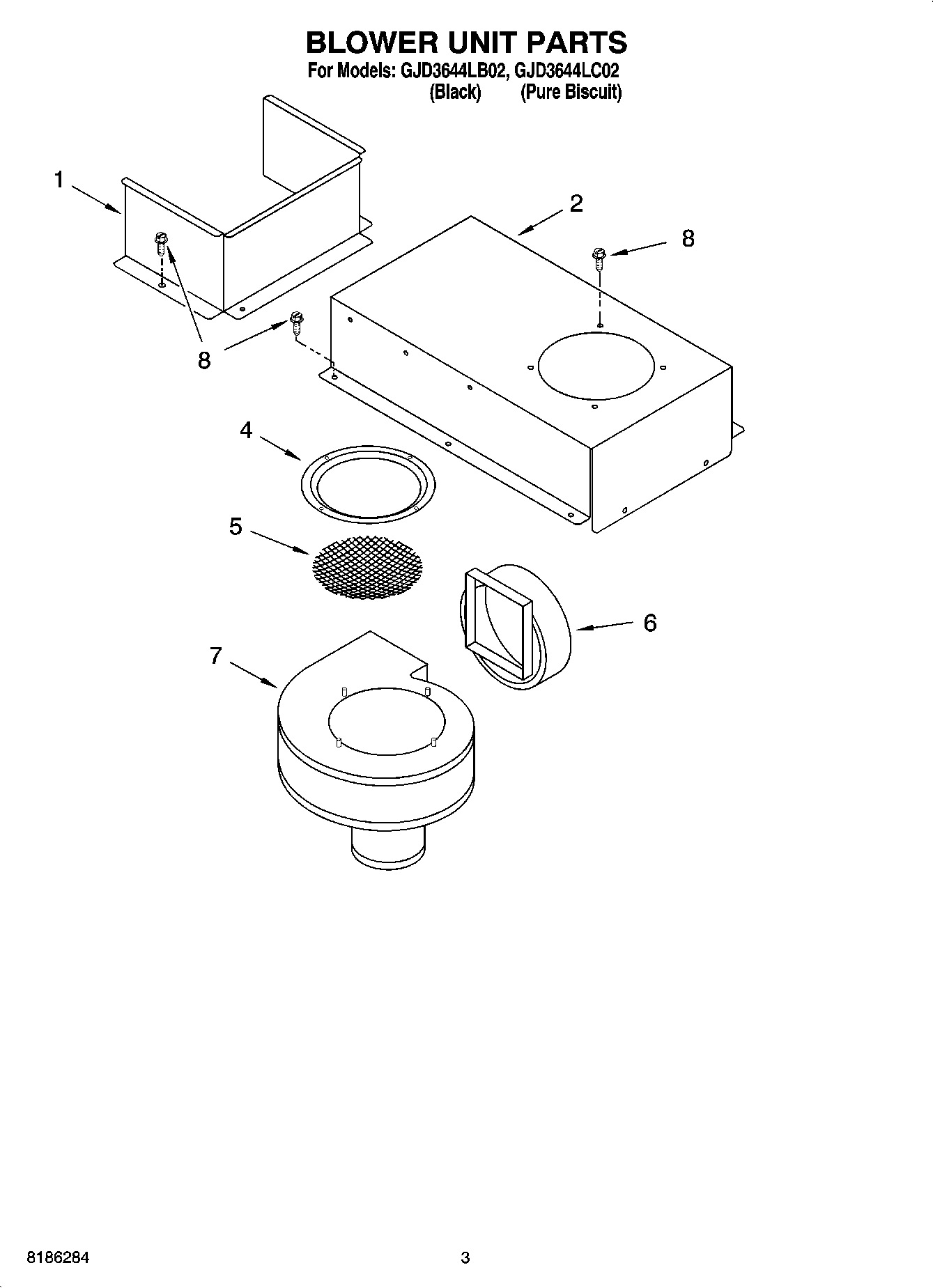

Bracket, Blower Mounting
Bracket, Blower Mounting WPL 3192403 Contact Us For Availability
View on Model
4
Ring, Inlet
Ring, Inlet WPL 3190735 Contact Us For Availability
View on Model
5
Screen, Inlet
Screen, Inlet WPL 3190947 Contact Us For Availability
View on Model
6
Adapter, Vent
Adapter, Vent WPL 3190736 Contact Us For Availability
View on Model
7
Blower Motor Asm. (Includes Fan Asm)
Blower Motor Asm. (Includes Fan Asm) WPL 3190737 Contact Us For Availability
View on Model
10
Drip Bowl, Grease
Drip Bowl, Grease WPL 3190656 Contact Us For Availability
View on Model
11
Bracket, Control Mounting
Bracket, Control Mounting WPL 4455354 Contact Us For Availability
View on Model
13
Switch, Speed Control
Switch, Speed Control WPL 3190639 Contact Us For Availability
View on Model
14
Switch, Infinite (Yellow)
Switch, Infinite (Yellow) WPL 8285292 Contact Us For Availability
View on Model
14
Switch, Infinite (Silver)
Switch, Infinite (Silver) WPL 8285291 Contact Us For Availability
View on Model
14
Switch, Infinite (Dual)
Switch, Infinite (Dual) WPL 9759473 Contact Us For Availability
View on Model
17
Seal, Foam
Seal, Foam WPL 4457298 Contact Us For Availability
View on Model
18
Knob, Control (Pure Biscuit)
Knob, Control (Pure Biscuit) WPL 8522567 Contact Us For Availability
View on Model
19
Knob, Downdraft (Black)
Knob, Downdraft (Black) WPL 8285355 Contact Us For Availability
View on Model
19
Knob, Downdraft (Pure Biscuit)
Knob, Downdraft (Pure Biscuit) WPL 8285357 Contact Us For Availability
View on Model
20
Grille, Air (Black)
Grille, Air (Black) WPL 8285115 Contact Us For Availability
View on Model
20
Grille, Air (Biscuit)
Grille, Air (Biscuit) WPL 8285229 Contact Us For Availability
View on Model
21
Filter, Grease
Filter, Grease WPL 3192530 Contact Us For Availability
View on Model
22
NAMEPLATE
NAMEPLATE WPL 8523552 Contact Us For Availability
View on Model
30
Gasket, Vent Shield
Gasket, Vent Shield WPL 3193032 Contact Us For Availability
View on Model
33
Light, Hot Surface Indicator
Light, Hot Surface Indicator WPL 3191343 Contact Us For Availability
View on Model
34
Plate, Cover
Plate, Cover WPL 3193094 Contact Us For Availability
View on Model
