Model Whirlpool GJC3054RS02 30`` ELECTRIC CERAN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool GJC3054RS02 30`` ELECTRIC CERAN COOKTOP

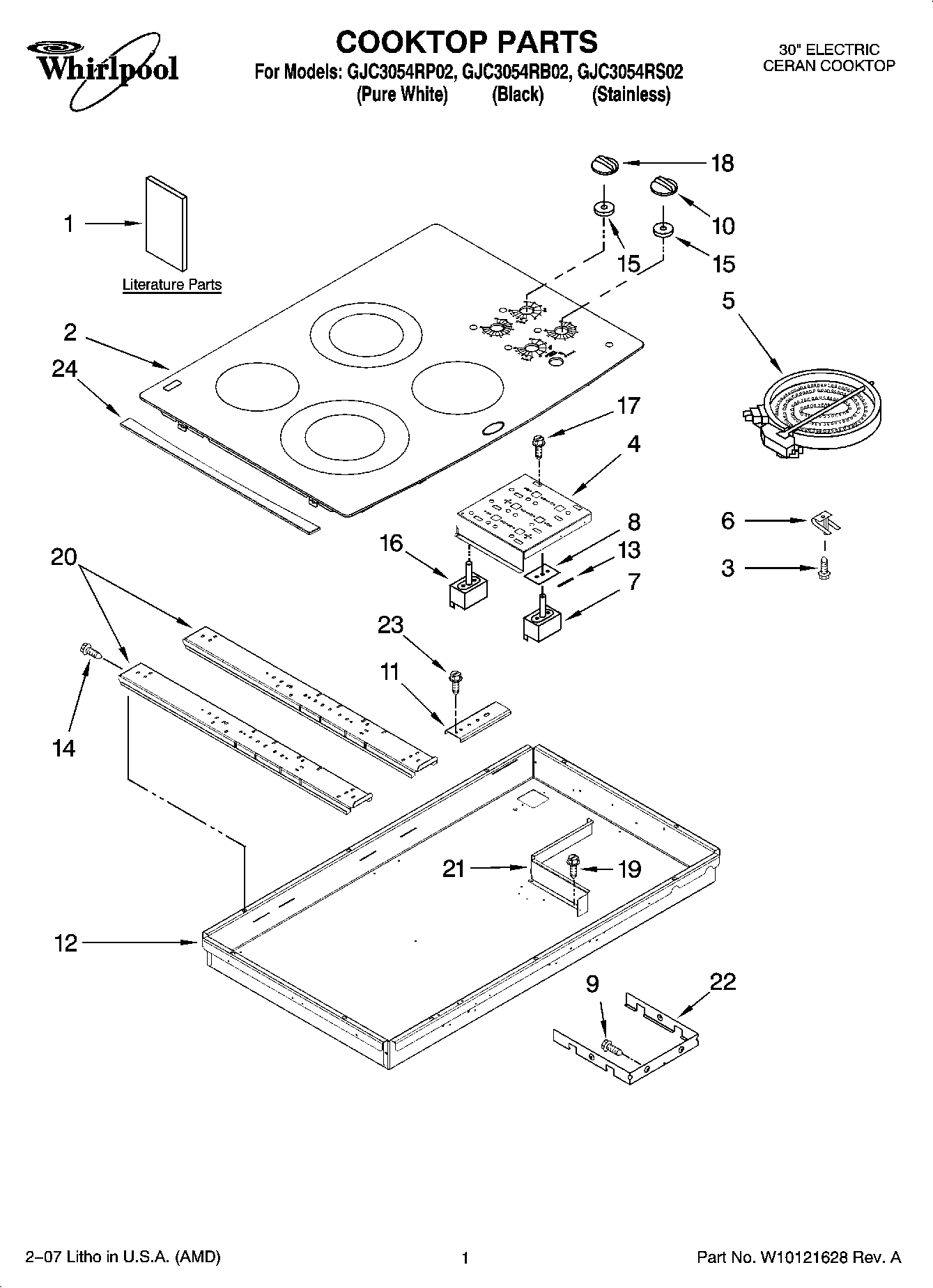

01 - COOKTOP PARTS, OPTIONAL PARTS

Print

• This Diagram
• All Diagrams

WPL ARI66220A4 WPL ARI66220A4 Contact Us For Availability

View on Model

WPL ARI66221A6 WPL ARI66221A6 Contact Us For Availability

View on Model

1

Safer Cooking Tips (English) WPL 3191638 Contact Us For Availability

View on Model

1

INSTALLATION INSTRUCTIONS (COOKTOP) WPL 8286066 Contact Us For Availability

View on Model

1

Wiring Diagram WPL 8286339 Contact Us For Availability

View on Model

1

Use & Care Guide WPL 8286614 Contact Us For Availability

View on Model

1

Installation Instructions (Undercounter Oven) WPL 8304571 Contact Us For Availability

View on Model

1

Safer Cooking Tips (French) WPL 9759133 Contact Us For Availability

View on Model

2

Cooktop & Bracket Assembly (Black) WPL W10048340 Contact Us For Availability

View on Model

2

Cooktop & Bracket Assembly (White) WPL W10048350 Contact Us For Availability

View on Model

3

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 View Details $2.51

View on Model

4

Bracket, Switch Mounting WPL 8285928 Contact Us For Availability

View on Model

5

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 View Details $123.34

View on Model

5

W10823699 Whirlpool Right Front Surface Eleme In Stock WPL W10823699 View Details $89.76

View on Model

5

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 View Details $100.91

View on Model

5

ELEMENT, SURFACE 2000/1000W RR WPL 8285937 Contact Us For Availability

View on Model

6

9759094 Whirlpool Spring Backorder WPL 9759094 View Details $4.85

View on Model

7

WP3191049 Whirlpool Infinite Switch Left Rear In Stock WPL WP3191049 View Details $68.94

View on Model

7

WP3191050 Whirlpool Infinite Switch In Stock WPL WP3191050 View Details $76.58

View on Model

7

WP9759474 Whirlpool Infinite Switch In Stock WPL WP9759474 View Details $68.71

View on Model

8

3183956 Whirlpool Oven Seal Switch In Stock WPL 3183956 View Details $28.64

View on Model

9

W10491985 Whirlpool Screw Backorder WPL W10491985 View Details $2.51

View on Model

10

8286043WH Whirlpool Knob Backorder WPL 8286043WH View Details $11.58

View on Model

10

WP8286043BL Whirlpool Knob In Stock WPL WP8286043BL View Details $11.84

View on Model

11

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $30.25

View on Model

12

Box, Burner WPL 8285862 Contact Us For Availability

View on Model

13

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 View Details $5.00

View on Model

15

8285469 Whirlpool Oven Seal Switch In Stock WPL 8285469 View Details $29.74

View on Model

16

WP9762441 Whirlpool Selector Switch In Stock WPL WP9762441 View Details $59.31

View on Model

17

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 View Details $3.11

View on Model

18

8286044BL Whirlpool Knob Backorder WPL 8286044BL View Details $7.76

View on Model

20

Rail, Element WPL 9763517 Contact Us For Availability

View on Model

21

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

21

Seal WPL 3191839 Contact Us For Availability

View on Model

21

Shield, Heat Control WPL 8285949 Contact Us For Availability

View on Model

22

Shield, Heat WPL 8286396 Contact Us For Availability

View on Model

22

Seal WPL 8286426 Contact Us For Availability

View on Model

23

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

24

4455364 Whirlpool Oven Support Bracket Backorder WPL 4455364 View Details $31.73

View on Model

24

WP8286642 Whirlpool Tape Backorder WPL WP8286642 View Details $57.05

View on Model

24

Trim, Cooktop (Stainless Only) Following Part WPL 3172515 Contact Us For Availability

View on Model

24

Trim, Cooktop (Stainless Only) (Left) WPL 8285990 Contact Us For Availability

View on Model

×
