Model Whirlpool GJC3034RP00 36`` ELECTRIC BUILT-IN CERAN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool GJC3034RP00 36`` ELECTRIC BUILT-IN CERAN COOKTOP

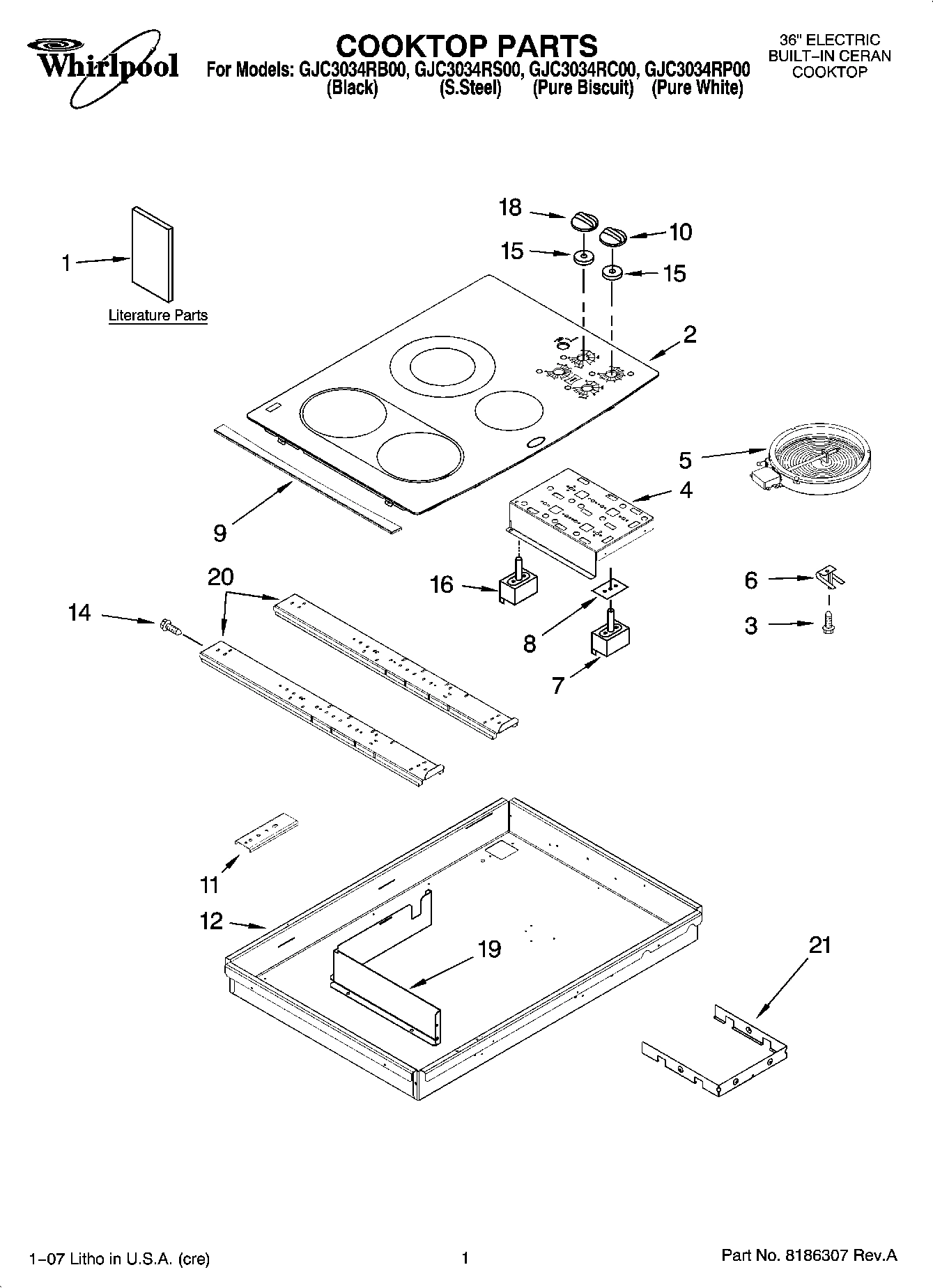

01 - COOKTOP PARTS, OPTIONAL PARTS

Print

• This Diagram
• All Diagrams

WPL 242828 WPL 242828 Contact Us For Availability

View on Model

WPL 242829 WPL 242829 Contact Us For Availability

View on Model

WPL 242830 WPL 242830 Contact Us For Availability

View on Model

WPL 242832 WPL 242832 Contact Us For Availability

View on Model

WPL 4456028 WPL 4456028 Contact Us For Availability

View on Model

WPL 8285956 WPL 8285956 Contact Us For Availability

View on Model

WPL 8285987 WPL 8285987 Contact Us For Availability

View on Model

WPL ARI66113A5 WPL ARI66113A5 Contact Us For Availability

View on Model

WPL ARI66114A7 WPL ARI66114A7 Contact Us For Availability

View on Model

WPL ARI66115A1 WPL ARI66115A1 Contact Us For Availability

View on Model

WPL ARI66116A6 WPL ARI66116A6 Contact Us For Availability

View on Model

1

Safer Cooking Tips WPL 3191638 Contact Us For Availability

View on Model

1

Wiring Diagram WPL 8285414 Contact Us For Availability

View on Model

1

INSTALLATION INSTRUCTIONS WPL 8286066 Contact Us For Availability

View on Model

1

Use & Care Guide WPL 8286288 Contact Us For Availability

View on Model

2

W10239865 Whirlpool Glass Maintop Backorder WPL W10239865 View Details $257.52

View on Model

2

Cooktop & Bracket Assembly (White) WPL 8286012 Contact Us For Availability

View on Model

2

Cooktop & Bracket Assembly (Biscuit) WPL 8286013 Contact Us For Availability

View on Model

3

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 View Details $2.51

View on Model

4

Bracket, Switch Mounting WPL 8285928 Contact Us For Availability

View on Model

5

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 View Details $117.46

View on Model

5

W10823695 Whirlpool Surface Element Backorder WPL W10823695 View Details $184.55

View on Model

5

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 View Details $100.91

View on Model

6

9759094 Whirlpool Spring Backorder WPL 9759094 View Details $4.85

View on Model

7

WP3191049 Whirlpool Infinite Switch Left Rear In Stock WPL WP3191049 View Details $65.67

View on Model

7

WP3191050 Whirlpool Infinite Switch In Stock WPL WP3191050 View Details $68.87

View on Model

7

WP9759474 Whirlpool Infinite Switch In Stock WPL WP9759474 View Details $65.43

View on Model

8

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 View Details $5.00

View on Model

9

WPW10142238 Whirlpool Cooktop Trim Backorder WPL WPW10142238 View Details $4.90

View on Model

9

Trim, Cooktop (S.Steel Mdl Only) (LH) WPL 8285990 Contact Us For Availability

View on Model

10

8286043BT Whirlpool Knob Backorder WPL 8286043BT View Details $38.17

View on Model

10

8286043WH Whirlpool Knob Backorder WPL 8286043WH View Details $11.58

View on Model

10

WP8286043BL Whirlpool Knob In Stock WPL WP8286043BL View Details $11.84

View on Model

11

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $28.80

View on Model

11

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

12

Box, Burner WPL 8285862 Contact Us For Availability

View on Model

14

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

15

8285469 Whirlpool Oven Seal Switch In Stock WPL 8285469 View Details $29.74

View on Model

16

WP9762441 Whirlpool Selector Switch Backorder WPL WP9762441 View Details $56.49

View on Model

18

8286044BL Whirlpool Knob Backorder WPL 8286044BL View Details $7.76

View on Model

18

Knob, Accusimer (Biscuit) WPL 8286044BT Contact Us For Availability

View on Model

19

Wall, Inside WPL 8285949 Contact Us For Availability

View on Model

20

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 View Details $27.27

View on Model

20

Seal, Heat WPL 3191839 Contact Us For Availability

View on Model

20

Rail, Element WPL 8285962 Contact Us For Availability

View on Model

21

4455364 Whirlpool Oven Support Bracket Backorder WPL 4455364 View Details $30.21

View on Model

21

W10491985 Whirlpool Screw In Stock WPL W10491985 View Details $2.51

View on Model

21

Mtg. Hardware Kit WPL 3172515 Contact Us For Availability

View on Model

21

Shield, Heat WPL 8286396 Contact Us For Availability

View on Model

21

Following Parts Not Illustrated WPL ARI66112A6 Contact Us For Availability

View on Model

×
