Model Whirlpool GI1500XHW9 ICE CUBE MAKER – Common Parts & Diagrams

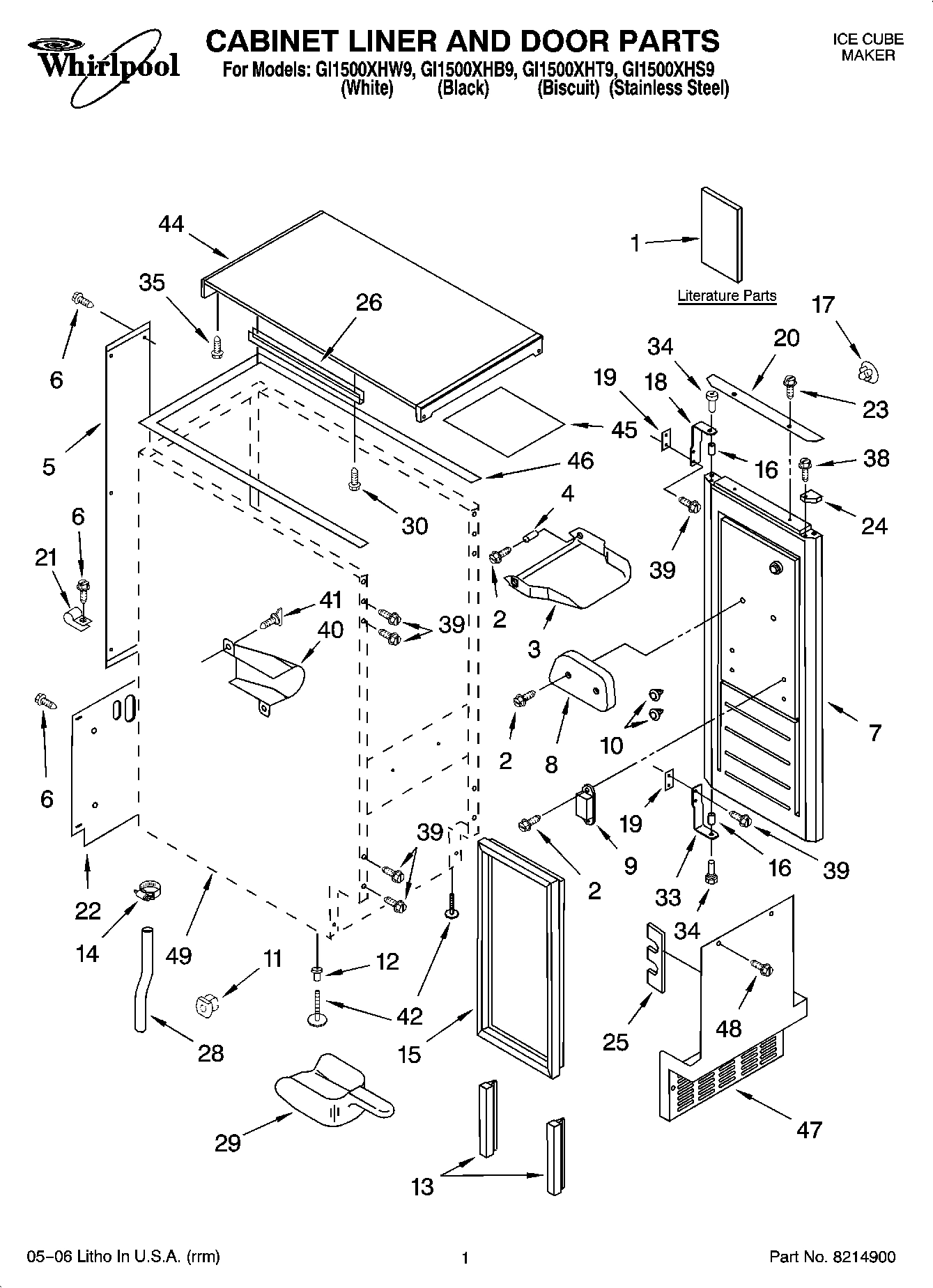

01 - CABINET LINER AND DOOR PARTS

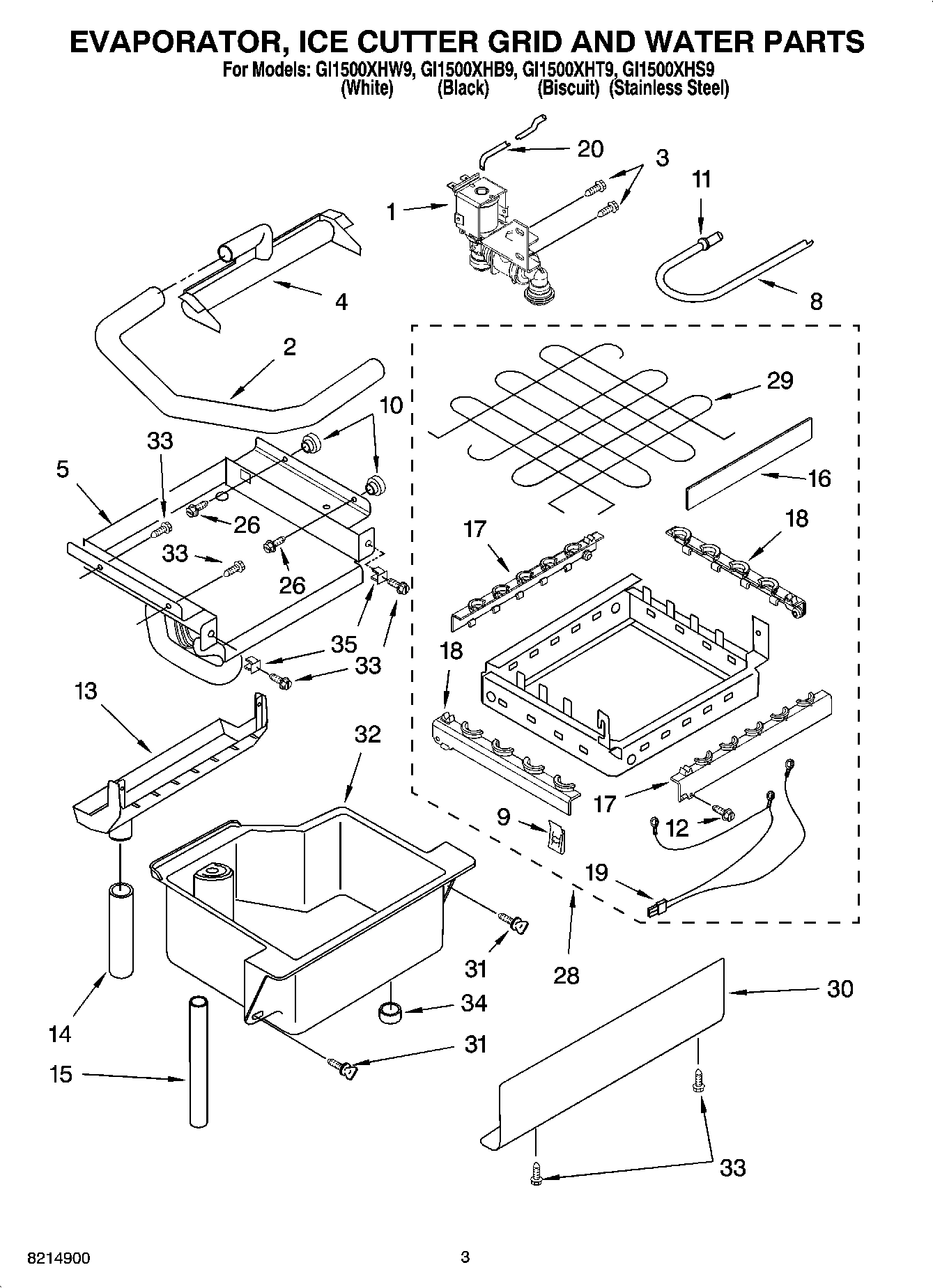

02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
05 - UNIT PARTS, OPTIONAL PARTS
03 - PUMP PARTS
04 - CONTROL PANEL PARTS
Common parts from model Whirlpool GI1500XHW9 ICE CUBE MAKER
sealer, gum (22 pcs. 3/16`` x 7``) WPL 212643 Contact Us For Availability
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
Parts Not Illustrated and Optional Parts (Not WPL ARI65808A4 Contact Us For Availability
1
Box, Control WPL 2185760 Contact Us For Availability
2
Transformer WPL 2185657 Contact Us For Availability
2
Pad, Foam WPL 2185675 Contact Us For Availability
3
Assembly, Switch (ALSO ORDER 4) WPL 2185592 Contact Us For Availability
3
Cover, Pump WPL 2185677 Contact Us For Availability
4
Spacer WPL 2185678 Contact Us For Availability
4
Bracket, Connector Assembly WPL 2185585 Contact Us For Availability
4
Overlay (Black) WPL 2208316B Contact Us For Availability
4
Overlay (Biscuit) WPL 2208316T Contact Us For Availability
4
Overlay (White) WPL 2208316W Contact Us For Availability
5
Control Board WPL 2304016 Contact Us For Availability
5
Wiring Harness, Complete Unit (Includes Power WPL 2313636 Contact Us For Availability
6
Touch Pad, Escutcheon (Black) WPL 2185784B Contact Us For Availability
6
Touch Pad, Escutcheon (Biscuit) WPL 2185784T Contact Us For Availability
6
Touch Pad, Escutcheon (White) WPL 2185784W Contact Us For Availability
7
Lens, LED WPL 2185694 Contact Us For Availability
8
Clip, Mounting WPL A201435 Contact Us For Availability
8
Mounting Bracket, Escutcheon WPL 2185786 Contact Us For Availability
9
Shim (4) WPL A201441 Contact Us For Availability
9
Nut, Speed WPL 488660 Contact Us For Availability
9
Plug, Dome WPL 2185816 Contact Us For Availability
10
Spacer WPL 836667 Contact Us For Availability
10
CLAMP, POWER CORD WPL 2185960 Contact Us For Availability
11
Fastener, Pushnut WPL 2208539 Contact Us For Availability
13
Gasket, Bottom WPL 2217367 Contact Us For Availability
13
Clamp WPL 2185825 Contact Us For Availability
14
Wiring Harness, Main to Pump, WPL 2187836 Contact Us For Availability
14
Screw WPL 489472 Contact Us For Availability
15
Coil, Solenoid WPL 759112 Contact Us For Availability
16
Sleeve, Hinge WPL 2185640 Contact Us For Availability
16
Gude-Ice, Grid WPL 2313604 Contact Us For Availability
17
Bracket, Front and Rear WPL 2313603 Contact Us For Availability
19
Harness, Grid WPL 2185681 Contact Us For Availability
21
Grommet, Edge (2) WPL 2208543 Contact Us For Availability
26
Channel, Wiring WPL 2185691 Contact Us For Availability
27
Pad, Foam (2) WPL 2217397 Contact Us For Availability
29
Plate-Mtg. WPL 2301979 Contact Us For Availability
30
Cover, Grid WPL 2185570 Contact Us For Availability
31
Screw WPL 8281197 Contact Us For Availability
31
Thumbscrew WPL 8281228 Contact Us For Availability
32
Reservoir, Water WPL 8201653 Contact Us For Availability
34
Pin, Hinge WPL 2185712 Contact Us For Availability
34
REFRIGERANT CHARGE 6.5 OZ. (R134A) WPL ARI65807A3 Contact Us For Availability
38
Screw 8-18 X 3/4 WPL 348689 Contact Us For Availability
40
Holder, Scoop WPL 2185927 Contact Us For Availability
44
Top (Black) WPL 2929700B Contact Us For Availability
44
Top (Biscuit) WPL 2929700T Contact Us For Availability
44
Top (White) WPL 2929700W Contact Us For Availability
45
Shield, Electrical WPL 2185690 Contact Us For Availability
47
Grill, Front (Biscuit) WPL 2185571T Contact Us For Availability
49
WPL ARI65806A6 WPL ARI65806A6 Contact Us For Availability
× ![]()
