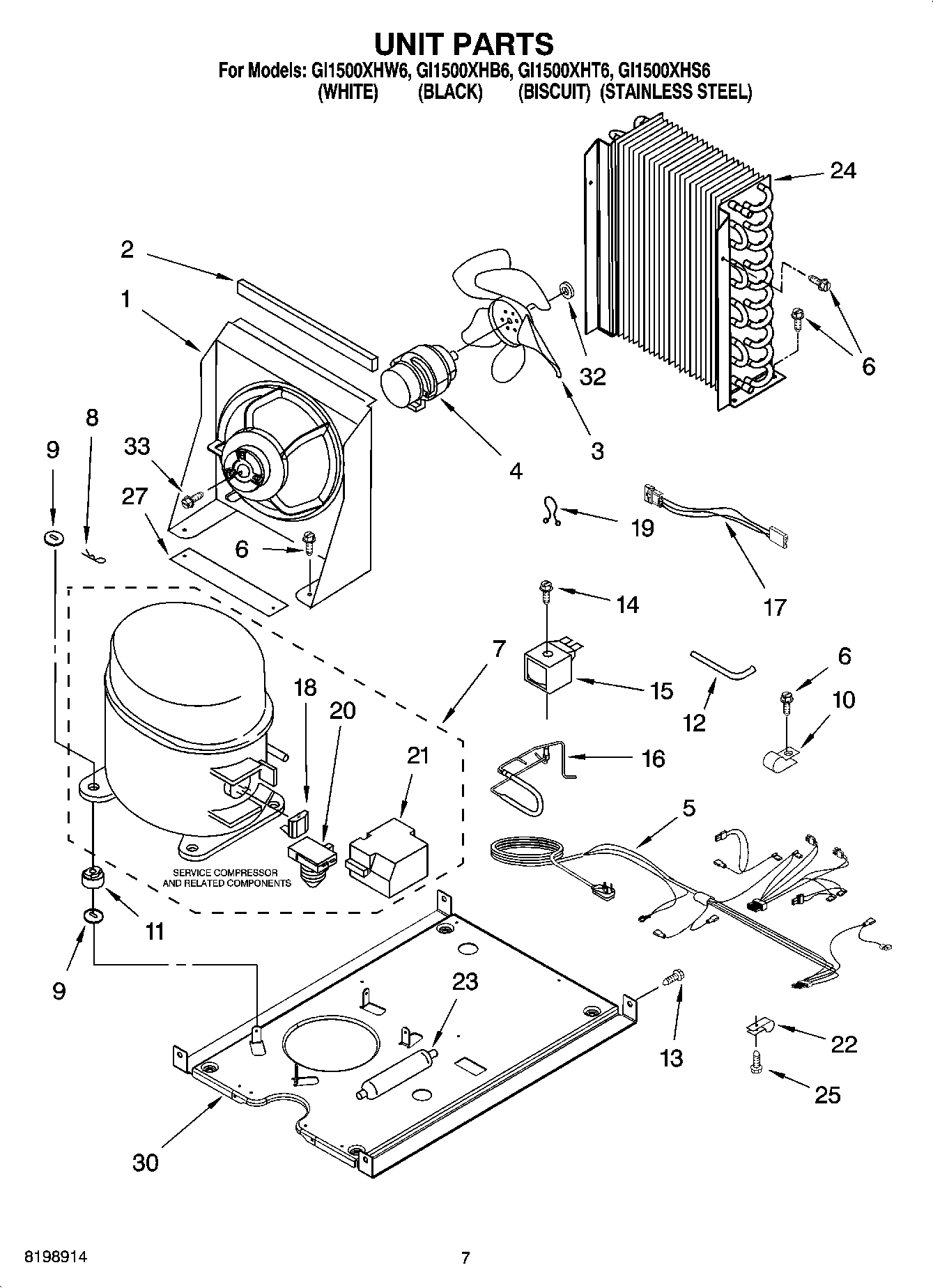

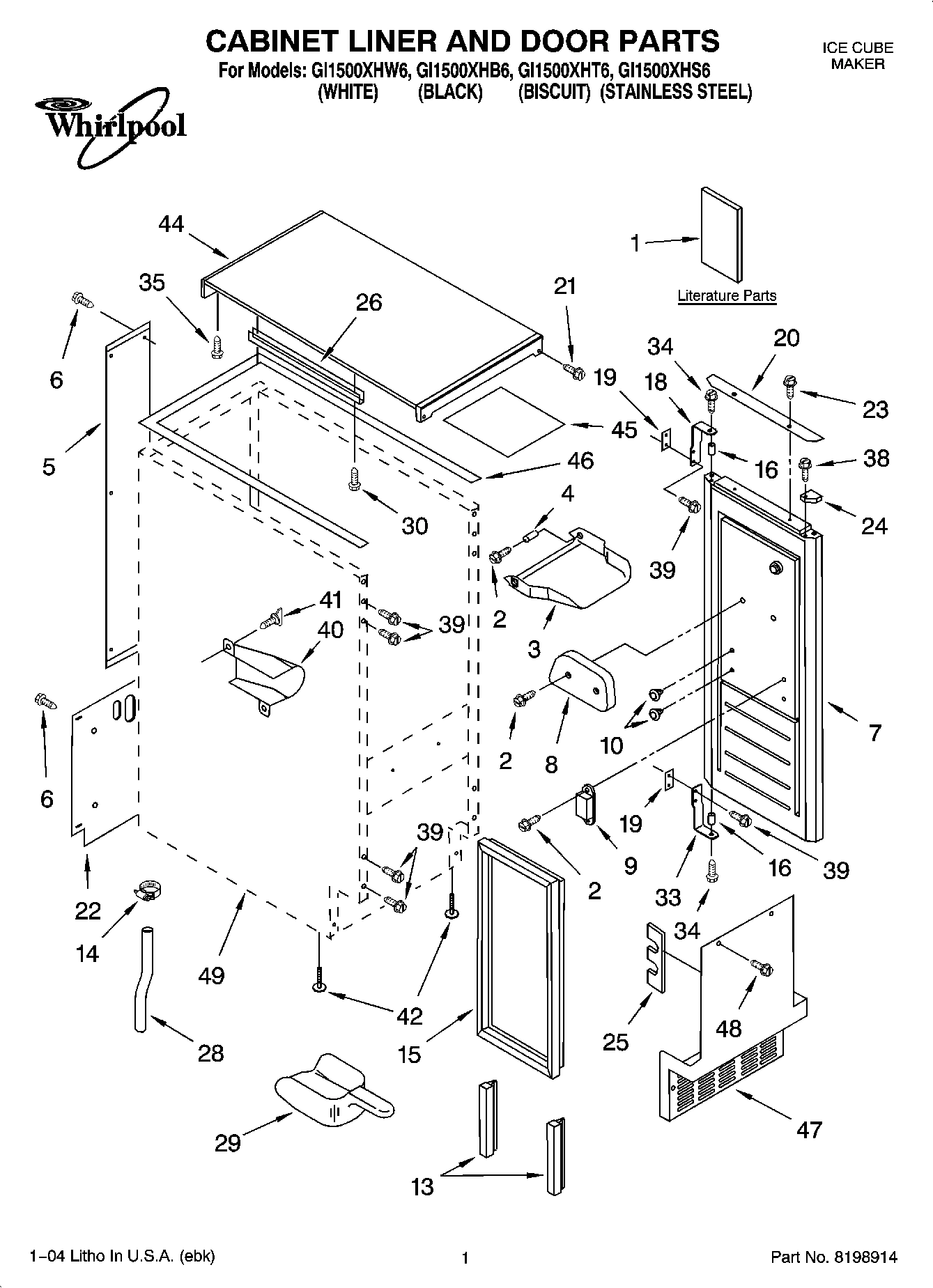

Model Whirlpool GI1500XHW6 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

WP2217220 Whirlpool Recirculation Pump Assemb In Stock WPL WP2217220 $162.07

1

Box, Control WPL 2185760 Contact Us For Availability

2

Transformer WPL 2185657 Contact Us For Availability

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $30.25

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER 4) WPL 2185592 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $30.89

4

Bracket, Connector Assembly WPL 2185585 Contact Us For Availability

4

Overlay (Black) WPL 2208316B Contact Us For Availability

4

Overlay (Biscuit) WPL 2208316T Contact Us For Availability

4

Overlay (White) WPL 2208316W Contact Us For Availability

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $379.51

5

P.C. Board WPL 6100499 Contact Us For Availability

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

6

Touch Pad, Escutcheon (Black) WPL 2185784B Contact Us For Availability

6

Touch Pad, Escutcheon (Biscuit) WPL 2185784T Contact Us For Availability

6

Touch Pad, Escutcheon (White) WPL 2185784W Contact Us For Availability

7

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

7

Lens, LED WPL 2185694 Contact Us For Availability

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.65

8

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

8

Mounting Bracket, Escutcheon WPL 2185786 Contact Us For Availability

9

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $9.13

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

Plug, Dome WPL 2185816 Contact Us For Availability

10

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

10

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

11

Fastener, Pushnut WPL 2208539 Contact Us For Availability

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $40.23

13

2185825 Whirlpool Refrigerator Clamp Backorder WPL 2185825 $27.52

13

2217367 Whirlpool Refrigerator Door Gasket Backorder WPL 2217367 $30.89

13

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $64.06

14

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $39.53

14

Wiring Harness, Main to Pump, WPL 2185703 Contact Us For Availability

15

WP2313890 Whirlpool Overflow Hose Backorder WPL WP2313890 $45.05

15

Coil, Solenoid WPL 759112 Contact Us For Availability

16

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $28.11

16

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

16

Gude-Ice, Grid WPL 2217310 Contact Us For Availability

17

WP3400909 Whirlpool Refrigerator Nut In Stock WPL WP3400909 $2.51

17

Bracket, Front and Rear WPL 2185615 Contact Us For Availability

18

8201791 Whirlpool Air Conditioner Spacer Backorder WPL 8201791 $8.99

18

WP2217223 Whirlpool Refrigerator Overload Rel Backorder WPL WP2217223 $49.46

18

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $44.14

WP2208493B Whirlpool Refrigerator Handle In Stock WPL WP2208493B $66.92

WP2208493W Whirlpool Refrigerator Handle Backorder WPL WP2208493W $67.78

WP2217224 Whirlpool Refrigerator Start Relay In Stock WPL WP2217224 $43.49

Tube WPL 2208533 Contact Us For Availability

Thermister, Ice Control WPL 2217289 Contact Us For Availability

21

WP245183 Whirlpool Nut Backorder WPL WP245183 $2.51

21

Grommet, Edge (2) WPL 2208543 Contact Us For Availability

22

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

22

WP487627 Whirlpool Refrigerator Sleeve Backorder WPL WP487627 $4.81

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $7.43

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

26

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

28

WP2185989 Whirlpool Refrigerator Tube Backorder WPL WP2185989 $40.68

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $153.80

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

33

2185711 Whirlpool Refrigerator Hinge Backorder WPL 2185711 $30.89

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $30.51

35

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

38

Screw 8-18 X 3/4 WPL 348689 Contact Us For Availability

39

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $35.08

40

2185927 Whirlpool Refrigerator Holder Backorder WPL 2185927 $32.39

41

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $42.71

42

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $28.99

42

Thumbscrew WPL 8281228 Contact Us For Availability

43

Reservoir, Water WPL 8201653 Contact Us For Availability

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

Top (Black) WPL 2929700B Contact Us For Availability

Top (Biscuit) WPL 2929700T Contact Us For Availability

Top (White) WPL 2929700W Contact Us For Availability

45

2185690 Whirlpool Shield Assembly Backorder WPL 2185690 $9.15

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $16.51

46

W11624957 Whirlpool Refrigerator Top Gasket Backorder WPL W11624957 $57.00

47

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $84.13

47

WP2185571W Whirlpool Refrigerator Grille Backorder WPL WP2185571W $72.65

47

Grill, Front (Biscuit) WPL 2185571T Contact Us For Availability

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL ARI65797A8 WPL ARI65797A8 Contact Us For Availability

WPL ARI65798A1 WPL ARI65798A1 Contact Us For Availability
