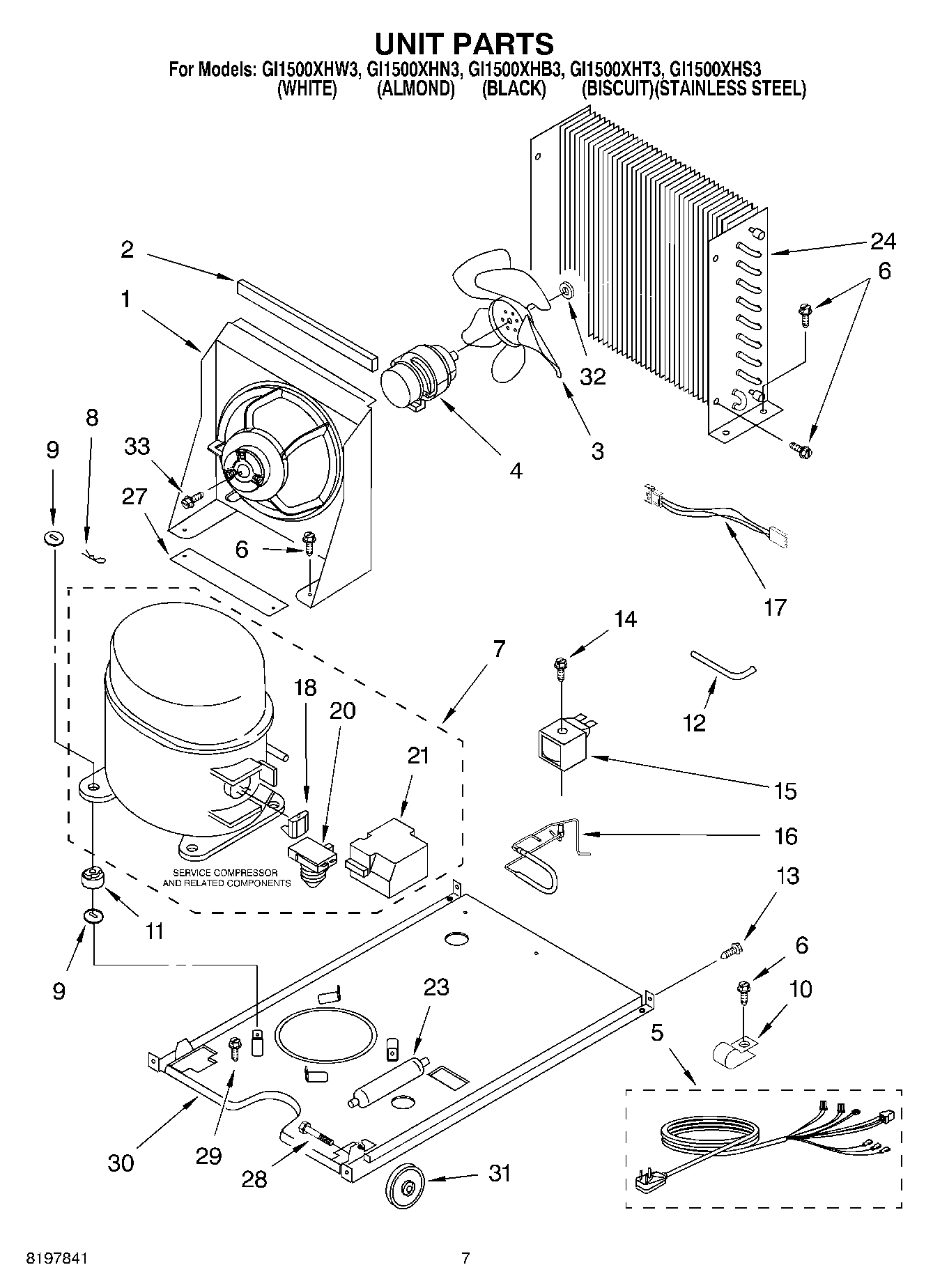

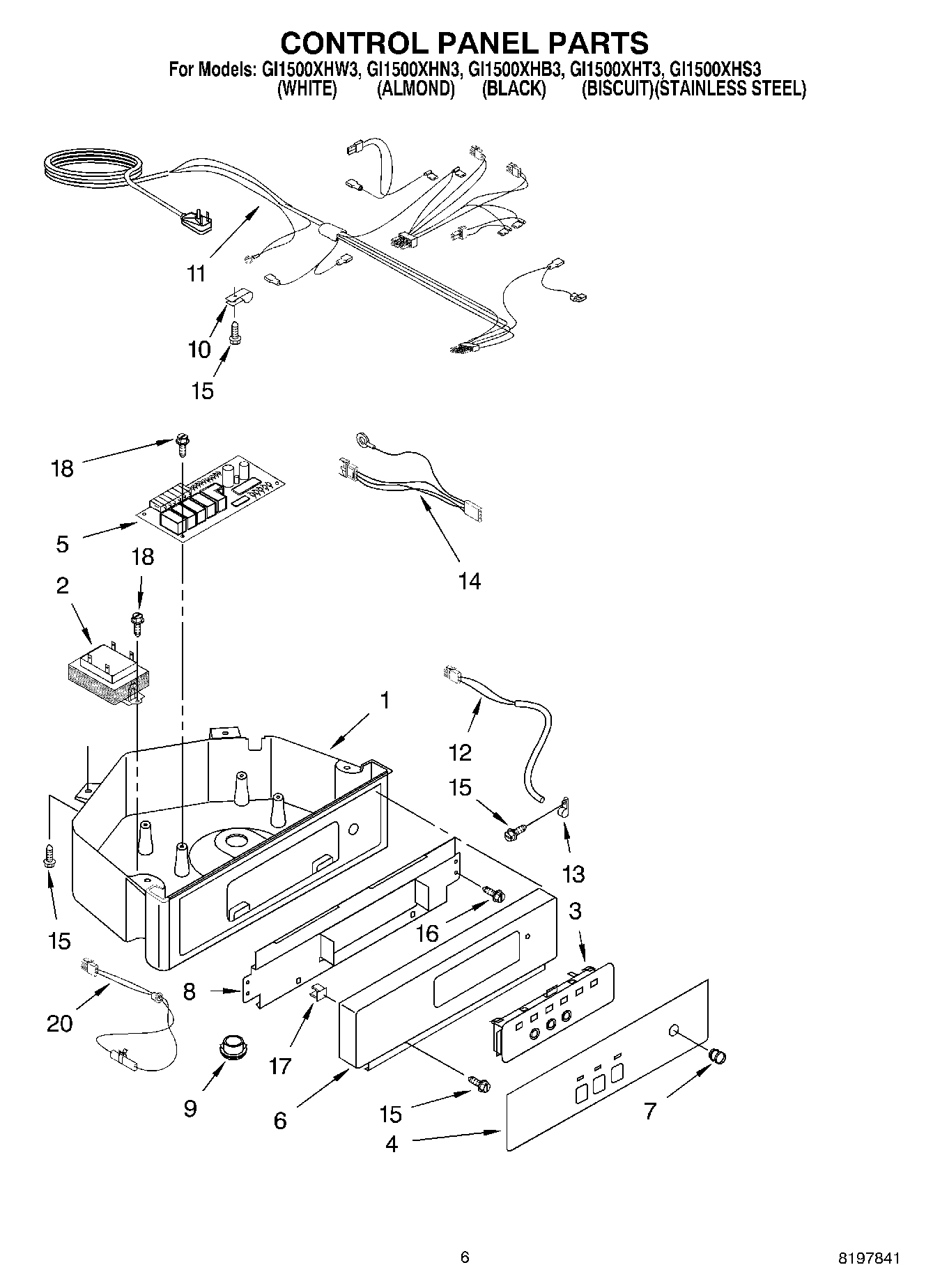

Model Whirlpool GI1500XHW3 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

WP2217220 Whirlpool Recirculation Pump Assemb In Stock WPL WP2217220 $174.64

2

Transformer WPL 2185657 Contact Us For Availability

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $28.80

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER No.4) WPL 2185592 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $29.43

5

2217394 Whirlpool Refrigerator Wire Cover Backorder WPL 2217394 $28.80

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $379.51

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

7

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

7

Door (Black) WPL 2932801B Contact Us For Availability

7

Door (Stainless Steel) WPL 2932801BS Contact Us For Availability

7

Door (Almond) WPL 2932801N Contact Us For Availability

7

Door (Biscuit) WPL 2932801T Contact Us For Availability

7

Door (White) WPL 2932801W Contact Us For Availability

8

2185695 Whirlpool Refrigerator Door Cam Backorder WPL 2185695 $28.80

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.65

8

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

9

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $9.13

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

W11223751 Whirlpool Refrigerator Catch Assemb Backorder WPL W11223751 $32.23

10

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

10

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

10

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

11

Fastener, Pushnut WPL 2208539 Contact Us For Availability

12

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

13

2217367 Whirlpool Refrigerator Door Gasket Backorder WPL 2217367 $29.43

13

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $61.00

14

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $37.64

14

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

15

WP2313890 Whirlpool Overflow Hose In Stock WPL WP2313890 $42.91

15

Coil, Solenoid WPL 759112 Contact Us For Availability

15

Gasket, Door WPL 2185610 Contact Us For Availability

16

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $26.77

16

Guide-Ice, Grid WPL 2208566 Contact Us For Availability

17

Bracket, Front and Rear WPL 2185615 Contact Us For Availability

18

2185710 Whirlpool Refrigerator Hinge Backorder WPL 2185710 $28.80

18

8201791 Whirlpool Air Conditioner Spacer Backorder WPL 8201791 $8.99

18

WP2217223 Whirlpool Refrigerator Overload Rel Backorder WPL WP2217223 $47.10

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $42.04

19

2185709 Whirlpool Refrigerator Shim Backorder WPL 2185709 $7.21

WP2208493B Whirlpool Refrigerator Handle In Stock WPL WP2208493B $63.73

WP2208493W Whirlpool Refrigerator Handle Backorder WPL WP2208493W $64.56

WP2217224 Whirlpool Refrigerator Start Relay In Stock WPL WP2217224 $36.64

Thermister, Ice Control WPL 2185680 Contact Us For Availability

Handle, Door (Almond) WPL 2208493N Contact Us For Availability

Handle, Door (Biscuit) WPL 2208493T Contact Us For Availability

Tube WPL 2208533 Contact Us For Availability

21

8281188 Whirlpool Refrigerator M Screw Backorder WPL 8281188 $4.45

21

WP245183 Whirlpool Nut Backorder WPL WP245183 $2.51

22

WP487627 Whirlpool Refrigerator Sleeve Backorder WPL WP487627 $4.81

22

WPW10136199 Whirlpool Refrigerator Unit Cover Backorder WPL WPW10136199 $48.18

23

Screw, Handle (Black) WPL 8281138 Contact Us For Availability

23

Screw, Handle (Almond) WPL 8281139 Contact Us For Availability

23

Screw, Handle (Biscuit) WPL 8281140 Contact Us For Availability

2185656B Whirlpool Floor Endcap Backorder WPL 2185656B $7.80

Filler, Endcap Left Side (Black) WPL 2185655B Contact Us For Availability

Filler, Endcap Left Side (Almond) WPL 2185655N Contact Us For Availability

Filler, Endcap Left Side (Biscuit Right Side) WPL 2185655T Contact Us For Availability

Filler, Endcap Left Side (White) WPL 2185655W Contact Us For Availability

Filler, Endcap Left Side (Almond) WPL 2185656N Contact Us For Availability

Filler, Endcap Left Side (Biscuit) WPL 2185656T Contact Us For Availability

Filler, Endcap Left Side (White) WPL 2185656W Contact Us For Availability

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $7.43

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

26

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

28

WP2185989 Whirlpool Refrigerator Tube Backorder WPL WP2185989 $38.74

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

29

W11420408 Whirlpool Refrigerator Ice Scoop In Stock WPL W11420408 $7.27

31

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

33

2185711 Whirlpool Refrigerator Hinge Backorder WPL 2185711 $29.43

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $29.06

35

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

38

Screw 8-18 X 3/4 WPL 348689 Contact Us For Availability

39

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $33.42

39

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

40

2185927 Whirlpool Refrigerator Holder Backorder WPL 2185927 $30.85

41

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $40.68

42

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

42

Thumbscrew WPL 8281228 Contact Us For Availability

43

Reservoir, Water WPL 2185624 Contact Us For Availability

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

Top (Black) WPL 2929700B Contact Us For Availability

To WPL 2929700N Contact Us For Availability

WPL 2929700T WPL 2929700T Contact Us For Availability

WPL 2929700W WPL 2929700W Contact Us For Availability

45

2185690 Whirlpool Shield Assembly Backorder WPL 2185690 $9.15

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $15.72

46

W11624957 Whirlpool Refrigerator Top Gasket Backorder WPL W11624957 $54.88

46

WP3400909 Whirlpool Refrigerator Nut Backorder WPL WP3400909 $2.51

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $80.13

WP2185571W Whirlpool Refrigerator Grille Backorder WPL WP2185571W $69.20

WPL 2185571N WPL 2185571N Contact Us For Availability

WPL 2185571T WPL 2185571T Contact Us For Availability

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11179302 Whirlpool Ice Machine Cleaner In Stock WPL W11179302 $12.81

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL ARI65787A6 WPL ARI65787A6 Contact Us For Availability
