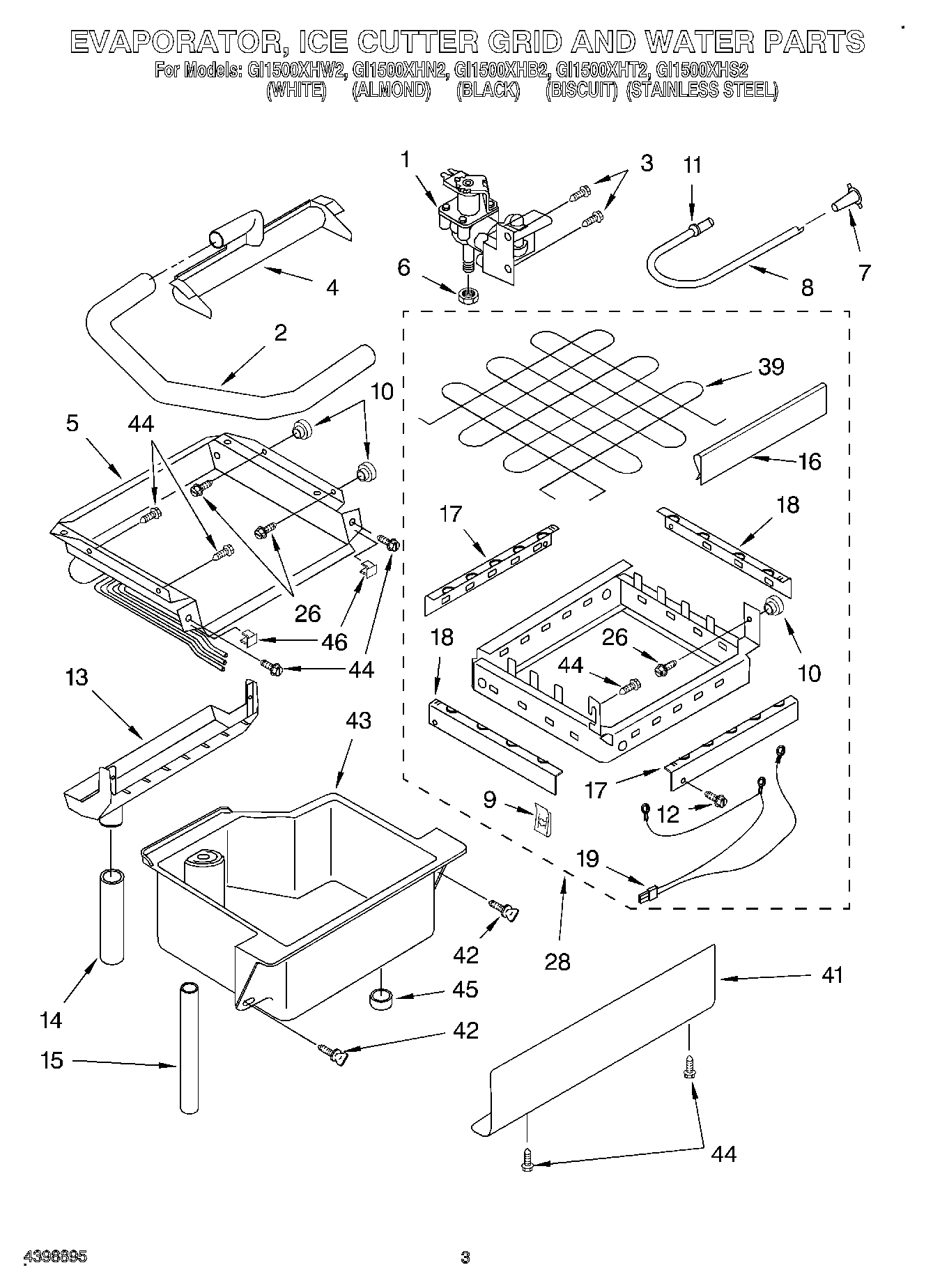

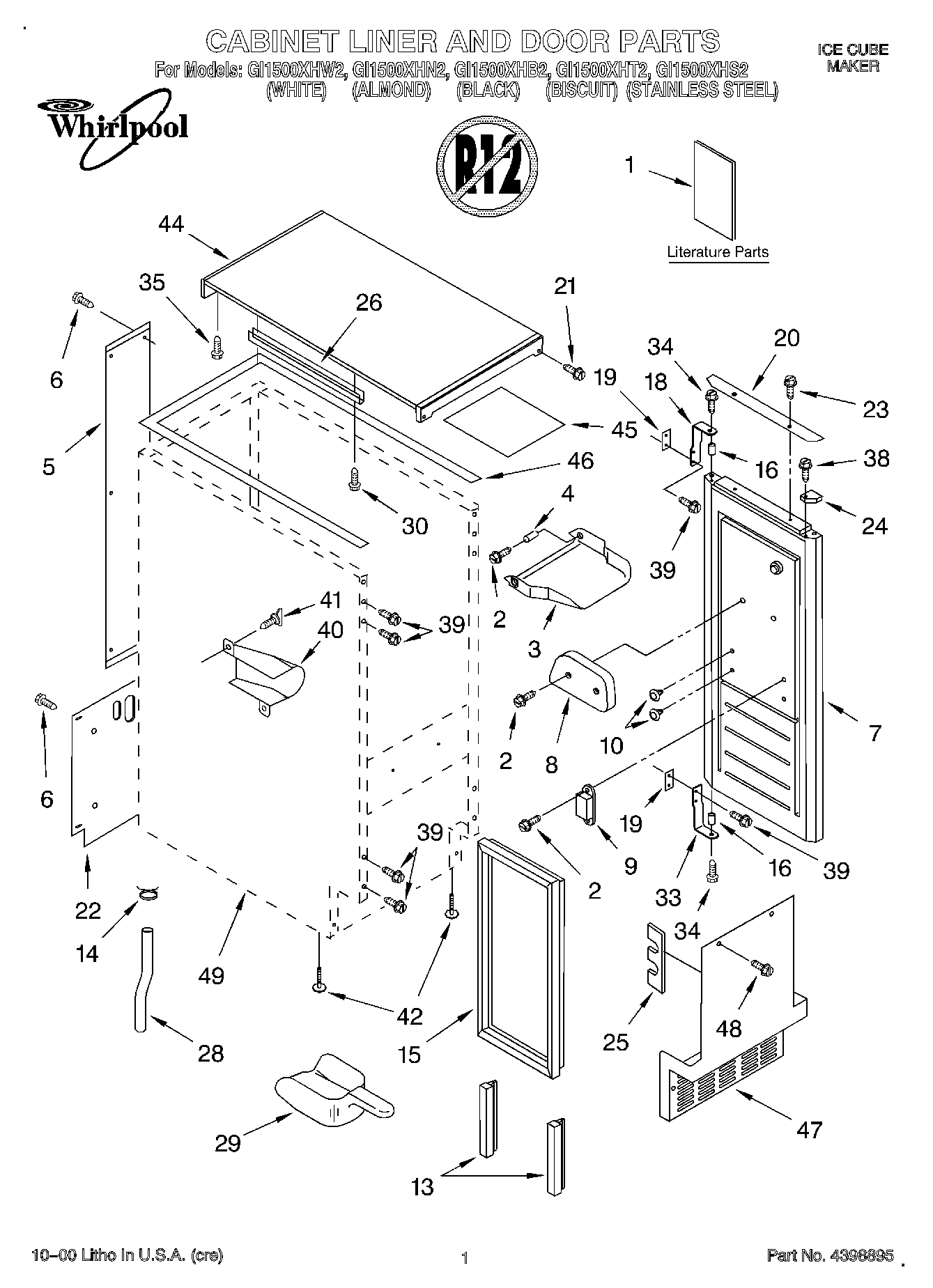

Model Whirlpool GI1500XHT2 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

WP2185532 Whirlpool Refrigerator Bracket Backorder WPL WP2185532 $30.89

1

WP2217220 Whirlpool Recirculation Pump Assemb In Stock WPL WP2217220 $162.07

1

Box, Control WPL 2185760 Contact Us For Availability

2

2185675 Whirlpool Refrigerator Foam Pad Backorder WPL 2185675 $4.78

2

Transformer WPL 2185657 Contact Us For Availability

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $30.25

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER No.4) WPL 2185592 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $30.89

4

Bracket, Connector Assembly WPL 2185585 Contact Us For Availability

4

Overlay (Black) WPL 2208316B Contact Us For Availability

4

Overlay (Almond) WPL 2208316N Contact Us For Availability

4

Overlay (Biscuit) WPL 2208316T Contact Us For Availability

4

Overlay (White) WPL 2208316W Contact Us For Availability

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $379.51

5

Wiring Harness, Complete Unit (See No.11 On C WPL ARI65758A7 Contact Us For Availability

5

P.C. Board WPL 6100499 Contact Us For Availability

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

6

Touch Pad, Escutcheon (Black) WPL 2185784B Contact Us For Availability

6

Touch Pad, Escutcheon (Almond) WPL 2185784N Contact Us For Availability

6

Touch Pad, Escutcheon (Biscuit) WPL 2185784T Contact Us For Availability

6

Touch Pad, Escutcheon (White) WPL 2185784W Contact Us For Availability

7

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

7

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

7

Lens, LED WPL 2185694 Contact Us For Availability

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.65

8

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

8

Mounting Bracket, Escutcheon WPL 2185786 Contact Us For Availability

9

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $9.13

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

Plug, Dome WPL 2185816 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

CLAMP, POWER CORD WPL 2185960 Contact Us For Availability

11

2185965 Whirlpool Refrigerator Grommet Backorder WPL 2185965 $14.31

11

Fastener, Pushnut WPL 2208539 Contact Us For Availability

11

Wiring Harness, Complete Unit (Includes Power WPL 2187286 Contact Us For Availability

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $40.23

12

Tube, Process WPL 2185548 Contact Us For Availability

13

2185825 Whirlpool Refrigerator Clamp Backorder WPL 2185825 $27.52

13

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $64.06

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $39.53

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

Screw WPL 489472 Contact Us For Availability

Wiring Harness, Main to Pump, WPL 2185703 Contact Us For Availability

15

WP2313890 Whirlpool Overflow Hose Backorder WPL WP2313890 $45.05

15

Coil, Solenoid WPL 759112 Contact Us For Availability

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $28.11

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Guide-Ice, Grid WPL 2208566 Contact Us For Availability

Valve, Body WPL 2208467 Contact Us For Availability

17

WP3400909 Whirlpool Refrigerator Nut In Stock WPL WP3400909 $2.51

17

Bracket, Front and Rear WPL 2185615 Contact Us For Availability

17

Wiring Harness, Condenser Fan WPL 2187267 Contact Us For Availability

18

8201791 Whirlpool Air Conditioner Spacer Backorder WPL 8201791 $8.99

18

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

18

Overload WPL 2183404 Contact Us For Availability

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $44.14

WP2208493B Whirlpool Refrigerator Handle In Stock WPL WP2208493B $66.92

WP2208493W Whirlpool Refrigerator Handle Backorder WPL WP2208493W $67.78

Thermister, Ice Control WPL 2185680 Contact Us For Availability

Relay, Start WPL 2183410 Contact Us For Availability

21

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

24

8201810 Whirlpool Refrigerator Condenser Backorder WPL 8201810 $194.16

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $7.43

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

26

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

27

2217397 Whirlpool Foam Pad Backorder WPL 2217397 $30.65

28

WP2185989 Whirlpool Refrigerator Tube Backorder WPL WP2185989 $40.68

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $153.80

28

Screw 10-32X15/16 WPL 3370389 Contact Us For Availability

29

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

30

Base, Unit WPL 2185511 Contact Us For Availability

31

Wheel WPL 302819 Contact Us For Availability

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

33

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $30.51

39

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $35.08

40

2185927 Whirlpool Refrigerator Holder Backorder WPL 2185927 $32.39

41

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $42.71

42

Thumbscrew WPL 681534 Contact Us For Availability

43

Reservoir, Water WPL 2185624 Contact Us For Availability

44

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $16.51

46

W11624957 Whirlpool Refrigerator Top Gasket Backorder WPL W11624957 $57.00

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $84.13

WP2185571W Whirlpool Refrigerator Grille Backorder WPL WP2185571W $72.65

WPL 2185571N WPL 2185571N Contact Us For Availability

WPL 2185571T WPL 2185571T Contact Us For Availability

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11179302 Whirlpool Ice Machine Cleaner In Stock WPL W11179302 $12.81

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL ARI65757A5 WPL ARI65757A5 Contact Us For Availability
