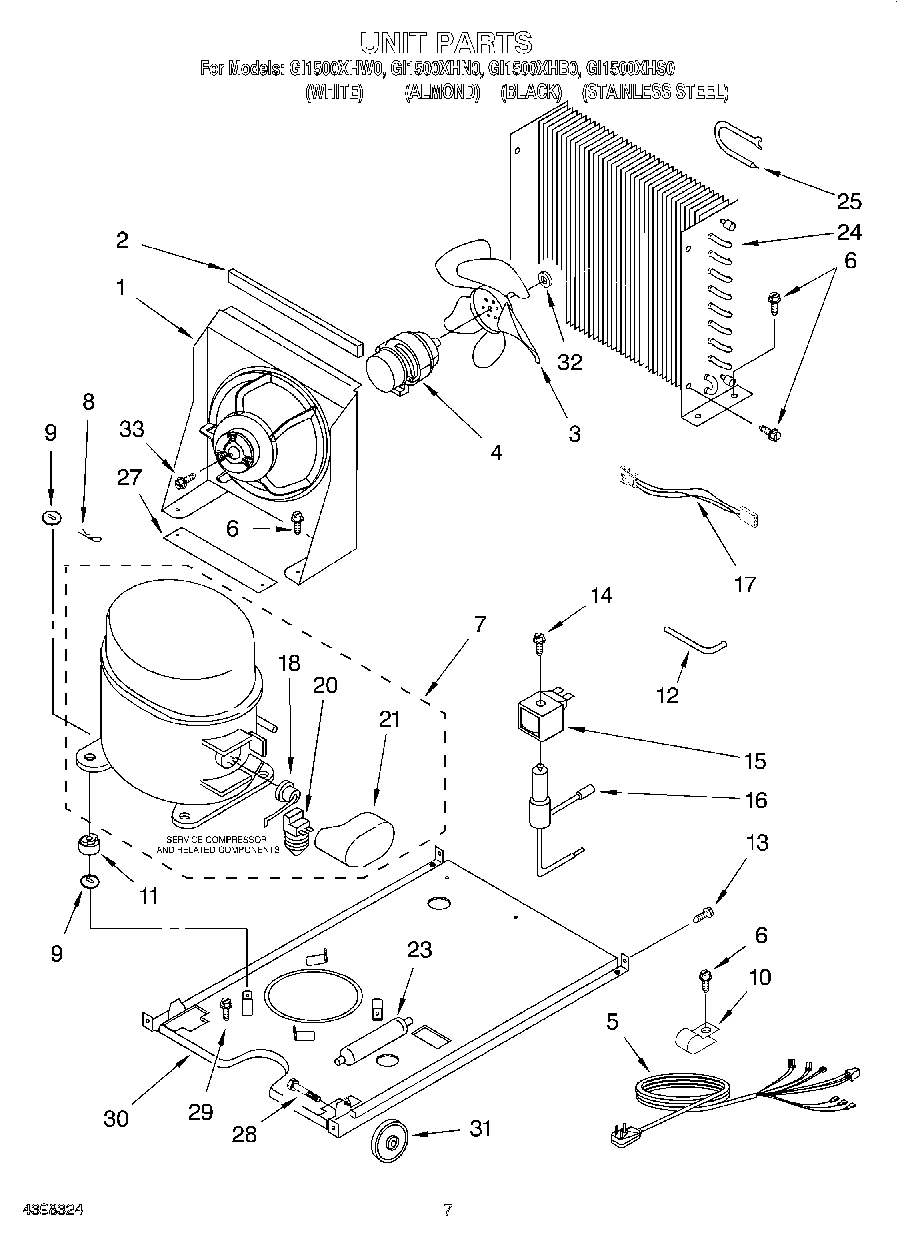

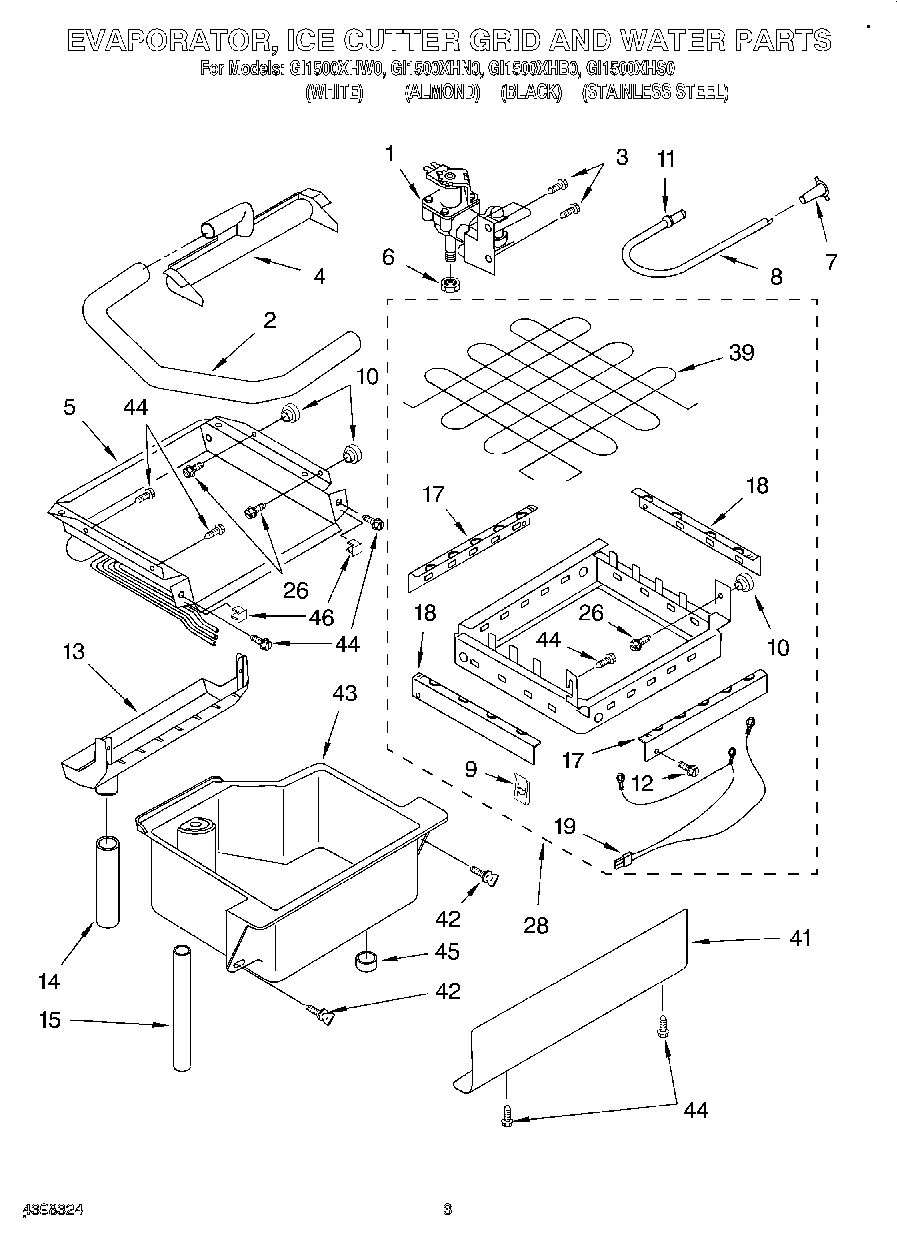

Model Whirlpool GI1500XHS0 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

Box, Control WPL 2185760 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2185734 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2185839 Contact Us For Availability

2

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

2

Transformer WPL 2185657 Contact Us For Availability

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER No.4) WPL 2185592 Contact Us For Availability

3

Bin, Door WPL 2185742 Contact Us For Availability

3

Screw 8-16 x 1/2 WPL 3400885 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $29.43

4

Overlay (Black) WPL 2185811B Contact Us For Availability

4

Overlay (Almond) WPL 2185811N Contact Us For Availability

4

Overlay (White) WPL 2185811W Contact Us For Availability

5

2217394 Whirlpool Refrigerator Wire Cover Backorder WPL 2217394 $28.80

5

P.C. Board WPL 2185621 Contact Us For Availability

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

6

Touch Pad, Escutcheon (Black) WPL 2185784B Contact Us For Availability

6

Touch Pad, Escutcheon (Almond) WPL 2185784N Contact Us For Availability

6

Touch Pad, Escutcheon (White) WPL 2185784W Contact Us For Availability

7

Lens, LED WPL 2185694 Contact Us For Availability

7

Door (Black) WPL 2932801B Contact Us For Availability

7

Door (Stainless Steel) WPL 2932801BS Contact Us For Availability

7

Door (Almond) WPL 2932801N Contact Us For Availability

7

Door (White) WPL 2932801W Contact Us For Availability

8

2185695 Whirlpool Refrigerator Door Cam Backorder WPL 2185695 $28.80

8

Mounting Bracket, Escutcheon WPL 2185786 Contact Us For Availability

9

W11223751 Whirlpool Refrigerator Catch Assemb Backorder WPL W11223751 $32.23

9

WPW10001160 Whirlpool Refrigerator Screw Backorder WPL WPW10001160 $4.56

9

Plug, Dome WPL 2185816 Contact Us For Availability

10

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

11

WP3400909 Whirlpool Refrigerator Nut Backorder WPL WP3400909 $2.51

11

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

11

Wiring Harness, Control Box WPL 2185589 Contact Us For Availability

12

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $28.80

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $39.60

2185825 Whirlpool Refrigerator Clamp Backorder WPL 2185825 $26.21

2217367 Whirlpool Refrigerator Door Gasket Backorder WPL 2217367 $29.43

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $61.00

Bracket, Connector Assembly WPL 2185585 Contact Us For Availability

14

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $37.64

14

Wiring Harness, Main to Pump, WPL 2185703 Contact Us For Availability

14

Clamp WPL 596023 Contact Us For Availability

15

Coil, Solenoid WPL 759112 Contact Us For Availability

15

Gasket, Door WPL 2185610 Contact Us For Availability

16

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $26.77

16

WP759113 Whirlpool Refrigerator Gas Valve Backorder WPL WP759113 $143.91

18

2185710 Whirlpool Refrigerator Hinge Backorder WPL 2185710 $28.80

18

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $42.04

19

2185709 Whirlpool Refrigerator Shim Backorder WPL 2185709 $7.21

WP2208493B Whirlpool Refrigerator Handle In Stock WPL WP2208493B $63.73

WP2208493W Whirlpool Refrigerator Handle Backorder WPL WP2208493W $64.56

Thermister, Ice Control WPL 2185680 Contact Us For Availability

Handle, Door (Almond) WPL 2185863N Contact Us For Availability

21

8281188 Whirlpool Refrigerator M Screw Backorder WPL 8281188 $4.45

22

WPW10136199 Whirlpool Refrigerator Unit Cover Backorder WPL WPW10136199 $48.18

23

Screw, Handle (Black) WPL 8281138 Contact Us For Availability

23

Screw, Handle (Almond) WPL 8281139 Contact Us For Availability

2185656B Whirlpool Floor Endcap Backorder WPL 2185656B $7.80

Filler, Endcap Left Side (Black) WPL 2185655B Contact Us For Availability

Filler, Endcap Left Side (Biscuit) WPL 2185655T Contact Us For Availability

Filler, Endcap Left Side (White) WPL 2185655W Contact Us For Availability

(Filler, Endcap Right Side) (Biscuit) WPL 2185656T Contact Us For Availability

FILLER, ENDCAP RIGHT SIDE (WHITE) WPL 2185656W Contact Us For Availability

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $7.43

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

28

WP2185989 Whirlpool Refrigerator Tube Backorder WPL WP2185989 $38.74

28

WP2313637 Whirlpool Cutting Grid Assembly Backorder WPL WP2313637 $145.59

29

W11420408 Whirlpool Refrigerator Ice Scoop In Stock WPL W11420408 $7.27

31

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

33

2185711 Whirlpool Refrigerator Hinge Backorder WPL 2185711 $29.43

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $29.06

35

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

38

Screw 8-18 X 3/4 WPL 348689 Contact Us For Availability

39

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $33.42

39

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

41

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $40.68

42

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

42

Thumbscrew WPL 681534 Contact Us For Availability

43

Reservoir, Water WPL 2185624 Contact Us For Availability

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

Top (Black) WPL 2929700B Contact Us For Availability

Top (Almond) WPL 2929700N Contact Us For Availability

Top (White) WPL 2929700W Contact Us For Availability

45

2185690 Whirlpool Shield Assembly Backorder WPL 2185690 $9.15

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $15.72

46

W11624957 Whirlpool Refrigerator Top Gasket Backorder WPL W11624957 $54.88

47

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $80.13

47

WP2185571W Whirlpool Refrigerator Grille Backorder WPL WP2185571W $69.20

47

Grill, Front (Almond) WPL 2185571N Contact Us For Availability

48

Screw 8-18 WPL 3400880 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11179302 Whirlpool Ice Machine Cleaner In Stock WPL W11179302 $12.81

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL ARI65726A8 WPL ARI65726A8 Contact Us For Availability
